Please read this manual carefully before operating your TV and retain
it for future reference.
Safety and Reference
Copyright ⓒ2018 LG Electronics Inc. All Rights Reserved.
www.lg.com
OLED77C8PSA
OLED77C8PDA
OLED55B8SSC
OLED55B8SDC
OLED65C8PSA
OLED65C8PDA
OLED65E8PSA
OLED65E8PDA
OLED65B8SSC
OLED65B8SDC
OLED55C8PSA
OLED55C8PDA
OLED55E8PSA
OLED55E8PDA
*MFL70340802*
(1805-REV03)

2
ENGLISH
Important Safety Instruction
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
•Only use attachments/accessories specied by the manufacturer.
•Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus.When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

ENGLISH
3
Warning! Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :TO REDUCETHE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFERTO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of
uninsulated“dangerous voltage”within the product’s
enclosure that may be of sucient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the device.
WARNING :TO REDUCETHE RISK OF FIRE AND ELECTRIC SHOCK,
DO NOT EXPOSETHIS PRODUCT TO RAIN OR MOISTURE.
•TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS
WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
•Do not place the TV and/or remote control in the following
environments:
-Keep the product away from direct sunlight.
-An area with high humidity such as a bathroom
-Near any heat source such as stoves and other devices that
produce heat.
-Near kitchen counters or humidiers where they can easily be
exposed to steam or oil.
-An area exposed to rain or wind.
-Do not expose to dripping or splashing and do not place objects
lled with liquids, such as vases, cups, etc. on or over the
apparatus (e.g., on shelves above the unit).
-Near ammable objects such as gasoline or candles, or expose
theTV to direct air conditioning.
-Do not install in excessively dusty places.
Otherwise, this may result in re, electric shock, combustion/
explosion, malfunction or product deformation.
•Ventilation
-Install yourTV where there is proper ventilation. Do not install in
a conned space such as a bookcase.
-Do not install the product on a carpet or cushion.
-Do not block or cover the product with cloth or other materials
while unit is plugged in.
•Take care not to touch the ventilation openings.When watching
theTV for a long period, the ventilation openings may become hot.
•Protect the power cord from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a door, or walked upon.
Pay particular attention to plugs, wall outlets, and the point where
the cord exits the device.
•Do not move theTV whilst the Power cord is plugged in.
•Do not use a damaged or loosely tting power cord.
•Be sure do grasp the plug when unplugging the power cord. Do
not pull on the power cord to unplug theTV.
•Do not connect too many devices to the same AC power outlet as
this could result in re or electric shock.
•Disconnecting the Device from the Main Power
-The power plug is the disconnecting device. In case of an
emergency, the power plug must remain readily accessible.
•Do not let your children climb or cling onto the TV. Otherwise, the
TV may fall over, which may cause serious injury.
•Outdoor Antenna Grounding (Can dier by country):
-If an outdoor antenna is installed, follow the precautions below.
An outdoor antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can come in contact with such power lines or circuits
as death or serious injury can occur.
Be sure the antenna system is grounded to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes and requirements for the grounding electrode.
Antenna grounding according to the National Electrical Code,
ANSI/NFPA 70

4
ENGLISH
•Grounding (Except for devices which are not grounded.)
-TV with a three-prong grounded AC plug must be connected to
a three-prong grounded AC outlet. Ensure that you connect the
earth ground wire to prevent possible electric shock.
•Never touch this apparatus or antenna during a lightning storm.
You may be electrocuted.
•Make sure the power cord is connected securely to theTV and wall
socket if not secured damage to the Plug and socket may occur and
in extreme cases a re may break out.
•Do not insert metallic or inammable objects into the product. If a
foreign object is dropped into the product, unplug the power cord
and contact the customer service.
•Do not touch the end of the power cord while it is plugged in.You
may be electrocuted.
•If any of the following occur, unplug the product
immediately and contact your local customer service.
-The product has been damaged.
-If water or another substance enters the product (like an AC
adapter, power cord, or TV).
-If you smell smoke or other odors coming from theTV
-When lightning storms or when unused for long periods of time.
Even theTV is turned o by remote control or button, AC power
source is connected to the unit if not unplugged in.
•Do not use high voltage electrical equipment near the TV (e.g., a
bug zapper).This may result in product malfunction.
•Do not attempt to modify this product in any way without written
authorization from LG Electronics. Accidental re or electric shock
can occur. Contact your local customer service for service or repair.
Unauthorized modication could void the user’s authority to
operate this product.
•Use only an authorized attachments / accessories approved by
LG Electronics. Otherwise, this may result in re, electric shock,
malfunction, or product damage.
•Never disassemble the AC adapter or power cord.This may result in
re or electric shock.
•Handle the adapter carefully to avoid dropping or striking it. An
impact could damage the adapter.
•To reduce the risk of re or electrical shock, do not touch theTV
with wet hands. If the power cord prongs are wet or covered with
dust, dry the power plug completely or wipe dust o.
•Batteries
-Store the accessories (battery, etc.) in a safe location out of the
reach of children.
-Do not short circuit, disassemble, or allow the batteries to
overheat. Do not dispose of batteries in a re. Batteries should
not be exposed to excessive heat.
•Moving
-When moving, make sure the product is turned o, unplugged,
and all cables have been removed. It may take 2 or more people
to carry larger TVs. Do not press or put stress on the front panel
of theTV. Otherwise, this may result in product damage, re
hazard or injury.
•Keep the packing anti-moisture material or vinyl packing out of the
reach of children.
•Do not allow an impact shock, any objects to fall into the product,
and do not drop anything onto the screen.
•Do not press strongly upon the panel with a hand or a sharp
object such as a nail, pencil, or pen, or make a scratch on it. It may
causedamage to screen.
•Cleaning
-When cleaning, unplug the power cord and wipe gently with a
soft/dry cloth. Do not spray water or other liquids directly on the
TV. Do not clean yourTV with chemicals including glass cleaner,
any type of air freshener, insecticide, lubricants, wax (car,
industrial), abrasive, thinner, benzene, alcohol etc., which can
damage the product and/or its panel. Otherwise, this may result
in electric shock or product damage.

ENGLISH
5
Preparing
•When theTV is turned on for the rst time after being shipped
from the factory, initialization of the TV may take approximately
one minute.
•Image shown may dier from yourTV.
•Your TV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
•The available menus and options may dier from the input source
or product model that you are using.
•New features may be added to thisTV in the future.
•The device must be easily accessed to a location outlet near the
access. Some devices are not made by turning on / o button,
turning o the device and unplugging the power cord.
•The items supplied with your product may vary depending upon
the model.
•Product specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.

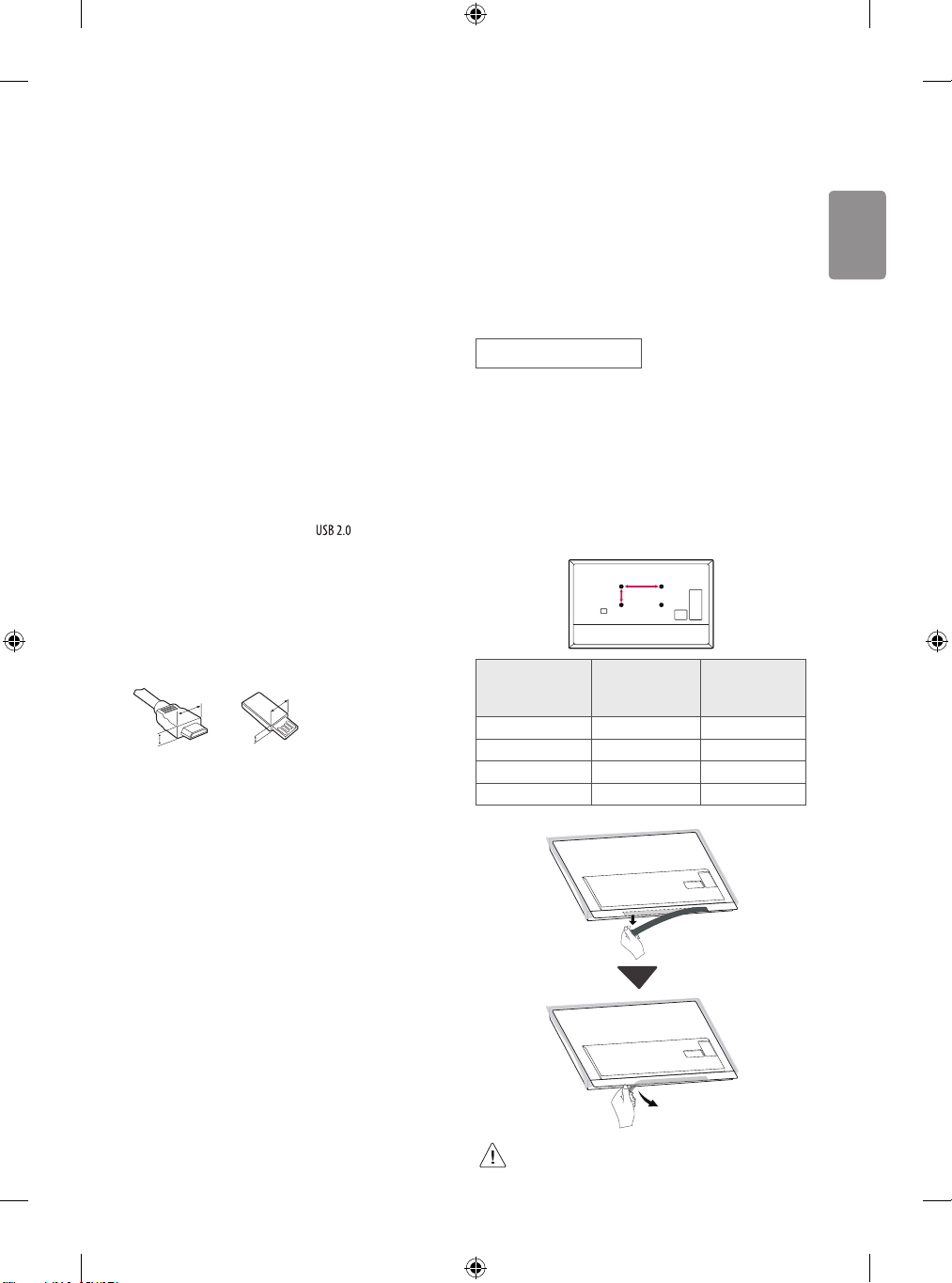

•For an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width.
•Use an extension cable that supports if the USB cable or
USB ash drive does not t into yourTV’s USB port.
•Use a certied cable with the HDMI logo attached. If you do not use
a certied HDMI cable, the screen may not display or a connection
error may occur.
•Recommended HDMI cable types (3 m or less)
-High-Speed HDMI®/™ cable
-High-Speed HDMI®/™ cable with Ethernet
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
•When attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen
from scratches.
•Make sure to wring any excess water or cleaner from the cloth.
•Do not spray water or cleaner directly onto theTV screen.
•Make sure to spray just enough of water or cleaner onto a dry cloth
to wipe the screen.
Optional Extras
Optional extras can be changed or modied for quality improvement
without any notication. Contact your dealer for buying these items.
These devices work only with certain models. The model name or
design may be changed due to the manufacturer’s circumstances or
policies.
Magic Remote Control
(Depending upon model)
AN-MR18BA
Check whether yourTV model supports Bluetooth in theWireless
Module Specication to verify whether it can be used with the Magic
Remote.
Wall Mounting Bracket
(Depending upon model)
Make sure to use screws and wall mount bracket that meet theVESA
standard. Standard dimensions for the wall mount kits are described in
the following table.
A
B
Model
OLED55/65B8*
OLED55/65C8*
OLED55/65E8*
OLED77C8*
VESA (A x B) (mm) 300 x 200 400 x 200
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket OLW480B OLW480B
• Remove the bracket itself and the protective lm inside it
when installing the wall mount. (Only OLED55/65E8*)

6
ENGLISH
Lifting and moving the TV
When moving or lifting theTV, read the following to prevent theTV
from being scratched or damaged and for safe transportation regardless
of its type and size.
• It is recommended to move theTV in the box or packing material
that theTV originally came in.
• Before moving or lifting theTV, disconnect the power cord and
all cables.
• When holding theTV, the screen should face away from you to
avoid damage.
• Hold the side and bottom of theTV frame rmly. Make sure not
to hold the transparent part, speaker, or speaker grill area. (Not
applicable for OLED55/65E8*)
• Use at least two people to move a largeTV.
• When transporting the TV by hand, hold theTV as shown in the
following illustration.
(Only OLED55/65E8*)
• Hold the side of theTV with one hand, and hold the bottom of the
rear cover with the other. (Hold the rear cover when placing theTV
on the oor. Holding the bottom glass may result in injury.) (Only
OLED55/65E8*)
• When transporting the TV, do not expose theTV to jolts or
excessive vibration.
• When transporting the TV, keep theTV upright; never turn the TV
on its side or tilt towards the left or right.
• When handling theTV, be careful not to damage the protruding
buttons.
• Avoid touching the screen at all times, as this may result
in damage to the screen.
• Do not place the product on the oor with its front facing
down without padding. Failure to do so may result in
damage to the screen.
• Do not move theTV by holding the cable holders, as the
cable holders may break, and injuries and damage to the
TV may occur, (Depending upon model).
• When attaching the stand to theTV set, place the screen
facing down on a cushioned table or at surface to
protect the screen from scratches.
Mounting on the Table
1 Lift and tilt the TV into its upright position on a table.
• Leave a minimum of 10 cm space from the wall for proper
ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
(Depending upon model)
2 Connect the power cord to a wall outlet.
• If you install theTV on a stand instead of mounting it on a
wall, make sure that the removed brackets are reattached
at the bottom of theTV. (Only OLED55/65E8*)

ENGLISH
7
• Do not apply foreign substances (oils, lubricants, etc.) to
the screw parts when assembling the product. (Doing so
may damage the product.)
• If you install theTV on a stand, you need to take actions
to prevent the product from overturning. Otherwise, the
product may fall over, which may cause injury.
• Do not use any unapproved items to ensure the safety
and lifespan of the product.
• Any damages or injuries by using unapproved items are
not covered by the warranty.
• Make sure that the screws are fastened tightly. (If they
are not fastened securely enough, the TV may tilt forward
after being installed.)
• Do not fasten the screws with excessive force otherwise
they may strip and become loose.
Securing TV to the Wall
(Depending upon model)
1 Insert and tighten the eye-bolts, orTV brackets and bolts on the back
of theTV.
• If there are bolts inserted at the eye-bolts position, remove the
bolts rst.
2 Mount the wall brackets with the bolts to the wall. Match the
location of the wall bracket and the eye-bolts on the rear of theTV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or
cable. Make sure to keep the rope parallel to the at surface.
• Use a platform or cabinet that is strong and large enough to
support the TV securely.
• Brackets, bolts and ropes are optional. You can obtain additional
accessories from your local dealer.
Mounting to the Wall
An optional wall mount can be used with your LG Television. Consult
with your local dealer for a wall mount that supports the VESA
standard used by your TV model. Carefully attach the wall mount
bracket at the rear of theTV. Install the wall mount bracket on a solid
wall perpendicular to the oor. If you are attaching theTV to other
building materials, please contact qualied personnel to install the
wall mount. Detailed instructions will be included with the wall mount.
We recommend that you use an LG brand wall mount.The LG wall
mount is easy to adjust or to connect the cables.When you do not use
LG’s wall mount bracket, use a wall mount bracket where the device is
adequately secured to the wall with enough space to allow connectivity
to external devices. If you are using a non-adjustable mount, attach the
mount to the wall. Attach the cables to theTV rst, then attach theTV
to the mount.
10 cm
10 cm
10 cm
10 cm
10 cm
(Depending upon model)
• Remove the stand before installing theTV on a wall
mount by performing the stand attachment in reverse.
• For more information of screws and wall mount bracket,
refer to the Separate purchase.
• If you intend to mount the product to a wall, attachVESA
standard mounting interface (optional parts) to the back
of the product.When you install the set to use the wall
mounting bracket (optional parts), x it carefully so as
not to drop.
• When mounting aTV on the wall, make sure not to install
theTV by hanging the power and signal cables on the
back of theTV.
• Do not install this product on a wall if it could be exposed
to oil or oil mist.This may damage the product and cause
it to fall.

8
ENGLISH
Connections
You can connect various external devices to theTV. For more
information on external device’s connection, refer to the manual
provided with each device.
Antenna/Cable
Connect an antenna, cable, or cable box to watchTV while referring to
the following. The illustrations may dier from the actual items and an
RF cable is optional.
•Make sure not to bend the copper wire of the RF cable.
Copper wire
•Complete all connections between devices, and then connect the
power cord to the power outlet to prevent damage to yourTV.
•To improve the picture quality in a poor signal area, purchase a
signal amplier.
•Use a signal splitter to use 2TVs or more.
•If the antenna is not installed properly, contact your dealer for
assistance.
•DTV Audio Supported Codec (Depending upon country) : MPEG,
AAC, HE-AAC, Dolby Digital, Dolby Digital Plus
•ThisTV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts
directly because the related standards have not been conrmed,
(Depending upon model).
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
HDMI
• Supported HDMI Audio format :
(Depending upon model)
DTS (44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz),
DTS HD (44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz),
True HD (48 kHz),
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz),
PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)
(Only UHD models)
• ( ) Picture Additional Settings
-On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
-Off : Support 4K @ 50/60 Hz 8 bit (4:2:0)
If the device connected to Input Port also supports ULTRA HD Deep
Color, your picture may be clearer. However, if the device doesn’t
support it, it may not work properly. In that case, change theTV’s
setting to o.
External Devices
Supported external devices are: Blu-ray player, HD receivers, DVD
players,VCRs, audio systems, USB storage devices, PC, gaming devices,
and other external devices.
•If you record aTV program on a Blu-ray/DVD recorder orVCR, make
sure to connect theTV signal input cable to the TV through a DVD
recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
•The external device connections shown may dier slightly from
illustrations in a manual.
•Connect external devices to theTV regardless about the order of
theTV port.
•If you connect a gaming device to theTV, use the cable supplied
with the gaming device.
•Refer to the external equipment’s manual for operating
instructions.

ENGLISH
9
•In PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE
menu until the picture is clear. Depending upon the graphics card,
some resolution settings may not allow the image to be positioned
on the screen properly.
•Some USB Hubs may not work. If a USB device connected through
a USB Hub is not detected, connect it directly to the USB port on
theTV.
•When connecting via a wired LAN, it is recommended to use a CAT
7 cable.
Remote RS-232C setup
To obtain the RS-232C external control setup information, please
visit www.lg.com. Download and read the manual, (Depending upon
model).
• Do not drop the product or let it fall over when
connecting external devices. Otherwise, this may result in
injury or damage to the product.
• When connecting external devices such as video game
consoles, make sure the connecting cables are long
enough. Otherwise, the product may fall over, which may
cause injury or damage the product.
Using Button
You can simply operate theTV functions, using the button.
Basic functions
Power On (Press)
Power Off 1(Press and hold)
Volume Control
Channels Control
1 All running apps will close, and any recording in progress will stop.
Adjusting the menu
When theTV is turned on, press the button one time.You can adjust
the Menu items using the button.
Turns the power off.
Accesses the settings menu.
Clears on-screen displays and returns toTV viewing.
Changes the input source.

10
ENGLISH
Using Magic Remote
Control
(Depending upon model)
The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use theTV correctly.
When the message“Magic Remote battery is low. Please change the
battery.”is displayed, replace the batteries.
To install batteries, open the battery cover, replace batteries (1.5V AA)
matching the and ends to the label inside the compartment,
and close the battery cover. Be sure to point the magic remote toward
the remote control sensor on theTV.To remove the batteries, perform
the installation actions in reverse.This remote uses infrared light.When
in use, it should be pointed in the direction of the TV’s remote sensor.
북미/멕시코/브라질/중남미/필리핀
12
(Some buttons and services may not be provided depending upon
models or regions.)
* To use the button, press and hold for more than 3 seconds.
(POWER) Turns the TV on or off.
You can turn your set-top box on or off by adding the set-
top box to the universal remote control for yourTV.
Number buttons Enters numbers.
(DASH) Inserts a (DASH) between numbers such as 2-1 and 2-2.
Accesses the saved channels list.
(Screen Remote) Displays the Screen Remote.
-Accesses the Universal Control Menu in some regions.
* (Screen Remote) SAP (Secondary Audio Program) Feature can
be enabled by pressing the key.
* You can access apps or LiveTV using the number
buttons corresponding to the features.
Adjusts the volume level.
(MUTE) Mutes all sounds.
* (MUTE) Accesses the Accessibility menu.
Scrolls through the saved channels.
* (Voice recognition)
Network connection is required to use the voice recognition function.
Once the voice display bar is activated on theTV screen, press and hold
the button and speak your command out loud.
(HOME) Accesses the Home menu.
* (HOME) Shows the previous history.
(Q. Settings) Accesses the Quick Settings.
* (Q. Settings) Displays the All Settings menu.
Wheel (OK) Press the center of theWheel button to select a
menu.You can change channels by using the wheel button.
(up/down/left/right) Press the up, down, left or right
button to scroll the menu. If you press buttons while the
pointer is in use, the pointer will disappear from the screen and Magic
Remote will operate like a general remote control. To display the
pointer on the screen again, shake Magic Remote to the left and right.
Returns to the previous level.
* Clears on-screen displays and returns to last input viewing.
Displays the program event according to time scheduler.
12Streaming Service buttons Connects to theVideo
Streaming Service.
(INPUT) Changes the input source.
* (INPUT) Displays a list of all the external inputs.
, , , These access special functions in some menus.
* (Red Button) Runs the record function.
Control buttons ( , ) Controls media contents.
By zooming in on the selected area, you can view it in
full screen.
* You can zoom in on the area where the remote control is
pointed.

ENGLISH
11
Registering Magic Remote Control
How to register the Magic Remote Control
To use the Magic Remote, rst pair it with yourTV.
1 Put batteries into the Magic Remote and turn theTV on.
2 Point the Magic Remote at yourTV and press the Wheel (OK) on
the remote control.
* If the TV fails to register the Magic Remote, try again after turning
the TV off and back on.
How to deregister the Magic Remote
Control
Press the and (HOME) buttons at the same time, for ve
seconds, to unpair the Magic Remote with yourTV.
* Pressing and holding the button will let you cancel and re-
register Magic Remote at the same time.
• It is recommended that an Access Point (AP) be located
more than 0.2 m away from theTV. If the AP is installed
closer than 0.2 m, the Magic remote control may not
perform as expected due to frequency interference.
• Do not mix new batteries with old batteries.This may
cause the batteries to overheat and leak.
• Failure to match the correct polarities of the battery
may cause the battery to burst or leak, resulting in re,
personal injury, or ambient pollution.
• This apparatus uses batteries. In your community there
might be regulations that require you to dispose of these
batteries properly due to environmental considerations.
Please contact your local authorities for disposal or
recycling information.
• Batteries inside or inside the product shall not be
exposed to excessive heat such as sunshine, re or the
like.
Troubleshooting
Cannot control theTV with the remote control.
• Check if anything such as tape has been placed over the receiver.
• Check if there is any obstacle between the product and the remote
control.
• Replace the batteries with new fresh ones.
No image display and no sound is produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other
products.
TheTV turns o suddenly.
• Check the power control settings.The power supply may be
interrupted.
• Check if the auto-o function is activated in the settings menu.
• If there is no signal while theTV is on, the TV will turn o
automatically after 15 minutes of inactivity.
Abnormal Display
• If theTV feels cold to the touch, there may be a small icker when
it is turned on.This is normal; there is nothing wrong withTV.
Some minute dot defects may be visible on the screen, appearing
as tiny red, green, or blue spots. However, they have no adverse
eect on the TV’s performance. Avoid touching the screen or
holding your nger(s) against it for long periods of time. Doing so
may produce some temporary distortion eects on the screen.
• This panel is an advanced product that contains millions of pixels.
In a very few cases, you could see ne dots on the screen while
you’re viewing theTV.Those dots are deactivated pixels and do not
aect the performance and reliability of the TV.

12
ENGLISH
Generated Sound
• Cracking noise A cracking noise that occurs when watching or
turning o theTV is generated by plastic thermal contraction due
to temperature and humidity.This noise is common for products
where thermal deformation is required.
• Electrical circuit humming/panel buzzing A low level noise
is generated from a high-speed switching circuit, which supplies a
large amount of current to operate a product. It varies depending
upon the product.This generated sound does not aect the
performance and reliability of the product.
• Make sure to wring any excess water or cleaner from
the cloth.
• Do not spray water or cleaner directly onto theTV screen.
• Make sure to spray just enough of water or cleaner onto a
dry cloth to wipe the screen.

ENGLISH
13
Specications
Product specications may be changed without prior notice due to upgrade of product functions.
(Depending upon country)
Broadcasting Specifications
Model
OLED55B8SSC, OLED65B8SSC, OLED55C8PSA,
OLED65C8PSA, OLED77C8PSA, OLED55E8PSA,
OLED65E8PSA
OLED55B8SDC, OLED65B8SDC, OLED55C8PDA,
OLED65C8PDA, OLED77C8PDA, OLED55E8PDA,
OLED65E8PDA
Digital Analog Digital Analog
Television system SBTVD (ISDBT) NTSC / PAL-M / PAL-N DVB-T/T2 NTSC / PAL-M / PAL-N
Program coverage VHF 2 ~ 13, UHF 14 ~ 69, DTV 2 ~ 69, CATV 1 ~ 135 VHF 2 ~ 13, UHF 14 ~ 69, DTV 2 ~ 69, CATV 1 ~ 125
External antenna
impedance 75 Ω
Wireless module (LGSBWAC72) Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz
5150 to 5725 MHz
5725 to 5850 MHz
15 dBm
14.5 dBm
14.5 dBm
Bluetooth
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz 8.5 dBm
As band channels can vary per country, the user cannot change or adjust the operating frequency.This product is configured for the regional
frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
FCC ID: BEJLGSBWAC72 / IC: 2703H-LGSBWAC72
Environment condition
Operating Temperature 0 °C to 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C
Storage Humidity Less than 85 %
•The energy information provided on the product is shown in accordance with the applicable regulations of each respective country, (Depending
upon the country).
-The Energy consumption was measured in accordance with IEC 62087.
•The actual energy consumption depends on the usage environment, (Example: content watched,TV settings, etc.).

14
ENGLISH
Open Source Software
Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open source
licenses, that is contained in this product, please visit http://opensource.
lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid for a period of three years after our last shipment of
this product.This oer is valid to anyone in receipt of this information.
Licenses
Supported licenses may dier by model.

ENGLISH
15
Important Information for
Preventing Image Retention
OLED is a self-emissive technology, which brings many signicant
benets to image quality and performance. As with any self-emitting
display, it is possible for users of OLED TVs to experience temporary
image retention under certain conditions, such as when displaying a
static image on the screen for a long time. Even so, this phenomenon is
rare under ordinary viewing conditions and is not a malfunction. Below
sets forth helpful information you may refer to for using your OLEDTV.
Examples of Images that may Cause
Image Retention
• Still images or xed images containing certain information
that are displayed uninterrupted on the screen, such as channel
numbers, station logos, program titles, news or movie subtitles,
and headlines.
• Fixed menu or icons for video game consoles or broadcasting
set-top boxes.
• Black bars shown on the left, right, top, or bottom of the screen,
such as in images with a 4:3 or 21:9 ratio.
Recommended Measures for
Preventing Image Retention
• Avoid watching a video displaying an image as listed above for
extended periods of time.
• Adjust yourTV settings as below when turning on a video
exhibiting an image as listed above for extended periods of time.
-Picture Picture Mode Settings Picture Mode Eco
-Picture Picture Mode Settings OLED LIGHT Adjust
to lower value
-Picture OLED Panel Settings Logo Luminance
Adjustment High
• Turn o the menu bar of an external device, such as a set-top
box, to prevent long-term display of the menu bar of such device.
(Please refer to the manual of the applicable external device for
instructions.)
• Adjust the settings as below when watching a video constantly
showing black bars on the left, right, top or bottom, in order to
remove the black bars.
-Picture Aspect Ratio Settings Aspect Ratio
Vertical Zoom or All-Direction Zoom
Information on Functions
Supporting Image Quality in
Relation to Temporary Image
Retention
• OLEDTV oers a function called Pixel Refresher, which helps to
prevent temporary image retention.This function can be operated
automatically or manually.
• The auto feature will activate when theTV power is turned o, but
only after theTV has been turned on for a cumulated total of four
(4) hours or more, which need not be consecutive. Pixel Refresher
will automatically run for several minutes after the screen is
turned o. (Please note that failure to supply the AC power or
disconnecting the power cord from the outlet will disable the auto
feature.)
• To manually activate Pixel Refresher, you will have to select
Picture OLED Panel Settings Pixel Refresher in the
settings. Once manually activated, the function will run for
approximately one (1) hour. During this time, a horizontal line may
appear on the screen; however, this is not a malfunction.
• If Pixel Refresher has not been manually activated for a certain
period of time, a pop-up window advising to activate this function
will appear on the screen. Please follow the instructions set forth in
the pop-up window.
• In addition to Pixel Refresher, there are other functions available
for protecting the screen from image retention. For example, a
function that automatically reduces the screen brightness level, in
part or in whole, will be activated when a static image is displayed
uninterrupted on the screen. Once the static image disappears, the
brightness level will automatically return to the previous level.This
function is an intended function, and not a malfunction.

16
ENGLISH
Regulatory
WARNING!
Never place a television set in an unstable location. A television set may
fall, causing serious personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple precautions such as:
•Using cabinets or stands recommended by the manufacturer of the
television set.
•Only using furniture that can safely support the television set.
•Ensuring the television set is not overhanging the edge of the
supporting furniture.
•Not placing the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture and
the television set to a suitable support.
•Not placing the television set on cloth or other materials that may
be located between the television set and supporting furniture.
•Educating children about the dangers of climbing on furniture to
reach the television set or its controls.
If your existing television set is being retained and relocated, the same
considerations as above should be applied.
Symbols
Refers to alternating current (AC).
Refers to direct current (DC).
Refers to class II equipment.
Refers to stand-by.
Refers to“ON”(power).
Refers to dangerous voltage.

ENGLISH
17

The model and serial numbers of the TV are located
on the back and on one side of the TV. Record them
below should you ever need service.
MODEL
SERIAL NO.

Network Settings
1 Press the (Home) button on the remote to
access the Home menu. Point the (Settings)
icon and select by pressing the Wheel (OK)
button on the remote.
2 Point the ( ) (All Settings) icon and select
by pressing the Wheel (OK) button on the
remote.
All Settings ()
3 Select the Network → Wired Connection
(Ethernet) or Wi-Fi Connection.
NETWORK
TV Name
Wired Connection (Ethernet)
Not Connected
Wi-Fi Connection
Not Connected
Wi-Fi Direct
Sound
Channels
Network
General
Safety
Accessibility
4 The device automatically tries to connect to the
network available (wired network first).
When you select the Wi-Fi Connection, the
network list available is displayed. Choose the
network you wish to use.
WI-FI CONNECTION
Network /
Sound
Channels
Network
General
Safety
Accessibility
ꔐ
Add a Hidden Wireless Network
Connect via WPS PBC
Connect via WPS PIN
Advanced Wi-Fi Settings
For wireless AP (Router) that have the
symbol, you need to enter the security key.
5 If the connection is successful, the "Connected
to Internet" is displayed.
NETWORK
TV Name
Wired Connection (Ethernet)
Not Connected
Wi-Fi Connection
Connected to Internet
Wi-Fi Direct
Sound
Channels
Network
General
Safety
Accessibility
You can check the status of connection in
Advanced Wi-Fi settings.
WI-FI CONNECTION
Network /
Sound
Channels
Network
General
Safety
Accessibility
ꔐ
Add a Hidden Wireless Network
Connect via WPS PBC
Connect via WPS PIN
Advanced Wi-Fi Settings
* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
* App icon positions may vary on the platform, depending upon the software version.
SMART TV Quick Setup Guide
www.lg.com

Troubleshooting Network Problems
1 Press the (Home) button on the remote to
access the Home menu. Point the (Settings)
icon and select by pressing the Wheel (OK)
button on the remote.
2 Point the ( ) (All Settings) icon and select
by pressing the Wheel (OK) button on the
remote.
All Settings ()
3 Select the Network →Wired Connection
(Ethernet) or Wi-Fi Connection →Advanced
Wi-Fi Settings.
NETWORK
TV Name
Wired Connection (Ethernet)
Not Connected
Wi-Fi Connection
Not Connected
Wi-Fi Direct
Sound
Channels
Network
General
Safety
Accessibility

WI-FI CONNECTION
Network /
Sound
Channels
Network
General
Safety
Accessibility
ꔐ
Add a Hidden Wireless Network
Connect via WPS PBC
Connect via WPS PIN
Advanced Wi-Fi Settings
Follow the instructions below that match to your
network status.
Check the TV or the AP (Router).
When X appears next to TV:
1Check the connection status of the TV, AP
(Router) and cable modem.
2Power off and power on in the following order;
(1st) the cable modem, wait for the cable
modem to reset, (2nd) the AP (Router), wait for
the AP (Router) to reset and (3rd) the TV.
3If you are using a static IP, enter the IP directly.
4Contact internet service provider or AP (Router)
manufacturer.
Check the AP (Router) or consult your Internet
service provider.
When X appears next to Gateway:
1Unplug the power cord of the AP (Router) or
cable modem, wait 5 seconds. Reapply power.
2Initialize (Reset) the AP (Router) or cable
modem.
3Contact Internet service provider or AP (Router)
manufacturer.
When X appears next to DNS:
1Unplug the power cord of the AP (Router) or
cable modem, wait 5 seconds. Reapply power.
2After the cable modem or AP (Router) has
initialized (Reset), try to reconnect.
3Check that the MAC address of the TV/AP
(Router) is registered with your Internet service
provider. (The MAC address displayed on the
right pane of the network status window
should be registered with your Internet service
provider.)
4Check the AP (Router) manufacturer’s website
to make sure your router has the latest firmware
version installed.
