LG 3828JD8984K User manual

Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
REFRIGERAT (TV)
le prdsent manuel
am pour pouvoir le

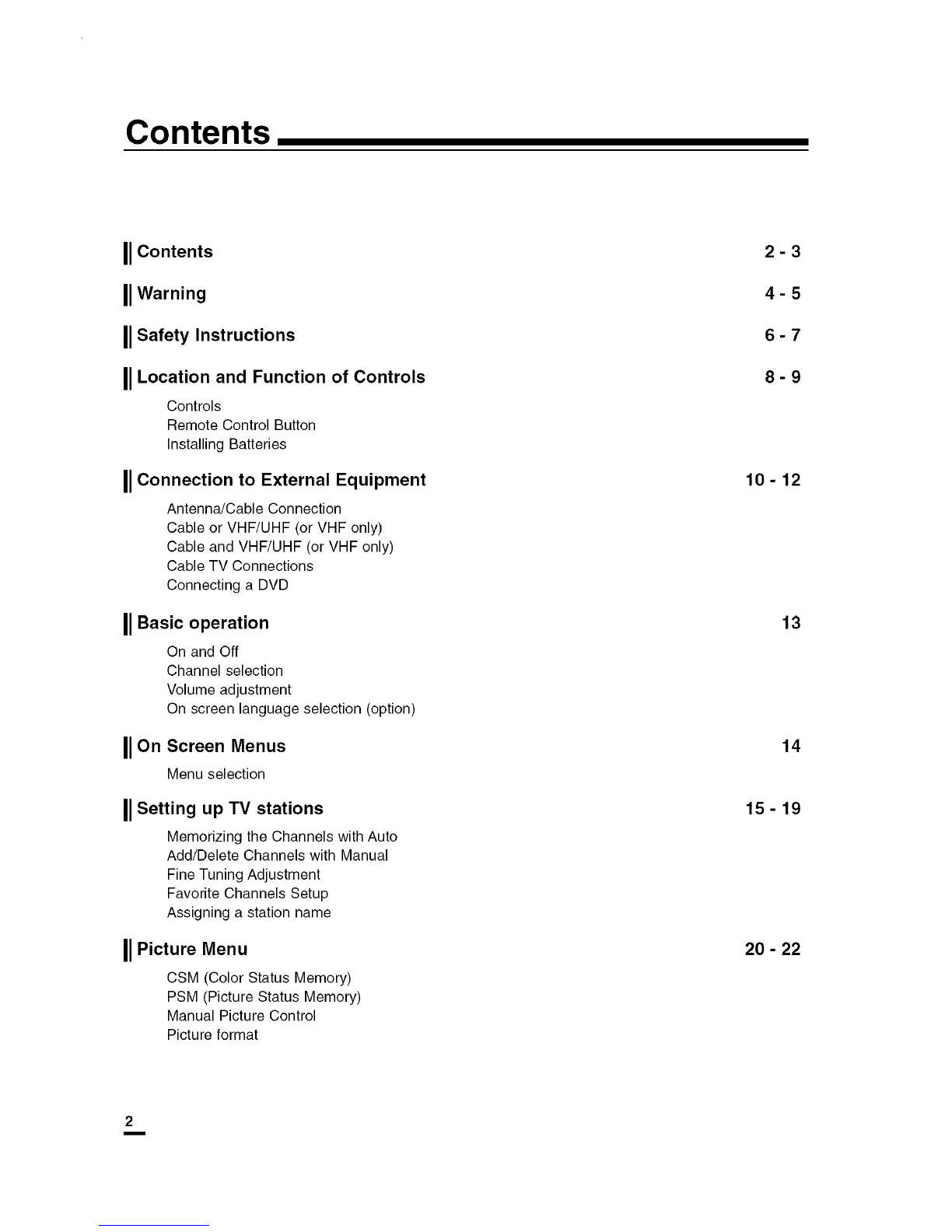

Contents
II Contents
IIWarning
II Safety Instructions
IILocation and Function of Controls
Controls
Remote Control Button
Installing Batteries
II Connection to External Equipment
Antenna/Cable Connection
Cable or VHF/UHF (or VHF only)
Cable and VHF/UHF (or VHF only)
Cable TV Connections
Connecting a DVD
II Basic operation
On and Off
Channel selection
Volume adjustment
On screen language selection (option)
II On Screen Menus
Menu selection
II Setting up TV stations
Memorizing the Channels with Auto

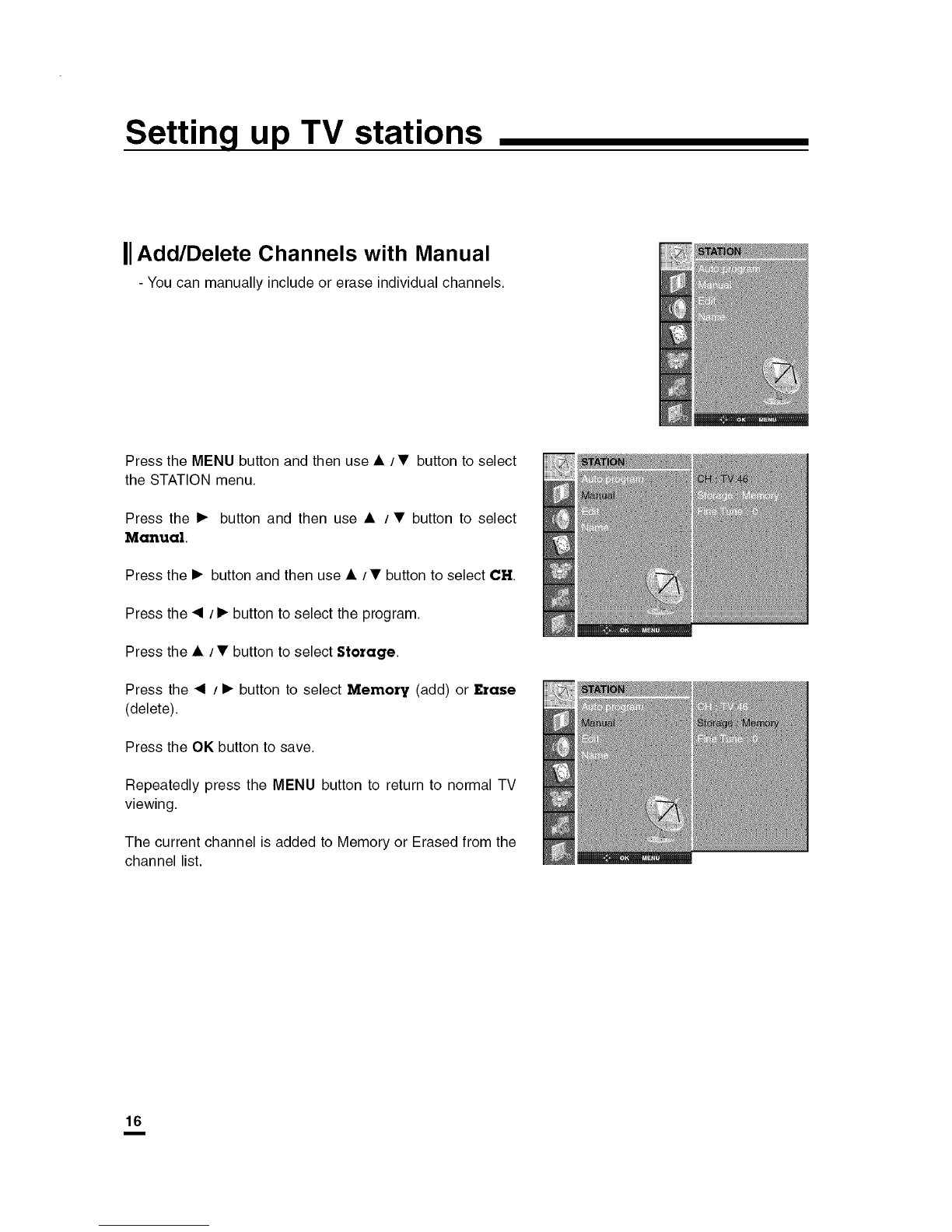

Add/Delete Channels with Manual
Fine Tuning Adjustment
Favorite Channels Setup
Assigning a station name
II Picture Menu
CSM (Color Status Memory)
PSM (Picture Status Memory)
Manual Picture Control
Picture format
2-3
4-5
6-7
8-9
10 - 12
13
14
15 - 19
20 -22
2
m

Contents

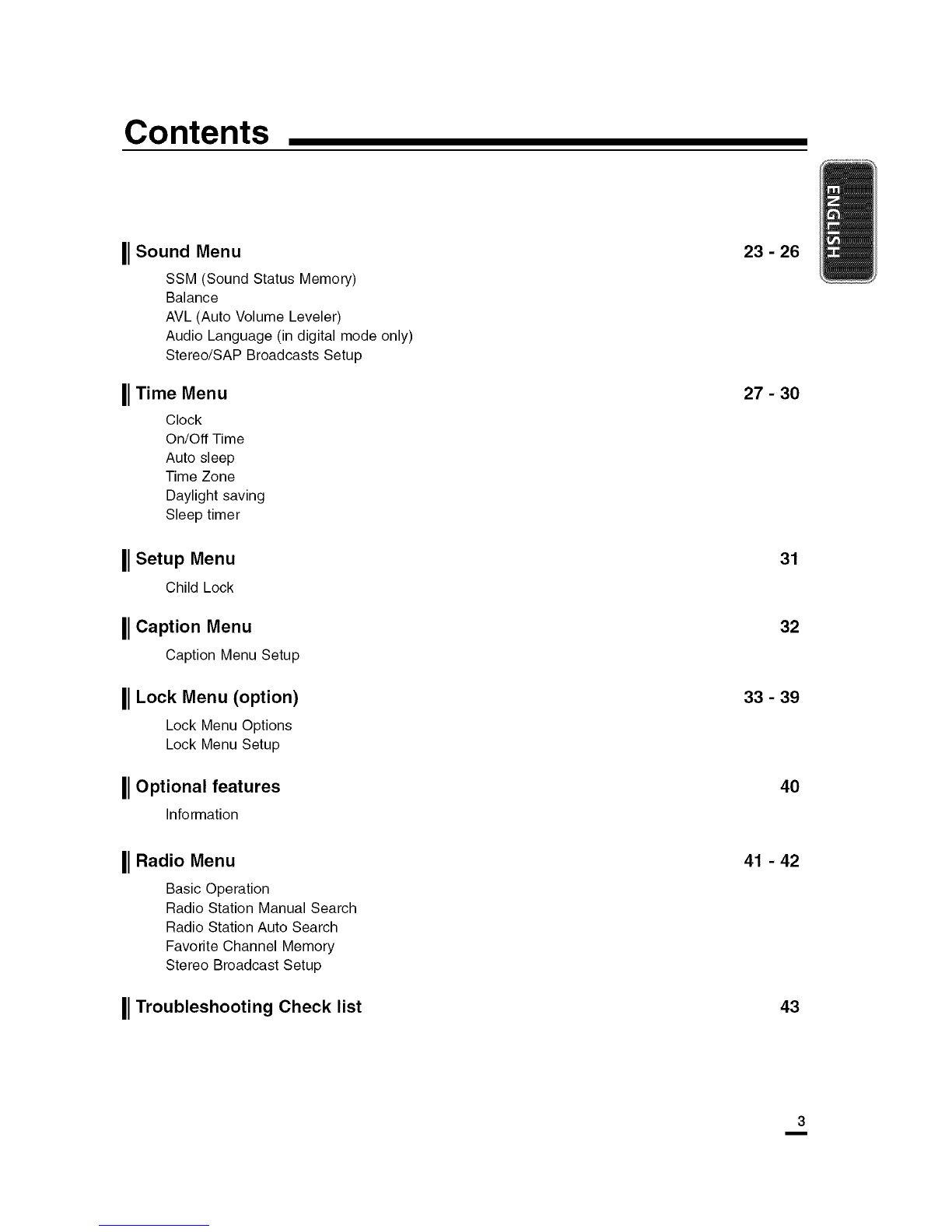

II Sound Menu
SSM (Sound Status Memory)
Balance
AVL (Auto Volume Leveler)
Audio Language (in digital mode only)
Stereo/SAP Broadcasts Setup
II Time Menu
Clock
On/Off Time
Auto sleep
Time Zone
Daylight saving
Sleep timer
II Setup Menu
Child Lock
II Caption Menu
Caption Menu Setup
II Lock Menu (option)
Lock Menu Options
Lock Menu Setup
II Optional features
Information
II Radio Menu
Basic Operation
Radio Station Manual Search
Radio Station Auto Search
Favorite Channel Memory
Stereo Broadcast Setup
II Troubleshooting Check list
23 - 26
27 -30
31
32
33 - 39
40
41 - 42
43
3
m

Warning
CAUTION
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
,_The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
IIWARNING"
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
_1NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the building, as close to the point
of the cable entry as practical.
IIREGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
4
m

Warning

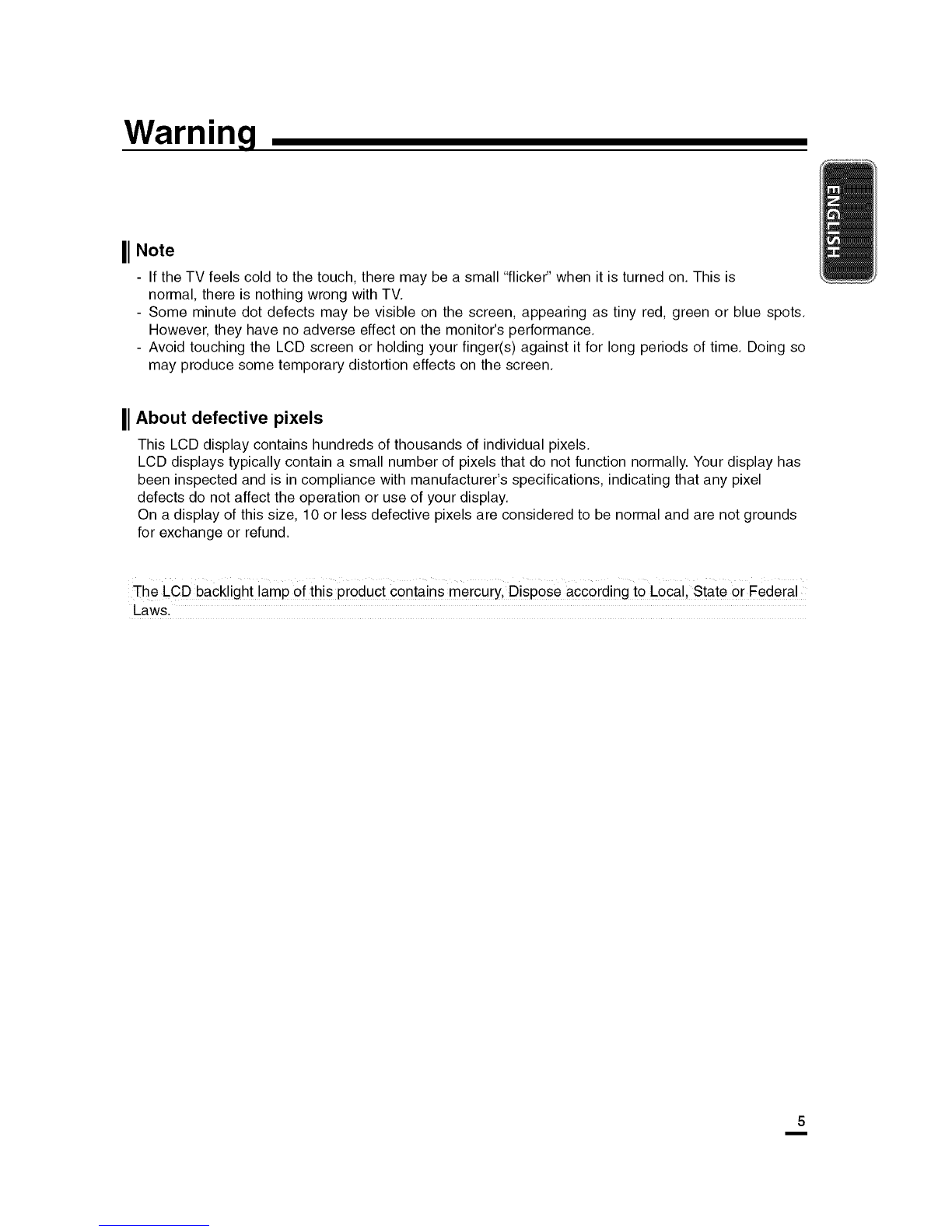

II Note
- If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is
normal, there is nothing wrong with TV.
- Some minute dot defects may be visible on the screen, appearing as tiny red, green or blue spots.
However, they have no adverse effect on the monitor's performance.
- Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so
may produce some temporary distortion effects on the screen.
_1About defective pixels
This LCD display contains hundreds of thousands of individual pixels.
LCD displays typically contain a small number of pixels that do not function normally. Your display has
been inspected and is in compliance with manufacturer's specifications, indicating that any pixel
defects do not affect the operation or use of your display.
On a display of this size, 10 or less defective pixels are considered to be normal and are not grounds
for exchange or refund.
The LCD baCk!ight !amp of this product contains mercuryl Dispose according to Loca!, state or Federa I
Laws.
5
m

Safety Instructions

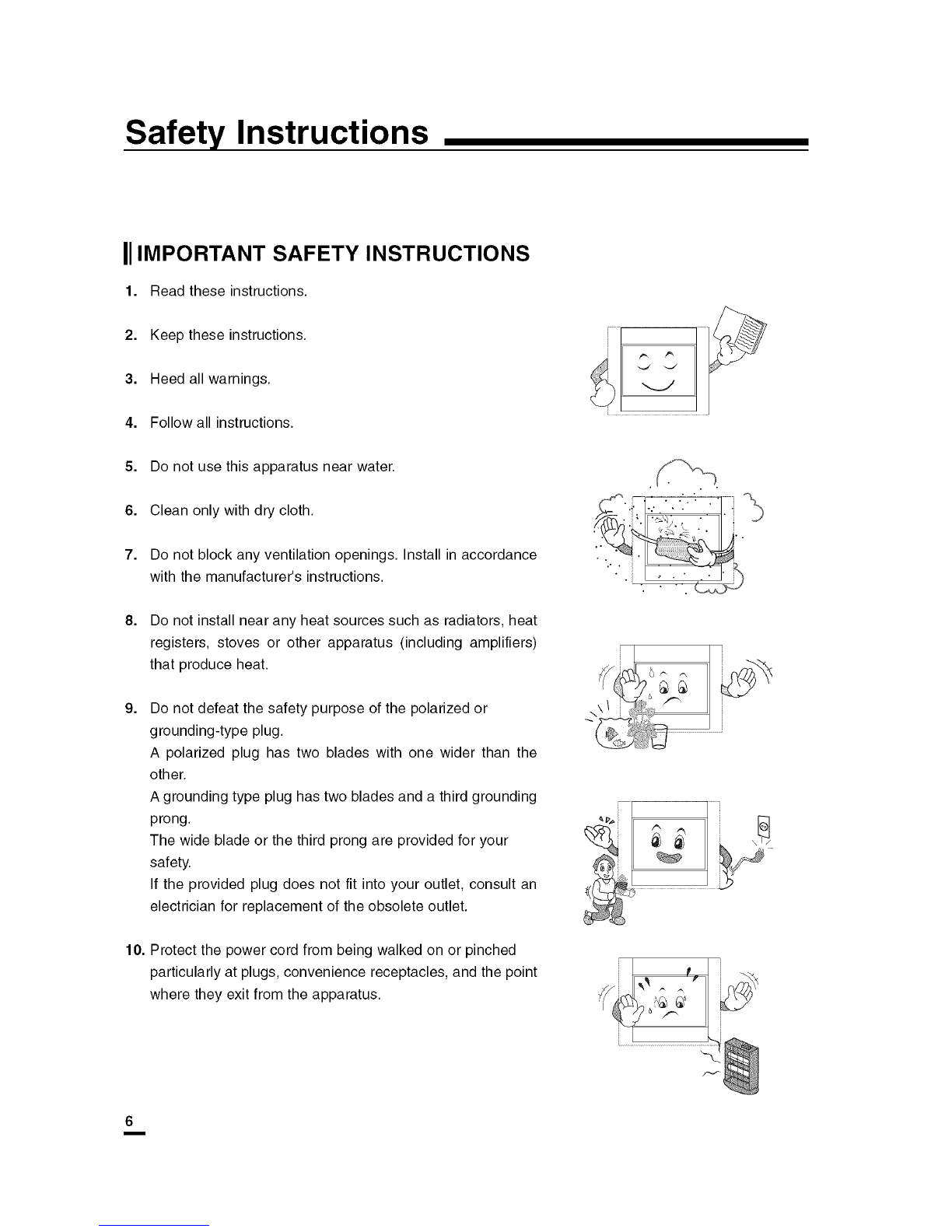

IIIMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers)
that produce heat.
,Do not defeat the safety purpose of the polarized or
grounding-type plug.
A polarized plug has two blades with one wider than the
other.
A grounding type plug has two blades and a third grounding
prong.
The wide blade or the third prong are provided for your
safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
6
m

Safety Instructions

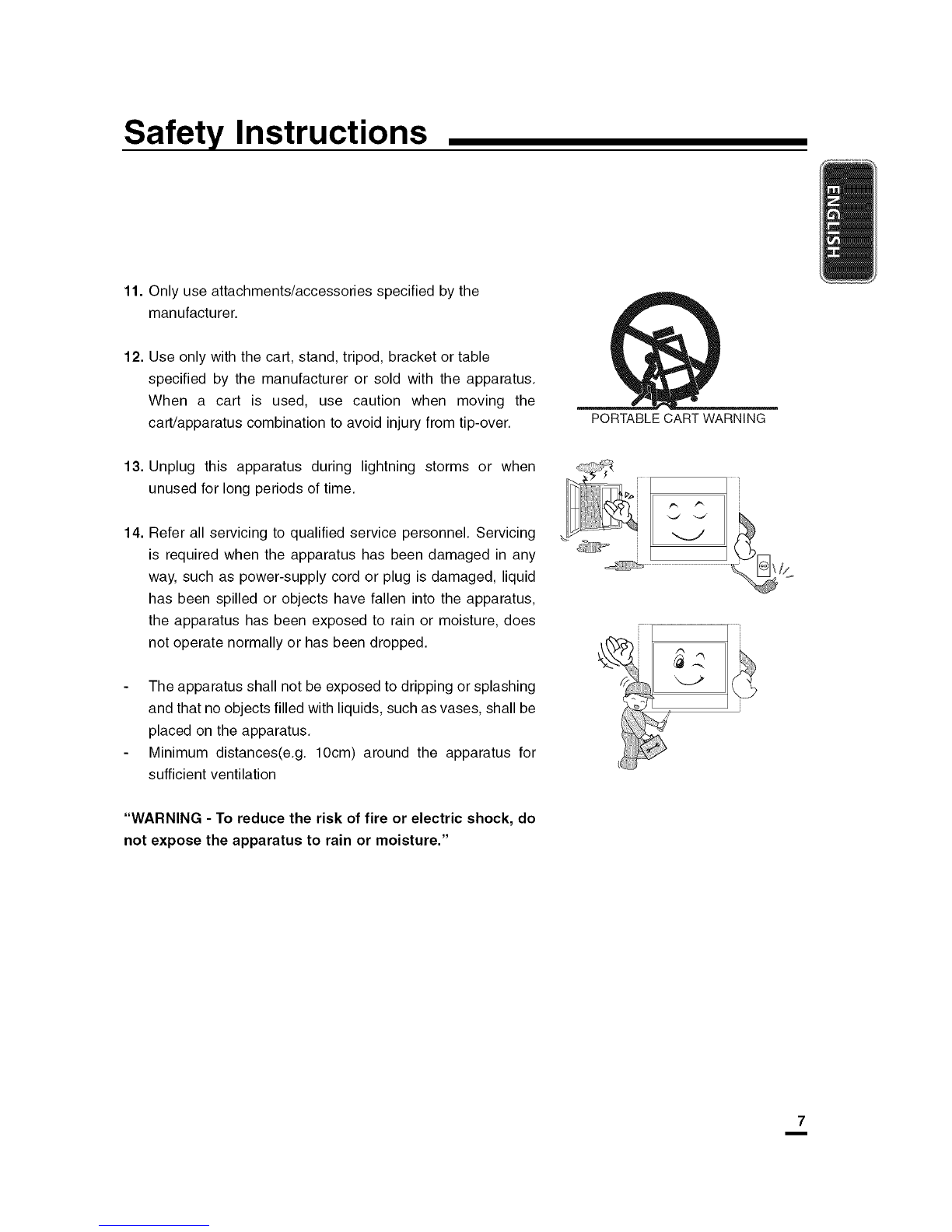

11, Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over. PORTABLE CART WARNING
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally or has been dropped.
The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
Minimum distances(e.g, lOcm) around the apparatus for
sufficient ventilation
"WARNING - To reduce the risk of fire or electric shock, do
not expose the apparatus to rain or moisture,"
7
m

Location and Function of Controls

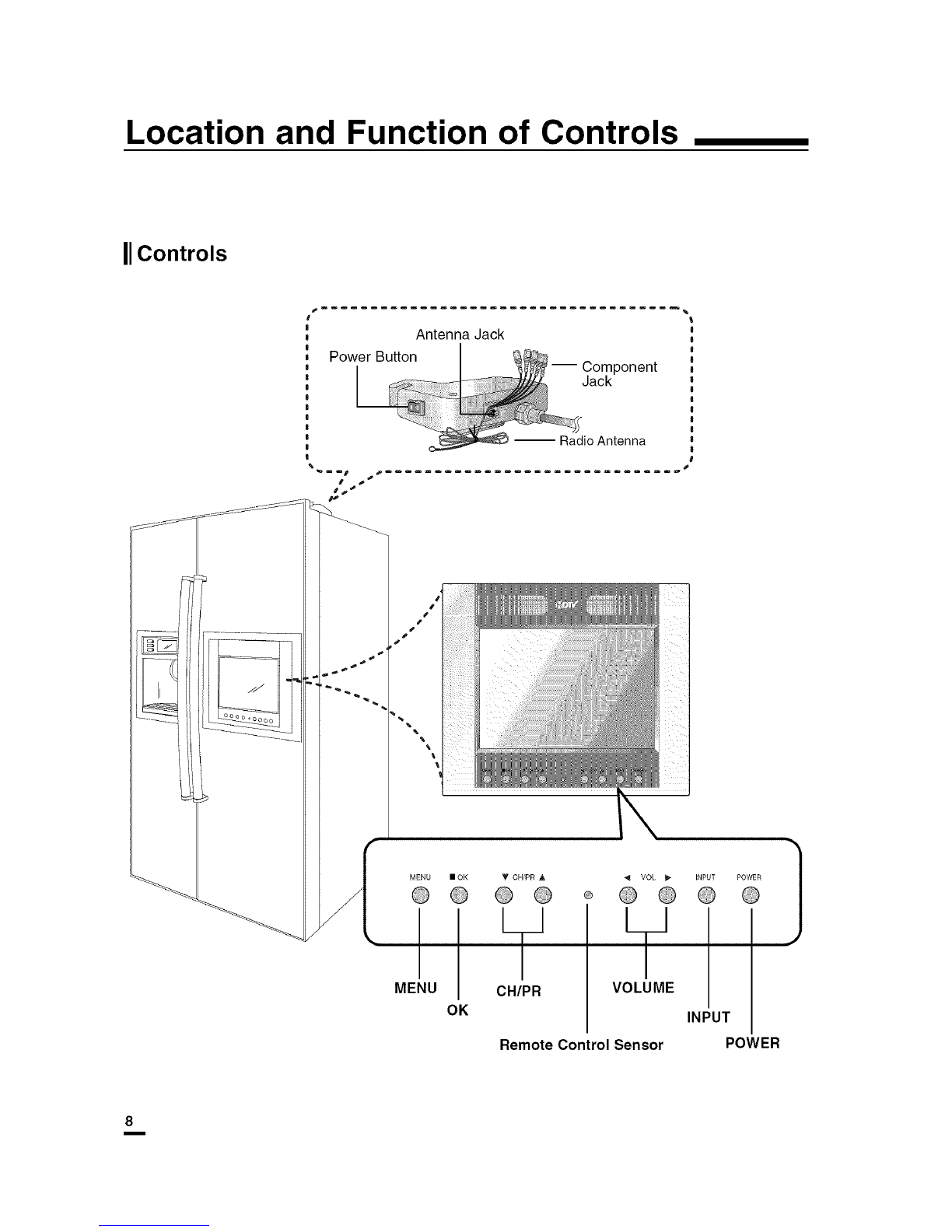

IIControls
Antenna Jack
Power Button i__ Component
Jack
-- Radio Antenna
MENU • OK
MENU
OK CH/PR
VOL
®
VOLUME
ENPUT
INPUT
Remote Control Sensor
POWER
POWER
8
m

Location and Function of Controls

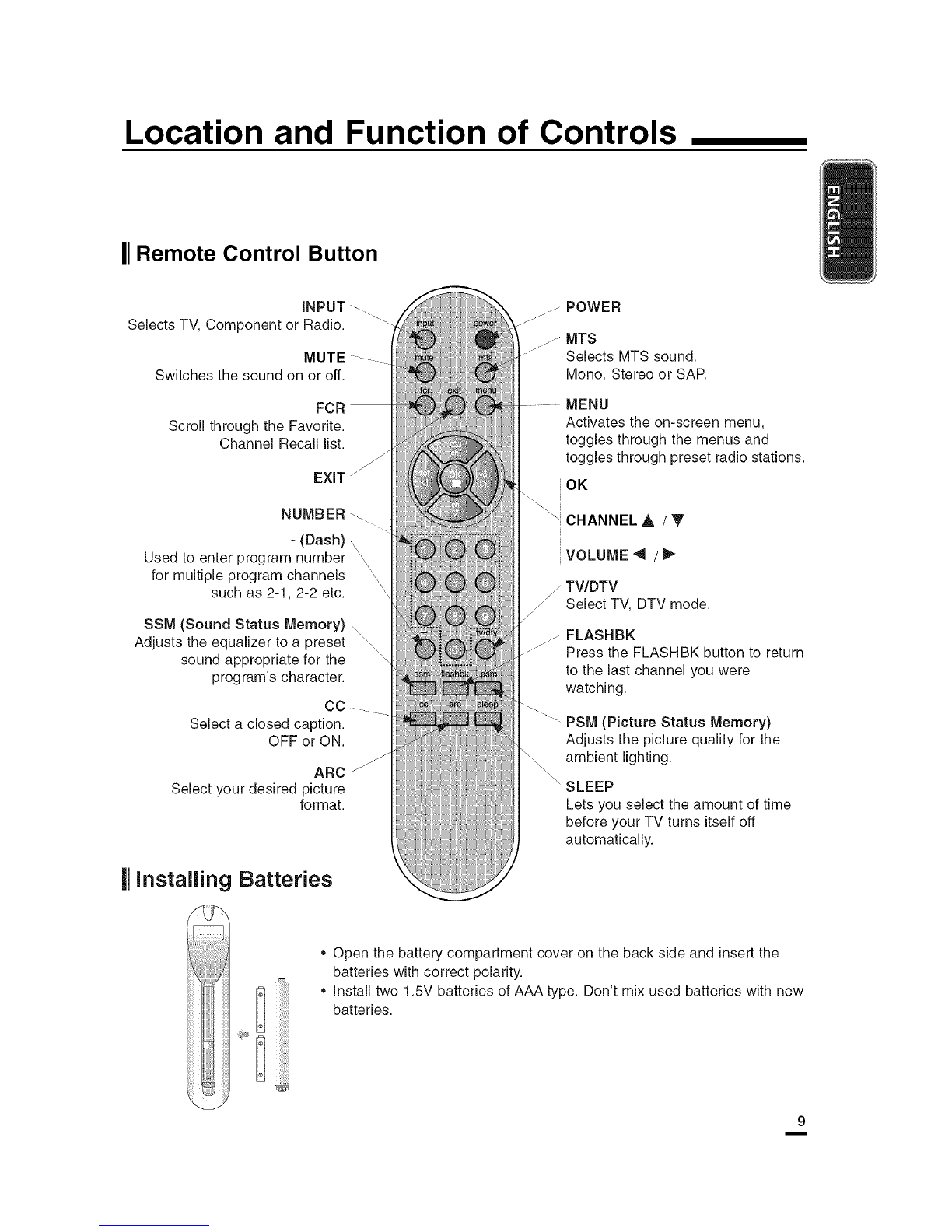

II Remote Control Button
iNPUT _.
Selects TV, Component or Radio. _
MUTE _
Switches the sound on or off.
Scroll through the Favorite.
Channel Recall list.
NUMBER
- (Dash) \,
Used to enter program number \
for multiple program channels
such as 2-1,2-2 etc.
SSM (Sound Status Memory) \
Adjusts the equalizer to a preset \
sound appropriate for the
program's character.
CC
Select a closed caption.
OFF or ON.
ARC _
Select your desired picture
format.
installing Batteries
........MTS
Selects MTS sound.
Mono, Stereo or SAP.
MENU
Activates the on-screen menu,
toggles through the menus and
toggles through preset radio stations.
iOK
CHANNEL A /V
VOLUME _ /
_ TV/DTV
Select TV, DTV mode.
zJ FLASHBK
z.... Press the FLASHBK button to return
to the last channel you were
watching.
PSM (Picture Statue Memory)
Adjusts the picture quality for the
ambient lighting.
Lets you select the amount of time
before your TV turns itself off
automatically.
• Open the battery compartment cover on the back side and insert the
batteries with correct polarity.
• Install two 1.5V batteries of AAA type. Don't mix used batteries with new
batteries.
9
m

Connection to External Equipment
IIAntenna/Cable Connection
- For optimum picture quality, adjust antenna direction if needed.
- Turn the end of the cable to the clockwise direction to be connected to the connector located at the
top of the refrigerator.
Incorrect connection may cause a bad quality.
Apartment Buildings
Wall Antenna Socket
Bronze Wire
VHF Antenna
UHF Antenna
75_ Round Cable
I
I
,,
I
_0 Turn clockwise to tighten.
f
utdoor Antenna
Single Family Home
Bronze Wire ANT
lr75D
Be careful not to bend the bronze wire
when connecting the antenna. JJ
Signal /t,
Amp fer r-_)__
•In a poor signal area to improve picture quality, purchase and install a signal amplifier.
• If the antenna is not installed properly, contact your dealer for assistance.
10
m

Connection to External Equipment

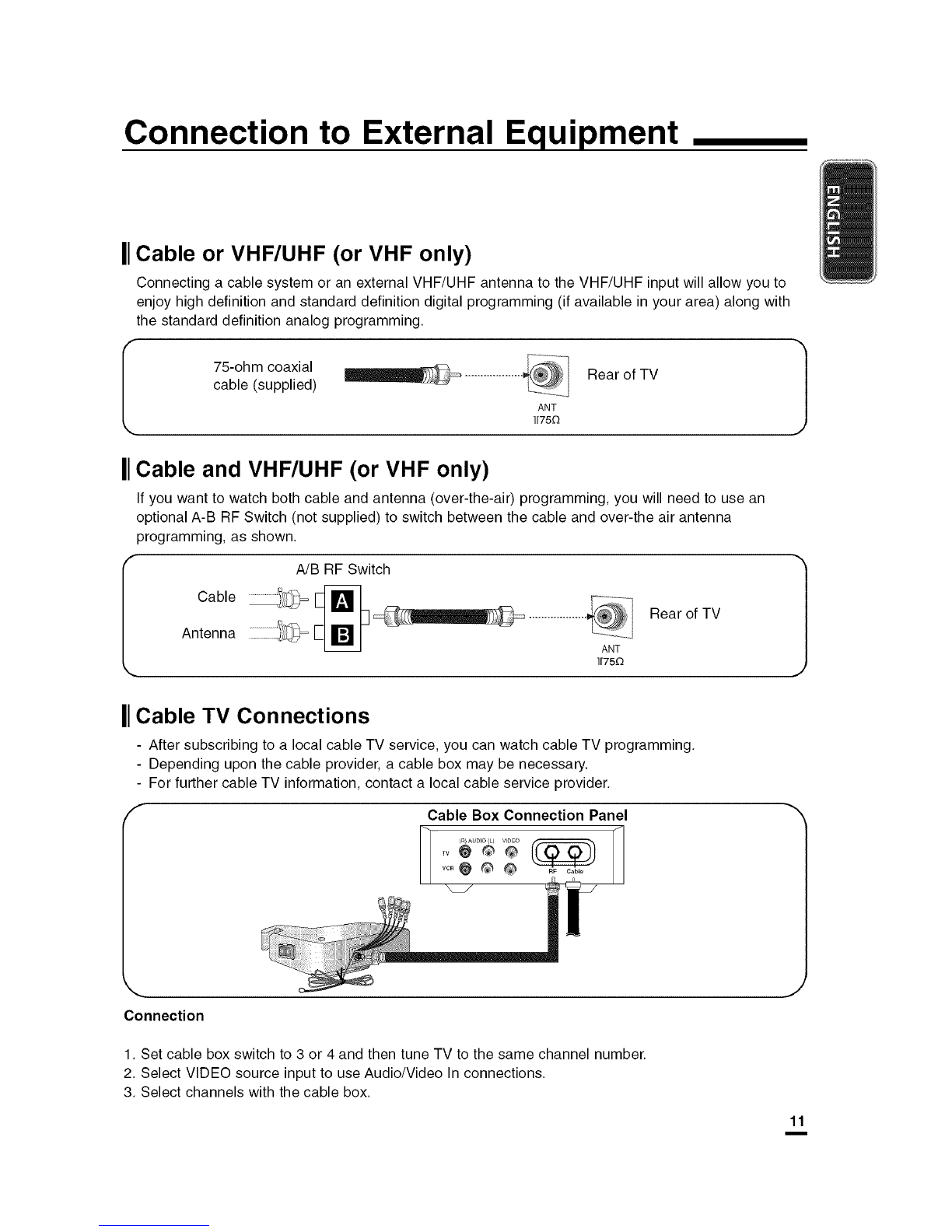

_1Cable or VHF/UHF (or VHF only)
Connecting a cable system or an external VHF/UHF antenna to the VHF/UHF input will allow you to
enjoy high definition and standard definition digital programming (if available in your area) along with
the standard definition analog programming.
I 75-ohm coaxial
cable (supplied) _ ...................
ANT
1175_
Rear of TV
_1Cable and VHF/UHF (or VHF only)
If you want to watch both cable and antenna (over-the-air) programming, you will need to use an
optional A-B RF Switch (not supplied) to switch between the cable and over-the air antenna
programming, as shown.
A/B RF Switch
Cable ....................._._
Antenna Rear of TV
ANT
]r75_
_1Cable TV Connections
- After subscribing to a local cable TV service, you can watch cable TV programming.
- Depending upon the cable provider, a cable box may be necessary.
- For further cable TV information, contact a local cable service provider.
fCable Box Connection Panel
(R)AUDIO(L) WDEO
Connection
1. Set cable box switch to 3 or 4 and then tune TV to the same channel number.
2. Select VIDEO source input to use Audio/Video In connections.
3. Select channels with the cable box.
11
m

Connection to External Equipment
IIConnecting a DVD
DVD Connection Panel
Connection
1. Connect the DVD video outputs to the COMPONENT (Y, PB, PR) jacks and connect the DVD audio
outputs to the AUDIO jacks.
2. Turn on the DVD player, insert a DVD.
3. Press the INPUT button to select Component.
4. Press the PLAY button on the DVD.
The DVD playback picture appears on the screen.
5. Refer to the DVD player's manual for operating instructions.
Component Input ports
To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports
of the TV
Video output ports
of DVD player
12
m

Basic operation

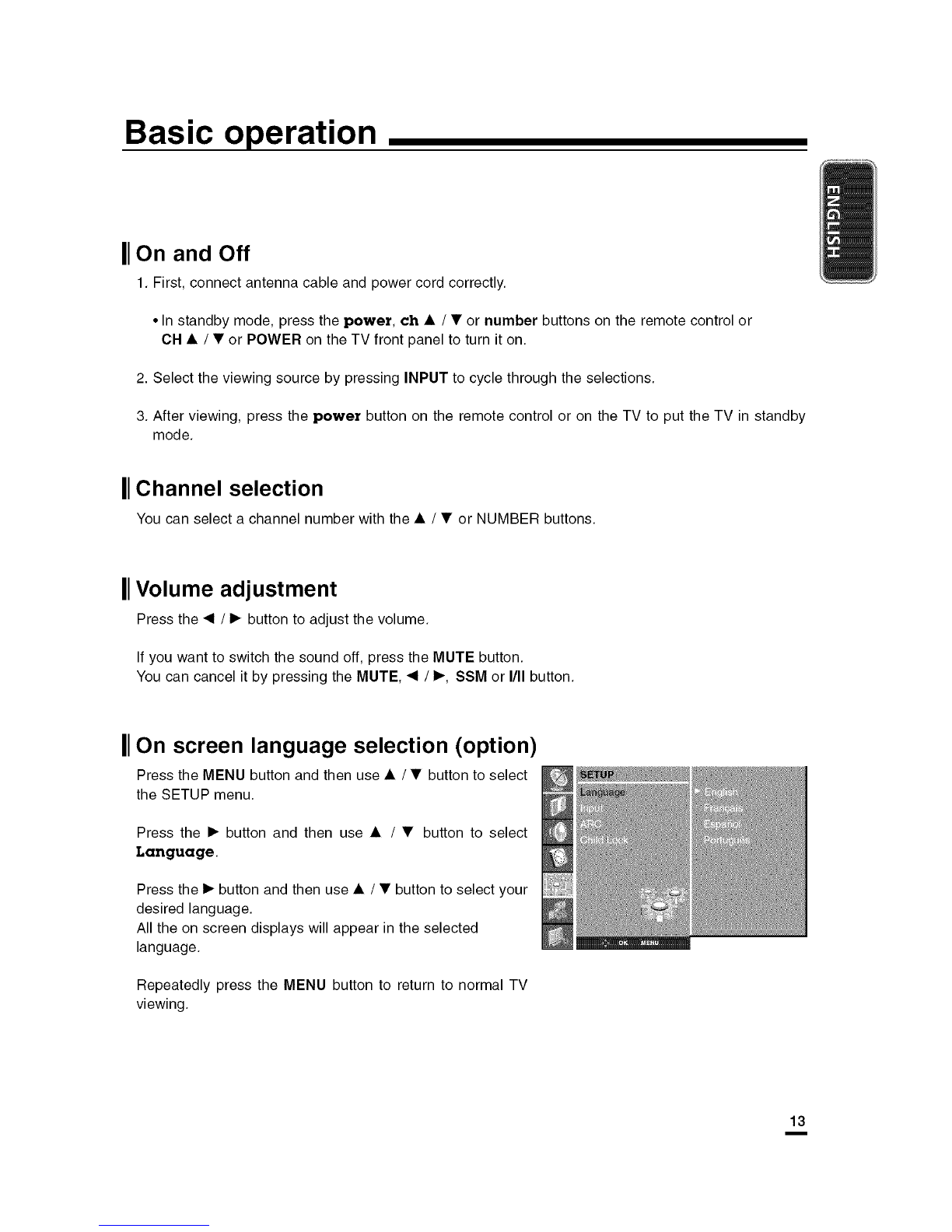

IIOn and Off
1. First, connect antenna cable and power cord correctly.
• In standby mode, press the power, ch •/• or number buttons on the remote control or
CH • /• or POWER on the TV front panel to turn it on.
2. Select the viewing source by pressing INPUT to cycle through the selections.
3. After viewing, press the power button on the remote control or on the TV to put the TV in standby
mode.
II Channel selection
You can select a channel number with the • /• or NUMBER buttons.
IIVolume adjustment
Press the _1 /• button to adjust the volume.
If you want to switch the sound off, press the MUTE button.
You can cancel it by pressing the MUTE, _1 /•, SSM or 1/11button.
IIOn screen language selection (option)
Press the MENU button and then use • /• button to select
the SETUP menu.
Press the • button and then use • /• button to select
Language.
Press the • button and then use • /• button to select your
desired language.
All the on screen displays will appear in the selected
language.
Repeatedly press the MENU button to return to normal TV
viewing.
13
m

On Screen Menus
IIMenu selection
The dialogue between you and your set takes place on screen with an operator menu. The buttons
required for the operating steps are also displayed.
[1]
Press the MENU button and
then use • /•button to display
each menu.
Press the • button and then use
•/• button to select a menu
item.
[2]
Press the • button to display the sub menu.
Change the setting of an item in the sub or pull-down menu with -'4 /•
or•/•.
You can move to the higher level menu with -'4 button and to move to
the lower level menu press the • button.
[Note ] 7
W" Menus may vary according to input mode. |
k_ J
14
m

TV stations
II Memorizing the Channels with Auto
For Auto program to work, the programming source
must be connected to the TV and the TV must be
receiving programming signals either over-the-air or
from a cable-type service provider.
Press the MENU button and then use • /•button to select
the STATION menu.
Press the • button and then use •/• button to select Auto
program.
Press the • button and then use • /• button to select
Antenna, Cable.
Press the OK button to begin the channel search.
•Wait for auto program to complete the channel search
cycle before choosing a channel. The TV scans for
over-the-air channels and then channels provided by a
cable service.
F- [ Note ]
•When the channel search is complete, use the ,& / Y
buttons to review the memorized channels.
•If you press the MENU button in Auto program, the
function will stop and only channels programming up to
that time will remain.
•Auto program function can memorize only the channels
which are being received at that time.
•HDTV reception will only display if the digital signal
transmitted through the cable or satellite service
provider is high definition.
Or ff the on air broadcast in your area is transmitted in
high definition and you have a high definition antenna
to receive the signal
The higher the signal strength, the less likely you are to
experience picture degradation.
15
m

Setting up TV stations
IIAdd/Delete Channels with Manual
- You can manually include or erase individual channels.
Press the MENU button and then use •/• button to select
the STATION menu.
Press the • button and then use • /• button to select
Manual.
Press the • button and then use •/• button to select CH.
Press the <1 /• button to select the program.
Press the •/• button to select Storage.
Press the <1 /• button to select Memory (add) or Erase
(delete).
Press the OK button to save.
Repeatedly press the MENU button to return to normal TV
viewing.
The current channel is added to Memory or Erased from the
channel list.
16
m

Setting up TV stations

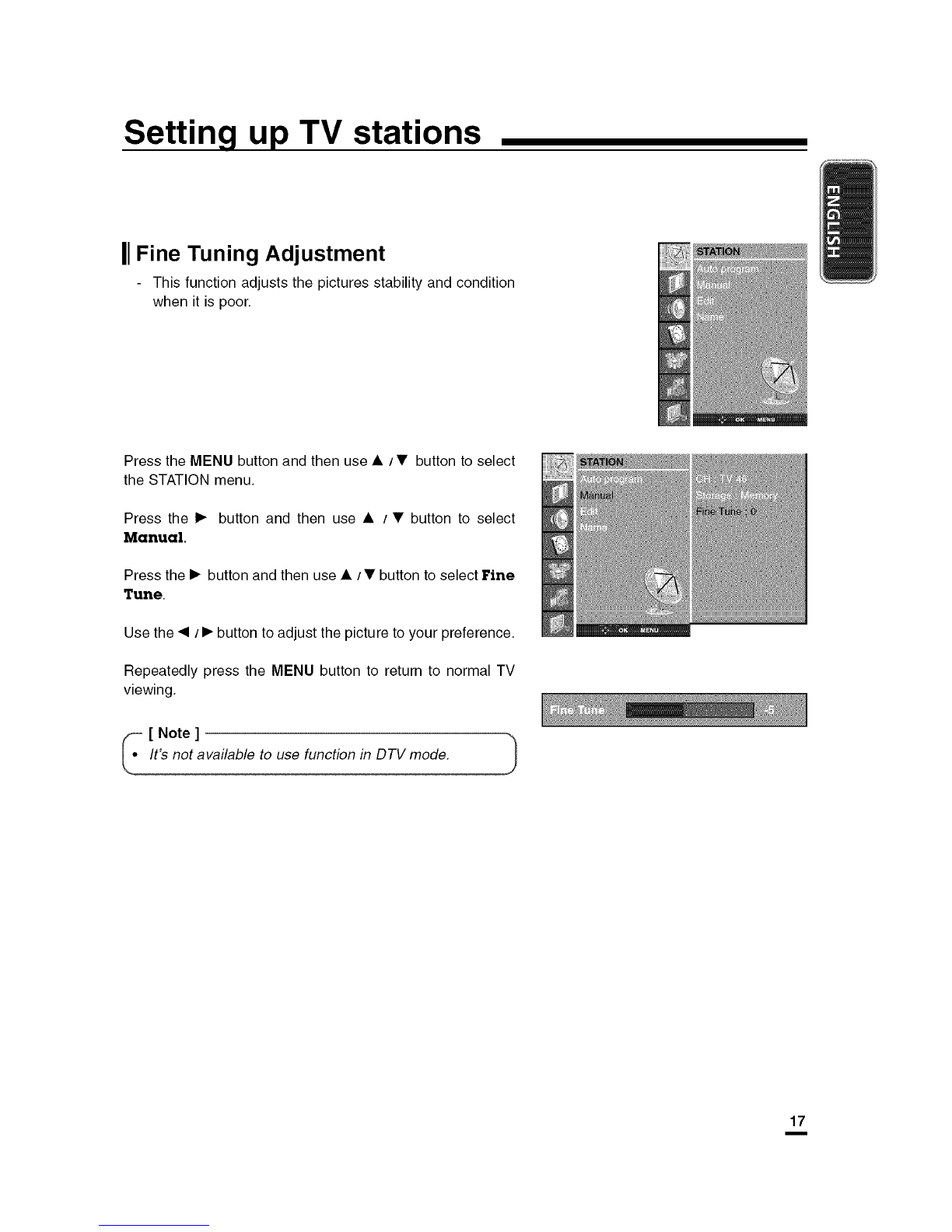

IIFine Tuning Adjustment
This function adjusts the pictures stability and condition
when it is poor.
Press the MENU button and then use •/• button to select
the STATION menu.
Press the • button and then use • /• button to select
Manual.
Press the • button and then use •/• button to select Fine
Tune.
Use the </• button to adjust the picture to your preference.
Repeatedly press the MENU button to return to normal TV
viewing.
(_= [ Note ]
17
m

Setting up TV stations

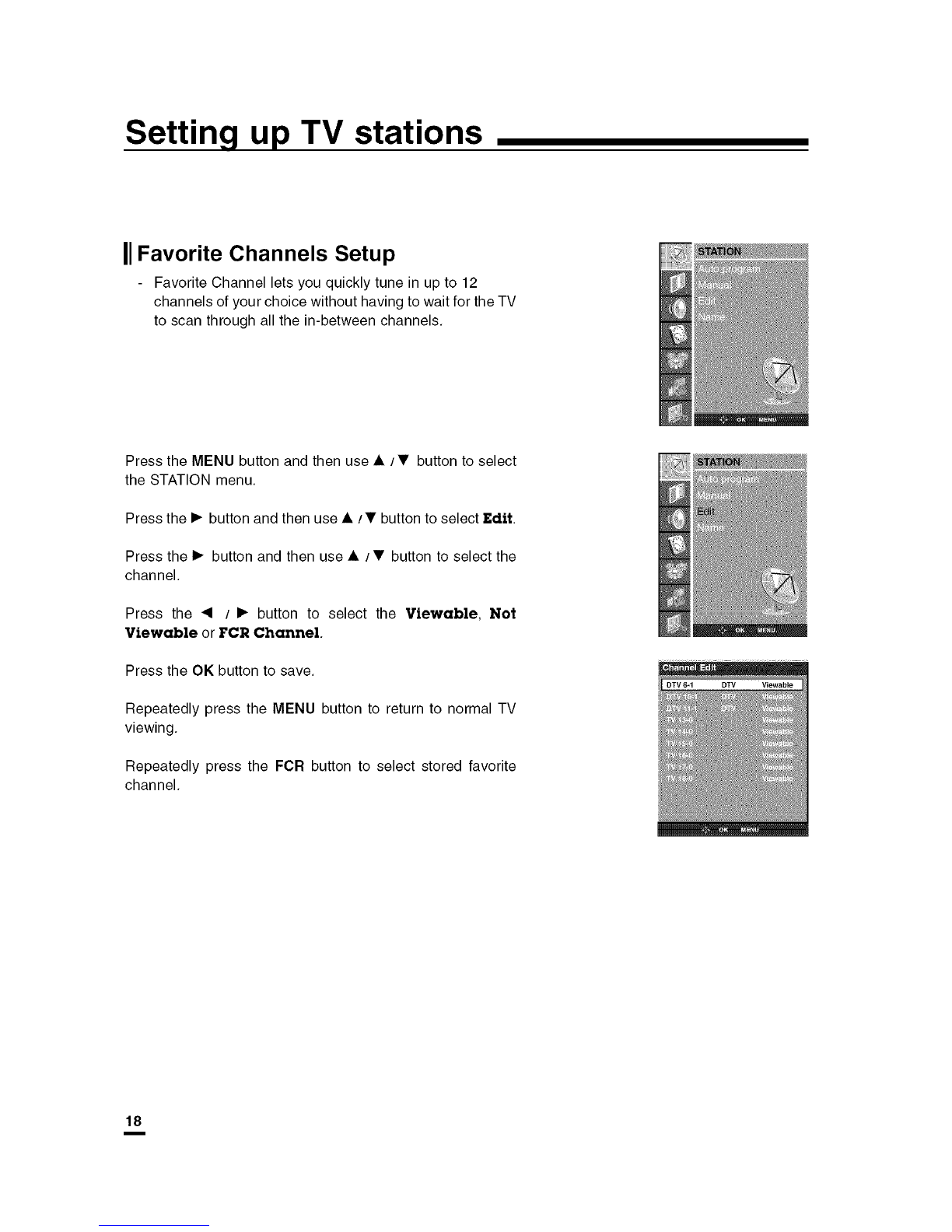

II Favorite Channels Setup
Favorite Channel lets you quickly tune in up to 12
channels of your choice without having to wait for the TV
to scan through all the in-between channels.
Press the MENU button and then use •/• button to select
the STATION menu.
Press the • button and then use •/• button to select Edit.
Press the • button and then use • /• button to select the
channel.
Press the _1 /• button to select the Viewable, Net
Viewable or FCR Channel.
Press the OK button to save.
Repeatedly press the MENU button to return to normal TV
viewing.
Repeatedly press the FCR button to select stored favorite
channel.
18
m

Setting up TV stations
II Assigning a station name
You can assign a station name with seven characters to
each program number.
Press the MENU button and then use •/• button to select
the STATION menu.
Press the • button and then use • /• button to select
Name.
Press the • button and then use • /• button to select the
channel number.
Press the • button and then use • button. You can use a
blank, *, ?, -, the numeric 0to 9and the alphabet Ato Z.
With the • button you can select in the opposite direction.
Select the position by pressing the _1 /• button and then
take your choice of the second character and so on.
Press the OK button to save.
Repeatedly press the MENU button to return to normal TV
viewing.
.-o[ ote ] "t
It's not available to use function in DTV modo.
J
19
m

Picture Menu
IICSM (Color Status Memory)
To initialize values (reset to default settings), select the
Normal option.
Press the MENU button and then • /• button to select the
PICTURE menu.
Press the • button and then • /• button to select CSM.
Press the • button and then • /• button to select the
desired color temperature.
Repeatedly press the MENU button to return to normal TV
viewing.
You can adjust red, green or blue to any color temperature
you prefer.
Press the MENU button and then use • /• button to select
the PICTURE menu.
Press the • button and then use • /• button to select CSM.
Press the • button and then use • /• button to select User.
Press the • button and then use • /•/<1 /• button to
make appropriate adjustments.
Repeatedly press the MENU button to return to normal TV
viewing.
2O
m
