LG Fridge-Freezer User manual

3
Registration
Important Safety Instruction
Identification of Parts
Installation
Starting
Temperature Control
Quick Freeze
Vacation
Self Test
Ice Making
Defrosting
Storing Food
General Information
Lamp Replacement
Cleaning
Trouble Shooting
Precaution
How to Reverse the Doors.
Table of Contents
Introduction
Installation
Operation
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
To Reverse the
Doors
4
4
7
8
8
9
9
10
10
10
10
11
12
13
13
14
15
17
17
Energy-Saving Method
Energy-Saving
Method

4
Introduction
The model and serial number are found on the rear of
this unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a permanent
record of your purchase. Staple your receipt here.
Date of Purchase :
Dealer Purchased From :
Dealer Address :
Dealer Phone No. :
Model No. :
Serial No. :
Important Safety Instruction
This fridge-freezer must be properly installed and
located in accordance with the Installation
Instruction before it is used.
Never unplug your fridge-freezer by pulling on the
power cord. Always grip plug firmly and pull straight out
from the outlet.
When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
After your fridge-freezer is in operation, do not
touch the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
Registration
Introduction
Precaution
CAUTION
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.

5

Introduction
6
This appliance contains a small amount of isobutane
refrigerant (R600a), natural gas with high
environmental compatibility, but it is also
combustible. When transporting and installing the
appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any
naked flames or potential sources of ignition and air
the room in which the appliance is standing for
several minutes.
In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size
of the room in which the appliance may be sited depends
on the amount of refrigerant used. The room must be
1m2
in size for every 8g of R600a refrigerant inside the
appliance. The amount of refrigerant in your particular
appliance is shown on the identification plate inside the
appliance.
Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
Important Safety Instruction
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the
appliance require special disposal procedures. When
disposal, please consult with service agent or a
similarly qualified person.

7
Introduction

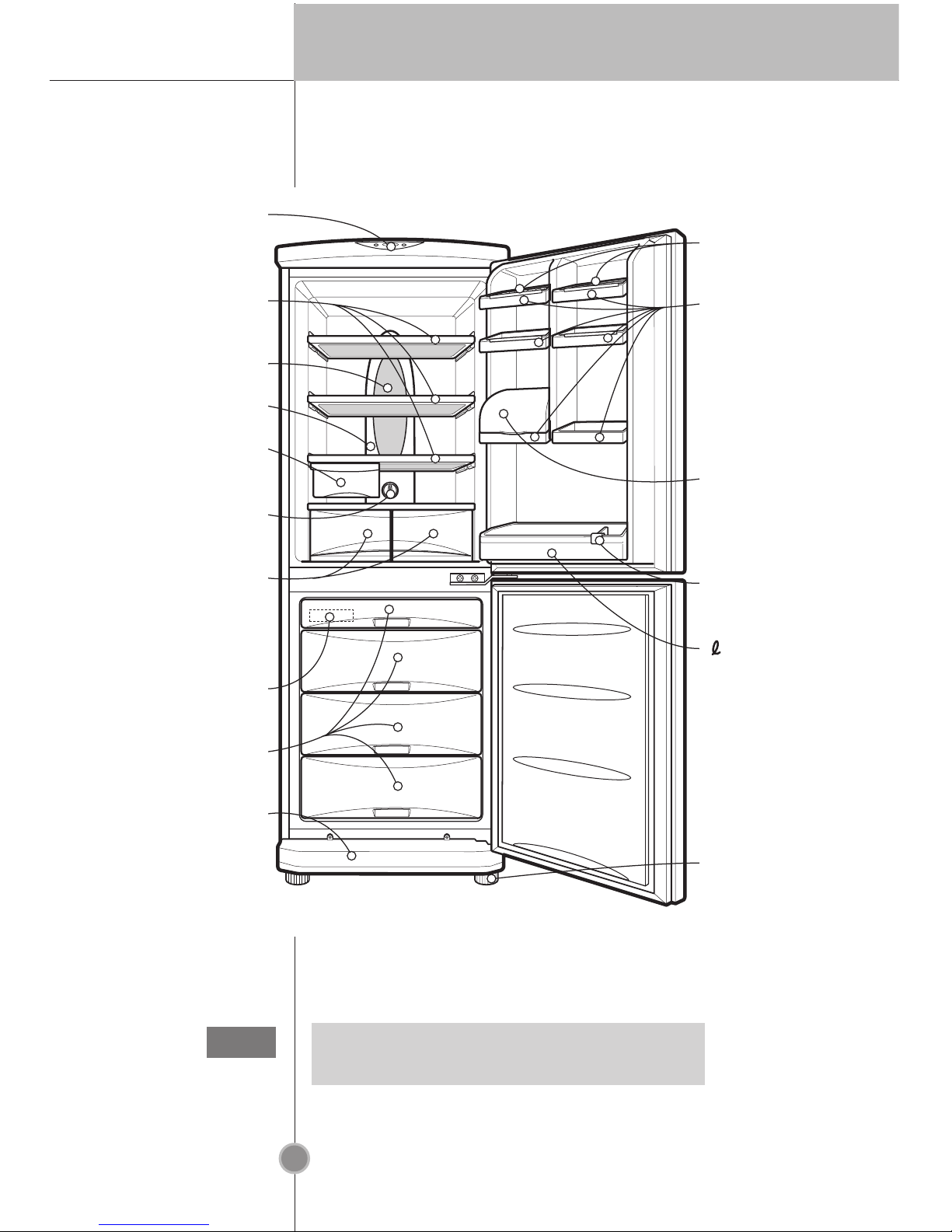

Identification of Parts
Note
Parts,features,and options vary by model.
Your model may not include every option.
Rotatable
Door Basket
Utility Corner(movable)
Bottle Holder
2 Bottle
Door Basket
Leveling Screw
Egg Tray(1 or 2)
Freezer Temperature
Control
Removable
Glass Shelf(2 or 3)
Lamp
Multi-air Flow Duct
Fresh Zone
(Optional)
Fridge Temperature
Control
Vegetable Drawer
Used to keep fruits
and vegetables, etc.
fresh and crisp.
Ice Cube Tray
Storage
Drawer
Removable
Plinth
(optional)
(optional)
(1 or 2)

8
Installation
Installation
1. Select a good location.
Place your fridge-freezer where it is easy to use.
2. Avoid placing the unit near heat sources,
direct sunlight or moisture.
3. There must be proper air circulation around your
fridge-freezer to keep it operating efficiently.
4. To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate
for the uneven floor.
The front should be slightly higher than the rear to aid
in door closing.
Leveling screws can be turned easily by tipping the
cabinet slightly.
Turn the leveling screws counterclockwise( ) to
raise the unit, clockwise( ) to lower it.
5. Don’t install this appliance below 5°. It may cause the
debasement of the refrigerator.
6. Install accessories such as ice cube box, etc., in their
proper places.They are packed together to prevent
possible damage during shipment.
7. Connect the power supply cord (or plug) to the outlet.
8. To ensure proper air circulation around the fridge-freezer,
please maintain sufficient space on both the sides as well
as top and maintain at least 2 inches (5 cm) from the rear
wall.
Don't double up with other appliances on the same
outlet.
When your fridge-freezer is installed, allow it 2-3 hours to
stabilize at normal operating temperature prior to filling
it with fresh or frozen foods.
If power plug is disconnected, allow 5 minutes delay
before restarting.
Your fridge-freezer is now ready for use.
Starting

9
Operation
Your fridge-freezer has two controls that let you regulate
the temperature in the fridge and freezer compartments.
• Initially set the TEMP. CONTROL
at "4". Then adjust the
compartment temperature
according to your desire.
• If you want an inside temperature
slightly less cold or colder, turn the
knob towards WARM or COLD, respectively.
When the surrounding temperature is low, adjust the
TEMP. CONTROL to 'WARM'.
•Freezer temperature control is on the top of the fridge-
freezer. Initially set the Freeze Temp at mid-point. By
pressing the Freezer Temp button, you can adjust the
temperature of the Freezer as indicated by the numbers
of lamps lit.(the setting is composed of five steps,
5 lamps lit indicates coldest.)
•When you starting the Fridge-Freezer or connecting the
power plug to the outlet, temperature setting is
automatically set to the mid-point.
• This function is used when
you want to freeze the foods
quickly. Press the 'QUICK
FREEZE' button once, and
then the quick freeze
operation starts with the
lamp lit.
The quick freeze operation
takes about 3 hours.
When its operation ends,
it automatically returns to the normal state.
If you want to stop the quick freeze operation, press
the 'QUICK FREEZE' button once more, the lamp goes
out, and the quick freeze operation stops and the
refrigerator returns to the normal state.
Temperature Control
Fridge
Freezer
Quick Freeze
TEMP. CONTROL
7
COLD
WARM
1
6
5
42
3
FREEZE TEMP
VACATION QUICK FREEZE
QUICK FREEZE

10
Operation
This function makes the fridge-freezer
work in a power saving mode which is
useful for when you are away on
holiday, by reducing energey
consumption as much as possible.
Pressing 'VACATION' starts operation
with lamp ON and pressing it again
stops the operation.
For better functioning, you should set
the TEMP. CONTROL to "WARM".
This function allows you to check for operational
problems. If you think you have a problem with your
fridge-freezer, then press the temperature control button:
- If the indicate lights move up or down, then there is no
problem with your fridge-freezer.
- If the indicate lights do not move up or down, then
please leave the power connected and call your nearest
service agent.

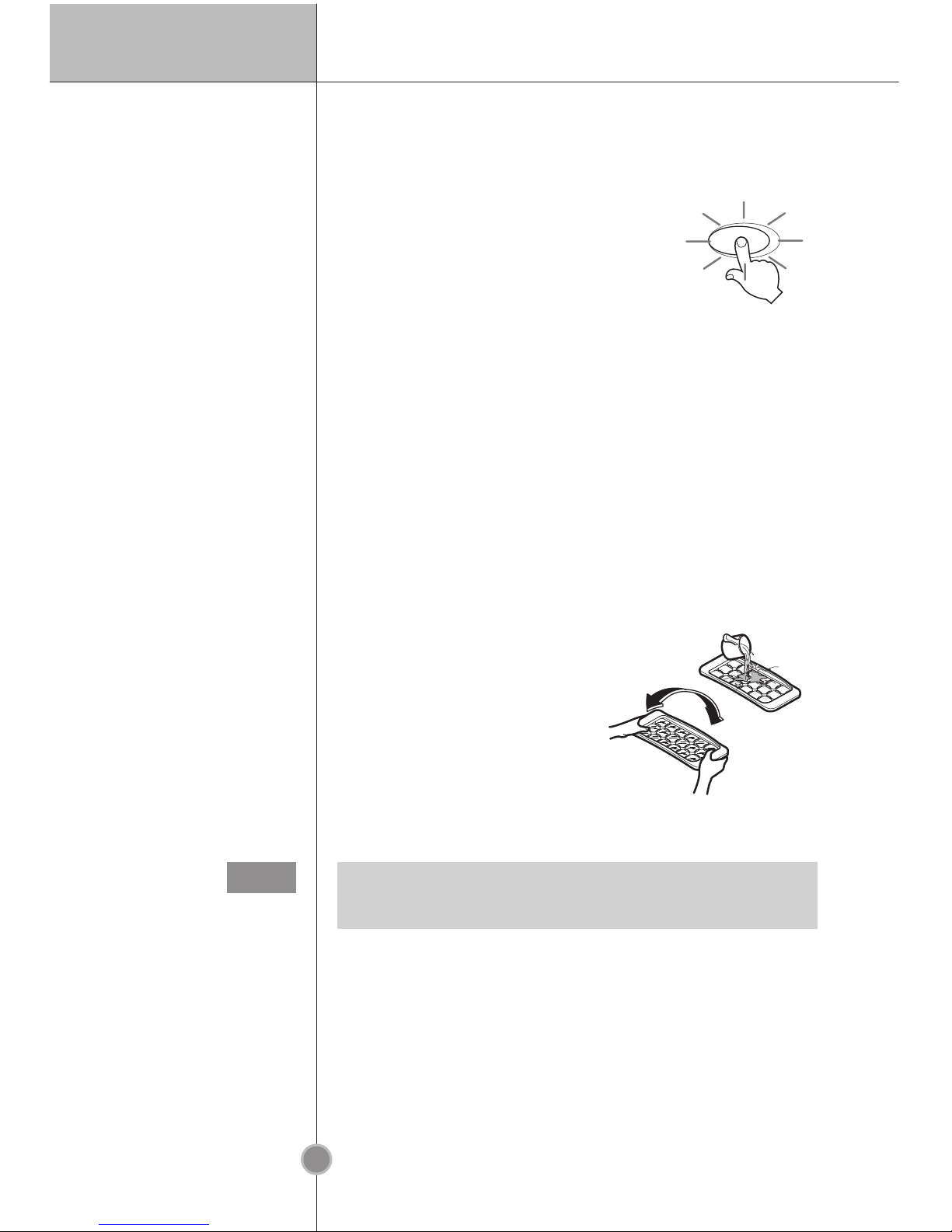

• To make ice cubes, fill the
ice tray to the water level
and place it in the freezer.
• If ice cubes are required
fast, press the 'QUICK
FREEZE' button.
• To remove ice cubes,
hold the tray at its ends and twist gently.
Defrosting takes place automatically.
The defrosting water flows down to the evaporating tray
and is evaporated automatically.
Vacation
Self Test
Ice Making
Defrosting
VACATION
To remove ice cubes easily, run water on the tray
before twisting.
Tip

11
SUGGESTIONS ON FOOD STORAGE
• Do not store food which goes bad easily at low
temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food
in the fridge-freezer could spoil other food, and lead to
higher electric bills.
• When storing the food, use a container with a lid. This
prevents moisture from evaporating, and helps food to
keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of
cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets
warm air enter the fridge-freezer, and cause
temperature to rise.
• To adjust the temperature control easily, do not store
food near the temperature control dial.
• Never keep too many foods in door rack, as this may
stop the door from fully closing.
• Do not store bottles in the freezer compartment - they
may break when frozen.
• Do not refreeze food that has been thawed. This causes
loss of taste and nutrition.
Storing Food
Note
If you keep the fridge-freezer in a hot, and humid place,
frequently open its door or put a lot of vegetables in it,
dew may form in it, which has no effect on its
performance.
Remove the dew with dust cloth free from care.

12
Energy-Saving Method
Energy-Saving Method
•Install the fridge in a shady,cool and well-ventilated
place.
•Do not open and close the door frequently if not
necessary.
•Please do not keep the door open for a long time,
close door in the shortest time.
•Allow hot food to cool prior to storing.
•Too much food are not advised to be put in. Enough
space should be kept for cool air circulating freely.
•Do not set the temperature of refrigerator lower than
needed.Do not put the food near the temperature
sensor.
•Food need’t store is not advised to be put in.
•Place the deep-frozen food for thawing intorefrigerator;
they can be used for cooling the refrigerator.
(Applicabe to some models only)
•Clean up the back cover and anti-condensation pipe
termly (once a year) to make sure heat exchange in gear.
(Applicabe to some models only)
•Do not block air vents with food.
( Applicabe to some models only)

13
Care and Maintenance
• 1~2 hour power failure does no harm to the foods
stores. Try to avoid opening and closing the door too
frequently.
• Take out foods from the fridge-freezer and firmly fix the
loose items with tape.
• Turn the leveling screws until they stop before moving
the fridge-freezer. Otherwise the screw may scratch the
floor or the fridge-freezer cannot move.
• The Anti-Condensation pipe
is installed around the front
side of fridge-freezer as well
as on the partition between
fridge compartment and
freezer compartment to
prevent dewing.
• Especially after installation or
when ambient temperature is high, the fridge-freezer
may feel hot, which is quite normal.
Lamp Replacement
1. Unplug the power cord from the outlet.
2. Remove fridge shelves.

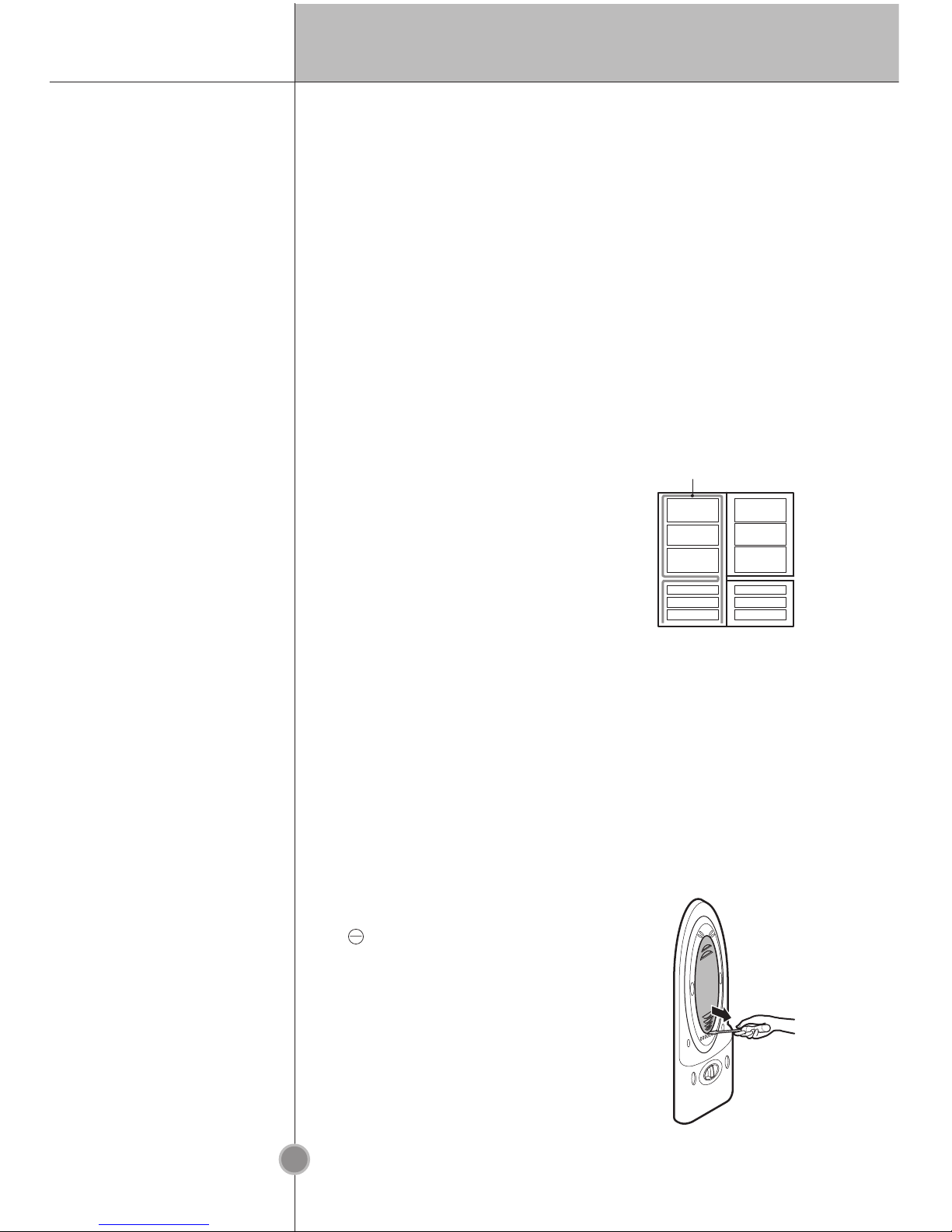

3. To remove the lamp cover, insert
type driver in the underside of
the lamp cover and pull it out
forwards.
4. Turn the lamp counterclockwise.
5. Assemble in reverse order of
disassembly.
Replacement lamp must be the
same specification as original.
General Information
Power Failure
If You Move
Anti Condensation
Pipe
Anti-Condensation
Pipe

14
Care and Maintenance

15
Trouble Shooting
Possible Causes
•Power plug may be unplugged from the electric
outlet.
Plug it in securely.
•House fuse has blown or circuit breaker has
tripped.
Check and/or replace fuse and reset circuit breaker.
•Power cut.
Check house lights.
•Temperature control not set on proper position.
Refer to Temperature Control section.
•Appliance is placed close to heat source.
•Warm weather-frequent door openings.
•Door left open for a long time.
•Package holding door open or blocking air duct in
freezer compartment.
•The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Make it even by rotating the leveling screw.
•Unnecessary objects placed in the back side of the
fridge-freezer.
•Door may have been left ajar or package holding
door open.
•Too frequent or too long door openings.
•Frost within package is normal.
•This phenomenon is likely to occur in a wet space.
Wipe it with a dry towel.
Before calling for service, check this list.
It may save you both time and expense.
This list includes common occurrences that are not
the result of defective workmanship or materials in
this appliance.
Problem
Fridge-Freezer
does not operate
Fridge or Freezer
Compartment
Temperature too
warm
Vibration or
Rattling or
Abnormal Noise
Frost or Ice
Crystals on frozen
Food
Moisture forms on
Cabinet Surface

16
Trouble Shooting
Possible Causes
•Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge when
doors are opened.
• Foods with strong odors should be tightly covered or
wrapped.
• Check for spoiled food.
• Interior needs cleaning.
Refer to CLEANING section
•Food package is keeping door open.
Move packages that keep door from closing.
•Fridge-freezer is not level.
Adjust the leveling screws.
•The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Slightly raise the front side with the leveling screw.
•No power at outlet.
•Light lamp needs replacing.
Refer to the Lamp Replacement section
Problem
Moisture collects
inside
Fridge has odor
Door not closing
properly
Interior light does
not work

17
To Reverse the Doors
Your fridge-freezer is designed with reversible doors, so that they may open from either
the left of right hand side to suit your kitchen design.
Precaution
1. Before reversing the door, first of all, you should take out food and accessories
like shelves or trays which are not fixed in the fridge-freezer.
2. Use Torque Wrench or Spanner to fix or remove the bolt.
3.
Do not lay the fridge-freezer down. This will cause problems.
4. Be careful not to drop the doors in
disassembling or assembling.

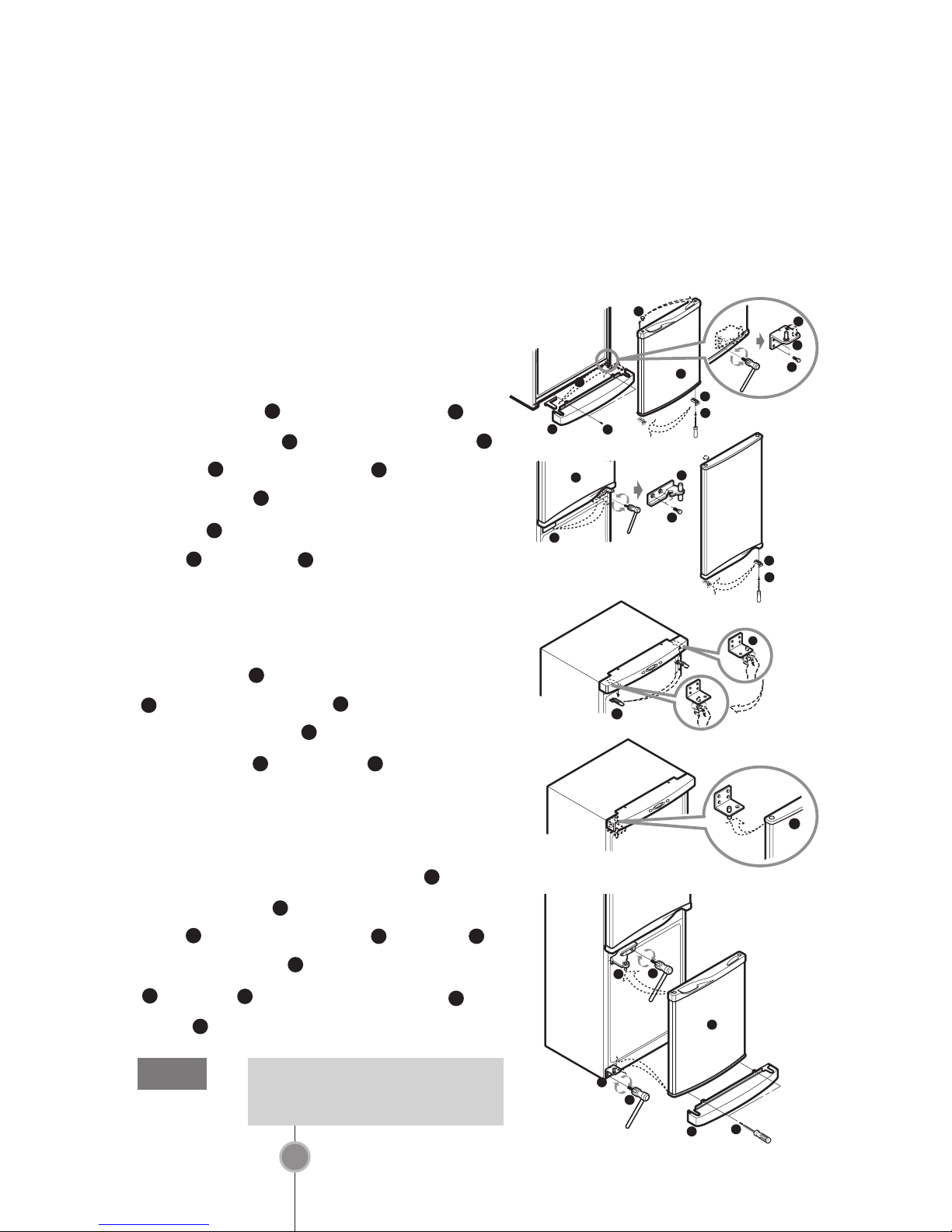

How to Reverse the Doors
1. Remove screw and remove Cover and
move Cap Cover . And, remove screw ,
Hinge-L , and remove pin . Remove the
Freezer Door , and move the position of
the cap .Move the position of bracket
door and screw .
2. Remove bolt and remove the Hinge-C
and the Fridge Door . Move the
position of the cap . Move the position of
bracket door and screw .
3. Move the position of Hinge-U pin , and
Cap, Top cover . Assemble the Fridge
Door . Assemble Hinge-C and bolt .
Assemble F-Door . Assemble the Hinge-L
and bolt . Assemble Low Cover and
screw .
7
2
3
1
21 4
6
5
12
13
10
11
15
12
14
11
5
4
21
10
2
1
9
8
17
16
21
11
14
15
12 11 10
10
21
12
13
Note
Reversing the doors is not
covered by the warranty.
16 17
21
7
89
34
5
541
2
6
