LG LDC22720 Series User manual

OWNER'S MANL
BOTTOM FRE
REFRIGERATOR
Please read this manual carefully before
your set and retain it for future reference.
MANUAL DE USUARIO
REFRIGERADOR
CON CONGELADOR INFERIOR
Lea detenidamente este manual antes
de empezar a utilizar el refrigerador y gu_rdelo
como referencia para el futuro.
Model Name/Nombre de Modelo _= color number/nQmero de color
LDC22720 _
LRBC20512 _
P!No. MFL61944134

Visitourwebsitehttp://www.lg.com LGElectronics
LIMITED WARRANTY
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of original
purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the
U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator /Freezer Warranty Period
Product Parts Labor
Refrigerator /Freezer 1 year 1 year [In-Home Service (Except Model GR-051 )]
Sealed System 7 years 1 year [In-Home Service (Except Model GR-051 )]
(Compressor, Condenser, Evaporator)
No other express warranty isapplicable to this product. THE DURATION OFANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY
HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF USE OFTHE PRODUCT, INCONVENIENCE
ORANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE
THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, fire, floods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
5. Damages caused during and/or after delivery.
6. Display, discount, or refurbished units purchased with scratches, dents, or defects.
Proof of purchase is required and must be provided to LG in order to validate warranty.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product,
or the replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage:
To obtain Product or Customer:
Service Assistance:
To obtain the nearest Authorized
Service Center:
Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time warranty service is
provided.
Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year).
Press the appropriate menu option, and have your product type (Refrigerator),
model number, serial number, and ZIP/Postal Code ready.
Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year)
Press the appropriate option, and have your product type (Refrigerator), model
number, serial number, and ZIP/Postal Code ready.

Visitenuestrositiowebhttp://www.lg.com LGElectronics
GARANTiALIMITADA
Estados Unidos de America
LG Electronics reparar& oen su defecto reemplazar& sin cargo, el producto defectuoso en material omano de
obra bajo uso normal durante el periodo de garantia que se menciona a continuaci6n desde la fecha original de
compra.
Esta garantia es v&lida solo para el comprador original del producto durante el periodo de garantia mientras
permanezca en los E.E.U.U. Incluyendo Alaska, Hawaii y otros territorios de E.E.U.U.
Periodo de Garantia del RefrigeradorlCongelador LG
Producto Partes Mano de Obra
Refrigerador/Congelador 1 aSo 1 aSo [Servicio a Domicilio (Except Model GR-051)]
Sistema Sellado 7 aSos 1 aSo [Servicio a Domicilio (Except Model GR-051)]
(Compresor, Condensador, Evaporador)
No se aplicara otro tipo de garantia a este producto. LA DURACION DE OTRAS GARANTiAS, INCLUYENDO LA DE
COMPRA, ESTAN LIMITADASALADURACION DE ESTAGARANTiA. LG ELECTRONICS NO SE HACE RESPONSABLE
POR LA PC:RDIDA EN EL USO DEL PRODUCTO, POR INCONVENIENCIA O CUALQUIER OTRO DANO DIRECTO O
CONSECUENTE QUE PROVENGA DEL USO Y/O NO USO DE ESTE PRODUCTO O PORALGUNAVIOLACION ALAS
GARANTIAS IMPLEMENTADAS INCLUYENDO LA GARANTiA DE COMPRAAPLICADAA ESTE PRODUCTO.
AIgunos estados no permiten la exclusi6n o limitaci6n de daSos incidentales o consecuenciales o limitaciones en cuanto
al tiempo que dura una garantia implicita; pot Io que algunas de estas limitaciones o exclusiones pueden no aplicarse a
usted. Esta garantia le otorga derechos legales especificos y usted puede ademas tenet otros derechos los cuales varian
de Estado a Estado.
LA GARANTIA ANTERIOR NO APLICA A :
1. Servicio a su casa para entregar, recoger, instalar o reemplazar fusibles caseros, corregir cableado casero o plomeria,
correcci6n de reparaciones no autorizadas.
2. Da5o al producto causado por accidente, plagas, incendios, inundaciones o actos pot naturaleza.
3. Reparaciones cuando su producto LG sea usado diferente a Io normal.
4. Da5o resultante de accidente, alteraci6n, real uso o instalaci6n inadecuada.
5. Da5os causados durante y despues de la entrega.
6. Reemplazo, descuento o restauraci6n de unidades compradas con rayones, abolladuras o defectos.
La prueba de la compra se requiere y se debe proporcionar a LG para validar la garantia.
Por io tanto, estos costos ser&n pagados por el consumidor.
Si el producto es instalado fuera del area normal de servicio, cualquier costo de transportaci6n relacionado en la reparaci6n
del producto, o el reemplazo de partes defectuosas, seran cargados al propietario.
NOMEROS DE ASISTENCIA AL CLIENTE:
Para obtener cobertura de la
Garantia:
Para obtener informaci6n:
Servicio de Asistencia:
Para obtener el Centro de
Servicio Autorizado m&s
cercano:
Conserve su factura para comprobar la fecha de compra, Una copia de su
recibo de compra debe ser entregada cuando se le proporcione el servicio de
garantia.
Llame al 1-800-243-0000 (24 hrs al dia, 7 dias por semana, 365 dias al aSo)
Presione la opci6n de men0 apropiado, y tenga su tipo de producto (Refrigerador),
n0mero de modelo, nOmero de serie, y ZIP /C6digo Postal Iistos.
Llame al 1-800-243-0000 (24 hrs al dia, 7 dias pot semana, 365 dias al aSo).
Presione la opci6n adecuada, y tenga su tipo de producto (Refrigerador), nOmero
de modelo, nOmero de serie, y ZiP/c6digo Postal Iistos.

Warranty 1-2 OptibinCrispers 21
Crispercoverwithinteriorlattice 22
EnglishVersion 3 FixedRefrigeratorRack 22
DoorRacks 22-23
SpanishVersion 34 DairyCompartment 23
EggCompartment 23
ImportantSafetyInstructions 4-5 FreezerSection 23-24
RequirementsforGroundConnection 5 IceBin 23
DuraBase 23
DurabaseDivider 23

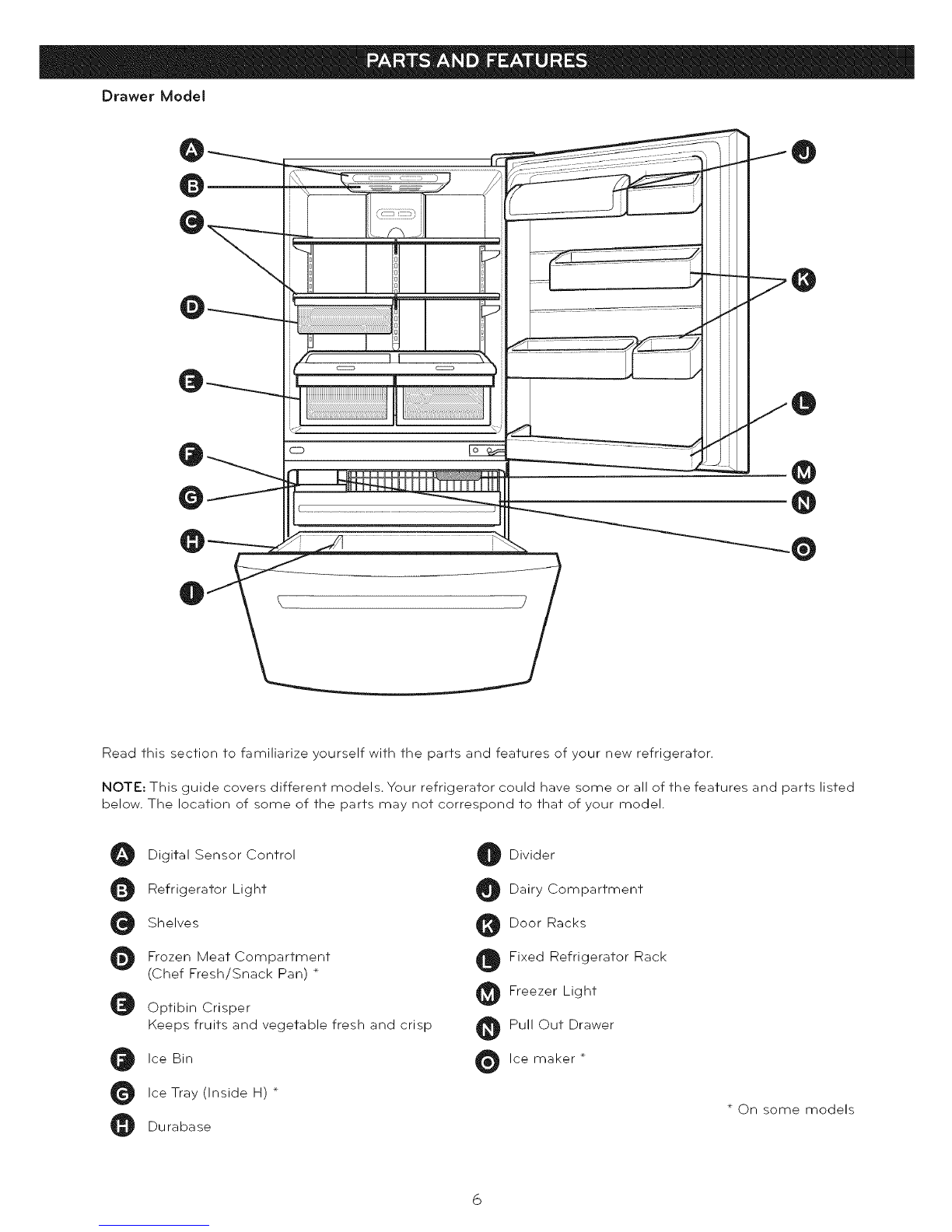

PartsandFeatures 6-7 GlideOutDrawer 24
TiltingDoor 24
RefrigeratorInstallation 8-17 WiredDurabase(SwingModels) 24

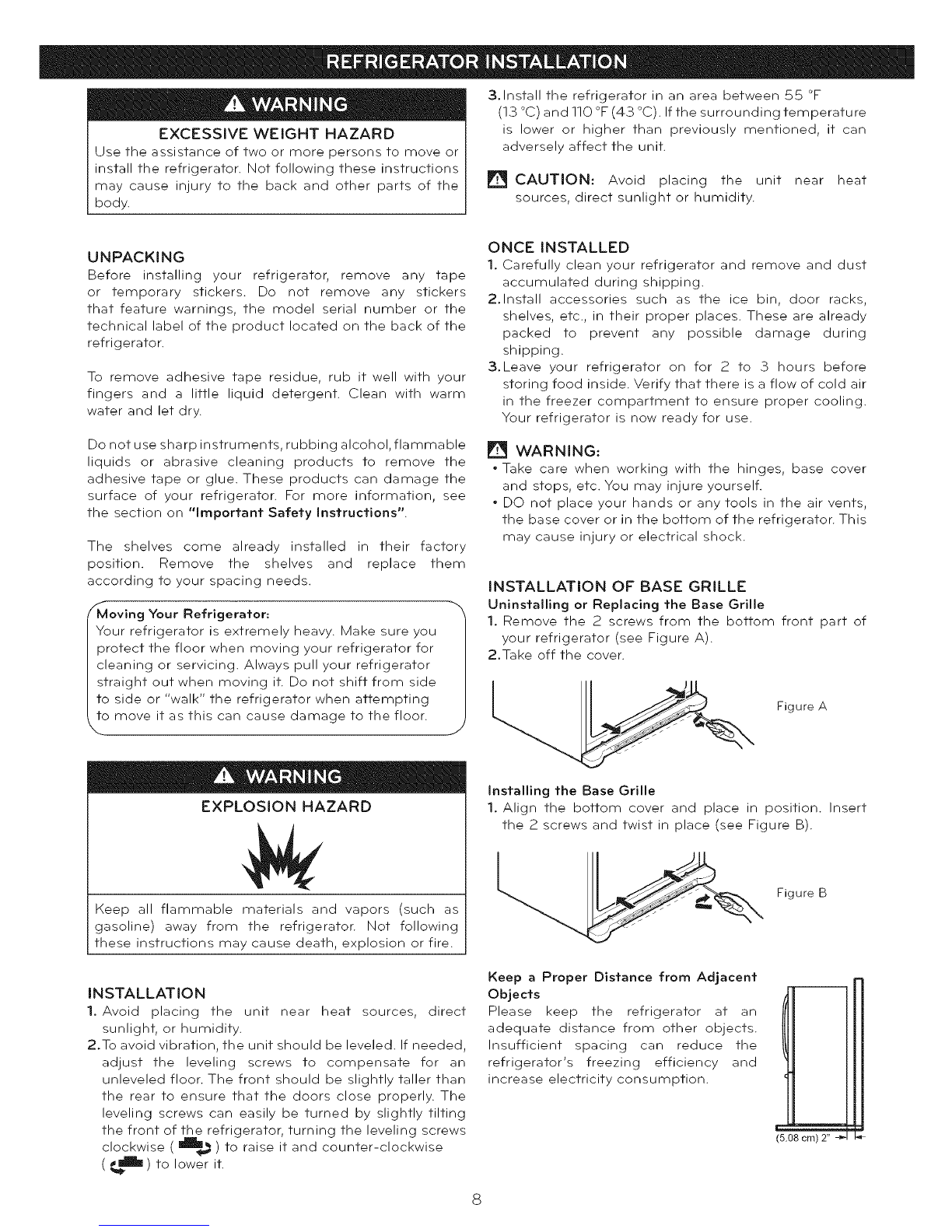

Unpacking 8 FreezerShelf 24
Installation 8
InstallationofBaseGrille 8
RefrigeratorDoors:Howtoremove
andreverse 9-16
ForModelswithPull-outDrawer 9-10
ForModelswithSwingingDoor 13-16

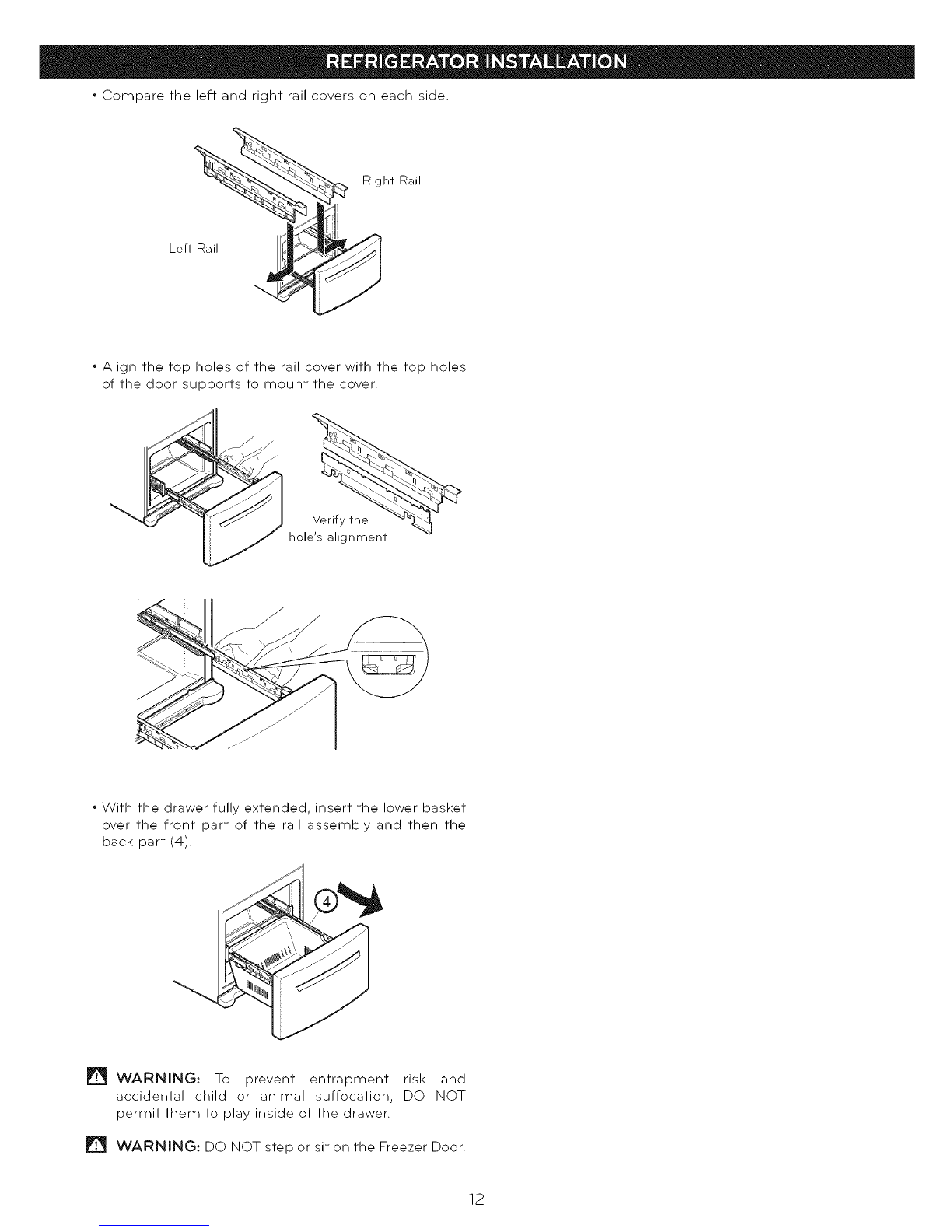

HowtoremoveandInstallPull-OutDrawer11-12

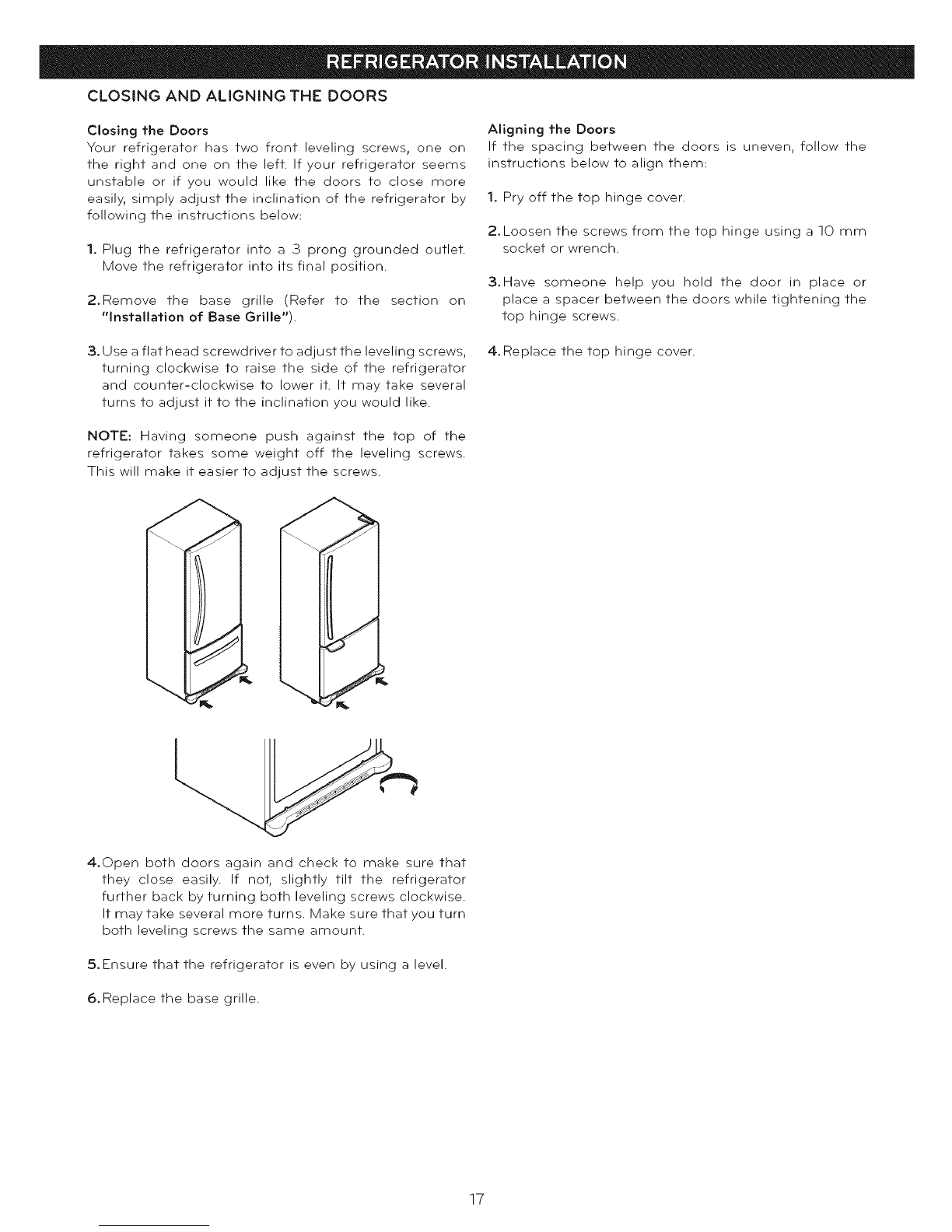

ClosingandAligningthedoors 16-17
UsingyourRefrigerator 18-24

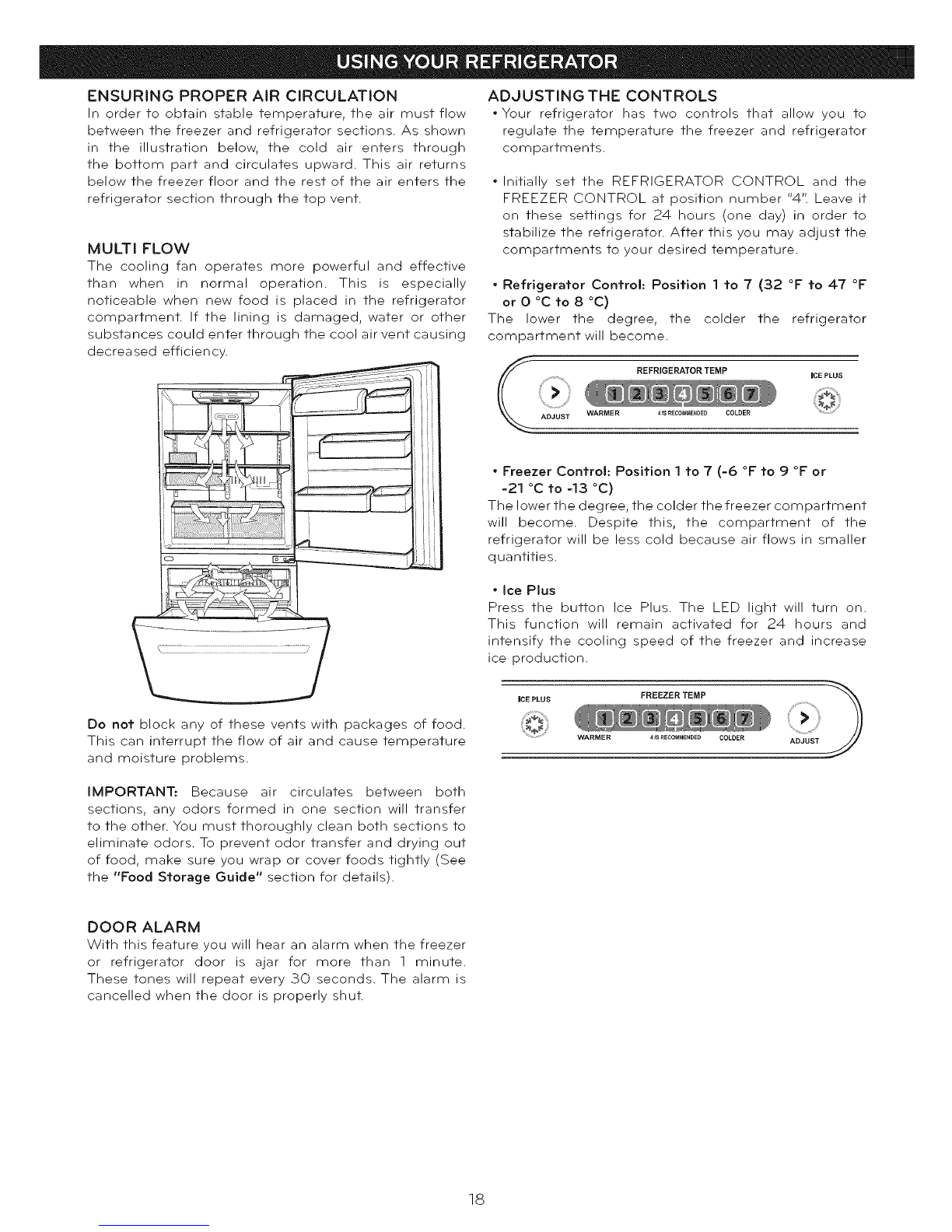

EnsuringProperAirCirculation 18
MultiFlow 18
DoorAlarm 18
AdjustingtheControls 18

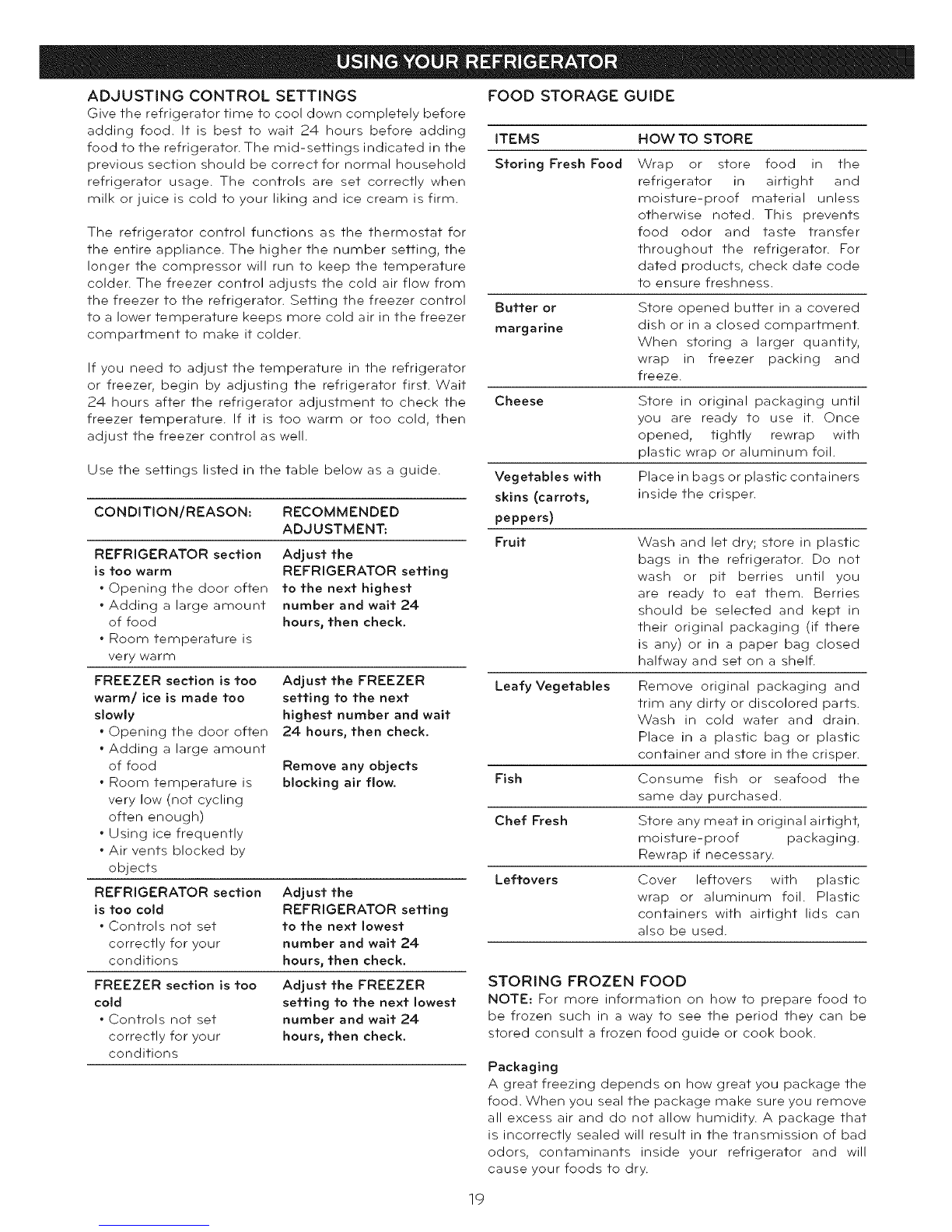

AdjustingControlSettings 19
FoodStorageGuide 19
StoringFrozenFood 19-20
RefrigeratorSection 20-23
RefrigeratorShelves 20-21
FrozenMeatCompartment
(ChefFresh/SnackPan) 21
CrisperHumidityControl 21
RefrigeratorCare and Cleaning 25-26
Refrigerator Cleaning 25
Outside 25
Inside Walls 25
Door Lining & Gaskets 25
Plastic Parts (Covers and Panel) 25
Back Cover 25
Replacing Refrigerator Lights 25-26
Power Interruptions 26
When Going on Vacation 26
When Moving 2.6
About the Automatic Ice Maker
Connecting the Water Line
Troubleshooting Guide
27
28-30
31-33

This manual contains several important safety notices. Always read and obey all of the following safety messages.
This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury
or damage to you, others or the product. All safety messages will follow after this warning symbol and the
word "DANGER", "CAUTION" or "WARNING't These words mean:
You may be killed or suffer fatal damage if you do not follow instructions.
You may be killed or seriously injured if you do not follow instructions.
Indicates a potentially hazardous situation which, if not avoided, may result in minor injury
-- or damage to the product.
All safety messages inform you of potential danger, advise you on how to reduce the risk of inJury and tell you what
can occur if the instructions are not followed.
To reduce the risk of fire, elecfrical shock or personal
injury, the following precaufion measures should be
followed:
•NEVER disconnect the refrigerator by pulling the
power cord, always grip the plug firmly and disconnect
it directly from the outlet.
could explode after freezing and cause damage.
For your safety, this product should be properly
grounded. Have a qualified professional check the
electrical circuit and outlet to ensure a proper ground
connection.
Immediately repair or replace all faulty or damaged
service cables. Do not use cords that have cracks or
abrasion damage on the length of the cord or on the
plug.
When moving your refrigerator, take care not to roll
over the electrical cord.
DO NOT store or use gasoline or other combustible
liquids or vapors in proximity with this or any other
electrical appliance.
DO NOT permit children to climb, stand or swing from
the doors or shelves of the refrigerator. This can cause
serious injury to them and damage to the product.
Keep your fingers away from areas in which they
can become caught, such as the doors, hinges and
cabinets. Be careful closing the doors when children
are near.
• Read all instructions before utilizing the product. Use
this product only as explicitly expressed in this guide.
• Once the refrigerator is operating, avoid touching cold
surfaces of the freezer with damp or wet hands; the
skin could become adhered to these surfaces.
In refrigerators with an automatic ice dispenser, avoid
contact with moving parts of the ejector mechanism
or with the heating mechanism that discharges the
cubes. DO NOT place your fingers or hands in the
ice dispenser mechanism while the refrigerator is
connected.
oDO NOT refreeze foods which have already thawed.
The Department of Agriculture of the United States, in
your Bulletin of Home and Gardens No. 69 establishes
that:
't.You can refreeze food that has thawed if they contain
ice crystals or are cold and below 40 °F (4 °C)'t
Unplug the refrigerator before cleaning or repairing.
NOTE: We strongly recommend that any repair
services be performed by a qualified professional.
Before replacing a burned-out light bulb, unplug the
refrigerator or shut clown the circuit breaker to avoid
contact with a live wire (the bulb could break while
being replaced). NOTE: Setting the control to the OFF
position does not disconnect the power from the light
bulb circuit.
Do not keep bottles in the freezer compartment, they
't..Ground beef, perishable food or seafood that is
discolored or has an unpleasant odor should not be
frozen or consumed. Consumption of melted ice cream
should also be avoided. If the odor or color of food is
questionable, discard it. The food may be dangerous to
consume".
"Partial thawing or refreezing reduces the quality of the
food, especially fruit, vegetables and prepared meals.
The quality of red meat is less affected than other foods.
Use refrozen products as soon as possible in order to
maintain their quality'(
KEEP THESE INSTRUCTIONS
4

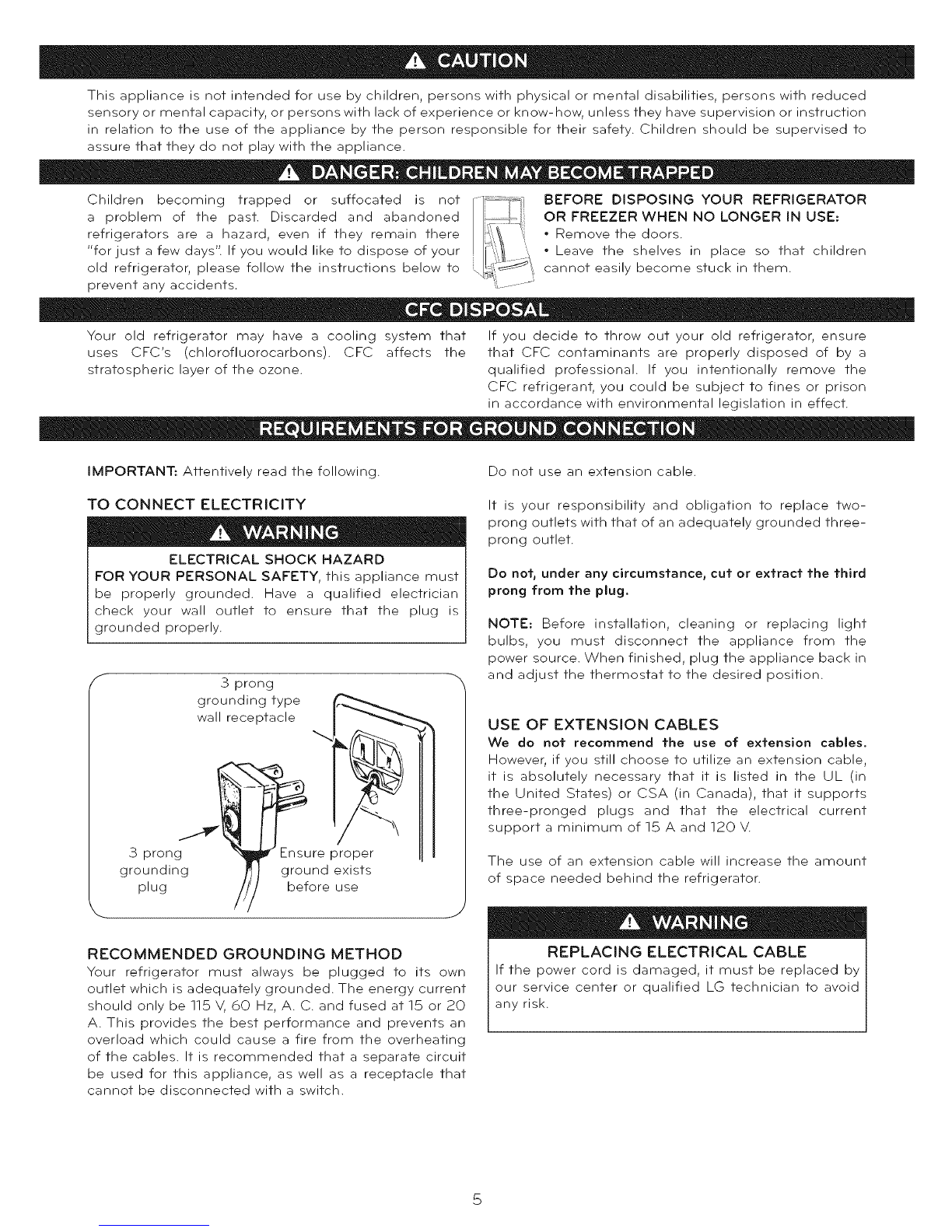

This appliance is not intended for use by children, persons with physical or mental disabilities, persons with reduced
sensory or mental capacity, or persons with lack of experience or know-how, unless they have supervision or instruction
in relation to the use of the appliance by the person responsible for their safety. Children should be supervised to
assure that they do not play with the appliance.
Children becoming trapped or suffocated is not
a problem of the past. Discarded and abandoned
refrigerators are a hazard, even if they remain there
"for just a few days't If you would like to dispose of your
old refrigerator, please follow the instructions below to
prevent any accidents.
BEFORE DISPOSING YOUR REFRIGERATOR
OR FREEZER WHEN NO LONGER IN USE:
• Remove the doors.
• Leave the shelves in place so that children
cannot easily become stuck in them.
Your old refrigerator may have a cooling system that If you decide to throw out your old refrigerator, ensure
uses CFC's (chlorofluorocarbons). CFC affects the that CFC contaminants are properly disposed of by a
stratospheric layer of the ozone, qualified professional. If you intentionally remove the
CFC refrigerant, you could be subject to fines or prison
in accordance with environmental legislation in effect.
IMPORTANT= Attentively read the following.
TO CONNECT ELECTRICITY
ELECTRICAL SHOCK HAZARD
FOR YOUR PERSONAL SAFETY, this appliance must
be properly grounded. Have a qualified electrician
check your wall outlet to ensure that the plug is
grounded properly.
3 prong
grounding type
wall receptacle
3 prong _ Ensure pr_De_r
grounding __nd exiii"
plug before use
RECOMMENDED GROUNDING METHOD
Your refrigerator must always be plugged to its own
outlet which is adequately grounded. The energy current
should only be 115 V, 60 Hz, A. C. and fused at 15 or 20
A. This provides the best performance and prevents an
overload which could cause a fire from the overheating
of the cables. It is recommended that a separate circuit
be used for this appliance, as well as a receptacle that
cannot be disconnected with a switch.
Do not use an extension cable.
It is your responsibility and obligation to replace two-
prong outlets with that of an adequately grounded three-
prong outlet.
Do not, under any circumstance, cut or extract the third
prong from the plug.
NOTE= Before installation, cleaning or replacing light
bulbs, you must disconnect the appliance from the
power source. When finished, plug the appliance back in
and adjust the thermostat to the desired position.
USE OF EXTENSION CABLES
We do not recommend the use of extension cables.
However, if you still choose to utilize an extension cable,
it is absolutely necessary that it is listed in the UL (in
the United States) or CSA (in Canada), that it supports
three-pronged plugs and that the electrical current
support a minimum of 15 A and 120 V.
The use of an extension cable will increase the amount
of space needed behind the refrigerator.
REPLACING ELECTRICAL CABLE
If the power cord is damaged, it must be replaced by
our service center or qualified LG technician to avoid
any risk.

Drawer Model
Read this section to familiarize yourself with the parts and features of your new refrigerator.
NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed
below. The location of some of the parts may not correspond to that of your model.
Digital Sensor Control
O Refrigerator Light
_t Shelves
e Frozen Meat Compartment
(Chef Fresh/Snack Pan) *
O Optibin Crisper
Keeps fruits and vegetable fresh and crisp
O Ice Bin
O ce Tray (Inside H) *
Durabase
O Divider
O Dairy Compartment
O Door Racks
O Fixed Refrigerator Rack
! Freezer Light
O Pull Out Drawer
_! Ice maker *
On some models

SwingModel
0
0
@
0
@
@
Read this section to familiarize yourself with the parts and features of your new refrigerator.
NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed
below. The location of some of the parts may not correspond to that of your model.
O igital Sensor Control @ Wired Durabase
O Refrigerator Light ODairy Compartment
Shelves O Door Racks
O Frozen Meat Compartment O Freezer Light
(Chef Fresh/Snack Pan) _
O Optibin Crisper _ Fixed Refrigerator Rack
Keeps fruits and vegetables fresh and crisp @ Wire Freezer Shelf
O Ice Tray * O Freezer Door Rack
O Ice Bin On some models

EXCESSIVE WEIGHT HAZARD
Use the assistance of two or more persons to move or
install the refrigerator. Not following these instructions
may cause injury to the back and other parts of the
body.
3. Install the refrigerator in an area between 55 °F
(13 °C) and 110 °F (43 °C). If the surrounding temperature
is lower or higher than previously mentioned, it can
adversely affect the unit.
CAUTION: Avoid placing the unit near heat
sources, direct sunlight or humidity.
UNPACKING
Before installing your refrigerator, remove any tape
or temporary stickers. Do not remove any stickers
that feature warnings, the model serial number or the
technical label of the product located on the back of the
refrigerator.
To remove adhesive tape residue, rub it well with your
fingers and a little liquid detergent. Clean with warm
water and let dry.
Do not use sharp instruments, rubbing alcohol, flammable
liquids or abrasive cleaning products to remove the
adhesive tape or glue. These products can damage the
surface of your refrigerator. For more information, see
the section on "important Safety Instructions".
The shelves come already installed in their factory
position. Remove the shelves and replace them
according to your spacing needs.
oving Your Refrigerator: _"
ur refrigerator is extremely heavy. Make sure you
rotect the floor when moving your refrigerator for
leaning or servicing. Always pull your refrigerator
raight out when moving it. Do not shift from side
side or "walk" the refrigerator when attempting
move it as this can cause damage to the floor. I-
EXPLOSION HAZARD
Keep all flammable materials and vapors (such as
gasoline) away from the refrigerator. Not following
these instructions may cause death, explosion or fire.
INSTALLATION
1. Avoid placing the unit near heat sources, direct
sunlight, or humidity.
2.7-o avoid vibration, the unit should be leveled. If needed,
adjust the leveling screws to compensate for an
unleveled floor. The front should be slightly taller than
the rear to ensure that the doors close properly. The
leveling screws can easily be turned by slightly tilting
the front of the refrigerator, turning the leveling screws
clockwise ( _ ) to raise it and counter-clockwise
( _.mk ) to lower it.
ONCE INSTALLED
1. Carefully clean your refrigerator and remove and dust
accumulated during shipping.
2. Install accessories such as the ice bin, door racks,
shelves, etc., in their proper places. These are already
packed to prevent any possible damage during
shipping.
3. Leave your refrigerator on for 2 to 3 hours before
storing food inside. Verify that there is a flow of cold air
in the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
WARNING:
oTake care when working with the hinges, base cover
and stops, etc. You may injure yourself.
• DO not place your hands or any tools in the air vents,
the base cover or in the bottom of the refrigerator. This
may cause injury or electrical shock.
INSTALLATION OF BASE GRILLE
Uninstalling or Replacing the Base Grille
1. Remove the 2 screws from the bottom front part of
your refrigerator (see Figure A).
2.Take off the cover.
Installing the Base Grille
Figure A
1. Align the bottom cover and place in position. Insert
the 2 screws and twist in place (see Figure B).
Figure B
Keep a Proper Distance from Adjacent
Objects
Please keep the refrigerator at an
adequate distance from other objects.
Insufficient spacing can reduce the
refrigerator's freezing efficiency and
increase electricity consumption.

REFRIGERATOR DOORS: HOWTO REMOVE AND REVERSE (Optional) For models with Pull Out Drawer
You may find it more convenient to have the doors converted from the left-opening type (factory installed) to the
right-opening type. Directions refer to the right side as your right when facing the unit.
TOOLS YOU MIGHT NEED OR USE
10 mm
1/4 in
3/8 in
Hex Socket Wrench J= in!
3/32 in
Phillips Screwdriver Flat Head Screwdriver Allen Wrench
Other necessary tools are:
• 1/4 inch socket wrench.
° Adjustable Wrench. • 10 mm open-end wrench • Flat 2 inch putty knife
IMPORTANT: Before you begin, unplug the refrigerator or disconnect the power source. Remove all food and any
adjustable racks from the refrigerator doors.
HOW TO REVERSE DOOR SWING (when converting from left-opening side mode to right-opening mode).
1. Removing Refrigerator Door
• Gently pry the top hinge cover with a flat head
screwdriver and remove it (1).
• Using 10 mm socket wrench, remove the three bolts
and lift off the top hinge. Set parts aside (2).
• Remove the pivot (3) and the cap (4) and place them
in the opposite side.
• Gently lift the refrigerator door (5) and remove it.
• Once the door has been removed, remove the screws
(6), the stopper (7) and the hinge pin (S) located below
the door and remove the hinge (9).
®0
©
• Install the hinge (10) on the opposite side of the door,
replace the screws (11), the stopper (12) and hinge pin
(13).
S.........................................................@
• Using the 1/4 inch socket wrench, loosen the pin (14)
and remove it.
• Remove the four screws (15 & 16) and remove the
hinge (17).
©

2. Installing Refrigerator Door
• Remove the cover (1) using a flat head screwdriver (this requires a little force), loosen the two screws (2) and place
on the opposite side.
• Place the hinge (3) on the opposite side and install the four screws (4 & 5).
Insert the pin (6) in the hinge (3).
Remove the cover (7) and install it on the right side.
Place the door and line up with the pin holes (S), making sure that both parts are aligned.
Place the top hinge (9) and insert the three screws (10).
Position the cover of the hinge over this (11).
Check that the door has been installed correctly.
i/.i_
HOW TO REMOVE THE DOOR HANDLES
NOTE: The appearance of the handle may appear
different.
3. Removing the Refrigerator Handle
• Loosen the fixation screws (1) with a 3/32 inch Allen
Wrench and remove the handle (2).
• Remove the assembly screws (3) with a 1/4 inch Allen
Wrench.
• Carefully remove the plug buttons from the door (4).
The buttons can be unscrewed using your fingers,
turning counter-clockwise. Continue turning until the
screw is loose and falls out.
• Install the buttons (4) on the left side.
4. Replacing the Refrigerator Handle
• Rotate handle upside down (1).
• Insert the assembly screws on the opposite side of the
door (2).
• Hold the handle in place with the holes lined up with
the screw holes (3) and tighten the screws (4) in place
with the 3/32 inch Allen Wrench.
©
Fixation
Screws
Allen
Wrench
Assembly
Screws _,
.®
®
10

HOW TO REMOVE AND INSTALL THE PULL OUT
DRAWER
IMPORTANT.. To avoid possible injury or damage to
the product or your property, please use two people to
perform the following instructions:
1. Removing the Pull Out Drawer
• Pull the drawer out to maximum extension. Remove
the bottom rack (1) by tilting it back a little and then
lifting it off the railing tracks. ©
• With both hands, hold the center of the bar and push
it in so that it is fit to both rails simultaneously.
CAUTION: When removing the drawer, do not hold
the handle. If it comes off, it could cause personal
injury.
CAUTION: To place the drawer on the floor, take
care not to damage the floor or hurt your feet with
the sharp edges on the side with the hinges.
° Put pressure on the two hangers (2) with your thumbs
in order to lift it up.
• Separate the left and right rail cover.
• Remove the screws (3) from both sides of the rail track.
®
2. Installing the Pull Out Drawer
• With both hands, hold the center of the bar and pull it
outward so that the two rails extend out at the same
time.
• Mount door supports (1) into the tabs on the railing
track (2), starting in the back first and then connecting
the part in the front last, as shown in the figure.
• With both hands, hold both sides of the door and pull
up to separate it.
11
• Push the drawer down into position and tighten the
screws (3).
S:'_ .

• Compare the left and right rail covers on each side.
Right Rail
Left Rail
• Align the top holes of the rail cover with the top holes
of the door supports to mount the cover.
Verify the
hole's alignment
• With the drawer fully extended, insert the lower basket
over the front part of the rail assembly and then the
back part (4).
[] WARNONG: To prevent entrapment risk and
accidental child or animal suffocation, DO NOT
permit them to play inside of the drawer.
[] WARNONG: DO NOT step or siton the Freezer Door.
12

REFRIGERATORDOORS:HOWTOREMOVEANDREVERSE(Optional) For Swing models
You may find it more convenient to have the doors converted from the left-opening type (factory installed) to the
right-opening type. Directions refer to the right side as your right when facing the unit.
TOOLS YOU MIGHT NEED OR USE
I _ 10 mm 1
1/4 in
3/8 in 5/52 in
Hex Socket Wrench Phillips Screwdriver Flat Head Screwdriver Allen Wrench
Other necessary tools are:
• 1/4 inch socket wrench.
• Adjustable Wrench. • 10 mm open-end wrench. • Flat 2 inch putty knife.
IMPORTANT= Before you begin, unplug the refrigerator or disconnect the power source. Remove all food and any
adjustable racks from the refrigerator doors.
REVERSING DOOR OPENING DIRECTION FROM LEFT TO RIGHT (when you prefer the door to open from the
right instead of the left)
1. Removing and Installing the Refrigerator Handles
NOTE= To assist in the installation of the handles on the right side, place a piece of masking tape near the top of the
handle before removing it.
• Grasp the handle firmly with both hands and slide the
handle up (1) (this might require some force).
• The keyhole slots (2) on the back of the handle allow
the handle to separate from the screws in the door.
• Use the 10 mm open-end wrench to remove the
mounting screws in the door (3).
• Carefully loosen the plug buttons (4) with your fingers.
The buttons can be unscrewed with the fingers by
rotating them counter-clockwise and continuing until
they loosen and fall out The buttons were installed
without pressure, and for this reason, they can be
unscrewed using your index finger, thumb or both.
• Install the plug buttons (5) on the left side.
• Install the mounting screws (6) on the right side.
• Hold the handle so that the masking tape is at the
bottom.
• Align the keyhole slots (7) on the top and bottom of
the back of the handle with the screws on the front of
the door.
• Press the handle against the front of the door, ensuring
that the screws are inside of the keyhole slots of the
handle (S).
• Grasp the handle with both hands and slide the handle
downward (9) (this may require some force).
/
®,
® ®
Mountin( Keyhole slots
screws in in the back of
the door the handle
,,ig©
the keyhole slots
with the screws
13

2. Removing and Installing the Freezer Handle
NOTE: Before beginning, check the handle type of your
model.
Handle Type 1
• Remove the cap (1) and two screws (2) with a flat head
screwdriver.
• Loosen the two screws (3), remove the handle (4) and
install all on the right side.
• Attach the cap and the two screws (that were previously
removed) on the left side (5).
Handle Type 2
It is not necessary to remove this type of handle.
Handle Type 1 Handle Type 2
3. Removing the Refrigerator Door
• Gently remove the top hinge cover with a flat head
screwdriver (1).
• Using the 10 mm open-end wrench, remove the three
bolts and raise the top hinge and place aside (2).
• Remove the pivot (3) and the cap (4), place them in
the opposite side (the cap will be placed in the right
side and the pivot on the left side).
• Slightly raise the refrigerator door (5) and remove it.
• Once the door has been taken off, remove the screws
(6), the bolt (7) and the pivot (S) located below this
and remove the hinge (9).
®
• Install the hinge (10) on the opposite side of the door,
replacing the screws (11), the bolt (12) and the pivot
(13)
Q • Take off the washer (14).
• Using the 1/4 inch hex socket wrench loosen the pin
_I_ (15) and remove.
• Remove the screws (16 &17) and the hinge (18).
@
14

4. Removing the Freezer Door
• Before beginning, make sure you completely remove
the refrigerator door.
• Loosen the two screws from the base grille and remove
(1).
•Loosen and remove the two screws (2) and the pin (3).
• Raise and remove the freezer door (4) and set aside.
®
5. Insfalling the Freezer Door
•On the bottom left side, you will find a screw, remove
it and re-screw it in on the right side. In the remaining
space, place the hinge (1) and connect it with the two
screws (2) and the bolt (3).
•Install the base grille (4).
•Reinstall the pivot (8), the bolt (9) and screws (10) on
the bottom left side of the door.
• On the top part of the door, you will find a cap (11) and
a pivot (12). Remove them with a flat head screwdriver
and install them on the opposite side (the cap stays on
the right and the pivot on the left).
0-Pivot
©
Ca
• In the middle section of the refrigerator, you will find a
screw (13) and a cover (14). Remove them and reinstall
them on the right side (15).
@
• On the bottom right side of the door, you will find two
screws (5), a bolt (6) and 1 pivot (7). Remove them.
/\®
• Place the hinge in the middle part of the refrigerator
and install the four screws into the hinge (16&17).
@©
15

o Take the freezer door and align the pivot holes up with • Install the hinge (3), assemble the three screws (4)
the bolt holes and assemble them (18). and replace the hinge cover (5).
• Insert the pin into the hinge (19). (Ensure that it is
between the pivot and the freezer door).
• Replace the washer over the pin (20).
Washer
/
@
6. Installing the Refrigerator Door
• Insert the door over the axis of the pin (1).
• Check to make sure that both doors close correctly.
AFTER COMPLETING INSTALLATION
Make sure that the corners of the door seals are not
folded over. To ensure a good seal, apply a little silicon
grease on them.
Corners
i
° Remove the cover (2) and place on the opposite side.
Corners
7
16

CLOSINGANDALiGNiNGTHEDOORS
Closing the Doors
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unstable or if you would like the doors to close more
easily, simply adjust the inclination of the refrigerator by
following the instructions below:
1. Plug the refrigerator into a 3 prong grounded outlet.
Move the refrigerator into its final position.
2. Remove the base grille (Refer to the section on
"Installation of Base Grille").
Aligning the Doors
If the spacing between the doors is uneven, follow the
instructions below to align them:
1. Pry off the top hinge cover.
2. Loosen the screws from the top hinge using a 10 mm
socket or wrench.
3. Have someone help you hold the door in place or
place a spacer between the doors while tightening the
top hinge screws.
3. Use a flat head screwdriver to adjust the leveling screws,
turning clockwise to raise the side of the refrigerator
and counter-clockwise to lower it. It may take several
turns to adjust it to the inclination you would like.
4. Replace the top hinge cover.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This will make it easier to adjust the screws.
4.0pen both doors again and check to make sure that
they close easily. If not, slightly tilt the refrigerator
further back by turning both leveling screws clockwise.
It may take several more turns. Make sure that you turn
both leveling screws the same amount.
5. Ensure that the refrigerator is even by using a level.
6. Replace the base grille.
17

ENSURING PROPER AIR CIRCULATION
In order to obtain stable temperature, the air must flow
between the freezer and refrigerator sections. As shown
in the illustration below, the cold air enters through
the bottom part and circulates upward. This air returns
below the freezer floor and the rest of the air enters the
refrigerator section through the top vent.
ADJUSTING THE CONTROLS
•Your refrigerator has two controls that allow you to
regulate the temperature the freezer and refrigerator
compartments.
MULTi FLOW
The cooling fan operates more powerful and effective
than when in normal operation. This is especially
noticeable when new food is placed in the refrigerator
compartment. If the lining is damaged, water or other
substances could enter through the cool air vent causing
decreased efficiency.
I
Do not block any of these vents with packages of food.
This can interrupt the flow of air and cause temperature
and moisture problems.
Initially set the REFRIGERATOR CONTROL and the
FREEZER CONTROL at position number "4't Leave it
on these settings for 24 hours (one day) in order to
stabilize the refrigerator. After this you may adjust the
compartments to your desired temperature.
• Refrigerator Control: Position 1 to 7(32 °F to 47 °F
or 0 °C to 8 °C)
The lower the degree, the colder the refrigerator
compartment will become.
REFRIGERATOR TEMP ICEPLUS
ADJUST WARMER 4fs RECOMMEt_DED COLDER
°Freezer Control: Position I to 7(-6 °F to 9°F or
-21 °C to -13 °C)
The lower the degree, the colder the freezer compartment
will become. Despite this, the compartment of the
refrigerator will be less cold because air flows in smaller
quantities.
• Ice Plus
Press the button Ice Plus. The LED light will turn on.
This function will remain activated for 24 hours and
intensify the cooling speed of the freezer and increase
ice production.
ICE PLUS FREEZER TEMP J
WARMER 4_S RECOMMENDED COLDER ADJUST
iMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer
to the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out
of food, make sure you wrap or cover foods tightly (See
the "Food Storage Guide" section for details).
DOOR ALARM
With this feature you will hear an alarm when the freezer
or refrigerator door is ajar for more than 1 minute.
These tones will repeat every 30 seconds. The alarm is
cancelled when the door is properly shut.
18

ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before adding
food to the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is cold to your liking and ice cream is firm.
The refrigerator control functions as the thermostat for
the entire appliance. The higher the number setting, the
longer the compressor will run to keep the temperature
colder. The freezer control adjusts the cold air flow from
the freezer to the refrigerator. Setting the freezer control
to a lower temperature keeps more cold air in the freezer
compartment to make it colder.
If you need to adjust the temperature in the refrigerator
or freezer, begin by adjusting the refrigerator first. Wait
24 hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the table below as a guide.
CONDITION/REASON: RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section
is too warm
• Opening the door often
• Adding a large amount
of food
• Room temperature is
very warm
FREEZER section is too
warm/ ice is made too
slowly
• Opening the door often
• Adding a large amount
of food
• Room temperature is
very low (not cycling
often enough)
• Using ice frequently
• Air vents blocked by
objects
REFRIGERATOR section
is too cold
• Controls not set
correctly for your
conditions
FREEZER section is too
cold
• Controls not set
correctly for your
conditions
Adjust the
REFRIGERATOR setting
to the next highest
number and wait 24
hours, then check.
Adjust the FREEZER
setting to the next
highest number and wait
24 hours, then check.
Remove any objects
blocking air flow.
Adjust the
REFRIGERATOR setting
to the next lowest
number and wait 24
hours, then check.
Adjust the FREEZER
setting to the next lowest
number and wait 24
hours, then check.
FOOD STORAGE GUIDE
ITEMS HOW TO STORE
Storing Fresh Food Wrap or store food in the
refrigerator in airtight and
moisture-proof material unless
otherwise noted. This prevents
food odor and taste transfer
throughout the refrigerator. For
dated products, check date code
to ensure freshness.
Buffer or
margarine
Store opened butter in a covered
dish or in a closed compartment.
When storing a larger quantity,
wrap in freezer packing and
freeze.
Cheese
Vegetables with
skins (carrots,
peppers)
Fruit
Leafy Vegetables
Fish
Chef Fresh
Leftovers
Store in original packaging until
you are ready to use it. Once
opened, tightly rewrap with
plastic wrap or aluminum foil.
Place in bags or plastic containers
inside the crisper.
Wash and let dry; store in plastic
bags in the refrigerator. Do not
wash or pit berries until you
are ready to eat them. Berries
should be selected and kept in
their original packaging (if there
is any) or in a paper bag closed
halfway and set on a shelf.
Remove original packaging and
trim any dirty or discolored parts.
Wash in cold water and drain.
Place in a plastic bag or plastic
container and store in the crisper.
Consume fish or seafood the
same day purchased.
Store any meat in original airtight,
moi stu re- proof packaging.
Rewrap if necessary.
Cover leftovers with plastic
wrap or aluminum foil. Plastic
containers with airtight lids can
also be used.
STORING FROZEN FOOD
NOTE: For more information on how to prepare food to
be frozen such in a way to see the period they can be
stored consult a frozen food guide or cook book.
Packaging
A great freezing depends on how great you package the
food. When you seal the package make sure you remove
all excess air and do not allow humidity. A package that
is incorrectly sealed will result in the transmission of bad
odors, contaminants inside your refrigerator and will
cause your foods to dry.
19
