LG LFC20786 Series User manual

LFC20786**
P/No. MFL67241802
Rev.1 www.lg.com
OWNER’S MANUAL
BOTTOM FREEZER
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
Model Name/Nom du Modèle **=color number/numéro de couleur
MANUEL D’UTILISATEUR
RÉFRIGÉRATEUR
A CONGÉLATEUR INFÉRIEUR
Veuillez lire ce manuel en entier avant de mettre
en marche l’unité et conservez-le à portée de la
main pour le consulter à tout moment.
FRANÇAIS
ENGLISH
MFL67241802_frontier.indd 2 6/10/2011 9:40:42 AM

1
WARRANTY
Visit our web site http://www.lg.com LG Electronics
LIMITED WARRANTY
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of original
purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the
U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator / Freezer Warranty Period
Product Parts Labor
Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System
(Compressor, Condenser, Evaporator) 7 years 1 year [In-Home Service (Except Model GR-051)]
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY
HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE
OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE
THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specic legal rights
and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, re, oods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
5. Damages caused during and/or after delivery.
6. Display, discount, or refurbished units purchased with scratches, dents, or defects.
Proof of purchase is required and must be provided to LG in order to validate warranty.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product,
or the replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time warranty service is
provided.
To obtain Product or Customer: Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year).
Service Assistance: Press the appropriate menu option, and have your product type (Refrigerator),
model number, serial number, and ZIP/Postal Code ready.
To obtain the nearest Authorized
Service Center:
Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year)
Press the appropriate option, and have your product type (Refrigerator), model
number, serial number, and ZIP/Postal Code ready.
MFL67241802_frontier.indd 1 6/10/2011 9:40:42 AM

2
GARANTIE
LG ELECTRONICS CANADA, INC.
GARANTIE LIMITEE DU REFRIGERATEUR LG – CANADA
GARANTIE : Si votre réfrigérateur s’avère être défectueux en raison d’un défaut de matériau ou de fabrication, lors d’une utilisation correcte à domicile,
pendant la période de garantie spéciée ci-après, LG Electronics réparera ou remplacera le produit sur réception de la preuve d’achat d’origine fournie par
le détaillant. Cette garantie est valable uniquement pour l’acheteur original du produit et s’applique uniquement aux produits distribués au Canada par LG
Electronics Canada ou par un distributeur canadien autorisé.
PÉRIODE DE GARANTIE : (Remarque : Si la date d’achat d’origine ne peut pas être vérié », la garantie débutera soixante (60)
jours à partir de la date de fabrication).
Réfrigérateur/congélateur Système scellé (compresseur, condensateur et évaporateur seulement)
Un (1) an à partir de la date d’achat
d’origine.
Un (1) an à partir de la date
d’achat d’origine.
Sept (7) ans à partir de la date d’achat d’origine.
Pièces et main-d’œuvre (pièces
internes fonctionnelles seulement)
Pièces et main-d’oeuvre. Pièces seulement (Le coût de la main d’œuvre sera à la charge
du consommateur)
* Les produits et les pièces de remplacement sont garantis pour la portion restante de la période de garantie originale ou pour quatre-vingt-dix
(90) jours.
* Les produits et les pièces de remplacement peuvent être neufs ou manufacturés.
* Le centre de service autorisé par LG Electronics garantit les réparations pendant trente (30) jours.
LA RESPONSABILITÉ DE LG CANADA SE LIMITE À LA GARANTIE CI-DESSUS, SAUF TEL QU’IL EST EXPLICITEMENT INDIQUÉ CI-DESSUS, LG
CANADA NE FOURNIT AUCUNE AUTRE GARANTIE ET REJETTE TOUTES LES AUTRES GARANTIES ET CONDITIONS EXPLICITES OU IMPLICITES À
L’ÉGARD DU PRODUIT, CE QUI INCLUT, SANS TOUTEFOIS S’Y LIMITER, TOUTE GARANTIE ET CONDITION IMPLICITE DE QUALITÉ MARCHANDE OU
DE CONVENANCE À UN USAGE PARTICULIER ET AUCUNE DÉCLARATION NE LIERA LG CANADA. LG CANADA N’AUTORISE PERSONNE À CRÉER
NI À ASSUMER AUCUNE AUTRE PROVISION POUR GARANTIES EN RELATION AVEC CE PRODUIT. SI UNE GARANTIE OU CONDITION IMPLICITE
EST REQUISE PAR LA LOI, SA PÉRIODE SE LIMITE À CELLE DE LA GARANTIE EXPLICITE SUSMENTIONNÉE.
LG CANADA, LE FABRICANT ET LE DISTRIBUTEUR NE POURRONT ÊTRE TENUS RESPONSABLES D’AUCUN DOMMAGE ACCESSOIRE,
CONSÉCUTIF, SPÉCIAL, DIRECT OU INDIRECT, D’AUCUNE PERTE D’ACHALANDAGE OU DE PROFITS, D’AUCUN DOMMAGE PUNITIF, EXEMPLAIRE
OU AUTRE, DIRECTEMENT OU INDIRECTEMENT ATTRIBUABLE À TOUTE VIOLATION CONTRACTUELLE, FONDAMENTALE OU AUTRE, OU À UNE
ACTION, UNE OMISSION, UN DÉLIT OU TOUTE AUTRE CHOSE.
La présente garantie vous confère des droits légaux spéciques. Vous pourriez disposer d’autres droits, suivant les lois provinciales applicables. Toute clause
de la présente garantie qui invalide ou modie une condition ou garantie implicite aux termes d’une loi provinciale est dissociable si elle entre en conit avec la
loi provinciale, et ce, sans affecter les autres clauses de la garantie.
LA PRÉSENTE GARANTIE LIMITÉE NE COUVRE PAS CE QUI SUIT:
1. Un appel de service pour livrer, ramasser ou installer le produit; renseigner un client sur le fonctionnement du produit; réparer ou remplacer des fusibles
ou rectier le câblage; ou corriger une réparation ou installation non autorisée.
2. La défaillance du produit durant une panne ou interruption de courant ou en raison d’un service électrique inadéquat.
3. Des dommages occasionnés par la fuite ou le bris de conduites d’eau, le gel de conduites d’eau, des tuyaux de drainage restreints, une alimentation en
eau inadéquate ou interrompue ou une alimentation en air inadéquate.
4. Des dommages attribuables à l’utilisation du produit dans une atmosphère corrosive ou contraire aux instructions spéciées dans le manuel d’utilisation
de produit.
5. Des dommages au produit causés par un accident, des animaux nuisibles ou des vermines, la foudre, le vent, un incendie, une inondation ou une
catastrophe naturelle.
6. Les dommages attribuables à une mauvaise utilisation, une utilisation abusive ou à une installation, une réparation ou un entretien inapproprié du produit.
Les réparations inappropriées incluent l’utilisation de pièces ni aprouvées ni recommandées par LG Canada.
7. La détérioration ou la défaillance du produit causée par une modication ou un changement non autorisé ou une utilisation autre que celle prévue, ou
résultant d’ une fuite d’eau occasionée par une mauvaise installation.
8. La détérioration ou la défaillance du produit causée par un courant ou un voltage électrique incorrect, une utilisation commerciale ou industrielle, ou
l’utilisation d’accessoires, d’éléments ou de produits nettoyants non approuvés par LG Canada.
9. Les dommages causés par le transport et la manipulation, notamment les égratignures, les bosses, les écaillures et / ou tout autre dommage à la nition
du produit, à moins que ces dommages ne soient attribuables à des défauts de matériaux ou de fabrication et qu’ils ne soient signalés dans un délai d’une
(1) semaine de la livraison.
10.Des dommages ou des pièces manquantes à tout produit exposé, déballé, soldé ou remis à neuf.
11.Des produits dont le numéro de série original a été retiré, modié ou ne peut être facilement déterminé. Le modèle et le numéro de série, ainsi que le reçu
de vente original du détaillant, sont requis pour valider la garantie.
12.L’augmentation des coûts et de la consommation des services publics.
13.Le remplacement des ampoules électriques, des ltres et de toute pièce non durable.
14.Les réparations requises si le produit ne sert pas à une utilisation domestique normale et habituelle (y compris, sans toutefois s’y limiter, une utilisation
commerciale, dans un bureau ou un centre récréatif) ou est utilisé contrairement aux instructions spéciées dans le manuel d’utilisation du produit.
15.Les coûts associés à l’enlèvement du produit de votre résidence aux ns de réparation.
16.L’enlèvement et la réinstallation du produit, s’il est installé à un endroit inaccesible ou contrairement aux instructions publiées, y compris dans le manuel
d’utilisation et le manuel d’installation du produit.
17.Les accesoires du produit, tels que les balconnets, les tiroirs, les poignées, les tablettes, etc. Sont également exclues les pièces non incluses initialement
avec le produit.
Tous les coûts associés aux circonstances exclues ci-dessus seront assumés par le consommateur.
Pour obtenir tous les détails sur la garantie et Écrivez vos renseignements de garantie ci-dessous:
accéder au service à la clientèle, téléphonez-nous
visitez notre site Web: Renseignements sur l’enregistrement du produit:
Composez le 1-888-542-2623 (24 h sur 24, 365 jours par année) et Modèle:
Sélectionnez l’option de menu appropriée, ou visitez notre site Web
au: http://www.lg.com Numéro de série:
Date d’achat:
MFL67241802_frontier.indd 2 6/10/2011 9:40:42 AM

3
Warranty 1-2
English Version 3
French Version 29
Important Safety Instructions 4-5
Requirements for Ground Connection 5
Parts and Features 6
Refrigerator Installation 7-13
Unpacking 7
Installation 7
Installation of Base Grille 7
How to remove and Install the
Refrigerator Doors 8-11
How to remove and Install Pull-Out Drawer 11-12
Closing and Aligning the doors 13
Using your Refrigerator 14-20
Ensuring Proper Air Circulation 14
Multi Flow 14
Door Alarm 14
Adjusting the Controls 14
Adjusting Control Settings 15
Food Storage Guide 15
Storing Frozen Food 15-16
Refrigerator Section 16-19
Refrigerator Shelves 16-17
Pantry 17
Crisper Humidity Control 17
OptiBin Crispers 18
Crisper cover with interior lattice 18
Door Racks 18
Dairy Compartment 19
Egg Compartment 19
Freezer Section 19
Ice Bin 19
DuraBase 19
Durabase Divider 19
Glide Out Drawer 19
Tilting Door 19
Refrigerator Care and Cleaning 20-21
Refrigerator Cleaning 20
Outside 20
Inside Walls 20
Door Lining & Gaskets 20
Plastic Parts (Covers and Panel) 20
Back Cover 20
Replacing Refrigerator Lights 20
Power Interruptions 21
When Going on Vacation 21
When Moving 21
About the Automatic Ice Maker 22
Connecting the Water Line 23-25
Troubleshooting Guide 26-28
TABLE OF CONTENTS
MFL67241802_frontier.indd 3 6/10/2011 9:40:42 AM

4
This manual contains several important safety notices. Always read and obey all of the following safety messages.
This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury
or damage to you, others or the product. All safety messages will follow after this warning symbol and the
word “DANGER”, “CAUTION” or “WARNING”. These words mean:
You may be killed or suffer fatal damage if you do not follow instructions.
You may be killed or seriously injured if you do not follow instructions.
Indicates a potentially hazardous situation which, if not avoided, may result in minor injury
or damage to the product.
All safety messages inform you of potential danger, advise you on how to reduce the risk of injury and tell you what
can occur if the instructions are not followed.
To reduce the risk of fire, electrical shock or personal
injury, the following precaution measures should be
followed:
•NEVER disconnect the refrigerator by pulling the
power cord, always grip the plug firmly and disconnect
it directly from the outlet.
•Immediately repair or replace all faulty or damaged
service cables. Do not use cords that have cracks or
abrasion damage on the length of the cord or on the
plug.
•When moving your refrigerator, take care not to roll
over the electrical cord.
•DO NOT store or use gasoline or other combustible
liquids or vapors in proximity with this or any other
electrical appliance.
•DO NOT permit children to climb, stand or swing from
the doors or shelves of the refrigerator. This can cause
serious injury to them and damage to the product.
•Keep your fingers away from areas in which they
can become caught, such as the doors, hinges and
cabinets. Be careful closing the doors when children
are near.
•Unplug the refrigerator before cleaning or repairing.
NOTE: We strongly recommend that any repair
services be performed by a qualified professional.
•Before replacing a burned-out light bulb, unplug the
refrigerator or shut down the circuit breaker to avoid
contact with a live wire (the bulb could break while
being replaced). NOTE: Setting the control to the OFF
position does not disconnect the power from the light
bulb circuit.
•Do not keep bottles in the freezer compartment, they
could explode after freezing and cause damage.
•For your safety, this product should be properly
grounded. Have a qualified professional check the
electrical circuit and outlet to ensure a proper ground
connection.
•Read all instructions before utilizing the product. Utilize
this product only as explicitly expressed in this guide.
•Once the refrigerator is operating, avoid touching cold
surfaces of the freezer with damp or wet hands; the
skin could become adhered to these surfaces.
•In refrigerators with an automatic ice dispenser, avoid
contact with moving parts of the ejector mechanism
or with the heating mechanism that discharges the
cubes. DO NOT place your fingers or hands in the
ice dispenser mechanism while the refrigerator is
connected.
•DO NOT refreeze foods which have already thawed.
The Department of Agriculture of the United States, in
your Bulletin of Home and Gardens No. 69 establishes
that:
“...You can refreeze food that has thawed if they contain
ice crystals or are cold and below 40 °F (4 °C)”.
“...Ground beef, perishable food or seafood that is
discolored or has an unpleasant odor should not be
frozen or consumed. Consumption of melted ice cream
should also be avoided. If the odor or color of food is
questionable, discard it. The food may be dangerous to
consume”.
“Partial thawing or refreezing reduces the quality of the
food, especially fruit, vegetables and prepared meals.
The quality of red meat is less affected than other foods.
Use refrozen products as soon as possible in order to
maintain their quality”.
KEEP THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAFETY MESSAGES
WARNING
DANGER
WARNING
CAUTION
MFL67241802_frontier.indd 4 6/10/2011 9:40:43 AM

5
IMPORTANT SAFETY INSTRUCTIONS
This appliance is not intended for use by children, persons with physical or mental disabilities, persons with reduced
sensory or mental capacity, or persons with lack of experience or know-how, unless they have supervision or instruction
in relation to the use of the appliance by the person responsible for their safety. Children should be supervised to
assure that they do not play with the appliance.
Children becoming trapped or suffocated is not
a problem of the past. Discarded and abandoned
refrigerators are a hazard, even if they remain there
“for just a few days”. If you would like to dispose of
your old refrigerator, please follow the instructions
below to prevent any accidents.
BEFORE DISPOSING YOUR REFRIGERATOR
OR FREEZER WHEN NO LONGER IN USE:
• Remove the doors.
• Leave the shelves in place so that children
cannot easily become stuck in them.
Your old refrigerator may have a cooling system that
uses CFC’s (chlorofluorocarbons). CFC affects the
stratospheric layer of the ozone.
If you decide to throw out your old refrigerator, ensure
that CFC contaminants are properly disposed of by a
qualified professional. If you intentionally remove the
CFC refrigerant, you could be subject to fines or prison
in accordance with environmental legislation in effect.
IMPORTANT: Attentively read the following.
TO CONNECT ELECTRICITY
WARNING
ELECTRICAL SHOCK HAZARD
FOR YOUR PERSONAL SAFETY, this appliance must
be properly grounded. Have a qualified electrician
check your wall outlet to ensure that the plug is
grounded properly.
3 prong
grounding type
wall receptacle
3 prong
grounding Ensure proper
plug ground exists
before use
RECOMMENDED GROUNDING METHOD
Your refrigerator must always be plugged to its own
outlet which is adequately grounded. The energy current
should only be 115 V, 60 Hz, A.C. and fused at 15 or 20
A. This provides the best performance and prevents an
overload which could cause a fire from the overheating
of the cables. It is recommended that a separate circuit
be used for this appliance, as well as a receptacle that
cannot be disconnected with a switch.
Do not use an extension cable. It is your responsibility
and obligation to replace two-prong outlets with that of
an adequately grounded three-prong outlet.
Do not, under any circumstance, cut or extract the third
prong from the plug.
NOTE: Before installation, cleaning or replacing light
bulbs, you must disconnect the appliance from the
power source. When finished, plug the appliance back in
and adjust the thermostat to the desired position.
USE OF EXTENSION CABLES
We do not recommend the use of extension cables.
However, if you still choose to utilize an extension cable,
it is absolutely necessary that it is listed in the UL (in
the United States) or CSA (in Canada), that it supports
three-pronged plugs and that the electrical current
support a minimum of 15 A and 120 V.
The use of an extension cable will increase the amount
of space needed behind the refrigerator.
WARNING
REPLACING ELECTRICAL CABLE
If the power cord is damaged, it must be replaced by
our service center or qualified LG technician to avoid
any risk.
CAUTION
DANGER: CHILDREN MAY BECOME TRAPPED
CFC DISPOSAL
REQUIREMENTS FOR GROUND CONNECTION
MFL67241802_frontier.indd 5 6/10/2011 9:40:43 AM

6
PARTS AND FEATURES
Drawer Model
Read this section to familiarize yourself with the parts and features of your new refrigerator.
NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed
below. The location of some of the parts may not correspond to that of your model.
Refrigerator Temperature Control
Refrigerator Light
Shelves
Optibin Crisper
Keeps fruits and vegetable fresh and crisp
Pantry *
Ice Maker *
Ice Bin*
Durabase
Durabase divider
Pull Out Drawer
Freezer Light
Door Racks
* On some models
A
B
C
H
F
G
E
D
I
J
K
L
A
B
C
HI
F
G
E
D
J
K
L
MFL67241802_frontier.indd 6 6/10/2011 9:40:43 AM

7
REFRIGERATOR INSTALLATION
WARNING
EXCESSIVE WEIGHT HAZARD
Use the assistance of two or more persons to move or
install the refrigerator. Not following these instructions
may cause injury to the back and other parts of the
body.
UNPACKING
Before installing your refrigerator, remove any tape
or temporary stickers. Do not remove any stickers
that feature warnings, the model serial number or the
technical label of the product located on the back of the
refrigerator.
To remove adhesive tape residue, rub it well with your
fingers and a little liquid detergent. Clean with warm
water and let dry.
Do not use sharp instruments, rubbing alcohol, flammable
liquids or abrasive cleaning products to remove the
adhesive tape or glue. These products can damage the
surface of your refrigerator. For more information, see
the section on “Important Safety Instructions”.
The shelves come already installed in their factory
position. Remove the shelves and replace them
according to your spacing needs.
Moving Your Refrigerator:
Your refrigerator is extremely heavy. Make sure you
protect the floor when moving your refrigerator for
cleaning or servicing. Always pull your refrigerator
straight out when moving it. Do not shift from side
to side or “walk” the refrigerator when attempting to
move it as this can cause damage to the floor.
WARNING
EXPLOSION HAZARD
Keep all flammable materials and vapors (such as
gasoline) away from the refrigerator. Not following
these instructions may cause death, explosion or fire
INSTALLATION
1. Avoid placing the unit near heat sources, direct
sunlight, or humidity.
2.To avoid vibration, the unit should be leveled. If needed,
adjust the leveling screws to compensate for an
unleveled floor. The front should be slightly taller than
the rear to ensure that the doors close properly. The
leveling screws can easily be turned by slightly tilting
the front of the refrigerator, turning the leveling screws
clockwise ( ) to raise it and counter-clockwise
( ) to lower it.
3.Install the refrigerator in an area between 55 °F
(13 °C) and 110 °F (43 °C). If the surrounding temperature
is lower or higher than previously mentioned, it can
adversely affect the unit.
CAUTION: Avoid placing the unit near heat
sources, direct sunlight or humidity.
ONCE INSTALLED
1. Carefully clean your refrigerator and remove and dust
accumulated during shipping.
2.Install accessories such as the ice bin, door racks,
shelves, etc., in their proper places. These are already
packed to prevent any possible damage during
shipping.
3.Leave your refrigerator on for 2 to 3 hours before
storing food inside. Verify that there is a flow of cold air
in the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
WARNING:
•Take care when working with the hinges, base cover
and stops, etc. You may injure yourself.
•DO not place your hands or any tools in the air vents,
the base cover or in the bottom of the refrigerator. This
may cause injury or electrical shock.
INSTALLATION OF BASE GRILLE
Uninstalling or Replacing the Base Grille
1. Remove the 2 screws from the bottom front part of
your refrigerator (see Figure A).
2.Take off the cover.
Figure A
Installing the Base Grille
1. Align the bottom cover and place in position. Insert
the 2 screws and twist in place (see Figure B).
Figure B
Keep a Proper Distance from Adjacent
Objects
Please keep the refrigerator at an
adequate distance from other objects.
Insufficient spacing can reduce the
refrigerator’s freezing efficiency and
increase electricity consumption.
(5.08 cm) 2”
MFL67241802_frontier.indd 7 6/10/2011 9:40:44 AM

8
HOW TO REMOVE AND INSTALL THE REFRIGERATOR DOORS
For moving the refrigerator through a house door, it might be necessary to remove refrigerator and freezer door
handles.
IMPORTANT: Before starting, turn off and unplug the refrigerator. Remove all food and the racks from the doors.
TOOLS YOU MIGHT NEED OR USE
10 mm
1/4 in 1/4 in
3/8 in 3/32 in
Hex Socket Wrench Phillips Screwdriver Flat Head Screwdriver Allen Wrench
1. Removing Refrigerator Door
NOTE: The appearance of the handle, hinge and cover hinge might be different. Also the screws quantity used in
cover hinge might vary according to your model specification. THE APPEARANCE VARIATION DOES NOT AFFECT
REMOVING OR INSTALLING DOORS.
Left Door
•With the Phillips screw driver, loose the screw from the
upper lid (1) remove it after that.
•With the 10 mm socket wrench, loose the two pins
from the hinge (2) and remove it (3).
•Place the door with the inner face over the surface so
it won’t scratch.
Right Door
• Loose both screws from the upper lid (4) and remove
it.
•Unplug the cable harness pulling up the hook located
in the upper part of it (5) and separate both parts of
the harness (6).
Upper view of
the harness
Front view of
the harness
2 3
4
5
6
1
REFRIGERATOR INSTALLATION
MFL67241802_frontier.indd 8 6/10/2011 9:40:44 AM

9

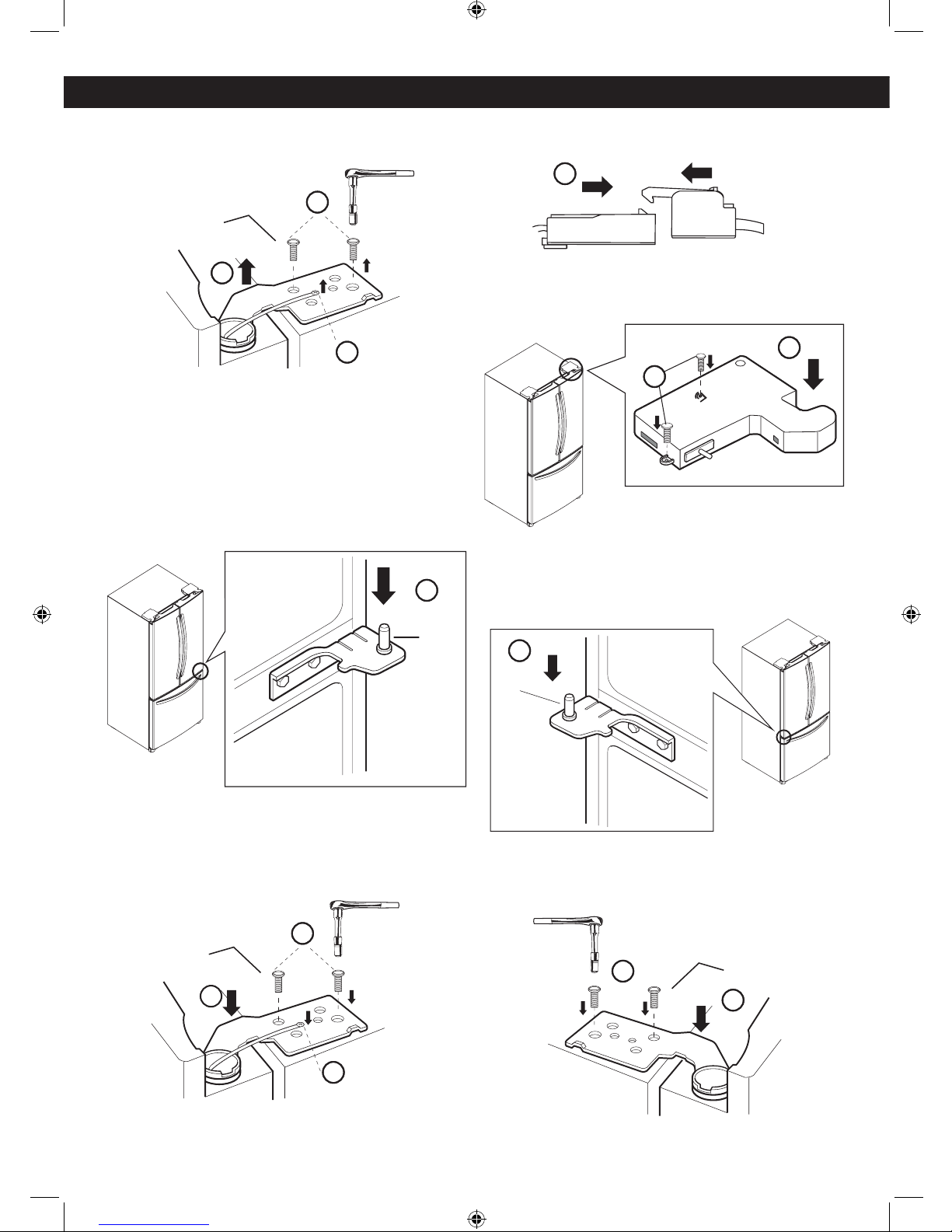

•Loose the grounding screw (7) and the pins (8) located
over the hinge, after, lift the hinge and remove it (9).
•Remove the door and place it over its inner face to
avoid scratching.
2. To install the refrigerator doors
Right Door
• Take the door and place it gently over the pin of the
hinge (1).
•Place the hinge in its original position (2) assembly the
two pins (3) and the ground screw (4).
•Plug the cable harness (5).
•Place the hinge lid (6) and install both screws (7). Be
sure the door is correctly assembled.
Left Door
•Take the left door and place it over the hinge (8).
• Place the hinge in its original position (9) and place
the two screws (10).
REFRIGERATOR INSTALLATION
9
8
7
Pin
1
2
3
4
5
6
7
Pin
8
10
9
MFL67241802_frontier.indd 9 6/10/2011 9:40:45 AM

10
• Place the hinge’s lid (11) and screw the two screws (12).
Check that the door is well installed.
3. To remove the refrigerator handle
• Loose the screws (1) with the Allen tool 3/32” and
remove the handle (2).
• Remove the mounting screws with the 1/4” Allen tool
(3).
Mounting
Screws
Fixation Screws
Allen Wrench
4. To install the handle of the refrigerator
• Install the mounting screws over the door (1) place the
handle over them (2) and tight the screws up (3).
Mounting
Screws
Fixation Screws
Allen Wrench
5. To remove the freezer handle
•With an 3/32” Allen tool, loose the screws (1) located
the bottom of the handle, remove it (2) remove the
screws on from the door (3) with an 1/4” Allen tool.
11 12
2 1
3
1
2 3
2
1
3
3
REFRIGERATOR INSTALLATION
MFL67241802_frontier.indd 10 6/10/2011 9:40:47 AM

11
1
6. To install the freezer handle
• Install the mounting screws over the door (1) place the
handle over them (2) and tight the screws up (3).
HOW TO REMOVE AND INSTALL THE PULL OUT
DRAWER
IMPORTANT: To avoid possible injury or damage to
the product or your property, please use two people to
perform the following instructions:
1. Removing the Pull Out Drawer
•Pull the drawer out to maximum extension. Remove
the bottom rack (1) by tilting it back a little and then
lifting it off the railing tracks.
•Remove the screws (2) from both sides of the rail track.
•With both hands, hold both sides of the door and pull
up to separate it.
REFRIGERATOR INSTALLATION
2
1
3
1
2
REFRIGERATOR INSTALLATION
MFL67241802_frontier.indd 11 6/10/2011 9:40:47 AM

12
•With both hands, hold the center of the bar and push
it in so that it is fit to both rails simultaneously.
CAUTION: When removing the drawer, do not hold
the handle. If it comes off, it could cause personal
injury.
CAUTION: To place the drawer on the floor, take
care not to damage the floor or hurt your feet with
the sharp edges on the side with the hinges.
2. Installing the Pull Out Drawer
•With both hands, hold the center of the bar and pull it
outward so that the two rails extend out at the same
time.
•Mount door supports (1) into the tabs on the railing
track (2), starting in the back first and then connecting
the part in the front last, as shown in the figure.
•Push the drawer down into position and tighten the
screws (3).
•With the drawer fully extended, insert the lower basket
over the front part of the rail assembly and then the
back part (4).
WARNING: To prevent entrapment risk and
accidental child or animal suffocation, DO NOT
permit them to play inside of the drawer.
WARNING: DO NOT step or sit on the Freezer
Door.
1
2
3
4
REFRIGERATOR INSTALLATION
MFL67241802_frontier.indd 12 6/10/2011 9:40:51 AM

13
REFRIGERATOR INSTALLATION
CLOSING AND ALIGNING THE DOORS
Closing the Doors
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unstable or if you would like the doors to close more
easily, simply adjust the inclination of the refrigerator by
following the instructions below:
1. Plug the refrigerator into a 3 prong grounded outlet.
Move the refrigerator into its final position.
2.Remove the base grille (Refer to the section on
“Installation of Base Grille”).
3.Use a flat head screwdriver to adjust the leveling screws,
turning clockwise to raise the side of the refrigerator
and counter-clockwise to lower it. It may take several
turns to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This will make it easier to adjust the screws.
4.Open both doors again and check to make sure that
they close easily. If not, slightly tilt the refrigerator
further back by turning both leveling screws clockwise.
It may take several more turns. Make sure that you turn
both leveling screws the same amount.
5.Ensure that the refrigerator is even by using a level.
6.Replace the base grille.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have
to exert slight pressure on doors to get them to close
completely.
Aligning the Doors
If the spacing between the doors is uneven, follow the
instructions below to align them:
1. With one hand, lift up the door you want to raise at
middle hinge.
2.With other hand, use pliers to insert snap ring as
shown.
3.Insert additional snap rings until the doors are aligned
(Three snap rings are provided per unit).
When moving your refrigerator
Note: Your refrigerator is extremly heavy. When moving
the refrigerator for installing, cleaning or service be sure
to follow the next instructions.
1. Adjust leveling legs up.
2. Cover the floor with cardboard or hardboard to
avoid floor damage.
3. Always pull or push the refrigerator straight out
when moving it. Do not wiggle or “walk” the
refrigerator when trying to move it, as floor damage
could occur.
2
1
MFL67241802_frontier.indd 13 6/10/2011 9:40:52 AM

14
ENSURING PROPER AIR CIRCULATION
In order to obtain stable temperature, the air must flow
between the freezer and refrigerator sections. As shown
in the illustration below, the cold air enters through
the bottom part and circulates upward. This air returns
below the freezer floor and the rest of the air enters the
refrigerator section through the top vent.
MULTI FLOW
• The cooling fan operates more powerful and effective
than when in normal operation. This is especially
noticeable when new food is placed in the refrigerator
compartment.
• If the lining is damaged, water or other substances
could enter through the cool air vent causing
decreased efficiency.
Do not block any of these vents with packages of food.
This can interrupt the flow of air and cause temperature
and moisture problems.
IMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer
to the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out
of food, make sure you wrap or cover foods tightly (See
the “Food Storage Guide” section for details).
DOOR ALARM
With this feature you will hear an alarm when the freezer
or refrigerator door is ajar for more than 1 minute.
These tones will repeat every 30 seconds. The alarm is
cancelled when the door is properly shut.
CAUTION WHEN CLOSING THE DOOR
CAUTION
To reduce the risk of door scratches, please make
sure that the refrigerator door mullion is always folded
in.
ADJUSTING THE CONTROLS
•Your refrigerator has two controls that allow you to
regulate the temperature the freezer and refrigerator
compartments.
•Initially set the REFRIGERATOR CONTROL to 37 °F
(3 °C) and the FREEZER CONTROL to 0 °F (-18 °C).
Leave it on these settings for 24 hours (one day) in
order to stabilize the refrigerator. After this you may
adjust the compartments to your desired temperature.
•Refrigerator Control: 32 °F to 47 °F (0 °C to 8 °C)
The lower the degree, the colder the refrigerator
compartment will become.
Freezer Control: -6°F to 9 ° F ( - 21°C to -13°C)
The lower the degree, the colder the freezer compartment
will become.
•Ice Plus
Press the button Ice Plus. The LED light will turn on.
This function will remain activated for 24 hours and
intensify the cooling speed of the freezer and increase
ice production.
USING YOUR REFRIGERATOR
MFL67241802_frontier.indd 14 6/10/2011 9:40:53 AM

15
USING YOUR REFRIGERATOR
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before adding
food to the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is cold to your liking and ice cream is firm.
The refrigerator control functions as the thermostat for
the entire appliance. The higher the number setting, the
longer the compressor will run to keep the temperature
colder. The freezer control adjusts the cold air flow from
the freezer to the refrigerator. Setting the freezer control
to a lower temperature keeps more cold air in the freezer
compartment to make it colder.
If you need to adjust the temperature in the refrigerator
or freezer, begin by adjusting the refrigerator first. Wait
24 hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the table below as a guide.
CONDITION/REASON: RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section
is too warm
•Opening the door often
•Adding a large amount
of food
•Room temperature is
very warm
Adjust the
REFRIGERATOR setting
to the next highest
number and wait 24
hours, then check.
FREEZER section is too
warm/ ice is made too
slowly
•Opening the door often
•Adding a large amount
of food
•Room temperature is
very low (not cycling
often enough)
•Using ice frequently
•Air vents blocked by
objects
Adjust the FREEZER
setting to the next
highest number and wait
24 hours, then check.
Remove any objects
blocking air flow.
REFRIGERATOR section
is too cold
•Controls not set
correctly for your
conditions
Adjust the
REFRIGERATOR setting
to the next lowest
number and wait 24
hours, then check.
FREEZER section is too
cold
•Controls not set
correctly for your
conditions
Adjust the FREEZER
setting to the next lowest
number and wait 24
hours, then check.
FOOD STORAGE GUIDE
ITEMS HOW TO STORE
Storing Fresh Food Wrap or store food in the
refrigerator in airtight and
moisture-proof material unless
otherwise noted. This prevents
food odor and taste transfer
throughout the refrigerator. For
dated products, check date code
to ensure freshness.
Butter or
margarine
Store opened butter in a covered
dish or in a closed compartment.
When storing a larger quantity,
wrap in freezer packing and
freeze.
Cheese Store in original packaging until
you are ready to use it. Once
opened, tightly rewrap with
plastic wrap or aluminum foil.
Vegetables with
skins (carrots,
peppers)
Place in bags or plastic containers
inside the crisper.
Fruit Wash and let dry; store in plastic
bags in the refrigerator. Do not
wash or pit berries until you
are ready to eat them. Berries
should be selected and kept in
their original packaging (if there
is any) or in a paper bag closed
halfway and set on a shelf.
Leafy Vegetables Remove original packaging and
trim any dirty or discolored parts.
Wash in cold water and drain.
Place in a plastic bag or plastic
container and store in the crisper.
Fish Consume fish or seafood the
same day purchased.
Chef Fresh Store any meat in original airtight,
moisture-proof packaging
Rewrap if necessary.
Leftovers Cover leftovers with plastic
wrap or aluminum foil. Plastic
containers with airtight lids can
also be used.
STORING FROZEN FOOD
NOTE: For more information on how to prepare food to
be frozen such in a way to see the period they can be
stored consult a frozen food guide or cook book.
Packaging
A great freezing depends on how great you package the
food. When you seal the package make sure you remove
all excess air and do not allow humidity. A package that
is incorrectly sealed will result in the transmission of bad
odors, contaminants inside your refrigerator and will
cause your foods to dry.
MFL67241802_frontier.indd 15 6/10/2011 9:40:53 AM

16
Packaging Recommendations:
• Use sealed plastic containers.
• Use plastic containers with a smooth surface.
• Package with aluminum foil of high resistance.
• Wrap with paper layered with plastic.
• Use water proof plastic.
• Use recommended plastic bags to store frozen foods.
Follow these packaging or container instructions in order
to reach the best freezing
Do not use:
• Bread Wrapping.
• Plastic container not safe for storing.
• Containers without lids or seals.
• Waxed paper or waxed plastic.
• Thin wrapping paper or not water proof.
Freezing
IMPORTANT: Do not keep bottles in the freezer
compartment, they may explode after freezing and
cause damage.
For the maximum use of your freezer do not store excess
food. Do not introduce a large amount of unfrozen foods
that cannot be frozen within 24 hours (no more than
2 – 3 pounds or ,91 kg - 1,36 kg of food per square
inch of space in the freezer). Sufficient space must be
left in order for the air to circulate properly around the
packages. Leave enough space in order to close your
refrigerator with out difficulty.
Storage times can vary depending on the type and
quality of the food, the way its package, or packaging
container used, (in comparison to air and humidity), and
the temperature it being stored in. Ice crystals formed
inside your package are normal it indicates the air and
humidity inside your package have condensed.
NOTE: Let warm foods cool off at room temperature
for approximately 30 min, then wrap accordingly with
the methods mention above and freeze. By letting your
warm foods cool off before you introduce them to your
freezer it will save you energy.
WARNING
SUFFOCATING DANGER
Adequate ventilation is required when using dry ice.
Dry ice is Carbon Dioxide (CO2). When it evaporates it
produces oxygen, causing dizziness, slight headaches,
unconsciousness or death. Do not inhale these vapors
and properly ventilate the room while you use dry ice.
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelving of your refrigerator can be adjusted to
comply with your storage necessities; Depending on
the model you have in can include glass shelving or
wired shelving. The storing of your foods together and
adjusting the shelving to different heights will ease to
help you locate what you need. This also helps your
refrigerator to stay shut longer which will save you energy.
IMPORTANT: While your refrigerator glass shelving are
cold do not clean with hot or warm water. The glass
shelving may break if exposed to rapid temperature
changes or hard impacts. For your safety the glass
shelving are made out of tempered glass so when at
breaking they will fracture into tiny fragments.
NOTE: Be careful while moving or relocating the shelves
they are heavy. If moving the shelves is required keep in
mind to locate them in a safe environment to prevent
them from breaking.
Adjusting Shelves
Remove the shelves and adjust them to your convenience.
•Removing Shelves
Incline the front of the shelf in the direction indicated by
figure 1 and lift in the direction indicated by figure 2. Pull
the shelf towards you.
• Replacing Shelves
Incline the frontal part of the shelf (1) and guide the
shelf hooks towards the openings at the height desired.
Then lower the front of the shelf (2) so the hooks can be
inserted (3) in the shelf supports.
NOTE: Make sure that the shelf is installed in the
horizontal manner. If not secured it can cause the shelves
to fall, which will cause your stored food to spill.
3
1
2
1
2
USING YOUR REFRIGERATOR
USING YOUR REFRIGERATOR
MFL67241802_frontier.indd 16 6/10/2011 9:40:58 AM

17
USING YOUR REFRIGERATOR
USING YOUR REFRIGERATOR
Sliding Shelves (in some models)
You can slide some of the shelves in your refrigerator
towards inside or outside like explained below.
•To slide the shelf towards the outside: Pull towards you,
figure A.
•To slide the shelf towards the inside: Push until it stops,
figure B.
Figure A Figure B
In order to remove a shelf from a metal frame
•Pull the shelf until it stops.
•Incline the front of the shelf towards the top and pull
forward.
•Lift the shelf in the manner it moves across the
support openings.
To put back into place just reverse these steps.
Functional Shelves (Folding Shelves, in some models)
You can store tall articles like gallons or bottles just by
simply folding the shelf in half.
PANTRY (in some models)
For storage of meat or fresh food. Adjust the control to
desired temperature by moving from COLD to COLDER.
Pull forward to open. Lift slightly and pull it out to remove.
l
CRISPER HUMIDITY CONTROL (in some models)
-sealed crispers. Adjust the control to any setting between
• “High”: keeps moist air in the crisper for best storage
of vegetables.
• “Low”: lets moist air out of the crisper for best storage
of fruits.
You can control the amount of humidity in the moisture
HIGH and LOW.
I I
I
I
I I
I
To remove the crisper:
•Slide crisper straight out to the stop.
•Lift the front of the crisper, then pull it out to remove
•Replace the crisper by sliding it back in fully past the
drawer stop.
CAUTION: Be careful when you handle the glass
cover because it could loose.
To remove the glass:
•Lift up the glass after inserting a screwdriver under the
crisper cover.
•Pull glass cover up and out.
To remove the crisper cover support:
NOTE: Remove glass before removing the crisper cover
support.
•While holding the crisper cover support with both
hands (as shown in the image below). Pull forward and
slightly lift the front part.
MFL67241802_frontier.indd 17 6/10/2011 9:40:59 AM

18
OPTIBIN CRISPERS
The OptiBin crisper maintains fruits and vegetables fresh
allowing you to easily control the humidity inside the
drawers. The Optibin crispers include 1) a front humidity
control and 2) a system that allows you to preserve or
avoid humidity.
Removing the Vegetable Drawer / Crisper
• Slip out the drawer towards the outside until it stops
(1).
• Slightly lift the front part and pull the rest (2), in order
to completely remove the drawer.
• To relocate the drawer slip out towards the front until
it stops.
CRISPER COVER WITH INTERIOR LATTICE
(in some models)
Removing the Vegetable Drawer Cover
•Remove both drawers (see “Removing the Vegetable
Drawer/Crisper”).
•Hold onto the support (1) and pull towards the top and
then towards the outside (2).
Installing the Vegetable Drawer Cover
•Put the cover over the supports (1).
•Slightly lift the cover (2) while introducing it to the
support (3).
•Put the inferior piece of the cover in the superior
support (4).
CAUTION: Be careful when you handle the glass
cover because it could loose.
Removing the Interior Lattice
• Remove the cover (See “Removing the Vegetable
Drawer Cover”).
• Hold the glass and spin the drawer cover (1).
• Hold the rack and pull the sides of the drawer cover
out to take them off (2).
Replacing the Interior Lattice
• For each rack insert the central edge 1 (near the glass
cover) and pull the cover sides to insert it.
DOOR RACKS
The door racks are removable for easy cleaning and
adjusting.
• To remove the rack, simply lift the rack up and pull
straight out (1).
• To replace the rack, slide it in above the desired
support button and push down until it stops (2).
WARNING: Somebody can be hurt if door racks
are not firmly assembled.
CAUTION: DO NOT allow children to play with
baskets. Sharp corners on baskets could cause
injury.
NOTE: DO NOT adjust a rack that is loaded with food.
2
1
1
2
1
2
3
4
12
USING YOUR REFRIGERATOR
USING YOUR REFRIGERATOR
12
MFL67241802_frontier.indd 18 6/10/2011 9:41:02 AM

19
DAIRY COMPARTMENT (in some models)
• To remove the dairy compartment, simply lift it and
pull straight out (1).
• To replace the dairy compartment, slide it in above the
desired location and push down until it stops (2).
EGG COMPARTMENT (in some models)
Keep the eggs compartment in an interior shelf, not in
a door rack.
CAUTION: Do not use the
eggs compartment as a
container for keeping ice in
the freezer compartment. If it
freezes, it could break easily.
FREEZER SECTION
ICE BIN (In some models)
•Pull the drawer as much as possible (1).
•Raise the ice box and take it out carefully (2).
•Take the drawer off as much as possible and put the
ice bin in the right position (3).
Drawer
Ice Bin
DURABASE (in some models)
•To remove the Durabase, push
it back, raise the front part
and pull it up (1).
•To put it back, insert the
Durabase in the rail assembly
(2).
DURABASE DIVIDER (in some models)
Allows organizing the Durabase
area in 2 sections.
For moving the divider, just move
it in the direction that you want.
WARNING:There is enough
space for the children to play.
WARNING:In order to
prevent accidents, such as suffocation, DO NOT let
children and pets play inside the durabase.
TILTING DOOR (in some models)
The tilting door provides an
easy access to the frozen food.
How to use:
Incline the door downwards
and pull it out.
WARNING: Be careful when opening the door, do
not place your feet under the door or your hands
inside the freezer; you may hurt them in doing so.
GLIDE-OUT DRAWER BASKET (in some models)
• Pull the box as much as
possible, pick up the basket
a bit (1) and pull it out (2).
• To install, pull the cords to
their fullest (1). Lock the
supports of the basket
into the slides of the cords
(2) and push it all the way
through (3).
USING YOUR REFRIGERATOR
1 2
12
3
2
13
2
2
1
1
MFL67241802_frontier.indd 19 6/10/2011 9:41:05 AM
