LG LSC27921SB User manual

Model Name/Nombre de Modelo
LSC27921**
P/No. MFL62306005
OWNER’S MANUAL
SIDE BY SIDE
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
MANUAL DE USUARIO
REFRIGERADOR
DE DOS PUERTAS
Lea detenidamente este manual antes
de empezar a utilizar el refrigerador y guárdelo
como referencia para el futuro.
ENGLISH ESPAÑOL
**color number/número de color
www.lg.com

2
Visit our web site http://www.lg.com LG Electronics
LIMITED WARRANTY
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of original
purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the
U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator / Freezer Warranty Period
Product Parts Labor
Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System
(Compressor, Condenser, Evaporator) 7 years 1 year [In-Home Service (Except Model GR-051)]
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY
HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVIENCE
OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE
THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specic legal rights
and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, re, oods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
5. Damages caused during and/or after delivery.
6. Display, discount, or refurbished units purchased with scratches, dents, or defects.
Proof of purchase is required and must be provided to LG in order to validate warranty.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product,
or the replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time warranty service is
provided.
To obtain Product or Customer: Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year)
Service Assistance: Press the appropriate menu option, and have your product type (Refrigerator),
model number, serial number, and ZIP/Postal Code ready.
To obtain the nearest Authorized
Service Center:
Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year)
Press the appropriate option, and have your product type (Refrigerator), model
number, serial number, and ZIP/Postal Code ready.
WARRANTY

4
Warranty (USA) 2 – 3
Important Safety Instructions 5
Grounding Requirements 6
Refrigerator Installation 7 - 12
Unpacking your Refrigerator 7
Installation 7
Base Grille Installation 7
Handle Removal 7
Removing and Replacing
Refrigerator Doors
8 - 9
Door Alignment 9
Connecting the water line 10 - 12
Before you begin 10
What you will need 10
Installation Instructions 10 - 12
Refrigerator Features 13
Using Your Refrigerator 14 - 22
Ensuring Proper Air Circulation 14
Prior to Use 14
Control Panel Features 14 - 15
Diagnosis Function 15
Adjusting Control Settings 16
Icemaker Operation 16
Food Storage Guide 17
Storing Frozen Food 17
Water and Ice Dispenser 18
Ice Storage Bin 18
Icemaker Cover 18
Door and Rack Support 18
Snack Pan 18
Crisper and Crisper cover 19
Refrigerator Shelves 19
Freezer Shelf 19
Filter 20 - 21
Water Filter 20
Performance Data Sheet 21
Care and Cleaning 22 - 23
General Cleaning Tips 22
Outside 22
Inside Walls 22
Door liners and Gaskets 22
Plastic Parts 22
Back Cover 22
Lamp Replacement 22
Power Interruptions 22 - 23
When you go on Vacation 23
When you Move 23
When you should set the Icemaker
Power Switch to off
23
Normal Sounds you May Hear 23
Troubleshooting Guide 24 - 27
TABLE OF CONTENTS

5
This guide contains many important safety messages. Always read and obey.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or
hurt you or others, or cause damage to the product. All safety messages will be preceded by the safety
alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:
DANGER You will be killed or seriously injured if you do not follow instructions.
WARNING You can be killed or seriously injured if you do not follow instructions.
CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate
injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the change of injury and tell you what can
happen if the instructions are not followed.
To reduce the risk of fire, electric shock or injury to
persons when using your product, basic safety
precautions should be followed, including the
following. Read all instructions before using this
appliance:
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
• Repair or replace immediately all electric service cords
that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion
damage along its length or at either the plug or
connector end.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage it in any way.
• Do not crush or damage the water line.
• Do not store or use gasoline or other ammable vapors
or liquids in the vicinity of this or any other appliance.
• Do not allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They
could damage the refrigerator and seriously injure
themselves.
• Keep ngers out of ‘pinch point’ areas; clearances
between the doors and cabinet are necessarily small.
Be careful when you open the doors when children are
in the area.
• Unplug your refrigerator before cleaning or making any
repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
• Do not store bottles in the freezer compartment, they
may break when frozen, causing damage.
• The refrigerator-freezer should be positioned so that
the supply plug is accessible for quick disconnection if
an accident happens.
• For personal safety, this appliance must be properly
grounded. Have the wall outlet and the circuit checked
by a qualified electrician to make sure the outlet is
properly grounded.
• This refrigerator must be properly installed in
accordance with the ‘Attention Installer’ instructions
that were taped to the front of the refrigerator.
• After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely
cold surfaces.
• In refrigerator with automatic icemakers, avoid
contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes.
• DO NOT place ngers or hands on the automatic ice
making mechanism while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are still
cold below 40 °F (4 °C)”.
“Thawed ground meats, poultry, or fish that have any
off-odor or off-color should not be frozen and should
not be eaten. Thawed ice cream should be discarded.
If the odor or color of any food is poor or questionable,
get rid of it. The food may be dangerous to eat”.
“Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits, vegetables
and prepared foods. The eating quality of red meats
is affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of
their quality as you can”.
SAVE THESE INSTRUCTIONS
WARNING
IMPORTANT SAFETY INSTRUCTIONS

6
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous… even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
Before you throw away your old
refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children
may not easily climb inside.
Your old refrigerator may have a cooling system that
used CFCs (chlorouorocarbons). CFCs are believed
to harm stratospheric ozone. If you are throwing away
your old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified servicer. If
you intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under provisions
of environmental legislation. This appliance contains
uid (refrigerant, lubricant), and is made of parts and
materials which are reusable and / or recyclable.
All the important materials should be sent to the
collection center of waste material and can be reused
after rework (recycling). To recycle, please contact
your local agency.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
WARNING
ELECTRICAL SHOCK HAZARD
FOR PERSONAL SAFETY, this appliance MUST be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 V.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
WARNING
REPLACING ELECTRICAL CABLE
If the power cord is damaged, it must be replaced by
our service center of qualified LG technician to avoid
any risk.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 V ~ 60 Hz only and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires. It is recommended
that a separate circuit serving only this appliance be
provided. Use a receptacle which cannot be turned off
with a switch or pull chain. Do not use an extension
cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet. Do not, under any circumstances, cut or remove
the third (Ground) prong from the power cord.
NOTE: Before performing any type of installation or
cleaning turn the control (thermostat,
refrigerator control or freezer control,
depending on the model) to OFF and then
disconnect the refrigerator from the electrical
source. When you are finished, reconnect the
refrigerator to the electrical source and reset
the control (thermostat, refrigerator control or
freezer control, depending on the model) to the
desired setting.
DANGER: RISK OF CHILD ENTRAPMENT
CFC DISPOSAL
GROUNDING REQUIREMENTS
CAUTION

7
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install the
refrigerator. Failure to do so can result in back or
other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning
type labels, the model and serial number label.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also
be easily removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers. Wipe with
warm water and dry.
Do not use sharp instruments, rubbing alcohol,
ammable uids or abrasive cleaners to remove tape or
glue. These products can damage the surface of your
refrigerator. For more information, see the Important
Safety Instructions section.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to your
individual storage needs.
WARNING
WHEN MOVING YOUR REFRIGERATOR
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the oor. Always pull the refrigerator straight out
when moving it. Do not wiggle or walk the refrigerator
when trying to move it, as oor damage could occur.
WARNING
EXPLOSION HAZARD
Keep ammable materials and vapors, such as
gasoline, away from refrigerator. Failure to do so can
result in death, explosion or fire.
INSTALLATION
1. Avoid placing unit near heat sources, direct sunlight
or moisture.
2. To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed oor.
3. Carpeting and soft tile surfaces are not
recommended.
4. NEVER install the refrigerator on a platform or a
weakly supported structure.
5. Install this appliance in an area where the
temperature is between 41°F (5°C) and 110°F (43°C).
If the temperature around the appliance is too low or
high, cooling ability may be adversely affected.
NOTE: For proper air circulation, and best
cooling and energy consumption
results, maintain a minimum
distance of 2 inches (5,08cm) from
adjacent items and surfaces.
WARNING
• Be careful when you work with the hinge, base grille,
stopper, etc. You may be injured.
• Do not put hands or metal sticks into air vents,
base grille or bottom of the refrigerator. You may be
injured or receive an electrical shock.
BASE GRILLE INSTALLATION
To install or replace base grille:
1. Remove the 2 screws from the bottom front part of
refrigerator.
2. Place base grille into position and insert and tighten
screws.
To remove the base grille:
1. Open the doors (Refrigerator and Freezer).
2. Once doors are open, remove screws from base grille
and remove.
3. Reattach screws to the base of refrigerator.
HANDLE REMOVAL
You may have to remove the door handles to move the
refrigerator through a narrow opening. See instructions
below.
NOTE: To avoid damaging door surfaces when moving
the refrigerator through narrow openings, it is
ALWAYS recommended to remove the doors as
instructed in the next two pages.
• Loosen the set
screws with a 3/32”
(2,38 mm) Allen
wrench and remove
the handle.
NOTE: If the handle
mounting
fasteners need to be
tightened or removed
use a 1/4” (6,35 mm)
Allen wrench.
REFRIGERATOR INSTALLATION
Mounting
fasteners
Set screw
Allen Wrench
2"(5,08 cm)

8
WARNING
ELECTRIC SHOCK HAZARD
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands, feet or other objects into the air
vents, base grille, or bottom of the refrigerator. You
may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base grille,
and stopper. You may be injured. Before
removing the doors, remove the base grille.

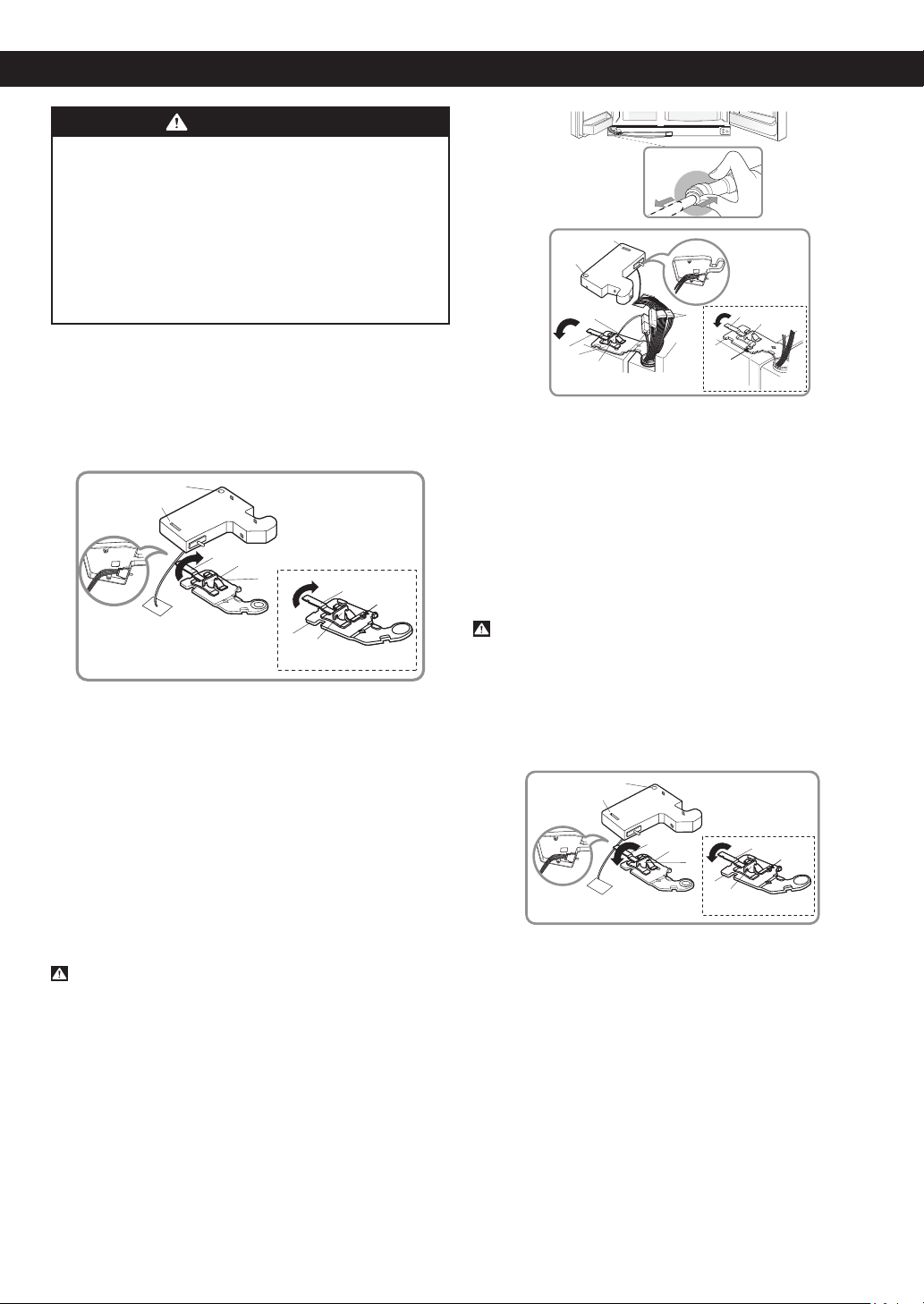

REMOVING AND REPLACING
REFRIGERATOR DOORS
Before removing the doors, remove the base grille.
See BASE GRILLE INSTALLATION for reference.
To remove the right (refrigerator) door:
1. Open the door. Remove the top hinge cover
screw (1).
2. Use a at blade screwdriver to pry back the hooks
(not shown) of the hinge cover (2) from the top of
the refrigerator cabinet. Lift up the cover.
3. Rotate the hinge lever (3) clockwise. Lift the top
hinge (4) free of the hinge lever latch (5).
NOTE: Regardless of hinge lever type, removal process
is the same.
4. Lift the door from the lower hinge pin.
5. Place the door, inside facing up, on a nonscratching
surface.
CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
Removing the left (freezer) door with water line
connection.
• Pull up the water feed tube while pressing the area
(Figure 1) as shown in the figure below.
NOTE: If a tube end is deformed or abraded, trim the
part away. Disconnecting the tube under the
door causes about 0.13 gallons (0,5 liters) water
to ow out. Put a large container at end of tube
to prevent water from draining onto the oor.
1. Open the door. Remove the top hinge cover
screw (1).
2. Use a at blade screwdriver to pry back the hooks
(not shown) of the hinge cover (2) from the top of the
refrigerator cabinet (2). Lift up the cover.
3. Disconnect all the wire harnesses (3).
4. Remove the grounding screw (4).
5. Rotate hinge lever (5) counterclockwise. Lift the top
hinge (6) free of the hinge lever latch (7).
NOTE: Regardless of hinge lever type, removal process
is the same.
CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
6. Lift the door from the lower hinge pin being careful
to pull the water lines through the lower hinge pin.
7. Place the door, inside facing up, on a nonscratching
surface.
Reinstalling the right (refrigerator) door
1. Place the door onto the lower hinge pin.
2. Fit top hinge (4) over hinge lever latch (5) into place.
Rotate lever (3) counterclockwise to secure hinge.
NOTE: Regardless of hinge lever type, reinstallation
process is the same.
3. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
REFRIGERATOR INSTALLATION
Figure 1
(1)
(2)
(3)
(5)
(6)
(7)
(4)
Type 2
Type 1
(6)
(5)
Rivet
(7)
(1)
(3) (4)
(5)
Type 2
Type 1
(3
)
(4)(5)
Rivet
(2)
(1)
(2)
(3
) (4)
(5)
Type 2
Type 1
(3
)
(4)(5)
Rivet

9
Reinstalling the left (freezer) door
1. Feed the water tubes through the lower hinge pin and
place the door onto the lower hinge pin.
2. Fit top hinge (6) over hinge lever latch (7) and into
place. Rotate lever (5) clockwise to secure hinge.
NOTE: Regardless of hinge lever type, reinstallation
process is the same.
3. Install the grounding screw (4) and connect all the
wire harnesses (3).
4. Hook tab on door switch side of cover (2) under
edge of wire opening in cabinet top. Position cover
into place. Insert and tighten cover screw (1).
5. Reconnect the water tubes by inserting the tubes
into the connectors.
DOOR ALIGNMENT
Remove the base grille before adjusting the doors.
See BASE GRILLE INSTALLATION for reference.
Two methods of door alignment are available based
on the amount of adjustment needed and installation
requirements.
Type 1
Adjusting tool: Flat blade screwdriver
If the freezer compartment door is lower than the
refrigerator compartment door, level them by inserting
a at blade screwdriver into the groove of the left
leveling leg and rotating it clockwise.
If the freezer compartment door is higher than the
refrigerator compartment door, level them by
inserting a at blade screwdriver into the groove of the
right leveling leg and rotating it clockwise.
Type 2
Adjusting tools: 5/16” (8 mm) wrench and 3/4”
(19 mm) wrench
Using a 3/4” (19 mm) wrench, turn the keeper nut
clockwise to loosen the keeper nut.
Using a 5/16” (8 mm) wrench, turn the adjustment
hinge pin clockwise or counterclockwise to level the
refrigerator and freezer door.
After setting level door, turn the keeper nut
counterclockwise to tighten.
CAUTION: Do not overtight the door adjustment
screw. The hinge pin can be pulled out. (Adjustable
range of height is a maximum of 1/2” (1.27 cm)).
AFTER LEVELING THE DOOR HEIGHT
Conrm all legs are in contact with the oor.
REFRIGERATOR INSTALLATION
(1)
(2)
(3)
(5)
(6)
(7)
(4)
Type 2
Type 1
(5)
(6)
(7)
Rivet
Insert Line
Tube
Collet
Left
leveling leg Height
Height
difference
difference
C
F
C
F
H
C
F
Right
Height
difference
C
F
C
F
H
C
F
Height
difference
leveling leg
Height
difference Keeper Nut
Adjustment
hinge pin
Wrench
Up
Down
C
F
C
F
H
C
F
Height
difference

10
CONNECTING THE WATER LINE
NOTE: Water line installation is needed when the
Automatic Icemaker and/or Water Dispenser
features are available on your product.
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer or seller.
Follow these instructions carefully to minimize the risk
of expensive water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts
and lead to water leakage or ooding. Call a qualied
plumber to correct water hammer before installing the
water supply line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the OFF
(O) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power drill)
during installation, be sure the device is double
insulated or grounded in a manner to prevent the
hazard of electric shock, or is battery-powered.
All installations MUST be in accordance with local
plumbing code requirements.
NOTE: Wear eye protection.
• If a reverse osmosis water ltration system is
connected to your cold water supply, the water line
installation is not warranted by the refrigerator or
icemaker manufacturer or seller. Follow next
instruction carefully to minimize the risk of expensive
water damage.
• If a reverse osmosis water ltration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to be
a minimum of 40 to 60 PSI (2,8 kg•f/cm² ~ 4,2 kg•f/
cm² , less than 2~3 sec to ll a cup of 7 oz. capacity).
If the water pressure from the reverse osmosis system
is less than 21 PSI (1,5 kg•f/cm², more than 4 sec to
fill a cup of 7 oz. capacity):
• Check to see whether the sediment lter in the
reverse osmosis system is blocked. Replace the filter
if necessary.
• Allow the storage tank on the reverse osmosis system
to refill after heavy usage.
• If the issue about water pressure from reverse
osmosis remains, call a licensed, qualified plumber.
WHAT YOU WILL NEED
• Copper Tubing, 1/4” (6,35 mm) outer diameter to
connect the refrigerator to the water
supply. Be sure both ends of the
tubing are cut square.
To determine how much tubing you need, measure the
distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2,4 m). Be sure there is sufficient extra tubing (about
8 feet [2,4 m] coiled into 3 turns of about 10” [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
Be sure that the kit you select allows at least 8 feet
(2,4 m) as described above.
• A cold water supply. The water pressure MUST be
between 20 and 120 PSI (1,4 bar and 8,2 bar) on
models without a water filter and between 40 and 120
PSI (2,8 bar and 8,2 bar) on models with a water filter.
• Power drill.
• 1/2” (12,7 mm) or
Adjustable Wrench.
• Flat head and Phillips screwdrivers.
• Two 1/4” (6,35 mm) outer diameter compression nuts
and 2 ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
• If your existing copper water line has a ared tting at
the end, you will need an adapter (available at
plumbing supply stores) to
connect the water line to the
refrigerator OR you can cut off the
ared tting with a tube cutter and
then use a compression fitting.
• Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
minimum inside diameter of
5/32”(3,96 mm) at the point
of connection to the COLD
WATER LINE. Saddle-type
shutoff valves are included in
many water supply kits. Before
purchasing, make sure a saddle-type valve complies
with your local plumbing codes.
INSTALLATION INSTRUCTIONS
WARNING: Connect to potable water supply only.
1. SHUTOFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that is easily
accessible. It is best to connect into the
side of a vertical water pipe. When it is
necessary to connect into a horizontal
water pipe, make the connection to the
top or side, rather than at the bottom,
to avoid drawing off any sediment from
the water pipe.
REFRIGERATOR INSTALLATION

11
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4” (6,35 mm) hole in
the water pipe using a sharp
bit. Remove any burrs
resulting from drilling the hole
in the pipe. Take care not to
allow water to drain into the
drill. Failure to drill a 1/4” (6,35
mm) hole may result in reduced ice production or
smaller cubes.
NOTE: Licensed plumbers MUST use only cooper
tubing NDA tubing #49595 or 49499 or Cross
Link Polyethylene (PEX) tubing.
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and
the refrigerator.
Route the tubing through a hole drilled in the wall or
oor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing [about 8
feet (2,4 m) coiled into 3 turns of about 10” (25
cm) diameter] to allow the refrigerator to move
out from the wall after installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for
copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing
is fully inserted into the valve. Tighten the
compression nut securely.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and ush out the tubing until
the water is clear. Shut the water
off at the water valve after about
one quart (1 L) of water has been
ushed through the tubing.

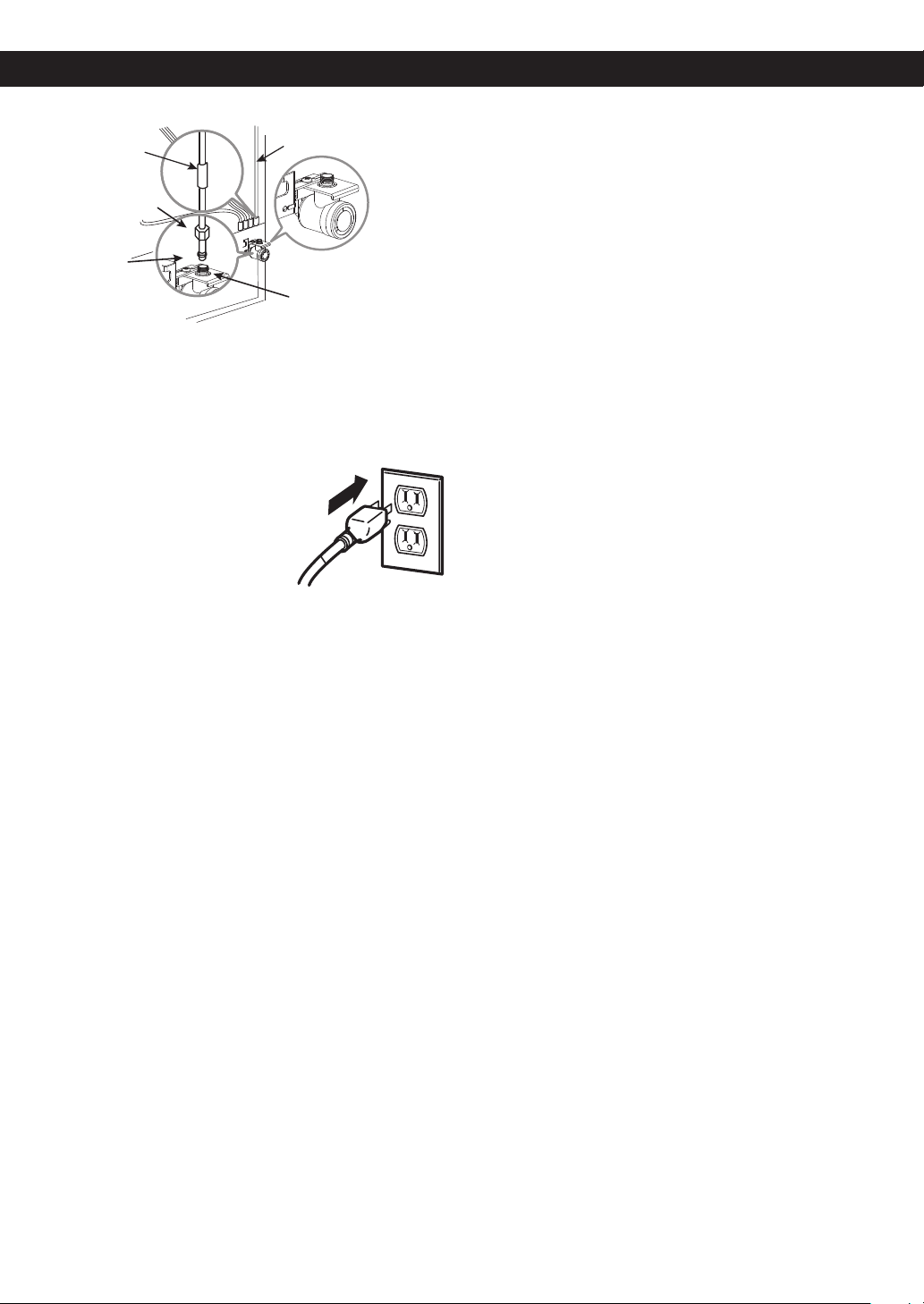

9. CONNECT THE TUBING TO THE REFRIGERATOR
NOTES:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
• If your refrigerator does not have a water lter, we
recommend installing one. If your water supply has
sand or particles that could clog the screen of the
refrigerator’s water valve, install the lter in the water
line near the refrigerator.
• Do not uses old hoses; only use new hoses provided
by the manufacturer.
1. Remove the plastic exible cap from the refrigerator
connection.
2. Place the compression nut and ferrule (sleeve) onto
the end of the tubing. (See figure 1)
3. Insert the end of the tubing into the connection as
far as possible. While holding the tubing, tighten the
fitting.
CAUTION: Check to make sure that leaks are not
occurring in the water line.
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Pipe Clamp
Washer
Inlet End
Pipe Clamp
Clamp Screw
Saddle-Type
Shutoff Valve
Packing
Nut
Ferrule(sleeve)
Compression
Nut
Outlet
Valve
REFRIGERATOR INSTALLATION

12
Fasten the tubing into the tubing clamp attached to the
back of the refrigerator.
First, loosen the screw fastening the clamp. Next, insert
the tubing in the groove. Finally, re-fasten the screw.
10. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
11. START THE ICEMAKER
Set the icemaker power switch to the ON (I) position.
The icemaker will not begin to operate until it
reaches its operating temperature of 15°F (-9°C) or
below. It will then begin operation automatically if the
icemaker power switch is in the ON (I) position.
¼” (6,35 mm) Tubing
Refrigerator
Connection
¼” (6,35 mm)
Compression
Nut
Ferrule
(sleeve)
Back of refrigerator
Figure 1
Tubing Clamp
REFRIGERATOR INSTALLATION

13
Use this page to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the
items listed below. The locations of the features shown below may not match your model.
Freezer Door Rack
Automatic Icemaker
The ice is produced in the icemaker
and sent to the dispenser.
Freezer Lamp
Freezer Shelf
Drawer
Base Grille
Dairy Corner
For storage of dairy products such
as butter and cheese.
Refrigerator Lamp
Water Filter
Refrigerator Shelf
Snack Pan
For storage of meat or fresh food.
Refrigerator Door Rack
Vegetable Drawer
REFRIGERATOR FEATURES
A
B
C
D
E
F
G
H
I
J
K
L
M

14
ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air MUST ow
between the refrigerator and freezer sections.
• Cool air enters the freezer through the vents located
at the top of the compartment and exits through the
vents located behind the freezer drawers.
• Cool air from the freezer section enters the fresh food
section through vents located at the top of the
compartment. The air moves down throughout the
compartment and exits through the vents located
behind the crisper drawers.
• Do not block any of these vents with food packages.
If the vents are blocked, airow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT:
Because air circulates between both sections, any
odors formed in one section will transfer to the other.
You MUST thoroughly clean both sections to eliminate
odors. To prevent odor transfer and dried out food, wrap
or cover foods tightly. (See the Food Storage Guide
section for details.)
NOTE: If you close the
refrigerator door, you may see
the freezer door open and
close again due to pressure
from internal air ow.
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off dust
accumulated during shipping.
2.Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during
shipment.
3.Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the ow of cold air in
the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
CONTROL PANEL FEATURES
Press the button for the desire function to review and
select other settings.
LED DISPLAY
The LED display shows the
temperature settings, dispenser
options, and the water filter door
alarm, and status messages.
ICE TYPE
The ICE TYPE is used to select cube,
ice or crushed ice.
NOTE: Hold the glass or other
container in place for a couple of
seconds after dispensing ice or water
to catch the last few cubes or drops.
The dispenser is designed not
operate while either refrigerator door
is open.
FREEZER
Press the FREEZER button to adjust
the temperature in the freezer
compartment.
REFRIGERATOR
Press the REFRIGERATOR button to
adjust the temperature in the
refrigerator compartment.
NOTE: The actual inner temperature
varies depending on the food status,
since the indicated temperature
setting is the target temperature
an not the actual temperature within
the refrigerator.
Initially set the REFRIGERATOR CONTROL at 37 °F
(3°C). Leave it at these settings for 24 hours (one day)
to stabilize. Then adjust the compartment temperature
as ilustrates above.
NOTE: When press simultaneously the FREEZER
button and the REFRIGERATOR button for
more than 5 seconds, the temperature display
will change from Fahrenheit to Celsius or vice
versa.
ICE PLUS
Press this button once to activate the increased ice
making function. The ICE PLUS icon on the display
panel will illuminate when activated. The Ice Plus
function runs the freezer compartment at the coldest
settings for a 24 hour period to increase ice making.
Press the button again to cancel the Ice Plus function.
USING YOUR REFRIGERATOR

15
LIGHT/FILTER
The LIGHT/FILTER button controls the lamp in the
dispenser, resets the water filter replacement indicator
when the filter has been replaced.
The water filter needs replacement once wvery six
months. Filter month indicator becomes “0” to let you
know when replace filter.
Press and hold the LIGHT/FILTER button for more
than 3 seconds to reset the filter month indicator to six
after the water filter has been replaced.
ALARM/LOCK
Press this button to control the door-open alarm. Press
and hold the ALARM/LOCK button for 3 seconds to
lock the dispenser and all the other control panel
functions. Press and hold again for 3 seconds to
unlock. The ALARM/LOCK button also controls the
door alarm that sounds three times in 30 seconds
intervals when a compartment door is left open for
more than 60 seconds. The alarm stop sounding when
the door is closed. Press the ALARM/LOCK button
once to activate or deactivate the door alarm function.
DISPLAY OFF MODE
To activated Display Off Mode press and hold ICE PLUS
and FREEZER key over 5 seconds until lights will turn
on and after 20 seconds of inactivity the lights will turn
off automatically. To exit Display Off Mode press and
hold ICE PLUS and FREEZER key over 5 seconds until
lights will tilt. Display Off Mode doesn not affect the
temperature control settings of the unit.
Ice type indicator
Shows the type of ice,
crushed or cube, or water
that the dispenser will
dispense.
Freezer temperature
control
Shows the temperature in
the freezer, Celsius or
Fahrenheit.
Refrigerator temperature
Shows the temperature in
the refrigerator, Celsius or
Fahrenheit.
Ice Plus
When this button is on
the screen will show this
has been activated.
Dispenser light
When this button is in function on the light will show
this has been activated. When the dispenser light is
on the display will indicate this feature.
Door alarm indicator
This indicator shows that the door-open warning
alarm is activated.
Water filter status
This light shows the lter’s status. See the lter’s
configurations.
Lock status
This light shows the actual status of the control
panel, in which the lock function is on.
DIAGNOSIS FUNCTION (FAILURE DETECTION)
Diagnosis function automatically detects failure during
the normal use of refrigerator.
If you refrigerator fails, do not turn off the power.
Instead, contact a local Authorized service center or call
our support line for assistance. Turning off the
appliance will make it more difficult for the service
technician to determine the problem.
USING YOUR REFRIGERATOR

16
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely
before making final adjustments. It is best to wait 24
hours before doing this. The initial settings mentioned
in CONTROL PANEL FEATURES section should be
correct for normal household refrigerator use.
The refrigerator control functions as the thermostat for
the entire appliance (refrigerator and freezer sections).
The colder the setting, compressor will the longer the
run to keep the temperature colder. The freezer control
adjusts the cold air ow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator
or freezer, start by adjusting the refrigerator and allow
24 hours for the temperature to stabilize. If it is too
warm or too cold, then adjust the freezer control. Use
the settings listed in the chart below as a guide. Always
remember to wait at least 24 hours between
adjustments.
CONDITION/REASON: RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section too
warm
–Door opened often
–Large amount of food added
–Room temperature very
warm
Set the Refrigerator
control to the next
colder level; wait 24
hours for the new
setting to take full
effect before
making another
adjustment.
FREEZER section too warm/
ice not made fast enough
–Door opened often
–Large amount of food added
–Very cold [room 55°F (13°C)]
room temperature
(Compressor does not cycle
often enough).
–Heavy ice usage
–Air vents blocked by items
Set the Freezer
control to the next
colder level; wait 24
hours for the new
setting to take full
effect before making
another adjustment.
Move items out of
airstream
REFRIGERATOR section too
cold
–Controls not set correctly for
your conditions
Set the Refrigerator
control to the next
warmer level; wait 24
hours for the new
setting to take full
effect before
making another
adjustment.
FREEZER section too cold
–Controls not set correctly for
your conditions
Set the Freezer
control to the next
warmer level; wait 24
hours for the new
setting to take full
effect before
making another
adjustment.
ICEMAKER OPERATION
WARNING
PERSONAL INJURY HAZARD
Avoid contact with the moving parts of the
ejector mechanism, or with the heating element that
releases the cubes. DO NOT place fingers or hands
on the automatic icemaking mechanism while the
refrigerator is plugged in.
A newly-installed refrigerator may take 12 to 24 hours
to begin making ice.
The icemaker will produce 8 cubes per cycle,
approximately 100-120 cubes in a 24 hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
If the refrigerator is used before the water connection
is made to the icemaker, set the power switch to OFF
(O). Throw away the first few batches of ice to allow the
water line to clear.
Be sure nothing interferes with the sweep of the feeler
arm. When the bin fills to the level of the feeler arm,
the icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
USING YOUR REFRIGERATOR

17
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
ITEMS HOW TO STORE
Butter or
margarine
Keep opened butter in a covered dish
or closed compartment. When
storing an extra supply, wrap in
freezer packaging and freeze.
Cheese Store in the original wrapping until
you are ready to use it. Once opened,
rewrap tightly in plastic wrap or
aluminum foil.
Milk Wipe milk cartons. For best storage,
place milk on interior shelf, not on
door shelf.
Eggs Store in original carton or on interior
shelf, not on door shelf.
Fruit Wash, let dry, and store in
refrigerator in plastic bags or in the
crisper. Do not wash or hull berries
until you are ready to use them. Sort
and keep berries in their original
container in a crisper drawer, or store
in a closed and sealed paper bag on
a refrigerator shelf.
Leafy
vegetables
Remove store wrapping and trim or
tear off bruised and discolored areas.
Wash in cold water and drain. Place
in plastic bag or plastic container and
store in crisper drawer.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic
container and store in crisper drawer.
Fish Use fresh fish and shellfish the same
day purchased.
Leftovers Cover leftovers with plastic wrap or
aluminum foil. Plastic containers with
tight lids can also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer
guide or a reliable cookbook.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not allow
air or moisture in or out. If it does, you could have food
odor and taste transfer throughout the refrigerator and
also dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with “tight-tting lids”
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for
proper freezing methods.
Do not use
• Bread wrappers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
CAUTION: Do not keep beverage cans or plastic
food containers in the freezer compartment. They
may burst if they freeze.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours [no more than 2 to
3 lbs of food per cubic foot (0,9 to 1,35 kg per cubic
meter) of freezer space]. Leave enough space in the
freezer for air to circulate around packages. Be
careful to leave enough room at the front so the door
can close tightly.
Food storage times will vary according to the
quality and type of food, the type of packaging or wrap
used (airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling
hot foods before freezing saves energy.
USING YOUR REFRIGERATOR

18

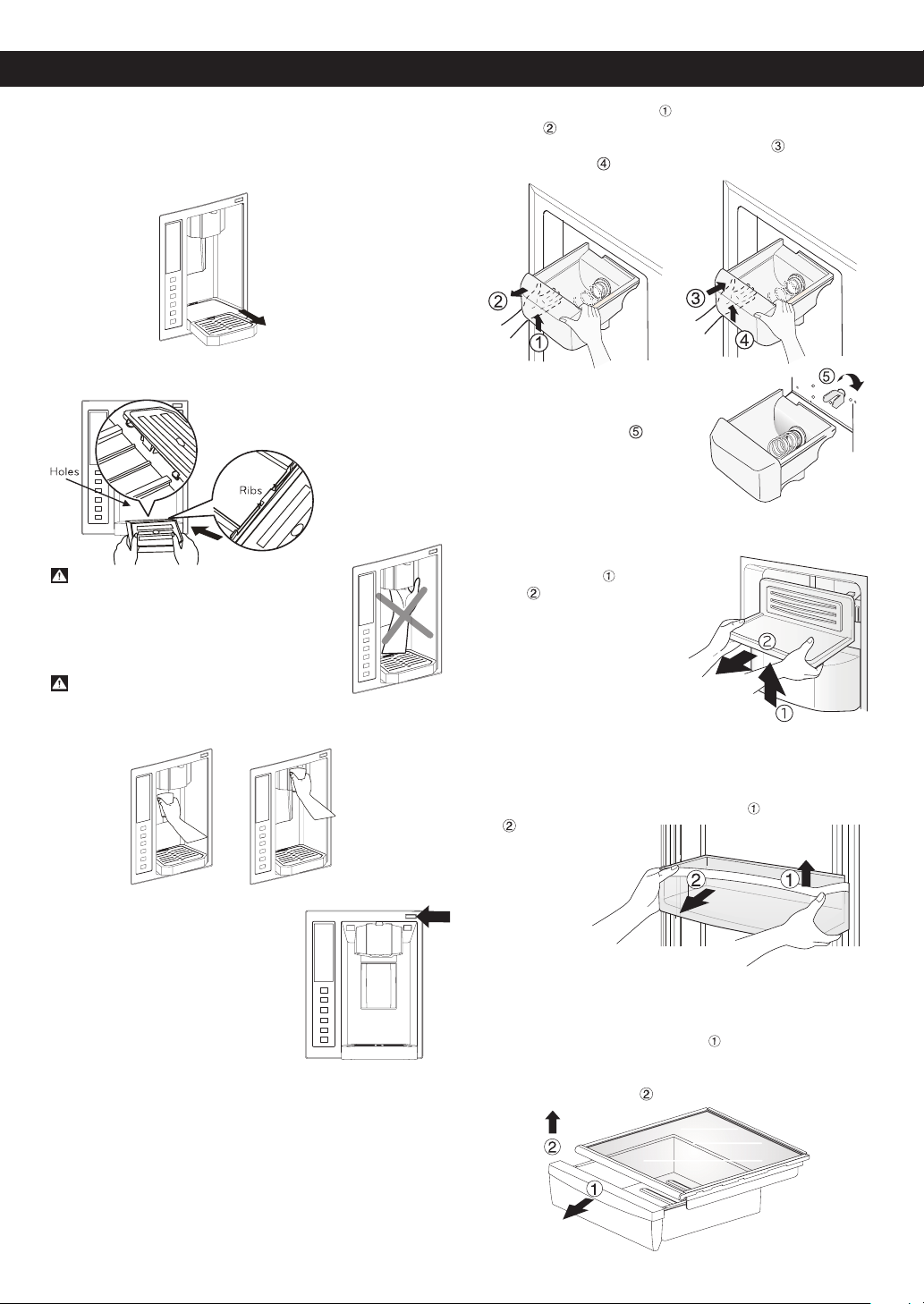

WATER AND ICE DISPENSER
Your refrigerator has a mechanism that dispatch cool
water and ice cubes without open the door.
• Tray can be easily removed by pressing and pulling it.
• Tilt up the front of tray slightly and snap the ribs into
the holes to reinstall the tray.
WARNING
Do not put your hands into the water
& ice dispenser opening. Doing so
may cause an injury to your hand.
CAUTION
When opening the container with the
small opening, use it near the opening of the water
or ice dispenser as close as possible.
• Push Water Switch
Press the push water switch or
activate water button with a plass
or the water container and chilled
water will be dispensed. When the
water switch or water button is
pressed, the light will be
illuminated.
ICE STORAGE BIN
The ice bin stores the ice cubes made by the icemaker.
If you need to remove the ice storage bin,
do so as follows:
NOTE: Use both hands to remove the ice bin to avoid
dropping it. If the ice bin does not slide into
place easily, twist the drive device slightly.
• Hold the ice storage bin and pull it out while slightly
lifting it shown in the figure.
• To assemble the ice storage bin, push it while
slightly lifting it .
• Make sure it is fully engaged
into the auger drive .
ICEMAKER COVER
If you need access to the icemaker, follow these steps:
• Lift the ice shelf and pull
it out as shown in the
figure below.
DOOR RACK AND SUPPORT
Your refrigerator and freezer features racks which can
easily be arranged for packaged products.
• Lift the door rack holding both sides and pull it out
in direction.
SNACK PAN
• To remove the snack pan cover, pull out the snack pan
compartment a bit to the front , then lift the front
part of the snack pan compartment later raises a little
the snack pan compartment until it leaves the top of
the shelf as shown in , and take it out.
USING YOUR REFRIGERATOR

19

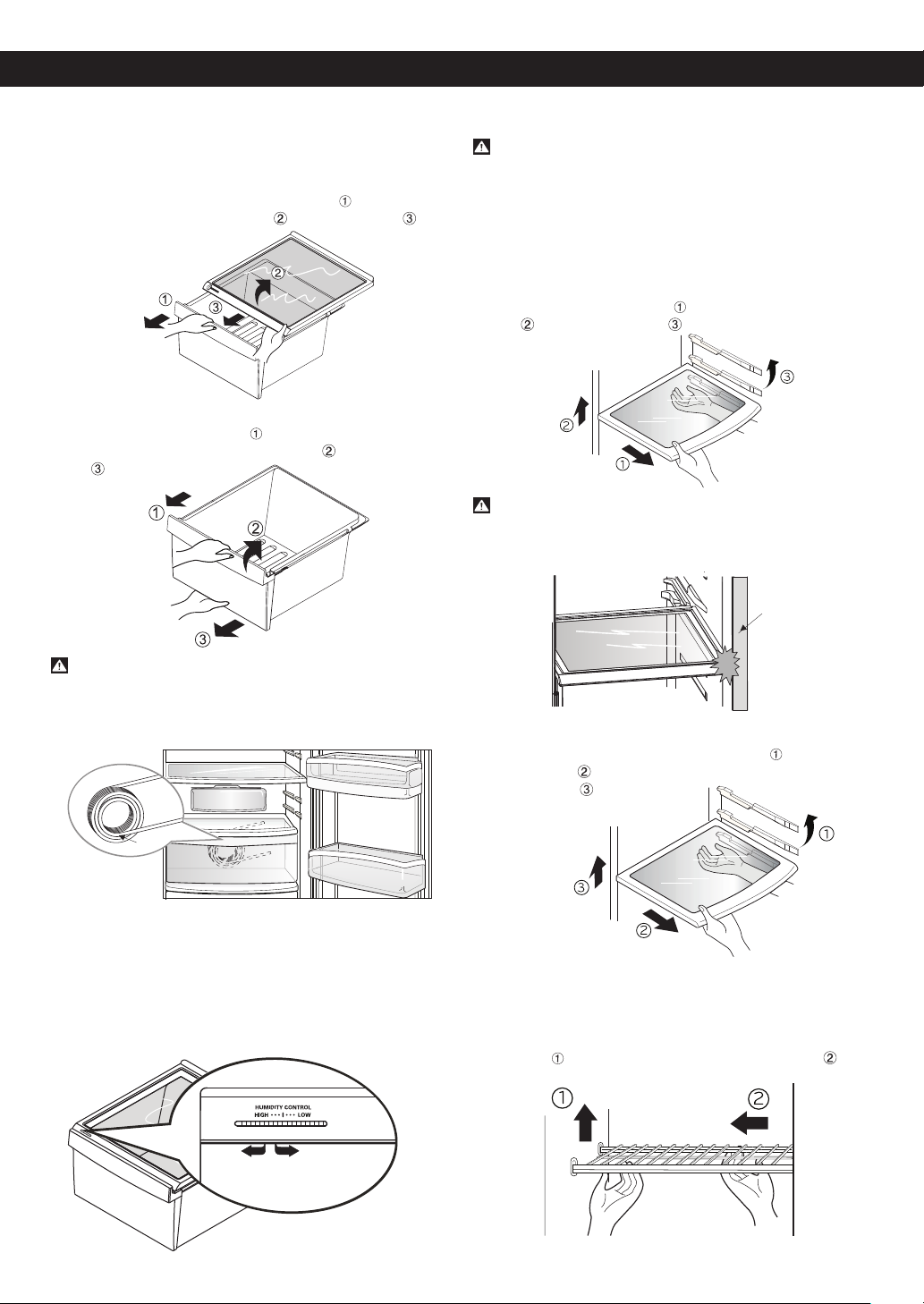

CRISPER AND CRISPER COVER
The crisper allows for better conservation of fruits and
vegetables.
• To remove the crisper compartment cover, pull out the
crisper compartment a bit to the front , lift the front
part of the cover as shown in , and take it out .
• To remove the crisper compartment, pull the crisper
compartment to the front until it stops. Then
slightly lift the crisper compartment while pulling it
out .
CAUTION
When removing the crisper compartment you will
see the water tank. Do not remove it, or water
leakage may result. The water tank is not a
removable part.
You can control the amount of humidity in the
moisture sealed crispers. Adjust the control to any
setting between “HIGH” and “LOW”.
“HIGH”: Keeps moist air in the crisper for best storage
of fresh, leafy vegetables.
“LOW”: Keeps moist air out of the crisper for best
storage of fruits or vegetables with skins.
REFRIGERATOR SHELVES
CAUTION
Make sure to keep shelf horizontal while removing;
otherwise it may drop.
The refrigerator compartment shelf is adjustable so
that you can place it at a height according to space
requirement of foods.
Sliding out Shelf:
•Pull the shelf towards you , then lift both front and
rear while taking it out .
CAUTION
Be careful when pulling out the shelf. If you apply
too much force, it may hit the refrigerator door and
damage it or you could hurt yourself.
Fixed Shelf:
•Lightly lift up the front part of the shelf to pull it
towards you , then take it out while lifting the rear
part of shelf .
FREEZER SHELF
To assemble or disassemble the freezer shelf, follow the
next steps:
• Lift the left part of the shelf a bit. Lift it to the
direction , push the right part to the direction ,
and take it out.
USING YOUR REFRIGERATOR
Tank
Door

20

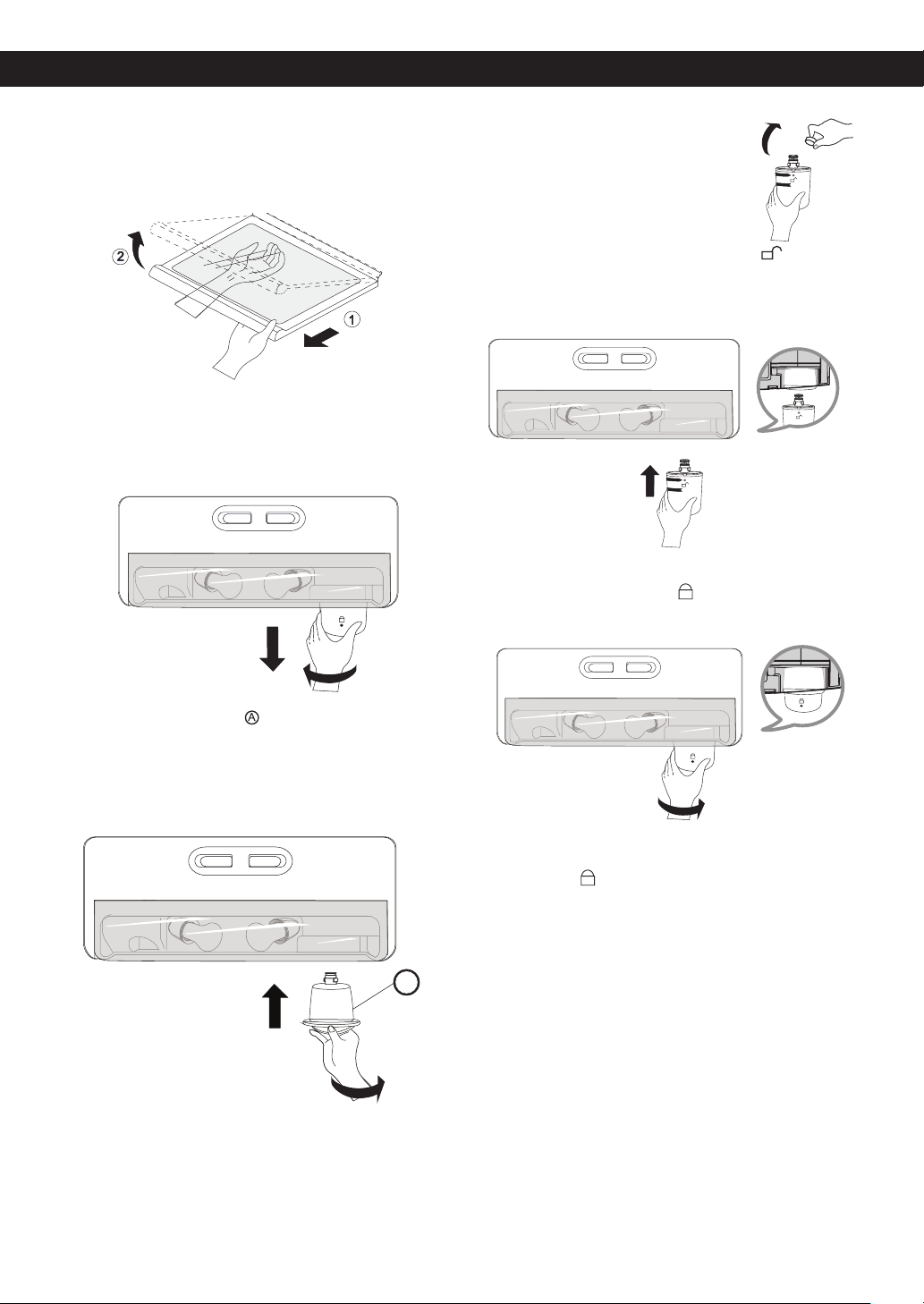

WATER FILTER
Before removing or installing water filter:
1. IMPORTANT: Turn off household water supply.
2.Take out the top shelf and move it to the lowest level.
Removing the water filter:
1. For filter replacement, remove old filter by turning it
counterclockwise and pulling it down.
NOTE : The substitute cap must be retained for the
future. If the filter is removed and not replaced, it is
necessary to reinstall the substitute cap to prevent
water leaks from the filter housing.
Installing the water filter
1. Remove the red cap from the filter.
2. Hold the filter with the unlock symbol facing
towards you as shown in the picture below. Insert the
filter into the filter receptacle on the right side of the
refrigerator compartment.
3. Push the water filter up into the filter receptacle and
rotate it clockwise to lock it into place. Once installed
correctly, the lock symbol should be facing you
and you should not be able to rotate the filter
clockwise any more.
NOTE: After installation, if you notice that the lock
symbol is not facing you or you can continue
to rotate the lter clockwise; remove the lter
and repeat installation to prevent water leaks.
After installing water filter:
1. Replace the shelf to the initial position.
2. After installing filter, turn on household water supply.
3. Dispense 2.5 gallons (9,46 liters) of water to purge
the system, depressing and releasing the dispenser
pad in cycles of 30 seconds ON and 60 seconds
OFF. Open the refrigerator door and check the shelf
area for water leaks.
To purchase or replace water filters, call your Service
Center. Refer to the Warranty Card to obtain the
telephone number of the Service Center near you and
ask for part no. 5231JA2002A or ADQ72910901.
FILTER
A

21
Performance Data Sheet
Models Number 5231JA2002A-S
Use with replacement cartridge 5231JA2002A
This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances listed
below. The concentration of the indicated substances in water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI 42.
System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of
Chlorine Taste and Odor and Nominal Particulate Class III.
*
Capacity: 500 gal (1,892 L)
Substance
Average
Inuent
Concentration
Inuent Challenge
Concentration.
Units apply to
each row
Avg. Product
Water
Concentration
Average
%
Reduction
NSF % reduction req.
or Max. permissible
product water
concentration
Nominal Particulate
Class I Particle size: ›0.5 to ‹1 um 24,333 At least 10,000 particles/ml 915 96 ≥85%
Chlorine taste and odor
Class III 1.9 2.0 mg/L ± 10% 0.07 96.4 ≥50%
Note that while the testing was performed under standard laboratory conditions, actual performance may vary.
Application Guidelines / Water Supply Parameters
Service ow 0.5 gpm (1.89 lpm)
Water pressure 20 - 125 psi (138 - 862 kPa)
Water temperature 33ºF - 100ºF (0.6ºC - 38ºC)
WARNING
To reduce the risk associated with ingestion of
contaminants due to use with water that is
microbiologically unsafe or of unknown quality.
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection
before or after the system.
Systems must be installed and operated in accordance
with manufacturer’s recommended procedures and
guidelines
CAUTION
To reduce the risk of property damage due to water
leakage:
• Read and follow Use instructions before installation
and use of this system.
• Install on COLD water lines only.
• Comply with all state and local plumbing codes.
• Install a pressure limiting device and water
hammer arrester for inlet water pressures
exceeding 80 psi (552 kPa). Refer to Uniform
Plumbing Code, Sections 608.2 and 609.10.
• Never install or operate where inlet water pressure
may exceed 120 psi (827 kPa).
• Protect lter from freezing. Remove lter in
temperatures below 33° F (0.6° C).
• Replace cartridge at specied service interval.
Cartridge MUST be replaced at least every 6
months.
To purchase or replace water filters call your Service
Center. Refer to the Warranty Card to obtain the
telephone number of the Service Center near you and
ask for part no. 5231JA2002A or ADQ72910901.
FILTER
