LG 21FS2CG User manual

COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MC-059C
MODEL : 21FS2CG/CL
MODEL : 21FS2CG/CL-TS
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS............................................................................................................. 2
SAFETY PRECAUTIONS....................................................................................3
DESCRIPTION OF CONTROLS.......................................................................4
SPECIFICATIONS ..................................................................................................7
ADJUSTMENT........................................................................................................9
PRINTED CIRCUIT BOARD .............................................................................16
TROUBLE SHOOTING .......................................................................................18
BLOCK DIAGRAM ..............................................................................................22
EXPLODED VIEW................................................................................................24
EXPLODED VIEW PARTS LIST.....................................................................25
REPLACEMENT PARTS LIST ....................................................................... 26

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 ¡1.5KV: 14-19 inch, 26 ¡1.5KV: 19-21 inch,
29.0 ¡1.5KV: 25-29 inch, 30.0 ¡1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

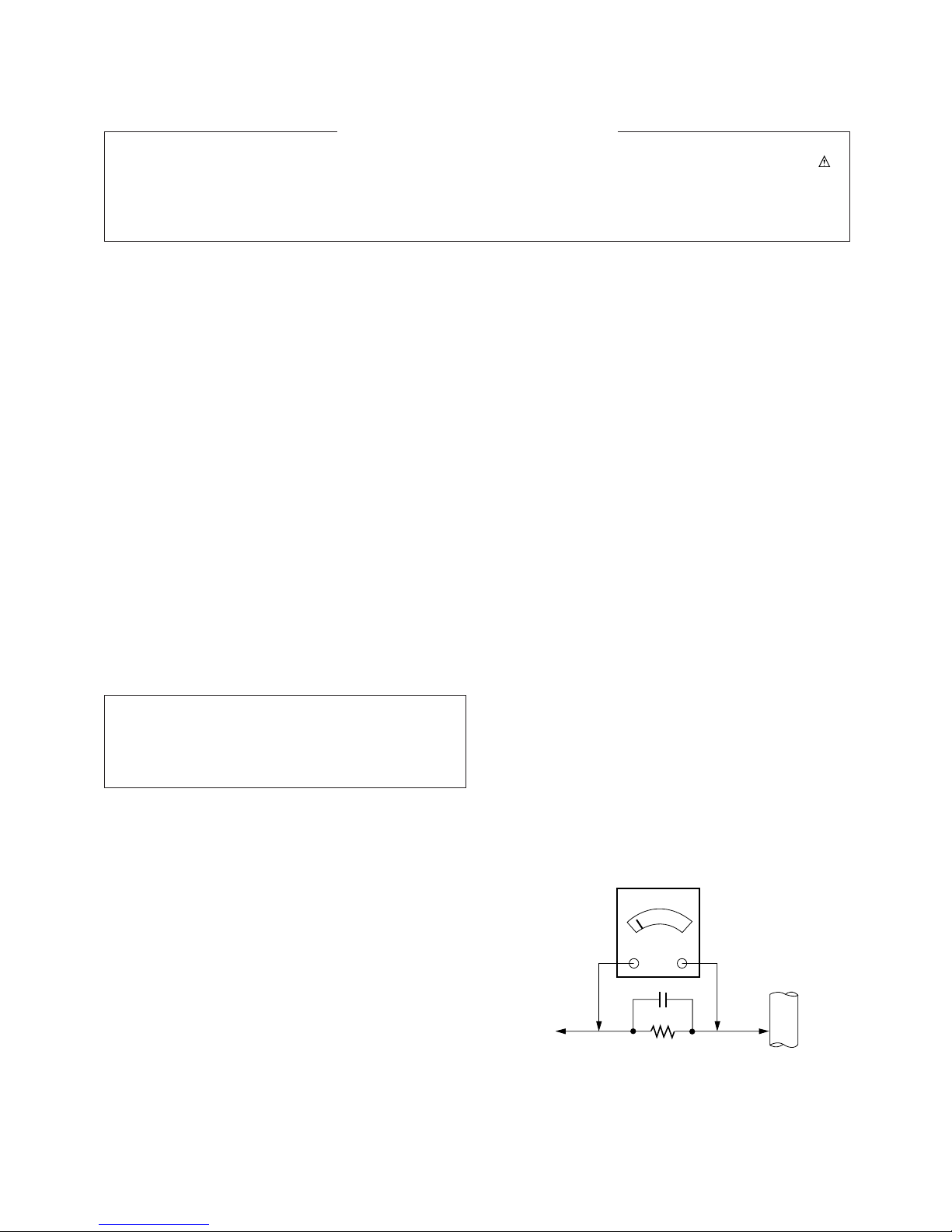

Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

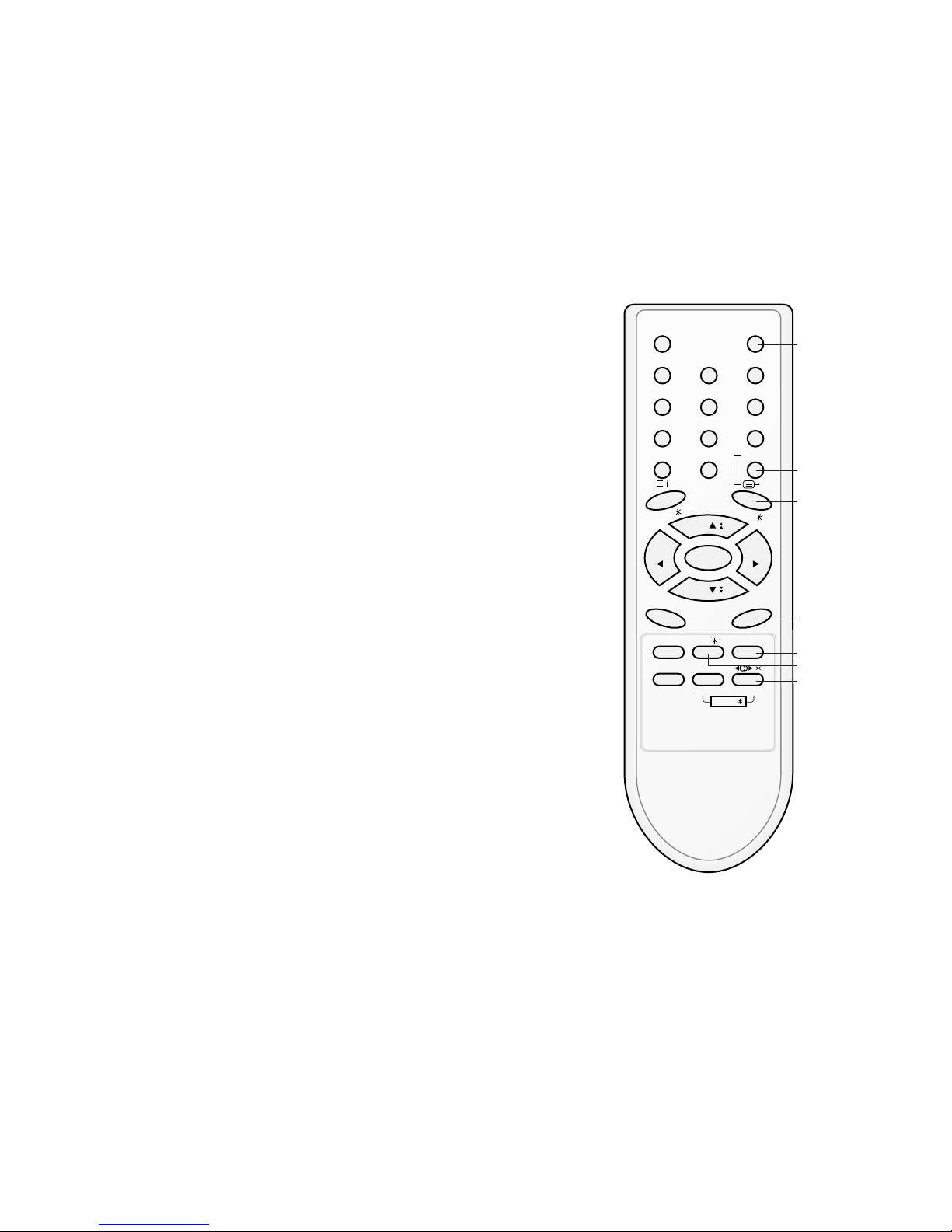

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
switches the set on from standby or directly select a number.
3. MENU (or INDEX)
selects a menu.
selects an index page in the teletext mode (only TELETEXT
models). (option)
4. EYE/*(option)
switches the eye function on or off.
5. DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
scans programmes automatically.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
6. Q.VIEW
returns to the previously viewed programme.
7. PSM (Picture Status Memory)
recalls your preferred picture setting.
8. FAVOURITE
selects a favorite programme.
9. TURBO PICTURE / SOUND BUTTON (option)
selects Turbo picture and sound.
POWER MUTE
123
456
789
MENU/INDEX
TV/AV
0
EYE/
Q.VIEW
LIST
I / II /
( )
PR
( )
PR
OK VOLVOL
PSM SSM/ SLEEP
PICTURE SOUND
/
TURBO/
FAVOURITE
TV
1
2
3
4
5
6
7
9
8
- 4 -
DESCRIPTION OF CONTROLS

- 5 -
10. MUTE
switches the sound on or off.
11. TV/AV
selects TV or AV mode.
switches the set on from standby.
12. I/II/*(option)
selects the language during dual language broadcast. (option)
selects the sound output.
13. LIST
displays the programme table.
14. SLEEP
sets the sleep timer.
15. SSM/*(Sound Status Memory) (option)
recalls your preferred sound setting.
16. SURROUND (ºº/*) (option)
selects surround sound.
*: No function
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
POWER MUTE
1 2 3
4 5 6
7 8 9
MENU/INDEX
TV/AV
0
EYE/
Q.VIEW
LIST
I / II /
( )
PR
( )
PR
OK VOLVOL
PSM SSM/ SLEEP
PICTURE SOUND
/
TURBO/
FAVOURITE
TV
10
11
12
13
14
16
15

- 6 -
Front panel
Side panel
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby mode.
dims when the set is switched on.
3. REMOTE CONTROL SENSOR
Note : Only use the supplied remote control handset. (When you use others, they’ll be not able to
function.)
4. MENU
selects a menu.
5. OK
accepts your selection or displays the current mode.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
6. AUDIO/VIDEO IN SOCKETS (AV IN2) (option)
Connect the audio/video out sockets of external equipment to these sockets.
7. HEADPHONE SOCKET (option)
Connect the headphone plug to this socket.
Note : Shown is a simplified representation of front or side panel. Here shown may be somewhat dif-
ferent from your set.
VIDEO
L/MONO
R
AUDIO
AV IN2
7
6
1 2 3 4 5

VScope
This specification is applied to all the television related to MC-
059C Chassis.
VRequirement for Test
Each part is tested as below without special appointment.
1) Temperature : 25 ± 5°C (77 ± 9°F), CST : 40 ± 5
(CST must be tested 40 ±5°C . Humidity : 50%)
2) Relative Humidity : 65 ±10%
3) Power Voltage : Standard input Voltage (AC110-240V~,
50/60Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
VTest Method
1) Performance : LGE TV test method followed.
2) Demanded other specification
- CCC
- Safety : K60065
- 7 -
AGeneral specification
SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
Item
Receiving System
Available Channel
Input Voltage
Market
Screen Size
Aspect Ratio
Display Method
Tuning System
Operating Environment
Storage Environment
Specification
PAL BG, DK, I / NTSC M (AV 3.58/ 4.43)
SECAM DK
VHF : E2 ~ E12
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21 ~ S41
AC100 - 240V~, 50/60Hz
China, Indonesia, Thai, Vietnam, CIS
14 ~ 21inch (FLAT / Conventional)
4:3
CRT
FVS
Temp : 0 ~ 40 deg
Humidity : ~ 85 %
Temp : -20 ~ 60 deg
Humidity : ~ 90 %
Remark
China/ Indonesia/ Thai/ Vietnam
CIS
No.
1
2
3
4
5
6
7
8
9
10

- 8 -
AFeatures and Function
Item
Feature AV Input
AV Output
Component
Earphone
Key Local Key
Remocon
Channel Auto prog.
Manual
Prog. edit
Favorite
Picture PSM
User Control
Sound SSM
Treble/ Bass
Equalizer
FM Transmitter
Timer Clock
Off time
On time
Auto off
Special Language
Input
Child lock
Etc. Sleep
Review
Specification
2 AV 1, 2
1 Monitor out
Input(For component)
1 Front
Power, Vol(F, G), PR(E, D), MENU, OK
Turbo-Picture, Sound
LG Code (NEC)
System/ Storage/ Normal/ Turbo
Storage/ System/ Channel/ Fine/ Search/ Name
Copy/ Move/ Delete/ Skip
8 Channel
Dynamic/ Standard/ Mild/ Game/ User
Contrast/ Brightness/ Color/ Sharpness
Tint (NTSC-M Only)
Flat/ Music/ Movie/ Speech/ User
0 ~ 100
100/ 400/ 1K/ 4K/ 10K
Low Band(7ch)
87.7/ 87.9/ 88.1/ 88.3/ 88.5/ 88.7/ 88.9(MHz)
High Band(7ch)
106.7/ 106.9/ 107.1/ 107.3/ 107.5/ 107.7/
107.9(MHz)
Wide Range(1091ch)
88.0 ~ 107.0MHz
-- : --
-- : -- Off(On)
-- : -- Pr 1 VOL 30 Off(On)
On/ Off
Chinese/ English
English/ Russia
English/ Indonesia/ Thai/ Vietnam
TV/ AV1/ AV2/ Component
On/ Off
Remark
Rear1, Front1(CVBS,L,R)
Rear
Rear(Y,Pb,Pr,DVD-L/R)
7EA/ Front
Option
AV, RF Stereo Option
AV Stereo
RF Stereo
China
CIS
East-Asia
No.
1
2
3
4
5
6
7
8

1. Scope of Application
These instructions are applied to MC-059C Chassis.
2. Notes
1) Because this is a cold chassis, it is not necessary to use an
isolation transformer. However, operating it using a
transformer between the power supply line and chassis input
to prevent electric shock and to protect the test instrument.
2) All adjustment must be done in the correct sequence.
However, for better productivity, it can be change in a pre-
permitted range.
3) Environment conditions : If not specified, it must be done in
following conditions.
Temperature : 25 ± 5°C
Humidity 60% ± 10%
4) Power supply of SET : AC100-240~ ± 10%, 50/60Hz
5) If not specified, the receiver must be operated for more than
20 minutes prior to the adjustment.
6) Signal : Received the standard color signal (65±1dBuV).
- NTSC
: LG standard signal means the digital pattern 13CH(480NC)
- PAL/SECAM
: LG standard signal means the digital pattern PAL-B/G 05CH
7) If not specified, APC ON is APC CLEAR(DYNAMIC)
3. AGC Voltage Adjustment
3-1. Necessary Instrument
: Digital Multi-meter-1 set
- Max Input Current : Over 1A/ Max Input Voltage : 500Vdc
- Measurement Range : 10mV-100mVdc/ Accuracy : 0.03%
3-2. Adjustment Preparation
1) Input in the 75Ωcable 65dB(±1dB) LG standard signal.
2) Connect the multi-meter to J105(AGC Check, Marking).
3-3. Adjustment
1) Press the “INSTART” key of factory remote control and
select “VP0 (RFAGC)” adjustment mode.
2) Press the VOL+/-(F/ G) key until the multi-meter shows
reading as shown below.
3) CAUTION
: Since the signal strength can be easily changed by the
condition of signal cable, you need to check the signal
strength frequently in order to prevent error.
4. Screen Voltage Adjustment
4-1. Adjustment of Screen Manually
(Using SVC Remote Control)
1) Input in the 75ohm cable LG standard signal(Digital Pattern,
480NC).
2) Press the “ADJ’ key of factory remote control once to make
the TV set display.
3) Turn the screen volume on the FBT clockwise until the
horizontal line is visible and turn it counterclockwise until
horizontal line faintly visible.
(Exit screen voltage adjustment by press “Enter(A)” key of
factory remote control.)
5. Purity and Convergence Adjustment
5-1. Purity adjustment
(1) Adjustment Preparation
1) Receive Red Raster Pattern for purity adjustment(51CH).
2) Demagnetize the CPT and Cabinet with a degaussing coil.
(2) Adjustment
1) Pre-adjust the static convergence (STC) with the 4 and
6pole magnet.
2) If the horizontal Line is inline with CPT Mark, 2-Pole
magnet should direct 3-9 o’clock direction.
3) If not, direct 2-pole magnet handle toward 6-12 o’clock
direction and adjust the Horizontal Line to fall onto the
mark opening the magnet at an angle.
4) Push the DY(deflection yoke) all the way to the CPT
funnel.
5) Turn the purity magnet(2-pole magnet) so that the “green”
color portion of left side and the “blue” color portion on the
right side have equal amount of color.
6) Pull the DY slowly backward and fix it when the whole
screen becomes red.
(The specified torque for fixing DY screw should be
10Kg/cm.)
5-2. Convergency Adjustment
(1) Necessary Instrument
1) Degaussing Coil
2) Convergency fixing instrument
(2) Preliminary steps
1) Operate the unit at the least 30minutes before adjustment.
2) Using degaussing coil, remove the stains on CPT &
Cabinet.
3) Received the Cross Hatch Pattern of Convergence.(09ch)
4) Let the Contrast in normal luminance level.
G R B
- 9 -
ADJUSTMENT
G R B
R
G R B
6700VS0002F
6700PF0002F
6700MF0014A
6700MF0014B
LGIT
SANYO
LGIT
LGIT
3.0 ± 0.05V
2.3 ± 0.05V
2.3 ± 0.05V
2.15 ± 0.05V
70dBu
65dBu
65dBu
65dBu
TAEW-G002D
115-B-A86EL
TAEW-G013D
TAEW-G017D CIS
Tuner P/N Maker AGC Vol Signal Tuner Spec. Remark

- 10 -
(3) Static Convergence (STC) Adjustment
1) Receive the Cross Hatch Pattern Convergence(09ch).
2) Before adjusting Static Convergence(STC), adjust the
focus first seeing to it that the WHITE color picture quality
is sharp enough.
3) Converge the RED vertical and BLUE vertical line in
unity(same line) by changing the angle between the 2
tabs of 4-pole magnet.
4) Converge the RED horizontal and BLUE horizontal line in
unity(same line) by turning the 2 tabs of the 4-pole
magnet. At this time, do not change the angle between
the 2 tabs.
5) Converge the R, G, B vertical line in unity(same line) by
changing the angle between the 2 tabs of the 6-pole
magnet.
6) Converge the R, G, B horizontal line in unity(same line) by
turning the 2 tabs of the 6-pole magnet. At this time, do
not change the angle between the 2 tabs.
(4) Dynamic Convergence (DYC) Adjustment
1) Y-axis Adjustment
: Adjust convergence of Y-axis(vertical) by moving the
deflection yoke(DY) left and right.
2) X-axis Adjustment
: Adjust convergence of X-axis(horizontal) by moving the
deflection yoke(DY) up and down.
6. White Balance Adjustment
6-1. Necessary Instrument
1) Automatic White Balance Meter(Low/High light Pattern
generator)
2) White Balance meter(CRT Color Analyzer, CA-100) :1set
3) Factory Remote Control
6-2. Adjustment Preparation
: Prior to this adjustment, the Screen Voltage adjustment
should be finished.
6-3. Automatic adjustment
1) Adjust the using Auto White Balance Meter.
2) Enter CPU OFF Mode by pressing “IN-START” & “MUTE”
key of factor remote control in turn before adjustment.
Exit CPU OFF mode by press the “TV/AV” key of factory
remote control after adjustment finished.
* In case there is excess RED color at screen voltage
adjustment, adjust it using “volume - (F) key of factory remote
control until the RED color disappear.
6-4. Manual adjustment
1) Adjust using white Balance meter and factory remote
control.
2) Enter white balance adjustment mode by pressing
“INSTART” key
3) Use the CHD, CHEKey to choose adjustment item.
4) Use the VOLF, VOLGKey to change item data.
5) Adjustment Procedure
a. Make the picture luminance 45Ft-L by changing the
“CONTRAST” and “BRIGHTNESS”.
b. Adjust X data of High light with R-DRIVE(VP7) and Y
data with B-DRIVE(VP9) to have the color temperature
as shown below.
c. Make the picture luminance 4.5Ft-L by changing the
“CONTRAST” and “BRIGHTNESS”.
d. Adjust X data of low light with R-BIAS(VP4) and Y data
with B-BIAS(VP6) to have the color temperature as
shown below.
e. Repeat steps a~d until both low and high light have
same readings as shown below.
7. Focus Voltage Adjustment
This adjustment must be done after operating the TV set
receiver sufficiently.
7-1. Adjustment Preparation
1) Receive Digital pattern and Set the picture condition on
“APC ON”(CLEAR) mode.
7-2. Adjustment
Turn the focus volume on the FBT upper direction th have
the best focus vertical line(figure 1.(a)) and horizontal line
(figure 1(b)) as shown below.
8. SUB-BRIGHTNESS Adjustment
This adjustment must be done after White balance adjustment.
8-1. Adjustment Preparation
1) Receive the LG standard Mono scope pattern(CH14).
2) Set the picture condition on “APC ON”(CLEAR) mode.
8-2. Adjustment
1) Press the “ADJ”key of the factory remote control twice to
enter to “SUB-BRIGHTNESS” adjustment mode.
2) Change the Sub-Brightness data by pressing the VOLF,
VOLGkey so that the number 1 in gray scale of mono
scope pattern almost disappear.(See figure 2)
8-3. Sub-Tint adjustment
This adjustment has to be done only if the picture has bad tint
otherwise, it can be omitted if the picture has good tint.
1) Receive LG standard pattern signal(SMPTE, 2CH)
2) Set the picture condition on “APC ON”(CLEAR) mode.
Market Color Temperature X-AXIS Y-AXIS
PAL/SECAM 12,000±800 0.270±0.003 0.283±0.003
<Fig. 1>
<Fig. 2> MONO SCOPE Pattern signal
0 1 2 3 4 5 6 7 8 9
Gray Scale
Color Bar

- 11 -
3) Press the “ADJ” key of the factory remote control three
times to enter to “SUB-TINT” adjustment mode.
4) Change the Sub-Tint data by pressing the VOLF, VOLG
key until the upper and lower CYAN color becomes same
color.
9. Deflection setting data adjustment
These adjustment will be done by automatic adjustment
Equipment.
For manual adjustment, it is also possible by the following
procedure.
9-1. Adjustment Preparation
1) Deflection setting data adjustment can be done only with
remote control.
2) Press “IN-START” key on factory remote control continuously
to enter to Deflection Adjustment mode.
3) Press the CHD, Ekey to select adjustment item.
4) Press the VOLF, Gkey to change the data.
9-2. Adjustment
1) Horizontal Position Adjustment
Select VP1(H-POS) and adjust so that the left and right
vertical line are symmetrical as possible.
2) Vertical Position Adjustment
Select VP2(V-POS) and adjust so that the horizontal center
line coincide with geometric horizontal center of the CPT.
3) Vertical Size Adjustment
Select VP3(V-SIZE) and so that the middle circle of the
Digital Pattern(480NC, 13CH) coincide with the effective
screen of CPT
4) H-SIZE
Adjustment of the H-size is not basically done but if the H-
size is inappropriate, the H-size is adjustable by adjusting
variable resistance(VR403) of the main assy.
-> Adjustment for the received pattern is done so that the
outer line of the left, right and the remotest grid will
correspond to the effective boundary surface. (The
remotest grid, NTSC : within 2.5 ~ 3.0 column, PAL :
within 0 ~25 %)
5) Trapezoidal
Adjust a trap by adjusting variable resistance(VR402) of the
main A’ssy.
-> Adjustment is done so that the upper horizontal width of
the received screen and the bottom horizontal width will
be same (when the screen is a trapezoid shape, adjust it
to make a right square)
6) PIN AMP.
Adjust the pin AMP by adjusting variable resistance(VR401)
of the main A’ssy.
-> Adjustment is done so that the vertical line of the remotest
grid at the left or right side of the screen will be parallel to
the vertical line of the center of screen ( or the remotest
grid of CPT)
10. IIC BUS Adjustment Data Table
: Refer to <TABLE 1>
11. Instrument setting data
(automatic adjustment)
<TABLE 2>
12. EEPROM OPTION TABLE
<TABLE 3>
Speed
1
SLave ADD VIDEO IC BA EEPROM A2 Delay
30
EEPROM
Sub Add 74 71 76 73
SpeedPlus
Step/Data
3 3 3 3
Sub Add
Start Bit
Stop Bit
Masking
Direction
VCD TV PC
B(R)AMP
C
6
0
0
1
B(R)CUT
9
7
0
0
1
G(B)AMP
E
6
0
0
1
G(B)CUT
B
7
0
0
1
B AMP B CUT G AMP G CUT
OPTION 1
DVD
TURBO ME
V-CURVE
V-MUTE
EYE
NICAM DT
SND MUTE
GAME
OPTION2
TURBO
ARC
200PR
BLUEBACK
TURBO AT
A2STEREO
SHARP
DVDN 6P
OPTION3
FM TRANS
FM HIGH
NTSC
DUAL SV
SYNC KI
SND FL1
SND FL2
SWOOFER
OPTION 4
SYSTEM
SND MODE
AV
LOC KEY
COLOR T
PLL DIV
OPTION 5
FM PRE
NICAM PRE
SCART PRE
A2 FM TH
FIRST TH
ZWT TH
INITIAL
0
0
0
0
0
0
1
0
0
0
0
1
1
1
0
1
0
0
1
1
0
0
0
0
4
1
2
1
1
31
6
8
2
5
10
7
REMARK
DVD function (1:W, 0:W/O)
T-P,T-S FUNCTION DISPLAY on MENU
VOLUME CURVE (1:HIGH, 0:LOW)
VIDEO MUTE
EYE function (1:W, 0:W/O)
NICAM ID
SOUND MUTE at no signal (yes or not)
GAME function (1:Yes, 0:No)
REMARK
TURBO P/S function (1:W, 0:W/O)
ARC function (1:W, 0:W/O)
200 CH. MEMORY
BLUEBACK function (1:W, 0:W/O)
TURBO SEARCH function (1:W, 0:W/O)
A2 STEREO(WITH NICAM)
SHARPNESS DATA (1:+10, 0:NORMAL)
DVD 6P (1:W, 0:W/O)
REMARK
FM TRANS function (1:W, 0:W/O)
FM TRANS FREQUENCY (1:HIGH, 0:LOW)
NTSC function (1:W, 0:W/O)
AV ST MODE (1:PSEUDO, 0:MATRIX)
SYNC KILL function (1:W, 0:W/O)
MONO FILTER (50MHz/ 75Hz)
MONO FILTER (100Hz/ 200KHz)
WOOFER function (1:W, 0:W/O)
REMARK
0:CHINA / 1:INDONESIA / 2: THAI / 3: VIETNAM / 4MULTI
0:MONO / 1:AV ST / 2:REAL ST
0:NO AV / 1:AV1 / 2:AV1,2 / 3:AV1,2,3
0:4KEY / 1:6KEY / 2:8KEY
COLOR TABLE
PLL DATA (NTSC Tuning Level)
REMARK
FM PRESCALER
NICAM PRESCALER
SCART PRESCALER
A2 PRESCALER
MONO THRESHOLD
A2 THRESHOLD

- 12 -
<TABLE 4> SECAM MODEL 1 PAL <TABLE 5> SECAM MODEL 1 CIS
OPTION 1
DVD
TURBO ME
V-CURVE
V-MUTE
EYE
FLAT
SND MUTE
GAME
OPTION2
TURBO
ARC
200PR
BLUEBACK
TURBO AT
SHARP
DVDN 6P
OPTION3
FM TRANS
NTSC
AV PSEU
SYNC KI
A2 SW
LNA
SWOOFER
OPTION 4
SYSTEM
SND MODE
AV
LOC KEY
COLOR T
PLL DIV
OPTION 5
FM PRE
NICAM PRE
SCART PRE
A2 FM TH
FIRST TH
ZWT TH
INITIAL
0
0
1
1
0
1
1
0
0
1
0
0
1
0
0
0
0
1
1
1
0
0
1
0
1
1
1
31
6
13
0
5
15
2
REMARK
DVD function (1:W, 0:W/O)
T-P,T-S FUNCTION DISPLAY on MENU
VOLUME CURVE (1:HIGH, 0:LOW)
VIDEO MUTE
EYE function (1:W, 0:W/O)
CPT
SOUND MUTE at no signal (yes or not)
GAME function (1:W, 0:W/O)
REMARK
TURBO P/S function (1:W, 0:W/O)
ARC function (1:W, 0:W/O)
200CH. MEMORY
BLUEBACK display (1:W, 0:W/O)
TURBO SEARCH function (1:W, 0:W/O)
SHARPNESS DATA (1:+10, 0:NORMAL)
DVD 6P (1:W, 0:W/O)
REMARK
FM TRANS function (1:W, 0:W/O)
NTSC function (1:W, 0:W/O)
AV ST MODE (1:PSEUDO, 0:MATRIX)
SYNC KILL function (1:W, 0:W/O)
MONO DUAL function (1:5.74MHz possible, 0:NORMAL)
LNA TUNER (1:LNA, 0:NORMAL)
WOOFER function (1:W, 0:W/O)
REMARK
0:ENG / 1:ARAB / 2:PARSI
0:MONO / 1:AV ST
0:NO AV / 1:AV1 / 2:AV1,2
0:4KEY / 1:6KEY / 2:8KEY
COLOR TABLE
PLL DATA (NTSC Tuning Level)
REMARK
FM PRESCALER
NICAM PRESCALER
SCART PRESCALER
A2 PRESCALER
MONO THRESHOLD
A2 THRESHOLD
OPTION 1
DVD
TURBO ME
V-CURVE
V-MUTE
EYE
FLAT
SND MUTE
GAME
OPTION2
TURBO
ARC
200PR
BLUEBACK
TURBO AT
SHARP
DVDN 6P
OPTION3
FM TRANS
NTSC
AV PSEU
SYNC KI
A2 SW
LNA
SWOOFER
OPTION 4
SYSTEM
SND MODE
AV
LOC KEY
COLOR T
PLL DIV
OPTION 5
FM PRE
NICAM PRE
SCART PRE
A2 FM TH
FIRST TH
ZWT TH
INITIAL
0
0
1
1
0
1
1
0
0
1
0
0
1
0
0
0
0
1
1
1
0
0
1
0
1
1
1
31
6
13
0
5
15
2
REMARK
DVD function (1:W, 0:W/O)
T-P,T-S FUNCTION DISPLAY on MENU
VOLUME CURVE (1:HIGH, 0:LOW)
VIDEO MUTE
EYE function (1:W, 0:W/O)
CPT
SOUND MUTE at no signal
GAME function (1:W, 0:W/O)
REMARK
TURBO P/S function (1:W, 0:W/O)
ARC function (1:W, 0:W/O)
200CH. MEMORY
BLUEBACK display (1:W, 0:W/O)
TURBO SEARCH function (1:W, 0:W/O)
SHARPNESS DATA (1:+10, 0:NORMAL)
DVD 6P (1:W, 0:W/O)
REMARK
FM TRANS function (1:W, 0:W/O)
NTSC function (1:W, 0:W/O)
AV ST MODE (1:PSEUDO, 0:MATRIX)
SYNC KILL function (1:W, 0:W/O)
MONO DUAL function (1:5.74MHz possible, 0:NORMAL)
LNA TUNER (1:LNA, 0:NORMAL)
WOOFER function (1:W, 0:W/O)
REMARK
0:CIS / 1:HUNGAR / 2:CHESKY/ 3:RUMANI/ 4:MULTI
0:MONO / 1:AV ST
0:NO AV / 1:AV1 / 2:AV1,2
0:4KEY / 1:6KEY / 2:8KEY
COLOR TABLE
PLL DATA (NTSC Tuning Level)
REMARK
FM PRESCALER
NICAM PRESCALER
SCART PRESCALER
A2 PRESCALER
MONO THRESHOLD
A2 THRESHOLD

Menu
VP 0
VP 1
VP 2
VP 3
VP 4
VP 5
VP 6
VP 7
VP 8
VP 9
VP 10
VP 11
VP 12
VP 13
VP 14
VP 15
VP 16
VP 17
VP 18
VP 19
VP 20
VP 21
VP 22
VP 23
VP 24
VP 25
VP 26
VP 27
VP 28
VP 29
VP 30
VP 31
VP 32
VP 33
VP 34
VP 35
VP 36
VP 37
VP 38
VP 39
VP 40
VP 41
VP 42
VP 43
VP 44
VP 45
VP 46
VP 47
VP 48
VP 49
VP 50
VP 51
VP52
VP53
OSD
RF AGC
H POS
V POS
V SIZE
R BIAS
G BIAS
B BIAS
R DRIVE
G DRIVE
B DRIVE
V LIN
V SCORR
V COMP
H BLK L
H BLK R
AFC GAIN
H FREQ
CD MODE
VBLK SW
FBP SW
YC FILTER
Y APF
C SYSTEM
C VCO
PAL APC
S TRAP SW
VIF SYS
VCO FREQ
SIF SYS
SUB BIAS
BRIGHT
ABL
BRI STOP
ABL TH
RGB TEMP
COR GAIN
PRE SHOOT
OVER SHOOT
Y GAMMA
DC REST
B-ST START
B-ST GAIN
C BYPASS
C KILL ON
C KILL OFF
C KILL OPER
RB BAL
RB ANG
B-Y LEVEL
R-Y LEVEL
V LEVEL
OVER MO SW
OVER MO LE
TINT TH
Adjustment
RF AGC Delay
H PHASE
V Shift (V POSI)
Vertical Size
Red Bias
Green Bias
Blue Bias
Red Drive
Green Drive
Blue Drive
V LIN (Vertical Linearity)
Vertical S-Correction
V.COMP
H BLK L
H BLK R
AFC Gain & gate
H Freq.
Count Down Mode
VBLK SW
FBP Blanking OR SW
Filter System
Y APF Select
Color System
C/VCO Adjustment
PAL APC SW
S.TRAP SW
VIF System SW
VCO Freq
SIF System SW
Sub Bias (sub-bright)
Brightness Control
Bright ABL Defeat
Bright Mid Stop Defeat
Bright ABL Threshold
RGB Temp SW
Coring Gain Select
Pre-shoot Adjustment
Over-shoot Adjustment
Y Gamma start point Select
DC Restoration Select
Black Stretch Start Point Select
Black Stretch Gain Select
C Bypass
C Kill On
C Kill Off
Color Killer Operational Point
R/B Gain Balance
R/B Angle
B-Y DC Level
R-Y DC Level
Video Level
OVER.MOD.SW
OVER.MOD.LEVEL
Tint Through
Range
0 ~ 63
0 ~ 31
0 ~ 15
0 ~ 127
0 ~ 255
0 ~ 255
0 ~ 255
0 ~ 127
0 ~ 15
0 ~ 127
0 ~ 31
0 ~ 31
0 ~ 3
0 ~ 3
0 ~ 3
0 / 1
0 ~ 63
0 ~ 7
0 / 1
0 / 1
0 ~ 15
0 / 1
0 ~ 7
0 ~ 7
0 / 1
0 / 1
0 ~ 3
0 ~63
0 ~ 3
0 ~ 127
0 ~ 127
0 / 1
0 / 1
0 ~ 7
0 / 1
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 / 1
0 / 1
0 / 1
0 ~ 7
0 ~ 15
0 ~ 15
0 ~ 15
0 ~ 15
0 ~ 7
0 / 1
0 ~ 15
0 / 1
Initial(PAL)
40
12
5
80
127
127
127
64
8
64
23
10
3
0
3
0
15
0
0
1
2
0
0
4
0
1
1
28
1
45
64
1
0
4
0
3
0
3
0
1
1
2
0
0
0
7
5
5
10
11
7
0
8
0
Initial(SECAM)
40
12
5
105
127
127
127
64
8
64
23
10
7
0
3
0
15
0
0
1
2
0
0
4
0
1
1
112
1
45
64
1
0
4
0
3
0
3
0
1
1
2
1
0
0
7
10
8
28
27
6
0
8
0
Remark
Necessary
Necessary
Necessary
Necessary
Necessary
Unnecessary
Necessary
Necessary
Unnecessary
Necessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
- 13 -
<TABLE 1>

- 14 -
Menu
VP 54
VP 55
VP 56
VP 57
VP 58
VP 59
VP 60
VP 61
VP 62
VP 63
VP 64
VP 65
VP 66
VP 67
VP 68
VP 69
VP 70
VP 71
VP 72
VP 73
VP 74
VP 75
VP 76
VP 77
VP 78
VP 79
VP 80
VP 81
VP 82
VP 83
VP 84
VP 85
OSD
Y TH
Y GAIN
R WIDTH
R OFFSET
B WIDTH
B OFFSET
T DISABLE
V TRANCE
A MUTE
V MUTE
SYNC KILL
V KILL
FSC SW
GRAY
CROSS BW
H-TONE
RGB BLK
C EXT
CRCB IN
AUDIO SW
VOL FIL
FM MUTE
IF AGC
A-OUT SW
DE-EMPH
FM GAIN
VOLUME
S TRAP
C TRAP
FLESH
OSD CONT
OSD POS
Adjustment
Y TH
Y Gain
R width
R offset
B width
B offset
T Disable
V TRANCE
Audio Mute
Video Mute
Sync Kill
Vertical Kill
SVO or fsc Output
Gray Mode
Cross B/W
Half Tone
Blank Defeat
C Ext
CbCr IN
Audio SW
VOL. FIL
FM Mute
IF AGC Defeat
A.MONI.SW
De-emphasis TC
FM Gain
VOLUME
S Trap Test
C. Trap Test
Auto-Flesh
OSD Contrast
OSD Position
Range
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 ~ 3
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 ~ 3
0 ~ 3
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 / 1
0 ~ 127
0 ~7
0 ~ 7
0 / 1
0 ~ 3
-
Initial(PAL)
1
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
126
4
4
0
0
38
Initial(SECAM))
1
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
PAL/CIS1
126
Remark
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Refer to <table 1-1>
Menu
VP 81
VP 82
VP 83
VP 84
VP 85
VP 86
VP 87
VP 88
VP 89
VP 90
VP 91
VP 92
VP 93
VP 94
VP 95
Adjustment
V D C
V SEP UP
V RES TM
HLLDET
ERGBL OUT
S TRAP
C TRAP
DIG OSD
V MAUD SW
V INRGB SW
FLESH
WPLO [E
VM GAIN
SYNC SS
GY AMP
Initial
32
0
0
1
8
4
4
0
0
1
0
0
0
3
4
Remark
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Menu
VP 96
VP 97
VP 98
VP 99
VP 100
VP 101
VP 102
VP 103
VP 104
VP 105
VP 106
VP 107
VP 108
VP 109
Adjustment
HTNOC
OVER MT
APC OFF
VL OFFS
A2SW
VCO AD
EQU AD
BEL AD
EQU ON
BA SW
SECK OFF
SECK ON
OSD CONT
OS POS
Initial
0
0
4
3
0
8
8
3
0
1
0
0
0
38
Remark
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
Unnecessary
<TABLE 1-1> SECAM MODEL (DATA 81 ~ 109)

- 15 -
12. Inspection Item
12-1. Multiplex Sound Adjustment
1) Received 06CH factory signal. Check if the OSD displays
“ST.” for Stereo Broadcasting.
2) Press sound multiplex(MPX) button for stereo sound
separation. Check if the “L” channel produce 1kHz output.
3) Received 02CH factory signal. Check if the OSD displays
“SAP” for Secondary Audio Program Broadcasting.
12-2. External Input(A/V IN)
1) Connect through 75 ohm A/V input terminal standard
picture signal. The standard video input level is 1Vp-p.
2) Connect to input terminal sound signal strength of 1kHz
400mVrms(1.13Vp-p) and compare status.
3) Check picture status by if it is in good condition by
pressing the TV/AV IN key on the remote control and
compare standard input condition of the receiver.
4) Check speaker output status if it is in good condition and
check input terminal against receiver ground by
connecting “R” channel of RCA JACK.
12-3. Signal, Sound Adjustment Condition
(1) Necessary parts and instrument
- Adjustment remote control(with signal, sound check button)
* LG standard, DATA CODE FC(h) FD(h)
(2) Checking
1) Received US30CH standard signal.
2) Check CONTRAST, BRIGHTNESS, COLOR, TINT,
SHARPNESS by pressing the Signal Check button
continuously.
3) Received US06CH.
4) Check STEREO function by pressing Sound Check button.
13. TV/CABLE TV Channel operation
condition
(1) Necessary parts and instruments
- Remote controller (with AIR/CABLE TV button)
(2) Checking
- Check receiver channel operation for some abnormality by
pressing AIR/CABLE TV button continuously.
13-1. HOLD DOWN CHECK (X-RAY Protect)
- This X-RAY Protect testing is applicable only for model with
HOLD DOWN circuit only.
(1) Checking
1) Check HOLD DOWN circuit operation by shorting R419.
2) At this time, the receiver turns to POWER OFF and goes
to STAND-BY condition. Accordingly, the high voltage
does not occurred and you can perform HOLD DOWN

- 16 -
PRINTED CIRCUIT BOARD
MAIN

- 17 -
SIDE A/V

- 18 -
Maneuver defectiveness
Maneuver defectiveness
In case of influx NOISE
- R/C is not operate
Maneuver defectiveness
1. TV FUNCTIONAL
2. TU / IF SECTION
3. VIDEO PROCESSING
TROUBLE SHOOTING

- 19 -
4. SMPS PRIMARY SECTION
5. SMPS SECONDARY SECTION

- 20 -
6. VERTICAL SECTION
7. HORIZONTAL SECTION
