LG 52SZ8R User manual

TV/AV MENU OK VOL PR
DLP Projection TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MB-05DA
MODEL : 44/52SZ8R
MODEL : 44/52SZ8R-ZA
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS ..................................................................................................................... 2
SAFETY PRECAUTIONS ................................................................................................3
SERVICING PRECAUTIONS .......................................................................................... 4
CONTROL DESCRIPTIONS ............................................................................................6
SPECIFICATIONS ..........................................................................................................10
ADJUSTMENT INSTRUCTIONS ....................................................................................18
BLOCK DIAGRAM..........................................................................................................26
EXPLODED VIEW .................................................................................................... 32,34
EXPLODED VIEW PARTS LIST ................................................................................33,35
REPLACEMENT PARTS LIST .......................................................................................36
REPLACEMENT THE LAMP .........................................................................................46
SVC. SHEET ......................................................................................................................
PRINTED CIRCUIT BOARD ...............................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced ith the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design ithout permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver hose chassis is not isolated from
the AC po er line. Use a transformer of adequate po er rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It ill also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blo n,
replace it ith the specified.
When replacing a high attage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm a ay from PCB.
Keep ires a ay from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
Before returning the receiver to the customer,
al ays perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate ithout damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check
With the instrument AC plug removed from AC source,
connect an electrical jumper across the t o AC plug prongs.
Place the AC s itch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be bet een 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See belo Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10 att resistor in parallel ith a 0.15uF capacitor
bet een a kno n good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter ith 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS hich is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follo the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict bet een the
follo ing servicing precautions and any of the safety
precautions on page 3 of this publication, al ays follo the
safety precautions. Remember: Safety First.
General Servicing Precautions
1. Al ays unplug the receiver AC po er cord from the AC
po er source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c.
Connecting a test substitute in parallel ith an electrolytic
capacitor in the receiver.
CAUTION: A rong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it ith an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped ith a suitable high voltage probe.
Do not test high voltage by "dra ing an arc".
3. Discharge the picture tube anode only by (a) first connecting
one end of an insulated clip lead to the degaussing or kind
aquadag grounding system shield at the point here the
picture tube socket ground lead is connected, and then (b)
touch the other end of the insulated clip lead to the picture
tube anode button, using an insulating handle to avoid
personal contact ith high voltage.
4. Do not spray chemicals on or near this receiver or any of its
assemblies.
5. Unless specified other ise in this service manual, clean
electrical contacts only by applying the follo ing mixture to
the contacts ith a pipe cleaner, cotton-tipped stick or
comparable nonabrasive applicator; 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength)
CAUTION: This is a flammable mixture.
Unless specified other ise in this service manual, lubrication
of contacts in not required.
6. Do not defeat any plug/socket B+ voltage interlocks ith
hich receivers covered by this service manual might be
equipped.
7. Do not apply AC po er to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
8. Al ays connect the test receiver ground lead to the
receiver chassis ground before connecting the test receiver
positive lead.
Al ays remove the test receiver ground lead last.
9. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to
any heatsink in this receiver.
Electrostatically Sensitive (ES Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field effect
transistors and semiconductor "chip" components. The
follo ing techniques should be used to help reduce the
incidence of component damage caused by static by static
electricity.
1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a kno n earth
ground. Alternatively, obtain and ear a commercially
available discharging rist strap device, hich should be
removed to prevent potential shock reasons prior to
applying po er to the unit under test.
2. After removing an electrical assembly equipped ith ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some
solder removal devices not classified as "anti-static" can
generate electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged ith leads
electrically shorted together by conductive foam, aluminum
foil or comparable conductive material).
7. Immediately before removing the protective material from
the ieads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into hich the
device ill be installed.
CAUTION:Be sure no po er is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions hen handling unpackaged
replacement ES devices. (Other ise harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static
electricity sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, lo - attage soldering iron and
appropriate tip size and shape that ill maintain tip
temperature ithin the range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder
composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and ell tinned.
4. Thorohly clean the surfaces to be soldered. Use a mall ire
bristle (0.5 inch, or 1.25cm) brush ith a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the follo ing unsoldering technique
a. Allo the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly dra the melted solder ith an anti-static,
suction-type solder removal device or ith solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the follo ing soldering technique.
a. Allo the soldering iron tip to reach a normal
temperature (500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
SERVICING PRECAUTIONS

- 5 -
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it
there only until the solder flo s onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess
or splashed solder ith a small ire-bristle brush.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
hich the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the follo ing
technique should be used to remove and replace the IC. When
orking ith boards using the familiar round hole, use the
standard technique as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead ith the soldering iron tip as the
solder melts.
2. Dra a ay the melted solder ith an anti-static suction-
type solder removal device (or ith solder braid) before
removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas ith a small ire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as
close as possible to the component body.
2. Bend into a "U" shape the end of each of three leads
remaining on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the "U" ith long nose pliers to insure metal to metal
contact then solder each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heatsink mounting scre (if so equipped).
3. Carefully remove the transistor from the heat sink of the
circuit board.
4. Insert ne transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heatsink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the t o remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, rap each lead of the ne diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the t o "original" leads. If they are not shiny, reheat them
and if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board
hollo stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing bet een the replaced
component and adjacent components and the circuit board
to prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board ill eaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board.
The follo ing guidelines and procedures should be follo ed
henever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
follo ing procedure to install a jumper ire on the copper
pattern side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern ith a sharp
knife. (Remove only as much copper as absolutely
necessary).
2. carefully scratch a ay the solder resist and acrylic coating
(if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper ire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper ire along the path of the out-a ay
copper pattern and let it overlap the previously scraped end
of the good copper pattern. Solder the overlapped area and
clip off any excess jumper ire.
At Other Connections
Use the follo ing technique to repair the defective copper
pattern at connections other than IC Pins. This technique
involves the installation of a jumper ire on the component
side of the circuit board.
1. Remove the defective copper pattern ith a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a
hazardous condition ill not exist if the jumper ire opens.
2. Trace along the copper pattern from both sides of the
pattern break and locate the nearest component that is
directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper ire from the lead of
the nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper ire is dressed so
the it does not touch components or sharp edges.

- 6 -
CONTROL DESCRIPTIONS
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

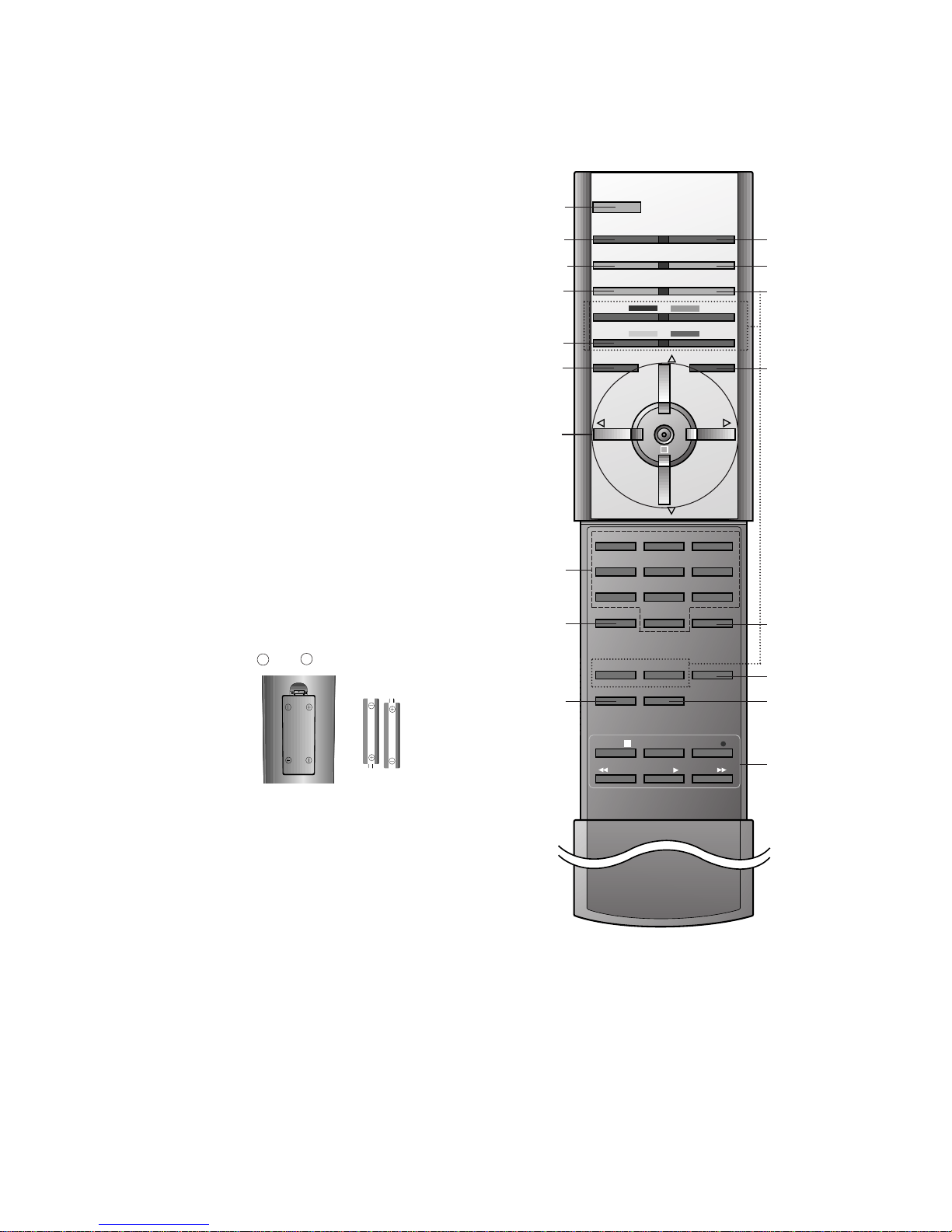

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. MULTIMEDIA
selects Component 1/2,RGB or HDMI modes.
3. SLEEP
sets the sleep timer.
4. MUTE
switches the sound on or off.
5. PIP BUTTONS
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
POSITION
Moves the sub picture to
D/E
or F/G direction.
6. SWAP
returns to the previously viewed programme.
selects a favorite programme.
7. MENU
selects a menu.
8. D/E(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
F/G(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
9. NUMBER BUTTONS
switches the set on from standby or directly select a number.
10. PSM (Picture Status Memory)
recalls your preferred picture setting.
11. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
12. LIST
displays the programme table.
123
456
7
PSM SSM
8
0
POSITION STILL
MIX
I/II ARC
REVEAL ?
TIME
LIST
STOP REC
P/STILL
REW FF
PLAY
9
POWER
MULTIMEDIA TV/AV
MUTE SLEEP
PIP TEXT
PR - PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
CANCEL/EXIT
INDEX
MODE /
M
SIZE
(With TELETEXT)
1
2
3
4
5
6
7
10
11
12
18
9
8
14
13
15
16
17
19

- 7 -
13. TV/AV
selects the remote operating mode.
switches the set on from standby.
14. ARC (Aspect Ratio Control)
changes the picture format.
15. CANCEL/EXIT
Clears all on-screen displays and returns to TV viewing from any
menu.
16. SSM (Sound Status Memory)
recalls your preferred sound setting.
17. STILL
freezes motion of the picture.
18. I/II
selects the language during dual language broadcast.
selects the sound output.
19. VCR BUTTONS
control a video cassette recorder.
Note : In teletext mode, the PR + /
-
,SWAP and INPUT buttons are
used for teletext function.
Battery installation
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
+
-
123
456
7
PSM SSM
8
0
SLEEP
STILL
SIZE
I/II
STOP REC
P/STILL
REW FF
PLAY
9
POWER
MULTIMEDIA TV/AV
LIST ARC
MUTE PIP
PR - PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
CANCEL/EXIT
POSITION
(Without TELETEXT)
1
2
4
12
5
13
14
15
16
17
18
19
6
7
10
9
8
3

- 8 -
1. REMOTE CONTROL SENSOR
2. TV/AV
selects the remote operating mode.
switches the set on from standby.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
5. F/G(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
6. D/E(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
7. OPERATION INDICATOR (Refer to p.7)
8. LAMP INDICATOR (Refer to p.7)
9. TEMPERATURE INDICATOR (Refer to p.7)
10. MAIN POWER (ON/OFF)
switches the set on or off.
Note : There might be a faint white trace on the
center of the screen according to the position.
This is normal and is a characteristic of the
screen.

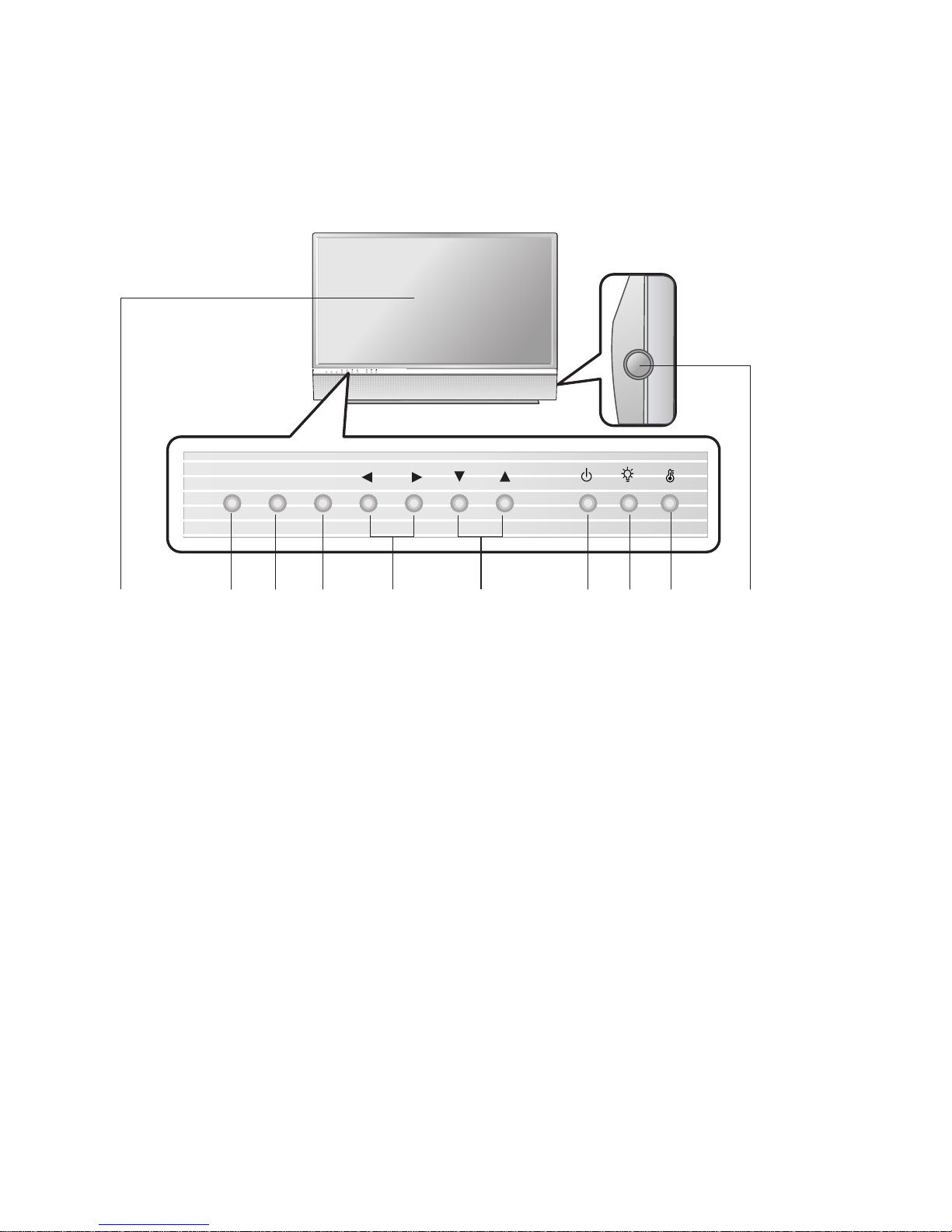

Front panel
ON/OFF
TV/AV MENU OK VOL PR
TV/AV MENU OK VOL PR
12 3 4 5 6 7 8 9 10
Lamp indicator, operation indicator, and temperature indicator, located side the front panel controls
reveal the operating status of the DLP(Digital Light Processing) projection TV.

- 9 -
S-VIDEO
VIDEO
AUDIO
(R)
(L)/
MONO
AV3
INPUT
HDMI/DVI
U
P
G
R
A
D
E
P
O
R
T
PC/DTV
(XGA/
480p/
576p/
720p/
1080i)
(L)
AUDIO
(R)
RGB INPUT
DVI / RGB INPUT
COMPONENT
P R
P B
Y
(L)
AUDIO
(R)
480i/480p/
576i/576p/
720p/1080i
480i/480p/
576i/576p/
720p/1080i
INPUT 1
INPUT 2
AV1 AV2 AV3
AV 4
INPUT
S-VIDEO
VIDEO
(L)/
(R)
MONO
AUDIO
HDMI/DVIINPUT
U
P
G
R
A
D
E
P
O
R
T
PC/DTV
(SXGA/
480p/
576p/
720p/
1080i)
(L)
AUDIO
(R)
RGBINPUT
DVI/ RGB INPUT
COMPONENT
P R
P B
Y
(L)
AUDIO
(R)
480i/480p/
576i/576p/
720p/1080i
480i/480p/
576i/576p/
720p/1080i
INPUT1
INPUT2
AV1 AV2 AV 3
Rear panel
Off Power cord is not connected or power switch is off
Red Power Cord is connected, unit is on standby.
Green On
Orange (flashing) Preparing operation in standby.
Orange Projection lamp is reaching the end of its life and
needs to be replaced with a new lamp.
Red (flashing) There is a problem with the lamp or around it.
Contact an authorized service center.
Red Lamp life over.
Green (flashing) The lamp cover is not closed.
Red The set has shut down due to overheating.
After viewing the phrase “Thermal High Error”
Red (flashing) The set has shut down, check the cooling fan.
Orange Thermal warning.
Operation Indicator
Lamp Indicator
Temperature Indicator
•Status Indicators
AERIAL
SOCKET
UPGRADE PORT
This port is used to
upgrade the software ver-
sion and debug without
changing the hardware.
Be careful not to use this
port. Just contact your
dealer or service centre.
AV1/AV2/AV3 INPUT
SOCKETS
HDMI/DVI
RGB INPUT
DTV/DVD
INPUT
S-VIDEO
INPUT
SOCKET
AV4 INPUT
SOCKET

SPECIFICATIONS
NOTE : Specifications and others are subject to change ithout notice for improvement .
VApplication Range
This spec sheet is applied to the 44/52”DLP TV used MB-05DA chassis.
VSpecification
Each part is tested as below without special appointment.
1) Temperature : 25
! 5°C (CST : 40°C ! 2°C)
2) Relative Humidity : 65
! 10%
3) Power Voltage : Standard input voltage(AC 230V
! 10%, 50Hz)
* Standard Voltage of each products is marked by model.
4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to the adjustment.
VTest Method
1) performance : LGE TV test method followed.
2) Demanded other specification.
Safety : CB specification
EMC : CE specification
- 10 -
Chassis
MB-05DA 44/52SZ8R-ZA
(RZ-44/52SZ84DB)
United Kingdom LG
Model Name Market Place Brand Remark
44/52SZ8R-ZA
RZ-44/52SZ84DB
United Kingdom Safety : EN55013, EMI : EN55020 TEST
Model Name Market Remark Appliance

- 11 -
Except PAL-M/N
S-Video 1 first
D-sub 15 pin
L/ R Input
Market
Broadcasting system
Available Channel
Receiving system
AV Input(4EA)
Monitor Out(1EA)
S-Video Input(1EA)
Component Input(2EA)
RGB Input
HDMI Input
Audio Input(4EA)
Wired Control
Specification
EU
RF PAL/ SECAM - B/ G
PAL/ SECAM - D/ K
PAL - I/ I
AV PAL/ SECAM
NTSC - 3.58/ 4.43
BAND PAL
VHF E02~E12
UHF E21~E69
CATV S01~ S20
HYPER S21~S41
Upper Heterodyne
PAL, SECAM, NTSC
SCART1(Full) : AV1, TV out
SCART2(Half) : AV2, Monitor out
SCART3(Half) : AV3
Side AV : AV4, S-Video1
PAL, SECAM, NTSC
PAL, SECAM, NTSC
Y/ Pb / Pr
RGB-PC/ DTV
HDMI-PC/ DTV
PC Audio (1EA), Component (2EA), AV (1EA)
Discrete IR
VModel Specification
No Item Remark
1
2
3
4
5
6
7
8
9
10
11
12
LGE SPEC
Aspect Ratio
Operating Environment
Storage Environment
Input Voltage
Specification
16:9(wide)
1) Temp : 0~40 deg
2) Humidity : 0~85%
3) Temp : -20~60 deg
4) Humidity : 0~85%
AC 230V, 50Hz
VGeneral Specification
No Item Remark
1
2
3
4

- 12 -
VFeature and Function
Rear
Rear 3 Side 1
Rear
Rear
Rear
Rear
Rear
Rear
Auto Position and Auto Clock&Phase
44/52SZ
8R-ZA
Remocon Code
Remote control
Local Key
Menu
(Channel
/ Station)
Menu
(Picture)
Menu
(Sound)
Menu
(Time)
Menu
(Special)
Menu
(Screen)
1
4
1
2
1
1
1
1
NEC Code
Wireless Remote Control
TV / AV, MENU, OK, FVOLG, DPRE
System, Storage(0~99), Start
Storage, System, Band, Channel, Fine, Search,
Name, Booster
Del, Copy, Move, Skip
8 Channel
Dynamic, Standard, Mild, User
Cool, Normal, Warm, User( Red, Green, Blue )
On / Off
Freshtone, Greentone, Bluetone
On / Off
Contrast, Brightness, Colour, Sharpness, Tint
SRS TSXT, Flat, Music, Movie, Speech
User Balance, Treble, Bass
On / Off
On / Off
120/ 200/ 500/ 1.2K/ 3K/ 7.5K/ 12KHz
User Setting
On / Off ( Time : User Setting)
On / Off ( Time/ Volume/ Programme :User Setting )
On / Off
On / Off
On : Left arrow(Vol+) Key
Off : Exit Key
RGB PC
RF/ AV/ Component 480i/ 480p/ 576i/ 576p
: Spectacle, Full, Original, 4:3, 16:9, 14:9, Zoom
Component-DTV/ RGB-DTV : 4:3, 16:9, Zoom
RGB-PC/ HDMI : 4:3, 16:9
2 Tuner (PAL-BG/ I/ DK,
SECAM-BG/ DK)
CVBS/ L/ R / S-VHS(S-VHS Priority)
CVBS/ L / R
480i/ 576i/ 480p/ 576p/ 720p/ 1080i
RGB-PC : Up to XGA 85Hz
RGB-DTV : 480p/ 576p/ 720p/ 1080i
HDMI-TV : Up to XGA 85Hz
HDMI-DTV : 480p/ 576p/ 720p/ 1080i
Remote Control, S/W Download
Discrete IR
No Remark
Item Specification
1
2
3
4
5
6
7
8
9
10
Auto programme
(Auto program)
Manual programme
(Manual program)
Programme edit
(Program edit)
Favorite programme
(Favorite program)
PSM(Picture Status Mode)
CSM(Color Status Mode)
XD
ACM
SRGB
User
SSM(Sound Status Mode)
BBE
AVL(Auto Volume Limit)
Balance
Equalizer
Clock
Off Time
On Time
Auto Sleep
Child lock(Key lock)
XD Demo
Auto config
ARC
RF Input
AV Input
Monitor Out
Component Input
RGB Input
HDMI Input
RS-232C
IR Input

- 13 -
Available for only RGB PC
RF, AV1/2, Component 480i,576i
Except RGB-PC / HDMI-PC
Initialize user data
PIP Mode Only
PIP Mode Only
PIP Mode Only
Menu
(Screen)
Menu
(PIP/DW)
Hot Key
(Remote)
Adaptive
Phase : 0 ~ 63
Clock : -127 ~ +128
On/ Off
3D NR : 0~ 2
MPEG NR : 0~15
TV-> AV1-> AV2->SAV2-> AV3->AV4->
COMPONENT1->COMPONENT2-> RGB->
HDMI/ DVI
DW1, DW2, OFF
On/ Off
Main Input Sub Input
All Input All (Except Main Input)
Variable(1/16~ 1/4 of Display size)
Variable
0~10
Auto/ PAL/ SECAM/ NTSC
COMPONENT1->COMPONENT2->RGB->HDMI
TV-> AV1-> AV2-> SAV2->AV3->AV4->
COMPONENT1->COMPONENT2-> RGB->
HDMI/ DVI
PIP-> DW1-> DW2-> Off
100~ 300%
Audio Mute
Sleep Time 10~ 240 Min
Channel List
SIF Control
O
Text mode : Yellow Key
Favorite : Favorite
Favorite off : Q.view
Pip/ Twin : Main/ Sub Swap
TV-> AV1-> AV2-> SAV2-> AV3->AV4->
COMPONENT1-> COMPONENT2-> RGB->
HDMI/ DVI
SRS TSXT->Flat->Music->Movie->Speech->User
Dynamic-> Standard-> Mild-> User
POWER, Numeric(0~9), PR+/-, ARC, PRD,E,
VOLF,G,Mute,PIP Input, PIP PRD,E
O
O
O
O
No Item Specification Remark
10
11
12
13
Manual config
Cinema (Film Mode)
NR
(Luma Noise Reduction)
Reset
Input(Main)
DW
PIP
PIP Input(Sub Input)
Win. Size
Win. Position
PIP transparency
PIP System
Input Mute-media
Select TV/ AV
(TV/ Video)
PIP/ DW
ZOOM+/ ZOOM-
MUTE
Text
SLEEP
LIST
I/ II(RZ/ RT)
SWAP
PIP INPUT
SSM
PSM
FAVORITE
SIZE
POSITION
HOLD
TIME
ETC.
3D Comb Filter
DCDI(MADI)
Motion Detection
Noise Reduction

Video Input Level
Video Input Frequency Response
Video output S/N
S-Video Input Level (Y)
S-Video Input Level (C-Burst)
Component Video Input Level
(Y, CB/ PB, CR/ PR)
R/G/B Video Input Level
Audio Input S/N
Audio Input Distortion
Audio Input Level
Audio Output Level
Audio Input Frequency Range Low
High
- 14 -
At AV output
At AV output
NTSC
PAL, SECAM
1
2
3
4
5
6
7
8
9
10
11
12
0.9
3.0
40
0.85
0.143
0.6
0.6
40
0.3
0.4
0.4
7
1
1
0.7
0.7
0.4
0.5
0.5
1.1
1.15
0.286
0.8
0.8
2
0.5
0.6
0.6
0.05
Vpp
MHz
dB
Vpp
Vpp
Vpp
Vpp
dB
%
Vrms
Vrms
Vrms
kHz
No Item
Specification
Min Typ Max Unit
Remark
VExternal Interface
Normal 220V
Normal 220V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Power ON/OFF operation
Staring Voltage
Staring Voltage, -10 Degree
DC Voltage, Ballast
DC Voltage, 5V-STBY
DC Voltage, 3.3V-STBY
DC Voltage, 2.5V-STBY
DC Voltage, 1.8V-STBY
DC Voltage,Tuning Voltage
DC Voltage, DLP Driver, 3.5V
DC Voltage, DLP Driver, 2.5V
DC Voltage, DLP Driver, 5V
DC Voltage, DLP Driver, 12V
DC Voltage,Fan
Audio Amp
10000
-20
-15
370
4.5
3.135
2.375
1.71
29
3.135
2.375
4.5
11.4
5.7
24
390
5
3.3
2.5
1.8
31
3.3
2.5
5
12
5.9
26
20
15
410
5.5
3.465
2.625
1.89
33
3.465
2.625
5.5
12.6
6.15
28
times
%
%
V
V
V
V
V
V
V
V
V
V
V
V
No Item Specification
Min Typ Max Unit
Remark
VPower

- 15 -
SDTV, DVD 480I(525I)
SDTV, DVD 480I(525I)
SDTV, DVD 576I(625I)
SDTV 480P
SDTV 480P
SDTV 576P
HDTV 720P
HDTV 720P
HDTV 720P 50Hz
HDTV 1080I
HDTV 1080I
HDTV 1080I 50Hz
1
2
3
4
5
6
7
8
9
10
11
12
720*480
720*480
720x576
720*480
720*480
720x576
1280x720
1280x720
1280*720
1920x1080
1920x1080
1920*1080
15.73
15.75
15.625
31.47
31.50
31.25
44.96
45.00
37.50
33.72
33.75
28.125
59.94
60.00
50.00
59.94
60.00
50.00
59.94
60.00
50.00
59.94
60.00
50.00
13.500
13.514
13.500
27.000
27.027
27.000
74.176
74.250
74.250
74.176
74.250
74.250
No
VComponent Video Input (Y, PB, PR)
Proposed
Specification
Resolution H-freq(kHz) V-freq(Hz) Pixel clock
SDTV 480P
SDTV 480P
SDTV 576P
HDTV 720P
HDTV 720P
HDTV 720P 50Hz
HDTV 1080I
HDTV 1080I
HDTV 1080I 50Hz
1
2
3
4
5
6
7
8
9
720*480
720*480
720x576
1280x720
1280x720
1280x720
1920*1080
1920*1080
1920*1080
31.47
31.50
31.25
44.96
45.00
37.50
33.72
33.75
28.125
59.94
60.00
50.00
59.94
60.00
50.00
59.94
60.00
50.00
27.000
27.027
27.000
74.176
74.250
74.250
74.176
74.250
74.250
No
VHDMI Input(DTV)
Proposed
Specification
Resolution H-freq(kHz) V-freq(Hz) Pixel clock

- 16 -
0 : 100 PR Memory
1 : 200PR Memory
0 : CH Memory On
1 : CH Memory Off
TOP : A patent right payment nation
FLOP : Basic
Off : Text Off
0 : Others
1 : China/ Australia Frequency Table
Booster On/ Off control for 2 Tuner sys
AGC Threshold point
BGIDKM : NTSC for N-EU
BGIDKL : Secam for EU
0 : Acting FM-ST after checking Nicam
1 : Acting Nicam & FM-ST
0 : Acting FM-ST after checking Nicam
1 : Acting Nicam & FM-ST
0 : Off
1 : Audio High deviation on after checking over-Mod
0 : Slow LGE Vo.1 Curve
1 : Fast Vol Curve
0 : ACting followed SIF & I/ II
1 : Always Meno 1 : TTX
0~150
0 : Phone Jack
1 : Scart Jack
English, France, German, Spanish, Italian, Chinese, Russian
EU5 : Default Lang. 5
Non-EU7 : Default Lang. 7
0 : West Europe
1 : East EU1
2 : Turkey
3 : East-EU2(Czecho/ Hungary)
4 : Cyrillic1
5 : Cyrillic2
6 : Cyrillic3
1
2
3
4
5
Area Code
OPTION1
(Tuner opt)
OPTION2
(Audio opt)
OPTION3
(Board opt)
OPTION4
(Lang opt)
4
200PR
ACMS
TEXT
CH+AU
BOOTS
AGC-Reference
SYS
A2 ST
I II SAVE
HDEV
V-Curve0
MONO
Audio Delay
Scart
Default Lang
LANG
T LANG
No Item Specification Description Remark
VOption

7 : Turkey/ Greek1
8 : Turkey/ Greek2
9 : Turkey/ Greek3
10 : Arabic/ French
11 : Arabic/ English
12 : Arabic/ Hebrew1
13 : Arabic/ Hebrew2
14 : Farsi/ English
15 : Farsi/ French
16 : Farsi All
0 : Index Off
1 : Index On
On : Only work Navigation Key
Off : Work both Navigation and Vol/ CH Key
On : Only work Favorite Key
Off : Work both Favorite and Pip Swap Key
6 OPTION5
(ETC opt)
INDEX
Navigation Key
Favorite Key
No Item Specification Description Remark
No.
VLamp & Temp
IN-START for adjustment Remote Controller -> Lamp & Temp
1
2
3
4
5
6
Lamp Life Time[khr]
Lamp use Time[hr]
Lamp Current Temp
Lamp Warn Temp
Lamp Error Temp
Off-On Waiting[sec]
The length of time that lamp is alive to capacity
The length of time that lamp is used up to now
Warm below Warn Temp
Power off below Warn Temp
Waiting time when reoperation
For Engineering
Not real Temp
Item Market Place Remark
- 17 -

- 18 -
1. Application Object
This instruction is for the application to the DLP Projection
2. Notes
1) The power source insulation of this DLP Projection is
not charging type and you may not use the
transformer for insulation. But you’d better adjust the
set after operating it with insulation transformer
between power supply cable and input part of the set
for protecting the adjusting equipment.
2) The adjustment must be performed under the correct
sequence.
3) The adjustment must be performed in the circumstance
of 25
! 5°C of temperature and 65 ! 10% of relative
humidity if there is no specific designation.
4) The input voltage of the receiver must keep 220V, 60Hz
in adjusting.
5) The set must be operated for 5 minutes preliminary
before adjustment if there is no specific designation.
The preliminary operation must be performed after
receiving 100% white pattern,but reception of the
moving picture may also be possible in unavoidable
case.
3. Composition of Adjustment Mode
1) All adjustment mode by pressing down ADJ key of a
adjustment remote controller, after adjustment as they
also come out by pressing down ADJ key.
2) Adjustment mode component : When early ADJ
presses presented screen component.
3) Select menu to adjust with using (CH+(DD), CH-(EE)) key
above screen and press Enter key <Fig 1>.
4)
After entering into ADJ Mode list, using CH+(
D
), CH-(
E
)
key, after choosing an adjustment list one more time,
adjustment value is changed by using ENTER Key.
5) Press the ADJ key to come out after adjustment.
6) Preparation for Adjustment
(1) Connect the power to TV Set and set the status of
“Power on”.
(2) Heat-Run must operate over 5 minute before
adjustment.
4. Adjustment the optical engine
1) After placing the optical engine on the JIG, adjust
illuminator by adjusting with automatic adjustment the
B as shown <Fig 2>.
(1) When adjust illuminator, search the scope does not fall
in illuminator and Tilt adjustment complete with
automation equipment in that scope.
(2) After adjusting, A fix with Screw using automation
equipment.
2) In order to move the Optical system adjusted the Tilt to
center of the screen, adjust with automatic device.
After automatically adjusting the illuminator in <Fig 3>
adjust the position. ( Refer to Automatic Adjustment
Sequence )
ADJUSTMENT INSTRUCTIONS
<Fig 1.Adjustment Mode OSD>
<Fig 2>
A
B
<Fig 3>
<Reference> Automatic Adjustment Sequence
A
Start
Check Focus
DMD Manual
NG
NG
NG
Restart
Restart
DMD Manual
Manual
Check DMD
Check DMD
Check DMD
DMD Chuck Back
End
Check Lens
Check Lens
Lens Chuck Open
Lens Screw Fix.
DMD Screw Fix.
DMD Adjustment(Tilt, Illuminator)
DMD Adjustment(X & Y & Tilt)
Lens Adjustment(X & Y)
DMD/Lens Chucking
Screw Fwd/Bwd

3) After adjusting the illuminator, adjust the focus by
using the focus adjustment screw of projection lens.
After adjusting, fasten the screw tightly and secure
with sealer <Fig 4>.
* Note: The focus check point is not the screen center but the
upper/ lower screen.
* The pattern When Focus adjustment
1) Come to Cross Hatch in the adjustment T/X Adj>Pattern.
2) Adjustment to the most adequate Focus being changed
Focus adjustment Knob.
3) Adjustment /Check for Focus of mark part to be same.
a. Focus : Center Best
b. Flare : 1.5pixel
4)
After finishing adjustment, adjustment Knob is made to be Fix.
5. Check the CWI/ NDC adjustment
movement and Default data
(Base value --> CWI: 160, NDC: 12)
1) Required Test Equipment
: Remote control
2) Preparation for Adjustment
(1) Connect power and turn Power on.
(2)
Using the Remote Control, enter from ADJ to CWI/ NDC.
(3) Check the Variable and base value(CWI:160, NDC:12)
6.
Check the Actuator adjustment movement
and Default data
1) Required Test Equipment
: Remote control
2) Preparation for Adjustment
(1) Connect power and turn Power on.
(2)
Using the Remote Control, enter from ADJ to Actuator_60.
(3) Check the Variable and base value ACT Gain and Phase
- Phase(Base value : 200)
- Gain(Base value : 60)
7. Caution for DMD(Digital Micro-mirror
Device)
1) Caution for DMD ESD
(1)
You connect the grounding to prevent ESD (Electrostatic
Discharge) when handing the DMD
.
(2)
The worker have to wear wrist strap that connect to ground.
(3) Electric workshop and an electric conductor surface
connect to ground.
(4) Save the DMD after removement a static electricity.
Keep it at an exclusive case when moving it. When
grounding, open the case.
(5) Put on gloves that to prevent static electricity. If it’s old,
replace it.
(6)
The work is done at the electro static-free location. Attach the
tape or remove dust on the front or back pin of DMD glass.
2) Caution
(1) Keep the procedure and caution to prevent the screen
strange phenomenon. Don’t make a scratch.
(2)
When DMD stains with dust, polish the front and back DMD
with soft wiper. Then, polish the front and back DMD after
rotating 180 degree the DMD. If necessary, take a inspection.
(3) Don’t clean the DMD with the high pressure. Because
the electric static and pollution influence to DMD.
* TI Reference : DMD Handling Specification, DMD Cleaning.
8. EDID Data Input
1) Required Test Equipment
(1) PC, S/W for writing DDC(S/W : EDID TESTER Ver. 2.5)
(2) A JIG for adjusting.
(3) Serial(9Pin or USB) to D-sub 15Pin cable, D-sub 15 Pin
cable. DVI to HDMI cable
2) Preparation for Adjustment & Setting of Device
(1) Set devices as above Fig 6 and turn the PC,JIG on.
(2) Put S/W for writing DDC (EDID data Write & Read) into
operation.
3) Sequence of Adjustment
(1) Put the set on the table and turn the power on.
(2)
Operate EDID Write command by pressing Function Key F8.
(3) When “OK”letter appear, completed the Write.
*EDID Check Sum
- 19 -
PC
JIG
DLP PJTV SET
( or digital board )
<Fig 6. Composition diagram for EDID Data Input>
<Fig 5>
<Fig 4>
A. Inject the resilock
B. Ancor Screw

9. Channel Memory
1) Setting up the LGIDS
(1) In [C:\LGEIS] folder, you release the compress of
[IDS.zip], [CH_Memory.zip].
(2) Install the LGIDS. (Refer to Fig 7)
(3) After installing, you restarts the PC.
(4) Set the LGIDS.
(5) In IDS menu, input the PASSWORD “1111”at the edit
of the Model file.
(6) Input the columbus2 as model name and 115200 as
Type.BaudRate. Then press the Insert.(refer to Fig 8)
2) Method of the Channel memory
(1) Select the columbus2 as Model name, check that
connection of the communication Box is “OK”.
(If “NG”, you can change PORT to com 1,2,3)
(2) Connect the RS232 cable and the turn on the power of
the set.(use a normal RS232C cable) After connecting
the cable, check the [Ready] refer to Fig 9.
(3) Set the
Write Batch :
[c\LGIDS\files\CH_Memory_RT(LGEAP).nvm]
NVRAM File : [c\LGIDS\files\CH_RT(LGEAP).bin]
and then press the Download button.
(4) After finishing the channel memory, check the [PASS]
refer to Fig10.
3) Hudson Down-load
(1) Select the columbus2 as Model name, check that
connection of the communication Box is “OK”.
(If “NG”, you can change PORT to com 1,2,3)
(2)
Connect the RS232 cable and the turn on the power of the
set.(use a normal RS232C cable) After connecting the
cable, check the [Ready] refer to Fig 10.
(3) Batch File : hudson.txt
Ram File : isptemp_spi.hex
Flash File : Hudson_BB_ES4.hex
and then press the Download button.
(4) After finishing the channel memory, check the [PASS]
refer to Fig11.
* Set the Area code *
Adj button on the adjustment remote
-> Change the Area code to Area code written the BOM.
- 20 -
<Fig 7>
(LGEAP)
(LGEAP)
(LGEAP)
(LGEAP)
<Fig 10>
<Fig 11>
<Fig 8>
<Fig 9>
