OWNER’S MANUAL
MONITOR TV
MONITOR TV MODELS
M1962D
M2062D
M2262D
M2362D
M2762D
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH

1
PREPARATION
FRONT PANEL CONTROLS
■
This is a simp ified representation of the front pane . The image shown may be somewhat different from your set.
INPUT
Button
INPUT
MENU
PR
VOL
OK
MENU
Button
OK
Button
VOLUME
Buttons
PROGRAMME
Buttons
Power
Button
Headphone
Jack
IR receiver
(Remote contro er
receiver)
LLiigghhtt SSeennssoorr
This is ens for ight sensor
se ect outside uminance,
when setting AUTO
BRIGHT ON.
PPoowweerr IInnddiiccaattoorr
i uminates b ue when the
set is switched on.
Note:You can adjust Power
indicator in the OPTION
menu.

22
PREPARATION
BACK PANEL INFORMATION
PPCCMMCCIIAA ((PPeerrssoonnaa CCoommppuutteerr MMeemmoorryy CCaarrdd
IInntteerrnnaattiioonnaa AAssssoocciiaattiioonn)) CCaarrdd SSoott
This feature is not avai ab e in a countries.
PPoowweerr CCoorrdd SSoocckkeett
This set operates on AC power. The vo tage is indicated
on the Specifications page. Never attempt to operate the
set on DC power.
HHDDMMII IInnppuutt ((NNoott SSuuppppoorrtt PPCC))
Connect a HDMI signa to HDMI IN.
Or DVI (VIDEO) signa to HDMI IN with DVI to HDMI
cab e.
RRGGBB//DDVVII AAuuddiioo IInnppuutt
Connect the audio from a PC.
OOppttiiccaa DDiiggiittaa AAuuddiioo OOuutt
Connect digita audio from various types of eguipment
RRGGBB IINNPPUUTT ((PPCC))
Connect the output from a PC.
UUSSBB IINN
DDVVII--DD IInnppuutt
Connect the output from a PC.
RRSS--223322CC IINN ((CCOONNTTRROOLL && SSEERRVVIICCEE)) PPOORRTT
Connect to the RS-232C port on a PC.
CCoommppoonneenntt IInnppuutt
Connect a component video/audio device to these
jacks.
AAuuddiioo//VViiddeeoo IInnppuutt
Connect audio/video output from an externa device to
these jacks.
EEuurroo SSccaarrtt SSoocckkeett ((AAVV11//AAVV22))
Connect scart socket input or output from an externa
device to these jacks.
AAnntteennnnaa IInnppuutt
Connect over-the-air signa s to this jack.
1
2
3
4
5
6
7
8
9
10
11
12
13
■
This is a simp ified representation of the back pane . The image shown may be somewhat different from your set.
AV 1 AV 2
AC IN
AUDIO IN
(RGB/DVI) OPTICAL
DIGITAL
AUDIO OUT
VIDEO
COMPONENT
IN
AV IN 3
VIDEO -AUDIO-
(MONO)
AUDIO
Y
P B
P R
L
R
RS-232C IN
(CONTROL & SERVICE)
USB IN
RGB IN (PC)
DVI-D IN (PC)
HDMI IN 1
AV 1
V 1
AV 2
V 2
AC IN
ANTENNA/
CABLE IN
LR
3
910 11
2
1
3
87 1312
64 5

33
PREPARATION
STAND INSTALLATION
■
The image shown may be somewhat different from your set.
12
3

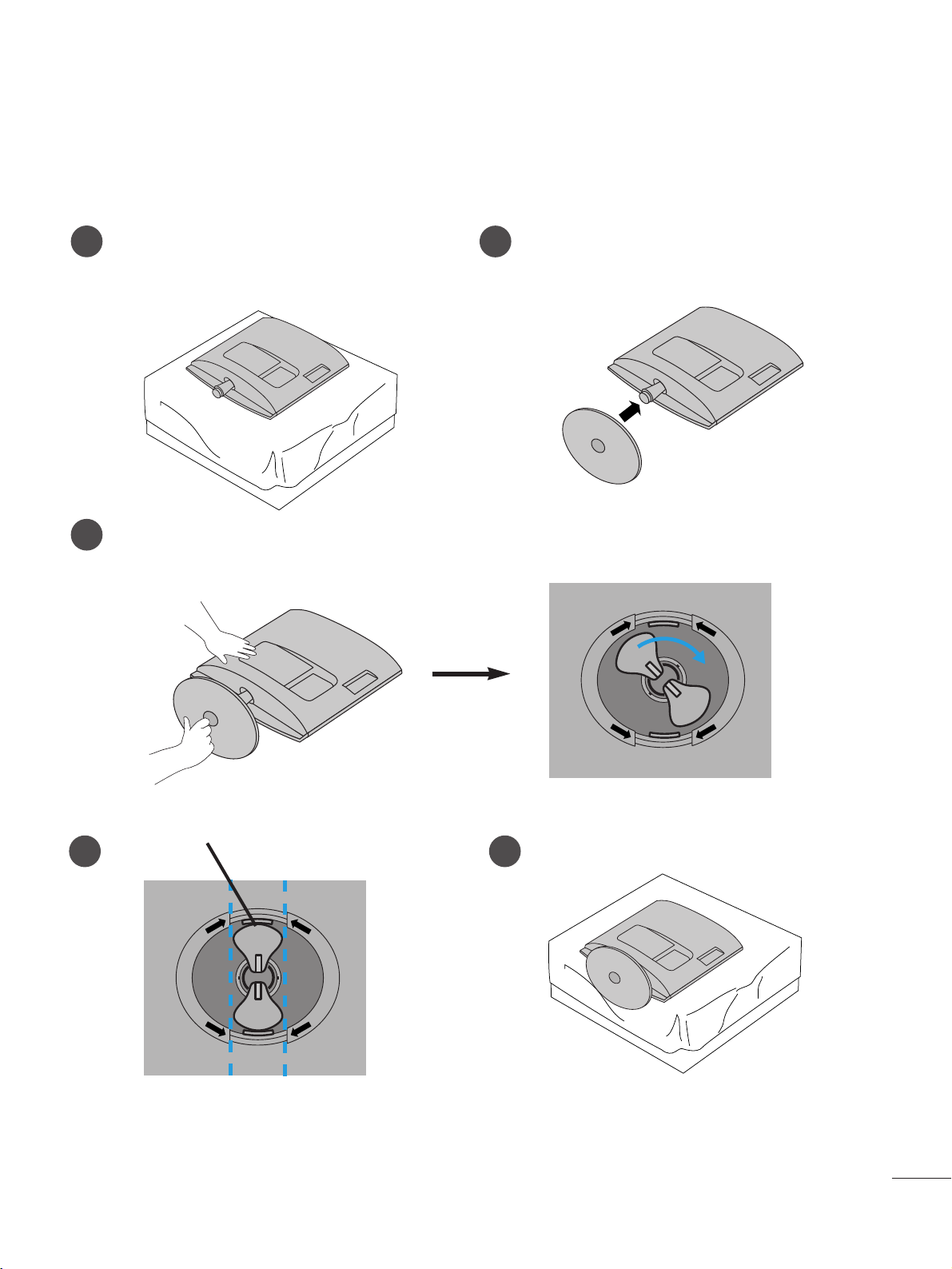

Carefu y p ace the product screen side down on a
cushioned surface that wi protect product and
screen from damage.
Insert the ssttaanndd bbaasseeinto the product
<<MM11996622DD//MM22006622DD//MM22226622DD//MM22336622DD>>
Turn the Stand Base Lock through 90°to fix the Stand Base to the Stand Body.
BBaassee LLoocckk
<<LLoocckkeedd>>
4 5
O
P
E
N
O
P
E
N
O
P
E
N
O
P
E
N

1144
EXTERNAL EQUIPMENT SETUP
Connect the SET-TOP outputs to the CCOOMMPPOONNEENNTT IINN
VVIIDDEEOOsockets (Y PBPR) on the set.
Connect the audio cab e from the SET-TOP to CCOOMMPPOO--
NNEENNTT IINNAAUUDDIIOOsockets of the set.
Press the IINNPPUUTTbutton to se ect CCoommppoonneenntt..
2
3
1
HD RECEIVER SETUP
■To prevent the equipment damage, never p ug in any power cords unti you have finished connecting a equipment.
■
The image shown may be somewhat different from your set.
When connecting with a component cab e
Signa
480i/576i
480p/576p
720p/1080i
108 0 p
Component
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes

1155
EXTERNAL EQUIPMENT SETUP
When connecting with a HDMI
Connect the HDMI output of the digita set-top box to the
HHDDMMII IINNjack on the set. or
1
Connect the digita set-top box to HHDDMMII IINN jack on
the set.
Connect the audio output of the digita set-top box to
the AAUUDDIIOO IINN ((RRGGBB//DDVVII)) jack on the set.
Turn on the digita set-top box. (Refer to the owner’s
manua for the digita set-top box.)
2
3
1
When connecting with a HDMI to DVI cab e
HDMI IN 1
1
HDMI IN 2
HDMI IN 2
DVI OUTPUT
AUDIO
RL
AUDIO IN
(RGB/DVI)
HDMI IN 1
12
or
NOTE
!
G HDMI Input does not support PC mode. If it is connected PC, the screen may not be disp ayed proper y.

1166
EXTERNAL EQUIPMENT SETUP
DVD SETUP
When connecting with a component cab e
Component Input ports
To get better picture qua ity, connect a DVD p ayer to the component input ports as shown be ow.
Component ports on the set
YP
BPR
Video output ports
on DVD p ayer
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video output sockets (Y PBPR) of the DVD to
the CCOOMMPPOONNEENNTT IINN VVIIDDEEOO sockets (Y PBPR) of the set.
Connect the audio cab e from the DVD to CCOOMMPPOONNEENNTT
IINN AAUUDDIIOO sockets of the set.
Press the IINNPPUUTTbutton to se ect CCoommppoonneenntt.
Press the PPLLAAYYbutton on the DVD.
The DVD p ayback picture appears on the screen.
2
3
4
1
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

1177
EXTERNAL EQUIPMENT SETUP
When connecting with a Euro Scart[DVD]
Connect the Euro scart socket of the DVD to the Euro scart
socket of the set.
Press the IINNPPUUTTbutton to se ect AAVV11.
If connected to AAVV22 Euro scart socket, se ect AAVV22 input
source.
Press the PPLLAAYYbutton on the DVD.
The DVD p ayback picture appears on the screen.
2
3
1
When connecting HDMI cab e
Connect the HDMI output of the DVD to the
HHDDMMII IINN jack on the set. or
1
GSet can receive the video and audio signa simu taneous y by using a HDMI cab e.
G If the DVD p ayer does not support Auto HDMI, you need to set the DVD output reso ution appropriate y.
NOTE
!
NOTE
!
GSigna type RGB, i.e. the signa s red, green and b ue can on y be se ected for the Euro scart and the AV 1 can be
received. These signa s are transmitted, for examp e, by a paid TV decoder, game machine or photo CD unit, etc.
GP ease use shie ded scart cab e.
AUDIO
(L)
(R)
AUDIO/
VIDEO
AV 1 AV 2
1
HDMI IN 1
1
HDMI IN 2

1188
EXTERNAL EQUIPMENT SETUP
VCR SETUP
■To avoid picture noise (interference), eave an adequate distance between the VCR and set.
■Typica y a sti picture is shown on the VCR. If a user uses 4:3 picture format for a ong time, an afterimage may
remain on the sides of the screen.
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT L
AV 1 AV 2
ANTENNA/
CABLE IN
Wa Jack
Antenna
1
2
When connecting with an antenna
Connect the RF out socket of the VCR to the aeria socket of the set.
Connect the aeria cab e to the RF aeria in socket of the VCR.
Store the VCR channe on a desired programme number using the ‘Manua pro-
gramme tuning’ section.
Se ect the programme number where the VCR channe is stored.
Press the PPLLAAYY button on the VCR.
1
2
3
4
5

1199
EXTERNAL EQUIPMENT SETUP
WWhheenn ccoonnnneeccttiinngg wwiitthh aa RRCCAA ccaabbee
Connect the audio/video out sockets of the VCR to
AUDIO/VIDEO in sockets of the set.
Press the INPUT button to se ect AV3.
Press the PLAY button on the VCR.
The VCR p ayback picture appears on the screen.
2
3
1
NOTE
!
GIf you have a mono VCR, connect the audio cab e from the VCR to the AUDIO L/MONO jack of the set.
VIDEO ANT IN
ANT OUT
S-VIDEO LR
AV 1 AV 2
VIDEO AUDIO
(MONO)
LR
AV-IN 3
1
Connect the USB device to the UUSSBB IINN jacks on the
side of set.
After connecting the UUSSBB IINNjacks, you use the UUSSBB
function. (Gpp..9922)
2
1
USB SETUP
AV 1 AV 2
USB IN
Connect one end of an optica cab e to the TV Digita
Audio (Optica )Output port.
Connect the other end of the optica cab e to the digi-
ta audio (Optica )input on the audio equipment.
Set the ““TTVV SSppeeaakkeerr ooppttiioonn -- OOffff ””in the AUDIO
menu.(Gpp..7711). Refer to the externa audio equipment
instruction manua for operation.
Sending the TV’s audio signa to externa audio equipment via the Digita Audio Output (Optica ) port.
If you want to enjoy digita broadcasting through 5.1-channe speakers, connect the OPTICAL DIGITAL AUDIO
OUT termina on the back of TV to a DVD Home Theater (or amp).
2
1
DIGITAL AUDIO OUT SETUP
GDo not ook into the optica output port. Looking at the
aser beam may damage your vision.
CAUTION

2200
EXTERNAL EQUIPMENT SETUP
When connecting with a Euro Scart[VCR]
Connect the Euro scart socket of the VCR to the Euro
scart socket of the set.
Press the PPLLAAYYbutton on the VCR.
If your VCR outputs an AV switching signa via the Scart
ead, the set wi auto switch to AAVV 11mode on start of
p ayback, but if you want to keep on watching in TV mode,
press the D// Eor NUMBER buttons.
If connected to AAVV22 Euro scart socket, se ect AAVV22 input
source.
Otherwise press the IINNPPUUTTbutton on the remote contro
handset to se ect AAVV 11. The VCR p ayback picture appears
on the screen.
You can a so record programmes received by the set on
video tape.
2
1
NOTE
!
GSigna type RGB, i.e. the signa s red, green and b ue can on y be se ected for the Euro scart and the AV 1
can be received. These signa s are transmitted, for examp e, by a paid TV decoder, game machine or photo
CD unit, etc.
GP ease use shie ded scart cab e.
Insert the CI Modu e to PPCCMMCCIIAA(Persona Computer
Memory Card Internationa Association) CCAARRDD SSLLOOTT
of set as shown.
For further information, see p. 40.
1
INSERTION OF CI MODULE
PCMCIA
CARD SLOT
TVTVTV
-- TToo vviieeww tthhee ssccrraammbbeedd ((ppaaiidd)) sseerrvviicceess iinn ddiiggiittaa TTVV
mmooddee..
-- TThhiiss ffeeaattuurree iiss nnoott aavvaaiiaabbee iinn aa ccoouunnttrriieess..
1
AUDIO/
VIDEO
AV 1V 1 AV 2V 2
AUDIO
(L)
(R)
1

2211
EXTERNAL EQUIPMENT SETUP
PC SETUP
This product provides P ug and P ay capabi ity, meaning that the PC adjusts automatica y to the set's settings.
When connecting with a D-sub 15 pin cab e
4
Connect the signa cab e from the monitor output socket of
the PERSONAL COMPUTER to the PC input socket of the set.
Connect the audio cab e from the PC to the AAUUDDIIOO IINN
((RRGGBB//DDVVII))sockets of the set.
Press the INPUT button to se ect RRGGBB.
Switch on the PC, and the PC screen appears on the set.
The set can be operated as a PC monitor.
2
3
1
RGB OUTPUT AUDIO
AUDIO IN
(RGB/DVI)
RGB IN (PC)
12
NOTE
!
GYou must use shie ded signa interface cab es (D sub 15 pin cab e, DVI cab e) with ferrite cores to maintain
standard comp iance for the product.

2222
EXTERNAL EQUIPMENT SETUP
When connecting with a DVI cab e
Connect the DVI output of the PC to the DDVVII--DD IINN
jack on the set.
Connect the audio cab e from the PC to the AAUUDDIIOO
IINN ((RRGGBB//DDVVII))sockets of the set.
2
1
NOTE
!
G If the set is co d, there may be a sma “f icker” when the
set is switched on. This is norma , there is nothing wrong
with the set.
G If possib e, use the 1360x768 @ 60 Hz video mode to
obtain the best image qua ity for your LCD monitor. If
used with other reso utions, some sca ed or processed
pictures may appear on the screen. The set has been
preadjusted to the mode 1360 x 768 @ 60
Hz.((MM11996622DD))
G If possib e, use the 1600 x 900 @ 60 Hz video mode to
obtain the best image qua ity for your LCD monitor. If
used with other reso utions, some sca ed or processed
pictures may appear on the screen. The set has been
preadjusted to the mode 1600 x 900 @ 60
Hz.((MM22006622DD))
G If possib e, use the 1920 x 1080 @ 60 Hz video mode
to obtain the best image qua ity for your LCD monitor. If
used with other reso utions, some sca ed or processed
pictures may appear on the screen. The set has been
preadjusted to the mode 1920 x 1080 @ 60 Hz.
((MM22226622DD//MM22336622DD//MM22776622DD))
G Some dot defects may appear on the screen, ike Red,
Green or B ue spots. However, this wi have no impact or
effect on the monitor performance.
G Do not press the LCD screen with your finger for a ong
time as this may produce some temporary distortion
effects on the screen.
G Avoid keeping a fixed image on the set’s screen for pro-
onged periods of time. The fixed image may become
permanent y imprinted on the screen; use a screen saver
when possib e.
AUDIO
DVI OUTPUT
AUDIO IN
(RGB/DVI)
DVI-D IN (PC)
12

2233
EXTERNAL EQUIPMENT SETUP

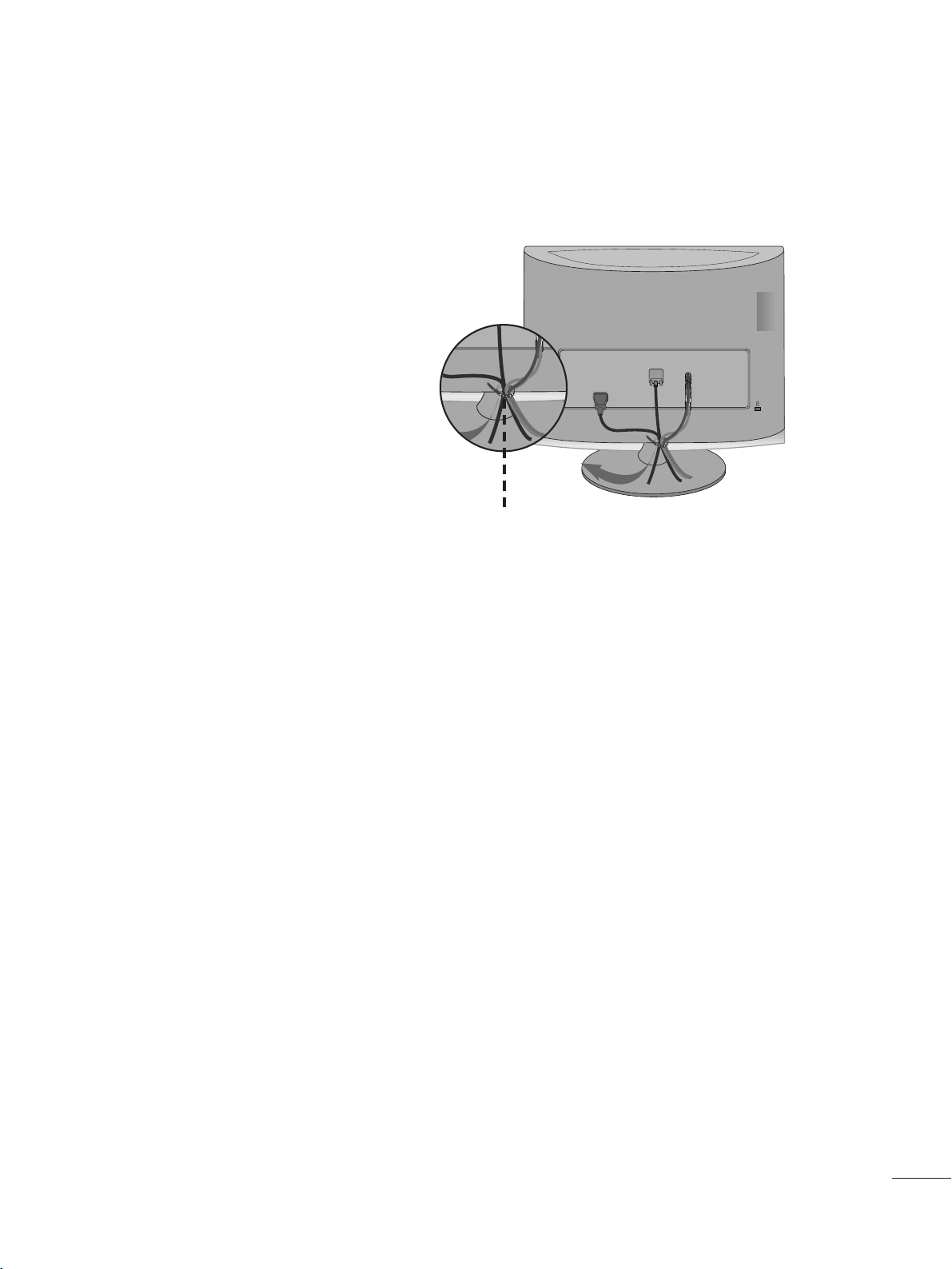

Tie cab es together with a cab e tie as shown in the
i ustration.
Cab e tie
R
R
BACK COVER FOR WIRE ARRANGEMENT
