Lg Rl-32fz10x User manual

COLOR TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MC-017A

MODEL:RE/RL-32FZ10X

MODEL:RE/RL-32FZ10PX

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

Jan.,2003

Printed in KoreaP/NO : 3828VD0089C

- 2 -

CONTENTS

Contents ................................................................................................................. 2

Safety Precautions ............................................................................................3

Specifications ..................................................................................................... 4

Control Descriptions ........................................................................................ 5

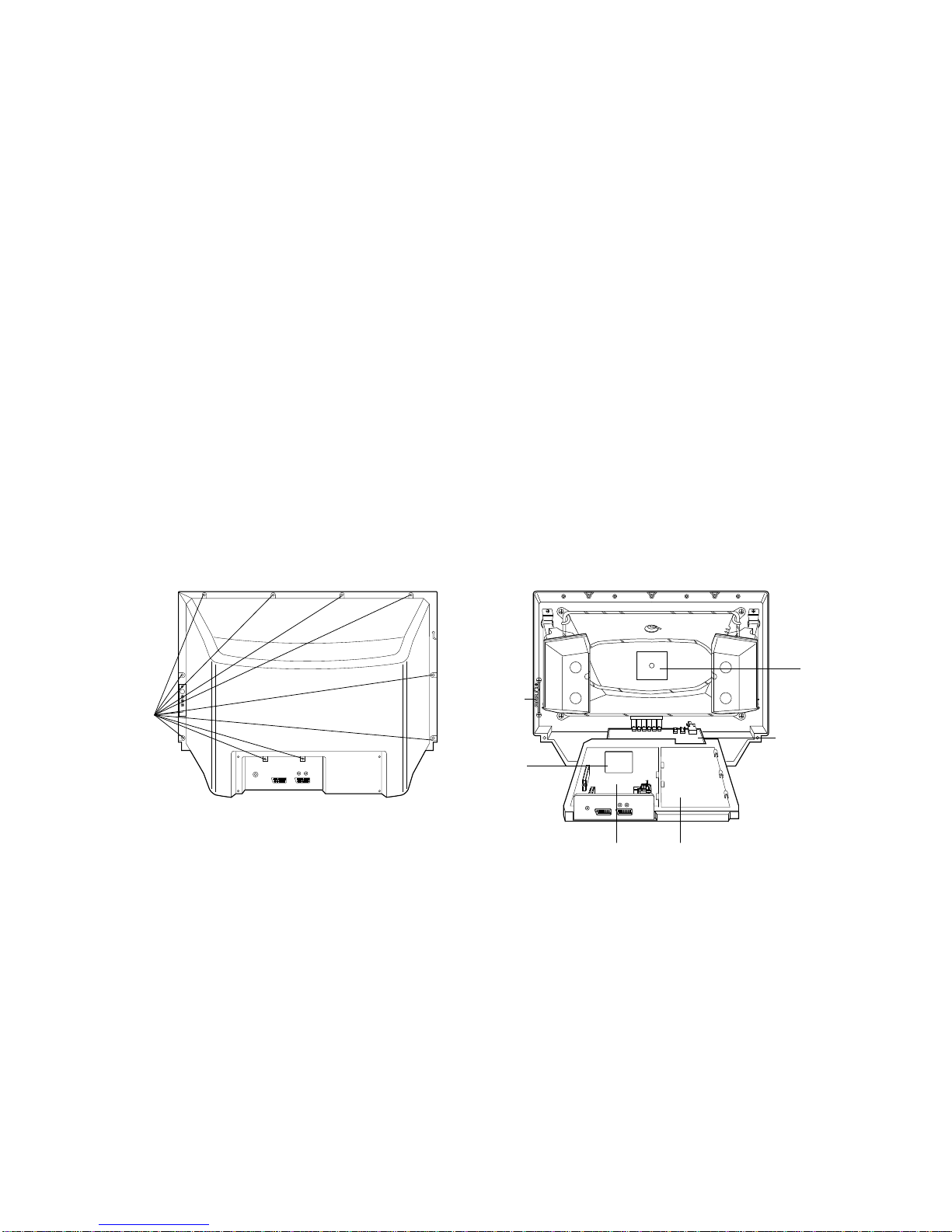

Disassembly Instructions ............................................................................. 8

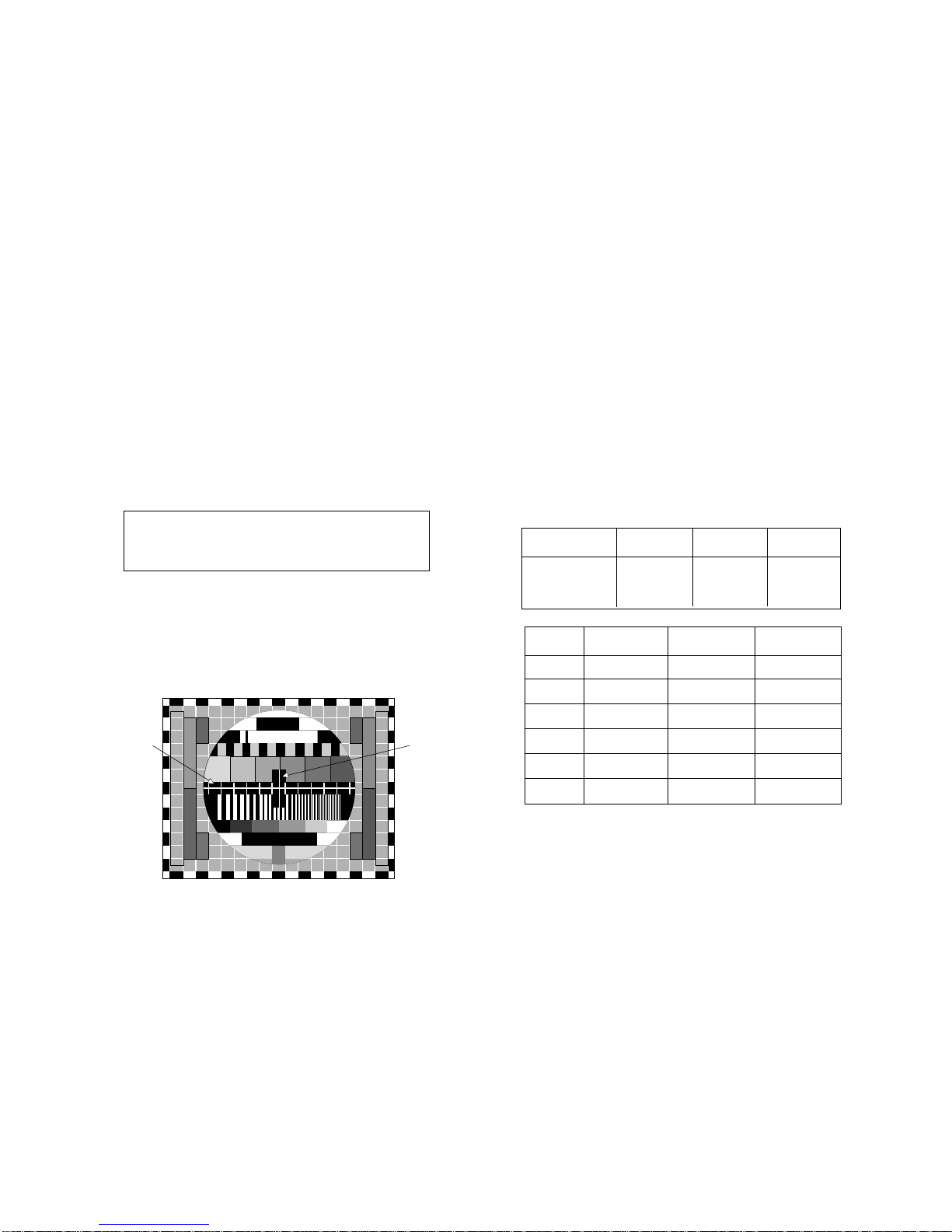

Adjustment Instructions ............................................................................... 9

Trouble Shooting ............................................................................................. 20

Wiring Diagram ................................................................................................. 25

Block Diagram ................................................................................................... 26

Exploded View .................................................................................................. 28

Exploded View Parts List .............................................................................29

Replacement Parts List ............................................................................... 30

SVC. Sheet ................................................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in

the Schematic Diagram and Replacement Parts List.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to

prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An lsolation Transformer should always be used during

the servicing of a receiver whose chassis is not isolated from

the AC power line. Use a transformer of adequate power rating

as this protects the technician from accidents resulting in

personal injury from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitary that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film

Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,

extreme care should be used in handling the Picture Tube.

Do not lift the Picture tube by it's Neck.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate

high impedance HV meter.

Adjust brightness, color, contrast controls to minimum.

Measure the high voltage.

The meter reading should indicate

23.5 ¡1.5KV: 14-19 inch, 26 ¡1.5KV: 19-21 inch,

29.0 ¡1.5KV: 25-29 inch, 30.0 ¡1.5KV: 32 inch

If the meter indication is out of tolerance, immediate service

and correction is required to prevent the possibility of

premature component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc.,

to be sure the set is safe to operate without damage of

electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,

connect an electrical jumper across the two AC plug prongs.

Place the AC switch in the on positioin, connect one lead of

ohm-meter to the AC plug prongs tied together and touch other

ohm-meter lead in turn to each exposed metallic parts such as

antenna terminals, phone jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1MΩ and 5.2MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC

voltmeter with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC

voltage measurements for each esposed metallic part. Any

voltage measured must not exceed 0.75 volt RMS which is

corresponds to 0.5mA.

In case any measurement is out of the limits sepcified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the

High Voltage Section and the Picture Tube.

For continued X-RAY RADIATION protection, the

replacement tube must be the same type tube as specified in

the Replacement Parts List.

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

SPECIFICATIONS

Note : Specification and others are subject to change without notice for improvement.

¡Video input system:

PAL-B/G, D/K, I/I

SECAM-B/G, D/K/L/L’

NTSC M

NTSC 4.43(AV)

¡Intermediate Frequency (Unit : MHz)

VISION IF : 38.9MHz,33.9MHz(SECAM-L’)

COLOR IF : 34.47MHz(4.43)

35.32MHz(3.58) : NTSC-M

VIF-4.25000MHz

VIF-4.40625MHz

SOUND IF : 33.4MHz (B/G)

32.9MHz (I/I)

32.4MHz (D/K,L)

34.4MHz (M)

40.4MHz (L’)

¡Power requirement : 110~240V, 50/60Hz

¡Power consumption : 170W

¡CPT : Flat CPT

¡Tuning system :

FVS

100 Programme memory

¡

Antenna input impedance : VHF/UHF 75 ohm, unbalanced

¡OSD (On Screen Display) : EZ MENU Type

¡Voice coil impedance : 8 ohm

¡Sound output : 10W

¡External connection :

AV Input: 3 (side or front,rear)

Component Input: 1 (rear option)

PERI TV Connector: Full Scart,AV Input or Scart(option)

R,G,B Input: AV-1

¡External In/Output

Audio-In:0.5Vrms¡3db,over 10Kohm

Audio-Out:0.5Vrms¡3db,below 1Kohm

Video-In/Out:1Vp-p¡3db,75ohm

R,G,B In:0.7Vp-p¡3db

¡Feature : Auto programme/Manual programme

SVM (Scanning Velocity Modulation)

Digital Eye

Digital Comb Filter

Auto Sleep

Dynamic Focus

Programme Editing

PSM (Picture Status Memory)

SSM (Sound Status Memory)

CTI

Teletext (8 page)

Turbo Search, Picture & Sound

ACMS

ARC (Zoom 1/ZOOM 2, 16:9¡Œ4:3)

2 TUNER PIP(Double Window PIP)

¡Tuning range

Band

VHF-Low

VHF-High

Hyper

UHF

S1'-S3', S1

S2-S10,

S11-S20

S21-S41

For TV For CATV

B/G

Ch2-4

Ch5-12

D/K

Ch1-5

Ch6-12

I/I

Ch4-13

NTSC

Ch2-13

Ch21-69 Ch14-69

(): SECAM

- 5 -

DESCRIPTION OF CONTROLS

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. ARC (Aspect Ratio Control)

changes the picture format.

4. TURBO PICTURE BUTTON

selects Turbo picture.

TURBO SOUND BUTTON

selects Turbo sound.

5. DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

6. VCR BUTTONS

control a LG video cassette recorder.

7. SSM (Sound Status Memory)

recalls your preferred sound setting.

8. I/II

selects the language during dual language broadcast.

selects the sound output (option).

9. PSM (Picture Status Memory)

recalls your preferred picture setting.

10. EYE/*(option)

switches the eye function on or off.

11. SLEEP

sets the sleep timer.

12. STILL

freezes motion of the picture.

OK

PR

VOL PR VOL

PLAY

P/STILL STOP REC

REW FF

I/II SSM LIST

PSM TEXT PIP

?

MIX TIME

SWAP INPUT

REVEAL SLEEP

SIZE STILL

POSITION

SCAN

i

M

0

ARC TV/AV

MENU


SOUND

12 3

45 6

78 9

POWER MUTE

EYE/

PR

T U R B O

1

2

3

4

5

6

7

8

9

10

20

12

13

14

15

16

17

18

19

11

(With PIP)

- 6 -

13. MUTE

switches the sound on or off.

14. TV/AV

selects TV or AV mode.

clears the menu / text from the screen.

switches the set on from standby.

15. MENU

selects a menu.

16. OK

accepts your selection or displays the current mode.

17. LIST

displays the programme table.

18. PIP BUTTONS

PIP

switches the sub picture on or off.

PR +/

-

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

SCAN

switches on or off the programme scan mode through 4 sub pic-

tures.

19. TELETEXT BUTTONS

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

20. SWAP or Q.VIEW

returns to the previously viewed programme.

Note : In teletext mode, the PR +/

-

,SWAP/Q.VIEW and INPUT but-

tons are used for teletext function.

Battery installation

The remote control handset is powered by twoAAtype batteries. To

load the batteries, turn the remote control handset over and open

the battery compartment. Install two batteries as indicated by the

polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

+

-

OK

PR

VOL PR VOL

PLAY

P/STILL STOP REC

REW FF

I/II SSM LIST

PSM TEXT PIP

?

MIX TIME

Q.VIEW INPUT

REVEAL SLEEP

SIZE STILL

POSITION

SCAN

i

M

0

ARC TV/AV

MENU


SOUND

12 3

45 6

78 9

POWER MUTE

EYE/

PR

T U R B O

1

2

3

4

5

6

7

8

9

10

20

13

14

15

16

17

19

11

12

(Without PIP)

- 7 -

1. MAIN POWER

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby mode.

dims when the set is switched on.

3. REMOTE CONTROL SENSOR

4. MENU

selects a menu.

5. OK

accepts your selection or displays the current mode.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

6. HEADPHONE SOCKET

Connect the headphone plug to this socket.

7. AUDIO/VIDEO IN SOCKETS (AV3)

Connect the audio/video out sockets of external equipment to

these sockets.

S-VIDEO/AUDIO IN SOCKETS (S-AV)

Connect the video out socket of an S-VIDEO VCR to the S-

VIDEO socket.

Connect the audio out sockets of the S-VIDEO VCR to the

audio sockets as in AV3.

ON/OFF

MENU OK VOL PR

,,

,,,,

,,,,,

,,,,

,

,,,

,,,,

,,

123 5

4

Front panel

S-VIDEO VIDEO L/MONO RAUDIO

AV3

6

7

Side panel

- 8 -

Fig. 2-1 Fig. 2-2

CPT

PCB

Remove

Screws

Main PCB Main 2 PCB

A/V PCB

Control

PCB

100Hz

PCB

DISASSEMBLY INSTRUCTIONS

Important note

This set is disconnected from the power supply through the

converter transformer. An isolating transformer is necessary

for service operations on the primary side of the converter

transformer.

Back Cabinet Removal

Remove the screws residing on the back cabinet and carefully

separate the back cabinet from the front cabinet. (Fig. 2-1).

Chassis Assy Removal

Grasp both side of Frame and pull it backward smoothly.

CPT Removal

1. Pull out the CPT board from the CPT neck.

2. Place the front cabinet on soft material not to mar the front

surface or damage control knobs.

3. Remove 4 screws securing the picture tube mounting

brackets to the front cabinet.

4. Carefully separate CPT from the front cabinet.

PICTURE TUBE HANDLING CAUTION

Due to high vacuum and large surface area of picture tube, great

care must be exercised when handling picture tube. Always lift

picture tube by grasping it firmly around faceplate.

NEVER LIFT TUBE BY ITS NECK! The picture tube must not be

scratched or subjected to excessive pressure as fracture of

glass may result in an implosion of considerable violence which

can cause personal injury or property damage.

- 9 -

¡Safety Precautions

1. It is safe to adjust after using insulating transformer between

the power supply line and chassis input to prevent the risk of

electric shock and protect the instrument.

2. Never disconnect leads while the TV receiver is on.

3. Don't short any portion of circuits while power is on.

4. The adjustment must be done by the correct appliances.

5. Unless otherwise noted, set the line voltage to 230Vac¡

10%, 50Hz.

5. The adjustment of TVshould be performed after warming up

for 15 minutes.

¡Test Equipment required

1. RF signal generator (with pattern generator)

2. DC Power Supply

3. Multimeter (volt meter)

4. Oscilloscope

5. Color analyzer

¡Focus Adjustment

1) Tune the TV set to receive a digital pattern.

2) Adjust the lower Focus volume of FBT for the best focus of

vertical line B.

3) Adjust the upper Focus volume of FBT for the best focus of

area A.

4) Repeat above step 2) and 3) for the best overall focus.

¡Screen Voltage Adjustment

1) Turn the TV set on.

2) This adjustment should be performed after warming up for

more than 15 minutes.

3) Enter the SVC mode by pressing the SVC button on remote

controller and by pressing the H-LINE button.

4)If “OK” appear more than 2 on the screen turning screen

volume,press the “OK” button.

¡White Balance Adjustment

NOTE : This adjustment should be performed after screen

voltage adjustment.

1) Tune the TV set to receive an 100% white pattern.

2) Press Channel UP/DOWN button for desirous function

Adjustment.

3) Press Volume UP/DOWN button to adjust the data.

4) Adjust until “CONTRAST” and “BRIGHT” become 3.5 Ft_L

5) Enter the SVC mode by pressing the SVC button.

6) Adjust the Y value of High Light with R-DRIVE and adjust the

X value with B-DRIVE until they have the color coordinate of

High Light as below.

7) Adjust until “CONTRAST” and “BRIGHT” become 4.5 Ft_L

8) Enter the adjustment mode by pressing the SVC button.

9) Adjust the Y value of Low Light with R-CUTOFF and adjust

the X value with B-CUTOFF until they have the color

coordinate of Low Light as below.

10) Repeat adjusting until the color coordinate of High and Low

Light is satisfied.

11) Check the adjusted color coordinate with a white balance

meter.

¡Deflection Data Adjustment

1) Deflection Data Adjustment should be performed with the

remote controller for handset.

2) Enter the SVC mode by pressing the SVC button.

3) Enter the Deflection Adjustment mode by pressing the

ADJUST button.

4) Press the Channel UP/DOWN button to select adjustment

items.

5) Press the Volume UP/DOWN button to adjust the data.

6) The TV set receives PAL-B/G Digital pattern.

VL (Vertical Linearity)

Adjust so that the boundary line between upper and lower half

is in accord with geometric horizontal center of the CPT.

ADJUSTMENT INSTRUCTIONS

Test Point : Observing Display

Adjust : Focus control of FBT

b

AB

Fig. 1

Color Tem.

13000K

10000K

266

¡ 8

282

¡ 8

273

¡ 8

288

¡ 8

NON EU

EU

XYMemo

Menu

CR

CG

CB

WR

WG

WB

0080

019B

Low Light Adj

High Light Adj

LG 29” FLAT LG 32” FLAT MENO

- 10 -

VA (Vertical Amplitude)

Adjust so that the circle of a digital circle pattern may be

located within the effective screen of the CPT.

SC (Vertical “S” Correction)

Adjust so that all distance between each horizontal lines

are to be the same.

VS--(Vertical Shift)

Adjust so that the horizontal center line of a digital circle

pattern is in accord with geometric horizontal center of the

CPT.

HS (Horizontal Shift)

Adjust so that the vertical center line of a digital circle pattern

is in accord with geometric vertical center of the CPT.

EW (Horizontal Width)

Adjust to that a digital circle pattern looks like exact circle.

ET--(East-west Trapezium)

Adjust to make the length of top horizontal line same with it of

the bottom horizontal line.

EP (East-west Parabolar)

Adjust so that middle portion of the outermost left and right

vertical line looks like parallel with vertical lines of the CPT.

CRNU & CRNL

Adjust so that the vertical line at every 4 corners of the screen

looks like parallel with the vertical lines of the CPT.

BOW

In line adjustment, not to change default value is basic.

ANG

In angle adjustment, adjust until inclination of left and right

screen should be precise.

¡OPTION Adjustment (SVC MODE:OPTION-1,

OPTION-2, OPTION-3,Teletext)

1) Press YELLOW button or OP1,OP2,OP3,OP4 button on

SVC Remote Controller .

2) Input data directly by the buttons corresponded with

OPTION1 ???(0~127), OPTION2 ??(0~63), OPTION3

???(0~127) .

3) Select each OPTION function by the CH Up/Down button

and then set up each OPTION by the VOL Up/Down

button.

Table 1. OPTION 1 Function

Table 2. OPTION 1 CODE Data

OPTION

Data TXT

TOP

ACMS

CH+AU

TORBO

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

EYE

0

1

0

1

0

1

0

1

0

Menu

VL

VA

SC

VS

HS

EW

ET

EP

CRNU

CRNL

BOW

ANGLE

CRNU6

CRNL6

0~FFFF

0003

0022

0033

FFFD

0079

0011

FFFE

FFD1

000B

000A

0000

FFF9

FFFC

0000

002D

0000

FFFE

0079

001B

FFFF

FFC8

0002

0000

0001

Range LG 29”

FLAT

PHILIP

32”

FLAT

Without TOP Text

Austrailia

EYE

TURBO

CH+AU

ACMS

TOP

TEXT

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

Function Remark

Without TXT

With TXT

FLOP TXT

TOP TEXT

Without ACMS funtion

With ACMS funtion

Without D/K CHINA or BB System

With D/K CHINA or BB System

WITHOUT EYE

WITH EYE

Without TURBO SEARCH Funtion

With TURBO SEARCH Funtion

- 11 -

DATA TXT

TOP

ACMS

CH+AU

TURBO

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EYE

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

EU

NON EU

EU

NON EU

CHINA ONLY

VOL

200 PR

SYS

MONO

I/II SV

A2 ST

C MUTE

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

0

1

2

3

Function Remark

CARRIER MUTE(MSP-3410)

Not CARRIER MUTE(MSP-3410)

NICAM Check

NICAM & FM STEREO

NO SAVE DUAL/SOUND Condition

SAVE DUAL SOUND Condition

Without Forced MONO sound System

With Forced MONO sound System

NORMAL VOLUME CURVE

RUSHED VOLUME CURVE

100 PROGRAM SAVE

200 PROGRAM SAVE

B/G,I.D/K

B/G,I.D/K,L/L’

B/G,I.D/K,M

RESERVED

Table 3. OPTION 2 Function

OPTION

Data CMUTE

A2 ST

AI/II SV MONO 200

PRO SYS

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

0

1

0

1

0

1

0

1

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

VOL

0

1

0

1

Table 4. OPTION 2 CODE Data

- 12 -

OPTION

Data CMUTE

A2 ST

I/II SV MONO 200

PRO SYS

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

VOL

1

0

1

0

1

0

OPTION

Data CMUTE

A2 ST

I/II SV MONO 200

PRO SYS

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

VOL

0

1

0

1

0

1

0

- 13 -

OPTION

Data CMUTE

A2 ST

I/II SV MONO 200

PRO SYS

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

VOL

0

1

0

1

0

1

0

OPTION

Data CMUTE

A2 ST

I/II SV MONO 200

PRO SYS

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

VOL

0

1

0

1

0

1

0

Table 5. OPTION 2 Function

- 14 -

OPTION

Data CMUTE

A2 ST

I/II SV MONO 200 PR SYS

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

3

0

1

2

VOL

0

1

0

1

0

1

OPTION

Data CMUTE

A2 ST

I/II SV MONO 200 PR SYS

255 1 1 1 1 1 3

VOL

1

W/O PIP MODEL

W/PIP MODEL

MSP3411

WOOF

WIDE

DVD

SCART

HP VOL

DOLBY

TOUCH

TBS

Option Code

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Function Remark

BOOSTER CONTROL

LOCAL KEY

SOFT TOUCH

NO VIRTUAL DOLBY

VIRTUAL DOLBY

WITHOUT H/PHONE VOLUME

WITH

H/PHONE VOLUME

WITHOUT WOOF SPEAKER

WITH WOOF SPEAKER

4:3 TV

16:9 TV

WITHOUT DVD INPUT

WITH DVD INPUT

PHONE JACK

SCART JACK

- 15 -

DATA TBS

TOUCH

DOLBY

HPVOL

WIDE

SCART

DVD

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

WOOF

0

1

0

1

0

1

Table 6. OPTION 3 CODE Data

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

DATA TBS

TOUCH

DOLBY

HPVOL

WIDE

SCART

DVD

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

WOOF

1

0

1

0

1

0

1

- 16 -

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

DATA TBS

TOUCH

DOLBY

HPVOL

WIDE

SCART

DVD

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

WOOF

1

0

1

0

1

0

1

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

DATA TBS

TOUCH

DOLBY

HPVOL

WIDE

SCART

DVD

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

WOOF

1

0

1

0

1

0

- 17 -

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

DATA TBS

TOUCH

DOLBY

HPVOL

WIDE

SCART

DVD

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

WOOF

0

1

0

1

0

1

0

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

DATA TBS

TOUCH

DOLBY

HPVOL

WIDE

SCART

DVD

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

WOOF

0

1

0

1

- 18 -

CODE

0

1

2

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

OPTION

LANG

T LAN

Language

E Only

English+EU 4

English+Other EU

West Europe

East Europe

Turkey

Czecho/Hungary

Cyrillic 1

Cyrillic 2

Cyrillic 3

Turkey/Greek 1

Turkey/Greek 2

Turkey/Greek 3

Arab/France

Arab/English

Arab/Hebrew 1

Arab/Hebrew 2

Farsi/English

Farsi/France

Farsi all

Funciton

English

English/German/French/Italian/Spanish

English/Dutch/Swedish/Norwegian/Danish/Swiss/Portuguess/Roman

ian/Polish/Hungarian/Czech/Russian

Table 7. OPTION 4 Funtion

Table 8. OPTION 4 Code Data

- 19 -

LANG

0

1

2

TLAN

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

2

DATA

000

001

002

003

004

005

006

007

008

009

010

011

012

013

014

015

016

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

200

201

202

LANG

2

3

4

TLAN

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

2

3

4

5

DATA

203

204

205

206

207

208

209

210

211

212

213

214

215

216

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

400

401

402

403

404

405

LANG

4

5

6

TLAN

6

7

8

9

10

11

12

13

14

15

16

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

2

3

4

5

6

7

8

DATA

406

407

408

409

410

411

412

413

414

415

416

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

600

601

602

603

604

605

606

607

608

LANG

6

7

8

TLAN

9

10

11

12

13

14

15

16

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

0

1

2

3

4

5

6

7

8

9

10

11

DATA

609

610

611

612

613

614

615

616

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

800

801

802

803

804

805

806

807

808

809

810

811

LANG

8

TLAN

12

13

14

15

16

812

813

814

815

816

DATA

- 20 -

TROUBLE SHOOTING

15V

Q401, Q402, T401.

67V

R407,D867,FB854.

R865,L853,D850,F854.

5V

pin 2 of FBT.

3.3V 0V

Q871,Q851,Q852,IC856,

IC802,IC803.

Check pin 31 of MICOM.

Check / Replace

IC801 and the

secondary part of

POWER circuit.

Check / Replace

R809,D802,D803.

Check / Replace

SW1101,F1511,T1511,

DB814,TH810.

Check / Replace

Check / Replace Check / Replace

IC1113.

Check / Replace

D414,FR443,Q855,Q856.

Check / Replace

IC11,FR359,FR360,

D339,D349.

Check / Replace

Check the voltage at

pin 4 of STR.

Check the voltage at

pin 41 of MICOM.

Check the voltage at

Check the voltage of C404(+).

Check the voltage of C821.

pin 8 of IC1113.

Check the H-OUT voltage at

135V

8.0V 0V

LG RL-32FZ10X User manual

Popular TV manuals by other brands
