LG WD-12270FD User manual

100
WASHING MACHINE
SERVICE MANUAL
READ THIS MANUAL CAREFULLY TO DIAGNOSE
PROBLEMS CORRECTLY BEFORE SERVICING THE UNIT.
MODEL: WD(M)-12270(5)BD / WD-12270(5)FD
CAUTION
Website: http: //www.LGEservice.com
E-mail: http: //www.LGEservice.com/techsup.html
!

101
FEB. 2004 PRINTED IN KOREA P/No.:3 2 ER3027E

2
CONTENTS
1. SPECIFICATIONS .........................................................................................................................3
2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 4
3. PARTS IDENTIFICATION ............................................................................................................ 7
4. INSTALLATION & TEST ...............................................................................................................
5. WIRING DIAGRAM/PROGRAM CHART .....................................................................................11
6. OPERATION ................................................................................................................................12
7. TROUBLESHOOTING.................................................................................................................14
7-1. BEFORE PERFORMING SERVICE ...................................................................................14
7-2. QC TEST MODE.................................................................................................................14
7-3. HOW TO CHECK THE WATER LEVEL FREQUENCY ......................................................14
7-4. ERROR DISPLAY ...............................................................................................................15
. ERROR DIAGNOSIS AND CHECK LIST ....................................................................................17
-1. DIAGNOSIS AND SOLUTION FOR ABNORMAL OPERATION ........................................17
-2. FAULT DIAGNOSIS AND TROUBLESHOOTING ..............................................................20
9. DISASSEMBLY INSTRUCTIONS ...............................................................................................29
10. EXPLODED VIEW .....................................................................................................................3
10-1. CABINET & CONTROL PANEL ASSEMBLY ....................................................................3
10-2. DRUM & TUB ASSEMBLY................................................................................................39
10-3. DISPENSER ASSEMBLY .................................................................................................40

3
1. SPECIFICATIONS
ITEM WD(M)-12270(5)BD, WD-12270(5)FD
COLOR BLUE WHITE
POWER SUPPLY AC 220-240V~, 50Hz
PRODUCT WEIGHT 6 kg
WASHING 200 W
DRAIN MOTOR 37 W
WASH HEATER 2200 W
WASH 42 rpm
SPIN 1200 rpm
CYCLES 9
WASH/RINSE TEMPERATURES 5
SPIN SPEEDS 5
OPTIONS
Bio, Soak, Pre Wash, Rinse+Spin, Spin Only
CUSTOM PROGRAM Incorporated
WATER CIRCULATION Incorporated
OPERATIONAL WATER PRESSURE 30-1000 kPa
CONTROL TYPE Electronic
WASH CAPACITY 10 kg
DIMENSIONS 6 6 m(W) x 767 m(D) x 9 2m(H)
DELAY WASH From 3 hours to 19 hours
DOOR SWITCH TYPE PTC + Solenoid
WATER LEVEL 10 steps (by sensor)
LAUNDRY LOAD SENSING Incorporated
ERROR DIAGNOSIS Incorporated
AUTO POWER OFF Incorporated
CHILD LOCK Incorporated
ELECTRIC POWER
CONSUMTION
REVOLUTION SPEED

4
2. FEATURES & TECHNICAL EXPLANATION
2-1. FEATURES
Direct Drive System
The advanced Brushless DC motor directly drives the drum
without belt and pulley.
Tilted Drum and Extra Large Door Opening
The tilted drum and extra large door opening make it possible
to load and unload easily.
Water Circulation
Spray detergent solution and water onto the load repeatedly.
Clothes are soaked more quickly and thoroughly during the wash cycle.
Detergent suds are eliminated more easily by the water shower
during rinse cycle. The water circulation system uses both
water and detergent more efficiently.
RollerJets
The washing ball enhances wash performance and reduces
damage to clothing. The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
Built-in Heater
The internal heater automatically heats the water to the optimum
temperature on selected cycles.
Child Lock
The Child lock feature prevents children from pressing any buttons
to change the settings during operation.
추가선택, 예약,

5
2-2. NEURO FUZZY WASHING TIME OPTIMIZATION
To get the best washing performance, optimal time is determined by the water temperature,
the selected washing temperature, and the size of the load.
2-3. WATER LEVEL CONTROL
This model incorporates a pressure sensor which can sense the water level in the tub.
The water supply is stopped when the water level reaches the preset level, the washing
program then proceeds.
Spinning does not proceed until the water in the tub drains to a certain level.
2-4. DOOR CONTROL
The door can be opened by pulling the door handle whenever washer is not in operation.
When the cycle is completed, the DOOR LOCKED light will turn off.
If a power failure has occurred while in operation, the door will unlock after 5 minutes.
Clicking sounds can be heard when the door is locked/unlocked.
NEURO-
FUZZY
load
size
selected
washing
temperature
water
temperature
washing time
rinsing time
spin rhythm, time
the best
washing
performance
SENSING PROCESSING DETERMINATION EFFECT

6
2-5. THE DOOR CAN NOT BE OPENED
While program is operating
When a power failed and power plug is taken out in operation
While Door Lock lights turn on.
White the motor is in the process of intertial rotating, through the operation is paused.
2-6. DOOR LOCKED LAMP LIGHTS
When the frequency of water level is lower than 22.9 kHz
(It can be canceled when the frequency is more than 23. kHz)
When the temperature inside the tub is higher than 45 °C and water level is not 25.5 kHz
(It can be canceled when the water level is 25.5 kHz or the temperature inside the tub is lower than 40 °C)
2-7. CHILD LOCK
Use this option to prevent unwanted use of the washer. Press and hold Option and Rinse button for 3
seconds to lock/unlock control.
When Child lock is set, CHILD LOCK lights and all buttons are disabled except the Power button.
You can lock the washer while it is operating.
2- . WATER CIRCULATION
When Washing and Rinsing function of shower at the upper part of Gasket.
When Washing, it continuously operates for 3 minutes and intermittently.
When Rinsing, it continuously operates after completion of water supply.

7
3. PARTS IDENTIFICATION
ACCESSORIES

8
Before servicing, ask the customer what the trouble is.
Check the setup (power supply is 220-240V AC, remove the transit bolts....).
Check with the troubleshooting guide.
Plan your service method by referring to the disassembly instructions.
Service the unit.
After servicing, operate the appliance to see whether it functions correctly.
STANDARD INSTALLATION
The appliance should be installed as follows:
REMOVE THE SHIPPING INSTALL THE APPLIANCE ADJUST THE
BOLTS
ON A FLAT AND FIRM SURFACE LEVELING
Remove the 4 shipping bolts Turn the leveling feet to adjust
with the supplied wrench. the appliance.
Do first lower side to remove easily.
Keep the shipping bolts and
spanner for future use.
Insert the 4 caps
(provided) into the hole.
Turn clockwise to raise;
counterclockwise to lower.
4. INSTALLATION & TEST

9
HOW TO CONNECT THE INLET HOSE
Verify that the rubber washer is inside of the
valve connector.
Tighten the inlet hose securely to prevent leaks.
CONNECT THE DRAIN HOSE
CONNECT POWER PLUG
The end of the drain hose should be placed less than 100 cm from the floor.
Connect the power plug to the wall outlet. Avoid connecting several electric devices, as
doing so may cause a fire.
Make sure that the hose is not twisted. Avoid submerging the end of the hose.

10
TEST OPERATION
Connect the power plug to
the outlet.
Connect the inlet hoses.
Power off and the power on.
Press the SPIN button.
Press the START/PAUSE button.
Check the spin and drain
functions.
Listen for a click to determine
if the door is unlocking.
Listen for a click to determine if
the door has locked.
If SVC is needed during check,
remove the remaining water by
pulling out the hose cap.
Preparation for Press the POWER button. Press the START/PAUSE
washing. button.
Press the Temp. button Check if the drum rotates Check if water is supplied
and the present temperature will
clockwise and counterclockwise. through the detergent dispenser.
be displayed.
Check the water heating Check the automatic Check the water supply.
function. reverse rotation.
Check the drain and spin
Press the Water removal
functions.
START/PAUSE button.

11
5. WIRING DIAGRAM/PROGRAM CHART
321
321
321
321
WH
2:19
1:22
1:04
1:01
52
30
1:21
18
1
Duvet

12
Cotton
Cotton-Eco
Wool/Silk
Hand Wash
Duvet
Drain
Synthetic
Delicate
Quick 30
• Use this button to turn the power
On/Off.
• Rotate the Cycle selector
knob to select the cycle
designed for different
types of fabric and soil
levels.
• Use this option to prevent unwanted use of the
washer. Press and hold Option and Rinse
button for 3 seconds to lock/unlock control.
• When Child lock is set, CHILD LOCK lights and
all buttons are disabled except the Power
button. You can lock the washer while it is
operating.
• Use this button to Start/
Stop the washer.
• This display shows:
a) the estimated time remaining in the
cycle when operating.
b) an error code when an error has been
detected.
6. OPERATION

13
RINSE, SPIN, TEMP. and
BEEPER For Manual
TIME DELAY
Time Left
Child Lock Time Delay Time Save
Pre Wash Wash Rinse Spin
Option
Bio 1200 95(°C)
60
40
30
1000
800
400
No Spin Cold
Time Delay
Time Save
High
Low
Off
Rinse
+
+ Hold
Processing
Normal + Hold
Rinse
++
Rinse
+
Normal
Soak
Pre Wash
Rinse+Spin
Spin Only
Rinse Spin Temp. Beeper
•Pre Wash: Use this option for loads that need pretreatment.
It adds 17 minutes prewash and drain.
• Rinse+Spin: Use this option to rinse and then spin.
• Spin Only: If you want Spin Only Select the this option.
• Soak: Use this mode to wash normal clothes or think and
heavy clothes which are excessively dirty
• Bio: If you want to elimenate protein stains(milk, blood,
chocolate...), you may select Bio by pressing the
option button.[You can select Bio when temperature is
higher than 60 C in Cotton, Cotton-Eco and Synthetic.]
• Lights whenever the door
of the washer is locked.
• The door can be unlocked
by pressing the
Start/Pause button to
stop the washer.
• Allows the start of any cycle
to be delayed for 3~19
hours.
• Use these button to change
Rinse/Spin/Temp./Beeper
• When lamp is off, no selection has been
mode.
• Pre Wash and Soak available for
Cotton, Cotton-Eco and Synthetic.
• These lights show which portion of the
cycle the washer is operating.

14
7. TROUBLESHOOTING
7-1. BEFORE PERFORMING SERVICE
Be careful of electric shock when disconnecting parts while troubleshooting.
The voltage of each terminal is 220-240V AC and DC when the unit is plugged in.
7-2. QC TEST MODE.
The washer must be empty and the controls must be in the off state.
1. Press the RINSE and SPIN buttons simultaneously.
2. Press the Power button, while the above condition. Then buzzer will sound twice.
3. Press the Start/Pause button repeatedly to cycle through the test modes.
7-3. HOW TO CHECK THE WATER LEVEL FREQUENCY
Press the Spin and Rinse button simultaneously.
So, for example a display indicating 241: a Water level frequency of 241 x.1 kHz
= 24.1 kHz
The digits indicate the water level frequency ( x.1 kHz ).
Check Point Display Status
None Turns on all lamps and locks the door.
1 time Tumble clockwise. rpm (40~50)
2 times Low speed Spin. rpm
3 times High speed Spin. rpm
4 times Inlet valve for prewash turns on. Water level frequency (25~65)
5 times Inlet valve for main wash turns on. Water level frequency (25~65)
6 times Inlet valve for hot water turns on. Water level frequency (25~65)
7 times Inlet valve for bleach turns on. Water level frequency (25~65)
times Tumble counterclockwise. rpm (40~50)
9 times
Heater turns on for 3 sec. Water temperature
10 times Circulation pump turns on. Water level frequency (25~65)
11 times
Drain pump turns on. Water level frequency (25~65)
12 times
Power off and unlock the door. Turn off all lamps.
Number of times the
Start/Pause button is pressed

15
7-4. ERROR DISPLAY
If you press the START/PAUSE button when an error is displayed, any error except will
disappear and the machine will go into the pause status.
In case of if the error is not resolved within 20 sec., or the in case of other errors,
if the error is not resolved within 4 min., power will be turned off automatically and the error code will
blink. But in the case of , power will not be turned off.
ERROR SYMPTOM CAUSE
WATER INLET
ERROR
• Correct water level (246) is not reached within minutes
after water is supplied or it does not reach the preset water
level within 25 minutes.
• The load is too small.
• The appliance is tilted.
• Laundry is gathered to one side.
• Non distributable things are put into the drum.
1
2
IMBALANCE
ERROR
• Not fully drained within 10 minutes.
3
DRAIN
ERROR
• Water is overflowing (water level frequency is over 213).
※If is displayed, the drain pump will operate to
drain the water automatically.
4
OVER FLOW
ERROR
• The SENSOR SWITCH ASSEMBLY is out of order.
5
PRESSURE
SENSOR
ERROR
• Door not all the way closed.
• Loose electrical connections at Door switch and
PWB Assembly.
• The DOOR SWITCH ASSEMBLY is out of order.
6
DOOR OPEN
ERROR
• The THERMISTOR is out order.
7
HEATING
ERROR

16
ERROR SYMPTOM CAUSE
OVER
CURRENT
ERROR
•
MAIN PWB ASSEMBLY is out of order.
•
Winding in the STATOR ASSEMBLY is short-circuited.
• The connector (3-pin, male, white) in the MOTOR
HARNESS is not connected to the connector
(3-pin, female, white) of STATOR ASSEMBLY.
• The electric contact between the connectors
(3-pin, male, white) in the MOTOR HARNESS
and 4-pin, female, white connector in the MAIN PWB
ASSEMBLY is bad or unstable.
• The MOTOR HARNESS between the STATOR
ASSEMBLY and MAIN PWB ASSEMBLY is cut (open
circuited).
• The hall sensor is out of order/defective.
8
9
LOCKED
MOTOR
ERROR
• Loose Ball Sensor Connector.
• Ball Sensor is out of order.
※Displayed only when the START/PAUSE button is first
pressed in the QC Test Mode.
10
BALL SENSOR
ERROR
• The washer experienced a power failure.
12
POWER
FAILURE
• EEPROM is out of order.
※Displayed only when the START/PAUSE button is first
pressed in the QC Test Mode.
11
EEPROM
ERROR

17
-1. DIAGNOSIS AND SOLUTION FOR ABNORMAL OPERATION
. ERROR DIAGNOSIS AND CHECK LIST
SYMPTOM GUIDE FOR SERVICE CALL
No power
Water inlet trouble
YES
YES
YES
NO
NO
YES
NO
NO
Is the power plug connected firmly to
220-240V AC outlet?
Power failure? or Breaker opened?
Is the outlet controlled by a switch?
Visit to service.
Is displayed?
Is the tap opened?
Is the tap frozen?
Is the water supply shut-off?
Is filter in the inlet valve clogged with
foreign material?
Visit to service.
Clean the filter of
inlet valve

18
SYMPTOM GUIDE FOR SERVICE CALL
Door error
Drain trouble
Was the load too large?
Visit to service.
Visit to service.

19

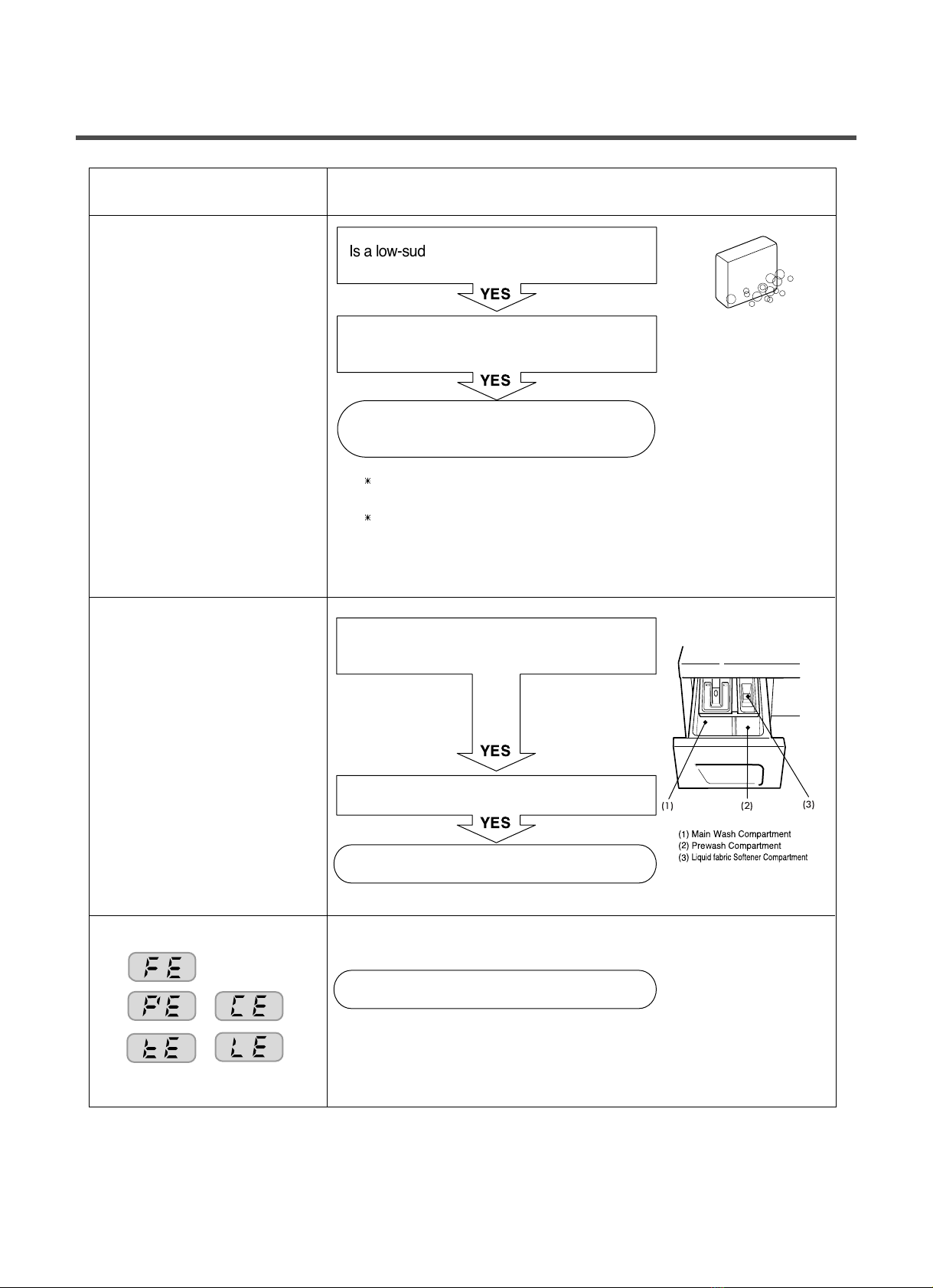

SYMPTOM GUIDE FOR SERVICE CALL
Suds overflow from the
appliance.
(In this condition, wash and
spin do not operate normally)
YES
YES
YES
YES
Is a low-sudsing detergent used?
Is the proper amount of detergent used
as recommended?
Recommend to reduce the amount
of detergent.
Is liquid laundry product put in the correct
compartment of the dispenser?
Is the cap clogged?
Explain proper use of liquid laundry products.
Clean the compartment.
Visit to service.
LOW-SUDSING
This appliance has an automatic suds sensing function which
prevents overflow.
When excessive suds are sensed, the suds removing
implementations such as drain, water input, pause will operate,
without rotating the drum.
Liquid laundry products do not
flow in.
