LG WD-1437 Series User manual

Washing Machine
OWNER’S MANUAL
Thank you for buying a
LG Fully Automatic Washing machine.
Please read your owner's manual carefully, it rovides
instructions on safe installation, use and maintenance.
Retain it for future reference.
Record the model and serial numbers of your washing machine.
P/No.: MFL31184260
WD-1237(0~9)FD(M)
WD-1437(0~9)FD(M)
WD-1637(0~9)FD(M)

2
roduct Feature
P
ontents
C
Warnings ....................................................................................................................3
S ecification ................................................................................................................4
Installation ...................................................................................................................5
Care before washing .................................................................................................11
Adding detergent .......................................................................................................12
Function ..................................................................................................................14
How to use washer ....................................................................................................15
Maintenance ..............................................................................................................23
Troubleshooting guide ...............................................................................................27
Terms of Warranty.....................................................................................................30
 Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and ulley.
 Water Circulation
S ray detergent solution and water onto the load continuously.
Clothes are soaked more quickly and thoroughly during wash cycle.
The detergent suds can be removed more easily by the water shower during rinse
cycle. The water circulation system uses both water and detergent more efficiently.
 Built-in Heater
Internal heater automatically heats the water to the best tem erature on selected
cycles.
 Child Lock
The Child lock revents children from ressing any button to change the settings
during o eration.
 More economical by Intelligent Wash System
Intelligent Wash System detects the amount of load and water tem erature, and then
determines the o timum water level and washing time to minimize energy and water
consum tion.
 Low noise speed control system
By sensing the amount of load and balance, it evenly distributes load to minimize the
s inning noise level.
 Safety device (Aqua lock)
Aqua lock System is designed for detecting water leak during o eration to revent
water from flooding over the floor.
 Using the RLM (Remote Laundry Monitor) [WD-1*37(0~9)FDM]
The RLM monitors status of your washer and/or dryer. You can lug the dis lay unit
into any ower outlet in your home.
❋ The RLM Dis lay Unit can be urchased se arately for this washer.
 Steam Washing and Refresh
Steam Washing features u graded washing erformance with low energy
consum tion. Refresh cycle reduces wrinkles from dry clothes.
 Automatic Wash Load Detection
Automatically detects the load and o timizes the washing time.
추가선택, 예약,

3
arnings
W
For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, electric shock, or to prevent property damage,
personal injury, or loss of life.
!
READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE
WARNING!
❊ Do not push down the door excessively, when washer door open.
This could topple over the washer.
• Before installation, check exterior damages. If it has,
do not install.
• Do not install or store the washer where it will
be ex osed to the weather.
• Do not tam er with controls.
• Do not re air or re lace any art of the washer
or attem t any servicing unless s ecifically
recommended in the user-maintenance instructions
or ublished user-re air instructions that you
understand and have the skills to carry out.
• Kee the area underneath and around your
a liances free of combustible materials such as
lint, a er, rags, chemicals, etc.
• Close su ervision is necessary if this a liance is
used by or near children or infirm ersons.
Do not allow them to lay on, with, or inside this
or any other a liance.
• Kee washer away from fire.
• Do not leave the washer door o en.
An o en door could entice children to hang on the
door or crawl inside the washer.
• Never reach into washer while it is running.
Wait until the drum has com letely sto ed.
• The laundry rocess can reduce the flame retardant
of fabrics.
• To avoid such a result, carefully follow the garment
manufacturer’s wash and care instructions.
• Do not wash or dry articles that have been cleaned
in, washed in, soaked in, or s otted with
combustible or ex losive substances (such as wax,
oil, aint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
ex lode. Oil may remain in the tub after a whole
cycle resulting in fire during drying. So, do not load
oiled clothes.
• Do not slam the washer door closed or try to force
the door o en when locked. This could result in
damage to the washer.
• When the machine runs at high tem erature, the
front door may be very hot. Don’t touch it.
• To minimize the ossibility of electric shock, un lug
this a liance from the ower su ly or disconnect
the washer at the household distribution anel by
removing the fuse or switching off the circuit breaker
before attem ting any maintenance or cleaning.
• When un lugging ower cord, do not ull out by
gras ing the cord. Otherwise, the ower cord may
be damaged.
• Never attem t to o erate this a liance if it is
damaged, malfunctioning, artially disassembled, or
has missing or broken arts, including a damaged
cord or lug.
• Before discarding an old machine un lug it. Render
the lug useless. Cut off the cable directly behind
the a liance to revent misuse.
• When a roduct was under water, Please call
service center. The risk of electric shock and fire.
GROUNDING INSTRUCTIONS
This a liance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by roviding a ath
of least resistance for electric current. This a liance is equi ed with a cord having an equi ment-grounding conductor and grounding lug.
The lug must be lugged into an a ro riate outlet that is ro erly installed and grounded in accordance with all local codes and ordinance.
• Do not use an ada ter or otherwise defeat the grounding lug.
• If you don’t have the ro er outlet, consult an electrician.
IMPORTANT SAFETY INSTRUCTIONS
WARNING :To reduce the risk of fire, electric shock, or injury to ersons when using
the washer, follow basic recautions, including the following:
SAVE THESE INSTRUCTIONS
WARNING : Im ro er connection of the equi ment-grounding conductor can result in risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the a liance is ro erly grounded. Do not modify
the lug rovided with the a liance - if it does not fit the outlet, have a ro er outlet installed by a qualified electrician.

4
pecification
S
Drawer
Inlet hose(1EA) S anner
 Accessories
Name : Front loading washing machine
Power su ly : 220-240 V~, 50 Hz
Size : 600mm(W) x 640mm(D) x 850mm(H)
Weight : 64 kg
Wash ca acity : 8 kg
Max.Watt : 2100W (Wash) / 1100W (Steam)
S in s eed : /400/600/800/1000/1100/1200
[WD-1237(0~9)FD(M)]
/400/600/800/1000/1200/1400 [WD-1437(0~9)FD(M)]
/400/600/800/1000/1200/1600 [WD-1637(0~9)FD(M)]
Water consum tion : 52ℓ(6.5ℓ/ kg)
Permissible water ressure : 0.3-10 kgf/cm
2
(30-1000 kPa)
Noise Level :
❋The a earance and s ecifications may be varied without notice to raise the units quality.
Model Wash S in
WD-1437(0~9)FD(M)
55dB(A) 75dB(A)

5
nstallation
I
1. To revent internal damage during
trans ort, the s ecial 4 bolts are locked.
Before o erating the washer, remove
the bolts along with the rubber bungs.
• If they are not removed, it may cause heavy
vibration, noise and malfunction.
3. Take out the 4 bolts along with the rubber
bungs by slightly twisting the bung. Kee
the 4 bolts and the s anner for the future
use.
• Whenever the a liance is trans orted, the
transit bolts must be refitted.
The a liance is fitted with transit bolts to revent internal damage during trans ort.
• Packing and all transit bolts must be
removed before using the washer.
󳢹When unpacking the base, be
sure to remove the additional
packing support in the middle of
the base packing.
2. Unscrew the 4 bolts with
the s anner su lied.
4. Close the holes with the ca s su lied.
 Transit bolts
Install or store where it will not be exposed to temperature below freezing or exposed to the
weather.
Properly ground washer to conform with all governing codes and ordinances.
The base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other
vermin, pay particular attention to keeping the appliance and its surroundings in clean condition at
all times.
Any damage which may be caused by cockroaches or other vermin will not be covered by the
appliance guarantee.
 Removing transit bolts
(Packing su ort may not
be used de ending on
models.)

6
nstallation
I

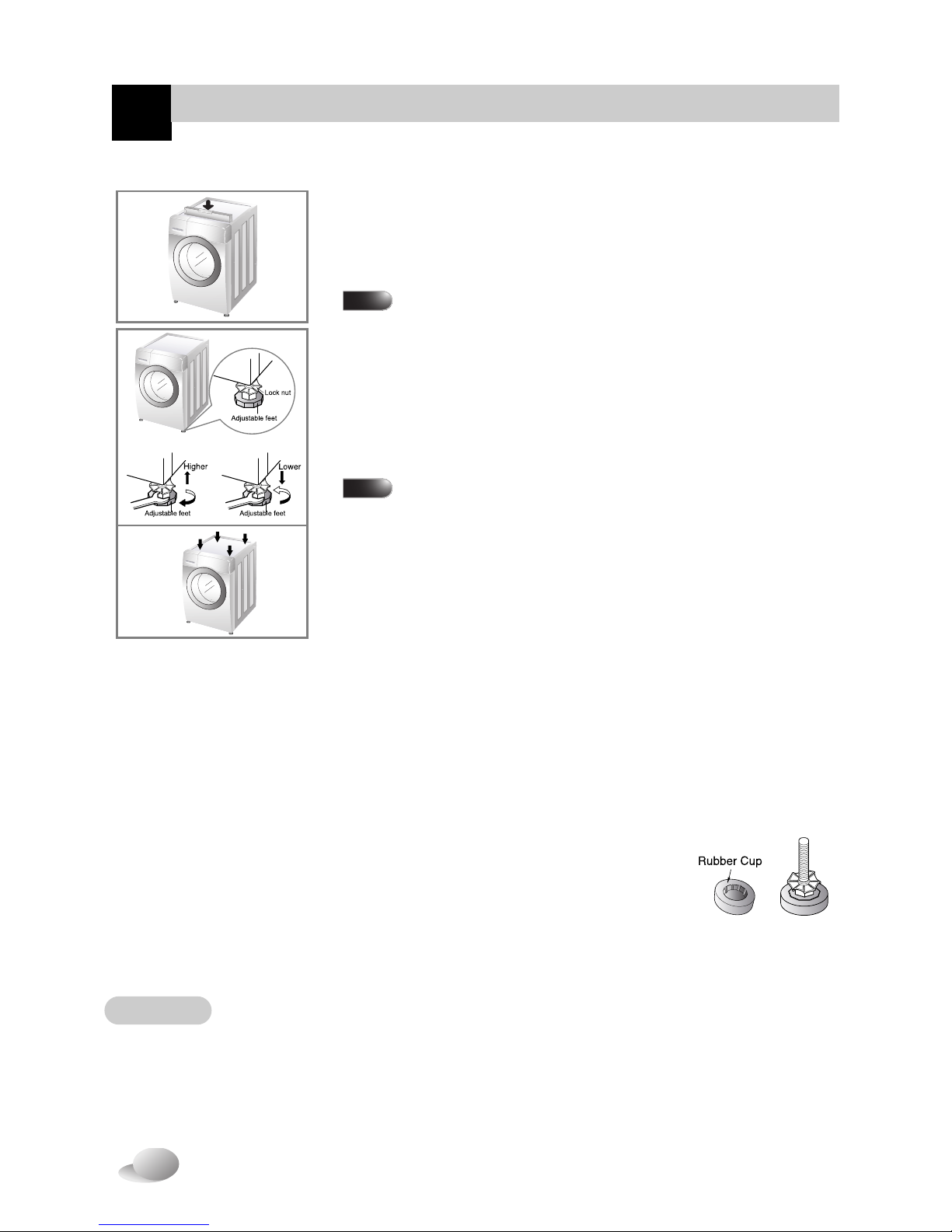

Level floor :
Allowable slo e under entire washer is 1˚
Power outlet :
Must be within 1.5 meters of either side of location of
washer. Do not overload the outlet with more than one
a liance.
Additional Clearance :
For wall, door and floor modeling is required.
(10cm : rear /2cm:right & left side)
Do not lace or store laundry roducts on to of washer at
any times.
They can damage the finish or controls.
 Installation place requirement
 Positioning
Install the washer on a flat hard floor.
Make sure that air circulation around the washer is not impeded by carpets, rug etc.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar
materials under the washer.
• If it is impossible to avoid positioning the washer ne t to a gas cooker or coal burning stove,
an insulation(85 60cm) covered with aluminum foil on the side facing the cooker or stove,
must be inserted between the two appliance.
• The washer must not be installed in rooms where the temperature can drop below 0°C.
• Please ensure that when the washer is installed, it is easily accessible for the engineer in the
event of a breakdown.
• Adjust all four feet using the transit bolt spanner provided ensuring the appliance is stable,
and a clearance of appro imately 20mm is left between the top of the washer and the
underside of the work-top.

7
nstallation
I
Rubber seal
Hose connector
▶Water supply pressure must be between 30kPa and 1000kPa
(0.3~10kgf/cm2)
▶Don’t strip or crossthread when connecting Inlet hose to the valve.
▶If the water supply pressure is more than 1000kPa, a decompression
device should be installed.
• Two rubber seals are su lied with the water inlet hoses. They
are used for reventing water leaks.
• Make sure the connection to ta s is tight enough.
• Periodically check the condition of the hose and re lace the
hose if necessary.
• Make sure that there is no kink on the hose and that it is not
crushed.
■ Washing Machine is to be connected to the water mains using new hose-sets and old hose-sets should
not be used.

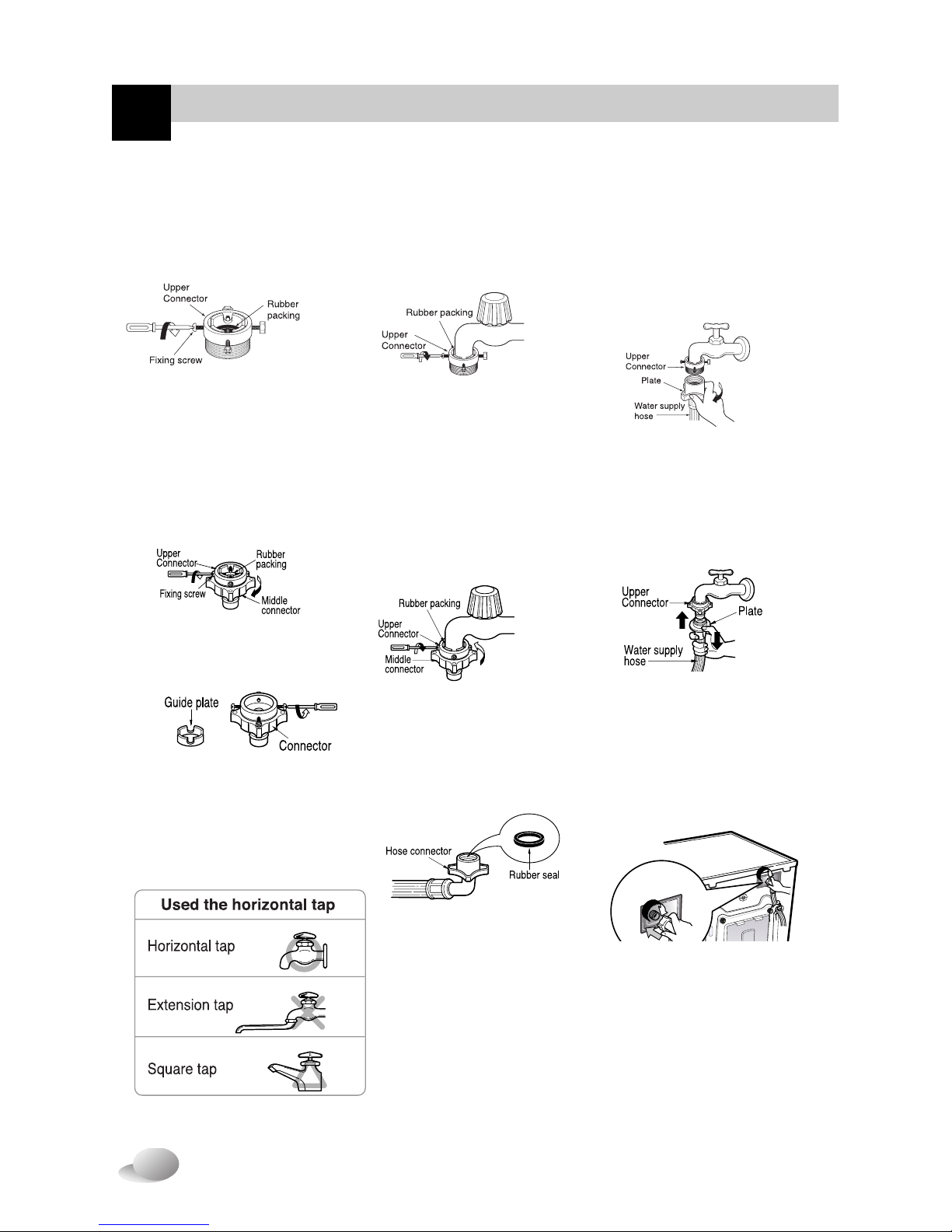

■ Connecting water supply hose
1. Do not use an extension cord or double ada ter.
2. If the su ly cord is damaged, it must be re laced by the manufacturer or its service agents or similarly
qualified erson in order to avoid a hazard.
3. Always un lug the machine and turn off the water su ly after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
5. The a liance must be ositioned so that the lug is easily accessible.
• Re airs to the washing machine must only be carried out by qualified ersonnel. Re airs carried out by
inex erienced ersons may cause injury or serious malfunctioning. Contact your local service center
• Do not install your washing machine in rooms where tem erature below freezing may occur. Frozen hoses may burst
under ressure. The reliability of the electronic control unit may be im aired at tem eratures below freezing oint.
• If the a liance is delivered in the winter months and tem eratures are below freezing : Place the washing
machine at room tem erature for a few hours before utting it into o eration.
■ Electrical connection
CAUTION concerning the Power Cord
Most a liances recommend they be laced u on a dedicated circuit; that is, a single outlet circuit
which owers only that a liance and has no additional outlets or branch circuits. Check the
s ecification age of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed ower cords, or damaged or cracked wire insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically examine the cord of your a liance, and if its
a earance indicates damage or deterioration, un lug it, discontinue use of the a liance, and have
the cord re laced with an exact re lacement art by an authorized servicer.
Protect the ower cord from hysical or mechanical abuse, such as being twisted, kinked, inched,
closed in a door, or walked u on. Pay articular attention to lugs, wall outlets, and the oint where
the cord exits the a liance.
CAUTION
NOTE
After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type
of faucet for water supply. In case the faucet is square or too big, remove the spacing ring before inserting the
faucet into the adaptor.

8
nstallation
I
 Normal Tap without thread & screw type inlet hose
 Normal Tap without thread & one touch type inlet hose
1.Unscrew the fixing screw to
attach the ta .
2.Push the connector u till the
rubber acking is in tight contact
with the ta . Then tighten the 4
screws.
3.Push the water su ly hose
vertically u wards so that the
rubber acking within in the
hose can adhere com letely to
the ta and then tighten it by
screwing it to the right.
1.Untighten the u er connector
screw.
2.Push the u er connector u till
the rubber acking is in tight
contact with the ta . Then
tighten the 4 screws.
3. Connect the water su ly hose
to the middle connector,
ushing the late down.
• Make sure that there are no
kinks in the hose and that it is
not crushed.
• Make sure that the rubber seal
is inside the hose connector.
• In case the diameter of the ta is
large remove the guide late.
• Unable water Ta for connectoring
hose.
• Turn the middle connector not
to have water leaked.
• To se arate the water su ly
hose from the middle connector
shut off the ta . Then ull the
inlet hose down, ushing the
late down.

9
nstallation
I
 Installation of drain hose
• The drain hose should not be laced higher
than 100 cm above the floor. Water in the
washer does not drain or drains slowly.
• Pro er securing of the drain hose will
rotect the floor from damage due to water
leakage.
• When the drain hose is too long, do not
force back into the washer. This will cause
abnormal noise.
• When installing the drain hose sink,
secure it tightly with a string.
• Pro er securing of the drain hose will
rotect the floor from damage due to
water leakage.
This equi ment is not designed for maritime use or for use mobile installations such as
caravans, aircraft etc.
Turn off the sto cock if the machine is to be left for any length of time (e.g. holiday),
es ecially if there is no floor drain(gully) in the immediate vicinity.
When dis osing of the a liance, cut off the mains cable, and destroy the lug Disable the
door lock to revent young children being tra ed inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk
of suffocation ! Kee all ackaging well away from children

10
nstallation
I
 Level adjustment

Concrete floors

Wooden floors (Suspended floors)
1. Adjusting the washing machine level ro erly revents excessive
noise and vibration.
Install the a liance on a solid and level floor surface, referably in a
corner of the room.
2. If the floor is uneven, adjust the adjustable feet as required.
(do not insert pieces of wood etc. under the feet)
Make sure that all four feet are stable and resting on the floor and
then check that the a liance is erfectly level. (use a s irit level)
※※
After the washer is level, tighten the lock nuts up towards of the base of
the washer. All lock nuts must be tightened.
❊ Diagonal Check
When pushing down the edges of the washing machine top plate diagonally, the machine
should not move up and down at all. (Please, check both of two directions)
If machine rocks when pushing the machine top plate diagonally, adjust the feet again.
• The installation surface must be clean, dry and level.
• Install washer on a flat hard floor.

Tile floors (Slippery floors)
• Position each foot on the Tread Mate and level the machine to suit. (Cut Tread Mate into 70x70 mm
sections and stick the pieces on to the dry tile where machine is to be placed.)
※※
Tread Mate is a self adhesive material used on ladders & steps that prevents slipping.
• Wooden floors are particularly susceptible to vibration.
• To prevent vibration we recommend you place rubber cups under each foot,
at least 15mm thick under the washer, secured to at least 2 floor beams with screws.
• If possible install the washer in one of the corners of the room, where the floor is more stable.
※※
Insert the rubber cups to reduce vibration.
※※
You can obtain the rubber cups (p/no.4620ER4002B) from the LG svc dept.
Important!
• Proper placement and levelling of the washer ensure long, regular and reliable operation.
• The washer must be absolutely horizontal and stand firmly in position.
• It must not “Seesaw” across corners under load.
• The installation surface must be clean, free from floor wax and other lubricant coatings.
• Do not let the feet of the washer get wet. If feet of the washer get wet, slipping may occur.
Timber or suspended type flooring may contribute to
excessive vibration and unbalance errors.
In the case that the washing machine is installed on a raised
platform, it must be securely fastened in order
to eliminate the risk that it might fall off.
NOTE
NOTE

11
are before washing
C
1. Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your garment and
how it should be washed.
2. Sorting
To get the best results, Sort clothes into loads that can be washed with the same wash cycle.
Water tem erature and s in s eed and different fabrics need to be washed in different ways.
Always sort dark colors from ale colors and whites. Wash se arately as dye and lint transfer can
occur causing discoloration of white etc. If ossible, do not wash heavily soiled items with lightly
soiled one.
Soil (Heavy, Normal, Light) Se arate clothes according to amount of soil.
Color (White, Lights, Darks) Se arate white fabrics from colored fabrics.
Lint (Lint roducers, Collectors) Wash lint roducers and lint collectors
se arately.
3. Caring before loading
 Caring before washing
 Before the first washing
 Combine large and small items in a load. Load large items first. Large items should not be more than half
the total wash load.
Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.
• Check all ockets to make sure that they
are em ty. Items such as nails, hair cli ,
matches, ens, coins and keys can damage
both your washer and your clothes.
• Close zi ers, hooks and strings to
make sure that these items don’t
snag on other clothes.
• Pre treat dirt and stains by brushing a little
detergent dissolved in water onto stains like
collars and cuffs to hel shift dirt.
• Check the folds of the flexible gasket (gray) and
remove any small articles,if any.
• Check inside of the drum and remove any left
items in it for next wash cycle.
• Remove any clothing or items on the flexible
gasket to revent clothing and the gasket
damages.
Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash
without clothing. This will remove residues and water from the drum that may have been left
during manufacturing.

12
dding detergent
A
• Main wash only ➔
• Pre Wash + Main Wash ➔
• Do not exceed the maximum fill line.
Close the dis enser drawer slowly.
Overfilling can cause early dis ensing
of the fabric softener which could stain
clothes.
• Do not leave the fabric softener in the
detergent drawer for more than 2 days.
(Fabric softener could harden)
• Softener will automatically be added
during the last rinse cycle.
• Do not o en the drawer when water is
su lied.
• Solvents(benzene, etc) are not
allowable.

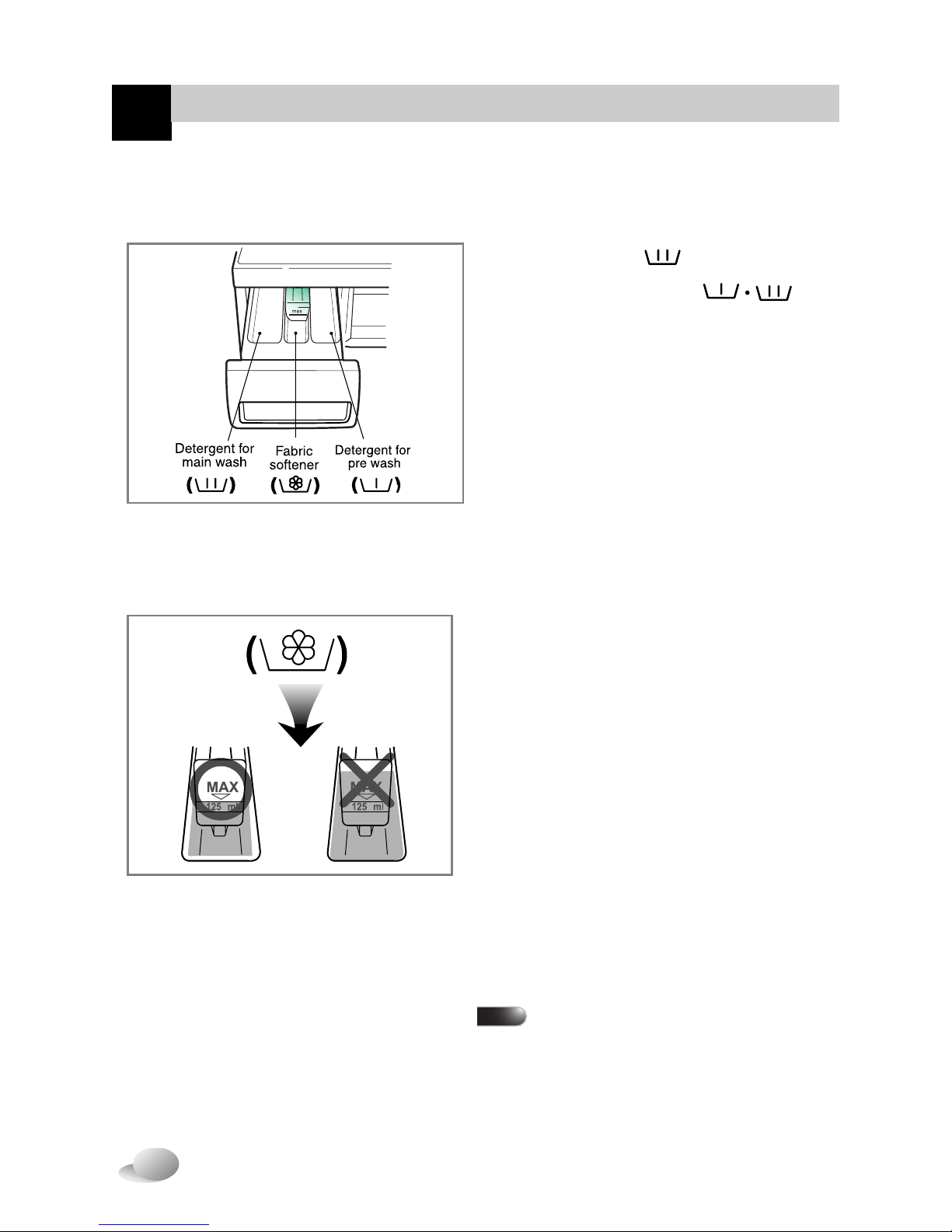

1. The Dispenser Drawer
2. Adding Fabric Softener
 Adding detergent and fabric softener
Do not pour fabric softener
directly on the cloths
NOTE

13
dding detergent
A
• The detergent should be used according
to the instruction of the detergent
manufacture.
• If too much detergent is used, too many
suds can occur and this will decrease the
washing result or cause heavy load to the
motor.
• Use owder detergent only for the front
loading washer.
❇ If suds occur too much, pleas reduce the
detergent amount.
• Detergent usage may need to be adjusted
for water tem erature, water hardness,
size and soil level of the load. For best
results, avoid oversudsing.
4. Water softener
• A water softener, such as Anti limescale
(Clagon) can be used to cut down on the
use of detergent in extremely hard water
areas. Dis ense according to the amount
s ecified on the ackaging.
First add detergent and then the water
softener.
• Use the quantity of detergent as for soft
water.
❋ Tips
Full load : according to
manufacturer’s recommendation.
Part load : 3/4 of the normal
amount.
Minimum load : 1/2 of full load.
• Detergent is flushed from the dis enser
at the beginning of the cycle.
1) O en the door and Tablets into the
drum.
3. Detergent dosage
5. Using the Tablets
MAXMAX
MAX
2) Load the laundry into the drum.
3) Close the door.
MAX

14
unction
F
 Recommended courses according to the laundry type
Cotton
Synthetic
Baby Care
Delicate
Duvet
Quick 30
Rinse+
Spin
Refresh
Hand Wash
/Wool
Color fast garments
(shirts, night dresses,
ajamas...)and lightly soiled
white cotton(underwear)
Polyamide, Acrylic, Polyester
Lightly soiled baby wear
Delicate laundry easily
damaged
“Hand wash” marked
delicate and wool laundry
Cotton bedding with filling
duvet, illow, blanket, sofa
cover with light filling
Colored laundry which is
lightly soiled fast
Cotton mixed, Polyeter
mixed Dress shirts, blouses
- Time Delay
- Steam Wash
- Intensive
- Pre Wash
- Crease Care
- Medic Rinse
- Time Delay
- Intensive
- Crease Care
- Crease Care
- Medic Rinse
- Time Delay
- Steam Default
❋Water Temperature : Select the water tem erature to the wash cycles.
Always follow garment manufacture’s care label or instructions when
laundering.
❋Intensive : If the laundry is heavily soiled “Intensive” o tion is effective.
❋Program setting with “Cotton 60°C + Steam Wash + Intensive” o tion for test in accordance or in
conformity with EN60456 and IEC60456.
❋Pre Wash : If the laundry is heavily soiled, “Pre Wash” Cotton is recommended. Pre Wash is available
in Cotton, Synthetic and Baby Care rogram.
❋Crease Care : If you want to revent crease, select Crease Care button.
❋Medic Rinse : For high effectiveness or more urity in rinse o eration you can choose Medic Rinse
o tion. Medic Rinse is default in Baby Care rogram.
60°C
(Cold, 30°C,
40°C, 95°C)
40°C (Cold,
30°C, 60°C)
40°C
(Cold, 30°C)
30°C
(Cold, 40°C)
No Choose
No Choose
95°C
(40°C, 60°C)
Rating
Less than 4.0kg
Less than 4.0kg
Less than 3.0kg
1 king size
(9 Tog)
Less than 2.0kg
Less than 2.0kg
Rating
3 items
Maximum Load
Option
Water
Temp.
(Option)
Fabric Type
Program

15

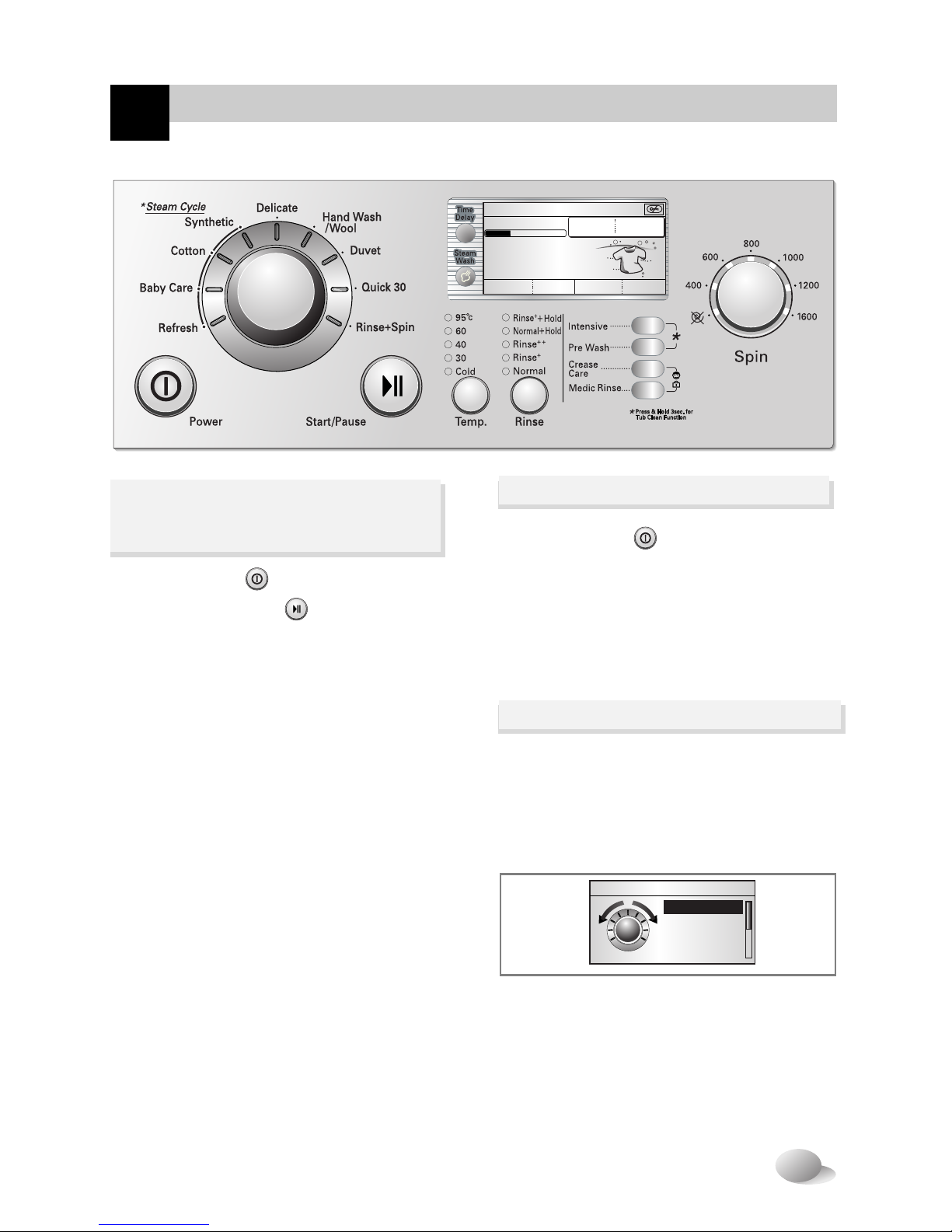

ow to use washer
H
• Press the Power( ) button to start.
• Press the Start/Pause( ) button.
• Initial condition
- Wash : Main wash
- Rinse : 3 times
- Spin :
• 1600 rpm [WD-1637(0~9)FD(M)]
• 1400 rpm [WD-1437(0~9)FD(M)]
• 1200 rpm [WD-1237(0~9)FD(M)]
- Water temperature : 60˚C
- Program : Cotton
• Press the Power( ) button to start.
• Select the conditions which you want to use,
by ressing each button.
For selecting the each conditions, please refer to
the page16~page22.
• Press the Start/Pause button.
1. Cotton automatically
selected upon power on.
2. Manual Selecting
20%
Temp. Rinse 360°C
Washing
1:42
Time Left
3. Language Selection
• English is the default language.
Language can be changed only when LCD is
on. Power On and then ress the Time
delay and Steam Wash button
simultaneously for 3 seconds until the Select
a Language menu is dis layed.
• Rotation of the rogram dial will cycle through
Portuguese, Serbian, Croatian, Bulgarian,
Rumanian, Hungarian, Greek and then back to
English.
Select a Language
English
Portuguese
Serbian
Croatian

16
ow to use washer
H
Program
• 9 rograms are available according to the
laundry ty e.
• Lam will light u to indicate selected rogram.
• When Start/Pause button is ressed, the
Cotton rogram is automatically selected.
- By turning the Program dial, the rogram is
selected in order of “ Cotton – Synthetic –
Delicate – Hand Wash/Wool – Duvet – Quick 30
– Rinse+S in – Refresh – Baby Care”.
Regarding to the laundry type for each program
Please refer to the page 14.
1. Power
2. Initial Program
Power
• Press the Power button to turn ower on and off.
• To cancel the Time Delay function, the Power
button should be ressed.
• When the Power button is ressed, the
washer is ready for Cotton rogram. And the
other initial conditions as follows.
• So, if you want to advance into the washing
cycle without changing the rogram, just
ress Start/Pause button and then the
washer will roceed.
■ Initial program
• [WD-1637(0~9)FD(M)]
- Cotton Program / Main Wash / Normal Rinse / 1600 rpm / 60˚C
• [WD-1437(0~9)FD(M)]
- Cotton Program / Main Wash / Normal Rinse / 1400 rpm / 60˚C
• [WD-1237(0~9)FD(M)]
- Cotton Program / Main Wash / Normal Rinse / 1200 rpm / 60˚C
(1) (2) (3) (6) (7) (8) (9) (10) (11)(4) (5)
20%
Temp. Rinse 360°C
Washing
1:42
Time Left
(1) Button : Power
(2) Dial : Program
(3) Button : Start/Pause
(4) Button : Time Delay
(5) Button : Steam Wash
(6) Button : Tem erature
(7) Button : Rinse
(8) Button : O tion
(9) Button : Child Lock
(10) Button : Tub Clean
(11) Dial : S in

17
ow to use washer
H
Start/Pause
• This Start/Pause button is used to start
wash cycle or ause the wash cycle.
• If tem orary sto of wash cycle is needed,
ress “Start/Pause” button.
• When in Pause, the ower is turned off
automatically after 4 minutes.
• NB. The door will not o en before 1 to 2
minutes when Pause is selected,
or at the end of the wash cycle.
1. Start
2. Pause
• While the "Detecting" is shown in the dis lay
the machine rotates slowly and detects how
many laundries are loaded in the drum. It
will take a few seconds.
• Available in Cotton, Synthetic and Baby
Care rogram.
7kg
Temp. Rinse
Time Left
360°C
Detecting
Time Delay
Preparing washing before starting “Time Delay”
- Turn on the water ta .
- Load laundry and close the door.
- Place the detergent and fabric softener in
the drawer.
• How to set “Time Delay”
- Press Power button.
- Turn the Program dial to select
the rogram you require.
- Press Time Delay button and set the
desired time.
- Press the Start/Pause button.
• If Time Delay button is ressed, “3:00” is
dis layed. The maximum delayed time is
19:00 hours and the minimum time is 3:00
hours.
• Each ressing of the button advances time
delay by one hour.
• To cancel the time delay, ress the
Power button.
• Time Delay is ‘ex ected time’ from the
resent to the com letion of washing cycle
or selected rocess (Wash, Rinse, S in).
• According to the condition of water supply and
temperature, the delayed time and the actual
washing time may vary.
3:00
Time Left
Time Delay
The cycle will end after
3 hours.
3:00
Time Left
Time Delay
To increase the delay wash time
press on the time delay button.
• Lights whenever the door of the washer is
locked.
• The door can be unlocked by ressing the
Start/Pause button to sto the washer.
• The door can be o ened after a short delay.
20%
Temp. Rinse 360°C
Washing
1:42
Time Left
Detecting
Door Lock

By ressing the Steam Wash button, Steam
Function Can be selected.
When Steam Function is selected, Steam wash
( ) LED lights on.
Steam Wash is
• For tough stained clothes, underwear, or baby
clothes.
• Steam Wash is available with Cotton, Synthetic,
Baby Care rogram.
Refresh cycle is fixed Steam wash.
18
ow to use washer
H
Steam Wash
• This o tion features u graded washing
erformance with low energy.
• Do not load delicates such as wool, silk, and
easily discolored clothes.
NOTE:
- Steam wash is a highly concentrated and
efficient.
It may seem there is no water inside the
drum(normal condition).
- During the steam cycle the strong steam
s ray may not be seen through the door
(normal condition).
- During the steam o eration, a s raying sound
will be heard. (normal condition)
- Do not try to o en the door while o erating.
Steam can cause severe burns.
CAUTION:
- Do not reach into the washer while operating.
Steam can cause severe burns.
Refresh
■ Refresh cycle
• For slightly wrinkled clothes which have
been stored for an extended time.
It just makes wrinkled clothes easy to iron
(Do not load wet clothes).
• Wrinkles will be reduced.
■ How to use Refresh cycle
1. Turn on the washer and select the Refresh rogram.
2. Load 3 items or less and close the door.
3. Press the Steam Wash button re eatedly until the
desired and correct number of items is dis layed.
Initial dis lay is 2 items
4. Press the Start/Pause button
CAUTION:
- Do not reach into the washer while operating.
Steam can cause severe burns.
- Keep pets away from the washer.
[Precautionary Notes]
- The Refresh cycle is not like other washing or
drying cycles.
- Due to the characteristic of cotton fibers, this cycle
is not recommended for 100% cotton clothing.
- Remove stains from clothing before using the
Refresh cycle to prevent permanently setting the
stains by high heat.
- Be sure that the faucet is open. This cycle uses a
little water to produce steam.
- Be careful not to touch the door. It can be very hot.
- Do not open the door while operating.
Steam can cause severe burns.
- After removing clothes from the Refresh cycle they
may feel slightly damp wait at least 10 minutes
before putting the clothes on.
- Best result are achieved when articles are of similar
size and fabric type. Do not overload
(Load less than 3 dress shirtes)
1:42
Time Left
Steam
Use on tough stained clothes.
Press the
Steam Wash button
0:19
Time Left
Steam
0:19
Time Left
Steam
Load 3items.
Refresh
!
!
Program
Cotton
Synthetic
Baby Care
Tem erature
60°c (30°c, 40°c, 95°c)
40°c (30°c, 60°c)
95°c (40°c, 60°c)

19
ow to use washer
H
1. Normal
2. Rinse+& Rinse++
3. Rinse Hold
Rinse
• By ressing the Rinse
button, the Rinse ty e can
be selected.
• Cotton, Synthetic, Baby Care performs 3
Rinses
• Hand Wash/Wool, Quick 30, Delicate,
Duvet performs 2 Rinses
• Used to additional rinse, which may assist
in removing traces of detergent residue.
• By selecting Rinse+or Rinse++ function,
the Rinse Time and the Rinse water are
increased.
• Is selected by ressing the Rinse button
re eatedly. This function leaves clothes in
the washer; sus ended in the water after a
rinse without entering into s in.
• To roceed through to a drain or s in, once
the rinse hold function is com leted using to
rogram dial scroll to the required rogram.
The required lamp will light up for
identification.
Water Temp.
• By ressing the Tem .
button, the water
tem erature can be
selected.
- Cold
- 30˚C / 40˚C / 60˚C / 95˚C
• Water tem erature can be selected as
below according to the rogram.
- Baby Care
40˚C – 60˚C – 95°C
- Cotton
Cold – 30˚C – 40˚C – 60˚C – 95˚C
- Synthetic
Cold – 30˚C – 40˚C – 60˚C
- Delicate & Quick 30 & Hand Wash/Wool
& Duvet
Cold – 30˚C – 40˚C
The required temperature lamp will light up for
identification.
For the more detailed information, please refer
to the page14.

20
ow to use washer
H
Option
By ressing each the button, each function
will be selected.
2. Pre Wash
• Use this o tion for load that need
retreatment. Add 16 minutes re wash and
drain.
- When using Pre Wash o tion, do not use
liquid detergent in the main wash
com ortment. Use owder for the main
wash.
• Available in Cotton, Synthetic and Baby Care
rogram.
3. Crease Care
• If you want to revent crease, select this
button with s in s eed.
4. Medic Rinse
• For high effectiveness or more urity in rinse
o eration you can choose Medic Rinse o tion.
• Available in Cotton, Synthetic and Baby Care
rogram.
• Medic Rinse is default in Baby Care rogram.
The required temperature lamp will light up for
identification.
1. Intensive
• If the laundry is heavily soiled “Intensive”
o tion is effective.
• By selecting the Intensive o tion, the wash
time may be extended, de ending on the
rogram selected.
• To use this o tion, ress the intensive button
once before the wash rogram is started.
Child lock
If you choose to lock the buttons on the
control assembly to revent tam ering, this
function may be selected.
• Child lock can be set by ressing and
holding the Crease Care and Medic Rinse
button simultaneously.
(About three seconds)
• When child lock is set, all buttons are
inoperable, except Power button
• To deactivate Child lock system, ress and
hold the Crease Care and Medic Rinse
button simultaneously again.
(About three seconds)
• To change to the desired rogram, whilst in
child lock mode.
1. Press and hold both Crease Care and
Medic Rinse button together once again.
(About three seconds)
2. Press the Start/Pause button.
3. Select the desired rogram and ress the
Start/Pause button again.
• The child lock can be set at any time and it
is automatically canceled when o erational
errors occur. Also Child lock works when
ower is off.
20%
Temp. Rinse 360°C
1:42
Time Left
Child Lock is on.
20%
Temp. Rinse 360°C
1:42
Time Left
Child Lock is off.
