WASHING MACHINE
SERVICE MANUAL
READ THIS MANUAL CAREFULLY TO DIAGNOSE
PROBLEMS CORRECTLY BEFORE SERVICING THE UNIT.
MODEL : WM2411HW/WM2011H*/WM1811CW
WM24 2HW/WM20 2H*/WM18 2CW
WM05 2HW/WD-10210BD/WD-12210(5)BD
WM2444H*M/WM2442H*/WM2042CW
WM0642H*
CAUTION
Website:http://www.LGEservice.com
E-mail:http://www.LGEservice.com/techsup.html
!

101
DEC. 2002 PRINTED IN KOREA P/No.: 828ER 01 T

2
CONTENTS
1. SPECIFICATIONS.........................................................................................................................3

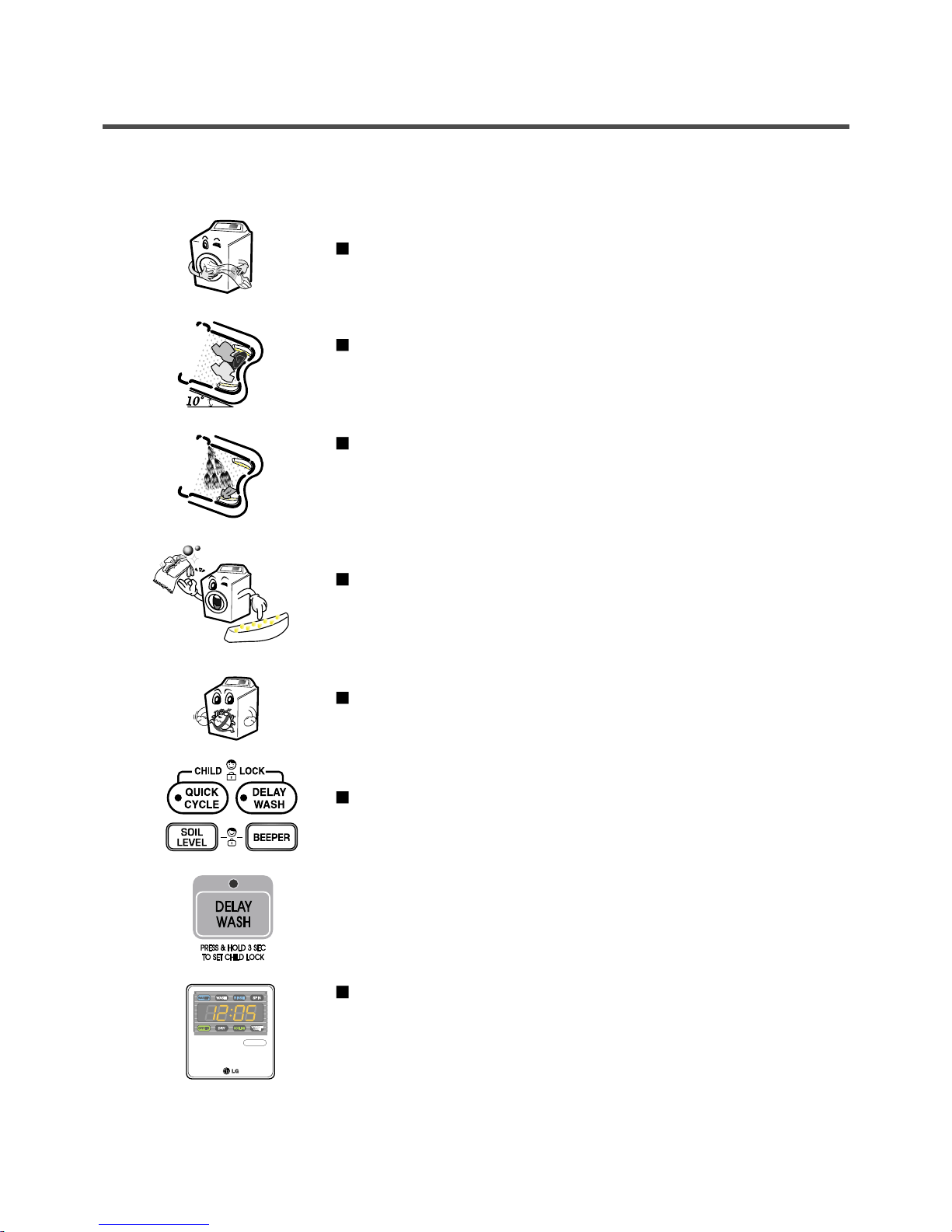

2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 5

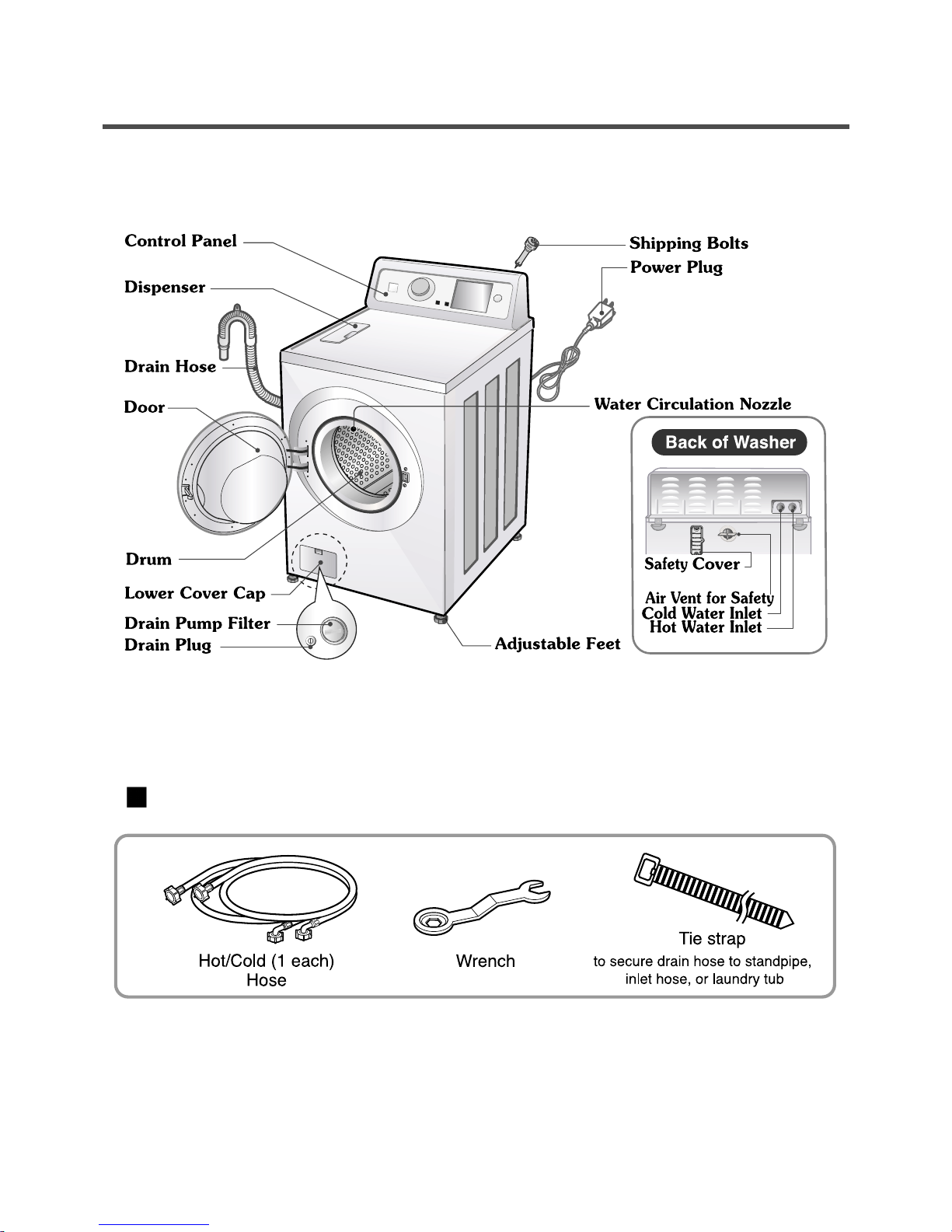

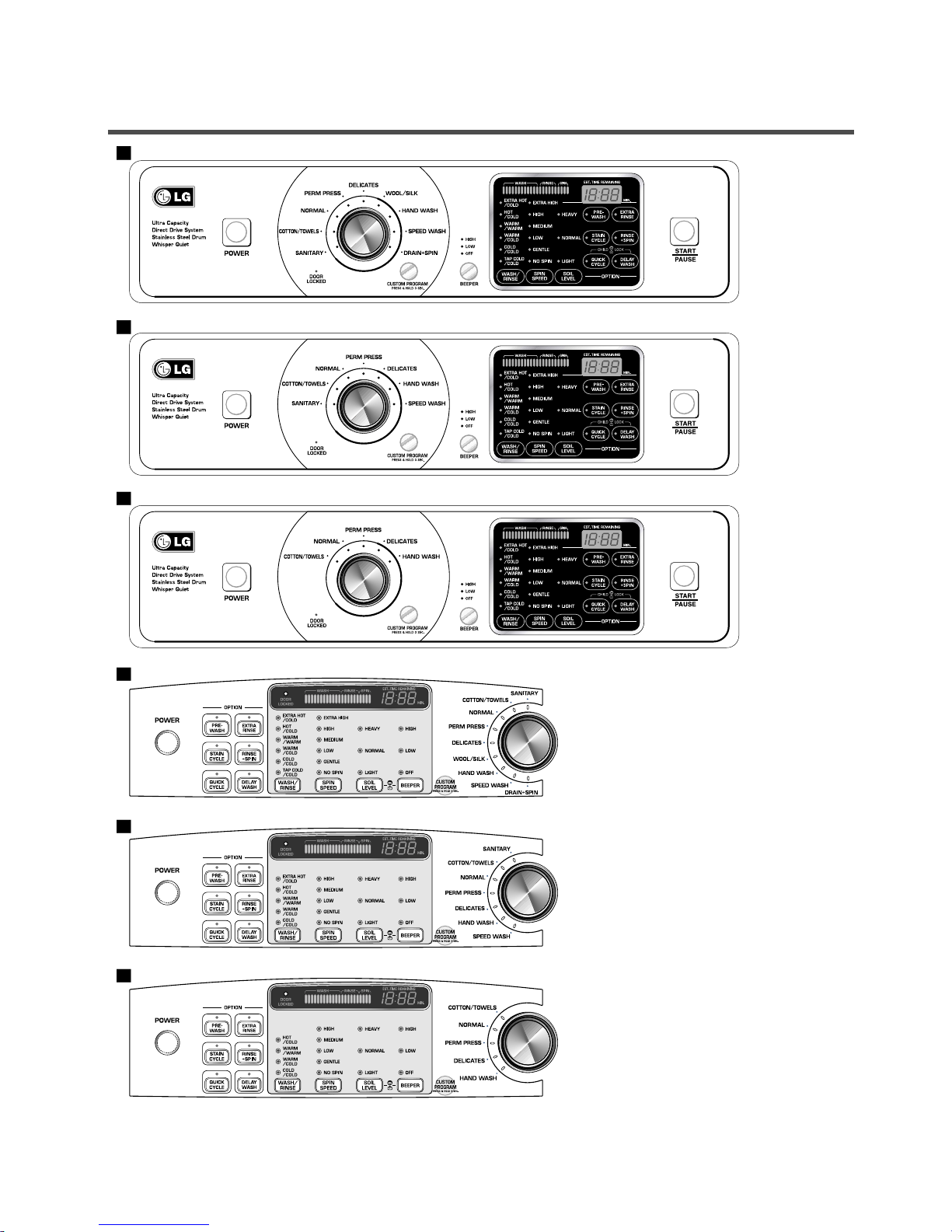

3. PARTS IDENTIFICATION ............................................................................................................ 7
4. INSTALLATION............................................................................................................................. 8

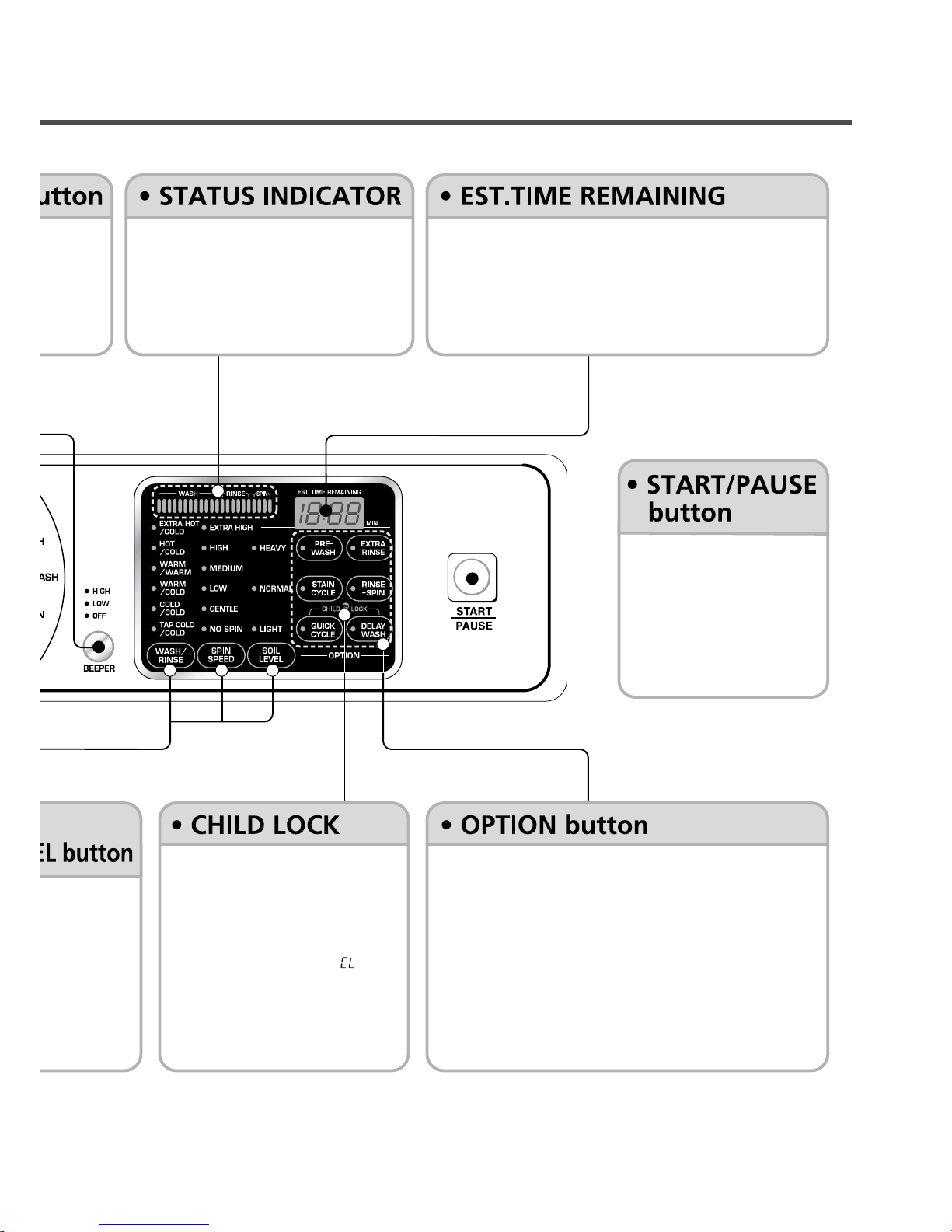

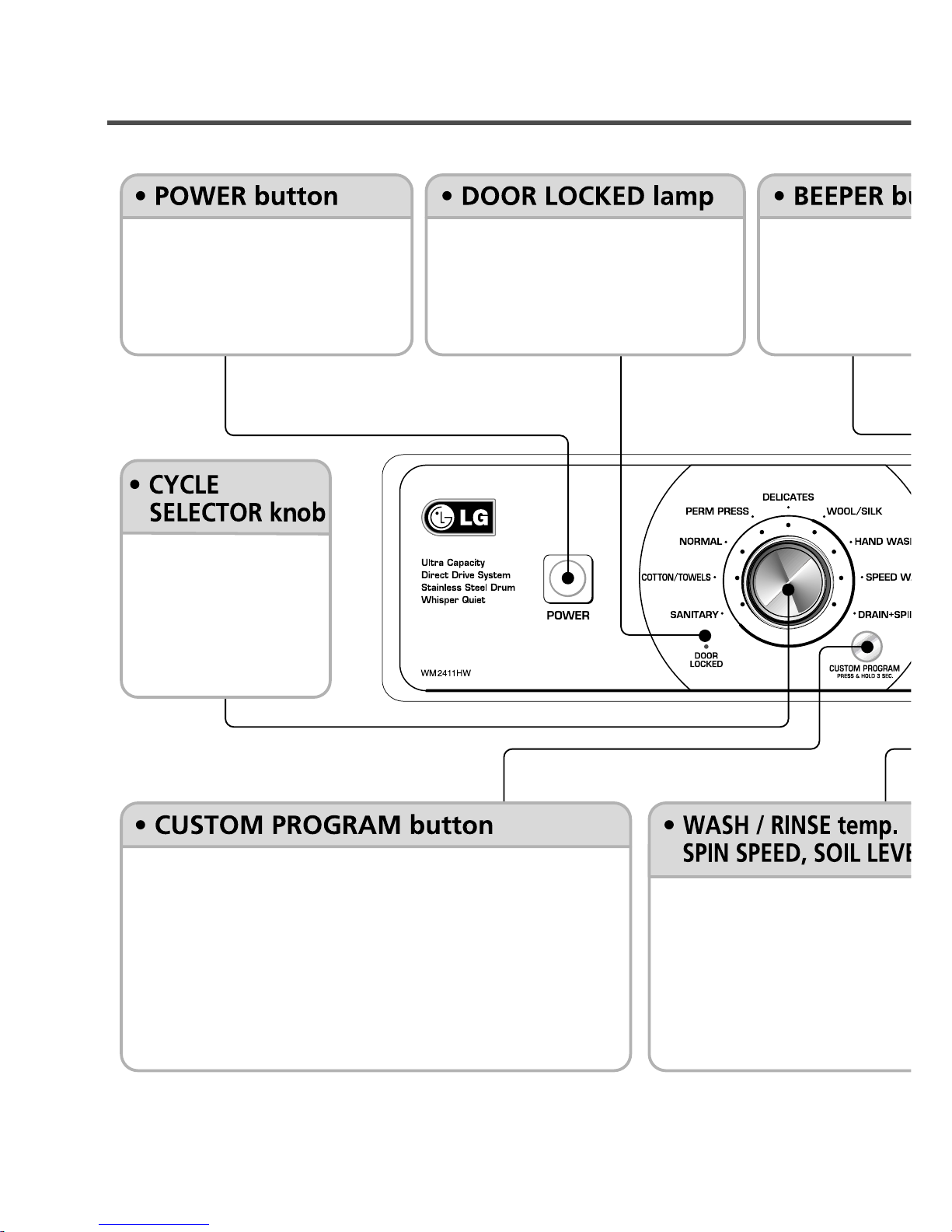

5. OPERATION ................................................................................................................................11

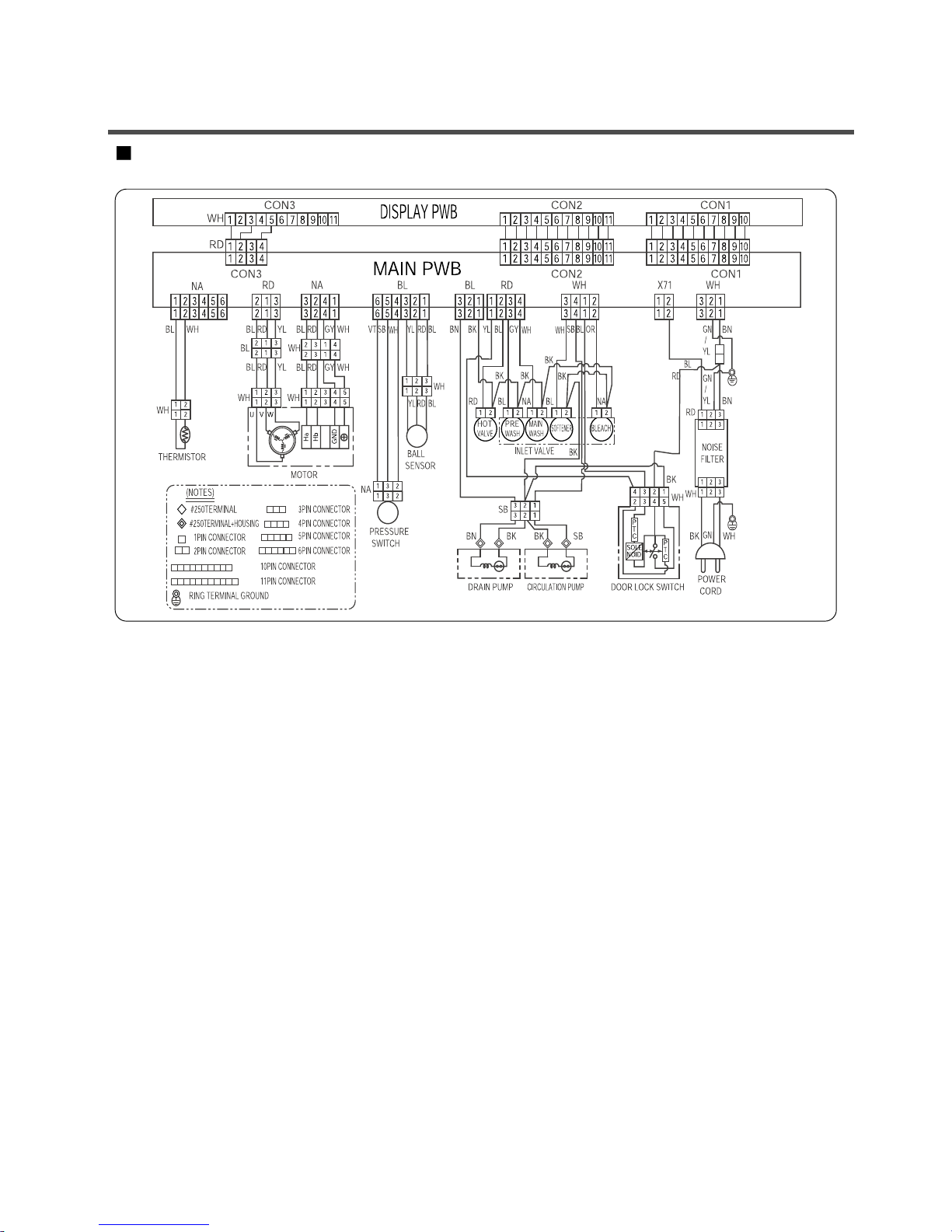

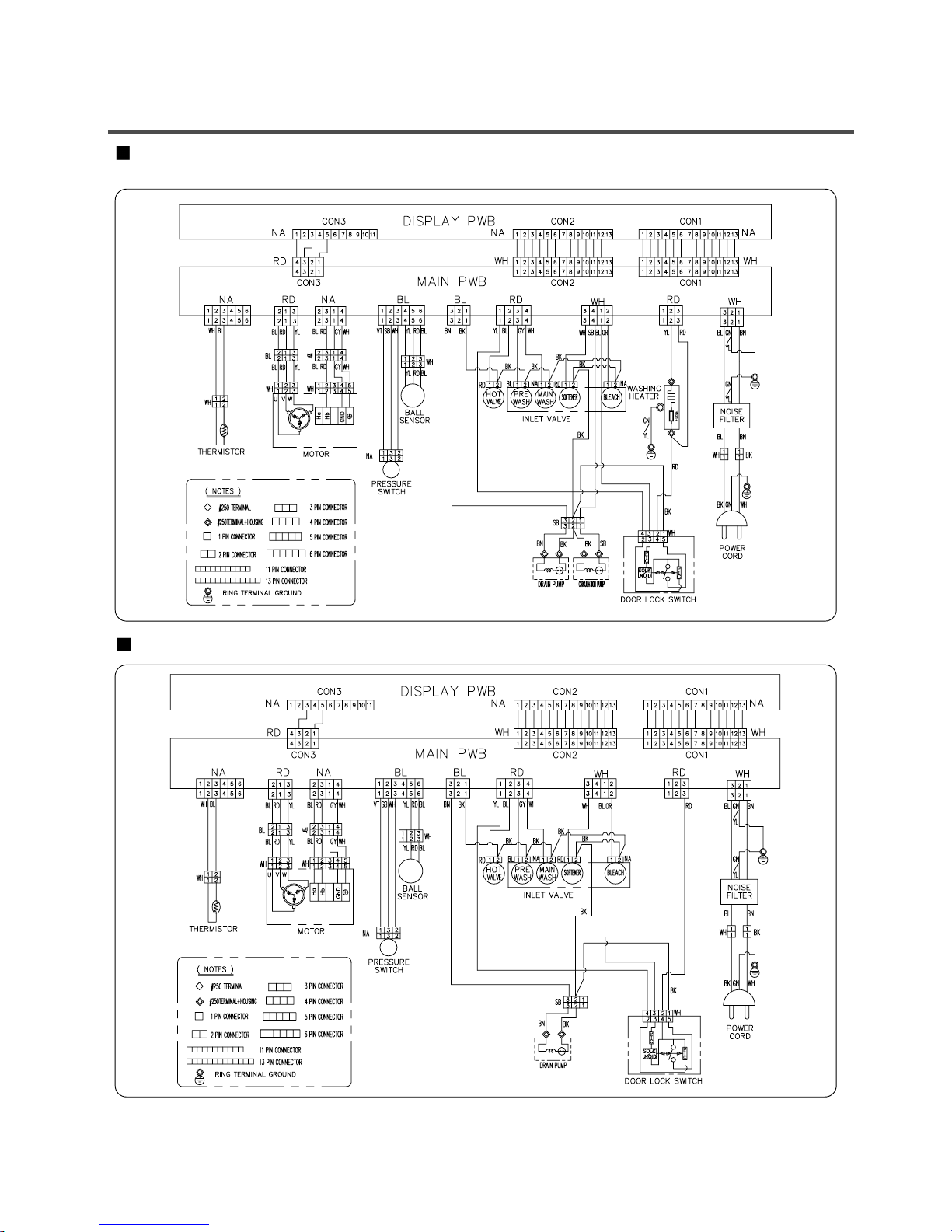

6. WIRING DIAGRAM / PROGRAM CHART...................................................................................15
7. TROU LESHOOTING.................................................................................................................19
7-1. EFORE PERFORMING SERVICE...................................................................................19
7-2. QC TEST MODE.................................................................................................................19
7-3. HOW TO CHECK THE WATER LEVEL FREQUENCY......................................................19
7-4. ERROR DISPLAY...............................................................................................................20
8. ERROR DIAGNOSIS AND CHECK LIST....................................................................................22
8-1. DIAGNOSIS AND SOLUTION FOR A NORMAL OPERATION ........................................22
8-2. FAULT DIAGNOSIS AND TROU LESHOOTING ..............................................................25
9. DISASSEM LY INSTRUCTIONS ...............................................................................................32
10. EXPLODED VIEW.....................................................................................................................40
10-1. CA INET & CONTROL PANEL ASSEM LY....................................................................40
10-2. DRUM & TU ASSEM LY................................................................................................41
10-3. DISPENSER ASSEM LY.................................................................................................42

3
ITEM WM2411HW WM2011HS / WM2011HW WM1811CW
WM24 2HW WM20 2HS / WM20 2HW WM18 2CW
WD-12210(5)BD WM05 2HW / WD-10210BD
POWER SUPPLY 120V ~ 60Hz
PRODUCT WEIGHT 190 lbs. (86 kg)
WASHING 280W 2 5W
DRAIN MOTOR 80W
WASH HEATER 1000W
-
WASH 42 rpm
SPIN 0-1200 rpm 0-1000 rpm 0-900 rpm
CYCLES 9 7 5
WASH / RINSE TEMPERATURES 6 5 4
SPIN SPEEDS 6 5 5
OPTIONS
Prewash, Stain Cycle, Quick Cycle, Extra Rinse, Rinse+Spin, Delay Wash
CUSTOM PROGRAM Incorporated
WATER CIRCULATION Incorporated
-
OPERATIONAL WATER PRESSURE 4.5
-
145 psi ( 0-1000 kPa)
CONTROL TYPE Electronic
WASH CAPACITY .22 cu.ft ( .72 cu.ft.IEC)
DIMENSIONS 27”(W) X 29
-
1/2”(D) X 42
-
/4”(H), 49
-
4/5”(D, door open)
DELAY WASH up to 19 hours up to 12 hours up to 9 hours
DOOR SWITCH TYPE PTC + Solenoid
WATER LEVEL 7 steps (by sensor)
LAUNDRY LOAD SENSING Incorporated
ERROR DIAGNOSIS Incorporated
AUTO POWER OFF Incorporated
CHILD LOCK Incorporated
RLM ENABLE
-
1. SPECIFICATIONS
ELECTRIC
POWER
CONSUMPTION
REVOLUTION
SPEED

4
ITEM WM2444H*M WM2442H*/WM0642H* WM2042CW
POWER SUPPLY 120V ~ 60Hz
PRODUCT WEIGHT 190 lbs (86 kg)
WASHING 280W 235W
DRAIN MOTOR 80W
WASH HEATER 1000W
-
WASH 42 rpm
SPIN 0-1200 rpm 0-1000 rpm
CYCLES 7 5
WASH / RINSE TEMPERATURES 6 4
SPIN SPEEDS 6 5
OPTIONS
Prewash, Stain Cycle, Quick Cycle, Extra Rinse, Rinse+Spin, Delay Wash
CUSTOM PROGRAM Incorporated
WATER CIRCULATION Incorporated
-
OPERATIONAL WATER PRESSURE 4 5
-
145 psi (30-1000 kPa)
CONTROL TYPE Electronic
WASH CAPACITY 3 32 cu ft (3 83 cu ft IEC)
DIMENSIONS 27”(W) X 29
-
1/2”(D) X 44”(H), 49
-
4/5”(D, door open)
DELAY WASH up to 12 hours up to 9 hours
DOOR SWITCH TYPE PTC + Solenoid
WATER LEVEL 10 steps (by sensor)
LAUNDRY LOAD SENSING Incorporated
ERROR DIAGNOSIS Incorporated
AUTO POWER OFF Incorporated
CHILD LOCK Incorporated
RLM ENABLE Incorporated
-
ELECTRIC
POWER
CONSUMPTION
REVOLUTION
SPEED
