PRODUCT FEATURES
2
CONTENTS
■
Ultra
Capacity
The
Larger
drum enables not
just higher
head
drop
and
stronger centrifugal
force,
but also
less
tangling
and
wrinkling
of the
laundry.
Heavier
loads,
such as
king
size
comforters,
blankets,
and
curtains,
can be washed.
■
Direct Drive
System
The advanced Brushless DC motor
directly
drives the drum without
belt and
pulley.
■
Tilted Drum and Extra
Large
Door
Opening
Tilted drum and extra
large opening
make it
possible
to load
and unload
clothing
more
easily.
■
Steam
Washing
and SteamFresh
TM
Steam
Washing
features
upgraded washing performance
with low
energy
and water
consumption.
SteamFresh
TM
cycle
removes wrinkles from
dry
clothes.
■
RollerJets
Washing
ball enhances the wash
performance
and reduces
damage
to the
clothing.
The
jets spray
and
help
tumble clothes to enhance
washing performance
while
maintaining
fabric care.
■
Automatic Wash Load Detection
Automatically
detects the load and
optimizes
the
washing
time.
■
Built-in Heater
Internal heater
helps
to maintain water
temperature
at its
optimum
level for selected
cycles.
■
Child Lock
The Child lock
prevents
children from
pressing any
button to
change
the
settings during
operation.
■
Using
the
RLM
(Remote
Laundry
Monitor)
The RLM monitors status of
your
washer and/or
dryer.
You can
plug
the
display
unit into
any
power
outlet in
your
home.
The RLM
Display
Unit can be
purchased separately
for this washer.
Important Safety
Information ................................................................................................... ........................................3
Specifications...................................................................................................................................................................4
Installation Instructions ....................................................................................................................................................5
Preparation
Before
Washing..........................................................................................................................................10
Using
the
Dispenser
......................................................................................................................................................11
Cycles
......................................................................................................................... ..................................................13
How to Use the Washer .................................................................................................................................................14
Maintenance ..................................................................................................................................................................17
Troubleshooting
Guide .......................................................................................................... ........................................20
Warranty
........................................................................................................................................................................23

IMPORTANT SAFETY INFORMATION
3
READ ALL
INSTRUCTIONS BEFORE USE
WARNING!
For
your safety,
the information
in
this manual must be followed to minimize the risk of fire or
explosion,
electric
shock,
or to
prevent property damage, personal injury,
or loss of life.
IMPORTANT SAFETY INSTRUCTIONS
?
Read all instructions before
using
the washer.
?
Do not wash articles that have been
previously
cleaned
in,
washed
in,
soaked
in,
or
spotted
with
gasoline, dry cleaning
solvents,
or other
flammable or
explosive
substances,
as
they give
off
vapors
that could
ignite
or
explode.
?
Do not add
gasoline, dry cleaning
solvents,
or
other flammable or
explosive
substances to the
wash water. These substances
give
off
vapors
that
could
ignite
or
explode.
?
Under certain
conditions,
hydrogen gas may
be
produced
in a hot water
system
that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water
system
has not been
used for such a
period,
before
using
the
washing
machine,
turn on all hot water faucets and let the
water flow from each for several minutes. This will
release
any
accumulated
hydrogen gas.
As the
gas
is
flammable,
do not smoke or use an
open
flame
during
this time.
?
Do not allow children to
play
on or in the washer.
Close
supervision
of children is
necessary
when
the washer is used near children.
?
Before the washer is removed from service or
discarded,
remove the door to
prevent
children
from
hiding
inside.
?
Do not install or store the washer where it will be
exposed
to the weather.
?
Do not
tamper
with controls.
?
Do not
repair
or
replace any part
of the washer or
attempt any servicing
unless
specifically
recommended in the user-maintenance
instructions or
published user-repair
instructions
that
you
understand and have the skills to
carry
out.
?
See Installation Instructions for
grounding
requirements.
?
ALWAYS follow the fabric care instructions
supplied by
the
garment
manufacturer.
?
Do not
place
items
exposed
to
cooking
oil in
your
washer. Items contaminated with
cooking
oils
may
contribute to a chemical reaction that could cause
a load to catch fire.
?
Do not use fabric softeners or
products
to
eliminate static unless recommended
by
the
manufacturer of the fabric softener or
product.
WARNING:
To reduce the risk of
fire,
electric
shock,
or
injury
to
persons
when
using
the
washer,
follow basic
precautions, including
the
following:
SAVE THESE INSTRUCTIONS
This
appliance
must be
grounded.
In the event of malfunction or
breakdown,
grounding
will reduce the risk
of electric shock
by providing
a
path
of least resistance for electric current. This
appliance
is
equipped
with
a cord
having
an
equipment-grounding
conductor and
grounding plug.
The
plug
must be
plugged
into an
appropriate
outlet that is
properly
installed and
grounded
in accordance with all local codes and ordinances.
?
Do not use an
adapter
or extension cord.
?
Do not remove
ground prong.
?
If
you
don't have the
proper
outlet,
consult an electrician.
GROUNDING INSTRUCTIONS
WARNING:
Improper
connection of the
equipment-grounding
conductor can result in risk of electric shock.
Check with a
qualified
electrician or serviceman if
you
are in doubt as to whether the
appliance
is
properly grounded.
Do not
modify
the
plug provided
with the
appliance
-
if it does not fit the
outlet,
have a
proper
outlet installed
by
a
qualified
electrician.

for
removing shipping
bolts
and
leveling
the washer
& Steam Nozzle
Drum
Light
Door Seal
SPECIFICATIONS
4
■
Accessories
■
Name:
Front-loading Washing
Machine
■
Power
supply:
120V~ 60Hz
■
Size: 68.6 cm
(W)
X
75.6 cm
(D)
X
98.3 cm
(H),
129.1 cm
(D
with
door
open)
27"(W)
X
29
3
/
4
"(D)
X
38
11
/
16
"(H),
50
13
/
16
"(D
with
door
open)
■
Weight:
192 lbs.
(87
kg)
■
Wash
capacity:
3.47 cu.
ft.
(IEC:
4.0 cu.
ft.)
1)
■
Spin speed:
1200
rpm
max.
■
Permissible water
pressure:
14.5
~
116 PSI
(100
~
800
kPa)
Specifications
subject
to
change by
manufacturer.
1)
Per IEC
60456,
washes the
equivalent
of a 4.0 cu.
ft.
agitator
washer.
Safety
Cover
(PLC Modem)

5
INSTALLATION INSTRUCTIONS
1. To
prevent
internal
damage during transport,
4
locking
bolts are installed. Before
operating
the
washer,
remove the bolts and braces.
?
If
they
are not
removed,
it
may
cause severe
vibration, noise,
and malfunction.
3. Take out the 4 bolts and braces
by twisting
the braces
slightly. Keep
the 4
bolts,
braces
and the wrench for future use.
?
Whenever the
appliance
is
transported,
the
shipping
bolts and braces must be reinstalled.
2. Unscrew the 4 bolts with the wrench
supplied.
Do first lower side to remove
easily.
One of the
bolts retains the
power
cord of the washer to
prevent operating
without
removing
bolts.
4. Close the holes with the
caps supplied.
The
appliance
is fitted with
shipping
bolts to
prevent
internal
damage during transportation.
Packing
and all
shipping
bolts must be removed
before
using
the washer.
When
unpacking
the
base,
be sure to remove
the additional
packing support
in the middle of
the base
packing.
: Two or more
people may
be need to install and move the
appliance.
■
Shipping
bolts
Install or store unit where it will not be
exposed
to
temperatures
below
freezing
or
exposed
to outside weather conditions.
Properly ground
washer to conform with all
governing
codes and ordinances.
To reduce the risk of electric
shock,
do not install the washer in humid
spaces.
The base
opening
must not be obstructed
by carpeting
when the
washing
machine is installed on a
carpeted
floor.
In countries where there are areas which
may
be
subject
to infestation
by
cockroaches or other
vermin,
pay
particular
attention to
keeping
the
appliance
and its
surroundings
in clean condition at all times.
Damage
caused
by
cockroaches or other vermin will not be covered
by
the
appliance warranty.
■
Removing shipping
bolts
Wrench
cap
ENGLISH
!
WARNING

INSTALLATION INSTRUCTIONS
6
■
Installation clearances
The location must be
large enough
to
fully open
the washer door.
■
Washer dimensions
?
Most installations
require
a minimum 4 in.
(10 cm)
clearance behind the washer.
■
Minimum installation
spacing
for
recessed area installation.
The
following
dimensions shown are for the minimum
spacing
allowed.
Additional
spacing
should be considered for
installation and
servicing.
?
Additional clearances
might
be
required
for
wall,
door and floor
moldings.
?
Additional
spacing
of 1 in.
(2.5 cm)
on all sides of
the washer is recommended to reduce noise
transfer.
Companion appliance spacing
should also be
considered.
■
Level floor
?
Allowable
slope
under entire washer is 1°.
?
To minimize noise and
vibration,
the washer
MUST be installed on a
solidly
constructed
floor.
?
Carpeting
and soft tile surfaces are not
recommended.
?
Never install the washer on a
platform
or
weakly
supported
structure.
NOTE: A
firm,
solid floor is even more critical to a
front-loading
washer than to a
top-loader.
If
your
floor is wood and/or frame
construction,
you may
need to reinforce it.
Front-loaders use
substantially
faster
spin
speeds
than
top-loaders, causing greater
vibration. If the floor is not
solid,
your washer
will vibrate. You will hear and feel the
vibration
throughout your
house.
■
Power outlet
?
Must be within 60 in.
(1.5 m)
of either side of the
washer. Do not overload the outlet with more
than one
appliance.
?
Time-delay
fuse or circuit breaker is recommended.
NOTE: It is the
personal responsibility
and
obligation
of the customer to have a
proper
outlet
installed
by
a
qualified
electrician.
[Front view]
[Side view]

INSTALLATION INSTRUCTIONS
ENGLISH
7
?
Water
supply pressure
must be between
14.5 and 116 PSI
(100~800 kPa).
?
Do not crossthread when
connecting
inlet hose to
the valve.
?
If the water
supply pressure
is more than 116
PSI,
a
pressure reducing
device should be installed.
?
Two
Sealing
washers are
supplied
with the water
inlet hoses to
prevent
water leaks.
?
Check for
leakage
of
washing
machine connections
by turning
the
tap completely
on.
?
Periodically
check the condition of the hose and
replace
the hose if
necessary.
?
Make sure that there is no kink in the hose and that
it is not crushed.
?
Be sure that the two water
input ports
are connected
to the correct water faucets. The connector for hot
water is colored red.
■
Connecting
water
supply
hose
NOTE:
Washing
Machine is to be connected to the water mains
using
new hoses.
Old hoses should not be used.
■
Electrical connection
?
Do not use an extension cord or double
adapter.
?
If the
supply
cord is
damaged,
it must be
replaced by
a
qualified person
in order to avoid a hazard.
?
If the machine will not be used for an extended
time,
unplug
it and shut off the water
supply.
?
Connect the machine to a
grounded
outlet in accordance with current
wiring regulations.
?
The
appliance
must be
positioned
so that the
plug
is
easily
accessible.
Repairs
to the
washing
machine must
only
be carried out
by qualified personnel. Repairs
carried out
by
inexperienced persons may
cause
injury
or serious
malfunctioning.
Contact
your
local service center.
Do not install
your washing
machine in a room where
temperatures
below
freezing may
occur.
Frozen hoses
may
burst under
pressure.
The
reliability
of the electronic control unit
may
be
impaired
at
temperatures
below the
freezing point.
If the
appliance
is delivered in the winter months and
temperatures
are below
freezing,
store the
washing
machine at room
temperature
for a few hours before
putting
it into
operation.
!
CAUTION!
Concerning
the Power Cord
Most
appliances
recommend
they
be
placed upon
a dedicated
circuit;
that
is,
a
single
outlet circuit which
powers only
that
appliance
and has no additional outlets or branch circuits. Check the
specification page
of this owner's manual to be
certain.
Do not overload wall outlets. Overloaded wall
outlets,
loose or
damaged
wall
outlets,
extension
cords,
frayed power
cords,
or
damaged
or cracked wire insulation are
dangerous. Any
of these conditions could result in electric shock or fire.
Periodically
examine the cord of
your appliance,
and if its
appearance
indicates
damage
or
deterioration,
unplug
it,
discontinue use of the
appliance,
and have the cord
replaced
with an exact
replacement part by
an authorized servicer.
Protect the
power
cord from
physical
or mechanical
abuse,
such as
being
twisted, kinked,
pinched,
closed in a
door,
or
walked
upon. Pay particular
attention to
plugs,
wall
outlets,
and the
point
where the cord exits the
appliance.

INSTALLATION INSTRUCTIONS
8
■
Installation of drain hose
?
The drain hose should not be
placed higher
than
96 in. from the bottom of the washer.
?
Properly securing
the drain hose will
protect
the
floor from
damage
due to water
leakage.
?
Place the end of the drain hose in the hole of the
floor drain
system.
?
When
installing
the drain hose at a
sink,
secure it
so it cannot break
away
and cause
flooding
and
damage.
?
Properly securing
the drain hose will
protect
the
floor from
damage
due to water
leakage.
This
equipment
is not
designed
for maritime use or for mobile installations such as in
RV's, aircraft,
etc.
Turn off the faucet if the machine is to be left for an extended
period
of time
(e.g. holiday).
When
disposing
of the
appliance,
cut off the
power
cable,
and
destroy
the
plug.
Disable the door lock to
prevent young
children
being trapped
inside.
Packaging
material
(e.g.
Films,
Styrofoam)
can be
dangerous
for children. There is a risk of suffocation!
Keep
all
packaging
from children.

INSTALLATION INSTRUCTIONS
ENGLISH
9
■
Level
adjustment
?
Leveling
the
washing
machine
properly prevents
excessive noise and vibration.
Install the
appliance
on a solid and level floor
surface,
preferably
in a corner of the room.
?
If the floor is
uneven,
adjust
the
adjustable
feet as
required. (Do
not insert
pieces
of
wood,
etc. under the
feet.)
NOTE: Extend the feet no more than
necessary
to level
the washer. The more the feet are
extended,
the
more the washer will vibrate.
?
Make sure that all four feet are stable and
resting
on
the floor and then check that the
appliance
is
perfectly
level
(Use
a
level).
?
After the washer is
level,
tighten
the lock nuts
up
against
of the base of the washer. All lock nuts must
be
tightened.
?
It is critical to
adjust
the feet
perfectly.
This must be
done while the washer is
spinning
with a load. Use the
wrench
(supplied)
to
adjust
the feet until there is no
vibration. Then
tighten
the lock nuts to
prevent
further
adjustment.
NOTE: If there are vibration and noise
during
the
spin
cycle,
re-check the
leveling
of the
washer,
adjust
the feet as
required,
and
tighten
the lock nuts
securely
to
prevent changes
in
adjustment.
Run the washer with a test load to make certain
your
washer is
properly
leveled. Put
approximately
6
pounds
of
laundry
in the
machine.
Then,
press
POWER, RINSE+SPIN,
and
START/PAUSE,
in that order. When the machine
spins
at
high speed, verify
that it is stable. If
not,
adjust
the feet
accordingly.
?
If
you
install the washer and
dryer
with
pedestals,
it is
necessary
to level with the
pedestal
feet.
Diagonal
Check
When
pushing
down the
edges of
the
washing
machine
top plate diagonally,
the machine should not move
up
and down at all.
(Please,
check both
directions.)
If
the machine rocks when
pushing
the machine
top plate
diagonally, adjust
the
feet again.
Tighten
Tighten

PREPARATION BEFORE WASHING
10
1.
Fabric Care Labels
Look for a care label on
your
clothes. This will tell
you
about the fabric content of
your garment
and how it should
be washed.
2.
Sorting
To
get
the best
results,
sort clothes into loads that can be washed with the same wash
cycle.
Different fabrics need to be washed in different
ways.
Always
sort dark colors from
pale
colors and whites. Wash
separately
as
dye
and lint transfer can occur
causing
discoloration of white
clothing.
If
possible,
do not wash
heavily
soiled items with
lightly
soiled ones.
Soil
(Heavy,
Normal,
Light) Separate
clothes
according
to amount of soil.
Color
(White,
Lights,
Darks)
Separate
white fabrics from colored fabrics.
Lint
(Lint Producers, Collectors)
Wash lint
producers
and lint collectors
separately.
3. Check before
loading
Combine
large
and small items in a load. Load
large
items first.
Large
items should not be more than half the total wash load.
Do not wash
single
items. This
may
cause an out-of-balance load. Add one or two similar items.
Single bulky
items,
such as
blanket, comforter,
or
bedspread
can be washed
separately.
?
Check all the
pockets
to make sure that
they
are
empty. Things
such as
clip,
matches,
pens,
coins,
and
keys
can
damage
both
your
washer
and
your
clothes.
?
Close
zippers,
hooks,
and
strings
to make sure
that these items do not
snag
on other clothes.
?
Pretreat dirt and stains
by brushing
a little
detergent
dissolved in water onto stains like
collars and cuffs to
help
lift dirt.
WARNING
To reduce the risk of
fire,
electric
shock,
or
injury
to
persons,
read the IMPORTANT SAFETY
INSTRUCTIONS before
operating
this
appliance.
NOTE: Do not wash or
spin water-proof
clothes.
The washer can be
fully
loaded,
but the drum should not be
tightly packed
with items. The door of
the washer should close
easily.
When
unloading
items,
check under the door seal for small items.

USING
THE
DISPENSER
11
The automatic
dispenser
consists of four
compartments
which hold
1)
liquid
chlorine
bleach,
2)
liquid
fabric
softener,
3)
liquid
or
powdered detergent
for
prewash
and
4)
liquid
or
powdered detergent
and color safe bleach for main wash.
All
laundry products
can be added at once in their
respective dispenser compartments.
They
will be
dispensed
at the
appropriate
time for most effective
cleaning.
After
loading
the
laundry
additives into the
dispenser,
close the
dispenser
drawer.
Add
detergent,
bleach and fabric softener to the automatic
dispenser following
these
steps:
1.
Open
the
dispenser
drawer.
2. Load the
laundry products
into the
appropriate compartments.
3. Close the
dispenser
drawer
slowly
to avoid
early dispensing
of the
laundry products.
NOTE: It is normal for small amounts of water to remain in the
dispenser compartments
at the end of the
cycle.
■
About
detergent
?
Add
detergent
to this
compartment
when
using
the Prewash
option. Liquid
or
powdered
detergent may
be used in this
compartment.
The
detergent
will
automatically
be
dispensed during
Prewash if the Prewash
option
is selected.
?
Add 1/2 the recommended amount of
detergent
to the Prewash
compartment
and the
recommended amount of
detergent
to the main
wash
compartment.
NOTE :
Liquid detergent
will drain into the washer
drum as it is added.
1.
Prewash
Detergent
Compartment
Liquid
Chlorine
Bleach
Compartment
Liquid
Fabric
Softener
Compartment
Prewash
Compartment
Main Wash
Compartment
Your LG TROMM washer is
designed
to use
only High Efficiency (HE) detergents.
HE
detergents
are formulated
specifically
for front load washers and contain suds
reducing components.
HE
detergents
make less
suds,
improve washing
and
rinsing performance,
and
help
to
keep
the interior
of
your
LG TROMM washer clean.
If a
regular detergent
is
used,
it
may
cause
oversudsing
and
unsatisfactory performance.
For the best
washing
and
rinsing performance, low-sudsing
HE
detergents
are
strongly
recommended.
Designed specially
to use
only
HE
(High Efficiency) detergent

USING
THE
DISPENSER
12
?
Add measured
detergent
to this
compartment
for
Main wash.
Detergent
is flushed from the
dispenser
at the
beginning
of the
cycle.
Either
powdered
or
liquid detergent
can be used.
?
Liquid
or
powdered
color-safe bleach
may
be
added to the main wash
compartment along
with
the same
type
of
liquid
or
powdered detergent.
?
When
using liquid detergent,
make sure the
liquid
detergent
box and insert are in
place.
Do not
exceed the maximum fill line.
?
For
powered detergent,
remove both the
liquid
detergent
box and insert.
?
Powdered
detergent
will not
dispense
with the
liquid detergent
box and insert in
place.
2.
Main Wash
Detergent
Compartment
?
Add measured
liquid
chlorine bleach to this
compartment.
The bleach will be
automatically
dispensed
at the
proper
time
during
the wash
cycle.
?
Do not exceed the maximum fill line.
Overfilling
can
cause
early dispensing
of the bleach which could
result in
damaged
clothes.
?
Do not
pour
undiluted
liquid
chlorine bleach
directly
onto the load or into the drum. Fabric
damage
can
occur.
?
Do not use
powdered
bleach in this
compartment.
3.
Liquid
Bleach
Compartment
?
Add recommended amount of fabric softener to
this
compartment.
?
Dilute concentrated softeners with warm water to
the fill line.
?
Do not exceed the maximum fill line.
Overfilling
can
cause
early dispensing
of the fabric softener which
could result in stained clothes.
?
Do not
pour
fabric softener
directly
on the wash
load.
?
The fabric softener will be
automatically dispensed
during
the last rinse
cycle.
NOTE: Do not
place,
store,
or
spill laundry products
(soap, detergent,
bleach, softener, etc.)
on the
top
of
your
washer or
dryer.
These
products
can
damage
the finish or controls if left there
too
long.
4.
Fabric Softener
Compartment
Liquid Detergent
Box
Insert
Designed specially
to use
only
HE
(High Efficiency) detergent

CYCLES
ENGLISH
13
NOTE: To
protect your garments,
not
every
Wash/Rinse
temperature, spin speed,
soil level or
option
is available with
every cycle.
■

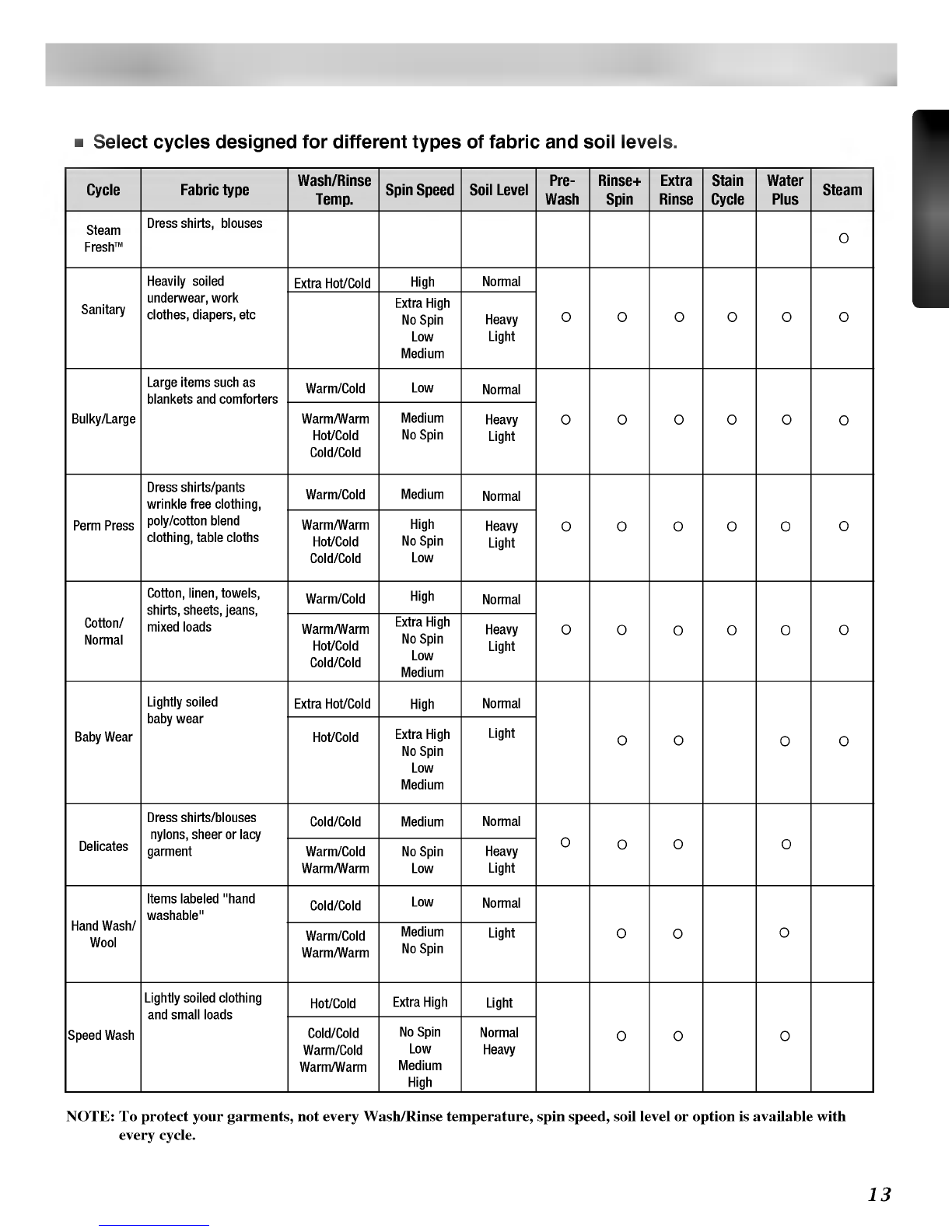

Select
cycles designed
for different
types
of fabric and soil levels.
Cycle
Steam
Fresh
TM
Dress
shirts,
blouses
Heavily
soiled
underwear,
work
clothes,
diapers,
etc
Extra Hot/Cold
High
Extra
High
No
Spin
Low
Medium
Normal
Heavy
Light
O
OO
O
O
O
OO O
OO
O
O
O
OO
O
OO
O
O
O
O
O
O
O
O
O
O OO O O
OOO
O
O
O
Normal
Heavy
Light
Normal
Heavy
Light
Normal
Heavy
Light
Normal
Light
Normal
Light
Normal
Heavy
Light
Low
Medium
No
Spin
Medium
High
No
Spin
Low
High
Extra
High
No
Spin
Low
Medium
Medium
No
Spin
Low
Low
Medium
No
Spin
High
Extra
High
No
Spin
Low
Medium
Warm/Cold
Warm/Warm
Hot/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Hot/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Hot/Cold
Cold/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Cold/Cold
Warm/Cold
Warm/Warm
Extra Hot/Cold
Hot/Cold
Large
items such as
blankets and comforters
Dress
shirts/pants
wrinkle free
clothing,
poly/cotton
blend
clothing,
table cloths
Cotton, linen, towels,
shirts, sheets,
jeans,
mixed loads
Dress shirts/blouses
nylons,
sheer or
lacy
garment
Items labeled "hand
washable"
Lightly
soiled
baby
wear
Sanitary
Bulky/Large
Perm Press
Cotton/
Normal
Delicates
Hand Wash/
Wool
Baby
Wear
Fabric
type
Wash/Rinse
Temp.
Spin Speed
Soil Level
Pre-
Wash
Rinse+
Spin
Water
Plus
Stain
Cycle
Steam
Extra
Rinse
Light
Normal
Heavy
Extra
High
No
Spin
Low
Medium
High
Hot/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Lightly
soiled
clothing
and small loads
Speed
Wash

HOW TO USE
THE
WASHER
14
?
Rotate the
Cycle
selector knob to select
cycle
designed
for different
types
of fabric and soil
levels.
?
Each
cycle
has a
preset
Water
Temperature, Spin
Speed,
Soil
Level,
and
Option (See page 13).
?
The
preset settings
can be
changed anytime
before Start.
NOTE: This front load washer
requires longer cycle
time
and
gets
clothes much
cleaner,
yet
is more
gentle
on the
fabrics,
than
top
load washers.
Washing
time can be reduced
significantly
for small loads
or
lightly
soiled loads
by selecting Speed
Wash
cycle
and
setting
the Soil Level button at
Light.
NOTE:
-
If
you
do not
press
the
Start/Pause
button within 4
minutes of
selecting
a
cycle,
the washer
automatically
turns off.
2.
Cycles
?
Use this button to turn the Power On/Off.
1.
Power
?
Use this button to
start/stop
the washer.
3. Start/Pause
Steam Wash
?
For
tough
stained
clothes, underwear,
or
baby
clothes.
?
Steam Wash is available with
Sanitary,
Bulky/Large,
Perm.
Press, Cotton/Normal,
and
Baby
Wear
cycles.
?
This
option
features
upgraded washing
performance
with low energy and water
consumption.
?
Do not load delicates such as
wool, silk,
and
easily
discolored clothes.
NOTE:
-
Steam wash is a
highly
concentrated and efficient.
It
may
seem there is no water inside the
drum,
but this
is normal.
-
Steam
spray may
not be seen
clearly through
the
door;
however,
the washer is
spraying
steam
strongly
inside.
-
During
the steam
operation,
a
spraying
sound will be
heard. This is not a malfunction.
CAUTION:
Do not reach into the washer while
operating.
Steam
can cause severe burns.
5. Steam
?
Allows the start of
any cycle
to be
delayed
for
1~19 hours.
?
Choose the wash
cycle
for
your
load,
and then
press
the
Delay
button once for one hour or
press
the button
again
to increase the
delay
wash time
up
to 19 hours in one hour
increments,
and then
press
the Start/Pause button.
4.
Delay
!

HOW TO USE
THE
WASHER
ENGLISH
15
SteamFresh
TM
cycle
?
For
slightly
wrinkled clothes which have been stored
for an extended time. It makes wrinkled clothes
easier to iron
(Do
not load wet
clothes).
?
Wrinkles and odors will be reduced.
?
To use the SteamFresh
TM
cycle
:
1. Turn on the washer and select the SteamFresh
TM
cycle.
2. Load 5 items or less and close the door.
NOTE:
Wipe
the water off the drum.
3. Press the Steam button
repeatedly
until the
correct number of items is
displayed.
4. Press the Start/Pause button.
?
After the SteamFresh
TM
cycle
is
complete,
the drum
will tumble for 30 minutes to
prevent re-wrinkling.
Press
any
button to unload the items. The Remote
Laundry
Monitor
(RLM)
will
display
"End" for 2
minutes and then will
display
"---"
for 28 minutes.
?
After the SteamFresh
TM
cycle
is
complete, open
the
door and allow it to cool down for best results.
Precautionary
Notes:
-
The SteamFresh
TM
cycle
is not like other
washing
or
drying cycles.
-
Due to the characteristics of cotton
fibers,
this
cycle
is
not recommended for 100% cotton
clothing.
-
Remove stains from
clothing
before
using
the
SteamFresh
TM
cycle
to
prevent permanently setting
the
stains
by high
heat.
-
Be sure the faucet is
open.
This
cycle
uses a little water
to
produce
steam.
-
Be careful not to touch the door. It can be
very
hot.
-
Do not load the
following
items:
Wool, blankets,
leather
jackets,
silk,
wet
clothes,
lingerie,
foam
products,
or electric blankets.
-
After
removing
clothes from the SteamFresh
TM
cycle
they may
feel
slightly damp.
Wait at least 10 minutes
before
putting
the clothes on.
-
Best results are achieved when articles are of similar
size and fabric
type.
Do not overload.
CAUTION:
-
Do not reach into the washer while
operating.
Steam
can cause severe burns.
-
Keep pets away
from the washer.
?
Press
repeatedly
to
adjust
the volume of the
Beeper.
9.
Beeper
?
Select a water
temperature
based on the
type
of
load
you
are
washing.
?
Follow the fabric care label and chart below for
best results.
?
Warm rinses leave the loads
dryer
than cold
rinses. Warm rinses increase
wrinkling.
?
In cold
climates,
a warm rinse makes the load
more comfortable to handle.
?
Cold rinses save
energy.
?
The Cold rinse
temperatures depend
on the cold
water at
your
faucet.
?
This washer
automatically adjusts
the water level
for the
type
and size of wash load for best results.
It
may
seem there is no water inside the drum in
some
cycles,
but this is normal.
6. Wash/Rinse
Temperature
?
To
change
the
spin speed, press
the
Spin Speed
button
repeatedly
to
cycle through
available
options.
?
To start
Drain/Spin cycle:
1. Press Power button to turn on.
2. Press
Spin Speed
button
only.
3. Press Start/Pause button.
7.
Spin speed (Drain/Spin
cycle)
?
To
change
the soil
level,
press
the Soil Level
button
repeatedly
until the desired
setting
is on.
8. Soil Level
Suggested
Wash
Temp.
Garment
Kitchen
towels, sheets,
and
baby garments
Whites and
Heavy
soiled color-fast items
Most loads
Brightly
colored
items,
washable woolens
Extra Hot
Hot
Warm
Cold
!

HOW TO USE
THE
WASHER
OPTION
CHILD LOCK
DOOR LOCKED
16
?
Use this
option
for loads that need
pretreatment.
Adds
16 minutes
prewash
and a
spin cycle.
1.
Prewash
?
Displays
whenever the door of the washer is locked.
?
The door can be unlocked
by pressing
the
Start/Pause button to
stop
the washer.
NOTE: If the water
temperature
or the level is too
high,
the
door cannot be unlocked.
Do not
try
to force the door
open
when
is
displayed.
STATUS INDICATOR
?
It shows
elapsed
time of the
cycle
the washer is
operating.
EST. TIME REMAINING
?
This
display
shows the estimated time
remaining
in the
cycle
when
operating.
?
This washer
automatically
detects the wash load
(weight)
and
optimizes
the
washing
time. After
detecting,
the
display
will show the
adjusted
time
remaining.
?
Use this
option
to
prevent
unwanted use of the washer.
Press and hold PRE WASH button for 3 seconds to
lock/unlock control.
?
When Child lock is
set,
"
"
blinks and all buttons are
disabled
except
the Power button. You can lock the
washer while it is
operating.
?
Adds more time to the wash and rinse
cycles
for better
stain removal.
?
Automatically provides
a rinse.
4.
Stain
cycle
?
Adds extra water to the wash and rinse
cycles
for
superior
results.
5. Water Plus
?
The Drum
Light
comes on when the Power button is
pressed.
It
goes
off when the door is closed and the
washer starts
operation.
?
The Drum
Light
remains off when the door is locked.
?
The Drum
Light
can be turned on while the washer is in
operation by pressing
the
Rinse+Spin
button for 3
seconds. The
light
will turn off
automatically
4 minutes
later.
?
The Drum
Light
comes on when the
washing cycle
is
finished and
goes
off 4 minutes later.
6. Drum
Light
?
SPINSENSE
TM
'
can be used when there is a vibration
problem, especially
on wood floor installations.
?
To
operate
SPINSENSE
TM
',
press
and hold the Stain
Cycle
button for 3 seconds when the
washing
machine
is
running
on
any cycle.
?
When SPINSENSE
TM
'
has been
selected,
the
Spin
Speed
button
light
will blink on and off
continually
to
indicate that the SPINSENSE
TM
'
function has been
selected.
?
Push and hold the Stain
Cycle
button
again
for 3
seconds to cancel SPINSENSE
TM
.
?
Once SPINSENSE
TM
'
has been
selected,
if will continue
to function even if
interrupted by
a
power
failure.
7.
SPINSENSE
TM
?
This
option provides
an additional rinse.
?
Use this
option
to ensure the removal of
detergent
or
bleach residue from
garments.
3. Extra Rinse
?
Use this
option
to rinse and then
spin.
2.
Rinse+Spin

ENGLISH
17
MAINTENANCE
2
3
1
■
The water inlet filter
?"
"
error
message
will blink on the control
panel
when water does not enter the
dispenser.
?
If
your
water is
very
hard or contains traces of lime
deposit,
the water inlet filter
may
become
clogged.
We recommend
cleaning
it
every
few months.
Before
cleaning
the washer
interior,
unplug
the electrical
power
cord to avoid electrical shock hazards.
When
disposing
of the
appliance,
cut off the
power
cable,
destroy
the
plug,
and disable the door lock to
prevent
young
children from
being trapped
inside.
1. Turn off the
water
tap.
2. Unscrew
the water
inlet hose.
3. Clean the
filter
using
a hard
bristle
brush.
4.
Tighten
the inlet
hose.
1.
Open
the lower cover
cap ( ).
Turn the drain
plug ( )
to
pull
out the hose.
2.
Unplug
the drain
plug
,
allowing
the water to flow out.
At this time use a vessel to
prevent
water from
flowing
onto the floor. When water does
not flow
any
more,
turn the
pump
filter
open
to the left.
3. Remove
any foreign objects
from
the
pump
filter
.
After
cleaning,
turn the
pump
filter clockwise
and insert the drain
plug
to the
original place.
Close the lower
cover
cap .
■
The drain
pump
filter
?
The drain filter collects threads and small
objects
left in the
laundry.
Check
regularly
that the filter is clean to ensure smooth
running
of
your
machine.
?
Allow the water to cool down before
cleaning
the drain
pump
filter.
CAUTION
Drain,
using
the drain
hose,
before
opening
the
pump
filter to remove
objects.
Be careful when
draining
if
the water is hot.

18
MAINTENANCE
■
Cleaning
the
Dispenser
?
The
dispenser may
need to be cleaned
periodically
due to
laundry
additive
build-up.
?
Run warm water and use a soft brush or cloth on the
drawer,
liquid detergent
box and inserts to remove
any
excess
laundry
additives.
?
Clean the drawer
opening using
water and a small brush.
?
Follow the illustrations in reverse order to
replace
the
parts
to their
proper
location.
NOTE: Do not use
any cleaning
substance on the drawer
opening
other than water because it will drain into the tub.
If this should
happen,
set the washer for a rinse and
spin cycle
to remove
any cleaning
substance from the
washer before
doing
a load of
laundry.
■
The
washing
drum
?
Remove items from the washer as soon as the
cycle
is
completed. Wrinkling,
color
transfer,
and odors
may
be
produced
in items left in the
washing
drum.
?
If
you
live in a hard water
area,
lime scale can
continuously
build
up
in
places
where it cannot be seen
and it is not
easily
removed from the drum.
Over time the
build-up
of scale
clogs appliances,
and if it is not
kept
in
check,
these will
eventually
have to be
replaced.
?
Although
the
washing
drum is made of Stainless
steel,
specks
of rust can be caused
by
small metal articles
(paper clips, safety pins, etc.)
which have been left in the drum.
?
The
washing
drum should be cleaned from time to time.
?
If
you
use
descaling agents, dyes,
or
bleaches,
make sure
they
are suitable for
washing
machine use.
?
Descaler could contain
components
that can
damage part
of
your washing
machine.
?
Remove the
spots
with a stainless steel
cleaning agent.
?
Never use steel wool.
1
SOFTENER
MAX
Pull the
dispenser
drawer out until it
stops.
2
Press down the lock tab
on the bleach insert.
Remove the drawer.
3
Remove the
liquid detergent
box,
softener and bleach
inserts from their
compartments.
SOFTENER
MAX

ENGLISH
19
MAINTENANCE
■
The water circulation & steam nozzle
?
Clean the
nozzle,
if
clogged.
■
Cleaning your
washer
1.
Exterior
Proper
care of
your
washer can extend its life.
The outside of the machine can be cleaned with warm water and a
neutral,
non-abrasive
household
detergent.
Immediately wipe
off
any spills
with a
damp
cloth.
Try
not to
damage
the surface with
sharp objects.
IMPORTANT: Do not use
methylated spirit,
solvents or similar
products.
2.
Interior
Dry
around the washer door
opening,
door seal and door
glass.
These areas should
always
be clean to ensure
a
water-tight
seal.
TUB CLEAN is a
special cycle
for
cleaning
the inside of the washer. This
cycle
uses
higher
water level with
higher spin speed.
Perform this
cycle regularly.
?
To start the TUB CLEAN
cycle:
1. Remove
any clothing
or items from the washer and close the door.
2.
Open
the
dispenser
drawer and add
liquid
chlorine bleach to the bleach
compartment.
NOTE: Do not add
any detergent
to the
detergent compartments.
Excessive suds
may
be
produced
and leak
from the washer.
3. Close the
dispenser
drawer
slowly.
4. Power On and then
press
the Extra Rinse button for 3 seconds.
(Prewash option
will be
selected.)
5. Press the Start/Pause button to start.
6. After the
cycle
is
complete,
leave the door
open
to
dry
around the washer door
opening,
door seal and
door
glass.
CAUTION: If there are small children in the
house,
care must be taken so that
they
can not climb into or
play
inside the washer while it is
open
for
drying.
NOTE: Remove hard water
deposits using only
cleaners labeled as safe for
washing
machines.
■
Winterizing
instructions
If the washer is stored in an area where
freezing
can occur or moved in
freezing temperatures,
follow these
winterizing
instructions to
prevent damage
to the washer:
1. Turn off water
supply tap.
2. Disconnect hoses from water
supply
and drain water from hoses.
3.
Plug
electrical cord into a
properly grounded
electrical outlet.
4. Add 1
gallon (3.8 )
nontoxic recreational vehicle
(RV)
antifreeze to
empty
wash drum. Close door.
5. Set
spin cycle
and let washer
spin
for 1 minute to drain out all the water.
Not all of the RV antifreeze will be
expelled.
6.
Unplug
electrical
power
cord,
dry
drum
interior,
and close door.
7. Remove the
two-compartment
container from the
Dispenser.
Drain
any
water in
compartments
and
dry
the
compartments.
8. Store washer in an
upright position.
9. To remove antifreeze from washer after
storage,
run
empty
washer
through
a
complete cycle using detergent.
Do not add
laundry.
!

20
TROUBLESHOOTING GUIDE
This
washing
machine is
equipped
with automatic
safety
functions which detect and
diagnose problems
at an
early stage
and react
appropriately.
When the machine does not function
properly
or does not function at
all,
check the
following points
before
you
call the Service
Department.
Rattling
and
clanking
noise
Thumping
sound
Vibrating
noise
Water leaks
Excessive suds
Water does not enter
washer or it enters
slowly
?
Foreign objects
such as coins
or
safety pins may
be in drum
or
pump.
?
Heavy
wash loads
may
produce
a
thumping
sound.
This is normal.
?
Have all the transit bolts and
packing
been removed?
?
Wash load
may
be
unevenly
distributed in the drum.
?
Are all the feet
resting firmly
on the
ground?
?
Fill hose connection is loose at
tap
or washer.
?
House drain
pipes
are
clogged.
?
Too much
detergent
or
unsuitable
detergent.
?
Water
supply
is not
adequate
in area.
?
Water
supply tap
is not
completely open.
?
Water inlet hose is bent.
?
The filter of the inlet hose
clogged.
Stop
washer and check drum and drain
filter.
If noise continues after washer is
restarted,
call for service.
If sound
continues,
washer is
probably
out
of balance.
Stop
and redistribute wash
load.
See Installation Instructions for
removing
shipping
bolts.
Stop
washer and
rearrange
wash load.
Adjust
the
leveling
feet.
Make sure all four feet are in firm contact
with the
floor,
while the washer is in the
spin cycle
with a load.
Check and
tighten
hose connections.
Unclog
drain
pipe.
Contact
plumber
if
necessary.
Reduce
detergent
amount or use low
sudsing detergent.
Check another
tap
in the house.
Fully open tap.
Straighten
hose.
Check the filter of the inlet hose.
Problem Possible Cause Solution
Designed specially
to use
only
HE
(High Efficiency) detergent
