LG WM3001HRA Installation guide

LG TRAINING MANUAL
Spring 2009 Washer Training
LG TRAINING MANUAL
WM3001HRA

TRAINING MANUAL WM3001H*A
WM3001H*A Page 1 Washer
IMPORTANT SAFETY NOTICE
The information in this training manual is intended for use by persons possessing an adequate background
in electrical equipment, electronic devices, and mechanical systems. In any attempt to repair a major
appliance, personal injury and property damage can result. The manufacturer or seller maintains no liability
for the interpretation of this information, nor can it assume any liability in conjunction with its use. When
servicing this product, under no circumstances should the original design be modified or altered without
permission from LG Electronics. Unauthorized modifications will not only void the warranty, but may lead
to property damage or user injury. If wires, screws, clips, straps, nuts, or washers used to complete a
ground path are removed for service, they must be returned to their original positions and properly
fastened.
CAUTION
To avoid personal injury, disconnect the power before servicing this product. If electrical power is required
for diagnosis or test purposes, disconnect the power immediately after performing the necessary checks.
Also be aware that many household appliances present a weight hazard. At least two people should be
involved in the installation or servicing of such devices. Failure to consider the weight of an appliance could
result in physical injury.
ESD NOTICE
Some of the electronic components in appliances are electrostatic discharge (ESD) sensitive. ESD can
weaken or damage the electronics in these appliances in a manner that renders them inoperative or
reduces the time until their next failure. Connect an ESD wrist strap to a ground connection point or
unpainted metal in the appliance. Alternatively, you can touch your finger repeatedly to a ground
connection point or unpainted metal in the appliance. Before removing a replacement part from its package,
touch the anti-static bag to a ground connection point or unpainted metal in the appliance. Handle the
electronic control assembly by its edges only. When repackaging a failed electronic control assembly in an
anti-static bag, observe these same precautions.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy, and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures: Reorient or
relocate the receiving antenna; Increase the separation between the equipment and the receiver; Connect
the equipment to an outlet on a different circuit than that to which the receiver is connected; or consult
the dealer or an experienced radio/TV technician for help.
DISCLAIMER
The information in this training manual was accurate at the time of publication. Every effort has been made
to ensure accuracy. Updates, changes, etc. are available via GCSC and LGCSacademy. The information in
this manual is intended for persons with adequate backgrounds in electronics, mechanical, and electronic
servicing. The manufacturer and seller are not to be held responsible for any liability incurred from its use.
COMPLIANCE
The responsible party for this device’s compliance is LG Electronics Alabama, Inc.; 201 James Record Road,
Huntsville, AL, 35813.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 2 Washer
WM3001H*A
SAFETY NOTICES (The Small Print Page) 1
Contents 2
Specifications 4
Warranty 5
Features 6
Controls 7
Fuzzy Logic 8
Door Lock 8
Child Lock, Steam, and Drum Light 9
Load Sensing Function 10
Water Circulation and Steam 12

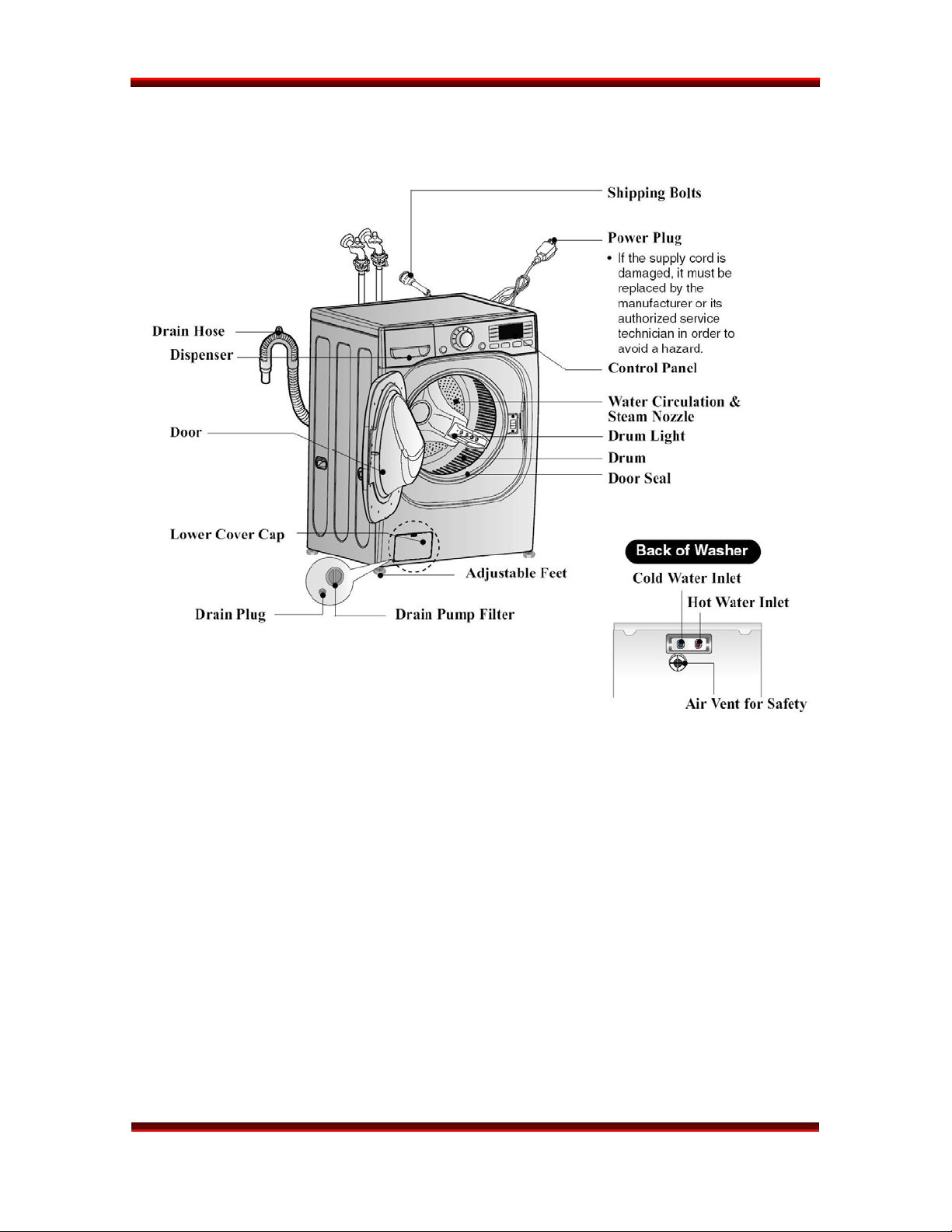

Parts Identification 13
Accessories 14
Shipping Bolts 15
Connections (Water, Drain, Electricity) 16
Pedestal Kit (Old Style) 17
Pedestal Kit (New Style) 19
Control Panel 21
Program Chart 22
Warnings! Before Performing Service . . . 23
Display 23
Cycle and Option Chart 24
Cycle and Option Information 25
Water Temperature Control 32
Detergent (and other Laundry product) Dispenser 34
The Rule of TWOs 36
Direct Drive Motor 37
Disassembly and Repair 38
Block Wiring Diagram 38
Control Board Connections Labeled 39
Control Panel and Display Board 40
Main Control Board 41
Dispenser 42
Noise Filter 43
Front Cover 43
Door and Hinge 45
Pumps and Filter Housing 46
Wash Heater 47
Foreign Object Removal 47
Water Level (Pressure) Switch 48
Motor 49

TRAINING MANUAL WM3001H*A
WM3001H*A Page 3 Washer
Disassembly and Repair, continued
Tub and Drum 50
Dampers 51
Test Mode 52
Test Mode Display 53
Error Display 54
Troubleshooting Summary 55
Troubleshooting (with Error Codes) 56
Inlet Valve Error 56
Drain Error 58
Heating Error (TE Error Code) 60
Locked Motor Error (LE Error Code) 61
Door Open Error 63
Unbalance Error 64
Overflow Error 65
Pressure Sensor Error 66
No Power 67
Buttons Do Not Operate Properly 67
Vibration and Noise in Spin Cycle 71
Vibration Sensor Check 72
Laundry Products Do Not Dispense 74
Component Test Procedures 75
Noise Filter 75
Door Lock 76
Stator Assembly 77
Hall Sensor 78
Pump Motors 83
Pump Test Points 84
Inlet Valve Assembly 85
Heater Driver Circuits 86
Wash Heater 87
Steam Generator 88
Thermistor Assembly (Wash) 94
Thermistor Assembly ( Steam Generator) 95
Drum Lamp 96
Vibration Sensor 97
Balance Ring 98
Tips and Tricks 99
Wiring Diagram 100
Exploded Views 101
Parts List 104
Serial Number Identification 108
Supplementary Materials 109
RC1.1 090209

TRAINING MANUAL WM3001H*A
WM3001H*A Page 4 Washer
INTRODUCTION
The WM3001is a top-of-the-line front-loader washer with the optional cycles of
Allergiene™, Steam, and Tub Clean. The new features include the larger, square door,
the balancing ring, and the drum antivibration system.
SPECIFICATIONS

TRAINING MANUAL WM3001H*A
WM3001H*A Page 5 Washer
WARRANTY
Warranty statements vary by product. Be sure to check the warranty that was included
with the product because that is the valid warranty. This statement is generic and
intended for instructional purposes only.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 6 Washer
FEATURES
ULTRA CAPACITY
The larger drum (4.2 cu. ft. IEC) allows higher head drop,
greater centrifugal force, and washing of larger and heavier
loads and oversized items (comforters, curtains, blankets,
etc.) There is less wrinkling and tangling of the laundry.
(See BULKY / LARGE, page 6.)
DIRECT DRIVE
The brushless DC motor drives the drum directly without
belts, pulleys, or transmissions. The maximum spin speed of
1,320 RPM extracts more water from the laundry, reducing
drying times.
TILTED DRUM / LARGE DOOR
The tilted drum (10°) and large door opening allow easier
loading and unloading.
STEAM WASHING / STEAMFRESH®
The steam feature works with the recirculating pump to
increase washing performance while maintaining low energy
and water usage.
STEAMFRESH®is not a wash cycle but uses steam to remove
wrinkles from previously laundered dry clothes.
ROLLER JETS and BALLS
The baffles pick up water as the drum turns and allow it to
pour through the clothing as it tumbles. The rollers enhance
the washing performance while maintaining fabric care.
AUTOMATIC LOAD DETECTION
The microprocessor reads the current required to rotate and
stop the drum in order to determine the weight of the load.
See additional information on pages 10 ~ 11.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 7 Washer
FEATURES, continued
BUILT-IN HEATER
The internal heater helps maintain the water at
its optimal temperature for selected cycles. The
SANITARY cycle kills most common germs and
bacteria. The ALLERGIENE cycle is not quite as hot but
kills most dust mites and other allergens in laundry.
(See additional information on page 29.)
CHILD LOCK
This allows the user to lock the controls. Children then
cannot play with the buttons and disturb the wash
cycle. (See additional information on page 26.)
CONTROLS
1. Power Button Turns the machine on or off.
2. Cycle / Start Button Starts or pauses the machine.
3. Custom Program Button Sets an often-used program for convenience.
4. Setting Override Buttons Overrides the standard settings for a cycle.
5. Delay Wash Button Sets the delay to have the washer run later.
6. Display Window Shows the estimated remaining time on the cycle.
7. Option Buttons Enables various optional cycles when required.
See additional information on pages 25 ~31 in this training manual.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 8 Washer
FUZZY LOGIC
To get the best washing performance, the user selects one of the standard cycles.
Sensors in the WASHER make an infinitely variable number of adjustments as the cycle
progresses. Adjustments are automatically made for load size, incoming water
temperature, soil level, rinses required, and other variables.
DOOR LOCK
The door has an automatic, electrically operated lock system. When the machine is off or
paused, the door can be opened by pulling it. When the machine is operating, the
electric latch keeps the door closed. In the event of a power failure, the door lock system
will release after 5 minutes.
The door cannot be opened:
•When the WASHER is operating
•When the power failed or the washer is unplugged
(until the capacitor discharges and releases the lock)
•When the DOOR LOCK light is on
•When the drum is still turning
DOOR LOCKED INDICATOR
The DOOR LOCK INDICATOR lights:
•When the WASHER is operating
•When the water level sensor frequency is lower than 22.9 kHz
•When the temperature inside the tub is over 45°C (113°F)

TRAINING MANUAL WM3001H*A
WM3001H*A Page 9 Washer
CHILD LOCK
The CHILD LOCK feature prevents unwanted use of the washer. Press and hold the
PRE-WASH button for three seconds to lock or unlock the control panel. When the
CHILD LOCK is set, all controls except the CHILD LOCK button are disabled.
STEAM
The STEAM feature offers enhanced washing performance with lower water and energy
consumption. It is especially useful for highly soiled or stained clothing, baby clothes,
and sick room linens.
DRUM LIGHT
The LED drum light turns on when the POWER button is pressed. It remains off when the
door is locked, but can be turned on at any time during the cycle by pressing and holding
the RINSE+SPIN button. It will turn off automatically four minutes later.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 10 Washer
LOAD SENSING FUNCTION
In order to determine the size and weight of the load, the machine begins each cycle
by tumbling the load a couple of times. It spins up to approximately 120 rpm for
approximately 6 seconds. (Speed and time may vary by model.) Load sensing occurs
on NORMAL and SANITARY CYCLES only.
Determining the
size and weight of
the load allows the
controller to
estimate the
amount of water
required to wash
and rinse the load.
The fuzzy logic
within the program
will make numerous
decisions during the
cycle, adding water,
desudsing, and
rinsing as deter-
mined necessary.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 11 Washer
At the beginning of the cycle, the washer tumbles the load to determine its weight (see
previous page) and displays the approximate load size via the LOAD SIZE ICON. The
measurement suggested on the icon will allow you to adjust the amounts of detergent,
bleach, and softener for improved economy and efficiency.
Before LOAD SENSING, the user added a predetermined amount of detergent, bleach,
and softener by putting them into the dispenser. If the load was larger or smaller than
average, there was too little or too much detergent. Using LOAD SENSING, the user can
allow the washer to determine the load size and then suggest the appropriate amounts of
laundry products that the user should add.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 12 Washer

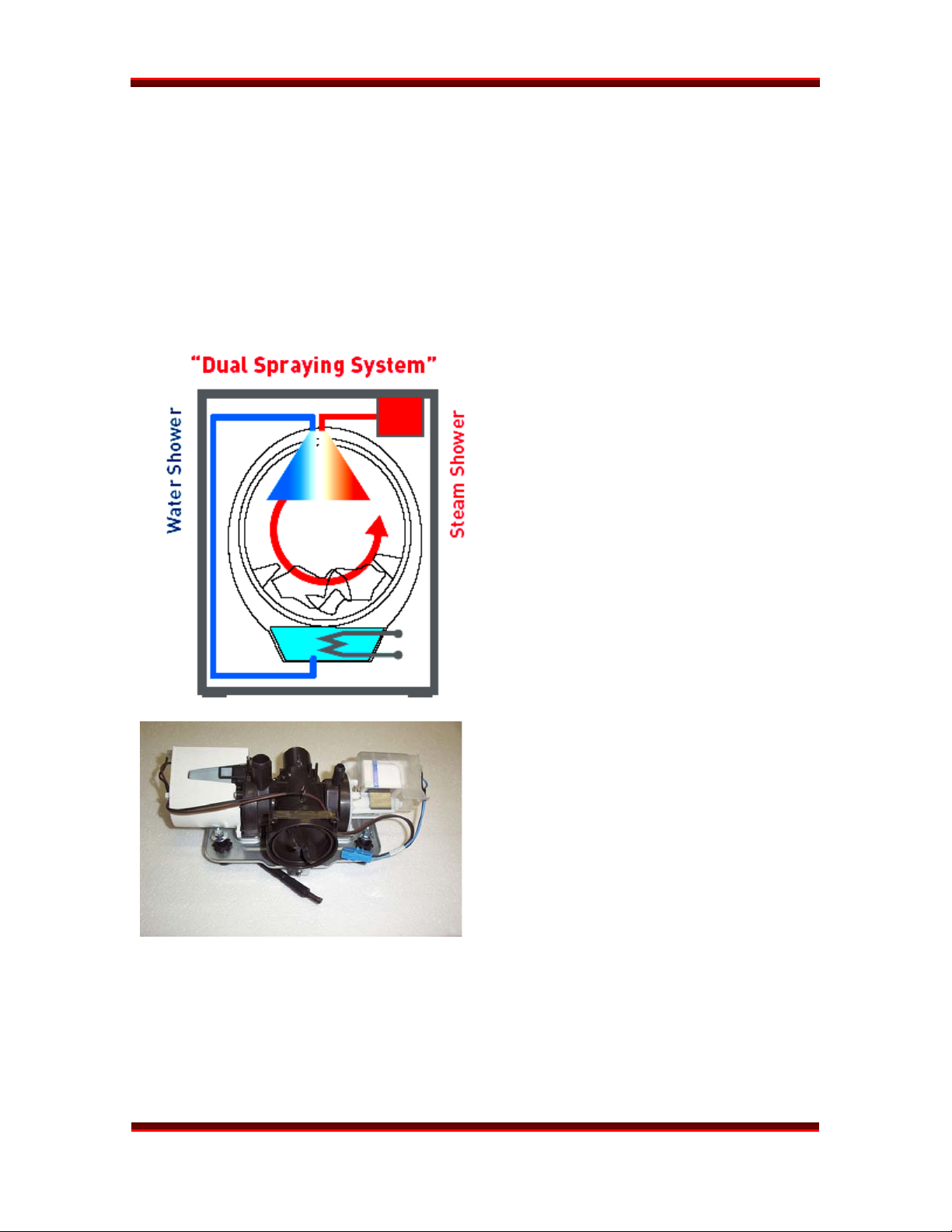

WATER CIRCULATION and STEAM
The recirculation pump circulates the water during most of the cycle. During the WASH
cycle, it runs continuously for the first 3 minutes and then intermittently throughout the
cycle. During the RINSE cycle, it runs continuously as soon as the appropriate amount of
rinse water has been added. This recirculated water enters the drum at the top of the
door at a small shower head. This spray not only keeps the window and gasket clean, it
allows the clothes to be soaked with detergent or rinse water more quickly and can be
used to control an oversudsing event.
The recirculation pump is separate from
the drain pump, but they are attached
to opposite sides of the filter housing.
The steam is not pumped; it comes into
the washer drum under its own
pressure. When steam or the sanitary
cycle is used, the door will remain
locked until the laundry has cooled to a
safe temperature.
The pumps and filter are located at the
bottom left front corner. The filter can
be unscrewed, cleaned, and replaced.
Use the small drain hose to evacuate
the water remaining in the bottom of
the tub before removing the filter.
The drain pump is on the left and
exhausts the water via the gray
corrugated hose.
The recirculating pump is on the right
and recirculates water from the sump to
the shower spray at the top of the door
gasket via the smaller black hose.
The filter is not a lint filter in the usual
sense of the term. Its function is to keep
debris out of the pump impellers.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 13 Washer
PARTS IDENTIFICATION
The air vent on the back of the machine must be left open and clear at all times.
If the washer and dryer are installed in a closet or closed laundry alcove, there must be
sufficient clearance and ventilation. The closet should have a full louvered door with at
least 650 square inches (0.5 m2) of open area for ventilation.
The washer requires a space of at least 1 inch (2.5 cm) between the wall and the
machine on each side and at least 4 inches (10 cm) between the back of the washer and
the wall. Additional space may be needed for servicing.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 14 Washer
ACCESSORIES
The washer comes with the two input hoses. The blue stripe is for cold water and the red
stripe is for hot water. The hoses are not mechanically identical. It is critical to the
performance of the washer to have the hot and cold hoses connected correctly. The hot
hose is a thicker material suitable for higher temperatures and pressure.
The wrench is used to remove (and replace) the shipping bolts and to adjust the leveling
feet. Be sure to leave it and encourage the customer to retain the wrench, the four
shipping bolts, and the manual in a safe place in the event the washer requires service or
the customer moves. Your wrench may vary from the drawing; some wrenches may have
an extra hole in them for features in another market.
The shipping bolts MUST BE REMOVED before operating the washer. (See page 15.)
The wrench, shipping bolt hole covers,
drain hose tie-down strap, and a sample
packet of detergent are included in
a packet shipped inside the washer.
See page 36 concerning detergent usage.
Pay attention to the “RULE of TWOs.”

TRAINING MANUAL WM3001H*A
WM3001H*A Page 15 Washer
INSTALLATION
REMOVE THE SHIPPING BOLTS. LEAVE THEM WITH THE CUSTOMER.
The lower right bolt is equipped with a clip that secures the cord so it is impossible to
plug in the machine without removing the bolt. The cord is further secured by an
adhesive sticker which must be broken to free the cord to plug in the machine.
INSTALL THE WASHER ON A FIRM, FLAT SURFACE.
ADJUST THE FEET TO BE LEVEL. LOCK THE ADJUSTERS IN PLACE.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 16 Washer
CONNECTIONS
WATER
Be sure the rubber washer is inside the hose end. Attach the hoses to the washer
(red is HOT, blue is COLD). Tighten them firmly but don’t strip the plastic threads on
the washer connections. The hoses are clearly marked by temperature. The HOT hose is
thicker and has a higher temperature rating and burst strength.
DRAIN
The drain pipe should be firmly attached to the standpipe or the laundry tub or sink
where it drains. The pump has sufficient power to cause the pipe to move around when
the water is expelled. The pump can lift the drain water a maximum of 96 inches (2.4 m),
but there is no minimum height requirement. The vacuum breaker in the drain line will
prevent drainage by gravity or siphoning. The hose can lay flat into a floor drain as long
as the end of it is not submerged.
ELECTRICAL
The steam washer requires a 120 VAC, 60 Hz., dedicated, 20-amp circuit.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 17 Washer
INSTALLATION (PEDESTAL KIT)
This procedure covers installing and leveling the 7½” and 13” pedestals for 27” washers,
dryers, and combos. If the products are stacked, the washer must be below the dryer,
and only one pedestal is required.
Remove the pedestal, installation hardware,
and instructions from the shipping carton.
Set the pedestal as close to the installation
position as possible.
Level the pedestal on a flat, solid floor
before proceeding. Lock down the rear
adjusters but leave the front ones free
for now.
Note which holes are for the washer and
which are for the dryer. (Washers and
combos fit the outer holes; dryers fit the
inner holes.) If you are stacking the
appliances, the washer must be on the
bottom.
Remove the protective paper from the
adhesive surface of the bracket. Be
particularly careful, because when the
adhesive makes contact, no adjustment is
possible.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 18 Washer
PEDESTAL, continued
Depending upon the model, your pedestal
may have straight or curved brackets. The
curved ones are to be used on the rear
positions when mounting a dryer to a
pedestal, but can also be used in any other
position on the pedestal.
Holding the exposed adhesive away from
the appliance, insert the screws and get
them started. Then press the brackets to
the appliance and tighten all the screws.
Rub the bracket from side to side to ensure
a complete bond.
Use the wrench to turn each leg of the
appliance approximately ¼turn to put a
little pressure between the appliance and
the pedestal. This will eliminate any
rattles and vibration.
It is usually easier to set the pedestal and
washer into place and connect the water
and drain hoses before placing the dryer
on top of the washer.

TRAINING MANUAL WM3001H*A
WM3001H*A Page 19 Washer
INSTALLATION (Pedestal, new style)
For 27” Pedestals
(Washer, Dryer, and Combo)
Remove the pedestal, installation hardware,
and instructions from the shipping
container.
(The style may vary among models.)
The pedestal kit includes:
1 drawer divider
1 wrench
4 retainers (dryer only)
18 screws (8 for dryer)
Level the pedestal on a solid, flat, level
floor. Lock down the rear adjusters, but
leave the front ones free for now.
Prepare the dryer for mounting. Retract all
four feet and lock down all four adjusters
on the dryer.
Note which holes are for the washer and
which are for the dryer. If you are stacking
the appliances, the washer should be on
the bottom.
