LG WD-8050F User manual

Washing Machine
OWNER'S MANUAL
MODEL : WD-8050F/8052X
P/No.: 3828ER3001M
Thank you for purchasing LG Fully Automatic Washer.
Please read your owner's manual carefully, it provides
instructions on safe installation, use and maintenance.
Retain it for future reference.
Record model number and serial number of washing machine.
M
K

3
Specification
P/No.3828ER3001M
(For detergent and
fabric softener)
Drawer
Lower cover cap
Drum
Drain hose
• If the supply cord is damaged,
it must be replaced by the
manufacturer or its service
agents or similarly qualified
person in order to avoid a
hazard.
Power plug
Door
Leveling legs
Lower Cover
Control panel
Drain plug
Drain pump filter
WD-8050F WD-8052X
Name Front loading washing machine
Power supply 220-240V, 50Hz
Size 600mm(W) ×600mm(D) ×850mm(H)
Weight 67kg
Wash capacity 7.0kg 6.0kg
Heating 2200W
Wash speed 45rpm
Spin speed 400 / 600 / 800 rpm
Water consumption 67L(9.6L/kg) 67L(11.2L/kg)
Permissible water pressure 0.3 - 10kgf/cm2(30 - 1000kPa)
Accessories Inlet hose (1EA), Spanner (1EA)
❈The appearance and specifications may be varied without notice to raise the units quality.
Contents
Product Features..........................................................................................................2
Specification ................................................................................................................ 3
Installation.................................................................................................................... 4
Warnings.......................................................................................................................6
Preparing your laundry / Adding detergent.................................................................. 7

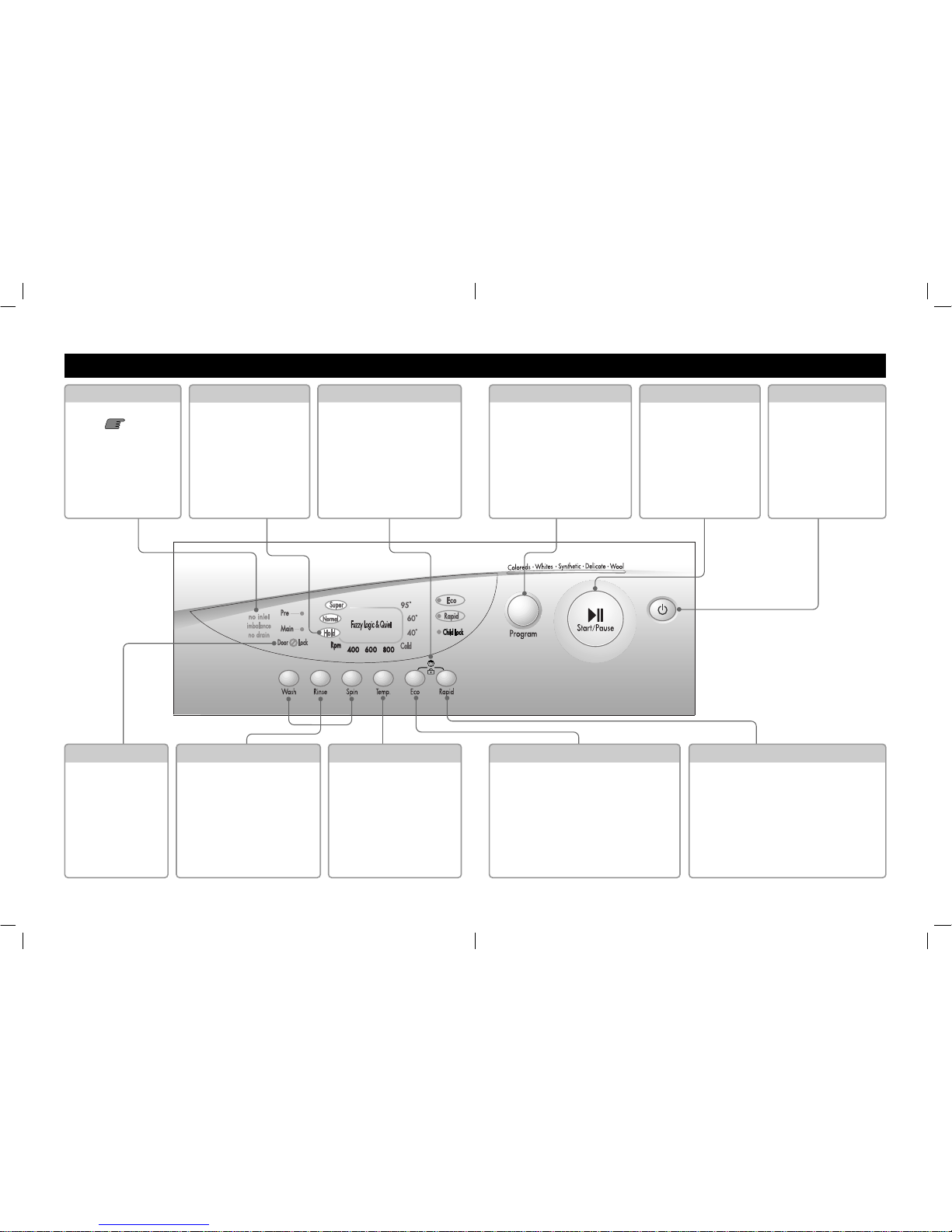

Function of each button............................................................................................... 8

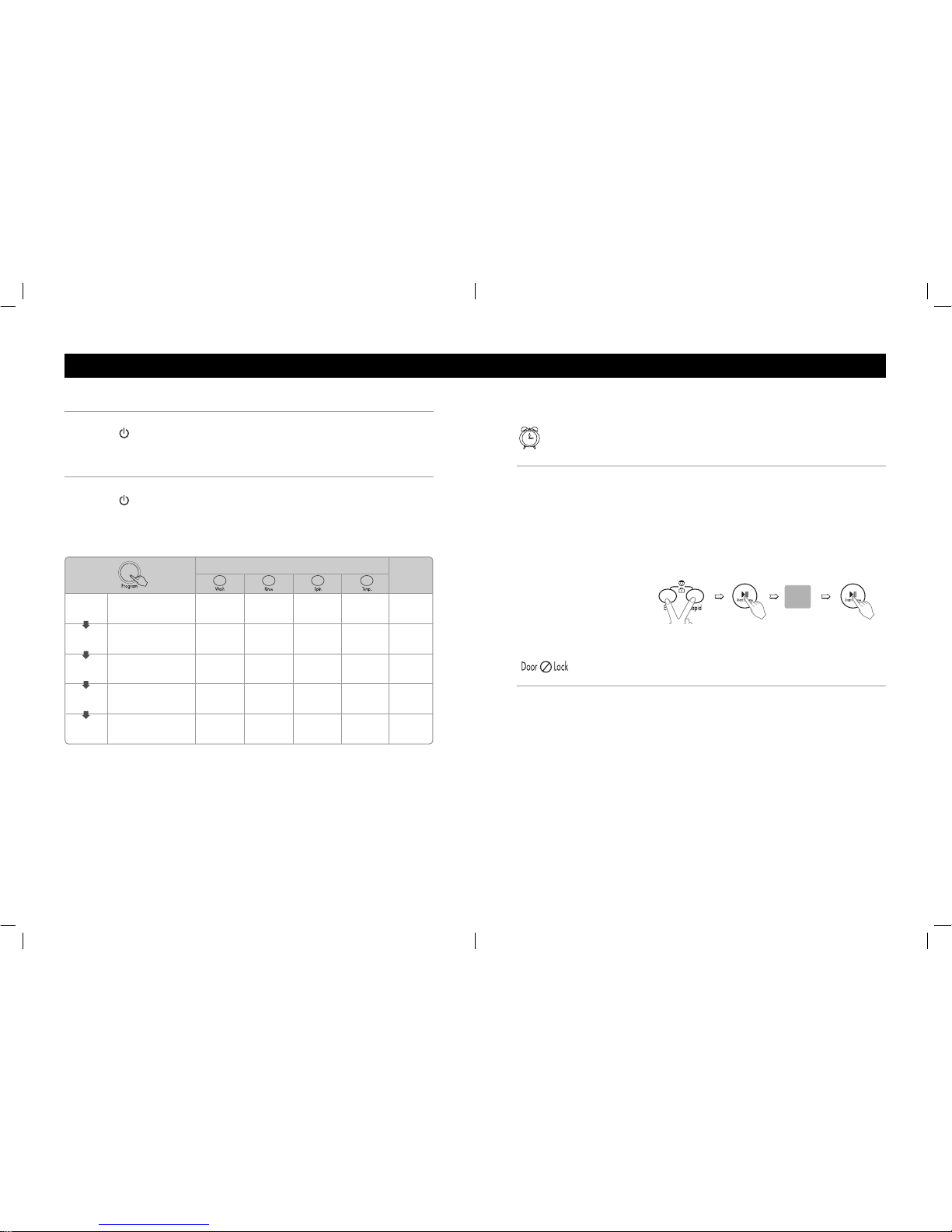

How to use your washing machine............................................................................ 10
Maintaining ................................................................................................................12

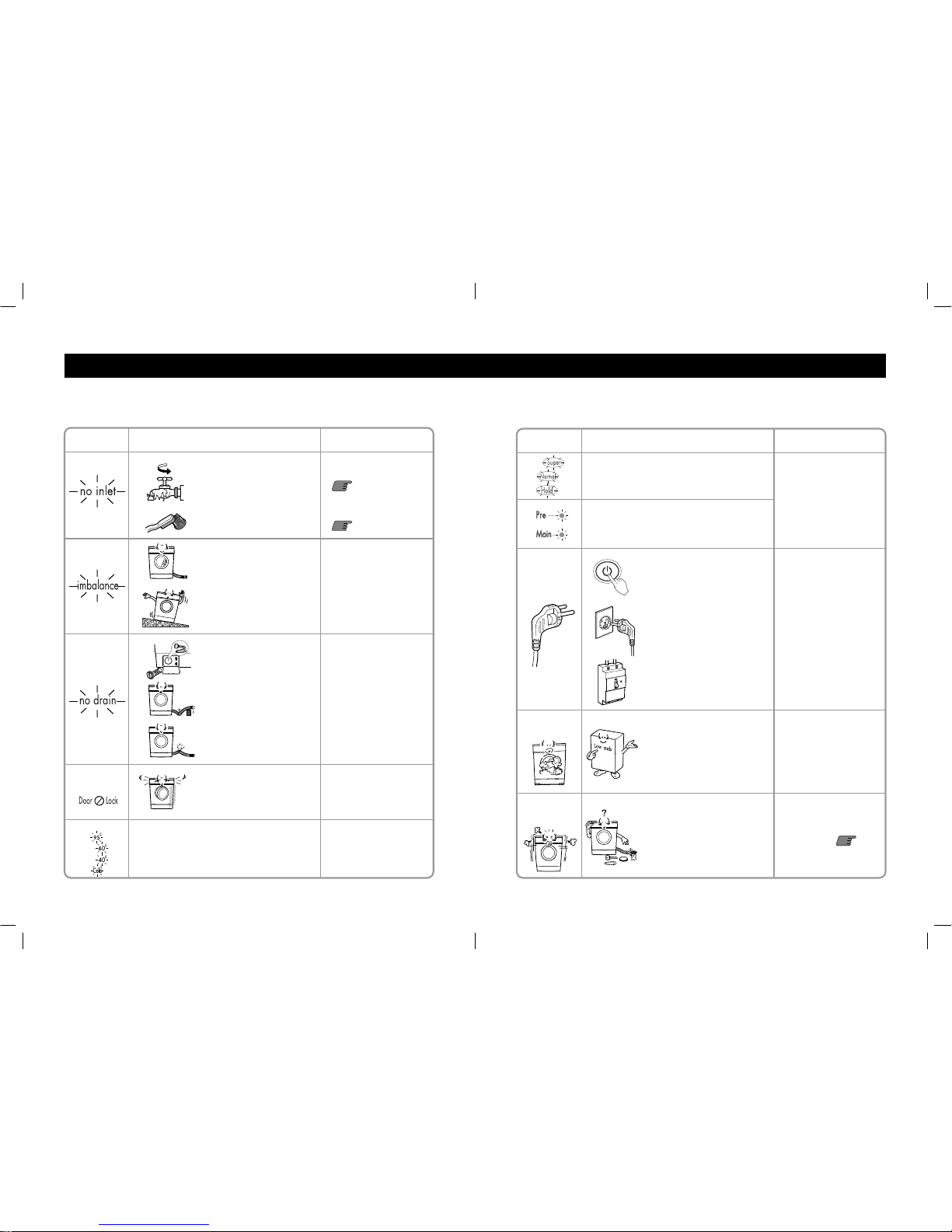

Trouble-shooting guide.............................................................................................. 14
2

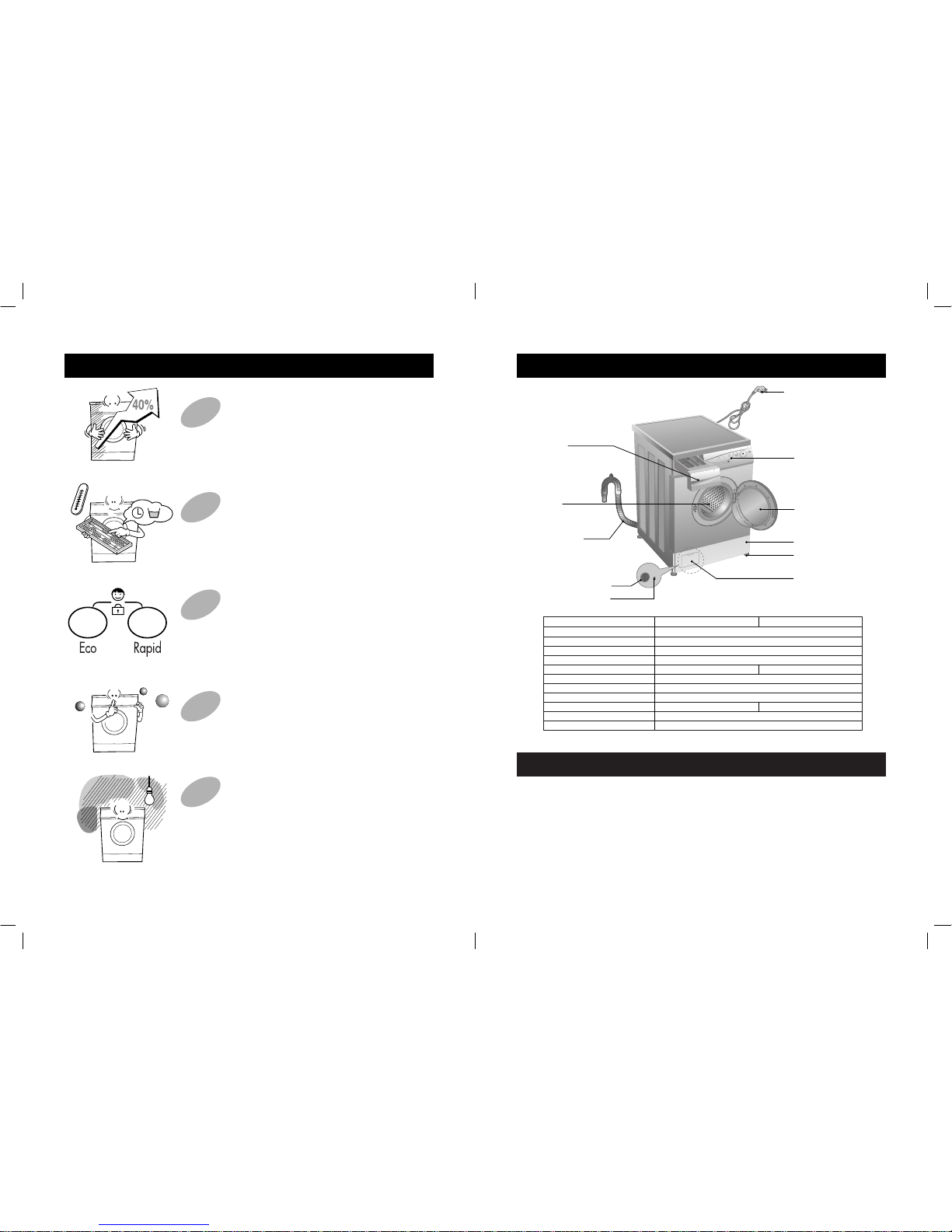

Product Features
P/No.3828ER3001M
More economical by Fuzzy Logic System
Fuzzy Logic System detects the amount of load and
water temperature, and then determines the optimum
water level and washing time to minimize energy and
water consumption.
Low noise speed control system
By sensing the amount of load and balance, evenly
distributes load to minimize the spinning noise level.
Child-Lock
The Child-Lock system has been developed to pre-
vent children from pressing any button to change the
programme during operation.
Auto Restart
Although the washing machine is turned off by a
power failure, it restarts automatically in its stopped
process when power is supplied again.
Jumbo Drum
LG's jumbo drum can wash about 40% more per load
than conventional washing machine. A bigger drum
improves the wash performance.

Rubber seal
Hose connector
Used the horizontal faucet
Horizontal faucet
Extension faucet
Square faucet
Upper
Connector Rubber
packing
Fixing screw
Rubber packing
Upper
Connector
Water supply
hose
Plate
Upper
Connector
5
P/No.3828ER3001M
■ Connecting the inlet hose
1. Unscrew the fixing screw to
attach the faucet.
2. Push the connector up till the
rubber packing is in tight
contact with the faucet.
Then tighten the 4 screws.
3. Push the water supply hose
vertically upwards so that the
rubber packing within in the
hose can adhere completely to
the faucet and then tighten it by
screwing it to the
right.
• Make sure that the rubber seal
is inside the hose connector. • Your machine comes with only cold water connection.
• Make sure that there are no
kinks in the hose and that it is
not crushed.
■ Connecting the inlet hose
• Two rings are supplied with the water inlet hose in the
valve connector in order to prevent water leaks.
• Your machine comes with only cold water connection.
Connect to cold water using the inlet valve.
• Check water tightness of washing machine connections
by turning the tap completely on.
• Periodically check the condition of the hose and replace
the hose if necessary.
• Make sure that there are no kinks in the hose and that it
is not crushed.
(How to connect the hose of screw type.)
Leveling leg
Higher Lower
Leveling leg
4
Installation
P/No.3828ER3001M
■ Removing the transit bolts
• To protect the washer during transportation, the special 4 bolts are locked. Before operating the wash-
er, remove the bolts. (If they are not removed, it may cause heavy vibration, noise and malfunction)
1 . Locate the 4 bolts that secure the washer.
2 . Unscrew the 4 bolts with a spanner provided.
3 . Take out the 4 bolts
4 . Keep the transit bolts and spanner for future use.
■ Level adjustment
• If the washer is not levelled, it could cause noise or vibration.
1. Select a place for installation
• Place it on a firm and even floor.
• Place it more than 2cm away from the wall
2. Check the gap
• Ensure all feet are firmly on the floor.
3. After adjusting the level, check it by shaking the
washer. Readjust the level if necessary.
❈The base opening must not be obstructed by carpeting when
the washing machine is installed on a carpeted floor.
❈Leveling should be done within 1.5 degree angle.
■ Water drain
• Hook over the edge of a sink using the plastic hose hanger supplied
with the machine.
• Make sure there are no kinks in the hose and that it is not crushed.
Secure the hose so that it can not be dislodged while the appliance is running.
• The drain hose should not be placed higher than 85cm above the floor.
■ Electrical connection
• Do not use an extension cord or double adapter.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly
qualified person in order to avoid a hazard.
• Always unplug the machine and turn off the water supply after using.
• Connect the machine to an the exclusive AC 220 – 240V outlet with ground terminal.
• If the appliance is supplied from a cord extension set or electrical portable outlet device,
the cord extension set or electrical portable outlet device should be positioned so it is not
subject to splashing or ingress of moisture.
• If a stationary appliance is provided with a supply cord and a plug, the instructions shall
state that the appliance must be positioned so that plug is accessible.

MAX
Detergent for
MAIN-WASH Fabirc
SOFTENER Detergent for PRE-WASH
( ) ( )( )

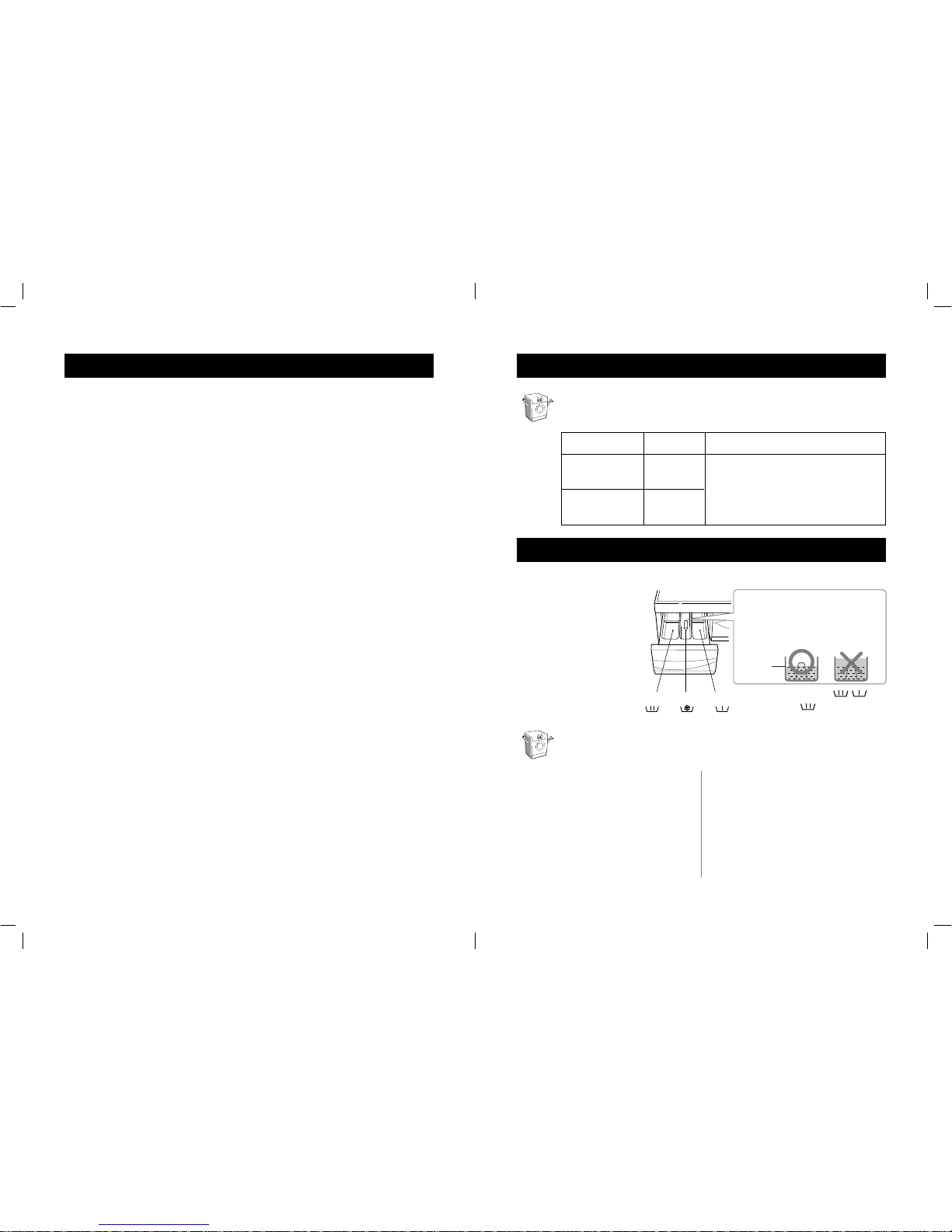

The drawer for fabric softener
• Do not leave the fabric softener in the detergent drawer for
more than 2 days.(Fabric softener could harden)
• Do not open the detergent drawer during water fill cycle.
• Softener will automatically add during last rinsing cycle.
• Do not fill past MAX indicator.
• Do not use solvents (trilen, benzine, etc.)
• Programmes with PRE-WASH
• MAIN-WASH only
Softener level
7
Preparing your laundry
P/No.3828ER3001M
Adding detergent
• Check pocket for any articles (coin, safety pin, paper clips, etc.)
• Close zips and fasten button or hooks: loose belt or ribbons should be tied together.
• Never wash whites and coloureds together.
• Follow the wash code symbols on each garment label and manufacturer's washing instructions.
Heavy soiled - Pre wash
- Main wash
Normal soiled - Main wash
Heavily soiled cottons : cold - 95°C
Normally soiled cottons : cold - 95°C
Coloured cottons : cold - 60°C
Synthetics : cold - 60°C
Delicate fabrics : cold - 40°C
Woollens : cold - 40°C
Soiled condition Washing Temperature
■ Where to place the detergent
• Pull out the detergent drawer.
• Put the detergent and fabric
softener in the detergent drawer
before washing.
• Close the detergent drawer
completely.
• The detergent should be used according to the instruction of the detergent manufacturer.
• If the detergent is used over the recommended amount too many bubbles will be generated thus
causing an inferior washing result. This will also cause a malfunction.
• Use front loader detergent only for drum washing machine.
Detergent dosages
Do not exceed manufacturer's recommended
dosages as shown on the detergent package.
The amounts depend on
• degree and type of soiling
• size of wash
- full load : according to manufacturer's instructions
-part load : 3/4 of the normal amount
-minimum load (about 1kg) : 1/2 the amount
used for full load
• water hardness in your area.
Choosing the right detergent
The type of detergent depends on
• the type of fabric
(cotton, synthetic, delicate items, wool)
• colour
• wash temperature
• degree and type of soiling
Note : Use appropriate detergents only for wool.
6
Warnings
P/No.3828ER3001M
■ You must read the whole of this
instruction book before you use the
appliance. Follow the advice carefully.
Keep the book for future reference. If
you sell or give away the appliance,
make sure that the book is passed to
the new owner.
■ The following warning are provided in
the interests of overall safety. You
must read them before the appliance is
installed or used.
• This appliance is designed to be used by adults.
Children should not be allowed to touch the con-
trols or play with the product.
• It is dangerous to modify the specifications of
this appliance in any way.
• This appliance is heavy. Care should be taken
when moving it.
• All packaging and transit bolts must be removed
before the appliance is used. Serious damage
may occur if this is not done.
• Any plumbing work required to install this appli-
ance should be carried out by a qualified
plumber or a competent person.
• Any electrical work required to install this appli-
ance should be carried out by a qualified electri-
cian or a competent person.
• Make sure that the appliance does not stand on
its electrical supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet to ensure that air can cir-
culate freely.
• Always unplug the appliance and turn off the
water tap after use.
• Do not overload the appliance.
• Only wash fabrics which are designed to be
machine washed. If in doubt, follow the instruc-
tion you find on the label of the item itself.
• Avoid electric heaters, candles, etc. near the
machine. It may ignite or deform the machine.
• Don’t sprinkle water. It may cause a fire or elec-
tric shock.
• Use the exclusive AC 220V-240V outlet with
ground terminal. Do not use an extension cord or
double adapter.
• Make sure that all pockets are empty. Hard,
sharp objects such as coins, safety pins, nails,
screws or stones can cause extensive damage.
• Do not wash laundry stained with edible oil,
machine oil, dry-cleaning oil, gasoline, etc. It
may cause fire or explosions.
• This appliance is designed for domestic use. It
must not be used for purposes other than those
for which it was designed.
• Do not machine wash fabrics which are saturat-
ed with petroleum products. If volatile cleaning
fluids have been used, make sure that they are
thoroughly removed from the fabric before it is
placed in the appliance.
• Do not operate near places with ignitable materi-
al such as gasoline, benzene, etc. or inflamma-
ble gas leak. Due to volatile nature of these
material, It can cause fire or explosions.
• Use only the recommended quantities of fabric
softener. An excessive amout could damage the
laundry.
• Leave the porthole door slightly ajar between
washes to preserve the door seal.
• Before you open the door of the machine check
that the water has drained. Do not open the door
if you can still see water.
• Pets and children may climb into the washing
machines. Check you appliance each time
before use.
• The glass door becomes very hot during wash-
ing. Keep children away from the appliance while
it is in use.
• You should not attempt to repair the machine
yourself. Repairs carried out by inexperienced or
unqualified persons may cause injury and/or
more serious faults to the machine.
• This product should be serviced by an autho-
rized Service Centre only, and only genuine
spare parts should be used.
• When disposing of your old washing machine,
the electric cable must be cut off and the door
catch must be made inoperative to avoid it
becoming a death trap for a child.

9
P/No.3828ER3001M
Eco button
• If you push the Eco button in Whites program, Eco
function is selected. Eco function gives you almost
the same washing effect as that in 95˚C with less
energy consumption
Rapid button
• If you push the Rapid button in Coloreds or Synthetic
program, Rapid function is selected. Rapid function
reduces the whole time including the washing and
rinsing time about by half an hour.
Wash program selector
• 5 programs can be set depending on
the type of the laundry.
• If the power button is pressed.
Coloreds program is automatically
set.
• By pressing the button, [Coloreds →
Whites →Synthetic →Delicate →
Wool] can be selected.
Power button
• Press the button to turn power
on and off.
Start/Pause button
• Use the button to start or pause
wash cycle.
• The power turns off automatically
4 minutes after the pause button
is pressed.
8
Function of each button
P/No.3828ER3001M
For manual wash, rinse and spin speed
• Use these buttons to change washing
method, rinse method and spin speed.
• When lamp is off, no selection has
been made.
• Prewashing is available for Coloreds,
Whites, Synthetic program.
Door lock lamp
• It shows whether the door
can be opened or not.
• When the lamp is on, the
door can't be opened.
Water temperature selector
• Press the button to select water
temperature.
• The water temperature [40° →
60°C →Cold] can be selected in
Coloreds, Synthetic program.
• 95°C is selected for Whites only.
Rinse hold
• If you desire to leave your fab-
rics in the machine without
spinning after rinse to prevent
them getting wrinkled, you may
select rinse hold function
pressing the Rinse button.
• To drain and spin, press the
Rinse button to turn off the
Hold lamp.
Child Lock
• Child Lock system can be set and
canceled by pressing both [Eco] and
[Rapid] button simultaneously.
• Once Child Lock is set, all button are
inoperable.
• Child Lock system can be set anytime
even during Power-off, on pause and
operation.
• It is automatically cancelled when an
operational error occurs and when the
cycle ends.
Error display
• The display blinks if there is
an error.
• no inlet : Trouble with water
supply.
• imbalance : The laundry is
tilted to one side.
• no drain : If the drain pump
filter is clogged.
Refer
14

11
P/No.3828ER3001M
Change
the program
3. Press the [Start/Pause] button to start the cycle.
• The optimum washing is carried out by detecting the amount of the laundry.
Completion of washing
• If the washing is completed, power turns off automatically after the alarm sound.
• Switch off the appliance and turn off the water tap.
■To change settings in Child - Lock mode.
• Child-Lock (If you want to lock all the buttons to prevent a child from setting,
you can use this option.)
❈The Child-Lock system can be programmed and cancelled only by pressing both
[Eco] and [Rapid] buttons simultaneously. If you want to change the program when
the Child-Lock is on,
1 . Press both [Eco] and [Rapid] buttons simultaneously.
2 . Press the [Start/Pause] button.
3 . Change the program and press
the [Start/Pause] button.
If you want to deactivate Child-Lock during wash cycle, press both [Eco] and [Rapid]
button simultaneously again.
• If the light turns on, the door can not be opened.
■Auto Restart
• Although the washing machine is turned off by a power failure, it restarts automati-
cally in its stopped process when power is supplied again and the process is prop-
erly adjusted.
• And it will be the same when the machine unplugged in operation is plugged in
again.
912
63
10
P/No.3828ER3001M
Coloreds
Whites
Wool
Polyamide, Acrylic, Polyester
Machine washable woollens with
pure new wool only.
Delicate laundry easily damaged.
(Silk, curtains...)
Main wash
(Pre + Main) 800 (400, 600) 40°C (Cold, 60°C)
40°C
(Cold, 60°C)
Cold
(40°C)
Cold
(40°C)
95°C
800
(400, 600)
800
(400, 600)
about
one hours &
46 minutes
about
one hours &
46 minutes
about
45 minutes
about
2 hours &
20 minutes
about
one hour &
9 minutes
400
(600)
400
(600)
Main wash
(Pre + Main)
Main wash
(Pre + Main)
Normal
(Super, Hold)
Normal
(Super, Hold)
Normal
(Super, Hold)
Normal
(Super, Hold)
Normal
(Super, Hold)
Main wash
Main wash
Synthetic
(Below 4.0kg)
Delicate
(Below 3.0kg)
(Below 2.0kg)
Washing
time
First check if the laundry is
machine washable.
White cottons and linen
(towels, sheets...)
Color fast garments (shirts, night
dresses, pajamas...) and lightly
soiled white cotton (underwear...)
• To change wash, rinse, spin and water temperature.
• ( ) indicates choice that can be manually taken.
How to use your washing machine
■In case of automatic washing
1. Press the [Power] button. Coloreds program is automatically set with power on
2. Press the [Start/Pause] button to start the washing machine.
3. The coloreds program is carried out.
• The optimum wash program is selected once the load is detected.
■To get the washing programme preferred
1. Press the [Power] button.
2.
Press the [Program] button. By additional push, each light of the programs on the control panel will
be turned on in order as follows. [Coloreds →Whites →Synthetic →Delicate →Wool →Coloreds]
• Make adjustment to water temperature, rinse or spin cycles to suit your wash needs by pressing these buttons.
• The time required can be slightly changed according to the laundry amount, water supply and water temperature.
❏The whole washing process is carried out automatically with just one touch.
❏If no programme is selected Coloreds program will commence.
[More convenient manual operations of Coloreds program]
It is more convenient to operate manually in Coloreds program than in others
because Coloreds program is firstly set with power on.
In Coloreds,
• When you want wash only, press the [Wash] button to select the washing method.
• When you want rinse only, press the [Rinse] button to select the rinsing method.
• When you want spin only, press the [Spin] button to select the Spin speed.
• When you want Wash & Rinse only, press the [Wash] button and [Rinse] button respectively to select
each method.
• When you want Rinse & Spin only, press the [Rinse] button and [Spin] button respectively to select
each method.

13
P/No.3828ER3001M
MAX
1
MAX
■ To prevent being frozen in winter
■ When the machine is frozen
■Maintenance of the drawer
123
Pull out the drawer slightly
upward. Wash it clearly Insert it in its original place.
1 2
1 2
Pour hot water
(about 50°C) on the
faucet and remove
the inlet hose.
Submerge the
separated hose
in hot water
(about 50°C)
3 4
Pour the hot water
in the drawer and
maintain it for 10 minutes
for melting.
Connect the inlet hose
to the water tap and
check the drain after
turning on the water tap
and operating the
washing machine.
Turn off the water tap and remove the inlet
hose. Drain water in the machine using drain plug (
① ).
12
P/No.3828ER3001M
1
2
1
coin
2
1
Maintaining
• Insert it in original place.
❏ Remove the power plug prior to maintaining.
❏ Clean the filter periodically every 3 months.
■Clean the filter in the inlet valve
• If no water flows through filter and is clogged with foreign material, water is not charged.
• Remove the inlet hose completely before cleaning the filter.
■Cleaning the drain pump filter
1 2
Turn off the water taps. Take out the power plug from the outlet.
3 4
Disconnect the inlet hose. Remove the filter with a tool or by hand and
take out foreign material using a toothbrush.
123
Open the filter cover by
using coin. Take out the drain plug(①),
then the water flows out. If
the water does not flow any
more, turn the drain pump fil-
ter(②) to the left until it is
open.
Take out any foreign material
from the drain pump filter(②).
After cleaning, turn the drain
pump filter(②) clockwise and
insert the drain plug(①) to
the original place.
Close the Lower cover cap.

15
P/No.3828ER3001M
14
P/No.3828ER3001M
Symptom Check points Solution
• Did you press the power button.
• Is the power plug unplugged?
• Is the power supply correct?
• Is the short-circuit breaker turned
off?
• Did you use more detergent than
recommended?
• Did you use low suds detergent for
the front loading washing machine?
• Did you remove the transit bolts?
• Is the washer levelled?
• Is the drain pump clogged with
foreign material?
• Is the washer loaded with excessive
clothes?
• Turn it on.
• Plug it to power supply.
•
Use exclusive AC220 – 240V
outlet with ground terminal.
• Turn it on.
• Put the recommended
amount.
• Use detergents only for front
loading washing machine.
• Remove it.
• Place it on an even floor.
•
Remove foreign material from
the drain pump.
• Remove the excessive loads.
The machine
does not
start up.
Excessive suds
Excessive
vibration and
noise.
It is displayed when the water pressure
sensor malfunction.
It is displayed when the water overfills due to abnor-
mal water inlet valve.
Refer
12
• Close the water tap.
• Take out power plug.
• Call the service center.
Trouble - Shooting guide
P/No.3828ER3001M
Symptom Check points Solution
❏ Check the following before asking for service if the error massage is displayed during
washing, rinsing or spinning.
❏ Request for the service center or agent in the case of failure or damage except for the followings.
• Is the water tap turned off ?
• Is the water frozen?
• Is the water pressure low or the
filter clogged ?
• Is the laundry tilted to one side
in the drum?
• Is the washer leveled ?
• Is there foreign material in the
drain pump ?
• Is the drain hose bent or higher
than 85cm above the floor ?
• Is the hose clogged ?
• Is the hose frozen ?
• Did you run the washer while
the
door is not closed completely?
• Turn the water tap on.
• Melt it with 50°C hot water.
• Disconnect the inlet hose
and clean the filter.
• Spread the laundry evenly.
•
Release imbalance by pressing
the [Start/Pause] button. If it
happens after rinsing or spin-
ning, call for service.
• Install it on a film and even
floor.
• Clean and remove foreign
material from drain filter.
• Put the drain hose evenly.
• Place the drain hose under
85cm from the floor.
• Melt it with 50°C hot water.
• Close the door.
❈ If it is not released, call for
service.
• Unplug the power plug and
call for service.
Door is faulty
Water is not heating
Refer
12
Refer
13
