LG WT5680HVA User manual

Life's Good
SHING MACHINE
Before beginning installation, read these instructions carefully. This will simplify
instaliation and ensure that the washer is installed correctly and safely.
Leave these instructions near the washer after installation for future reference.
WT5680H_A
IIIII IIII
P/No.: MFL67221376

2 PRODUCT FEATURES
TABLE OF CONTENTS
3IMPORTANT SAFETY INSTRUCTIONS
3 Basic Safety Precautions
4 Grounding Requirements
.5 Safety Instructions For Installation
6 Safety Instructions For Use, Care, Cleaning And
Disposal

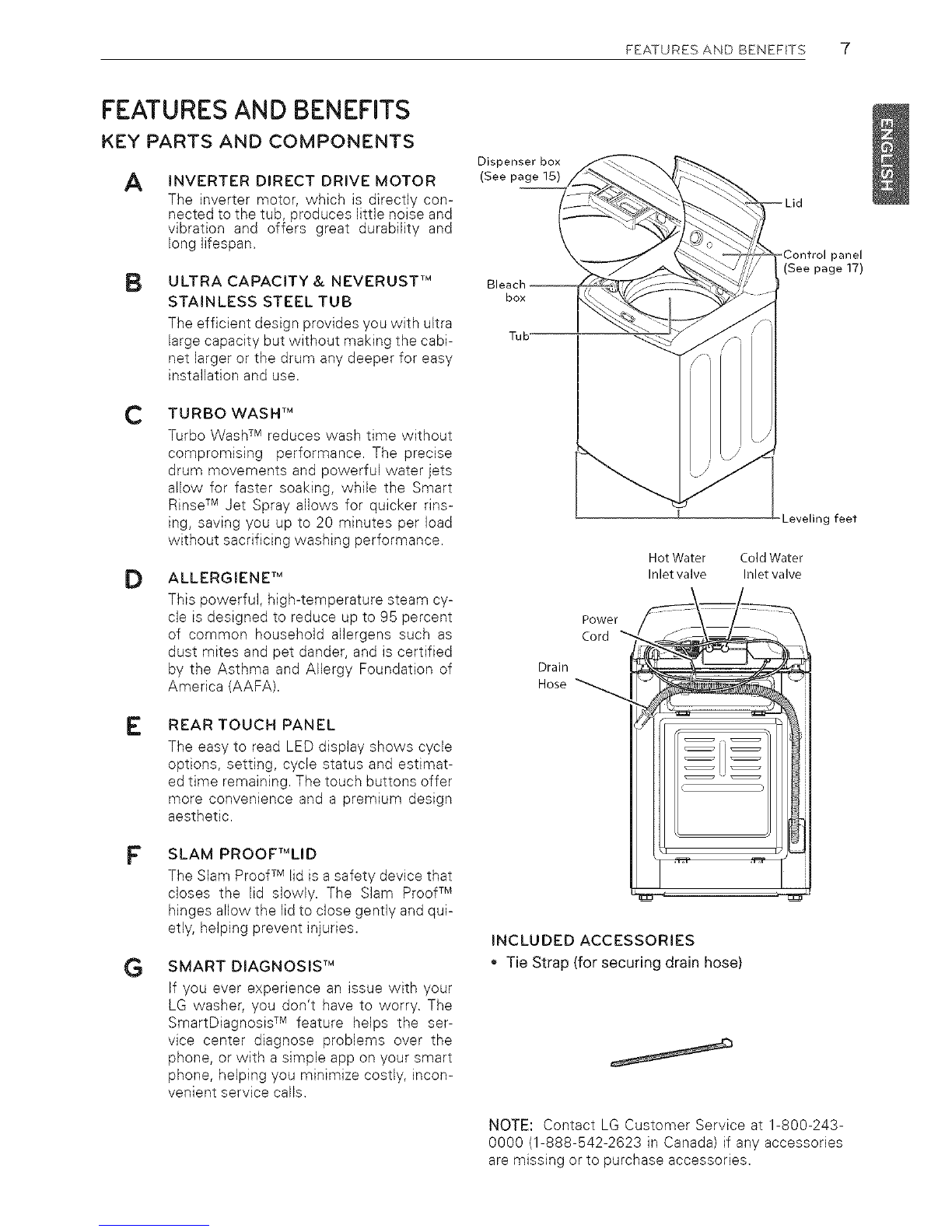

7 FEATURES AND BENEFITS
7 Key Parts and Components
7 Included Accessories
8 INSTALLATION INSTRUCTIONS
8 Choose the Proper Location
8 Power Outlet
8 Fleering

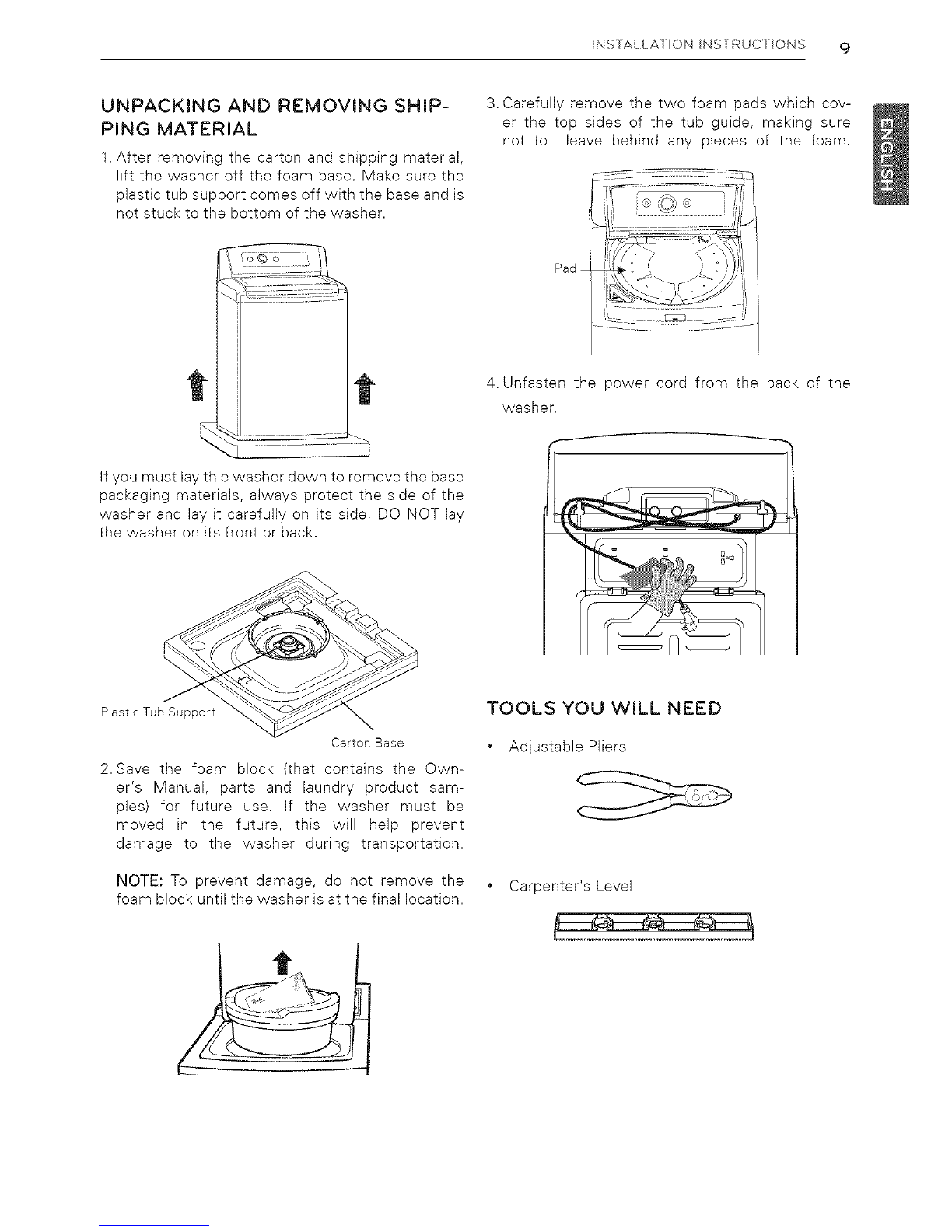

9 Unpacking and Removing Shipping Material

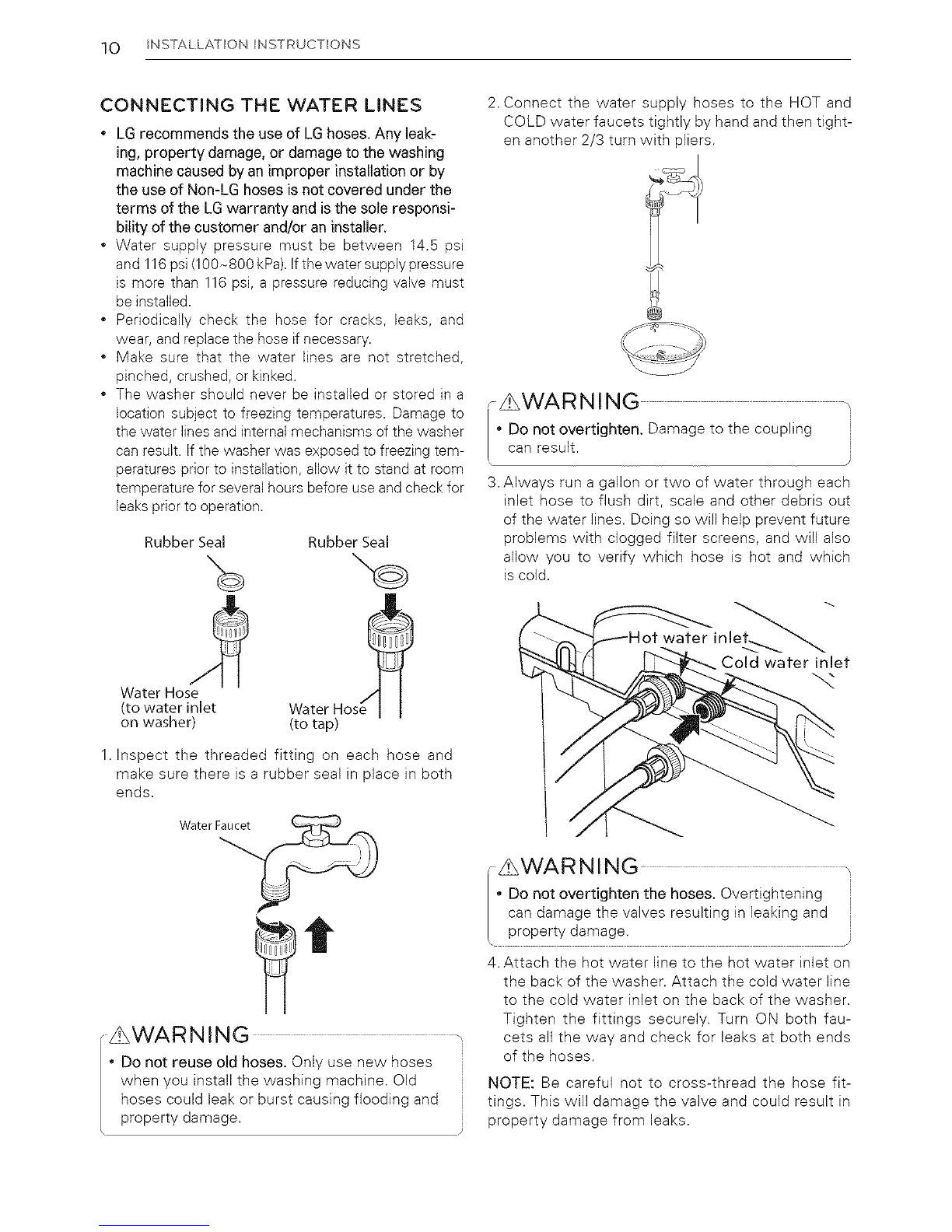

10 Connecting the Water Lines

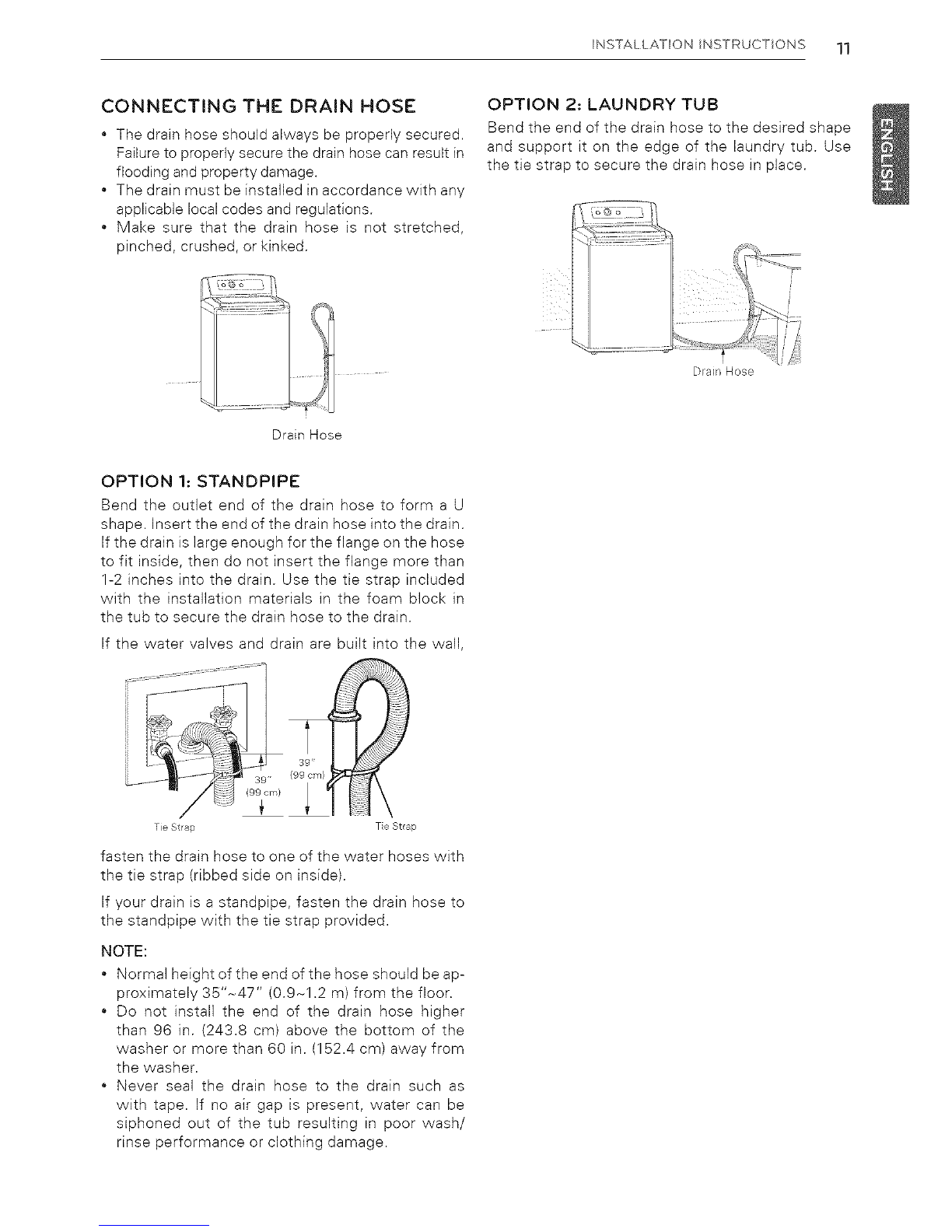

11 Connecting the Drain Hose
12 Leveling the Washer
13 Connect to The Power Supply
14 Sorting Wash Loads
15 About the Dispensers

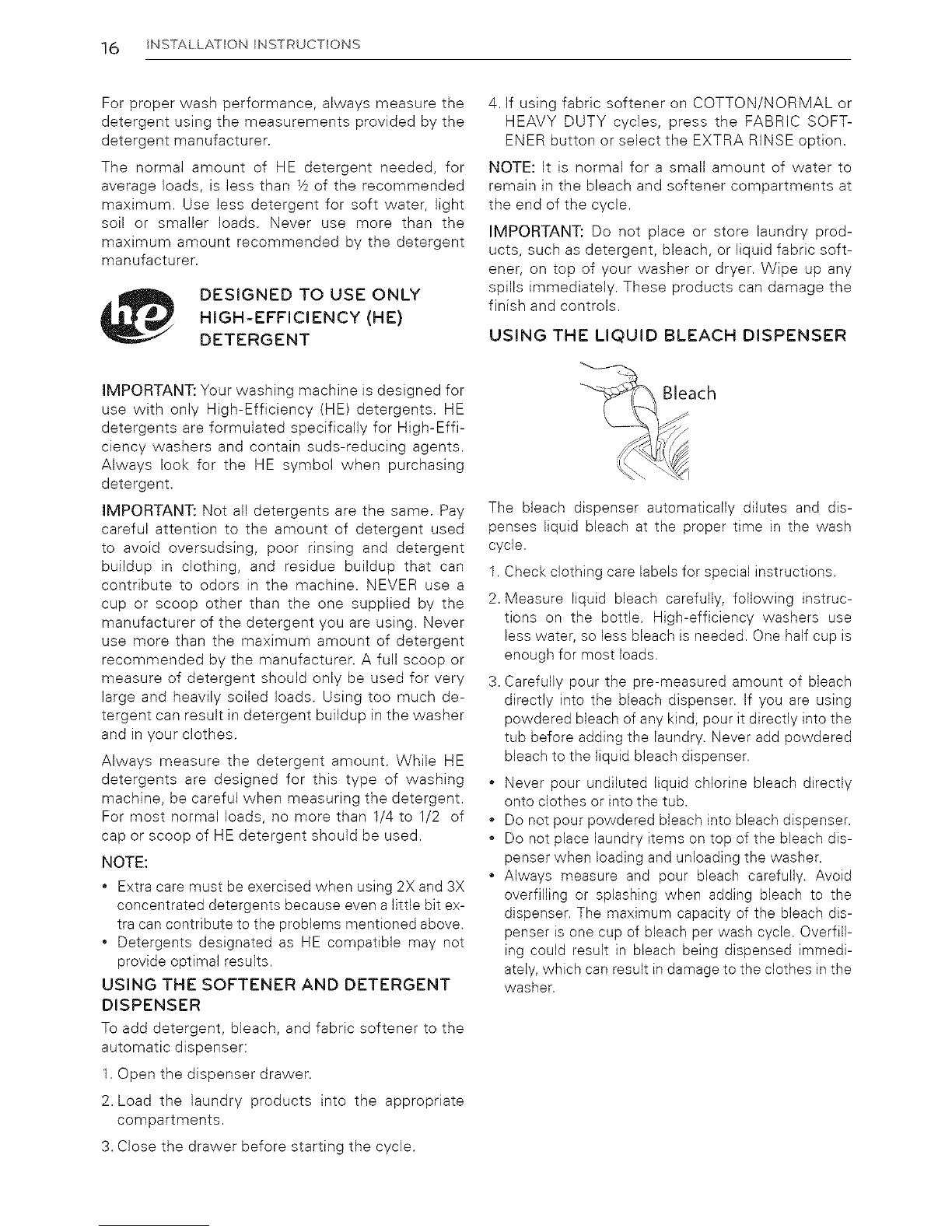

15 Detergent and Dispenser Use
17 How TO USE
17
18
19
20
22
23
24
25
Control Panel Features
Time and Status Display
Operating the Washer
Cycle Guide
Main Cycle
Cycle Modifier Buttons
Special Use Features
Option Buttons
25 Steam
25 Cold Wash TM
25 Delay Wash
25 Custom Prograrn(PGM)
25 Turbo Wash TM
26 Fabric Softener
26 Extra Rinse
26 Water Plus
26 Signal Off-Low-High
26 Child Lock
26 Add Garments
27
27
28
29
3O
3O
31
31
31
35
37
CARE AND CLEANING
Regular Cleaning
27 Cleaning the Exterior
27 Care and Cleaning of the Interior
27 Tub Clean Cycle
27 Removing Mineral Buildup
27 Leave the Lid Open
Maintenance
Cleaning the Washer
SPECIFICATIONS
SMART DIAGNOSIS TM SYSTEM
TROUBLESHOOTING
Normal Sounds You May Hear
Before Calling for Service
Error Codes
WARRANTY

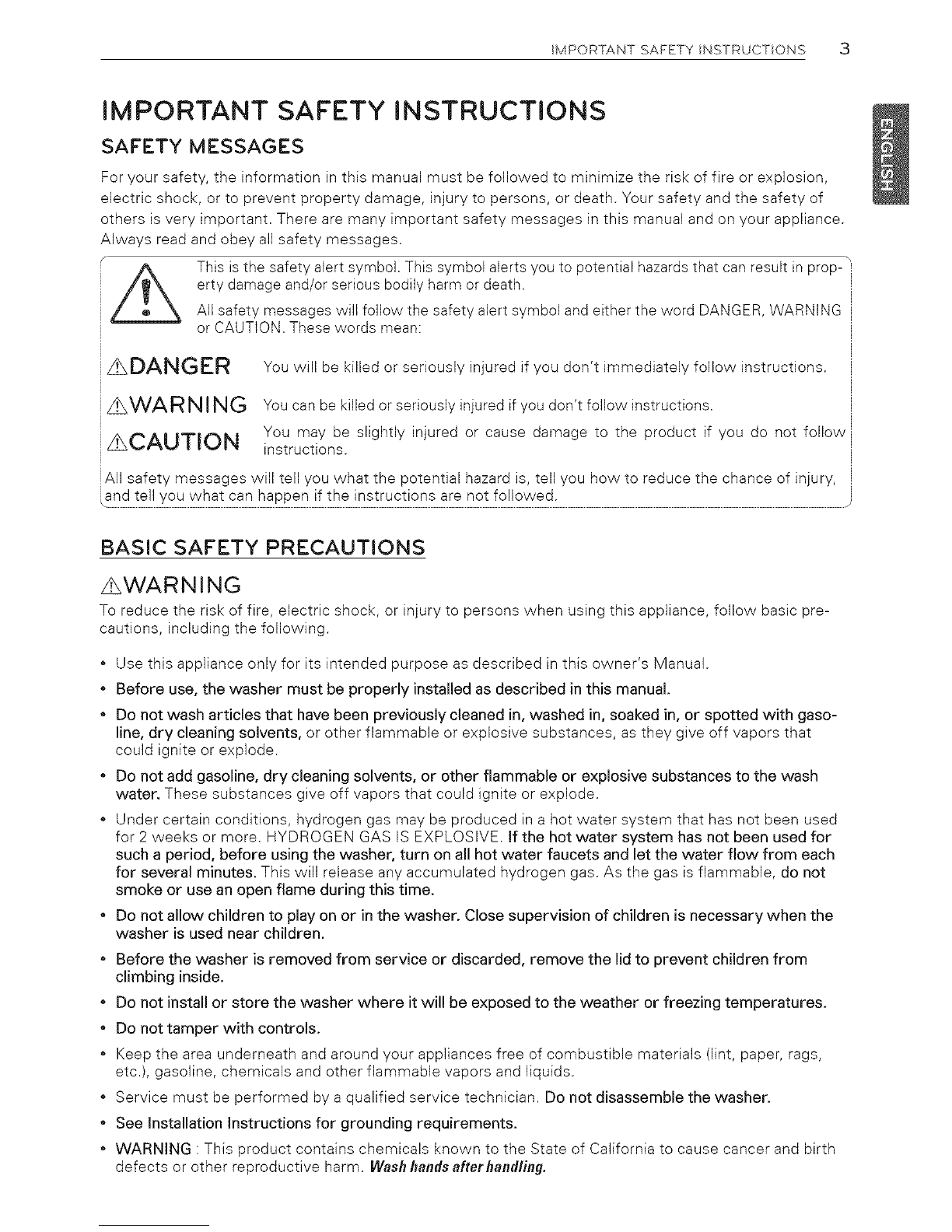

IMPORTANT SAFETY INSTRUCTIONS 3
IMPORTANT SAFETY INSTRUCTIONS
SAFETY MESSAGES
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death. Your safety and the safety of
others is very important. There are many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in prop-
erty damage and/or serious bodily harm or death.
All safety messages will fellow the safety alert symbol and either the word DANGER, WARNING
or CAUTION. These words mean:
z_DANGER You will be killed or seriously injured if you don't immediately follow instructions.
z_WARNING You can be killed or seriously injured ifyou don't follow instructions.
You may be slightly injured or cause damage to the product if you do not follow
zSCAUTION instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, ,
iand te!! you what can happen !f the !nstruct!ons are not fo!!owed. ._
BASIC SAFETY PRECAUTIONS
z_WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic pre-
cautions, including the following.
Use this appliance only for its intended purpose as described in this owner's Manual.
*Before use, the washer must be properly installed as described in this manual.
*Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gaso-
line, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that
could ignite or explode.
*Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash
water. These substances give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for
such a period, before using the washer, turn on all hot water faucets and let the water flow from each
for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
*Do not allow children to play on or in the washer. Close supervision of children is necessary when the
washer is used near children.
*Before the washer is removed from service or discarded, remove the lid to prevent children from
climbing inside.
*Do not install or store the washer where it will be exposed to the weather or freezing temperatures.
*Do not tamper with controls.
Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags,
etc.), gasoline, chemicals and other flammable vapors and liquids.
Service must be performed by a qualified service technician. Do not disassemble the washer.
*See Installation Instructions for grounding requirements.
*WARNING : This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after handling.

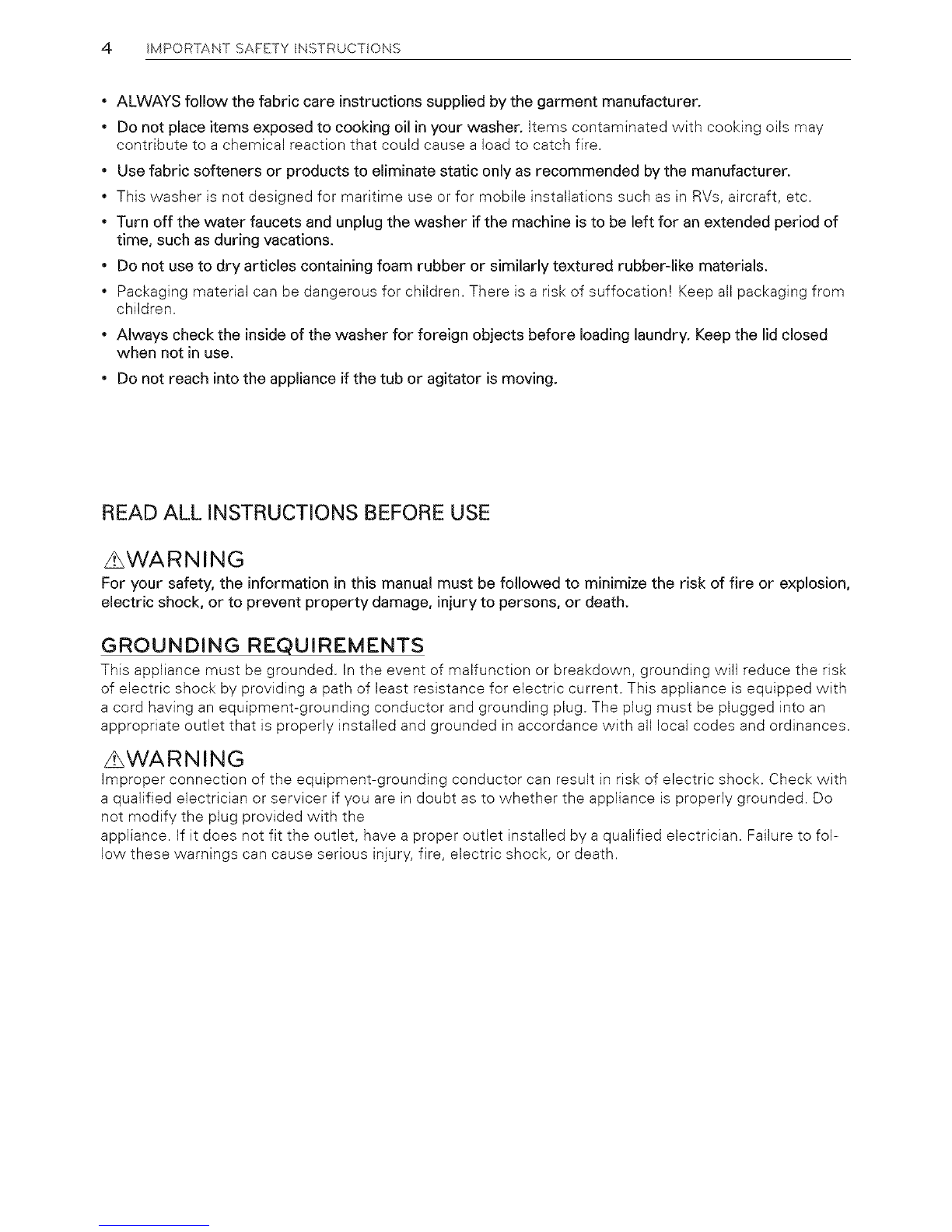

4- IMPORTANT SAFETY INSTRUCT ONS
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load to catch fire.
• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.
• Turn off the water faucets and unplug the washer if the machine is to be left for an extended period of
time, such as during vacations.
• Do not use to dry articles containing foam rubber or similarly textured rubber-like materials.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from
children.
• Always check the inside of the washer for foreign objects before loading laundry. Keep the lid closed
when not in use.
• Do not reach into the appliance if the tub or agitator is moving.
READ ALL INSTRUCTIONS BEFORE USE
ztWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
GROUNDING REQUIREMENTS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
zhWARNING
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with
a qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do
not modify the plug provided with the
appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to fol-
low these warnings can cause serious injury, fire, electric shock, or death.

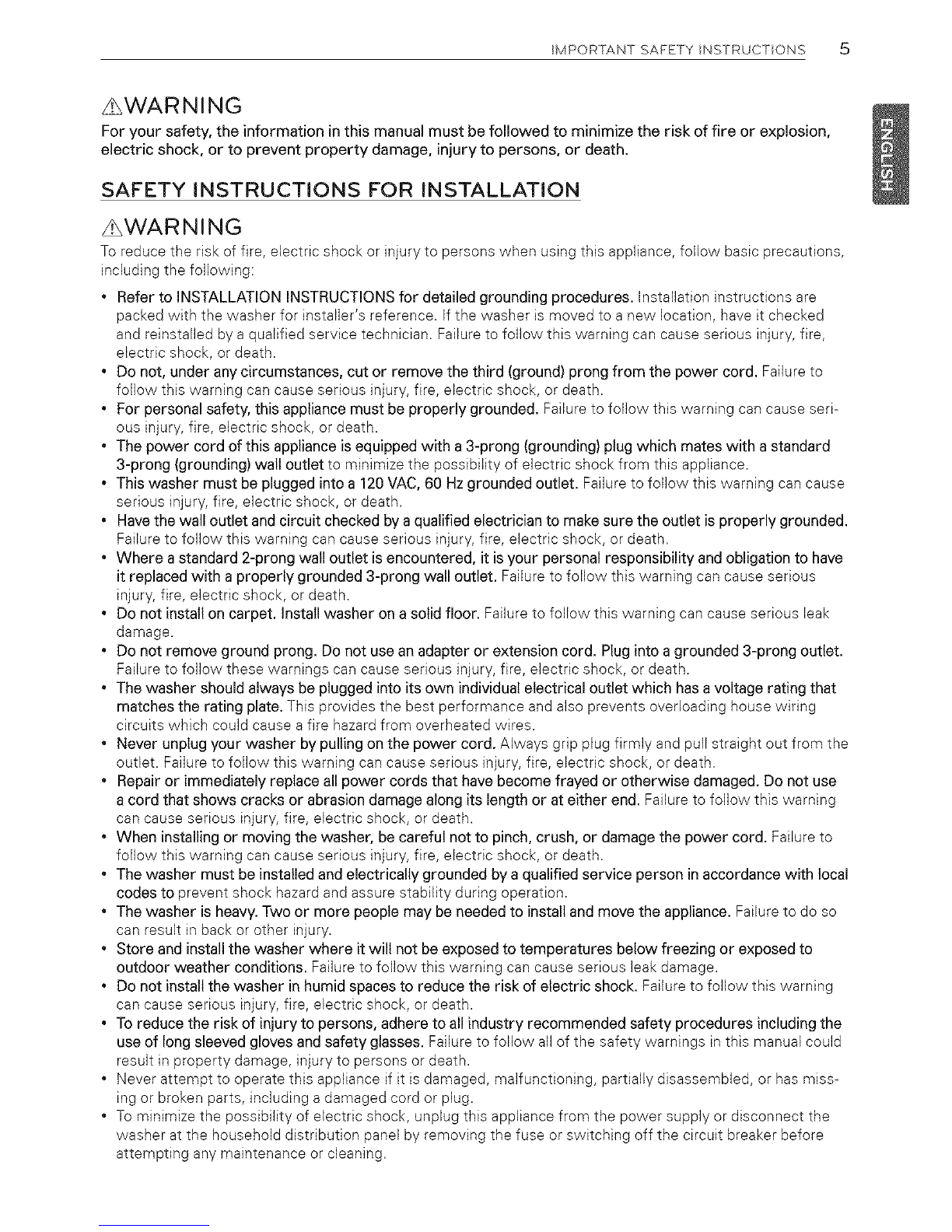

IMPORTi!,NT SAFETY INSTRUCTIONS 5
z_WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death,
SAFETY INSTRUCTIONS FOR INSTALLATION
z_WARNING
To reduce the risk of fire, electric shock or injury to persons when using this appliance, follow basic precautions,
including the following:
o Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are
packed with the washer for instaHer's reference. If the washer is moved to a new location, have it checked
and reinstalled by a qualified service technician. Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
o Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to
follow this warning can cause serious injury, fire, electric shock, or death.
o For personal safety, this appliance must be properly grounded. Failure to follow this warning can cause seri-
ous injury, fire, electric shock, or death.
o The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of electric shock from this appliance.
o This washer must be plugged into a 120 VAC, 60 Hz grounded outlet. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
• Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury, fire, electric shock, or death.
o Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have
it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
o Do not install on carpet. Install washer on a solid floor. Failure to follow this warning can cause serious leak
damage.
o Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet.
Failure to follow these warnings can cause serious injury, fire, electric shock, or death.
o The washer should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating plate. This provides the best performance and also prevents overloading house wiring
circuits which could cause a fire hazard from overheated wires.
o Never unplug your washer by pulling on the power cord. Always grip plug firmly and pull straight out from the
outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
o Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length or at either end. Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
o When installing or moving the washer, be careful not to pinch, crush, or damage the power cord. Failure to
follow this warning can cause serious injury, fire, electric shock, or death.
o The washer must be installed and electrically grounded by a qualified service person in accordance with local
codes to prevent shock hazard and assure stability during operation.
o The washer is heavy. Two or more people may be needed to install and move the appliance. Failure to do so
can result in back or other injury.
o Store and install the washer where it will not be exposed to temperatures below freezing or exposed to
outdoor weather conditions. Failure to follow this warning can cause serious leak damage.
o Do not install the washer in humid spaces to reduce the risk of electric shock. Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
o To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the
use of long sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could
result in property damage, injury to persons or death.
o Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has miss-
ing or broken parts, including a damaged cord or plug.
o To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the
washer at the household distribution panel by removing the fuse or switching off the circuit breaker before
attempting any maintenance or cleaning.
