LG WT7200C Series User manual

1. SPECIFICATION
3
Model WT7200C*
Electrical 120VAC@60Hz.
Inner Tub Stainless
Inlet Water Pressure 14.5 ~ 116 psi(100 ~ 800 kPa)
Rating of Fuse 120V/60Hz
Spin Speed 950 ± 50
Weight 146.9 lbs (66.5kg)
Cycles
Normal Pre Wash+, Delicates, Speed Wash, Downloaded
Normal, Heavy Duty, Bedding, Waterproof
Time Delay 1 – 19 Hr
Lid Interlock Switch Magnet Sensor
Control Lock Yes
Softener Dispenser Yes
Detergent Dispenser Yes
Bleach Inlet Yes
Auto Power Off Yes
Smart Rinse™with Jet
Spray
Yes
Heater No
Color Blue White

10
1) Using Water
Water Temperature
• The machine sets the appropriate temperature automatically according to the wash program .
You can override the preset selection by pressing the water temperature icon. Touch the arrow buttons up or
down until your desired temperature setting is displayed.
• The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results.
• We recommend temperatures of:
- HOT 120°F (120-140°F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 90°F (85-105°F) Most items
- COLD 66°F (65-75°F) Only very bright colors with light soil.
• When washing in COLD water additional steps may be needed:
- Adjust detergent amount and pre-dissolve detergent in WARM water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 18°C (65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.
In addition, detergent manufactures and care labels define COLD water as 26~29°C (80-85°F).
If the temperature of the water in the tub is too cold for your hands, the detergent will not activate and clean
effectively.
Note
If iron is present in the water, the clothes may become an all-over yellow or they may be stained with brown or
orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be
necessary for severe cases.

13
Adding Detergent
Add measured detergent to the detergent compartment of the
dispenser drawer.
• Do not exceed the maximum fill line.
Detergent is flushed through the dispenser at the beginning of
the wash cycle. Either powdered or liquid detergent can be
used, but the drawer insert must be removed to use powder.
Detergent usage may need to be adjusted for water
temperature, water hardness, size, and soil level of the load.
Avoid using too much detergent in your washer, as it can lead
to oversudsing and detergent residue being left on the clothes.
Adding Fabric Softener
Pour the recommended amount of liquid fabric
softener into the left-hand compartment. Use only liquid fabric
softener.
Dilute with water to the maximum fill line.
• Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the fabric softener,
which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
It may stain the clothes.
Adding Wash Boost Additives
The wash boost dispenser may be used to clean heavily soiled
or stained garments more efficiently.
If desired, place the additives for the wash boost setting in the
right-hand compartment. Use only liquid additives.
• Do not exceed the maximum fill line to avoid detergent buildup
In clothing and the washer
Overfilling can cause early dispensing of presoak additives,
which could result in damaged clothes.
NOTE : Do not pour additives directly on the wash load. It may stain the clothes.

15
Adhesive tape, chewing
gum, rubber cement
Baby formula, dairy
products, egg
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats,
salad, dressing, cooking
oils, car grease, motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with
prewash stain remover or nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Soak the item in a bowl of COLD water for at least 30 minutes. Then launder as usual.
Remove all surface wax. Put the garment in the freezer for a couple of hours, then
remove and break away as much wax as possible. Try a commercial removal product
like Goo-Gone, Goop, or Go-Jo cleaner for the remaining wax stains. DO NOT
ATTEMPT TO REMOVE WITH HEAT!
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach
safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach
safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For
heavy stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace
towels under stain frequently. Rinse throughly. Wash using hottest water safe for fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash
stain remover, denatured alcohol, or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water
before washing. Badly mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish
remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it
cannot be removed,
OIL BASED AND VARNISH Use solvent recommended on can label. Rinse throughly
before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use
phosphate detergent and nonchlorine bleach. Do not use chlorine bleach because it
may intensify discoloration.
LIQUID Pretreat with a paste of powdered detergent and water. Apply paste and
scrape residue from fabric. Pretreat with prewash stain remover or nonflammable dry
cleaning fluid. Rub detergent into dampened area. Wash using bleach safe for fabric.

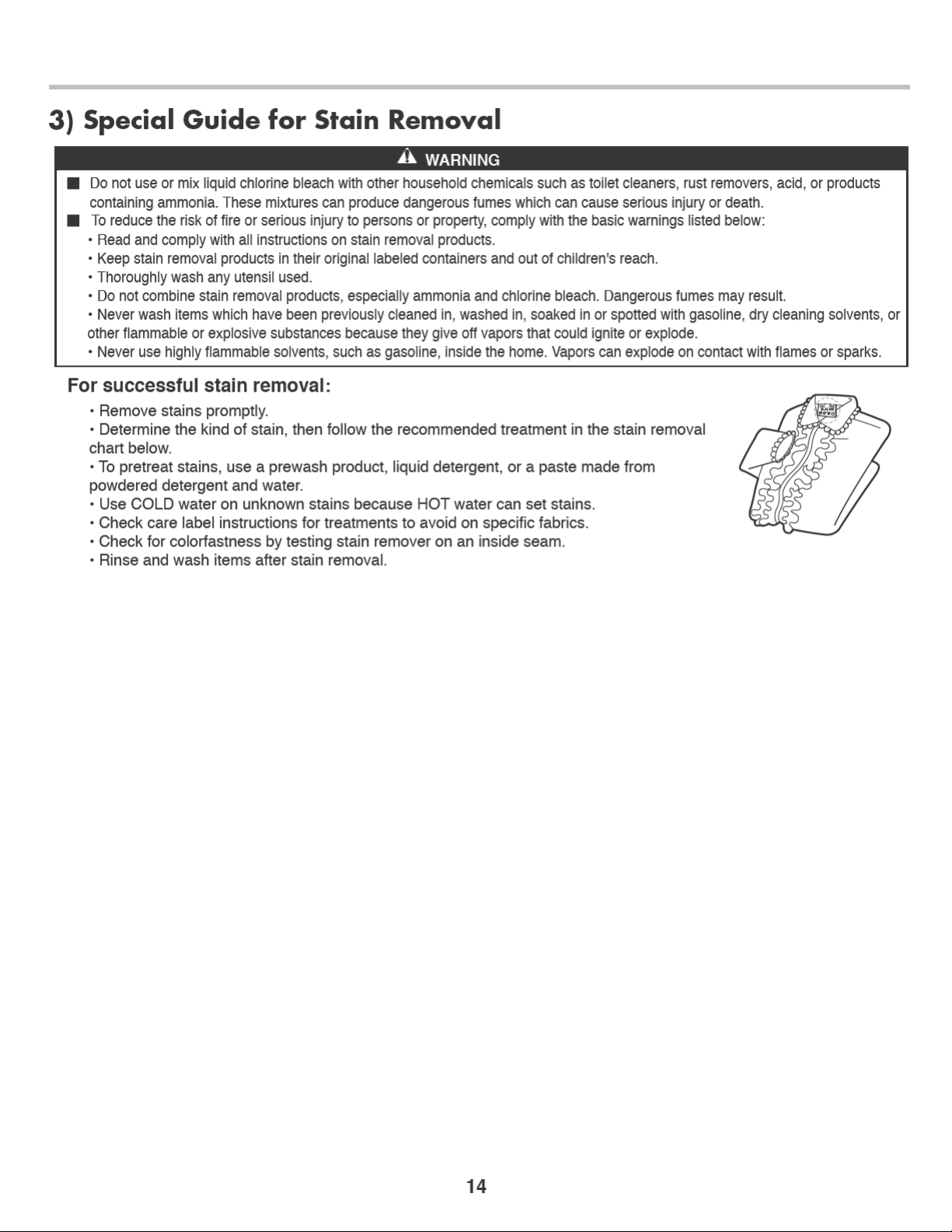

Stain Removal
STAIN TREATMENT

18
CYCLE GUIDE
The cycle guide below shows the default settings, available options
and recommended fabric types for each cycle. Allowable modifier
adjustments are shown below the default setting for each cycle. Default Setting
Cycle Fabric or Load
Type Wash Temp. Spin Speed Soil Level Soak Stain
Care™
Cold
Wash™
Extra
Rinse
Water
Plus
Fabric
Softener
Normal Cotton, linen,
towels, shirts,
sheets, jeans,
mixed loads
Hot Extra high Heavy
● ● ● ● ● ●
Warm High
Semi Warm Medium Normal
Cold
Tap cold No spin Light
Heavy Duty Heavily soiled
cotton fabrics
Hot Extra high Heavy
● ● ● ●
Warm High
Semi Warm Medium Normal
●
Cold Low
Tap cold No spin Light
Bedding Large items such
as blankets and
comforters
Hot Heavy
● ● ●
Warm
Semi Warm Medium Normal
●
Cold Low
Tap cold No spin Light
* Use the Bedding cycle for items such as pillows, comforters, pet bedding and other articles which have
difficulty
absorbing water. DO NOT WASH EXCESSIVELY LARGE ITEMS. If large/bulky items do not
fit easily into the tub, there
may not be enough room for them to move during washing. Keep like items
together; do not mix large bulky items with
smaller clothing items. Failure to follow these instructions
may result in damage to the clothing or to the washer.
Waterproof Waterproof or
water resistant
items: mattress
covers, outdoor
clothing, plastic
mats, etc. (less
than 14 lb.)
Heavy
● ●
Warm
Semi Warm Normal
Cold Low
●
Tap cold No spin Light
Pre Wash+
Normal
Towels, shirts,
sheets, jeans,
mixed loads
Hot Extra high
● ● ● ●
Warm High
Semi Warm Medium Normal
Cold Low
Tap cold No spin Light
Delicates Dress shirts/
blouses, nylons,
sheer or lacy
items (less than
8 lb.)
Heavy
● ● ●
Warm
Semi Warm Normal
●
Cold Low
Tap cold No spin Light
Speed Wash Lighly soiled
and small loads
Extra high Heavy
● ● ●
Warm High
Semi Warm Medium Normal
Cold Low
Tap cold No spin Light
Downloaded The downloaded
cycle (See page
21.)
3-4. WASHING PROGRAMS

3-5. CARE AND MAINTENANCE
19
When There Is The Possibility Of Freezing Temperatures
•Close the water taps and remove the water supply hoses.
•Remove the water which remains in the water supply.
•Lower the drain hose and drain the water in the sump and the drain hose by running a spin cycle.
Cleaning The Inside Of Your Washer
If you use fabric softener or do regular COLD water washing, it is very important that you
clean the inside of your washer occasionally as described below.
•Fill your washer with HOT water.
•Add 1 cup of bleach.
•Let it operate for several minutes.
•Stop the washer, open the lid, and leave it to soak overnight.
•After soaking, drain the washer and run it through a normal cycle.
Products That Might Damage Your Washing Machine
•Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of
your washer.
•Hydrocarbon solvents, i.e. gasoline, kerosene, paint thinners, and lacquer thinners, etc. can dissolve plastic
and blister paint.
(Be careful when washing garments stained with these solvents as they are flammable, DO NOT put
them in washer or dryer.)
•Some pretreatment sprays or liquids can damage your washer’s control panel.
•Use of dyes in your washer may cause staining of the plastic components. The dye will not damage
the machine but we suggest you thoroughly clean your washer afterwards. We do not recommend
the use of dye strippers in your washer.
•Do not use your washer lid as a work surface.
If Frozen
•Remove the water supply hose and immerse it in HOT water. (40° C or 104° F).
•Pour approximately 2 liters (½gallons ) of HOT water (40° C or 104° F) into the sump and allow it to stand for
at least 10 minutes.
•Connect the water supply hose to the water tap Run an Express Wash cycle to confirm that the machine fills,
drains, and operates properly.
Wash Inner-Tub Leave the lid open after washing to allow moisture to evaporate. If you
want to clean the inner-tub use a clean soft cloth dampened with liquid
detergent, then rinse. (Do not use harsh or gritty cleaners.)
Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.
Exterior Immediately wipe off any spills. Wipe with damp cloth. Avoid hitting surface with sharp
objects.
Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be
below freezing.
