OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is installed correctly
and safely. Leave these instructions near the product after installation for future
reference.
EN ENGLISH
F4V910*TS FV90JNS2Q F4WV910P2 F4WV910P2S
F4V909*TS F4WV909P2 FV90VNS2Q
MFL69478486
Rev.00_020119

TABLE OF CONTENTS This manual may contain images or content
different from the model you purchased.
This manual is subject to revision by the
manufacturer.
IMPORTANT SAFETY INSTRUCTIONS ........................................3
READ ALL INSTRUCTIONS BEFORE USE.....................................................3
WARNING.........................................................................................................3
CARING FOR THE ENVIRONMENT................................................................7
INSTALLATION...............................................................................8
Parts and Specifications....................................................................................8
Installation Place Requirements......................................................................10

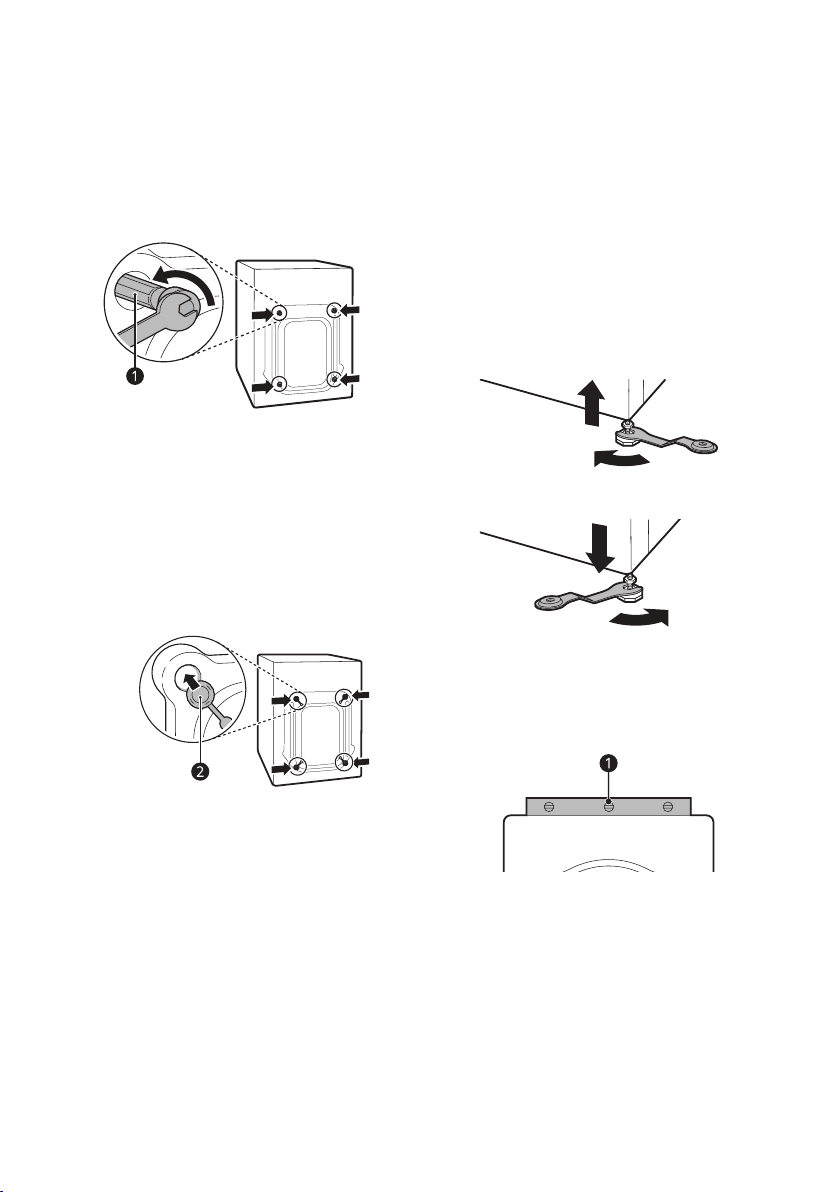

Unpacking the Appliance................................................................................. 11
Leveling the Appliance ....................................................................................12
Connecting the Water Inlet Hose ....................................................................13

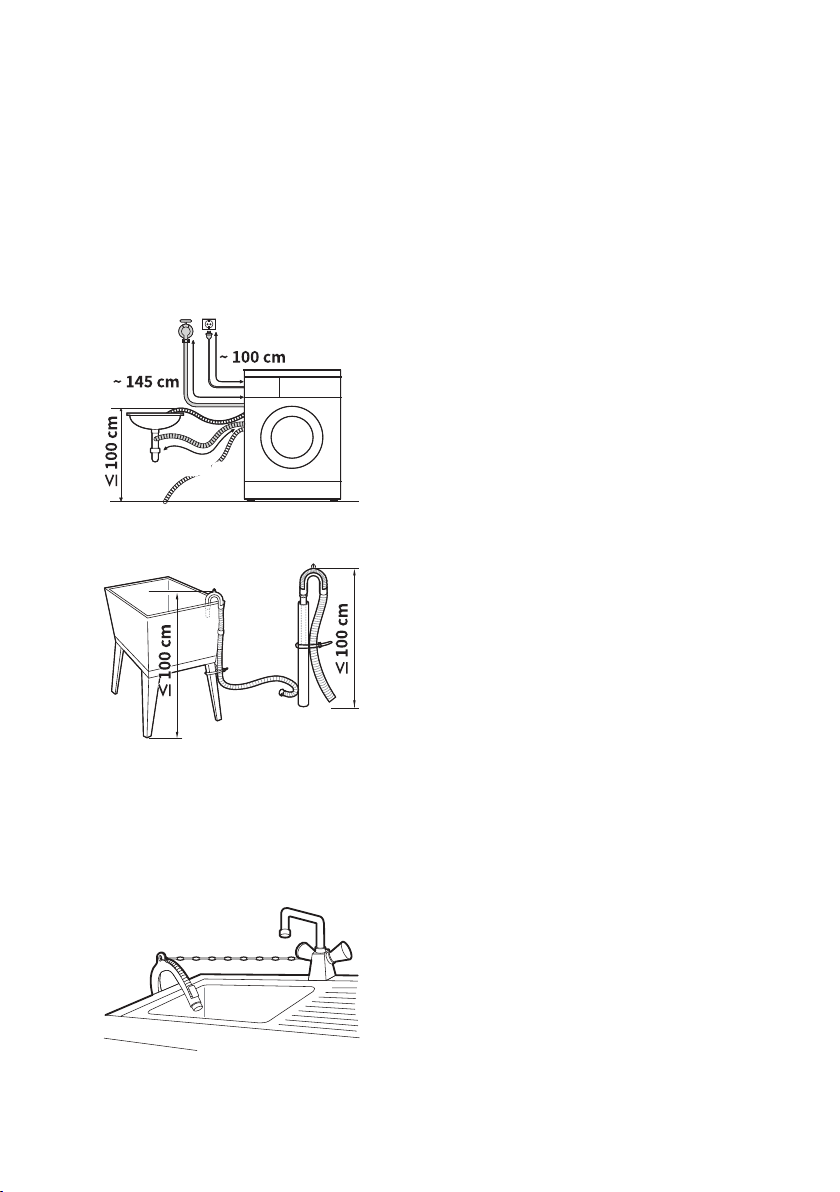

Installing the Drain Hose.................................................................................15
OPERATION .................................................................................16
Operation Overview ........................................................................................16

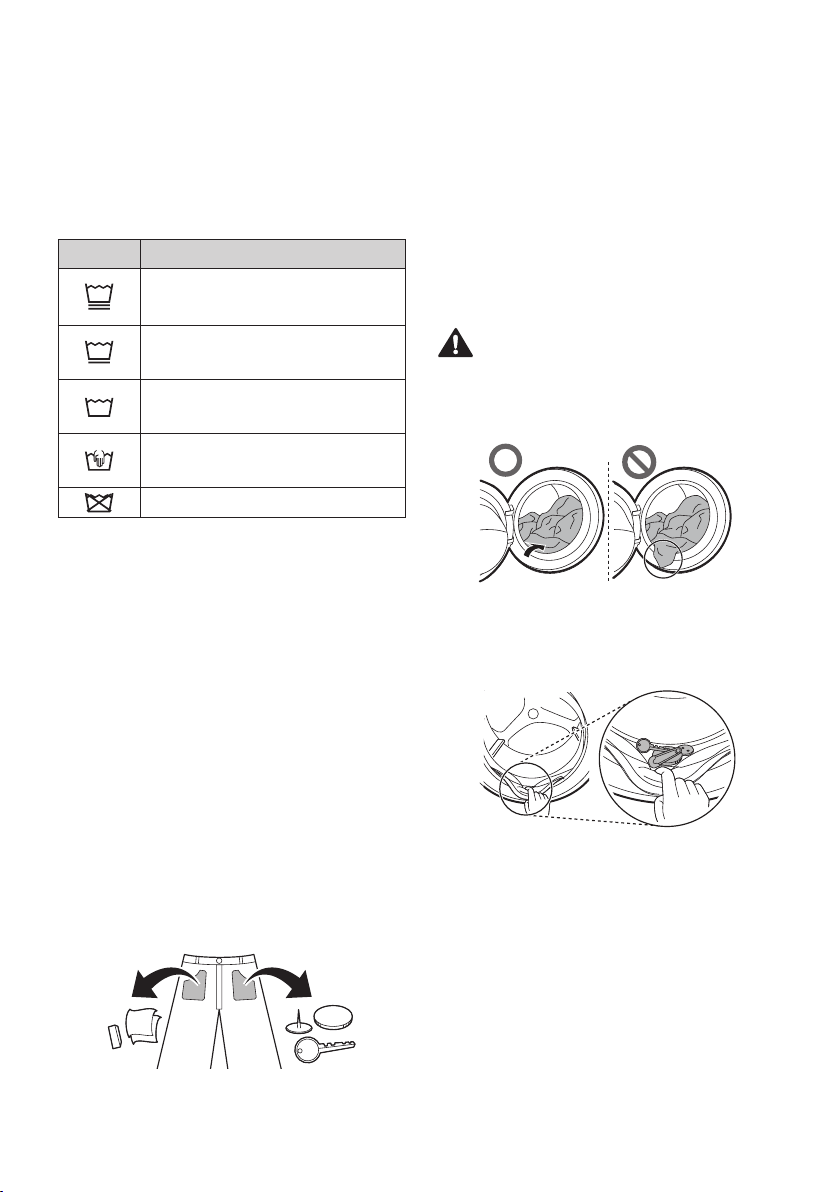

Preparing the Wash Load ...............................................................................16
Adding Detergents and Softeners...................................................................18

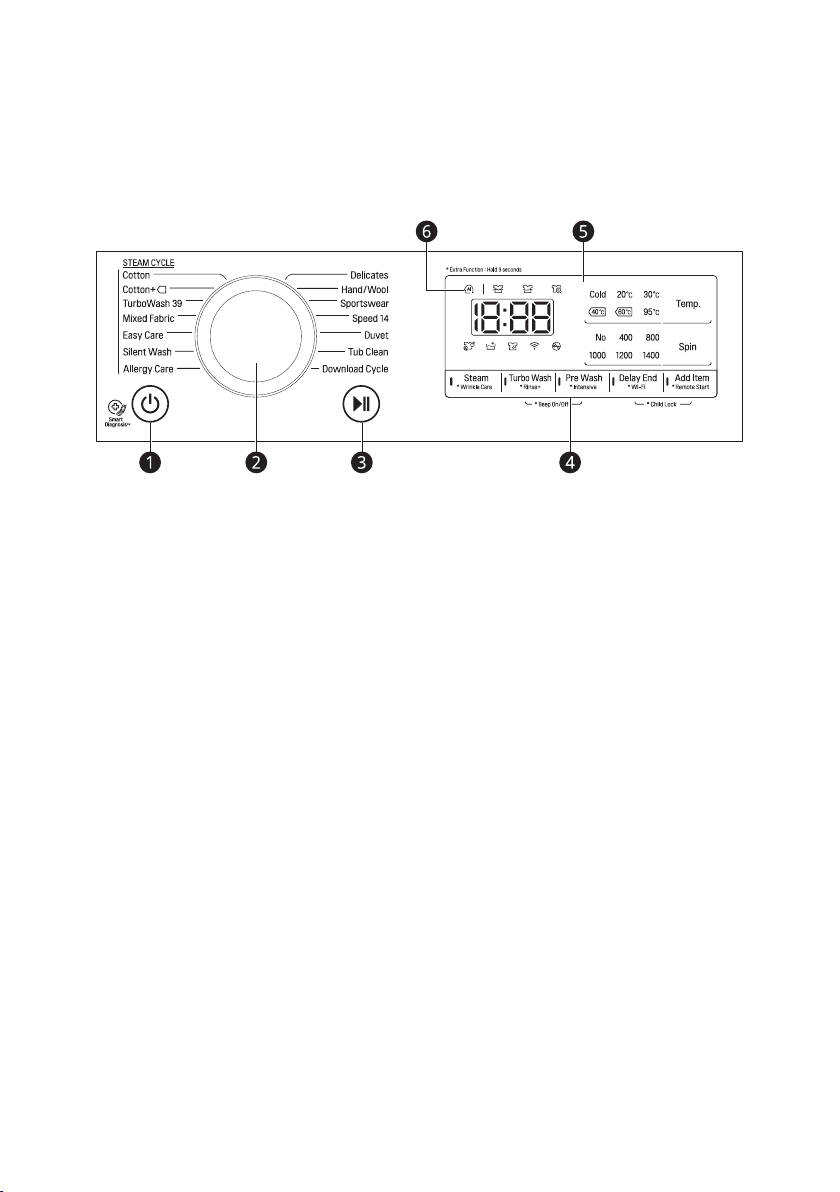

Control Panel ..................................................................................................20
Programme Table............................................................................................22
Consumption Data ..........................................................................................26
Extra Options and Functions...........................................................................27
SMART FUNCTIONS....................................................................30
Using LG SmartThinQ Application ..................................................................30
Using Smart Diagnosis....................................................................................32
MAINTENANCE............................................................................34
Cleaning After Every Wash .............................................................................34
Cleaning the Appliance Periodically................................................................34
TROUBLESHOOTING..................................................................37
Before Calling for Service ...............................................................................37
OPERATING DATA.......................................................................44
Product Fiche..................................................................................................44

3
EN
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen risks
or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
Safety Messages
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause the
minor injury or damage to the product.
WARNING
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:

4
EN
Children in the Household
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
For use in Europe
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
•Children of less than 3 years should be kept away unless
continuously supervised.
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, or rain or
temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet is loose,
do not use the power cord and contact an authorized service centre.

5
EN
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of the
appliance, in such a way that a full opening of the appliance door is
restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an equipment
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed and
grounded in accordance with all local codes and ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not fit the outlet, have a proper outlet installed by a qualified
electrician.
Operation
•Do not attempt to separate any panels or disassemble the appliance.
•Do not apply any sharp objects to the control panel in order to
operate the appliance.
•Do not repair or replace any part of the appliance. All repairs
and servicing must be performed by qualified service personnel
unless specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
•Do not put animals, such as pets into the appliance.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.

6
EN
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Use new hose or hose-set supplied with the appliance. Reusing old
hoses can cause a water leak and subsequent property damage.
•Do not put in, wash or dry articles that have been cleaned in, washed
in, soaked in, or spotted with combustible or explosive substances
(such as waxes, wax removers, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, petrol, spot removers, turpentine,
vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can
cause fire or explosion.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door is
open.
•Do not touch the door during a high temperature programme.
•Do not use flammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only after
thawing.
•Keep all washing detergents, softener and bleach away from children.
•Do not touch the power plug or the appliance controls with wet hands.
•Do not bend the power cable excessively or place a heavy object on
it.
•Do not wash rugs, mats, shoes or pet blankets, or any other items
other than clothes or sheets, in this machine.
•This appliance must only be used for domestic household purposes
and should not be used in mobile applications.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.

7
EN
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning the
appliance. Setting the controls to the OFF or stand by position does
not disconnect this appliance from the power supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable. Always rip
the power plug firmly and pull straight out from the socket outlet.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
•Remove the door before disposing of or discarding this appliance to
avoid the danger of children or small animals getting trapped inside.
CARING FOR THE ENVIRONMENT
Disposal of Your Old Appliance
•This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste
stream.
•Old electrical products can contain hazardous substances so correct disposal
of your old appliance will help prevent potential negative consequences for the
environment and human health. Your old appliance may contain reusable parts that
could be used to repair other products, and other valuable materials that can be
recycled to conserve limited resources.
•You can take your appliance either to the shop where you purchased the product,
or contact your local government waste office for details of your nearest authorised
WEEE collection point. For the most up to date information for your country, please
see www.lg.com/global/recycling.

8
EN
INSTALLATION
Front View
a Control Panel
b Detergent dispenser drawer
c Drum
d Door
e Cover cap
f Drain pump filter
g Drain plug
h Adjustable feet
Rear View
a Power plug
b Transit bolts
c Drain hose
Parts and Specifications
NOTE
•Appearance and specifications may change without notice to improve the quality of the appliance.

9
EN
Accessories
* This feature may vary depending on the model purchased.
a Cold water inlet hose*
b Spanner
c Caps for covering transit bolt holes*
d Anti-slip sheets*
e Elbow bracket for securing drain hose*
f Tie strap*
Specifications
Model F4V910*TS
FV90JNS2Q
F4WV910P2
F4WV910P2S
F4V909*TS
F4WV909P2
FV90VNS2Q
Wash Capacity 10.5 kg 9 kg
Power Supply 220 - 240 V~, 50 Hz
Dimension
(Width x Depth x Height) 600 mm X 560 mm X 850 mm
Product Weight 70 kg
Permissible Water Pressure 100 - 1000 kPa (1.0 - 10.0 kgf / cm2)
•No further backflow protection required for connection to the water inlet.

10
EN
Installation Place
Requirements
Before installing the appliance, check the following
information to make sure that the appliance should
be installed in a correct place.
Installation Location
•Install the appliance on a flat hard floor.
(Allowable slope under the appliance: 1°)
•Never try to correct any unevenness in the
floor with pieces of wood, cardboard or similar
materials under the appliance.
•If it is impossible to avoid positioning the
appliance next to a gas cooker or coal burning
stove, an insulation (850 X 600 mm) covered
with aluminium foil on the side facing the cooker
or stove must be inserted between the two
appliances.
•Ensure that when the appliance is installed, it is
easily accessible for an engineer in the event of
a breakdown.
•With the appliance installed, adjust all four feet
using the transit bolt spanner provided to ensure
the appliance is stable, and a clearance of
approximately 5 mm is left between the top of
the appliance and the underside of any worktop.
•Additional clearance should have 100 mm for
the wall and 20 mm for rear, right and left side.
100 mm
20 mm
5 mm
20 mm
WARNING
•This appliance must only be used for domestic
household purposes and should not be used in
mobile applications.
NOTE
•If the appliance is installed on a raised platform,
it must be securely fastened in order to eliminate
the risk of falling off.
Wooden Floors (Suspended
Floors)
When installing the appliance on wooden floors,
use rubber cups to prevent the appliance from
excessive vibration and unbalance.
•To prevent vibration, we recommend you to
place rubber cups aat least 15 mm thick of the
each foot of the appliance, secured to at least
two floor beams with screws.

11
EN
•If possible, install the appliance in one of the
corners of the room, where the floor is more
stable.
•Fit the rubber cups to reduce vibration.
NOTE
•You can purchase rubber cups (Part No.
4620ER4002B) from the LG Electronics service
centre.
Ventilation
•Make sure that air circulation around the
appliance should not be impeded by carpets,
rugs, etc.
Ambient Temperature
•Do not install the appliance in rooms where
freezing temperatures may occur. Frozen hoses
may burst under pressure. The reliability of
the electronic control unit may be impaired at
temperatures below freezing point.
•If the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
Electrical Connection
•Do not use an extension cord or double adapter.
•Always unplug the appliance and turn off the
water inlet after use.
•Connect the appliance to an earthed socket in
accordance with current wiring regulations.
•The appliance must be positioned so that the
plug is easily accessible.
•Repairs to the appliance must only be carried
out by the qualified personnel. Repairs carried
out by inexperienced persons may cause injury
or serious malfunctioning. Contact your LG
Electronics service centre.
•Power outlet must be at least 1 meter of either
side of the location of the appliance.
WARNING
•The power plug must be plugged into an
appropriate socket outlet that is installed and
grounded in accordance with all local codes and
ordinances.
Unpacking the Appliance
Lifting the Appliance Off the Foam
Base
* This feature may vary depending on the model
purchased.
1 After removing the carton and shipping
material, lift the appliance off the foam base.
Make sure the tub support a* comes off with
the base and is not stuck to the bottom of the
appliance.
2 If you must lay the appliance down to remove
the carton base b, always protect the side of
the appliance and lay it carefully on its side.
Do not lay the appliance on its front or back.
*

12
EN
Removing the Bolt Assemblies
1 Starting with the bottom two transit bolts a, use
the spanner (included) to fully loosen all transit
bolts by turning them counterclockwise.
2 Remove the bolt assemblies by wiggling them
slightly while pulling them out.
3 Install the hole caps.
•Locate the hole caps bincluded in the
accessory pack or attached on the back.
Leveling the Appliance
Checking the Leveling
When pushing down the edges of the top plate
diagonally, the appliance should not move up and
down at all (check both directions). If the appliance
rocks when pushing the top plate of the appliance
diagonally, adjust the feet again.
Adjusting and Leveling the Feet
When installing the appliance, the appliance should
be aligned and perfectly level. If the appliance is not
aligned and level properly, the appliance may be
damaged or may not operate properly.
1 Turn the adjustable feet as required if the floor
is uneven.
•Do not insert pieces of wood etc. under the
feet.
•Make sure that all four feet should be stable
and resting on the floor.
2 Check if the appliance is perfectly level using a
spirit level a.

13
EN
3 Secure the adjusting feet with the lock nuts b
by turning counterclockwise against the bottom
of the appliance.
4 Check if all lock nuts at the bottom of the
appliance are secured properly.
NOTE
•Proper placement and leveling of the appliance
will ensure long, regular, and reliable operation.
•The appliance must be 100% horizontal and
stand firmly in position.
•It must not ‘Seesaw’ across corners under the
load.
•Do not let the feet of the appliance get wet.
Failure to do so may cause vibration or noise.
Using Anti-Slip Sheets
This feature may vary depending on the models
purchased.
If you install the appliance on a slippery surface, it
may move because of excessive vibration. Incorrect
leveling may cause malfunction through noise and
vibration. If this occurs, install the anti-slip sheets
under the leveling feet and adjust the level.
1 Clean the floor to attach the anti-slip sheets.
•Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains,
the anti-slip sheets may slip.
2 Adjust the level after placing the appliance in
the installation area.
3 Place the adhesive side aof the anti-slip
sheets on the floor.
•The most effective way is to install the anti-
slip sheets under the front feet. If it is difficult
to place the sheets under the front feet of the
appliance, attach them under the rear feet.
4 Put the appliance on the anti-slip sheets.
•Do not attach the adhesive side aof anti-slip
sheets to the feet of the appliance.
NOTE
•Additional anti-slip sheets are available at LG
Electronics service centre
Connecting the Water Inlet
Hose
Note for Connection
•Water pressure must be between 100 kPa
and 1000 kPa (1.0‒10.0 kgf/cm²). If the
water pressure is more than 1000 kPa, a
decompression device should be installed.
•Do not overtighten the water inlet hose to all
valves.
•Periodically check the condition of the hose and
replace the hose if necessary.

14
EN
Checking the Rubber Seal on the
Water Inlet Hose
Two rubber seals aare supplied with the water
inlet hoses. They are used to prevent water leaks.
Make sure that the connection to taps should be
sufficiently tight.
Connecting Hose to Water Tap
Screw - Type Hose to Tap with Thread
Screw the hose connection to the water supply,
which has ¾” threaded union.
NOTE
•Before connecting the inlet hose to the water
tap, turn on the water tap to flush out foreign
substances (dirt, sand, sawdust, and etc.) in the
water lines. Let the water drain into a bucket,
and check the water temperature.
Connecting Hose to the Appliance
Screw the water line to the water supply on the
back of the appliance.
NOTE
•After completing connection, if water leaks from
the hose, repeat the same steps. Use the most
conventional type of tap for the water supply. If
the tap is square or too big, remove the guide
plate before inserting the tap into the adaptor.
•Make sure that the hose should not be kinked
or trapped.

15
EN
Installing the Drain Hose
For Model with Drain Pump
The drain hose should not be placed higher than
100 cm above the floor. Water in the appliance may
not drain or may drain slowly.
•Securing the drain hose correctly will protect the
floor from damage due to water leakage.
_DN
•If the drain hose is too long, do not force it back
into the appliance. This will cause abnormal
noise.
•When installing the drain hose to a sink, secure
it tightly with string.

16
EN
OPERATION
Operation Overview
Using the Appliance
Before the first wash, select the Cotton wash
programme and add a half amount of the detergent.
Start the appliance without laundry. This will remove
possible residues and water from the drum that may
have been left during manufacturing.
1 Sort laundry and load items.
•Sort laundry by fabric type, soil level, colour
and load size as needed. Open the door and
load items into the appliance.

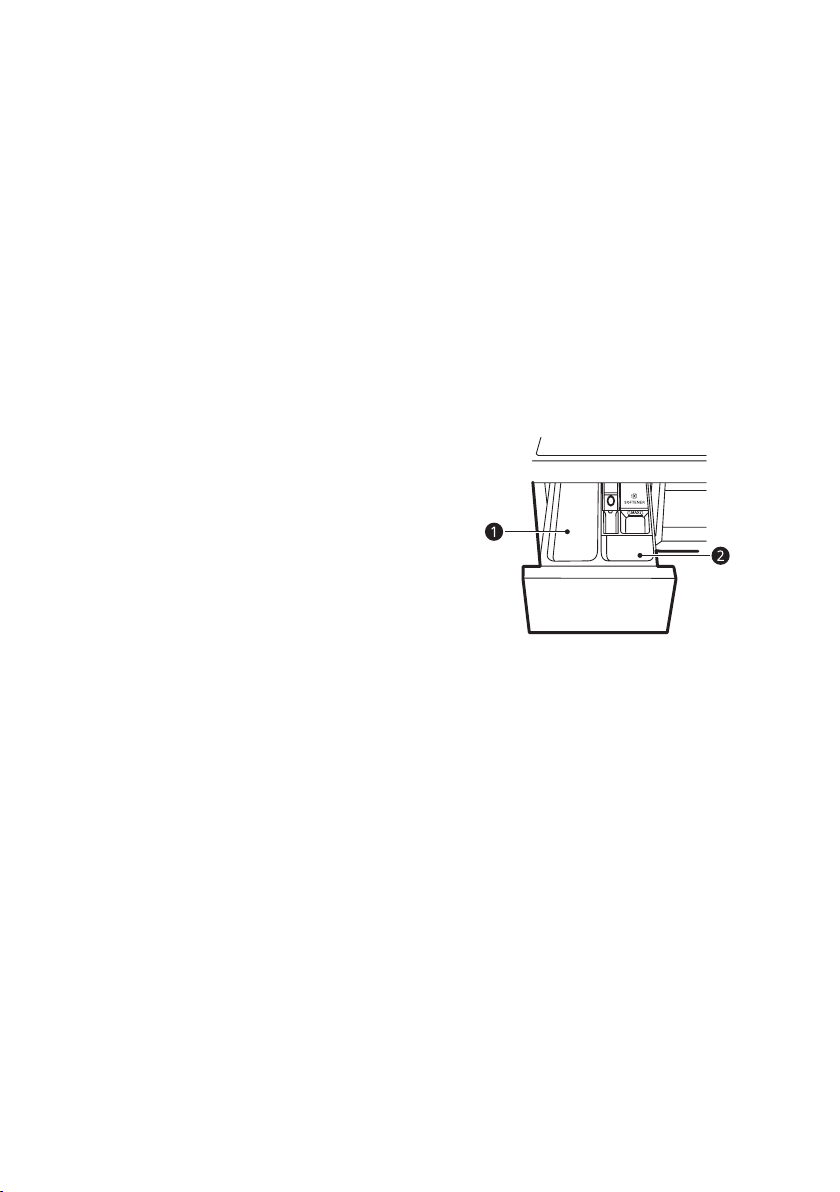

2 Add detergent or softener.
•Add the proper amount of detergent to the
detergent dispenser drawer. If desired, add
bleach or fabric softener to the appropriate
areas of the dispenser.
3 Turn on the appliance.
•Press the Power button to turn on the
appliance.
4 Choose the desired cycle.
•Press the cycle button repeatedly or turn the
cycle selector knob until the desired cycle is
selected.
•Now select a wash temperature and spin
speed. Pay attention to the care labeling of
your clothes.
5 Begin cycle.
•Press the Start/Pause button to begin the
cycle. The appliance will agitate briefly
without water to measure the weight of the
load. If the Start/Pause button is not pressed
within 15 minutes, the appliance will shut off
and all settings will be lost.
6 End of cycle.
•When the cycle is finished, a melody will
sound. Immediately remove your clothing
from the appliance to reduce wrinkling.
Check around the door seal when removing
the load for small items that may be caught
in the seal.
Preparing the Wash Load
Sort laundry for best washing results, and then
prepare laundry according to the symbols on the
care labels.
Sorting the Wash Load
•For best washing results, sort your clothes
according to the symbol on the care labels
according to the type of fabric and washing
temperature and wash them with adapted spin
speed.
•Always sort dark colours from pale colours and
whites. Wash separately as dye and lint transfer
can occur causing discolouration of white and
pale garments. If possible, do not wash heavily
soiled items with lightly soiled ones.
NOTE
•Soil (Heavy, Normal, Light): Separate clothes
according to amount of soil. The Intensive
option is effective when washing normally and
heavily soiled laundry.
•Colour (White, Lights, Darks): Separate white
fabrics from coloured fabrics. Wash new dark
and colored garments separately at first.
•Lint (Lint producers, Collectors): Wash lint
producers and lint collectors separately.

17
EN
Checking the Clothes Care Label
Symbols on the care labels
The symbols tell you about the fabric content of
your garment and how it should be washed.
Symbol Wash / Fabric type
• Normal Wash
• Cotton, Mixed Fabrics
• Easy Care
• Synthetic, Mixed Fabrics
• Special Delicate Wash
• Delicates
• Hand Wash Only
• Wool, Silk
• Do not wash
NOTE
•The dashes under the symbol give you
information about the type of fabric and the
maximum allowance of mechanical stress.
Checking the Clothes before
Loading
•Combine large and small items in a load. Load
large items first.
•Large items should not be more than half of the
total wash load. Do not wash single items. This
may cause an unbalanced load. Add one or two
similar items.
•Check all pockets to make sure that they are
empty. Items such as nails, hair clips, matches,
pens, coins and keys can damage both your
appliance and clothes.
•Wash delicates (stockings, underwired bras) in
a wash net.
•Close zippers, hooks and strings to make sure
that these items do not snag on other clothes.
•Pre-treat dirt and stains by brushing a small
amount of detergent dissolved water onto stains
to help lift dirt.
•Check the folds of the flexible gasket (gray) and
remove any small articles.
CAUTION
•Check if the laundry gets stuck between the
door and the seal, otherwise the laundry may
get damaged while washing.
•Remove items from the flexible gasket to prevent
clothing and door seal damage.

18
EN
Adding Detergents and
Softeners
Detergent Dosage
•Detergent should be used according to the
instruction of the detergent manufacturer and
selected according to type, colour, soiling of the
fabric and the washing temperature.
•If too many suds occur, reduce the detergent
amount.
•If too much detergent is used, too many suds
can occur and this will result in poor washing
results or cause heavy load to the motor.
•If you wish to use liquid detergent, follow
the guidelines provided by the detergent
manufacturer.
•You can pour liquid detergent directly into the
main detergent drawer if you are starting the
wash cycle immediately.
•Do not use liquid detergent if you are using
Delay End function, or if you have selected
Pre Wash option, as the liquid may harden.
•Detergent usage may need to be adjusted for
water temperature, water hardness, size and
soil level of the load. For best results, avoid
oversudsing.
•Refer to the label of the clothes, before choosing
the detergent and water temperature.
•Use only suitable detergents for the respective
type of clothing:
−Liquid detergent is often designed for special
applications, e.g. for coloured fabric, wool,
delicate or dark laundry.
−Powdered detergent is suitable for all types
of fabric.
−For better washing results of white and pale
garments, use powdered detergent with
bleach.
−Detergent is flushed from the dispenser at the
beginning of the wash cycle.
NOTE
•Do not let the detergent harden. Doing so may
lead to blockages, poor rinse performance or
odour.
•Full load: According to manufacturer’s
recommendation
•Part load: ¾ of the normal amount
•Minimum load: ½ of full load
Adding Detergent
•Detergent for main wash aonly ~J
•Detergent for pre wash band main wash a~
d#J
NOTE
•Use the appropriate amount of detergent. Too
much detergent, bleach or softener may cause
an overflow.
•When selecting Pre Wash, divide the dosage
into ⅓ for pre wash and ⅔ for main wash.

19
EN

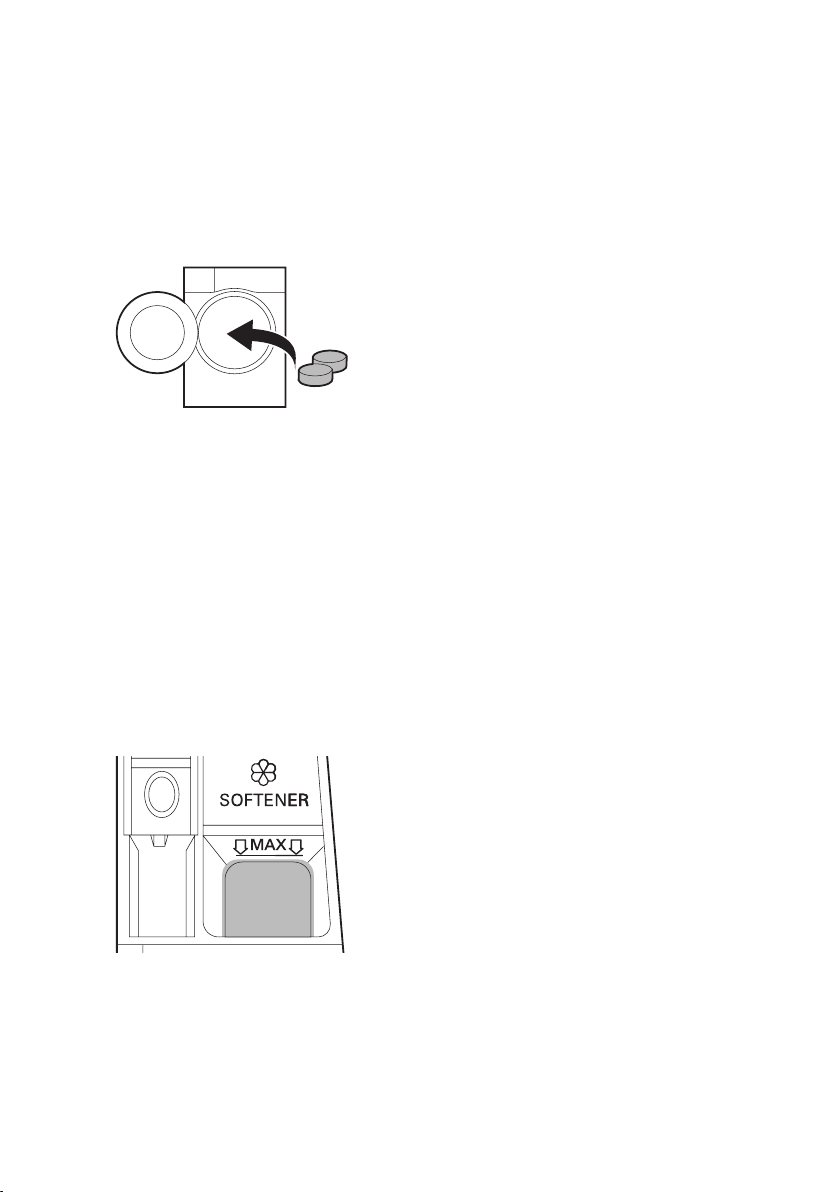

Adding Detergent Tablet
Detergent tablet is also available when washing
laundry.
1 Open the door and put detergent tablets into
the drum.
2 Load the laundry into the drum and close the
door.
NOTE
•Do not put tablets into the drawer.
Adding Fabric Softener
•Do not exceed the maximum fill line. Overfilling
can cause early dispensing of the fabric
softener, which may stain clothes. Close the
dispenser drawer slowly.
•Do not leave the fabric softener in the detergent
drawer for more than 2 days (Fabric softener
may harden).
•Softener will automatically be added during the
last rinse cycle.
•Do not open the drawer when water is being
supplied.
•Solvents (e.g. benzene, etc.) must not be used.
NOTE
•Do not pour fabric softener directly onto the
garments, as this may cause stains on your
clothing.
Adding Water Softener
A water softener, such as anti-limescale can be
used to cut down on the use of detergent in areas
with high water hardness level.
•First add detergent, and then the water softener.
Dispense according to the amount specified on
the packaging.

20
EN
Control Panel
Control Panel Features
a Power Button
•Press the Power button to turn on or off the appliance.
b Programme Knob
•Programmes are available according to the laundry type.
•The lamp will light up to indicate the selected programme.
c Start/Pause Button
•This Start/Pause button is used to start the wash cycle or pause the wash cycle.
•If a temporary stop of the wash cycle is needed, press the Start/Pause button.
d Extra Options and Functions
•Extra options and functions are available for better washing performance. Several options and
functions can be customized.
•To use the extra functions, press and hold the corresponding button for 3 seconds. The
corresponding symbol lights up in the display.
•In order to use the Remote Start function, refer to SMART FUNCTIONS.
•This allows you to select an additional programmes and will light when selected.
−\: When the laundry is spun after steaming, this icon is illuminated.
−G: When the number of rinse is added, this icon is illuminated.
−o: When the heavily soiled laundry is washed intensively, this icon is illuminated.
−f: This icon is illuminated when the appliance is connected to WLAN network.
