Liebert 8 Tons User manual

Precision Cooling
For Business-Critical Continuity™
Liebert Mini-Mate2™
User Manual - 8 Tons, 50 & 60Hz

i
TABLE OF CONTENTS
MODEL NUMBER NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
1.0 PRODUCT FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.1 Standard Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.1 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.2 Evaporator System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.3 Condensing Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Optional Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.1 Canister Humidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 Electric Reheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.3 SCR Electric Reheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.4 Hot Gas Bypass (Condensing Units) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.5 Free-Cooling Coil (GLYCOOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.6 Smoke Detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.7 Firestat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.8 Filter Clog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Ancillary (Ship Loose Accessories) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.1 Single Point Power Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.2 Refrigerant Line Sweat Adapter Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.3 Return Air Filter Box with Duct Collar Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.4 Condensate Pump Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.5 Remote Monitoring and Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.6 Remote Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.0 SITE PREPARATION AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1 Installation Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.1 Room Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.2 Location Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 System Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Equipment Inspection upon receipt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Installing the Evaporator or Chilled-Water Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4.1 Close Coupled Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4.2 Evaporator Air Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4.3 Piping Connections and Coolant Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.4.4 Electrical Connections, Evaporator or Chilled-Water Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.5 Indoor Air-Cooled Centrifugal Fan Condensing Unit Installation . . . . . . . . . . . . . . . . . . . . 19
2.5.1 Location Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.5.2 Ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.5.3 Piping Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.5.4 Electrical Connections - Condensing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.6 Outdoor Air-Cooled Condensing Unit Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6.1 Location Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6.2 Piping Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6.3 Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

ii
2.7 Indoor Water- and Glycol-Cooled Condensing Unit Installation. . . . . . . . . . . . . . . . . . . . . . 27
2.7.1 Location Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.7.2 Piping Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.7.3 Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.8 Optional Equipment Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.8.1 Free-Cooling Coil (GLYCOOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.9 Checklist for Completed Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.0 MICROPROCESSOR CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3.1 Feature Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.2 Main Menu <Menu>. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.3 Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.4 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.5 Active Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.6 Alarm History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.7 Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.8 Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.9 Setback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.10 Setup Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.10.1 Restart Time Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.10.2 C/F Degrees. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.10.3 Humidity Control Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.10.4 Lead Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.10.5 Show DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.10.6 Valve Time (For Systems With a Modulating Chilled-Water Valve) . . . . . . . . . . . . . . . . . . . 38
3.10.7 CW Flush (For Systems With a Modulating Chilled-Water Valve). . . . . . . . . . . . . . . . . . . . . 39
3.11 Change Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.12 Calibrate Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.13 Alarm Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.14 Alarm Time Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.15 Common Alarm Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.16 Custom Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.17 Custom Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.18 Run Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4.0 SYSTEM PERFORMANCE MICROPROCESSOR CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . .45
4.1 Control Type Response Proportional Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.2 Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.2.1 Multi-Step Cooling, Compressorized Direct Expansion (DX) Systems . . . . . . . . . . . . . . . . . . 45
4.2.2 Chilled-Water Cooling (8 Ton) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.2.3 GLYCOOL Cooling (8 Ton) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

iii
4.3 Reheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.3.1 Electric Reheat - Staged. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.3.2 SCR Electric Reheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.4 Dehumidification / Humidification Percent Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.4.1 Staged Dehumidification, Compressorized Direct Expansion (DX) Systems . . . . . . . . . . . . . 46
4.4.2 Humidification Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.4.3 Dehumidification Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.5 Load Control Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.6 Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.0 ALARMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
5.1 Alarms: Definitions and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.1.1 Custom Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.1.2 High Head Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.1.3 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.4 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.5 Humidifier Problem Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.6 High-Water Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.7 Loss of Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.8 Short Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.2 Optional/Custom Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.2.1 Change Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.2.2 Firestat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.2.3 Smoke Detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.0 SYSTEM OPERATION, TESTING, AND MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
6.1 System Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.1.1 Environmental Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.1.2 Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.1.3 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.1.4 Humidification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.1.5 Dehumidification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.1.6 Remote Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.2 Maintenance and Component Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.2.1 Electric Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.2.2 Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.2.3 Blower System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.2.4 Electric Reheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.2.5 Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.2.6 Steam Generating Humidifier - Operation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.2.7 Circuit Board Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
7.0 MAINTENANCE INSPECTION CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
8.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

iv
FIGURES

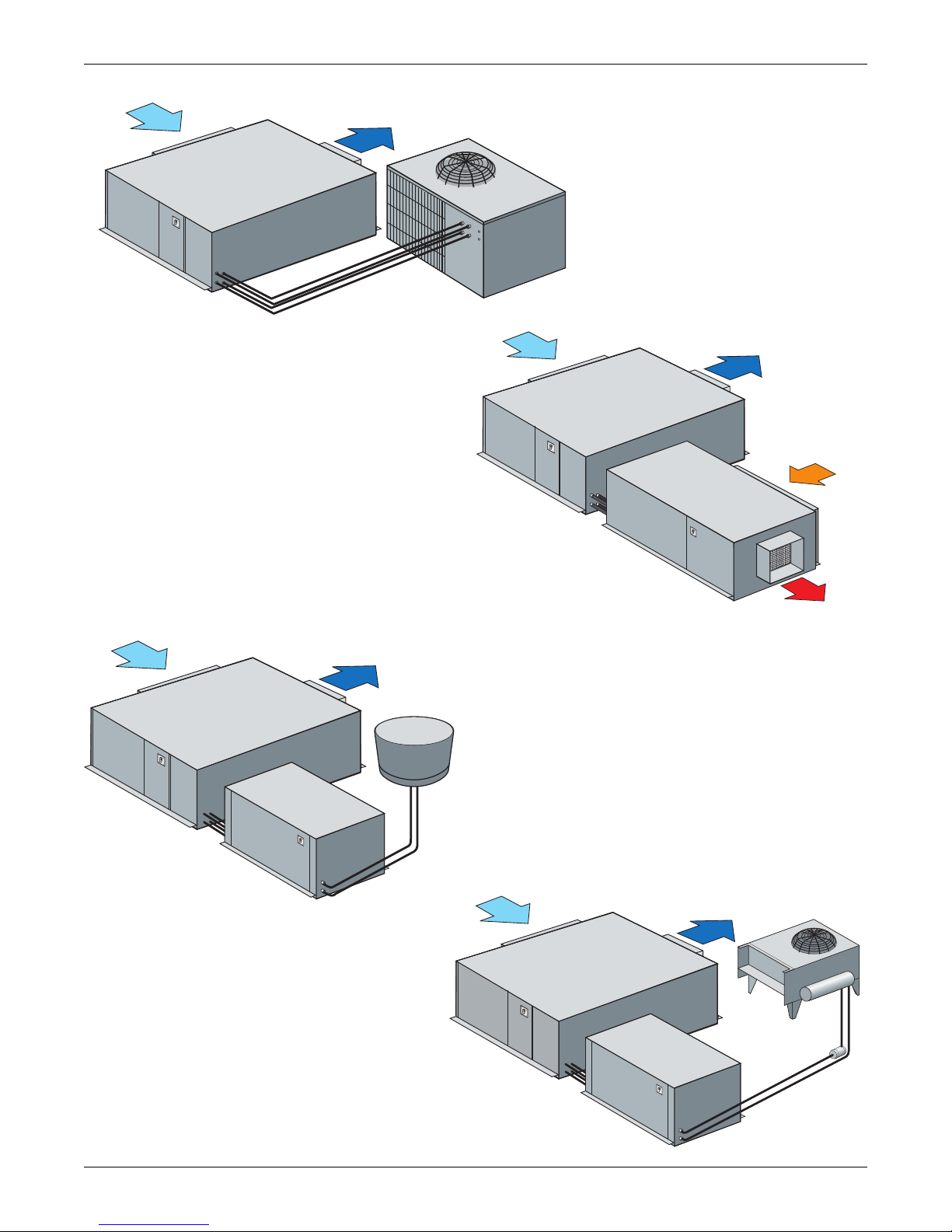

Figure 1 System configurations—air cooled systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 2 System Configurations—water/glycol systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 3 System Configurations—chilled water systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4 Threaded rod and hardware kit installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

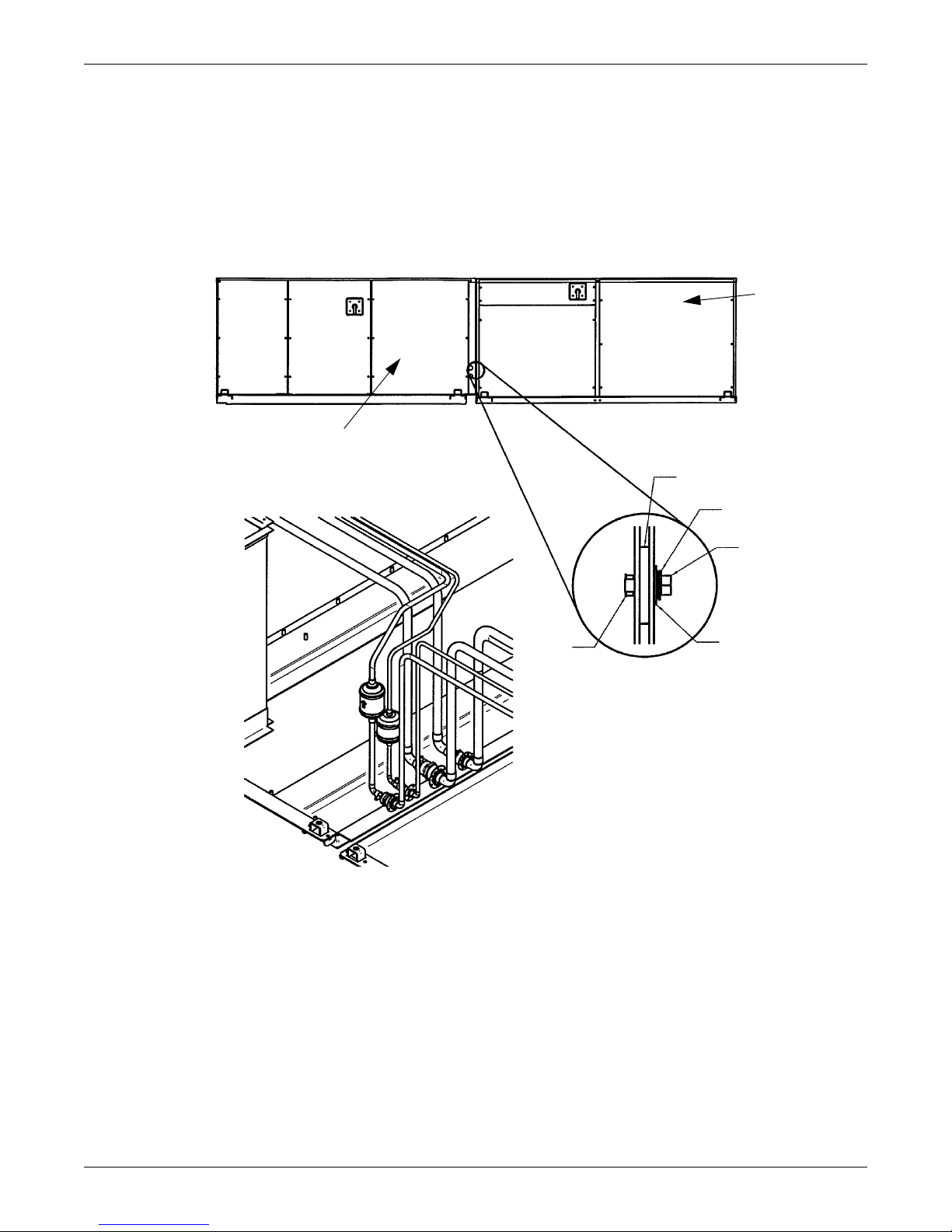

Figure 5 Close coupled installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 6 Drain installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

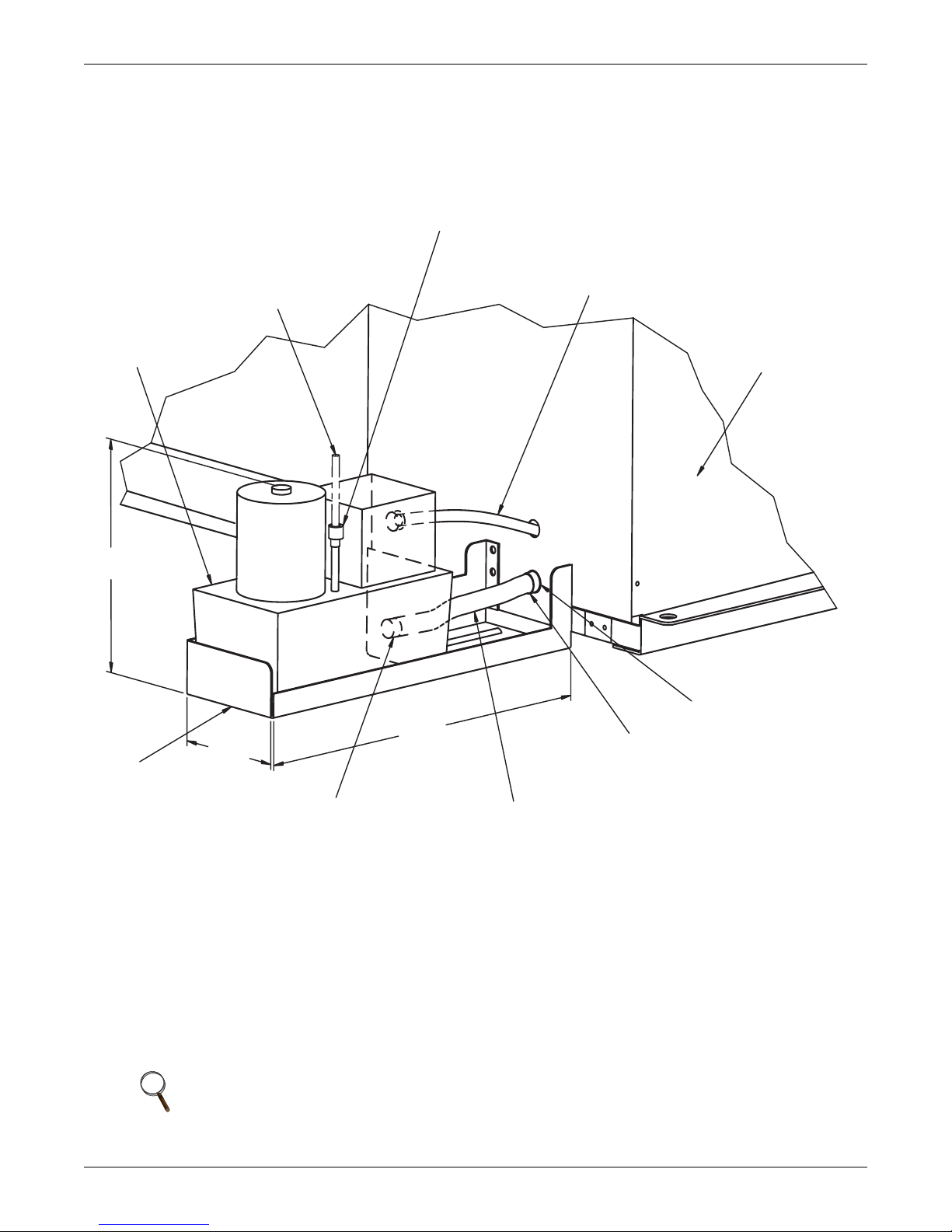

Figure 7 Condensate pump installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 8 General arrangement diagram - chilled-water systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 9 Refrigerant piping diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 10 Evaporator or chilled-water unit dimensional data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 11 Evaporator unit electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 12 Piping connections - indoor air-cooled centrifugal fan condensing unit . . . . . . . . . . . . . . . . . . . . 20
Figure 13 Indoor air-cooled centrifugal condensing unit dimensions and pipe connections . . . . . . . . . . . . . 21
Figure 14 Indoor air-cooled centrifugal condenser electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 15 Electrical field connections - outdoor condensing unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 16 Footprint dimensions - outdoor condensing unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 17 Piping and electrical connections - outdoor condensing unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 18 Indoor water/glycol condensing unit dimensional data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 19 Indoor water/glycol condensing unit electrical field connections . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 20 System piping with indoor water/glycol-cooled condensing unit . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 21 Optional free cooling coil (3-way valve) on water/glycol units . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 22 Optional free cooling coil (3-way valve) on air-cooled units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 23 Wall box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 24 Control menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Figure 25 Control board (inside evaporator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Figure 26 Wall box board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
TABLES
Table i Heat rejection matchup – 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Table ii Heat rejection matchup – 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Table 1 Application limits, evaporator and chilled-water units* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 2 Application limits, indoor and outdoor air-cooled condensing units . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 3 Application limits, indoor water/glycol-cooled condensing units . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 4 Unit weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 5 Evaporator external static pressure (60) at 3750 CFM (6371 CMH). . . . . . . . . . . . . . . . . . . . . . . 10
Table 6 Recommended refrigerant line sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 7 8-ton unit refrigerant charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 8 Line charges (field piping)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 9 Refrigerant quick connect sizes and torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 10 Default setpoints and allowable ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 11 Night and weekend setback plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table 12 Setup functions, default values and allowable ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Table 13 Alarm default time delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Table 14 Equipment switch settings (unit control board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table 15 Switch settings (wallbox board) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table 16 Typical discharge pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 17 Humidifier control board DIP switch settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Table 18 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

v
MODEL NUMBER NOMENCLATURE
Evaporators and Chilled-Water Units
MMD96E-AHEL0 (example)
Indoor Condensing Units
MCD96ALA00 (example)
MM Mini-Mate2 MC Mini-Mate2 Indoor Condensing Unit
D0 = No Disconnect D0 = No Disconnect
D = Disconnect D= Disconnect
96E-
96E- = 8-ton Evaporator, 60 Hz
96A
96A = 8-ton Air-Cooled Centrifugal, 60 Hz
95E- = 8-ton Evaporator, 50 Hz 95A = 8-ton Air-Cooled Centrifugal, 50 Hz
8TCD = 8-ton Chilled-Water w/ 2-way valve 98W = 8-ton Water/Glycol-Cooled, 60 Hz
8TCT = 8-ton Chilled-Water w/ 3-way valve 97W = 8-ton Water/Glycol, 50 Hz
A
A = 460V-3ph-60 Hz
L
L = Lee-temp Head Pressure Control (Air-Cooled)
B = 575V-3ph-60 Hz 2 = 2-way Water/Glycol reg valve, 150 psi
C = 208V-3ph-60 Hz 3 = 3-way, Water/Glycol reg valve, 150 psi
D =230V-3ph-60 Hz D = 2-way, Water/Glycol reg valve, 350 psi
M = 380/415V-3ph-50 Hz T = 3-way, Water/Glycol reg valve, 350 psi
H0 = No Humidifier
A
A = 460V-3ph-60 Hz
H = Humidifier B = 575V-3ph-60 Hz
E
0 = No Reheat Y = 208/230V-3ph-60 Hz
E= Electric Reheat M = 380/415-3ph-50 Hz
S = SCR Reheat H0 = No Hot Gas Bypass
LL = Low Fan Speed Drive, 2 hp H = Hot Gas Bypass
H = High Fan Speed Drive, 3 hp 00 = Revision Level
0
0 = None
A = Filter Clog Prop Fan Condensing Units
PFC096A-AL0 (example)
B = Smoke Detector
C = Firestat PF Prop Fan Condensing Unit
D = Filter Clog & Smoke Detector HH = Hot Gas Bypass
E = Filter Clog & Firestat 096A 096A = 8-ton Air-Cooled, 60 Hz
F = Smoke Detector & Firestat 095A = 8-ton Air-Cooled, 50 Hz
G = Filter Clog, Smoke Detector, & Firestat -- = Standard Coil
C = Coated Coil
A
A = 460V-3ph-60 Hz
B = 575V-3ph-60 Hz
Y = 208/230V-3ph-60 Hz
M = 380/415V-3ph-50 Hz
LL = 95°F Ambient, Lee-temp
00 = Revision Level
Table iii Heat rejection matchup – 60 Hz
Nominal
Capacity
Cooling
Unit
Condensing Unit
Indoor Air-Cooled
Centrifugal Fan
Outdoor Air-Cooled
Propeller Fan
Indoor
Water/Glycol
8 Tons MMD96E MCD96A PFC096A MCD98W
8 Tons MMD8TC Chilled Water Unit
Table iv Heat rejection matchup – 50 Hz
Nominal
Capacity
Cooling
Unit
Condensing Unit
Indoor Air-Cooled
Centrifugal Fan
Outdoor Air-Cooled
Propeller Fan
Indoor Remote
Water/Glycol Cooled
8 Tons MMD95E MCD95A PFC095A MCD97W
MMD8TC Chilled Water Unit

vi

Product Features
1
1.0 PRODUCT FEATURES
1.1 Standard Product Features
The Mini-Mate2 is a temperature/humidity control system designed to be installed above a ceiling
grid system. The unit is available as a split system evaporator to be matched with an Indoor Centrif-
ugal Fan Condensing Unit, Outdoor Prop Fan Condensing Unit, or Indoor Water/Glycol Condensing
Unit. A self-contained Chilled Water Fan Coil is also available.
1.1.1 Controls
The Mini-Mate2 system includes a wall-mounted display panel with a liquid crystal display (LCD)
screen and a 7 membrane keypad. The control is menu-driven for ease of use. Figure 24, Section 3,
depicts the complete menu tree for the control. All control setpoints and alarm setpoints are program-
mable.
1.1.2 Evaporator System Components
DX Evaporator Section
The evaporator section includes the evaporator coil, thermostatic expansion valves, filter dryers, and
blower. The evaporator coil is constructed of copper tubes and aluminum fins and is designed for the
high sensible heat ratio required for electronic equipment. Room air circulation is accomplished by a
double inlet, belt driven centrifugal blower that has been dynamically balanced. The blower has self-
aligning bearings. Both the blower and motor have permanently lubricated ball bearings.
Chilled-Water Model
The Chilled-Water model is self-contained and is designed for use with an existing chilled-water loop.
It contains a chilled-water coil and a proportional modulating valve to control the flow of chilled
water.
1.1.3 Condensing Unit Components
The condensing unit is connected to the evaporator unit by four refrigerant lines and low voltage con-
trol wires. The condensing unit requires a power source and a power disconnect switch. A single point
power kit is available for close coupled (attached) units.
Air-Cooled Condensing Unit (Indoor Centrifugal)
The Air-Cooled Condensing units (MC models) include: 3-ton and 5-ton scroll compressors with motor,
belt-driven centrifugal blower, crankcase heaters, high pressure switches, condenser coils, and Lee-
Temp head pressure control with receivers.
Air-Cooled Condensing Unit (Outdoor Prop Fan)
Outdoor Air-Cooled Condensing Units (PFC models) include: 3-ton and 5-ton scroll compressors with
crankcase heaters, high-pressure switch, condenser coils, direct-driven propeller fan, and Lee-Temp
head pressure control with receivers.
Water/Glycol Condensing Unit (Indoor)
The Water/Glycol-Cooled Condensing units include: 3-ton and 5-ton scroll compressors with crank-
case heaters, high pressure switches, coaxial condensers, and regulating valves. Drycooler and pumps
are selected separately for glycol systems.

Product Features
2
1.2 Optional Equipment
1.2.1 Canister Humidifier
The optional, factory-installed steam generating humidifier adds pure water vapor to the room air to
control humidity. Room humidity setpoints are established by the user. The humidifier components
include: a steam canister (replaceable), control board, inlet strainer, fill and drain valves.
1.2.2 Electric Reheat
The 304/304 stainless steel electric reheat is energized when required to heat room air or to control
room temperature during dehumidification. A safety switch prevents the reheat from exceeding tem-
perature limits.
1.2.3 SCR Electric Reheat
The 304/304 stainless steel reheat is pulsed rapidly to provide precise temperature control, while cool-
ing is locked on. A safety switch prevents the reheat from exceeding temperature limits.
1.2.4 Hot Gas Bypass (Condensing Units)
This optional system bypasses compressor discharge around the condenser directly to suction to pro-
vide capacity control and reduce compressor cycling. System includes liquid injection valve to main-
tain proper suction superheat. Hot gas bypass is provided on both circuits.
1.2.5 Free-Cooling Coil (GLYCOOL)
When ambient temperatures are low enough, cold fluid is piped to a secondary coil or a separate
source of chilled-water may be piped to this coil.
1.2.6 Smoke Detector
If smoke is detected in the return air, the unit display sounds an audible signal and the unit shuts
down.
1.2.7 Firestat
When the return air temperature limit of approximately 125°F (51.7°C) is exceeded, the unit shuts
down.
1.2.8 Filter Clog
If high pressure differential is detected across the return air filter, an adjustable pressure differential
switch sounds an audible signal.

Product Features
3
1.3 Ancillary (Ship Loose Accessories)
1.3.1 Single Point Power Kit
A Single Point Power Kit allows the connection of a system (Evaporator and indoor condensing unit)
to a single power source when the units are close coupled. The kit includes a junction box with power
distribution, sub-fusing, and evaporator and condenser wiring.
1.3.2 Refrigerant Line Sweat Adapter Kits
This kit includes the compatible fittings required (four suction and four liquid line connections) when
using field supplied interconnecting refrigerant piping.
1.3.3 Return Air Filter Box with Duct Collar Kit
A return air filter box with duct flange, 4" (102 mm) filter, and a supply air duct flange are provided
for ducting the evaporator air.
1.3.4 Condensate Pump Kit
A condensate pump is required when the evaporator is installed below the level of the gravity-fed
drain line. Components include: the pump; check valve; sump; level sensor; float switch; and controls.
Refer to detailed instructions and drawings supplied with the pump.
1.3.5 Remote Monitoring and Control
Liebert can provide a variety of remote monitoring and control devices to enhance your Mini-Mate2
system. These include water detection, remote monitoring of a single unit, and remote control/moni-
toring of multiple units.
1.3.6 Remote Sensors
Remote temperature/humidity sensors can be mounted in the controlled space or in duct work and
includes 30 feet of control cable.

Site Preparation and Installation
4
2.0 SITE PREPARATION AND INSTALLATION
2.1 Installation Considerations
The evaporator unit is usually mounted above the suspended ceiling using field supplied threaded
rods. Refer to Figure 1 for possible configurations. The condensing unit may be:
• Indoor Air-Cooled Centrifugal Fan Condensing Unit mounted remotely or close coupled to the
evaporator in the ceiling space.
• Outdoor Air-Cooled Propeller Fan Condensing Unit.
• Indoor Water/Glycol-Cooled Condensing Unit, mounted remotely or close coupled to the evapora-
tor.
2.1.1 Room Preparation
The room should be well-insulated and must have a sealed vapor barrier. The vapor barrier in the
ceiling and walls can be a polyethylene film. Paint on concrete walls and floors should be vapor resis-
tant.
Outside or fresh air should be kept to a minimum when tight temperature and humidity control is
required. Outside air adds to the cooling, heating, dehumidifying and humidifying loads of the site.
Doors should be properly sealed to minimize leaks and should not contain ventilation grilles.
NOTE
Before installing unit, determine whether any building alterations are required to run piping,
wiring, and duct work. Carefully follow all unit dimensional drawings and refer to the
submittal engineering dimensional drawings of individual units for proper clearances.
Table 1 Application limits, evaporator and chilled-water units*
Input Voltage Range of Return Air Conditions to Unit
Min Max Dry Bulb Temp. Relative Humidity
-5% +10% 65°F to 85°F
(18°C to 29°C)
20% to 80%
*Unit will operate at these conditions but will not control to these extremes.
Table 2 Application limits, indoor and outdoor air-cooled condensing units
Input
Voltage
Condensing Units Entering Dry Bulb
Air Temperature
Min Max Min Max
-5% +10%
Outdoor Prop Fan Condensing Unit
Indoor Air-Cooled Centrifugal Condensing Unit
-30°F (-34°C)
-20°F (-29°C)
120°F (49°C)
115°F (46°C)
Table 3 Application limits, indoor water/glycol-cooled condensing units
Input Voltage Entering Fluid Temperature
Min Max Min Max
-5% +10% 65°F (18.3°C) * 115°F (46°C)
*Operation below 65°F (18°C) may result in reduced valve life and fluid noise.
NOTE
The single most important requirement for maintaining environmental control in the
conditioned room is the vapor barrier.

Site Preparation and Installation
5
2.1.2 Location Considerations
Locate the evaporator unit over an unobstructed floor space if possible. This will allow easy access for
routine maintenance or service. Do not attach additional devices to the exterior of the cabinet, as they
could interfere with maintenance or service.
!CAUTION
Units contain water. Water leaks can cause damage to sensitive equipment below. DO NOT
MOUNT UNITS OVER SENSITIVE EQUIPMENT. A field-supplied pan with drain must be
installed beneath cooling units and water/glycol-cooled condensing unit.
NOTE
Do not mount units in areas where normal unit operating sound may disturb the working
environment.

Site Preparation and Installation
6
Figure 1 System configurations—air cooled systems
Figure 2 System Configurations—water/glycol systems
Evaporator
Centrifugal Fan
Condensing Unit
Evaporator Prop Fan
Condensing Unit
Evaporator
Cooling
Tower
Water/Glycol
Condensing Unit
Water/Glycol
Condensing Unit
Evaporator
Drycooler
GLYCOL-COOLED SYSTEMS
WATER-COOLED SYSTEMS

Site Preparation and Installation
7
Figure 3 System Configurations—chilled water systems
2.2 System Weights
2.3 Equipment Inspection upon receipt
When the unit arrives, do not uncrate equipment until it is close to its final location. All required
assemblies are banded and shipped in corrugated containers. If you discover any damage when you
uncrate the unit, report it to the shipper immediately. If you later find any concealed damage, report
it to the shipper and to your Liebert supplier.
Table 4 Unit weights
Cooling Units* lbs kg
MMD96E 665 302
MMD95E 665 302
Condensing Units lbs kg
MCD96A 530 241
MCD95A 530 241
MCD98W 470 213
MCD97W 470 213
*Add 40 lbs. (20 kg.) to units with free cooling or hot water reheat coils.
Evaporator
Condensate Pump
Evaporator
Condensing
Unit
Condensate Pump
COUPLED COMPONENTS
(AIR-COOLED SYSTEM
CHILLED-WATER SYSTEMS

Site Preparation and Installation
8
2.4 Installing the Evaporator or Chilled-Water Units
The evaporator unit and indoor condensing unit are usually mounted above the ceiling and must be
securely mounted to the roof structure. The ceiling and ceiling supports of existing buildings may
require reinforcements. Be sure to follow all applicable codes. Use field-supplied 1/2"-13 tpi threaded
suspension rods and 1/2"-13 tpi hardware kit.
Recommended clearance between ceiling grids and building structural members is unit height plus 3
inches.
Install the four field-supplied rods by suspending them from suitable building structural members.
Locate the rods so that they will align with the four mounting holes in the flanges that are part of the
unit base.
Using a suitable lifting device, raise the unit up and pass the threaded rods through the four mount-
ing holes in the flanges that are part of the unit base.
Attach the threaded rods to the unit flanges using the supplied, springs, and washers. (See Figure 4).
The coil springs provide vibration isolation.
1. Use the plain nuts to hold unit in place. Adjust these nuts so that the weight of the unit is
supported by the four rods, does not rest on the ceiling grid, and is level. Ensure none of the
springs are compressed to solid height. The coil side of the unit is heavier, so these springs will be
compressed more than the other side.
2. Use the Nylock nuts to “jam” the plain nuts.
Figure 4 Threaded rod and hardware kit installation
!WARNING
Be sure the supporting roof structure is capable of supporting the weight of the unit(s) and the
accessories during installation and service. (See 2.2 - System Weights.)
Be sure to securely anchor the top ends of the suspension rods. Make sure all nuts are tight.
NOTE
The units must be level in order to drain condensate properly.
1/2" threaded rod
(supplied by field)
hanging bracket
base pan (ref)
1/2" hex nut
1/2" Nylock
locking nut
1/2" flat washer
1" O.D. spring

Site Preparation and Installation
9
2.4.1 Close Coupled Installations
If the evaporator and condensing units are to be mounted side-to-side (close coupled), hang each unit
before connecting them together (See Figure 5). If Single Point Power Kit is used, install the box into the
evaporator prior to suspending the units. Route power wire flex conduit into condensing unit as units are
suspended. Refer to instructions supplied with kit for details. Align bolt holes in the condensing unit and
in the evaporator. Insert rubber spacers and secure four (4) sets of hardware provided. Align the refriger-
ant connections and tighten them as described in 2.4.3 - Piping Connections and Coolant Require-
ments. Remove “P” clamps from piping to aid fitting alignment.
Figure 5 Close coupled installation
Isolator rubber
5/16" lock washer
5/16" capscrew
5/16" flat washer
Cage
nut
NOTE: Disconnect P-clamps on lines in the evaporator
for easy close coupling.
P-clamps are for shipping purposes only.
Condensing
Unit
Evaporator

Site Preparation and Installation
10
2.4.2 Evaporator Air Distribution
Filter Box
The optional filter box mounts directly to the return air opening of the evaporator. The filter box is
supplied with two (2) 20% (Liebert part no. A-0320) or 30% (Liebert part no. A-0400) 25" x 20" x 4" fil-
ters.
Connections for Ducted Systems
Use flexible duct work or non-flammable cloth collars to attach duct work to the unit and to help con-
trol the transmission of vibrations to building structures. Insulation of duct work is vital to prevent
condensation during the cooling cycle. The use of a vapor barrier is required to prevent absorption of
moisture from the surrounding air into the insulation.
If the return air duct is short, or if noise is likely to be a problem, sound-absorbing insulation should
be used on the duct. Duct work should be fabricated and installed in accordance with local and
national codes.
NOTE
Do not operate the unit without filters installed in return air system.
Table 5 Evaporator external static pressure (60) at 3750 CFM (6371 CMH)
Turns
Open
2 hp Motor (std) 3 hp Motor (opt)
RPM
External
Static, in. RPM
External
Static, in.
0n/a n/a 1146 1.9
0.5 n/a n/a 1125 1.8
1n/a n/a 1104 1.7
1.5 946 0.9 1083 1.6
2 922 0.8 1063 1.5
2.5 972 0.7 1042 1.4
3 899 0.6 1021 1.3
3.5 851 0.5 1000 1.2
4 828 0.4 979 1.1
4.5 804 0.3 958 1.0
5 780 0.2 938 0.9
5.5 757 0.1 917 0.8
6 733 0 896 0.7
If free-cooling or hot water coil is ordered, reduce available external static
pressure by 0.3" (8 mm). Contact Liebert Representative for other Air Volumes.
Factory setting is 0.5" (13 mm) with 2 hp motor. Field adjust to suit application.
NOTE
Maximum return air static pressure should not exceed 0.3" (8 mm) to provide proper drainage
of the unit.

Site Preparation and Installation
11
2.4.3 Piping Connections and Coolant Requirements
Drain Line
A 3/4 in. (19.1 mm) female pipe thread (FPT) connection is provided for the evaporator coil condensate
drain. This line also drains the humidifier, if applicable. The drain line must be located so it will not
be exposed to freezing temperatures. The drain should be the full size of the drain connection.
The evaporator drain pan includes a float switch to prevent unit operation if drain becomes blocked.
Figure 6 Drain installation
!CAUTION
The drain line must not be trapped outside the unit, or water may back-up in drain pan.
Drain is internally trapped.
This line may contain boiling water. Use copper or other suitable material for the drain line.
Sagging condensate drain lines may inadvertently create an external trap.
Incorrect
IncorrectCorrect
Unit
Unit
Unit
Continuous slope
away from unit
Do not externally
trap the unit
These are external traps also, although
unintentional. Lines must be rigid
enough to not bow between supports.
Humidifier drain water can approach
100° Celsius.

Site Preparation and Installation
12
Condensate Pump
The optional condensate pump kit is required when the evaporator is installed below the level of the
gravity-fed drain line. Refer to the installation instructions provided with the condensate pump kit.
Figure 7 Condensate pump installation
Humidifier Water Supply Line
Units supplied with the optional humidifier package have a 1/4 in. (6.4 mm) FPT connection for water
inlet. Supply pressure range is 10 psig to 150 psig. Required flow rate is 1 gpm. A shut-off valve
should be installed in this line to isolate the humidifier for maintenance.
NOTE
DO NOT route humidifier supply line in front of filter box access panel.
Condensate Pump
Condensate
Pump
Support Bracket3/4" (13mm) Hose Barb
Supplied on Pump Tank
Flexible Rubber Tubing
3/4" (13mm) FPT
Customer Connection
Condensate Drain
Evaporator or
Chilled Water
Unit
Power Supply from
Electric Service Power
Block in Fan/Coil Module.
Drain Line
(field supplied)
Notes:
1. 3/4" (13mm) Flexible Rubber Tubing Assembly (Supplied
with Pump Kit) must be installed on pump end.
2. The High Water Safety Float included with pump must be
interlocked with unit control. Wire to terminals 60 & 61 on
Evaporator terminal strip to shut down unit.
3/8" Compression Fitting
Drain Connection
FRONT OF UNIT
AIR INLET
21 1/2 "
6 5/8 "
10 9/16 "
(268.3mm)
(168.3mm)
(546mm)
DPN000239_Rev0
