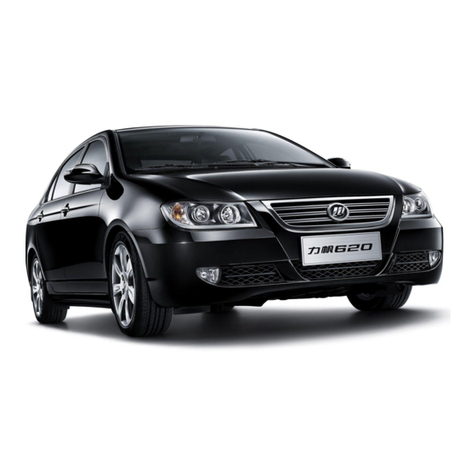

Lifan LF620 User manual

12
Content
3
Technical Parameter & Vehicle Identification (LF 620 Complete Car)
Chapter 1
Chapter 2
Chapter 3
Chapter 4
Chapter 5
Chapter 6
Chapter 7
Chapter 8
Operation of Instrument and Controller
LF620 Driving Guide
Starting and Driving
Urgent Trouble Treatment
Anti-corrosive and Outer Maintenance of the Vehicle
Maintenance Instructions
Maintenance DIY
Component Specification
Foreword
Great appreciation for your preference on LF620 sedan! Please read this manual carefully for driving and
maintaining correctly.
Electronic injection engine is adopted for this sedan, whose electronic circuit structure is quite complex.
trouble caused by the additional installation of such electronic components as anti-theft device,central
door locking, power window regulator, audio unit by yourself will be excluded from our quality guarantee service.
The
Please follow the indications of “safety instruction” and “vehicle damage” in the manual to avoid personal
injury and vehicle damage.
The indications are as follows:
Note
The requirements for easy maintenance
Warning
The requirements to avoid vehicle
and personal dangers
The figures in the manual are illustrations and just for reference. Since this manual is a general description
for this type of sedan, concerning different configurations, thus, some features herein may not be applicable
for your car of specific kind. When purchasing, please confirm descriptions with real products.
Safety Marks
The saf ety mar k as show n in the figur e
means “Do Not s”.
The com pany reser ves the right to change the spec ificat ion of the product s and desc riptions in this manual without not ice.
Many thanks for your selection of our cars, and your are welcomed. comments
9
10 5
115
122
136
142
150
168
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
620 620
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

Technical Parame ter & Vehicle Identification (LF 620 Comp lete Car)
……Technical Parameter
Vehic le Identif ication
Vario us Indic ator Plates and Warning Pla tes
…… … …… … …… … …… … …… … …… … …… … ……… ………4
…… … …… … …… … …… … …… … …… … …… … ……… ……… ……6
……………………………… … ……………7
3
Technical Parameter
Product Model LF7162 LF7162A LF7162B LF7162C LF7162D LF7162E
L (mm) 4550
W (mm) 1705
Outline Dimension
H (mm) 1495
Wheel Base (mm) 2605
Front (mm) 1470
Track Rear (mm) 1460
Vehicle Weight (kg) 1150
Vehicle Weight with Load (kg) 1555
Wheel Specification 195/60R15
Approach Angle (°) ≥19°
Departure Angle (°) ≥17°
Front Suspension (mm) 940
Rear Suspension (mm) 1005
Passengers 5
4
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN
620620 620
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.

5
Vehicle Identification
Vehicle Identification Number (VIN)
VIN is located within the engine compartment
as well as at the upper left side of dash board
(as shown at “1” in the above figure), which
is used for the record by the owner. Manufacturer
data plate with VIN is located within the engine
compartment (as shown at “2” in the above
figure).
Engine No.
6
The engine No. is located on the cylinder
block (as shown in the above figure).
Product Model LF7162 LF7162A LF7162B LF7162C LF7162D LF7162E
Maximum Speed (km/h) ≥180
Engine Model Tritec1.6 LF481Q3
Type 4-cylinder in-line, 16 valves, single OHC, MFI
Displacement (ml) 1596 1587
Maximum Power (kw) 85（6000r/min) 78（6000r/min)
Maximum Torque (N·m) 149(4500r/min) 137(4500r/min)
Idle Speed (r/min) 800±50
Oil Consumption (L/100 ㎞) 7.5 7.8
Grade Ability (%) ≥30
Emission Standard GB III/GB IV GB III/GB IV
21
1
LF481Q3
TRITEC1.6L
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN
620 620
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.

Various Indicator Plates and Warning Plates
The indicator plate for fuel No. is
located inside the cap of the oil
. filler
7
1、Warnin g pla te for power-assis ted steering oil .
2、Warnin g plate for oil and coola nt fil ling.
3、Warnin g plate for A/C refrigerant.
4、Warnin g plate for glass cleaning solu tion.
5、Warnin g plate for engine coolant.
8
Notes for air bag are located on
the front passenger sun visor.
The indicator plate for tire pressure is
located at the lower side of the left
front door lock.
1
4
235LF 4 81 Q 3
1
2 3
4
5TRITEC1.6L
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN
620 620
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.

620 620
910
Operation of Instrument and Controller
Chapter 1
Dash Board
Key and Door… … … … … … … … … … … … … … … … … … … … … … … 17
Seat, Safety Belt, Steering Wheel and Rearview Mirror… … … … … … … … … … … … … … 3 3
Illumination, Wiper and Demister… … … … … … … … … … … … … … … … … … 5 6
Instrument and Maintenance Indicator… … … … … … … … … … … … … … … … … … 63
Ignition Switch, Manual Transmission and Parking Brake… … … … … … … … … … … … 72
Car Audio System… … … … … … … … … … … … … … … … … … … … … … 7 6
A/C System………………………………………………………………85
Other Equipment…………………………………………………………………………………………99
… … … … … … … … … … … … … … … … … … … … … … … … 1 0
Operation of Instrument and Controller
…… … …… … …… … …… … …… … …… … …… … …… …1 1
…… … …… … …… … …… … …12
…… … …… … …… … …… … …13
…… … …… … …… … …… … …… … …… … …… …1 4
…… … …… … …… … …… … …… … ……1 5
Dash Board
Manual A/C Controller ( Optional)
Automatic A/C Controller (Optional)
Instrument Cluster
Instrument Cluster Indicator
Dash Board
Chapter 1-1
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
11
Dash Board
1.
2.
3.
4.
6.
7.
8.
9.
10 .
11.Parking control knob
12 .
13 .
14 .
16 .
Side defroster outlet
Side vent
Instrument cluster assembly
Central vent
Front interior lamp and switch assembly
(optional)
Glass regulator switch
Right sundries box
Cup stand
Central sundries box
Rear ashtray
Shift control knob
Small sundries box
Control handle for engine hood
Locking switch for passenger doors and
windows
Dash board left switch assembly
5.
15 .
12
1 2 345
6
7
10
1
2
8
9
11
12
1314
15
16
6
Power A/C Controller
1.
2．
3．
4．
5．
6．
7．
8．
9．
10．
11．
12．
13．
Left combination switch (lighting)
Right combination switch (wiper & wash)
Vehicle audio unit (CD)
Warning lamp switch for danger
Central door lockings witch
A/C control knob
Front ashtray and cigarette lighter assembly
Anti-theft warning lamp
Power rearview mirror switch
Adjusting knob for background luminance of
dash board
Small sundries box
A/C switch
Internal and external circulation button
12345
6
7
11
8
910 1 2 1 3
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
13
Automatic A/C Controller (Optional)
14
1.
2．
3．
4．
5．
6．
7．
8．
9．
10．
11．
12．
13．
14．
15 .
Left combination switch (lighting)
switch
of dash
board
button
Right combination switch (wiper & wash)
Vehicle audio unit (DVD)
Warning lamp for danger
Air intake mode selection button
Fan speed regulation knob
Front ashtray and cigarette lighter assembly
Anti-theft warning lamp
Power rearview mirror switch
Adjusting knob for background luminance
Small sundries box
Rear compartment door switch
Temperature adjustment
Internal and external circulation selection button
Switch for adjusting the height of low beam axis for
headlamp
12345
6
7
11
8
910 1 2 1 3
14
15
Instrument Cluster
1、 2、 3、 4、 5、 6、Speedometer Tachometer Fuel level dis play Odometer Trip odometer Coolant temperature display
12
3456
SV S
120
SR S
15
BCM
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620
16
Front fog light indicator Rear fog light indicator
Too low fuel indicator
Check and eliminate the concerned troubles immediately when the indicators with “*” are illuminated.
BCM Body control module warning lamp
Regulating Switch for Background Luminance
Turn the regulating button and adjust the background luminance for
the instrument cluster whe n the position lamp is on.
SEC URITY
LR
1
0
620
Instrument Cluster Indicator
Brake system fault warning lamp*
Safety belt unfastened indicator*
Battery charge indicator*
Too low oil pressure warning lamp*
OBD indi cat or*
ABS (anti-lock braking system) fault indicator*
SRS (Supplemental Restraint System) warning lamp*
Position indicator
Headlamp high beam indicator
Steering signal indicator(sol ely illuminating)
Emergency lamp (s imultaneously illuminating)
Too high water temperature warning lamp
Parking brake indicator
SRS
SVS
Engine (OBD excluded)fault warn in g lamp*
Luggage boot ajar warning lamp
Overdrive warning indicator (optional)
15
ABS
12 0
Door ajar warning and reverse radar display*
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
17
Operation of Instrument and Controller
Key and Door
Key
Door
Remote Controlle r
Power Window
Luggage Hood
Engin e Hood
Vehic le Anti- theft System
Fuel Tank Cover ……
… … … … … … … … … … … … … … … … … … … … … … … … 18
… … … … … … … … … … … … … … … … … … … … … … … … … … 1 9
…………………………………………………………………21
… … … … … … … … … … … … … … … … … … … … … … … …2 5
… … … … … … … … … … … … … … … … … … … … … … … … 26
…… …… …… …… …… …… …… …… …… …… …… …… 2 8
…… …… …… …… …… …… …… …… …… …………29
…… …… …… …… …… ………………… …… …… …… … 32
… …
Chapter 1-2
18
Key
Key number plate
The key number is recorded on the number plate, and
the key can be reproduced by providing the key number
if it is lost or a spare key is needed. The key can be
reproduced in Lifan sales servic e store specia l
.
or
repair station
Please write down the key number and keep it
in a safe place. It is not re asonable to leave it
in the car.
Two kin ds of keys are equipped for the
vehic le
1、King key (with words printed on bothsides)
all the locks can be opened by the king key
( ).
—
1 set
2、Que en key (wi th wor ds on sing le side) for
val et pa rking or ot he rs.
—
Note : The luggage boot lock can not be opened
by th e queen key if it is locked by tu rn ing the king key
counte rc lockwise .
Break the smallest window if the key is locked within
the car to minimize the repair cost for the window. Take
extra care not to be cut by the broken glass.
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
19
Door
Lock and Unlock
Insert and turn the key in the key hole.
Unlock: Turn the key clockwise.
Loc k: Turn the key cou nt er cl ock wise.
The other doors can be lo cked and unlocked
together with the door at the driver side
when the is in stalled.central door lo ckin g
Locking Button of In te rnal Door Handle
Move the locking button.
Unlock: Pu ll the button backwa rds.
Lock: Push the button forwards.
Set the button in lo cking posit io n if need to
close the door outsid e. Pull the handle
outwards first if need to clo se the front doors
at left and right side.
Central Door Locking Switch at Driver Side
The door at the driver side can be opened
in the vehicle even if the locking button of
the internal handle is placed at the locking
position.
The door at the driver side can not be locked
if it is unclosed and the ignition key is left in
the ignition switch.
20
Press the switch.
Automatic Lock and Unlock (Optional)of Door
Child Protection Lock (Rear Door)
Move the lock bar to position “LOCK”,
as shown in the figure.
The rear door can not be opened by the
interna l handle if it is lock ed by the child
protecti on lock . Apply this protecti on
lock at any time with ch ild in yo ur ca r.
Warning
Ensure all the doors are locked before driving, especially
with child in your car. Correctly using safety belt and
locking the doors can protect you from serious injury
when crash occurs and prevent the doors opening
accidentally.
A. Automatic Lock (20 Km/h))
When vehicle speed exceeds 20Km/h, all doors
will be locked automatic ally, while decelerating
to below 20km/h and then accele rating to
above 20km/h, the doors will not be lo cked
again. However, after a stop of the vehic le
with engine on, then clo se the door and continue
to drive, when the speed exceeds 20km/h, the
doors will be lo cked again. The lock can be
automatic ally released when the ig nit io n swit ch
is dis connected.
B. Oil-cut and Unlock in Crash
The oi l sup pl y at the BCM
oil con trol end and the lock will be rel eas ed
aut omat ical ly for three times when cr ash
occ urs.
will be cut off
。
Lock: Press to lock all the doors
simultaneously.
“ ”
Unlock : Pres s for the first time to
open the left front door and
“ ”
the sec ond time
to open the rest thr ee door s simultaneo usl y.
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
21
Remote Controller
1. lock button“ ”
2. Indicator
3. unlock button“ ”
The remot e cont rol ler is used to luck and
unl ock al l the door s withi n a cer tai n dist ance.
Follow the instructions below to
avoid damages on the controller:
●Do not place the controller in hig h
temperature.
●Do not disassemble the contro ller.
●Avoid knocking or beating.
●Avoid water.
Seve ral rem ote co ntrol lers ca n be co nsi dered
for one ca r, please contact Lifan se rvi ce
stat ion if nece ss ary .
The following facts may lead to operation
failure of the controlle:
●The radio station or rad io transmitter ne arby .
●Exhausted battery.
Visit Lifan as soon as possible to delete
the registered identification number and ask for repair for
the remote controller if it is lost or damaged, in order to
avoid vehicle theft or . Register the identification
number again when
service station
accident
applying for a new controller.
Meanwhile, register the identification number for the
spare controller.
“ ”Lock Button
Pres s lock button to lock the door. Release
the button and then pres s it again to carr y
out another lock ing operat ion.
Loc k: Press to mak e al l the doo r
locking motors to per form locki ng
ope ration onc e, and the steer ing
signa l light will flas h onc e at this moment .
Then , the sy st em wi ll ent er into ant i-thef t
prot ec tion thr ee se conds lat er.
“ ”
Do not use
ignition key is left in the ignition switch and
the four doors as well as the luggage
boot are unclosed.
“ ”to lock the door if the
22
1
2
3
The controller is unavailable unless
the operation indicator flashes.
Pre ss“ ”
to perform lockin g operatio n
once if the fo ur doors has alre ady been
locked while th e anti-t
butto n to make the fo ur door
lockin g moto rs
heft pro tectio n is
unavail able.
Release the alarm: When the alarm for
anti-t heft pro tection is activated, press
button to make all the door locking motors to
perf orm locking opera tion once and the alarm
can be released at the same time,
then, the
anti-theft protection for the vehicle is still
available.
“ ”
whether the
door is locked or unlocked,
“ ”Unlocking Button
Press the unlo cking butto n to unlock the
door. Rele ase the butto n and then press
it to carry out anoth er unlo cking operatio n.
Unlo ck: Press the unlocking butto n on th e
remote contro ller to re lease the alarm .
Then th e fo ur doors are unlocked, the steerin g
light will flash fo r two ti mes and th e alarm will
chime for two ti mes also. Only carry out
unlocking opera tion when the anti-theft
prote cti on is out of serv ice.
The door can be opened withi n 30 seco nds
when pressi ng the unl ocki ng but ton on the
remote cont rol ler. If the door fai ls to be
opened within 30 secon ds, al l door s will
be aut omatical ly lock ed aga in.
Vehicle Locking & Warning Indication
and Se tting
Cut off the ignition switch, pull out the
ignition key and close all the doors. If
the vehicle is within 10
seconds, the locking operation will
be indicated by the steering light and
alarm for three times.
not locked
Vehicle Tracing: The vehicle tracin g functio n can
be activ ated by continuously pressing the lo cking
button on the remote controlle r equal or than
two seconds when the anti-theft protection is
av aila ble . Then, the steering lig ht will flash for
15 seconds, and the ala rm will chim e for 15
seconds (each chiming la sts for 0.2 seconds at
an in terval of 0 .6 seconds). Press any button to
stop the vehicle tracin g functio n wit hin 15 seconds
(press the lo cking button to stop the tracing functio n
and perform automatic lockin g operation, while press
unlo cking button to stop the tracing functio n and
perform automatic unlockin g operation).
more
The locking and unlocking buttons are
unavailable when the ignition key is left
in the ignition switch. Carry out
locking and unlocking operation only
after pulling out the ignition key.
If the roo f ligh t switch is at the“DO OR”
position, the roo f lights can be ligh ted by
the remot e co ntrolled un locki ng or the
open ing of an y door . The roo f ligh t wi ll
go out if the door is no t open ed by remot e
cont rol led un loc king within 30 secon ds .
The illumi nation wi ll be gradua lly weak en ed
If the anti -th eft pro te ction is unavailable,
the alarm will keep silent while th e ste erin g
light will be lighte d.
e
anti -th eft pro te ction is available again
and th e ste erin g light has gone out.
Locking and oth er
operati ons will not be carrie d out at this
moment. Repre ss“ ”only afte r th
8 seco nds lat er after
anot he r 5
seco nds. The roo f light will crush ou t
imm
the do or is cl ose d or opened .
And the ligh t will go out gradua lly withi n
ediately if press the locki ng bu tton on the
rem ote con trol ler af ter closi ng the do or.
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
23
Replace Battery for Remote
Controller
Cr2016 lithium battery (two pieces)
station is
greatly recommended.
or
equivalent battery is preferable. To
renew the battery for the remote
controller in Lifan service
。
Take care of the old battery and
keep it away from the children.
Dispo se the ol d bat tery ac cor di ng
loca l regu lations .
Battery Replacing Procedure:
1. Remo ve the connecting bolt wi th
cross-tip screwd river. Open the remote
controller wi th flat-blade screwdriver
or some simi lar tools.
2. Remove the old battery.
24
3. Put the new battery with the positive
side （+） upwards into the remo te
controller, and then tighten the
cover for the controller.
Note
●Ens ure “+” an d “ –” on the ba tter y
are correct.
●Do not replace the battery with wet hand
to avoid rusting.
●Do not touch or move any part in the
controller, or its performance can be
affected.
●Take extr a ca re not to bend the electr ode
when inse rt ing the battery. Keep the interna l
of the control ler box free from dust or oil and
grea se .
●Prop erly tighten the cove r for the control ler.
Check the contro ller fo r corre ct operati on
afte r renewing the batte ry. Conta ct Lifa n
serv ice stati on if it still can not work afte r
replacing th e batte ry.
Warning
●Do not change or amplify the transmission
power fo r the re mote contr oller by yourself
(do not additi onally insta ll transmission
frequency amplifi er), exte rn al connecti on
or use of oth er tr ansmission ante nna by
yourself is fo rbidden.
●Do not interfere vario us le gal radio communicatio n
servic es
Once interference occurs, stop usin g the controll er
immediately and adopt measures for in terference
eli min atio n, only after whic h
when usin g the remote controller.
can the controll er
be used again .
●The in te rfe rence from the ra
le when
usin g mic ro-power radio device.
dio activ ity or th e
radiated in te rfe rence fr om the in dustr ia l, scientif ic
and medical equipments is unavoid ab
+
CR2 0 1 6
3V
+
CR201 6
3V
Note
Note
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
25
Power Window
Door Switch Operation
Keep ignition switch in position “ON”.
Window Operation (Driver Side)
The door switch at driver side can control
all doors.
Normal Operation:
Window Operation (Passe nger Side)
The door switch at passenger side or at driv er
side can contro l th e window glass at passenger
side.
Open: Press the switch downwards.
Close: Pull the switch upwards.
The window glass at passenger side can not
be operated if it is locked by th e door switch
at driv er side, and it can only be operate d by
the door switc h at driv er side.
Close: Press (≤1s) window re gulator switch
upwards to ascend the window glass. Sto p
this operati on by releasing th e switc h.
Open: Press (≤1s) win dow regula to r switc h
downwards to descend th e win dow glass.
Stop this operatio n by releasing th e switc h.
Automatic Operation:
Asce nd: Press (＞1s) window regula tor swit ch upwards
to asc end the window gla ss, w hen reaching the top, the
powe r will be cut off. The regula tor will be a utomatic ally
stop ped after an operation of 8 seconds to protect the motor
if the top detection sig nal is out of service. During ascendin g,
if ano ther operation for ascendin g or descendin g is carrie d
out, the win dow gla ss will stop ascendin g, the power will
be cut o ff when reaching the top.
Desc end: Press (＞1s) window reg ulator switch downwar ds
to descend the window glass, wh en reaching the bottom,
the power will be cut off. The regulator will be automa tically
stopped after an operation of 8 s econds to protect the motor
if the b ottom detection signal is out of service. D uring
descending, if another oper ation for ascending or de scending
is carried out, the window glass will stop descending, the
powe r will be cut off when reaching the bottom.
Extended Operation Time
The window regulato r still can be operated w it hin
60 seconds after cu tt ing off the ign it ion switch.
The extende d operation time for 60 s ec onds will
be ended if the doors a re c losed and locked with in
60 seconds.
Automatic Close
Repress th e locking button on the re mote contr oller
aft er locking the doors through th e control ler, th e left
front, right front, left re ar, and ri ght re ar windows will
be closed in turn at an interval of 0.5 second. The
low-level signal of 2 seconds will be sent to sun ro of
regulato r to close th e sun ro of 1 second later. Pre ss
any butt on to suspend the automati c ascending fo r
windows.
Windo w locking swi tch
Note
●Anti-trap function is unavailable for
the power window. Take extra care
for safety.
●Lock the power window with the door
switch at driver side
from unexpectedly triggering the
power window switch at passenger
side.
to prevent children
●Ensu re the ignition key has been taken
off when leaving the ca r.
●The cut- off function for overheating is
considered for the power window motor.
It is norm al for the motor to be out of service
for a shor t ti me after frequent operations.
Contac t Lifan service station if it still keeps u navailable
after a lo ng time.
Luggage Hood
Insert the kin g key and turn it
clockwise to open the luggage hood.
Refer to “Not es for Lug gag e Loa di ng”
(Chap ter 3) for rel ated infor mat ion.
Close the luggage hood by pre ssing down
the hood.
26
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
27
Note
Close the luggage hood during driving
to keep the luggage wi thin the luggage
boot and keep the exhausted gas out
of the car.
Lug gage Boot Cont rol Hand le
Pull the cont rol handl e upw ar ds
ock the
luggage boot .
at the left
of driver seat to aut omat ically unl
Deactivate Luggage Boot Control
Handle
Insert the kin g key and turn it counterclockwise
after clo sin g the luggage hood. Then, the luggage
boot control handle is deactivated and the luggage
hood can not be opened by the queen key.
28
Open The Engine Hood
Engine Hood
1. Pul l the engine hood con trol hand le
outwar ds to open the engine ho od.
Warning
Ensure th e engine hood has been closed
and locked befo re driving. Or accident may
occur during driving when th e engine hood
is opened suddenly.
2. Pul l the eng ine hood as si stant han dl e
upwar ds in front of the vehicl e .
3. Ins ert the supporting rod of the eng ine
hood as sho wn in the figu re to open the
engine ho od .
Check if any tool or wip ing clo th is left with in
the engin e compartm ent before clo sing th e
engin e hood. Repositi on the supportin g rod
and drop down the engin e hood. Make sure
the engin e hood is correctly lo cked.
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
29
Warning
Ensure stable supporting for the
supporting rod to avoid personal
injury caused by the dropping of
engine hood.
Check if any tool or wiping cloth is left
within the engine compartment before
closing the engine hood. Close the
engine hood only after repositioning
the supporting rod, or the engine hood
can be deformed.
The vehicle anti-theft system will give
alarms for the following situations if the
vehicle is under anti-theft condition.
●Any door is opened.
●Ignition switch is turned to position
“ON”.
●The contro l component of battery or
vehicle anti-t heft system is disconnected
or reconnected.
●The ignition key is inserted in.
Vehicle Anti-theft System
30
Manual Setting
Set up vehicle anti-theft system
with remote controller.
The anti-theft function can be selected
only 1 second later after pressing
button on the remote controller. Then,
the anti-theft warning lamp starts to
flash slowly.
“ ”
The anti-theft function is unavailable
under the following situation:
●Any door is opened.
The buzzer will chime for 1 second. Then,
reset the anti-theft system after closing
the door.
It is a high-level anti-theft design to
set up vehicle anti-theft system with
remote controller.The starter can not
be operated and the safety indicator
flashes slowly when such anti-theft
system is set up. The steering light
will flash and the alarm will chime if
something abnormal is discovered
by the system. This function can be
cancelled by pressing button
on the remote controller.
“ ”
When the above situation occurs,
the oil supply will be cut off, with
the warning voices from the alarm
and the flashes from the steering
light. The alarm will be stopped 20
seconds later, and the flashes of the
steering light will go out in another
10 seconds. Press the unlocking
button to release the warning and
recover the control on oil supply
by ignition switch.
SEC URITY
LR
1
0
When the anti-theft system is under operatio n,
the anti- theft functio n can not be cancelled by
unlo ckin g the door wit h key and the engine can
not be started. Press on fir st to cancel
the anti-theft functio n and then the engine
can be started.
“ ”butt
Note
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

620 620
31
Automatic Setting
This fu nction is opti onal. Refe r to “th e
Sett ing of Opti onal Functi on”fo r related
info rm ati on.
The anti-th eft fu ncti on will be automatically
selecte d if th e door is unlocked and th e
anti -th eft fu nction is not selected by the
remote contro ller with in 30 seconds afte r
taking off th e key and closing th e door, engine
hood as well as luggage boot. Then, th e
steerin g light will fl ash while th e alarm will not
chime if th e igniti on key is inserte d into the
ignition switc h. The anti -th eft functi on will be
auto mati cally cancelled if the key is tu rn ed to
the position “ON”. The anti -th eft fu nction
can also be cancelled by pre ssing
butto n ( low-le vel anti -th eft design).
“ ”
Cancel the Anti-theft Function
Press but ton, unl ock all the doo rs
and cance l the ant i-thef t funct ion.
“ ”
Confirm the Anti-theft Function:
●Inact ivat ed vehi cle ant i-thef t syst em:
The st eeri ng signa l lamp flashe s twice.
●Activated vehicle anti-theft system:
The steering signal lamp flashes three
time s, and the anti-theft warning lamp
flashes quickly. The warning lamp
will go out when the ignition switch
is turned to position “ON”.
When the vehicle anti-theft function is
not available, the rear interior light (in
position “DOOR ”) and ignition key
indicator will light up for about 30
seconds and then go out even wi th the
door closed. (Th e extended illumi nation
time for the two lights can be changed,
refer to “Op tional Anti-theft Sy stem”
for detail) .
Afte r th e anti-th eft functio n is cancell ed, if
no door is opened with in 30 seconds, all
the doors wil l be lo cked auto matic ally and
the anti-th eft functio n wil l be available
again.
32
Fuel Tank Cover
1. Pull up the internal control handle
to open th e cap of oil filler.
Stop the engine when filling oil.
。
Warning
●Follow oil filling regulations to
avoid fire caused by spark or flame.
●Do not take away the fuel tank cover
soon after opening the cover. In hot
summer, the fuel under pressure
may spurt out and personal injury
may occur if it is immediately taken
away.
2. Open the fuel tank cover and turn
it counterclockwise. Take it away a
moment later and hang it over the
cover frame.
A nor mal sm all whoosh can be hear d when
openi ng the cov er. Turn the cov er clock wise
unt il it cl ick s dur ing inst allation.
Warning
●Ens ur e the cov er is firmly tightened
to avoid fuel ov er flowi ng when ac cident
occurs.
●Ado pt origi nal LF 62 0 fuel tank cover,
whi ch can adjust the pressure in the
tank.
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN

33
620
Operation of Instrument and Controller
Seat, Safety Belt, Ste ering Wheel and Rearview Mir ror
Seat … …
Front Seat …
Headrest
Middle Armrest of Rear Seat
Safety Belt
Air Bag fo r Driver and Front Passenger
Steerin g Wheel
Power Ste ering System
Electr ic Exterio r Rearvie w Mirror
Interio r Rearvie w Mir ror
Vanity Mirror
…… ……… …… ……… …… …… …… …… … 34
…… ……… …… ……… …… …… …… …… …… 34
…… ……… …… ……… …… … ……… …… … 36
…… ……… …… ……… … …… … 37
… …… ……… …… ……… …… …… 37
…… …… … 4 5
…… ……… …… ……… …… ……… 53
…… ……… …… ……… …… … 53
…… ……… …… ……… …… … 54
…… ……… …… ……… …… ……… 55
…… ……… …… ……… …… ……… ……55
… …… ……… …
… …… …
… …… ……… …
… ……
…… … ……… …… ……
…… …… ……… …
…… ……… …… …
…… ……… ……
…… …
…… ………
…… ……… ………
Chapter 1-3
34
620
Seat
When driving, passengers in the vehicle
should adjust the seat backrest to a proper
position and use the safety belt correctly.
Front Seat
Notes for Seat Adjustment
Adjust driver seat in order that the driver
can easily control the foot pedal, steering
wheel and dashboard controller.
Warning
● Do not drive the vehicle before
the passengers sit down and are
fastened with the safety belt. Sitting
on the folded seat backrest or
among luggage or on cargo is not
allowed, otherwise, serious injury
will occur in case of emergency
brake or crash.
● When driving, it is not allowed that
passenger stands up or moves
among the seats. Otherwise,
serious injury will occur in case of
emergency brake or crash.
Note
● Do not adjust seat when driving;
otherwise, the incident that the driver
can not control the vehicle may occur.
● Pay attention not to ma king seat
knock against passengers or luggage
when adjusting seats.
● Slide the seat forward and
backward to ensure the seat is locked
after it is adjusted.
● Lean your body backward to ensure
seat backrest is locked after it is
adjusted.
● Do not put your hand under the
seat or near the moving component
when adjusting the seat. Otherwise,
you hand or fingers may be jammed.
● Do not place objects under the
seat, which will affect seat locking
mechanism or push the seat adjusting
lever upward accidentally, causing seat
to move abruptly. Thus the driver can
not control the vehicle.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.

36
620
35
620
Front Seat Adjustment
1. Seat Adjusting Lever
Hold the middle part of seat adjusting
lever, and pull it upward. Slide the
seat with a slight pressure from body
to a needed position, and then
release the adjusting lever.
2. Seat Height Adjusting Knob
Turn the adjusting knob to adjust the
seat to a proper position.
3. Seat Backrest Angle Adjusting
Lever
Pull the angle adjusting lever upward.
Adjust it to a needed position, and
then release the lever.
4. Seat Waist Support Adjusting
Lever
Move the adjusting lever forward or
backward, then the waist support can
be adjusted.
Note
To effectivel y pr otect pa ssengers in a
cras h, the seat ba ckres t of dr iver an d
passen gers sho uld be adjus ted to the
angl e whe re your back can be res ted on
the seat ba ckres t whe n sitting strai gh tly.
In thi s cas e, the safet y be lt can pl ay a ful l
rol e in a crash. If the sea t ba ckrest is
incline d wi th a large angl e an d you r body
leans on the seat, the safety be lt may slip
you r hip an d pr ess on you r stomac h, thus
risk of inj ur y is increased .
12
3
4
Headrest
Front
Back
For safety and comfort, headrest
should be adjusted before driving.
Ascend: Pull it up.
Descend: Press it down when
pressing the lock release button
- .
The headrest can be moved forward
as well as backward. If adjustment is
needed, pull or press the headrest at
your nape.
The nearer your head is to th e headrest,
the more effectiv e it can be.Thus,headrest
pad is not require d on th e seat backrest.
Note
● Adjust the middl e par t of headres t
to almost above your ear .
● Ensur e head rest is locked after
it is adj ust ed.
● Do not drive the vehicle without
headrest.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.

620
37
620
38
Middle Armrest of Rear Seat
Pull out the middle armrest of rear
seat as shown above when using.
Safety Belt
Notes for Safety Belt
Note
Lifa n part icularly emphasizes dri ver
and passengers should be fa stened with
the safety belt at all times. Otherwise,
possibility of injury and/or seri ous injury
may incre ase in an accident.
The equipped safety belt is designed for
adults, and child can sit on th e re ar seat
and must be fa ste ned with safe ty belt.
According to th e stati sti cs fo r accidents ,
it is safer when th e child sits with a rig ht
prote cti on on th e rear seat inste ad of on
the fro nt seat.
If chi ld has to sit on the front seat , he/ she
shou ld be fast ene d with saf et y bel t cor rect ly
case of an acci den t, rapi d dep loym ent of ai r
bag to suff er ser ious inj ur y
or dea th.
.
If chi ld has not bee n fast ene d wel l in
will cause chi ld
Whether child sit s on the front seat or rear seat,
standin g or kneeing on the seat is not allo wed.
In case of emergency brake or crash
unprotected child will suffer serio us in ju ry
or death Similarly, child , sit ting on someone's
legs, can not be well protected.
,
.
Warning
Whe n driving, passengers should
sit on the seat and be fastened wi th
safety belt correctly. Otherwi se,
in case of eme rgency brake or
crash, passengers will suffer serious
injury or death more easily.
Three-point Safety Belt
Adjust the seat as required. Pull the
safety belt out of retractor, and then
plug the belt head into buckle when
fastening the safety belt.
A “click” will be heard when the
belt head is plugged into buckle.
The length of safety belt can adjusted
automatically according to the shape
of passenger and position of seat.
Observe the following instructions
when using safety belt:
●One person uses one safety belt at
one time. A safety belt can not be
shared by two persons or more,
even children.
● Avoid the seat backrest excessively
inclining. The safety belt can
at
its straight upwa rd position (Se e the
seat adjustmen t instruction).
be brought
into full play when seat backrest
● It should be noted that strap or
hardware of the safety belt should not
be damaged, and both of them should
not be locked or nipped by seat or door.
● Check the safety belt system
periodically. Check the component
for incision, abrasion and slack. If
damage is found, replace the damaged
component. Removing or retrofitting
the system is not allowed.
● Keep
.
.
,
.
“ ”).
the safety belt clean and
dry mild
soapsuds or tepid water Washing
with decolourant dye solution or
grinding detergent is forbidden
Otherwi
Cleaning
Wash the safety belt with
se, serious damage will be
caused to safety belt (See Chapter 5
Inner
● If a serio us cra sh has happened, the
safe ty belt mechanism ( including bolts)
should be re placed. Even if damage
is not obvious, th e mechanism still
needs re placing.
Instru cti on Manual of Lifa n Sedan
LIFAN
Instru cti on Manual of Lifa n Sedan Instru cti on Manual of Lifa n Sedan
LIFAN
Chongqing Lifan Passenger Vehicle Co. , Ltd.Chongqing Lifan Passenger Vehicle Co., Ltd.
