Life Fitness WATTRATE User manual

ENG
MANUFACTURED BY:
Indoor Cycling Group GmbH
Happurger Str. 86
90482 NUERNBERG | Germany
[e-mail]
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
ENG
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM

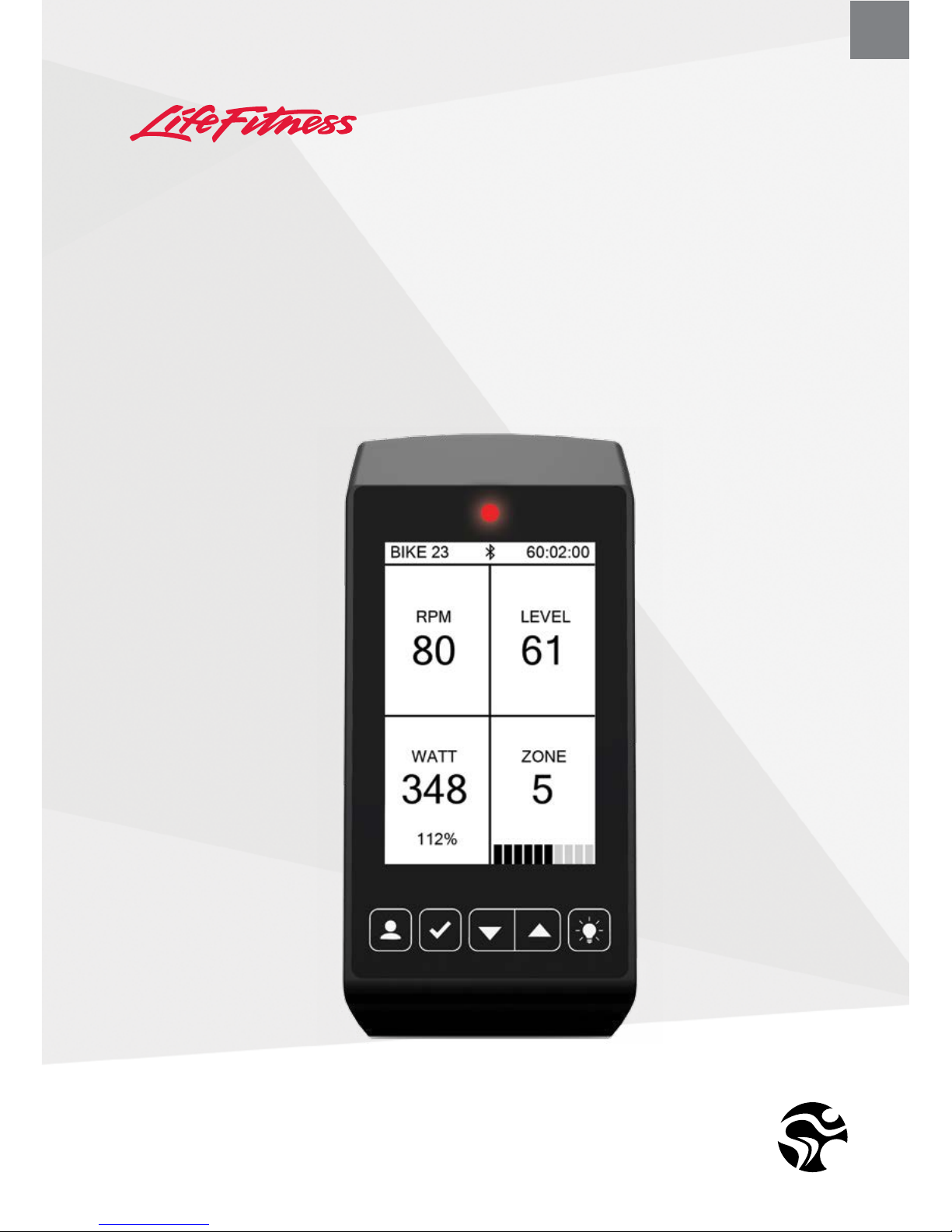

WATTRATE®
LCD COMPUTER
PART NO:320-00-00010-01

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
ATTENTION
To download the owners manual in
your language, visit the support section
at: www.teamicg.com
Um das Handbuch in Ihrer Sprache
herunterzuladen, besuchen Sie bitte
den Support Bereich auf unserer
Webseite unter www.teamicg.com
Pour télécharger le manuel d‘utilisation
dans votre langue, consultez la section
Assistance sur: www.teamicg.com
Per scaricare il manuale nella vostra
lingua, visitate la sezione del supporto
per su: www.teamicg.com
Ga om de gebruiksaanwijzing in
uw taal te downloaden naar het
supportgedeelte onder:
www.teamicg.com
Para descargarse el manual de usuario
en su idioma, por favor acceda a la
sección de soporte técnico de la bici en:
www.teamicg.com
Para transferir o manual de utilizador no
seu idioma, visite a secção„Suporte“ da
em: www.teamicg.com
Besøg supportafsnittet www.teamicg.
com for at downloade brugermanualen
på dit sprog
Lataa omistajan käsikirja omalla
kielelläsi-ohjeosiosta sivustolta: www.
teamicg.com
Du kan laste ned bruksanvisningen på
ditt eget språk ved å gå til støttesiden
på: www.teamicg.com
Du kan hämta bruksanvisningen på ditt
språk under-support på
www.teamicg.com
Aby pobrać podręcznik użytkowania w
swoim języku, należy wejść na zakładkę
support na stronie:
www.teamicg.com
Kullanıcı kılavuzunu kendi dilinizde
indirmek için www.teamicg.com
sayfasının deste bölümünü ziyaret
edebilirsiniz
在的客户服务网站，您可以下载各种
语言的用户手册
www.teamicg.com
オーナーズマニュアルの各言語版
は、以下サイトの サポートページか
らダウンロードいただけます。
www.teamicg.com
지원 센터(www.teamicg.com)에서
해당 언어 버전의 사용설명서를
다운로드할 수 있습니다..
EN
DE
FR
IT
NL
ES
PT
DK
FI
NO
SE
PL
TR
CN
JP
KR

3
ENG
CONTENTS
IMPORTANT PRECAUTIONS P.4
ASSEMBLY P.5
BASICS P.6
DEFINITION TERMS & ABBREVIATIONS P.8
COACH BY COLOR® TRAINING ZONES P.9
MEDICAL DISCLAIMER P.10
SETUP GENERAL SETTINGS P.11
CONNECTIVITY P.12
TRAINING MODES/PAUSE MODE P.13
QUICK-START MODE P.14
POWER TRAINING P.15
HEART RATE TRAINING P.18
FTP RAMP TEST P.21
FTP 5 MINUTE TEST P.22
SETTINGS P.23
SETTINGS GENERAL P.24
QUICK-START MODE P.22
POWER TRAINING MODE P.24
BRAKE CALIBRATION/SETTINGS- OFFSET P.25
SYSTEM/ANT+ /BLUETOOTH P.26
TRAINING MODES P.27
KEY FUNCTIONS P.28
MAXIMUM DISPLAY RANGES P.29
EU DECLARATION OF CONFORMITY P.30
FCC CONFORMITY P.31
DISPOSAL ELECTRIC WASTE P.33
INSTALLATION AND DISPOSING OF BATTERIES P.34

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
IMPORTANT
PRECAUTIONS
WARNING!
To reduce the risk of serious injury due to improper use, carefully read and adhere to the safety
precautions and information before using the device. Please also take note of the precautions
in the Indoor Cycle Manual, with which this computer is to be used.
1. It is the responsibility of the owner to ensure that all users are informed of all warnings and
precautions for proper use, and are only authorized to use the bike independently after being
successfully briefed by a qualied trainer or instructor.
2. Keep the indoor cycle indoors, away from moisture and dust. Do not place the indoor cycle
outdoors in a garage or covered patio or near water or pools. Operating temperature of the
indoor cycle has to be between 15°C ~ 40°C Celsius (59°F~104°F) at a maximum humidity of
65%.
3. Children under the age of 14 shall only be allowed to use the indoor cycle with parental
approval and supervision of a qualied Trainer or Instructor. Use of the bike by persons over
the age of 14 only to be allowed after a qualiedTrainer or Instructor briefs them. Unsupervised
children should be kept away from the training device at all times.
4. All data shown on the display, especially the Watt values generated by the integrated power
sensor, serve merely as information and to help guide training. Only exercise within your
physical limitations.
5. If you feel pain or dizziness while exercising, stop immediately. It is recommended that you
consult a doctor if the pain does not subside for an extended period of time.
6. Heart rate monitoring systems may be inaccurate. Over exercising may result in serious
injury or death. If you feel faint stop exercise immediately !
CAUTION
If you have pre-existing health problems or a disability, it is recommended that you consult
your physician, in order to nd the training method which is best suited to you. Incorrect or
extensive training can result in serious health injuries. The manufacturer expressly assumes
no responsibility for health risks, personal injury, property damage or consequential damages
sustained by or through the use of this device, unless it is a case of consequential damage
which can be traced back to faulty material and/or manufacturing, and which come under the
responsibility of the manufacturer.

5
ENG
ASSEMBLY
Please rst check the contents of the package
to make sure nothing is missing.
Included with delivery
1x 320-00-00010-01
1x Holder for handlebar clamp
1x Allen bolt M4 x 20
1x User manual
SLIDE THE SPACER BETWEEN THE
BRACKET AND HANDLEBAR.
1.
SLIDE THE BIKE COMPUTER ONTO
THE COMPUTER BRACKET.
2.
FASTEN THE COMPUTER INTO PLACE FROM THE
UNDERSIDE OF THE HANDLEBARS WITH ONE BOLT.
3.
3 MM

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
BASICS

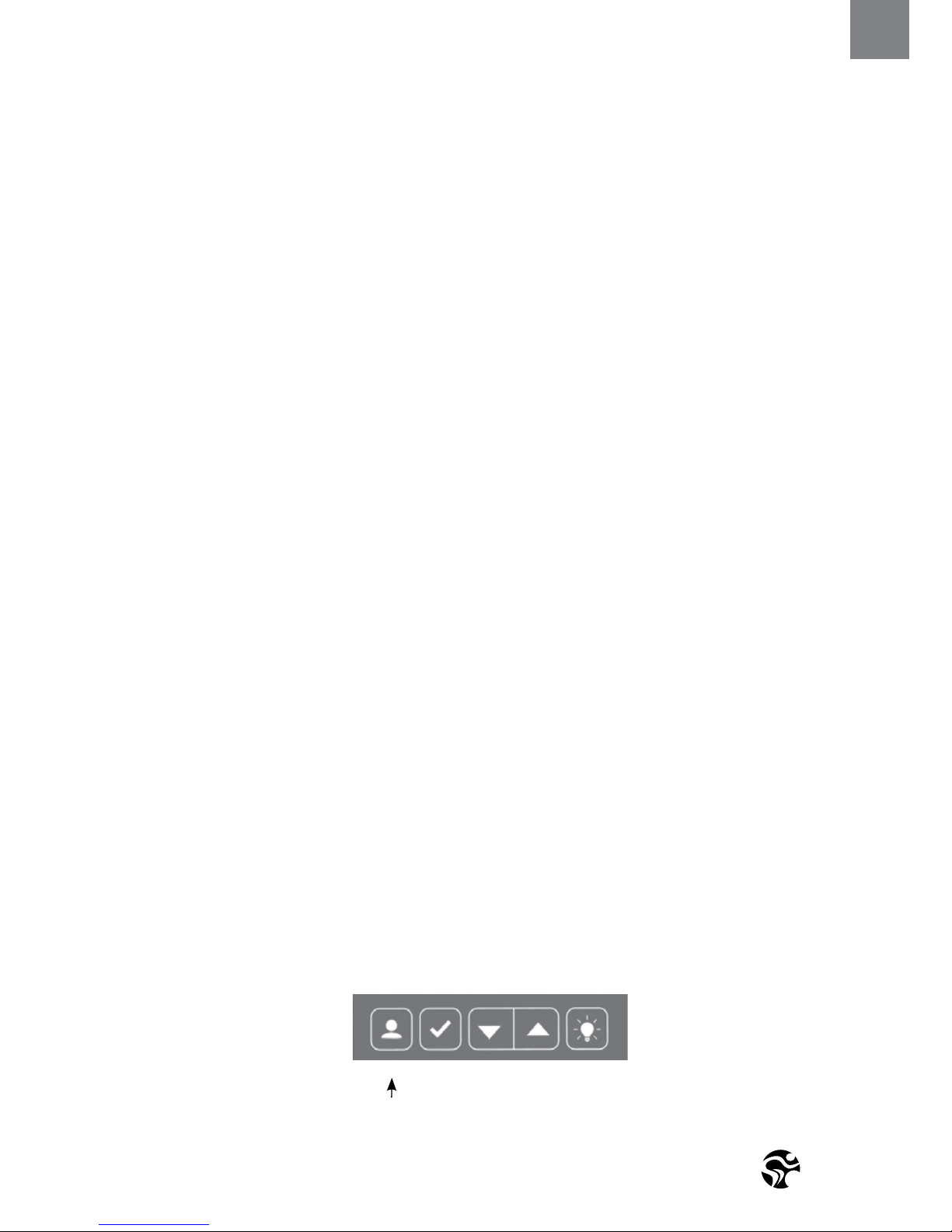

Use the arrow keys within the menus to
navigate up or down as well as the conrm
key to enter/conrm your selection.
5 COLOR LED INDICATOR FOR
COACH BY COLOR TRAINING
DOWN ARROW LIGHT USER
CONFIRM UP ARROW

7
ENG
BASICS
SWITCH ON
Until the ywheel is moved, the computer is in deep sleep mode. To switch the computer from
standby mode to operational mode, simply perform one full revolution with the pedal. After
approx. 5 seconds, the computer is then switched on and the display activated.
SWITCH OFF
The computer is automatically switched o if the wheel is not moving. The switch o time is
extended if the console is operated or if you switch to pause mode.
• The console is automatically switched o after two minutes if it is not operated and
the ywheel is not moving.
• The switch o time lasts for 5 minutes if it is in pause mode and the
ywheel is not moving.
• Each time a button is pressed, the switch o time is reset to the time
interval entered here.
BATTERY STATUS DISPLAY
If the the battery is almost depleted, a ashing battery symbol is shown on the top of the display.
Please note that as long as the battery status display is active, the console may switched o
suddenly and replacement of the batteries is required.
ENERGY SUPPLY
The IC5 computers requires 2 D batteries which are installed in the IC5 indoor cycle.
Please refer to the IC5 bike manual for battery installation instructions.
ACCURACY
The average displayed values on the IC5 are accurate within ± 10 % at 50 - 120 RPMs at a power
of 50 - 900 watts.

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
DEFINITION
TERMS & ABBREVIATIONS
COACH BY COLOR® (CBC) Power-orientated (WattRate®) or heart rate oriented training guidance
based on individual user settings by training zones depicted in color.
WATT Unit of power which is calculated based on the time during which the work is done.The
calculation is carried out using the formula: Watts = force x speed. With respect to cycling this means:
Watts = the pressure applied by the cyclist to the pedal /traction x peddling frequency/cadence.
In Indoor Cycling, the power rendered is regulated using the resistance dial. The speed is regulated by
the cadence.
WATTRATE® Direct measurement of the power rendered by the cyclist in real time.
FTP Functional Threshold Power®, also termed FTP Index. Power delivered in Watts to the functional
threshold power (FTP = 100% corresponds to the aerobic/anaerobic power threshold)
FTP% Functional Threshold Power® in per cent. Information on the current power with respect to the
FTP value in per cent FTP% = (current power in Watts / FTP) x 100
RPM Revolutions Per Minute, Cadence, pedaling frequency (PFQ), Revolutions Per Minute (R/min)
HR Heart Rate
HR MAX % Information on the current heart rate with respect to the maximum heart rate in percent
HR MAX % = (current HR / HR max) x 100
BPM
Beats per Minute
In this manual, this relates to the heart rate of the user.
TSS ® allows an endurance athlete the ability to quantify their workouts based on their relative
intensity, duration, and frequency of workouts.
IF ® is an indication of how hard or dicult a ride was in relation to your overall tness
EFFORT POINTS are calculated for your workout depending on the amount of time you ride in the
individual training zones. They are displayed in the upper left hand corner of the LCD display during a
power or heart rate training and the accumulated eort points may also be displayed during Connect
workouts.
GIVEN POINTS FOR 1 MINUTE OF RIDING IN EACH ZONE:
1 EFFORT POINT 0-55% of your FTP / 50 – 59% of your HRM
2 EFFORT POINTS 56-75% of your FTP / 60 - 69% of your HRM
3 EFFORT POINTS 76-90% of your FTP / 70 – 79% of your HRM
4 EFFORT POINTS 91-105% of your FTP / 80 – 89% of your HRM
5 EFFORT POINTS 106-120% of your FTP / 90 - 95% of your HRM
5.5 EFFORT POINTS 121- +150% of your FTP / 96 – 100% of your HRM

9
ENG
COACH BY COLOR®
TRAINING ZONES
>150% 5-10 seconds >100% Maximal
Neuromuscular
Power
106–150% 1 - 10 minutes 91 – 100% Maximal
Anaerobic
Capacity
91 – 105% 10 - 60 minutes 81 – 90% Hard
Lactate Threshold
VO2 Max
Light56 – 75% 3 hrs - wks 61 – 70%
Endurance
76 – 90% 3 - 8 hrs 71 – 80% ModerateTempo
COACH BY COLOR® - 5 ZONES
5 COLORED ZONES
Active recovery < 55% Innity <60% Very Light
POWER %FTP TIME % HR MAX LOAD
COACH BY COLOR® TRAINING CONCEPT
The 5 color zones used by ICG (white, blue, green, yellow, red) can be used based on the power
(watts) of every user of the bike. The training zones are based on the current power in relation
to the individual FTP (Functional Threshold Power®) value. The same principle of calculating
training zones applies when using the maximum heart rate (HR max) and a compatible chest
belt. As soon as the max HR or the individual FTP value are known, the personal training zones
can be worked out accordingly and in doing so the intensity can be displayed by the colors
during the training session based on the heart rate or watts.
Using the FTP power test (ramp test integrated into the computer), the user has the option to
monitor both current performance and progress.
CAUTION
The power test should only be carried out under the supervision and guidance of a qualied
Instructor or Trainer.
In both Power Training and Heart Rate Training the user has the option to turn o the Coach By
Color® Training Guidance by selecting Color Mode OFF if he/she wishes.

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
MEDICAL
DISCLAIMER
CAUTION
The division of the training zones for power or heart rate oriented training is based on an average
person’s performance. The zones may sometimes vary dramatically depending on the nature of
the training, the state of your health (e.g. whether you are taking any medications) and your
physical capabilities. It is recommended to always work out sensible training parameters for your
own personal training under medical supervision, and to plan your personal training based on
this data.
WARNING
• Do not exercise beyond your ability.
• If you feel physical discomfort or dizziness, stop training and consult a physician.
• Color zones are for guidance only.
• If the user requires medication that has an eect on their performance capabilities
and/or cardiovascular system, it is imperative that they consult a doctor in order to
adjust the personal entries accordingly.

11
ENG
After the computer has been mounted to the bike, it will automatically guide you through the
general settings. Select according to your regional or personal preferences.
LANGUAGE: Selection menu
WEIGHT UNITS: KG/LBS
DISTANCE UNITS: KM/MILES
COLOR MODE: On/O
If set to o, the CBC LED indicator will disabled and CBC training will not be possible.
SHOW QR CODE
If ON, the QR code with ICG App download information will be displayed during cycle start up.
ICG HEAT TRAINING MODE.
Activates additional color zone animations based on your personal FTP value or your max
heartrate.
BRAKE CALIBRATION
Calibrates the mechanical settings with the displayed information.
BIKE ID
During installation each bike can be given its own unique bike identication number. The
identication number is required for use with ICG Connect and App pairing.
FINISHING SETUP
Once the selections have been made, you will be referred to the Settings Overview Screen.
Following the instructions on the screen, press the USER button to complete the initial setup.
SETUP
GENERAL SETTINGS
USER

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
If you wish to use the ICG training app or transmit training data to ANT+ devices,
be sure that BLE / ANT+are turned on.
CHEST BELTS
ANALOG
Polar compatible heart rate monitors at 5.5 kHz (coded monitors recommended)
ICG TRAINING APP
The ICG Training App will allow you to connect your mobile phone to the indoor cycle
computer during Power Training Sessions and Heart Rate Training. The app gives you the
following advantages during workouts.
PERSONAL DATA
The app will automatically retrieve data such as user type, gender, age, weight and FTP Value
from your mobile phone.
RECORD DATA
Details of your workout will be recorded by the app for your personal review.
* Some functions depend on the installed software version of your Wattrate TFT Computer.
** In principle all products or apps that support ANT+ technology can receive the ANT+ data
we provide. The corresponding hardware of the apps must also support ANT+ technology for
reception to work.
Our system allows the following data to be received via ANT+ technology:
• Heart rate
• Cadence
• Power
CONNECTIVITY*

13
ENG
PAUSE MODE
To pause the time during a workout, press the tick button to enter the pause mode when you are
in one of the main training screens
v
If no button is pressed in 10 minutes, the computer switches o. The entered or recorded values are lost.
RESUME
By pressing conrm, the current workout will be resumed.
SUMMARY
When selected, an overview of the stats from your training session are displayed.
RESTART WORKOUT
Begins a new workout and keeps the user settings.
END WORKOUT
Ends workout and records workout data if paired with a mobile device.
PAUSE
QUICK START
Quick start, without entering any user settings.
POWER TRAINING
Detailed entry of user settings including index values (for FTP and max HR) as well as optional
connection to a compatible chest belt. Training zone guidance s based on watts (power)
HEART RATE TRAINING
Requires a compatible chest belt, detailed entry of user settings and index values (for FTP and
max HR) Training zone guidance is based on heart rate
POWER TEST
Will allow you to select between 2 power tests. Please refer to our page 21 for further information.
TRAINING MODES

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
QUICK-START MODE
Select Quick-Start Mode, and begin training.
Once started, the following Information is displayed on the screen.
RPM
Current Cadence
LEVEL
Resistance (0-100)
WATT
Current Power
Output
KCAL
Kilocalories burned
DISTANCE
Distance covered
SPEED
KMH - MPH

15
ENG
POWER TRAINING
The Power Training mode enables you to enter additional user settings and to connect the
computer to a compatible chest harness. In this mode, the individual threshold (FTP and max
HR) can be precisely entered, or if not known, calculated based o the biometric data entered
into the console. It is also possible to carry out the Coach By Color® training guidance based onpower.
WARNING!
• Systems for monitoring heart rate may not be completely accurate.
• Excessive exercise can cause severe damage to health and can even result in death.
• If you feel dizzy or weak, stop exercising immediately.
• This device is not intended to be used by persons (including children) with restricted
physical sensory or mental capabilities or with a lack of experience
and/or knowledge, unless they are supervised by someone responsible for their
safety or have received instructions from this person on how to use the device (e.g.
from a doctor, trainer, etc.).
• Children must be supervised at all times to ensure that they do not play with the
equipment.
• An additional consent is provided by the user when the Medical Disclaimer is
acknowledged by pressing the button at the beginning of the training session in
Power Training or Heart Rate Training Mode.
CAUTION:
The calculated FTP values are intended as a guide. but in order to receive precise values,
we advise carrying out the FTP Power Test.

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
SCREEN SELECTION
POWER TRAINING
FOLLOW THE STEP BY STEP DIRECTIONS CAREFULLY AS PROMPTED ON THE DISPLAY TO
START A TRAINING SESSION.
The power training mode has 4 screens that display dierent information during training.Toggle
between the screens by pressing the arrow buttons.
%
% of max Heart rate
KCAL
Calories burned
MI/KM
Distance
MPH/KMH
Speed
WATT/KG
The Wattage per kg
of body weight
WATT/HR
The average
Wattage with
respect to average
HR
RPM
Current Cadence
LEVEL
Resistance (0-100)
WATT
Current Power
Output
% OF FTPV
ZONE
Current Training
Zone
Indication until next
zone
SCREEN 1 SCREEN 2

17
ENG
WATT MAX
Maximum power
reached in WATTS
WATT AVG
Average output
power in WATTS
MAX
Max Heart Rate
AVG
Average Heart Rate
RPM MAX
Maximum cadence
reached
RPM AVG
Average cadence
achieved
MPH/KMH MAX
Maximum Speed
Reached
MPH/KMH AVG
Average Speed
Achieved
FTP IN % RED/ ZONE 5
TIME IN ZONE % OF TIME IN ZONE 5
FTP IN % YELLOW / ZONE 4
TIME IN ZONE % OF TIME IN ZONE 4
FTP IN % GREEN / ZONE 3
TIME IN ZONE % OF TIME IN ZONE 3
FTP IN % BLUE / ZONE 2
TIME IN ZONE % OF TIME IN ZONE 2
FTP IN % WHITE ZONE 1
TIME IN ZONE % OF TIME IN ZONE 1
SCREEN 3 SCREEN 4
POWER TRAINING
Dynamic overview of training zones and time.
The absolute time spent and percentage of
the time in which you were training in each
zone is displayed.

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
HEART RATE TRAINING
The Heart Rate Training mode enables you to enter additional user settings and to connect the
computer to a compatible chest harness. In this mode, the individual threshold (FTP and max
HR) can be precisely entered, or if not know calculated based o the biometric data entered
into the console. It is also possible to carry out the Coach By Color® training guidance based on
heart rate.
WARNING!
• Systems for monitoring heart rate may not be completely accurate.
• Excessive exercise can cause severe damage to health and can even result in death.
• If you feel dizzy or weak, stop exercising immediately.
• This device is not intended to be used by persons (including children) with restricted
physical sensory or mental capabilities or with a lack of experience
and/or knowledge, unless they are supervised by someone responsible for their
safety or have received instructions from this person on how to use the device (e.g.
from a doctor, trainer, etc.).
• Children must be supervised at all times to ensure that they do not play with the equipment.
• An additional consent is provided by the user when the Medical Disclaimer is
acknowledged by pressing the button at the beginning of the training session in
Power Training or Heart Rate Training Mode.
CAUTION:
The calculated FTP values are intended as a guide. but in order to receive precise values,
we advise carrying out the FTP Power Test.

19
ENG

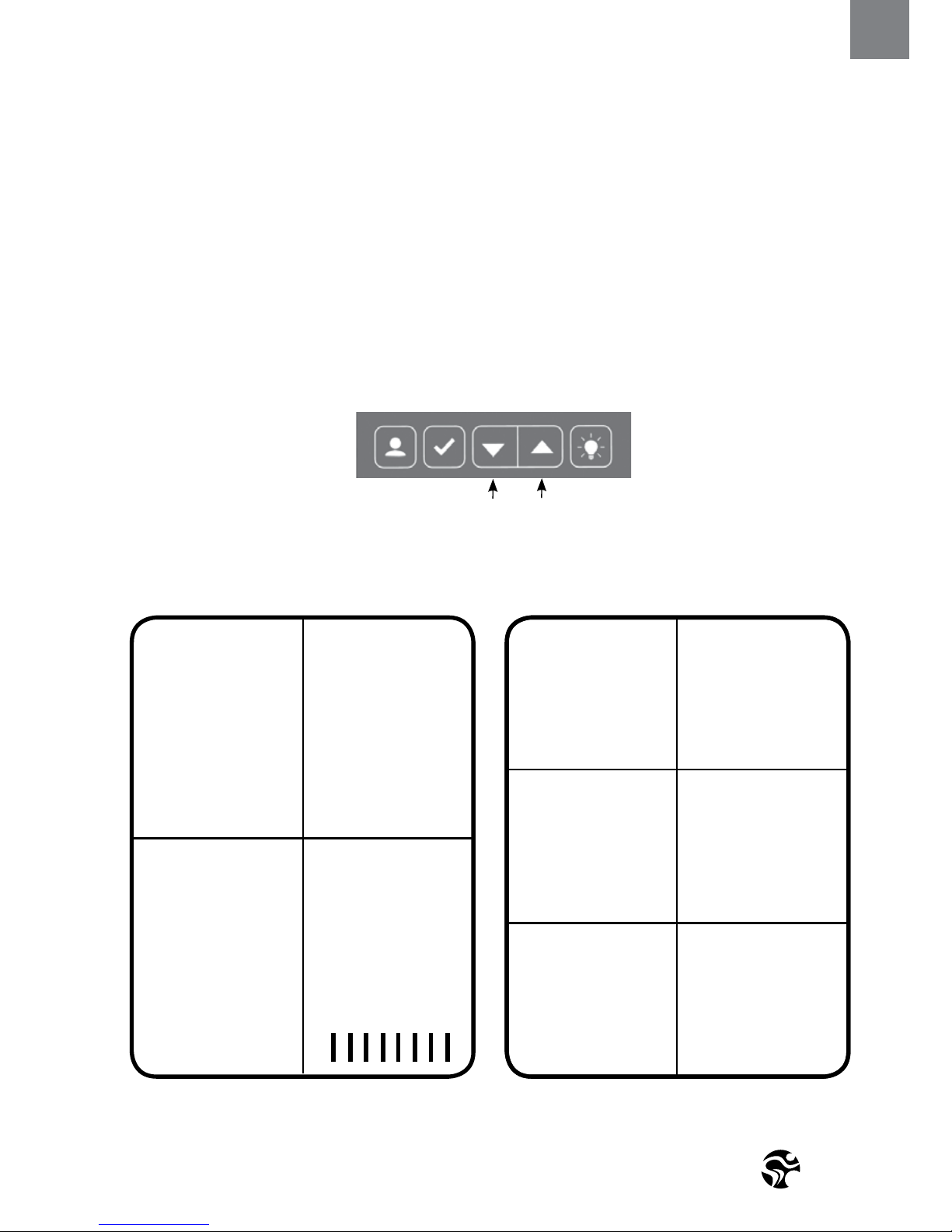

HEART RATE TRAINING
SCREEN SELECTION
FOLLOW THE STEP BY STEP DIRECTIONS CAREFULLY AS PROMPTED ON THE DISPLAY TO
START A TRAINING SESSION.
The heart rate training mode has 4 screens that display dierent information during training.
Toggle between the screens by pressing the arrow buttons.
WATT %
Watt as percentage
based on FTP value.
WATTS
Current output
power in Watts
KCAL
KCalories burned
MILES/KM
Distance
MPH/KMH
Speed
WATT/KG
The Wattage per kg
of body weight
WATT/HR
The average
Wattage with
respect to
average HR
RPM
Current Cadencev
LEVEL
Resistance (0-100)
BPM
Heart Rate
ZONE
Current Training
Zone
Indication until next
zone
SCREEN 1 SCREEN 2

Version 1. 0 WattRate LCD Computer | Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling. com
FTP IN % ZONE 5
TIME IN ZONE % OF TIME IN ZONE 5
FTP IN % ZONE 4
TIME IN ZONE % OF TIME IN ZONE 4
FTP IN % ZONE 3
TIME IN ZONE % OF TIME IN ZONE 3
FTP IN % ZONE 2
TIME IN ZONE % OF TIME IN ZONE 2
FTP IN % ZONE 1
TIME IN ZONE % OF TIME IN ZONE 1
SCREEN 3 SCREEN 4
WATT MAX
Maximum power
reached in WATTS
WATT AVG
Average output
power in WATTS
MAX
Max Heart Rate
AVG
Average Heart Rate
RPM MAX
Maximum cadence
reached
RPM AVG
Average cadence
achieved
MPH/KMH MAX
Maximum Speed
Reached
MPH/KMH AVG
Average Speed
Achieved
HEART RATE TRAINING
During the work out, one of the 5 training
zones is highlighted depending on the
training zone you are currently in.
