lifelong LLTF922A User manual

Manufactured for & Marketed by :
Lifelong Online Retail Private Limited
For queries and complaints:
please contact: [email protected]
www.lifelongindiaonline.com
FAN
Built for Home. Built for India.
User Manual

12
INTRODUCTION:
Dear Customer,
Congratulations! We welcome you to the Lifelong family, as you welcome our
Lifelong Table/wall/pedestal Fan to be a part of your home.
At Lifelong, our products are carefully built for the needs of India, which is why we
have crafted a diverse range of innovative products, across a spectrum of categories
- Home, Kitchen, Grooming, Fitness, Lifestyle and Smart Home, to better help you.
We then deliver them at the best prices, enriching your everyday living.
We are sure you can't wait to start using your new Lifelong Table/wall/pedestal Fan.
We know we can't!
Looking forward to building our bond for life, cheers!
Thank you, Team Lifelong

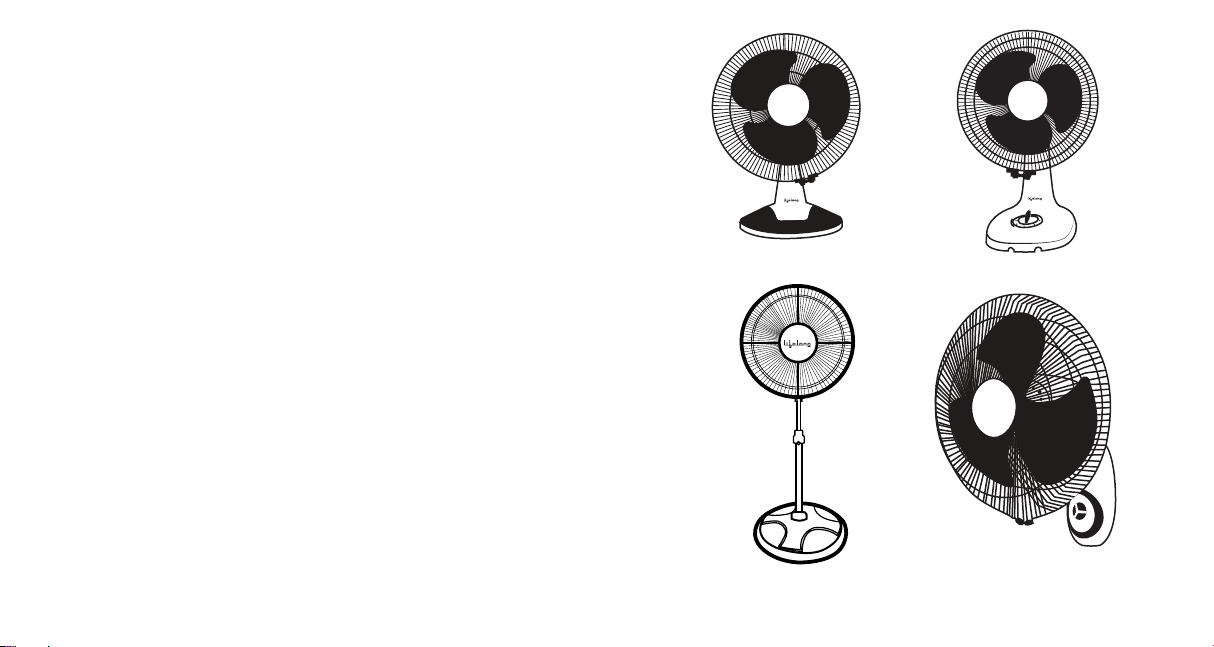

LLTF922A
LLWF922
LLPF922
LLTF922B

3 4
TABLE OF CONTENTS:
1. About the product
2. Product Assembly
3. Operating Instructions
4. Device maintenance
5. Dos & Don’ts
6. Terms and conditions
7. Warranty
Lifelong presents high-quality innovative fans with the latest aerodynamic technology
at reasonable prices. The unique table fans are specially designed to give you cool,
sharp blasts of air over wider areas to give you the best cooling experience.
Assembly of the Pedestal Fan:
ABOUT THE PRODUCT:
PRODUCT ASSEMBLY:

5 6
11. Modes: 0: stop
1: Low
2: Medium
3: High
1. Take out the motor with Switch assembly base/ Outer Tube.
2. Locate the outer tube (as shown in the above image) on the outer base
(as shown in the above image) and tighten with 4 no. screws and nuts provided.
3. Slide down the base canopy (as shown in the above image) on the outer tube,
by unscrewing the height adjustment collet. Screw back the height adjustment collet
to position after placing the canopy.
4. Place the motor with switch assembly on the inner tube (as shown in the above image)
and tighten it with the knob screw, then adjust the height as per the requirement with
the height adjustment collet.
5. Unscrew the lock-nut and the plastic nut from the motor shaft and the front cowl.
6. Fix back the guard and tighten with the front cowl nut.
7. Slide the plastic blade on the motor shaft, and tighten the blade with the lock-nut,
but rotating it in an anticlockwise direction.
8. Place the front guard and align the plastic ring with the front and back guard and then
tighten the plastic ring screw.
9. The oscillation mechanism can be activated by pushing the oscillatory knob downward
and the fan can be put into a stationary position, by gently pulling the oscillatory knob.
10. The speed of the fan can be regulated through a speed control switch fitted on the
switch box by pressing the relevant buttons.

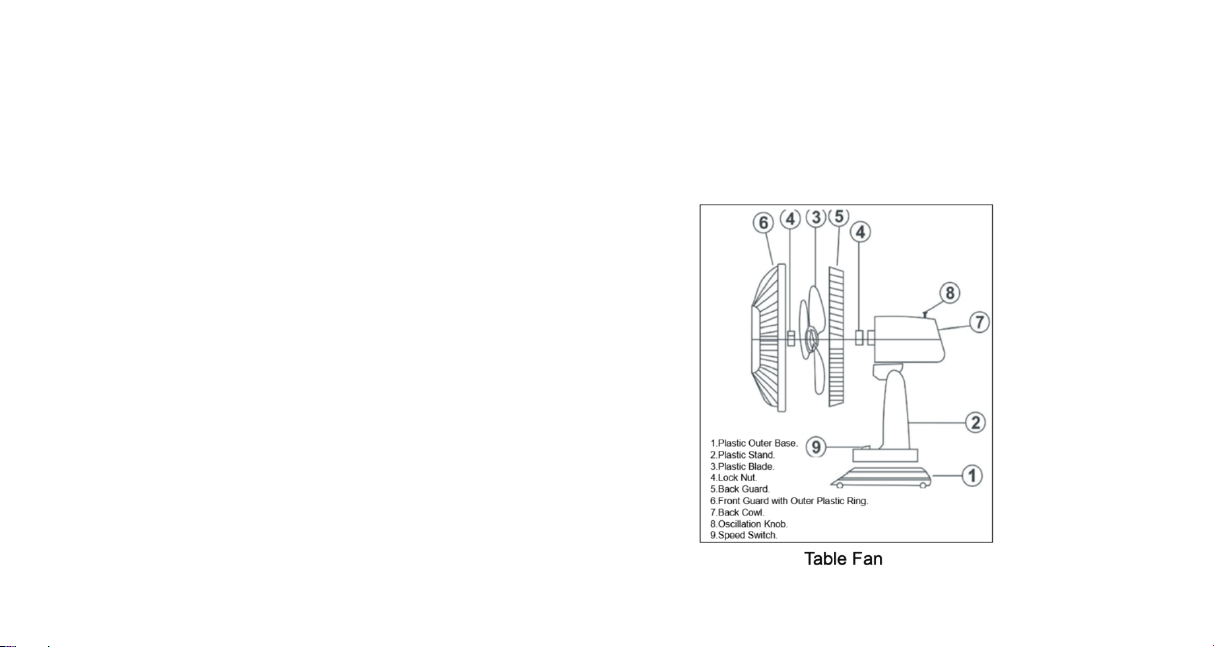

Assembly of the Table Fan:

7 8
1. Open the packed unit and take out the guard packet
(as shown in the above image) along with the blade & the table fan’s outer base.
2. Pick up the motor assembly along with the table fan stand.
3. Place the motor assembly along with the table fan’s stand in the outer
base ensuring to switch the position on the front. Use 5 screws to fix the motor assembly
to the outer base from the bottom.
4. Unscrew the 2 lock-nuts (as shown in the above image) from the motor shaft &
from the back cowl.
5. Fix the back guard and tighten the front lock-nut.
6. Slide the plastic blade on the motor shaft, and tighten the blade with the lock-nut by
rotating it in the anticlockwise direction.
7. Place the front guard and align the plastic ring with the front and back guard and
tighten the plastic ring screw.
8. The oscillation mechanism can be activated by pushing the oscillation knob downward
and the fan can be turned to a stationary position by gently pulling the oscillation knob.
9. The speed of the fan can be regulated by the speed control switch fitted on the
plastic stand by pressing the relevant buttons.
10. Modes: 0: stop
1: Low
2: Medium
3: High

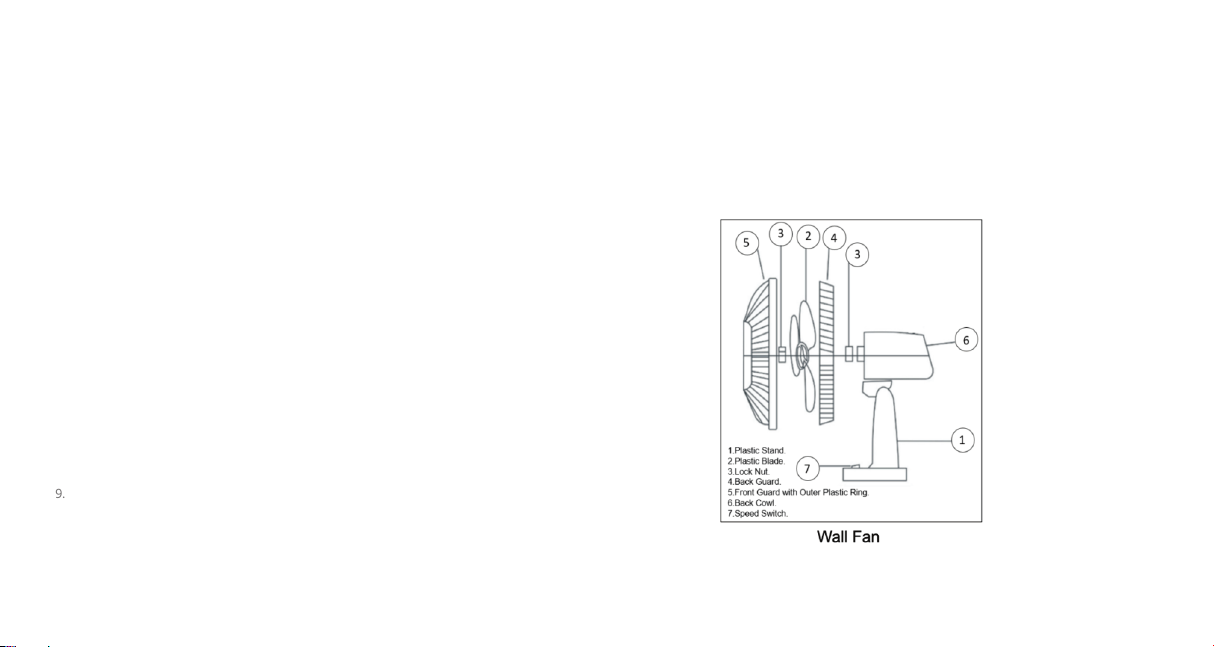

Assembly of the Wall Fan:

9 10
1. Open the packed unit, and take out the guard packet
(as shown in the above image) along with the blade
2. Pick up the motor assembly along with the wall fan body.
3. Unscrew the 2 lock-nuts (as shown in the above image)
from the motor shaft & from the back cowl.
4. Fix the back guard and tighten the front lock-nut.
5. Slide the plastic blade on the motor shaft, and tighten the blade with the
lock-nut by rotating it in the anticlockwise direction.
6. Place the front guard and align the plastic ring with the front and back
guard and tighten the plastic ring screw.
7. The speed of the fan can be regulated by the speed control switch
fitted on the plastic stand by pressing the relevant buttons.
8. Modes: 0: stop
1: Low
2: Medium
3: High
1. To Change the speed of the fan, set the switch knob to the desired position.
2. There are three consecutive positions on the switch knob “1”, “2”, “3”
denoting the different speeds of the fan.
3. Fan runs at the maximum speed at position 3.
4. To tilt the fan, switch off the fan, hold the stand & tilt the fan either
upward or downwards as required.
5. Fan has an indexed tilt mechanism which does not require any tightening.
6. To access the oscillation mode, press the oscillation knob.
7. To stop the fan from oscillating, pull the oscillation knob upwards.
Automatically operated devices: To reduce the risk of injury, disconnect
from power supply before servicing.
Note: Place the fan on a firm, levelled surface. Insert the plug of the power
cord into any standard 220~240V,50Hz AC outlet.
OPERATING INSTRUCTIONS:

11 12
1. Before cleaning, ensure that the power supply is switched off and the
plug is pulled out of the power supply socket.
2. To clean the fan, carefully wipe the unit with a soft and clean cloth.
3. DO NOT immerse the fan in water and never allow water to drop into the
motor housing.
4. Never use gasoline, benzene or thinner to clean the fan this will damage
the surface of the unit.
5. After cleaning, ensure to completely dry the unit with cloth or towel.
1. Do not bump the guard or blades against anything.
The deformation of the angles of the blades is liable to cause malfunction.
2. When removing or carrying the fan, be sure to take hold of
the handle or stand.
3. Do not pull any of the exterior electric wires or tilt the fan
when in operation.
1. Your fan can be stored in the winter season.
2. Before putting the fan in storage, clean thoroughly, cover with a vinyl bag and
store in a cool and dry place.
3. We recommend using the original box.
DEVICE MAINTAINANCE : DO’S & DON’TS:
Maintenance:
Post-season Maintenance

13 14
Terms and Conditions:
1.This warranty is void if:
a. The completely filled warranty card is not presented
at the time of servicing the product.
b. The product is not operated according to the
instructions given under the user manual.
c. Damages are caused by lightning, abnormal
voltage, water or other liquid intrusion, fire, flood,
accident, negligence or improper handling.
d. Product has been damaged due to installation,
epairs, alterations or modifications by unauthorized
service organizations or persons.
e. Product label specifying the model number, serial
number and production code has been removed
and altered.
f. Defects or parts requiring replacement due to
ordinary wear and tear, corrosion, rust or stains,
scratches, dents on the casing or paintwork of the
product.
g. Claims damaged and/or missing parts
(accessories) after 7 days from the original date of
goods received.
h. Defects or faults in product which have been used
for commercial/industrial purposes or which have
been rented/leased or have been otherwise subject
to non-household/non-domestic use.
2. Repairs or replacements will be carried out by
authorized service provider.
3. During the limited warranty period, Lifelong or its
authorized service provider will repair without charge
the defective unit inclusive of labor and parts and
restore the unit to its optimum working condition. All
defective parts used for the warranty repair should be
surrendered to Lifelong and/or its authorised servicer.
4. All expenses incurred in collecting the unit (s) or
part(s) thereof from authorised service provider as
will as any other expenses and incidentals will be
borne by the consumer.
5. Lifelong obligations are limited to the repair and
replacement of the defective product. Except as set
forth above, there are no other express or implied
warranty and all warrantied, conditions or other terms
implied by statute or common law (including any
warranty of satisfactory quality, merchantability or
fitness for a particular purpose) are excluded to the
fullest extent permitted by the lass.
6. Lifelong total liability for damages relating to or arising
out of the purchase or use of the product regardless of
the type or cause of such damage of the form of
characterization of the claim asserted (e.g. contract or
tort) shall not exceed the original purchase price paid
for the product.
7. However in no event shall Lifelong and Lifelong
authorized distributors be liable for any punitive, special
incidental, indirect or consequential losses or damages
whatsoever (including without limitation, damages for
the loss of revenue, business, profits, goodwill, or
contracts, business interruptions, loss of business
information or any other pecuniary loss.) Whether or
not Lifelong has been advised of the possibility of such
damages.These limitations shall apply not with
standing the failure of the essential purpose of any
limited warranty. This limited warranty does not affect
consumer's statutory rights under the law.
8. No carrier, dealer or employee is thereof authorized to
make modifications to this warranty and you should not
reply on any such representation. Lifelong reserves the
right to amend the terms and conditions if necessary.
Consumer Warranty Card
Dear Customer,
Thank you for choosing a Lifelong consumer product. All Lifelong Consumer
products are designed and manufactured to the highest standards to deliver high
quality performance, as well as easy installation and use. At Lifelong, we believe in
providing not only service, but adding value to your purchase. The warranty has
therefore been designed especially for you with your interest at heart.
Warranty Service
All Lifelong consumer products are covered against manufacturing defects from
them date of purchase.
Name of the product:
Model:
Warranty coverage: 1 year
Please note: Purchase receipt is necessary for warranty verification.
Customer Care: [email protected]
Customer Details
Name:
Address:
Home Number:
Office Number:
E-mail Address:
Product Details
Model No.:
Serial No.:
Purchase Date:
Invoice Number:
Online Site:
Please log on to www.lifelongindiaonline.com and complete the online warranty form with your
personal and product details within 14 days.
