Lightmen STAGE 100F User manual

STAGE 100F

1
Content List
Page Content
1 Content List
2 Product Introduction
7 Safety and Maintenance Information
10 Installation
11 Control Menu
13 DMX Connection and DMX Protocol
14 Wireless Control Settings
15 Setting Options by RDM
17 Unique Features

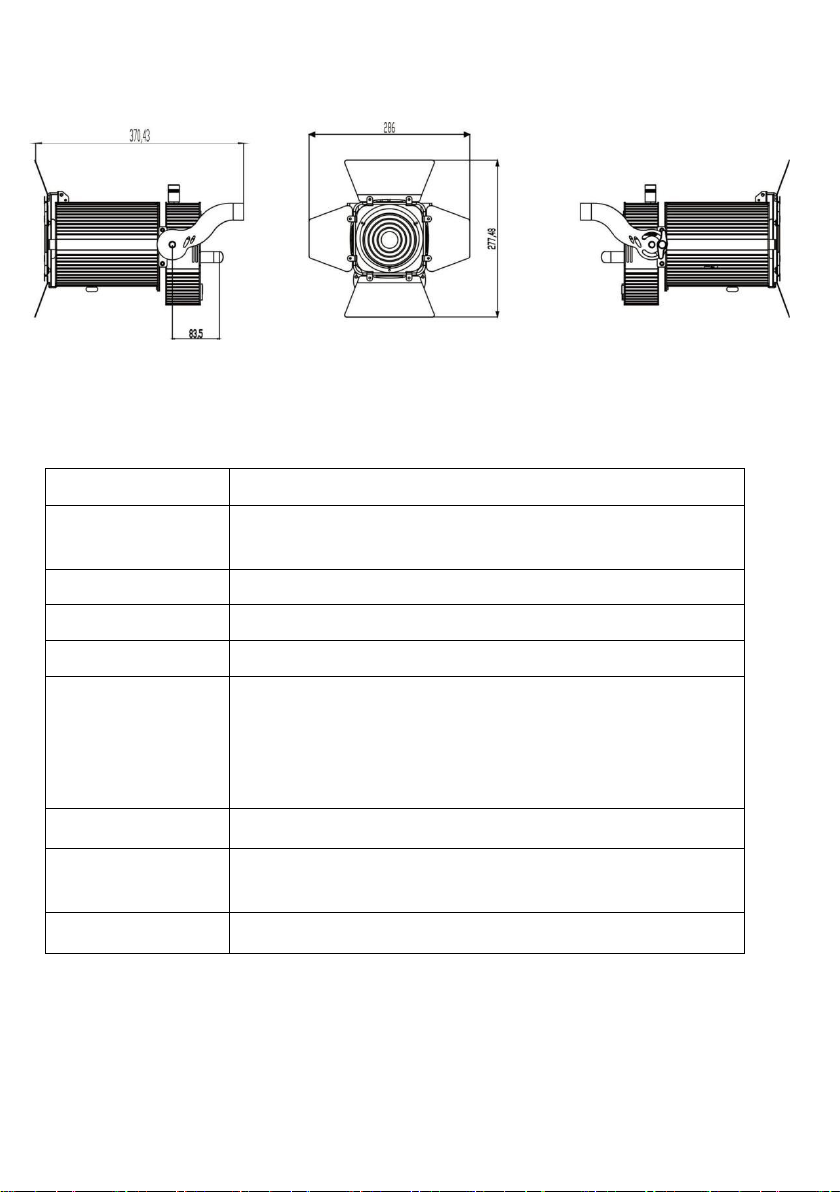

18 Dimensions Drawing
Technical Specification

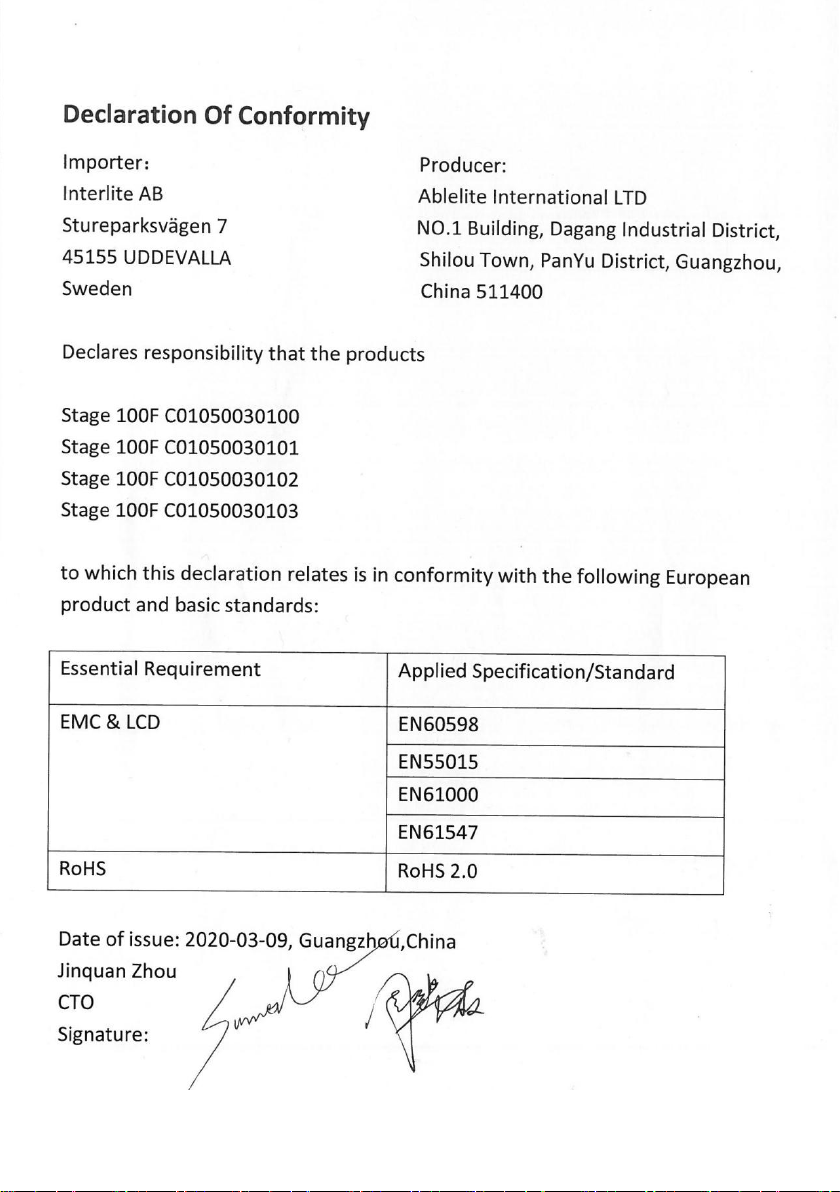

19 Declaration of Conformity

2
1. Product Introduction:
1.1 Before unpack the fixture, please make sure that the packing is in good
condition, following items will be found in the box:
Stage 100F
This users guide
3m DMX cable
1.5m power cable with True1
Safety chain
1.2 Specifications
Source
Light source: 100W Warm white or Cool white LED engine
CT: 3200K(WW) 5600K(CW)
CRI: 97(WW), 97(CW)
LED life: 50,000 hours （under 80% output condition）
Continuous Operation Test: IF=1080mA Ta= 25C (with Al-fin) x1000hrs
IF=1080mA Tj=140C (with Al-fin) x1000hrs
Low Temperature Storage Test: -40℃x 1000 hours
High Temperature Storage Test: 100℃x 1000 hours
Moisture-proof Test: 85℃, 85% RH for 500 hours
Thermal Shock Test: -40℃x 30 minutes & 100℃x 30 minutes, 100 cycles
Flux on small angle 23°: 2820lux@3m | 1000lux@5m (WW)
2910lux@3m | 1030lux@5m (CW)
Flux on big angle 90°: 510lux@3m | 183lux@5m(WW) 542lux@3m
| 193lux@5m (CW)
Control: Via DMX 512 protocol
Remote Control via wireless
Via RDM

3
Optical System
Beam angle: 23°-90°
Lens Type: HQ Glass optics
Body
Body: Sturdy die-cast aluminum body conceived for long-time
durability
Body Color: Black/White
Features
DMX channels:2/4/1CH
RDM function is to change DMX address, display flip, X/Y Reverse,
show led voltage, current and power consumption info.
Software upgrade via DMX only
Hibernation when lost DMX for preset time
Indicate temperature info of led
Fan speed auto change according to temperature
Dimmer Curve: 4 different dimmer curve available(Exponential, Linear,
INV-Exp, and S-Curve).
Display
Display: Black OLED high resolution display with friendly English menu
Auto lock
Flip
Back-up communicating IC

4

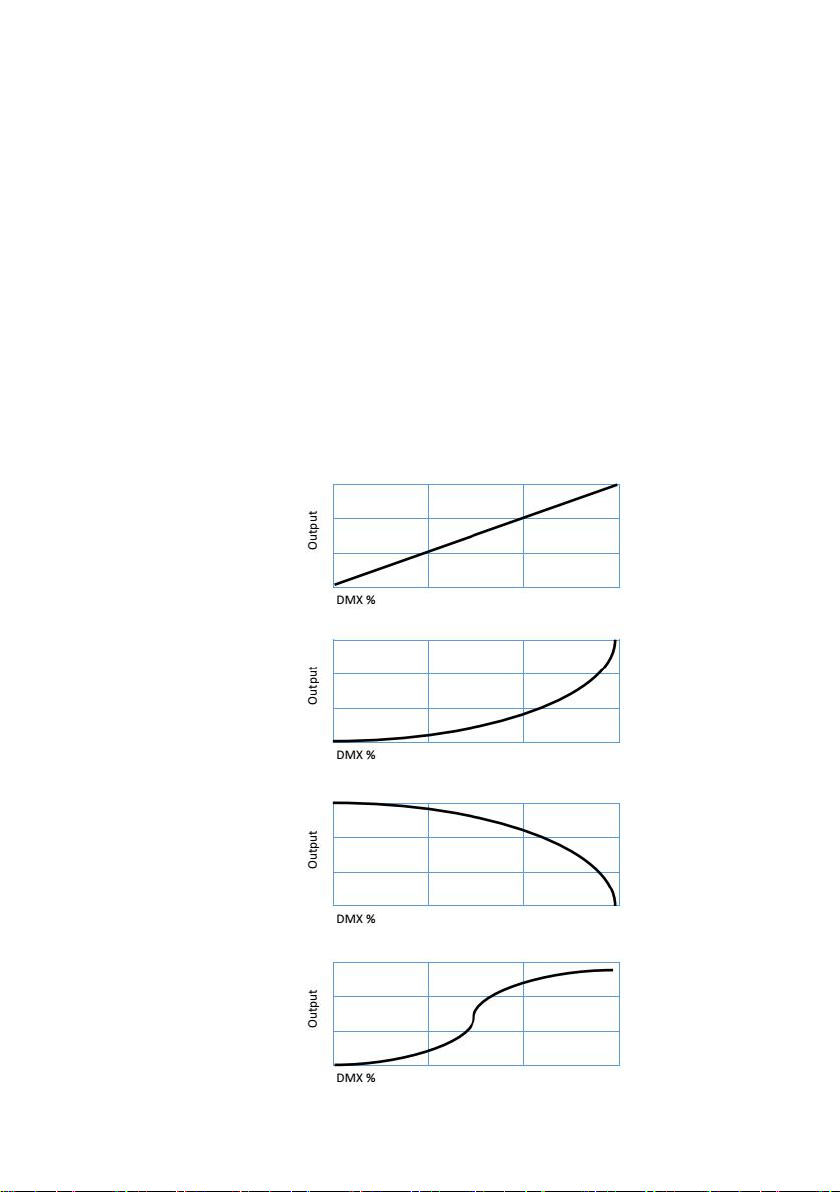

Dimming
Dimmer Curve provides 4 dimming options（see below figure）
Linear: the increase in light intensity appears to be linear as DMX value
is increased.
Exponential:the light intensity control is finer at low level, coarser at
high level.
In-Exp:the light intensity control is finer at high level, coarser at low
level.
S-Curve:the light intensity control is finer at lower and higher level,
coarser at medium level.
Linear
Exponential
In-Exp
S-Curve

5
1.3

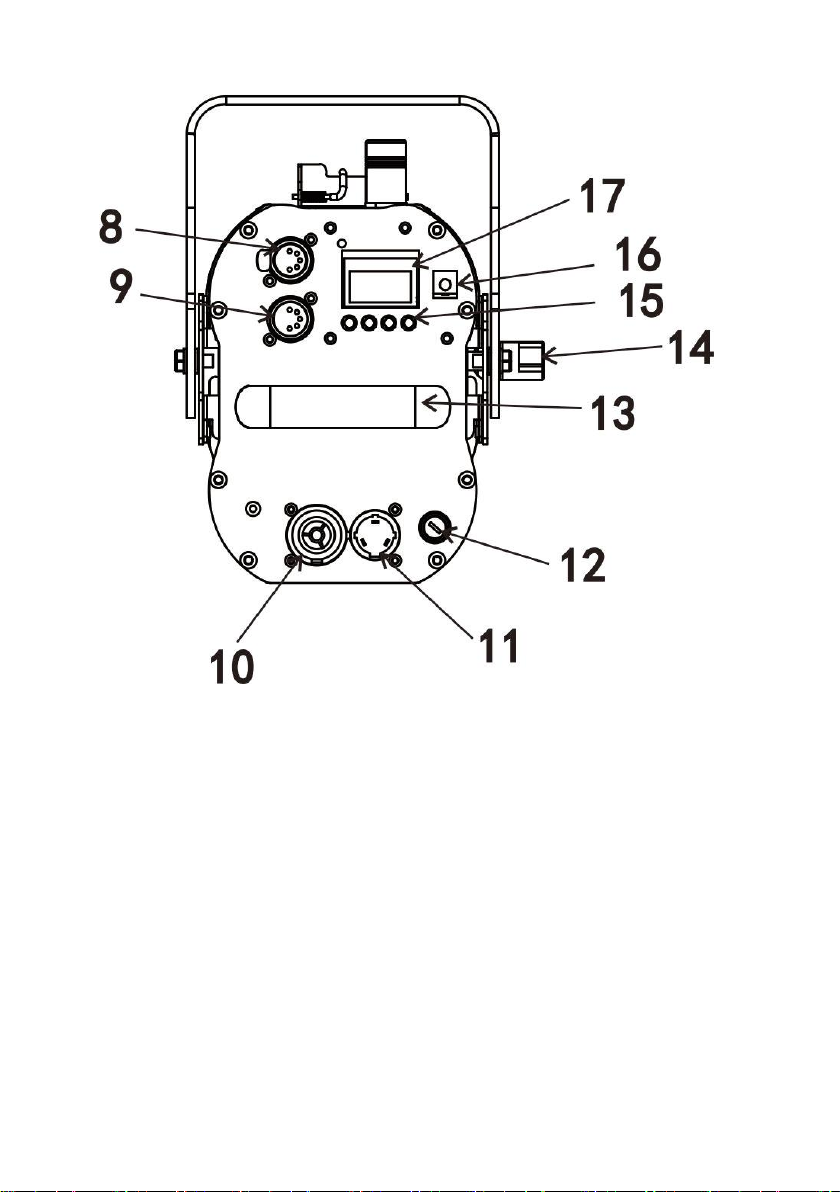

Description of the Device
1. Bracket
2. Housing
3. Barndoor
4. Lens
5. Barndoor holder
6. Light shield panel
7. Wireless DMX Antenna

6
8. 5-Pin DMX 512 output
9. 5-Pin DMX 512 input
10. Power In TRUE1
11. Power Out TRUE1
12. Fuse
13. Handle
14. Knob
15. Buttons
16. Dimmer knob
17. Display

7
2. Safety and Maintenance Information
2.1 Safety Info
Before operate this unit, please carefully read this users guide
and keep if needed in future. It’s necessary to respect following
rules.
The disposal of the device after life-cycle could damage the
environment. Need to take it to special company for recycling or
return to authorized dealer.
The products referred to in this manual conform to the
European Community Directives and are therefore marked with
CE logo.
Keep this device away from children and unauthorized users,
the manufacturer will not take responsibility for the damage
due to any disregard of the information provided in this manual
and wrong operation.
Before operate the device, please make sure the fixture is in
good housing, ensure pan and tilt can rotate in its complete
range.
--0.5m
Please make sure minimal 0.5m distance need to kept between
the fixture to any flammable material.
The device can only run with 100-240v voltage, 50/60Hz power,
don’t connect to any other wrong power. Disconnect the device
from main power before open the shield or maintenance.
The device is designed only for indoor usage, please keep it
away from moisture. Do not expose the device under the sun or
directly to any other lighting source.
Never look directly into the projecting lens when the fixture is
power on, the light may trigger epileptic seizures in
photosensitive persons or persons with epilepsy. Especially at
beam effect, extreme caution and observance of these safety
instructions is mandatory.

8
Don’t put or install the device on a surface that subject to
vibration or bumps.
Ta=45℃
The device is supposed to work in the temperate range -20° to
+45°C, do not use the device when the temperate exceed this
range.
The lens, shield need to be replaced when obviously broken,
never use the device when the shield is not completed closed.
Safety I class device, need to be earth connected.
When the fixture is hanged overhead, the safety rope must be
fixed to the bottom of the device to the appropriate fixing point.
Always carry the device by the bracket, do not take the body
directly for transportation.
2.2 Maintenance
2.2.1 Operation only allowed to qualified person, damages due to unprofessional
operation or remove of any parts inside will not be considered in warranty
service. There are no serviceable parts inside the device or package, service only
leaves to authorized dealers.
2.2.2 Never allow the optical components contact with oil, fat or any other
liquid.
2.2.3 A regular clearance of the device is needed for long-term usage, this is very
helpful to maintain the lifetime and brightness need to use a soft and lint-free
cloth to clean the optical system, fan and air flowing tunnel.

9
2.2.4. Trouble Shooting
Problems
Possible reasons
Checking or solutions
Device not power
up
TRUE1 or power cable
damaged
Faulty power supply
Change a good power cable to
try
Replace new power supply
LED off
Temperature
protection
Fan not working
Faulty LED
Dimmer and strobe
set at 0
Faulty power supply
Check the temperature from
menu
Check the fan speed info from
menu
Replace new LED
Set dimmer channel at 255 and
strobe channel at 0~5
Replace new power supply
Device not
response to DMX
Faulty communication
IC
Faulty display PCB
Wrong DMX
addressing
Faulty DMX cable
Replace the IC with back-up
one in the display PCB
Replace new display PCB
Check the address and setting
Change to a good DMX cable
2.2.5 Replacement of the fuse
Need to replace with same type and rating(T 2A-250V), which originally installed
in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the housing with a screwdriver.
Step Three: Remove the broken fuse and replace with an exact same type of new
fuse.
Step Four: Insert the fuse holder back to the housing and screw tight and
reconnect power.

10
3. Installation
3.1 The device could be either put on a solid and even surface, or mounted
upside down or sideways like left picture.
3.2 The mounting place must be sufficient stable and be able to support a weight
of 10 times of the unit’s weight. When the fixture is hanged, always additionally
secure the device with the safety chain, fasten the safety rope at a suitable
position so that the maximum fall of the projector will be 20 cm

11
4. Control Menu
4.1 Meaning of the icons in menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM
4.2 Menu tree
Default setting shadowed. Mark with ①can be basic reloaded, ②be program
reloaded, ③can be private reloaded.
DMX
Settings
DMX Addr①
XXX
DMX Mode
Standard/Extended/Basic(Standard)
DMX Hold
Off
On (On)
Wireless
Off (Off)
On
Unlink
DMXOut
On/Off (On)
Manual
Dimmer……
Fixture
Settings
Settings
Fan Level ①
Auto/Low (Auto)
Max Temp①
80~130℃(85℃)
Temp. C①
Celsius (Celsius)
Energy Mode①
Off, 01M~99M，(Off)
Backlight①
Off,01~99m (02m)
Flip Display①
On/Off (Off)

12
LED
Frequency
1200Hz-4000Hz(1200Hz)
Dim Curve
Exponential (Expontenial)
Linear
INV-Exp
S-Curve
Fixture ID③
Name
RDM Mode
-Password-
PID Code
Fixture Reset
Basic Reset(①)
On/Off (Off)
---Password---
XXX
Factory Reset
On/Off (Off)
Information
Software V
Vx.x.xx
LED Temp
XXXC
FAN Speed
FAN1: XXXR

13
5. DMX Connection and DMX Protocol
5.1 DMX addressing:
5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the
start channel used to receive instructions from the external controller. For
independent control, each fixture must be assigned its unique address control
channels. For example, this device has three channel modes: St/Ex/Ba, if we set
the mode at standard 18 channels mode, and there are several models need to
be independently controlled. We just simply address first fixture at 1, second
fixture at 21, and third one at 41, etc.
If the devices have the same address, they will behave synchronically.
DMX addressing is limited, don’t set the address so high without enough control
channels for the fixtures.
Display is flashing when no DMX signal is received.
5.1.2 Connection: use DMX cable with 5-pin XLR-plugs to connect the controller
with the fixture or one fixture with another.

14
5.2 DMX chart
Channel
name
function
Min
DMX
Max
DMX
St
Ex
Ba
1
1
1
Dimmer
Dimmer 0->100%
0
255
2
Dimmer
Fine
Dimmer fine 0->100%
0
255
2
3
Strobe
Strobe open
0
5
Strobe effect slow to fast
6
127
Random strobe effect slow
to fast
128
255
4
Fans Mode
No Function
0
10
Auto
11
128
Low
129
255
6. Wireless Control Settings
To change wireless control settings, proceed as follows:
*Press the Enter button to access the main menu.
*Press the UP/DOWN button to scroll the menu, select the DMX Settings icon,
then press the ENTER button to enter the next menu.
*Press the UP/DOWN button to scroll through the menu, select Wireless and
press ENTER.
*Press the UP/DOWN button to select the desired function(On/Off/Unlink/DMX
Out).
*Press the ENTER key to confirm the setting.

15
7. Setting Options by RDM
You can remotely configure the fixture over the DMX line using RDM.
A full list of the RDM functions that STAGE 100F fixture supports is given at the
end of this chapter.
These functions are generally referred to using the more specific term ‘PIDs’ or
‘Parameter IDs’.
7.1 Scanning for RDM devices on the data link
Before you can communicate with fixtures using RDM, you must send a scan
command(also called a device discovery command) to all the devices on the data
link so that the RDM controller can identify them. It does this by retrieving each
device’s factory-set parameter identifier(PID). This process can take some time
depending on the number of devices on the link.
7.2 To identify the fixtures on the link:
Check that the fixtures are correctly connected to the RDM controller on the
data link and that power is applied to all fixtures.
*Go to discover devices of the RDM controller.
*Give the controller time to identify the devices on the link and prepare for
communication with the devices.
Getting status and setting options by RDM.
The status and options listed in the table below can be ready and set by RDM.
You can set an option on one fixture by sending a unicast RDM command to that
one fixture only, or you can set the same option on all the fixtures on the data
link by sending a broadcast RMD command to all the devices on the link.
For status reading, you can only use unicast RDM to read information from an
individual fixture.

16
*Device Discovery
*Device management
GET
SET
QUEUED_MESSAGE
V
V
STATUS_MESSAGE
V
SUPPORTED_PARAMETERS
V
V
DEVICE_INFO
V
V
DEVICE_MODEL_DESCRIPTION
V
V
MANUFACTURER_LABEL
V
V
DEVICE_LABEL
V
V
FACTORY_DEFAULTS
V
V
SOFTWARE_VERSION_LABEL
V
V
DMX_PERSONALITY
V
V
DMX_PERSONALITY_DESCRIPTION
V
V
DMX_START_ADDRESS
V
V
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN-MUTE

17
8. Unique Features
8.1 RDM, stand for “Remote Device Management”, with this function, users can
realize remote control of the device, such as remotely changing DMX address,
reversing pan/tilt setting, and checking a lot of useful information such as
temperature, power consumption, fan speed, etc. Every single device has a
unique RDM code before leaving factory to distinguish from each other. Usually
not suggest users change this code freely.
8.2 Software upgrade function via DMX cable, if there is any new firmware for
this device coming out, it can be upgraded simply via a software upgrade box, no
need to change any mechanical parts. The upgrade box is not included in the
package, if need any further assistance please just contact authorized dealers.
8.3 Hibernation, the device will enter sleeping mode if activated after a period of
disconnecting DMX signal to save the power consumption, and will return
immediately as soon as the DMX signal is sent again.
8.4 Display battery, this function is prepaid in the display PCB. Users just need to
install a normal 10440 600mAh 3.7V rechargeable lithium battery, then users
could power on the display and do setting without being connected to main
power.
8.5 Display back-up communication IC, there is a back-up communication IC
installed in the display PCB, so users could replace at once if the working one is
broken, no need to wait long time from service.
8.6 Display flip：by press up and down button for more than 3 seconds, the
display will flip automatically. This function is useful to read menu conveniently
when device is hanged.

18
9. Dimensions Drawing
10. Technical Specification
Power supply
100-240V,50/60Hz~
Power
consumption
108W(Warm white, Cool white)
LED
100W Warm white or 100W Cool white LED engine
DMX channels
2/4/1CH modes
Beam angle
23°-90°
Luminous flux
23°: 2820lux@3m | 1000lux@5m (WW)
2910lux@3m | 1030lux@5m (CW)
90°: 510lux@3m | 183lux@5m(WW)
542lux@3m | 193lux@5m (CW)
Fuse
T2A, 250V
Device
dimensions
37x28x28cm
Net weight
4.4 kg

19
