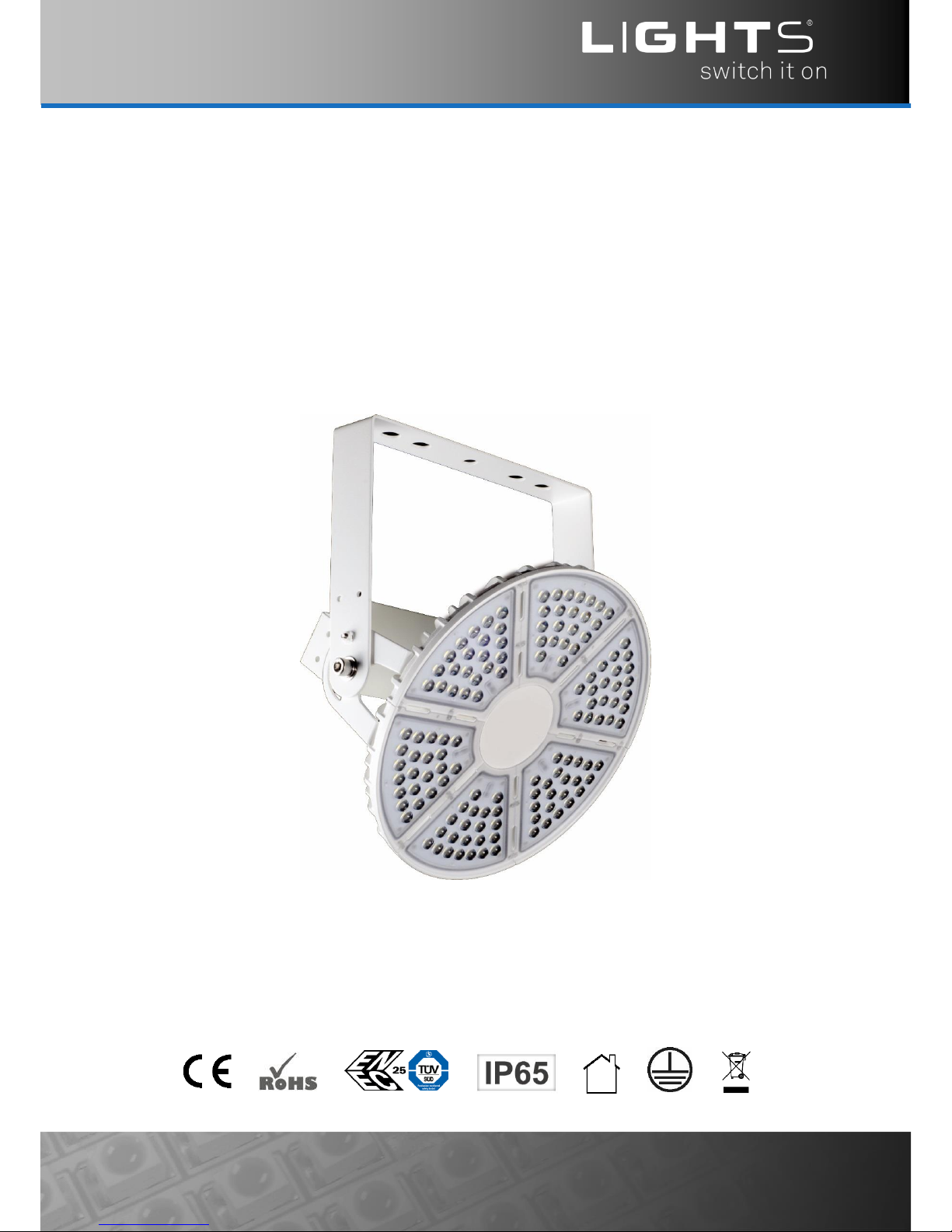

Lucid sirius | LED luminaire
Please read these instructions before installing the luminaires,
using them for the first time, storage or handling.
These installation and service instructions, edition V3.0, apply to the LED
luminaire Lucid sirius 190 / Lucid sirius 290 / Lucid sirius 490 /
Lucid sirius DALI / Lucid sirius 1-10 V

2
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Introduction
Dear customer,
Many thanks for buying this product from us and for the trust you have placed in us.
Please read these operating, installation and service instructions carefully before using the product.
These instructions are aimed at suitable qualified persons (e.g. electricians, installers or engineers) tasked
with installation and maintenance of this product. It applies for all versions of the Lucid sirius LED luminaire.
LED luminaire in the Lucid sirius range are intended for professional use indoors.
Technical personnel must be familiar with all technical electrical directives and safety precautions, and apply
these appropriately in each case.
These instructions are not suitable or intended for users and consumers without specialist technical
knowledge.
For questions concerning handling the luminaire, which are not answered in these instructions, please
contact:
LIGHTS 4 Europe GmbH & Co. KG
Gaildorfer Str. 6
71522 Backnang
Germany
Telephone [phone]
Telefax [phone]
Email: [email protected]
We wish your every success with our product and hope you enjoy saving energy

3
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Product description & applications
The LED luminaire in the Lucid sirius range come complete with an integrated power supply / driver for op-
erating the luminaire.
The Lucid sirius is suitable for professional use in industrial, production and warehouse buildings and for
working areas.
The Lucid sirius is subject to quality checks in accordance with European standards. The luminaire stand
out not only because of their modern design, but above all because of a number of special technical fea-
tures, which guarantee the best possible technical performance. These include highly-efficient lens optics,
high-quality housing materials, constant current control, temperature monitoring, as well as lifelong regula-
tion of luminous flux. The working temperature of -30 to 40 °C facilitates a wide range of applications.
Test standards
The Lucid sirius was tested by the TÜV SÜD and ENEC and fulfils the requirements of the European guide-
lines EN55015:2006/A2:2009, EN 61547:2009, EN, 60598-1: 2008 +A11: 2009, EN 60589-2-1:1985 and EN
60589-1:2015.

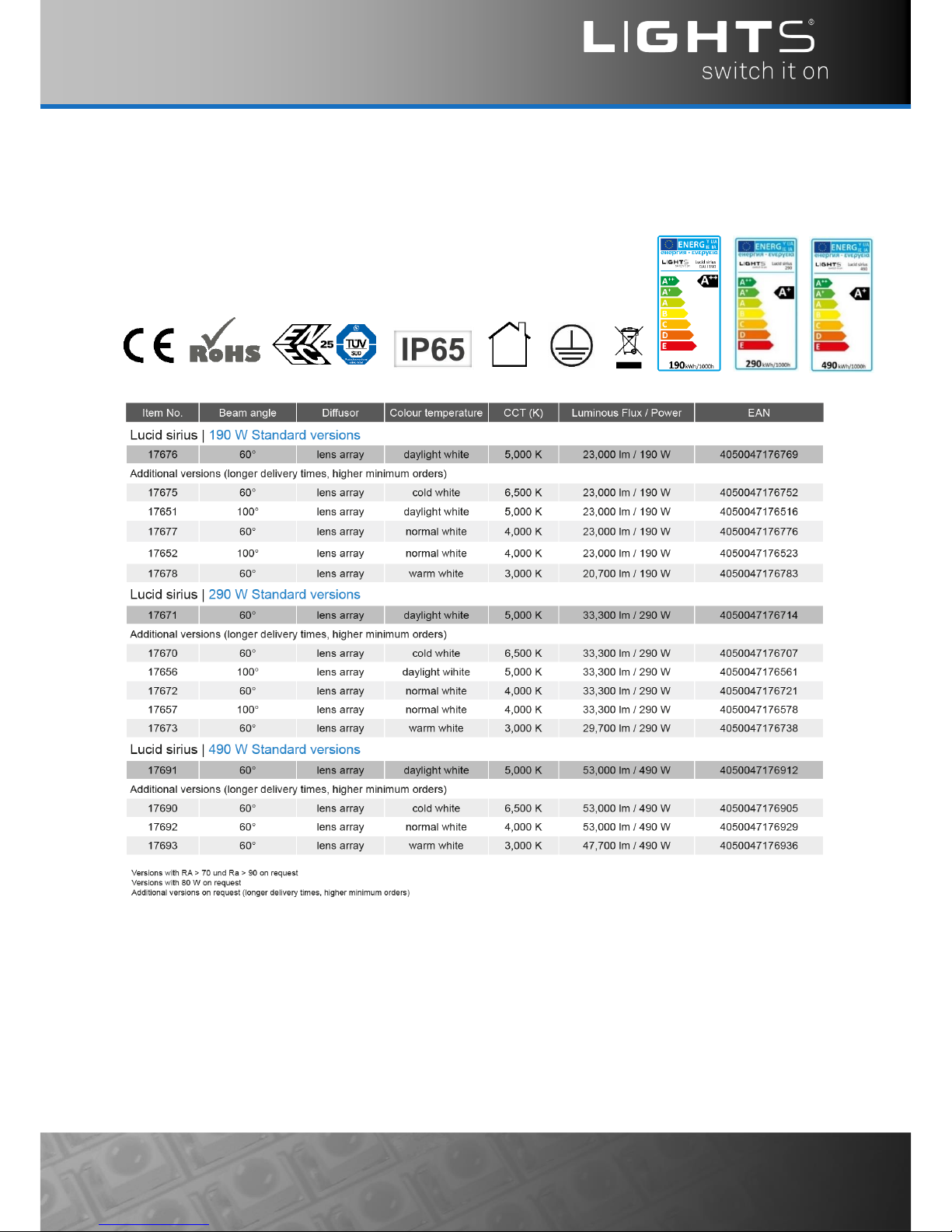

Labels
To help precise identification of the product, you will find information about the model and item number on
the type plate. We recommend you make a note of this information so it is available if you have any ques-
tions later. This will help us handle your query more quickly.

4
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Symbols
By using the CE mark, the manufacturer confirms that the product conforms to the ap-
plicable, product specific European directives.
None of the components in this product exceeds the permissible thresholds for use of
hazardous materials in accordance with the RoHS directive 2011/65/EU
The ENEC (European Norms Electrical Certification) is a test mark referring to lumi-
naires (with the exception of emergency lighting) for office, multimedia and household
devices and confirms the conformance with the European statutory requirements and
enables an easier market access in these product areas within the EU, the EFTA coun-
tries and in many countries in Eastern Europe.
The IP protection classification system categories the level of protection which a hous-
ing for electrical devices offers against solids (e.g. dust) and liquids (water, oil etc.).
IP66 means 6 = dust-proof and 5= Protected against ingress of water jets from any
angle
The luminaires is only to be used indoors
All electrically conductive housing components in the equipment are connected to the
protective conductor system of the fixed electrical installation, which is at earth poten-
tial.
An electrical product marked with this symbol may not be disposed of in domestic
waste.

5
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Installation - general safety instructions
CAUTION - DANGER OF ELECTROCUTION
Only appropriate technical personnel may work on electrical systems. There is a risk of fatal electrocution.
Before working on electrical systems and switching units, they should be removed from the power supply
and secured against accidental re-connection. Before touching conductive components and cables, use ap-
propriate equipment to confirm they are actually isolated from the power supply.
First read the operating instructions through completely, as they contain important information for correct
fitting and operation.
Any damage caused by non-compliance with these operating instructions invalidates the warranty/guar-
antee! We do not accept any liability for direct or consequential damages!
We do not accept any liability for personal or property damage caused by improper use or non-compli-
ance with the safety instructions! In these cases, the warranty/guarantee is invalidated!
The product may not be opened (please also read the instructions in the chapter MAINTENANCE).
The light source in these luminaires is not replaceable. When the light source has reached the end of its
life, the whole light must be replaced
Do not install the product on a damp or conductive surface.
To avoid any hazard, a damaged outer flexible lead on this light may only be replaced by the manufac-
turer, their representative or a comparable qualified person.
Only install the product in switched-off mode.
Only install the product in intended electrical systems and voltage ranges. Check and compare the infor-
mation on this on the product’s type plate.
If a fault occurs, disconnect the product from the mains power supply and any other connected devices.
Then ensure neither can be switched on again accidentally.
If you cannot guarantee that the product can be operated without any danger, disconnect the product
immediately from the mains power supply and any other connected devices. Once more, ensure neither
can be switched on again accidentally. It is not possible to guarantee that the product can be operated
without any danger when, for example, the housing or power cable is damaged, or if any foreign objects
have penetrated it.
Use suitable, approved power cables and cable connectors / clips of an adequate size. Make sure the
cables sit firmly in the connectors. Any loose or exposed cables represent an extremely high risk of elec-
tric shock and fire.
When working under roofs, on masts or any other high fitting sites, ensure you are on a solid base by
using approved, certified ladders, or risers, as well as fall protection for personnel, tools and the product
to be installed. Cordon off the area under the installation area adequately.
Caution: Please consult specialists before using the luminaires in high ambient temperatures or chemi-
cally polluted environments.

6
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Preparation for fitting
Note: Only install the light on a solid surface. The fitting bracket supplied is suitable for ceiling installation.
1. In the packaging the fitting bracket for the luminaire is at an angle. For installation the fitting bracket must
be set at right angles after unpacking.
2. Select a suitable or desired horizontal installation location with sufficient air circulation. The mounting
holes are 105 mm, for the mounting of the fitting bracket use two stainless steel screws with a diameter
of at least 6 mm. Using any other screw material can result in contact corrosion on the fitting bracket.
The distance from the centre to the inner holes is 68 mm and to the outer holes 108 mm. When drilling in
walls or ceilings, please be aware there may be cables of pipework there, which you might hit with the
drill.
3. Then connect the existing, flexible connection cable for mains
supply on the product to the existing power supply on site, pro-
tected in an external power distribution box (not included in the
scope of delivery), with at least the same protection type as
the product, in accordance with the following illustration. For
the connection terminal, we recommend using a 3 pole, insu-
lated connector from the WAGO 294 series for a nominal
cross section of 2.5 mm² and a nominal voltage of at least 500
V, meeting the VDE directives 0700 (EN 60 335-1),VDE 0613
(EN 60 998) and VDE 0711 (EN 60 598-1) for use in devices
and luminaires up to 24 A.
2160 mm
136 mm
68 mm
108 mm
Fitting bracket

7
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Phase [L] (brown or black)
Neutral [N] (blue)
Grounding [PE] (yellow/green)
The Lucid sirius 490 Watt has two independent power supplies. They are connected singly
Neutral [N] (blue)
Phase [L] (brown or black)
Grounding [PE] (yellow/green)
Grounding is mandatory and may not be omitted. The grounding of the LED-luminaire is done via the
green-yellow connection cable (see illustration). Cable end sleeves should be used with multicore flexible
cables.
4. Adjust the product as you wish, and then tighten all screws with an appropriate tool. When adjusting
the product, ensure you do not crush or damage any power cables. Check that the screws are tightly
in place once a year.
Lucid sirius - 190 Watt und 290 Watt
Lucid sirius - 490 Watt

8
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
DALI connector
The Lucid sirius DALI 190 has a DALI connection. This variant is fitted with an Inventronics power supply
Wiring diagram
The luminaire’s second cable is used for the DALI
connection. This should be connected as recom-
mended in the next step. You do not have to con-
sider the polarity (+/-) of the DALI control cable.
For the connection terminal, we recommend using a
2 pole, insulated WAGO 294 connector for a nomi-
nal cross section of 2.5 mm² and a nominal voltage
of at least 500 V, meeting the VDE directives 0700
(EN 60 335-1), VDE 0613 (EN 60 998) and VDE
0711 (EN 60 598-1 and VDE 24 (EN 2 598-1) for
use in devices and lights up to 24 A nominal cur-
rent.
1-10 V connector *1
Wiring diagram
The luminaire’s second cable is used for the 1-10 V
connection. This should be connected as recom-
mended in the next step.
Blue +
White –
For the connection terminal, we recommend using a
2 pole, insulated WAGO 294 connector for a nomi-
nal cross section of 2.5 mm² and a nominal voltage
of at least 500 V, meeting the VDE directives 0700
(EN 60 335-1), VDE 0613 (EN 60 998) and VDE
0711 (EN 60 598-1 for use in devices and lights up
to 24 A nominal current.
*1When using the Meanwell power supply HLG-240H-36B the power of the power supply must be limited to 80 %
using the dim input (e.g. maximum 8 V or max. 80 kΩ). The maximum power consumption of 190 W may not be
exceeded.
-
+

9
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Temperature measuring point (tc)
The maximum temperature of 80 °C at the marking shown in the illustration may not be exceeded. By
maintaining the maximum temperature at the tc position it is ensured that components will become hotter
than permitted. At too high a temperature sufficient cooling must be provided or the luminiare must be
switched off.
Temperature measuring point (tc )
Temperature measuring point (tc)
Temperature measuring point (tc )
Lucid sirius DALI - 190 Watt
Lucid sirius - 190 Watt und 290 Watt
Lucid sirius - 490 Watt

10
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Maintenance, care and cleaning
This product requires no maintenance and so does not contain any components which can be checked or
replaced by the user. The light source in the luminaires cannot be replaced. In the event of damage, the
complete light unit must be replaced. The product is fitted with appropriate safety precautions, which show
unauthorised opening (safety screws). In the event of unauthorised opening of the device or removal of the
type plate, any guarantee rights will be invalidated.
We recommend carrying out regular checks of the screws and the cabling, as well as a visual inspection of
the housing and the diffuser for penetration by foreign bodies or superficial damage. During maintenance,
the product should be disconnected from the power supply and steps take to ensure it cannot be switched on
again accidentally. We recommend cleaning with a damp, soft, lint-free cloth. Do not use abrasive sponges
or aggressive cleaners. During cleaning, the product should be disconnected from the power supply and
steps take to ensure it cannot be switched on again accidentally.
Please note the general safety instructions in the chapter INSTALLATION.
Disposal
The Lucid sirius has been developed and manufactured using high-quality materials and components. The
symbol means that this product falls under the European directive 2002/96/EG gilt. Please familiarise
yourself with the relevant directives relating to the separate collection of old electric and electronic equipment
in your country. Please observe the applicable regulations in your country, and do not dispose of disused
equipment in domestic waste. Proper disposal of your old devices protects the environment and people from
potential negative consequences and contributes towards conserving valuable resources.

11
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change

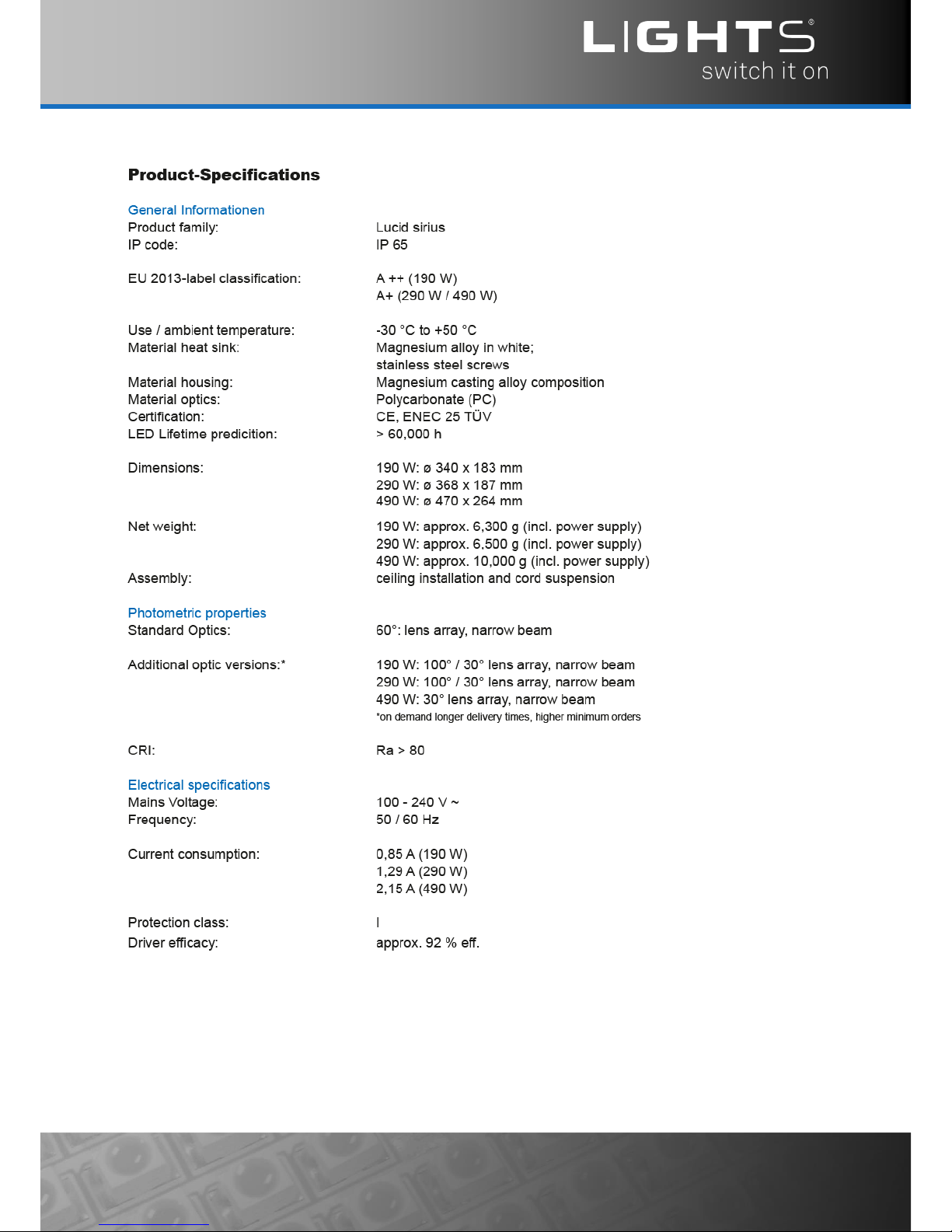

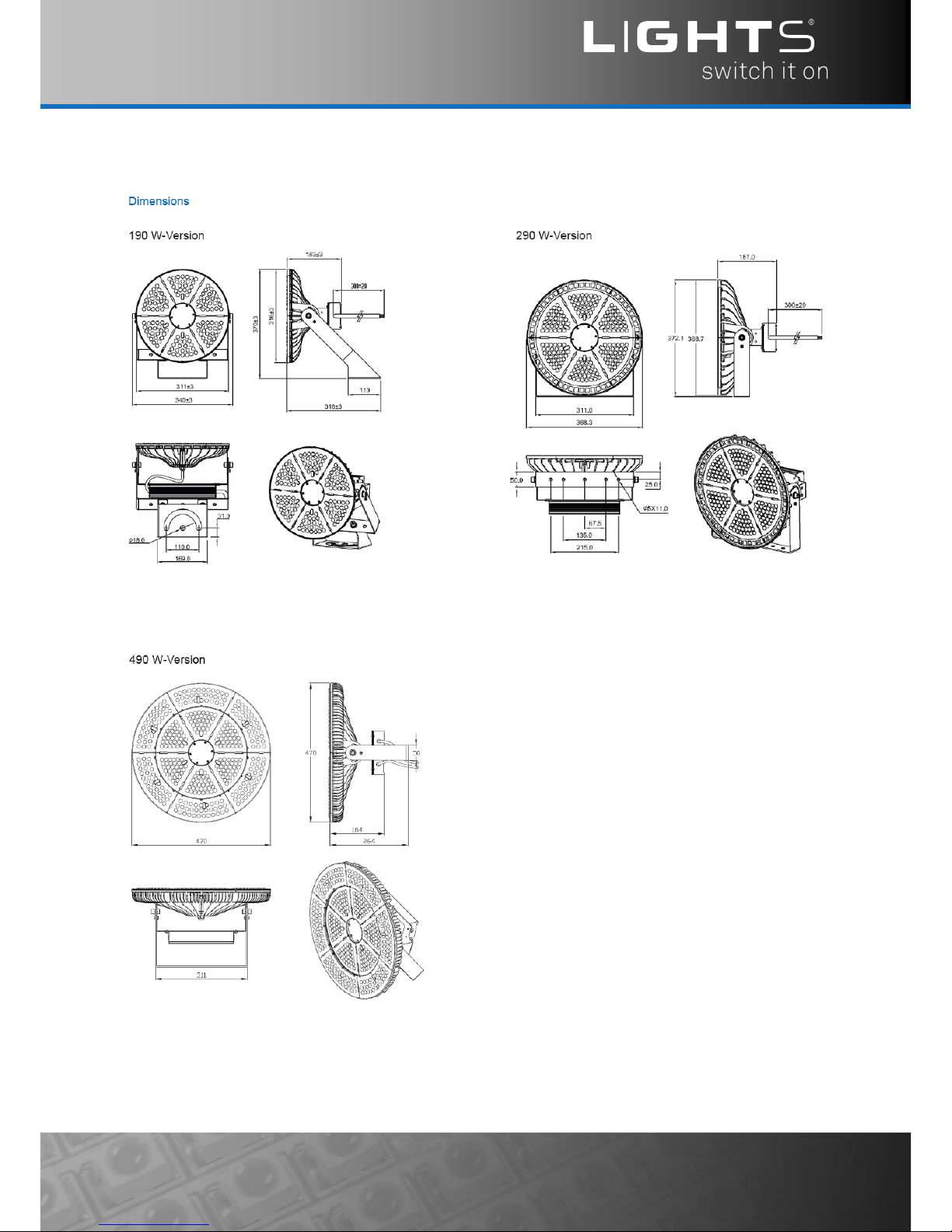

Technical data
Lucid sirius 190 W / 290 W / 490 W

12
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Dimming: DALI, 1-10 V (on request)

13
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change

14
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Guarantee period
1. The guarantee period is 2 years, where an extension to the guarantee was not agreed for an extra fee at the
time of purchase. This starts when the product is delivered to the end user. Anyclaims under guarantee
must be made in writing.
2. To validate a guarantee claim, the receipt must be presented, on which the delivery or purchase data is
clearly visible. In the event of a claim under guarantee, the device should be sent to your specialist retailer or
to the following address:
LIGHTS 4 Europe GmbH & Co. KG (in the following “LIGHTS”)
Gaildorfer Str. 6
D-71522 Backnang
Email: [e-mail]
All design, material and manufacturing faults are covered bythe guarantee.
3. The guarantee excludes anyfaults or deficiencies relating to the following points:
a) Failure to follow the operating and safety instructions.
b) Natural wear and tear.
c) External factors such as transport damage, damage caused byimpact, shock or over heating, as
well as chemical or electro-chemical factors such as those caused by water, acids or improper use.
d) Repairs or alterations carried our by non-authorised third parties.
e) Use of unsuitable accessories.
f) Unauthorised opening of the housing
g) Removal of the type plate
4. The following are also excluded: Damage caused by improper handling, fitting or maintenance of the lumi-
naires (see fitting instructions), damage caused byexcessive force, fire, vandalism or accidental damage.
5. LIGHTS will resolve anyfaults within the guarantee period in consultation with the specialist retailer. This will
take the form either of a repair of replacement of the component in question. Parts removed become the
property of LIGHTS. Any further claims, of any kind, in particular claims for damages are excluded.
6. The following are excluded from the guarantee:
a) Costs for removal / fitting of the faulty or repaired luminaires
b) Costs for sending back the faulty luminaires
7. LED luminaire from LIGHTS are subject to ongoing development with regard to technical progress. For this
reason, in the event of a repair or a replacement, the design of the repaired or replaced light may not corre-
spond to the original design of the light subject to the claim, but it may be of equal or higher quality in terms
of its properties and features. LIGHTS reserves the right to change guarantee periods, fixed price arrange-
ments and conditions without prior notice. However, guarantees with a valid registration before the time of
the change remain unaffected by this. LIGHTS reserves the right to make the final decision with regard to
the validity of a guarantee claim.

15
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
IG_Lucid_sirius_DE_23.06.2017_V3.0 - Similar to illustrations, technical data are subject to change
Legal notices
These operating instructions contain the information required for appropriate use.
Knowledge and observance contained in these operating instructions are a condition of safe use and for
safety in operation. These operating instructions cannot consider every possible application. The LED lumi-
naires are intended for use indoors.
In addition, we would like to point out that the contents of these operating instructions are not part of, or rep-
resent a change to, a prior or existing agreement, consent or legal relationship. The operating instructions
contain information, which is copyright protected. Production of photocopies, or translations into another lan-
guage, are not allowed without prior written permission from LIGHTS 4 Europe GmbH & Co. KG - Germany.
LED-Luminaire and light sources from LIGHTS 4 Europe GmbH & Co. KG are subject to ongoing develop-
ment with regard to technical progress.
