Lights Lucid lane plus Series Installation and maintenance instructions

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
1
IG_Lucid_lane_plus_EN_2015
‐
06-01_V1.1
‐Similar to illustrations, technical data are subject to change.
Installation and service guide for
Lucid lane plus
For the following models:
40 Watt
60 Watt
80 Watt
Read these instructions before installing, operating, storing or handling the appliance.

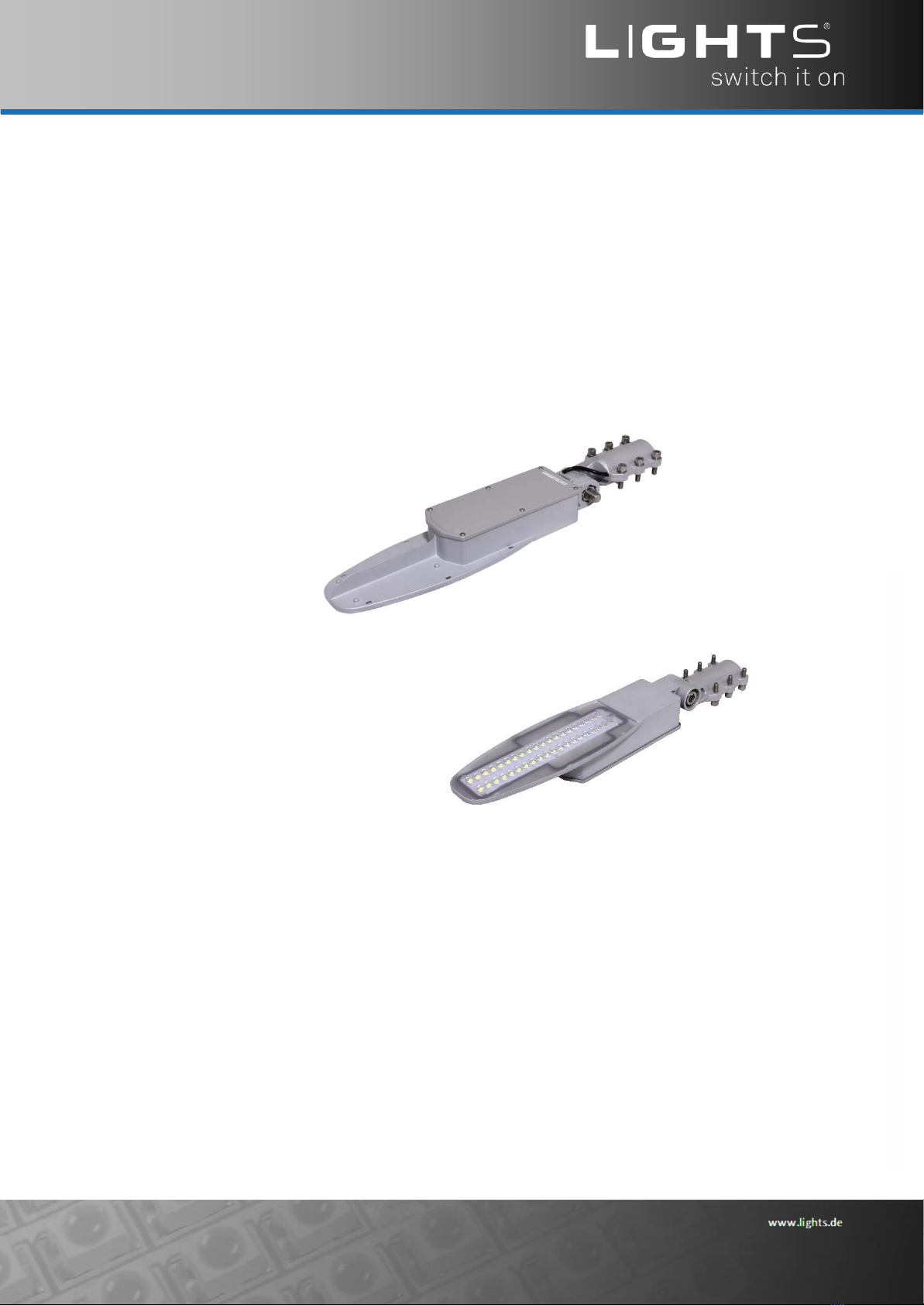

Figure 1: Top vie w
Figure 2: Bottom view

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
2
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Table of contents
Introduction .......................................................................................................................................................... 3
Intended use .................................................................................................................................................... 3
EU Directives .................................................................................................................................................. 3
Identification label ............................................................................................................................................ 4
Safety measures ................................................................................................................................................. 4
Danger of electric shock .................................................................................................................................. 4
Installation ............................................................................................................................................................ 5
Product description .............................................................................................................................................. 5
Models .................................................................................................................................................................. 5
Luminous flux and illumination ........................................................................................................................ 5
Assembly ............................................................................................................................................................ 6
Adjusting the tilt angle ..................................................................................................................................... 6
Electrical connection ....................................................................................................................................... 6
Attachment ...................................................................................................................................................... 7
Cleaning and maintenance information .............................................................................................................. 8
Technical information ......................................................................................................................................... 8
Available models ................................................................................................................................................ 9
Warranty ........................................................................................................................................................... 10
Legal information .............................................................................................................................................. 11
Declaration of Conformity ................................................................................................................................. 12

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
3
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Introduction
These installation and service instructions are intended for persons (qualified electricians,
service technicians) responsible for the installation and maintenance of the Lucid lane plus
LED luminaire. These persons must meet all relevant electrical engineering requirements
and adhere to these at all times. These instructions are not suitable for users without
specialist knowledge.
Intended use
These installation and service instructions are applicable to all Lucid lane plus LED
luminaire models with a power consumption of 40, 60 or 80 watts.
The LED luminaires of the Lucid lane plus series are appliances for professional use both
indoors and outdoors. They are designed to illuminate streets and all types of areas.
The installation and maintenance of the appliances may only be carried out by qualified
electrical specialists.
For any questions regarding the use of these luminaires which are not covered in these
instructions, please contact:
LIGHTS 4 Europe GmbH & Co. KG
Gaildorfer Straße 6
71522 Backnang
Germany
Tel [phone]
Fax [phone]
Email: in[email protected]
EU Directives
The LED luminaires of the Lucid lane plus series fulfil European Directive requirements
EN55015:2006/A2:2009, EN 61547:2009, EN 60598‐1: 2008 +A11: 2009 and
EN 60598‐2‐2: 2003.

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
4
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Identification label
For accurate identification of the product, please refer to the model/item number on the
luminaire identification label. Note down this information so that you have it to hand in the
event of a query or if ordering replacement parts.
Figure 3: Example of an identification label
Safety measures
Danger of electric shock
Always connect the luminaire to a suitable power supply.
Disconnect the luminaire from the power supply and all other devices in the event of a
fault.
Do not open the luminaire casing; the lamp cannot be exchanged!
Ensure that only qualified specialists (electrical engineers) are responsible for installing
and maintaining the luminaires.
If the safe operation of an appliance can no longer be guaranteed, it must be removed
from use and safeguarded against accidental use.
Safe operation is no longer possible, for example,
if the luminaire, power supply or cables are visibly damaged.
if objects or moisture has penetrated the appliance.

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
5
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Installation
The installation measures described in these instructions must be carried out only by
trained specialists. The relevant electrical engineering instructions must always be
observed and followed.
Only carry out maintenance work as described in these instructions. Any other work may
lead to personal injury, damage to property or damage to the appliance.
When working on masts or in other high places, ensure that the working platform is
secure. Use safety ladders or appropriate safe installation aids. Ensure that you are
protected from a fall.
Product description
Models
The LED luminaires of the Lucid lane plus series are supplied with an integrated power
supply / driver to operate the luminaire.
The luminaires are connected via a 3‐wire cable appropriate for operating the luminaire. The
luminaires do not require maintenance.
All varieties of luminaires can be secured with brackets to a suitable pole with a diameter of
48 mm to 63 mm. This ensures that the maximum wind load of the pole or pipe is not
exceeded. Other adapters are available upon request for other pole diameters. These
particularly reliable luminaires have an average lifespan of 60,000 hours.
Luminous flux and illumination
The luminous flux of Lucid lane plus street luminaires ranges between 4536 lm and 9000 lm
depending on the model and power setting.

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
6
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Assembly
The power supply must be disconnected prior to assembly!
Do not connect or disconnect while voltage is connected!
Installation must be carried out only by a qualified electrician!
Assembly is carried out in 3 stages on a suitable pole with a diameter of 48 mm to 63 mm.
Check the voltage supply before installation.
The AC voltage must be between 90 V and 305 V.
Adjusting the tilt angle
After loosening the screws, the tilt angle can be set between +45° and ‐105° in 15° increments.
Tighten the screws after adjusting.
Figure 4: Fixing screw
Figure 5: Angle adjustment

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
7
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change

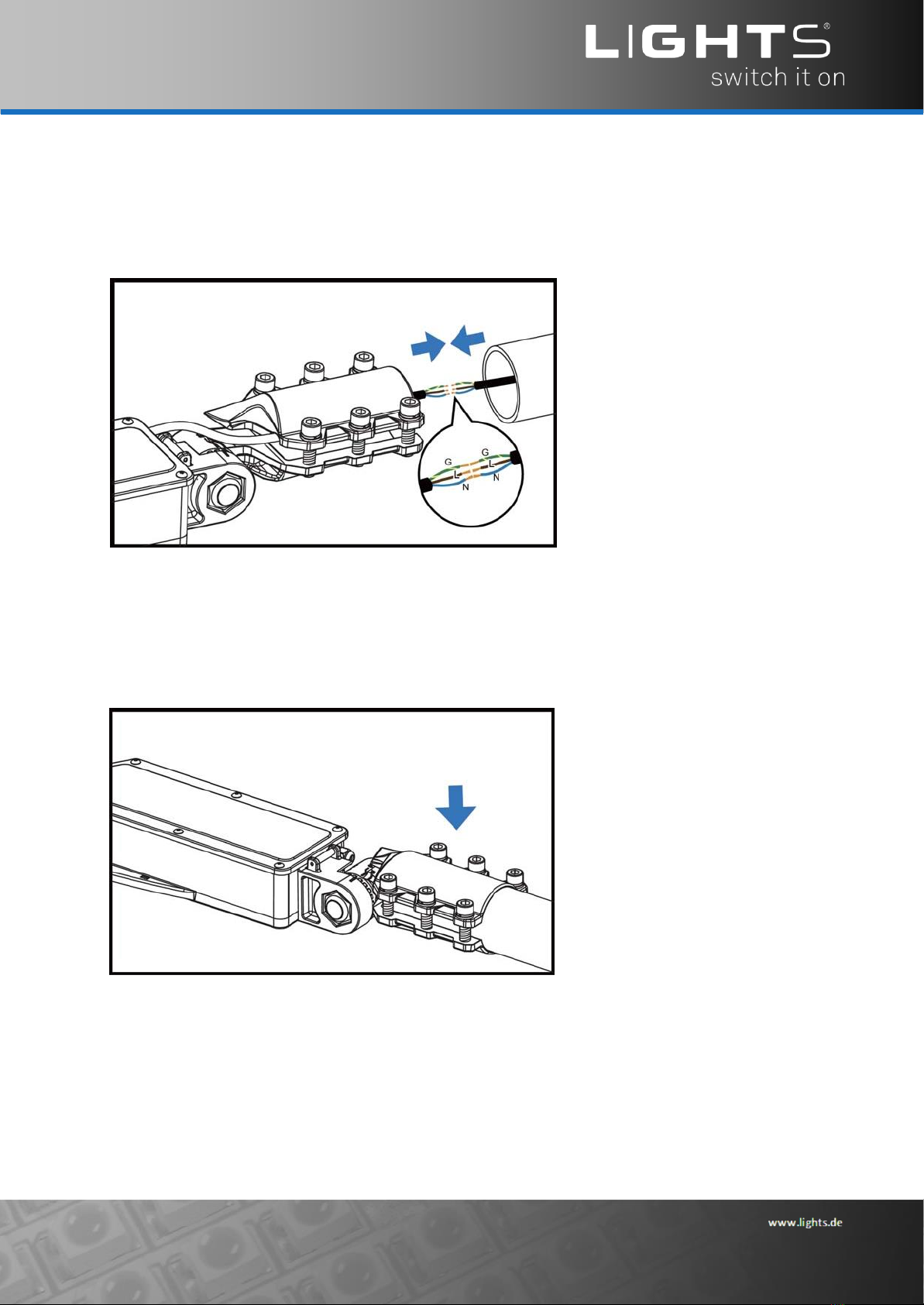

Electrical connection
The electrical connection must conform to the protection class of the luminaire.
Connect the cable as shown in the following diagram.
Whereby:
PE = green‐yellow, protective
conductor
L = brown, cable / phase
N = blue, neutral conductor
Figure 6: Electrical connection
The luminaires are earthed via the
green‐yellow protective conductor.
Do not damage the power supply when
closing.
Attachment
Slide the luminaire up the pole and tighten all six M10 screws equally.
Figure 7: Attachment
Finally, check that the luminaire is securely positioned. Inspect this once a year.

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
8
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Cleaning and maintenance information
All appliance components are maintenance‐free.
Only use with a recommended and approved power supply!
The LED module must not be opened!
Use a damp cloth to clean the appliance.
Do not use cleaning agents.
Damaged cables must be replaced with new cables.

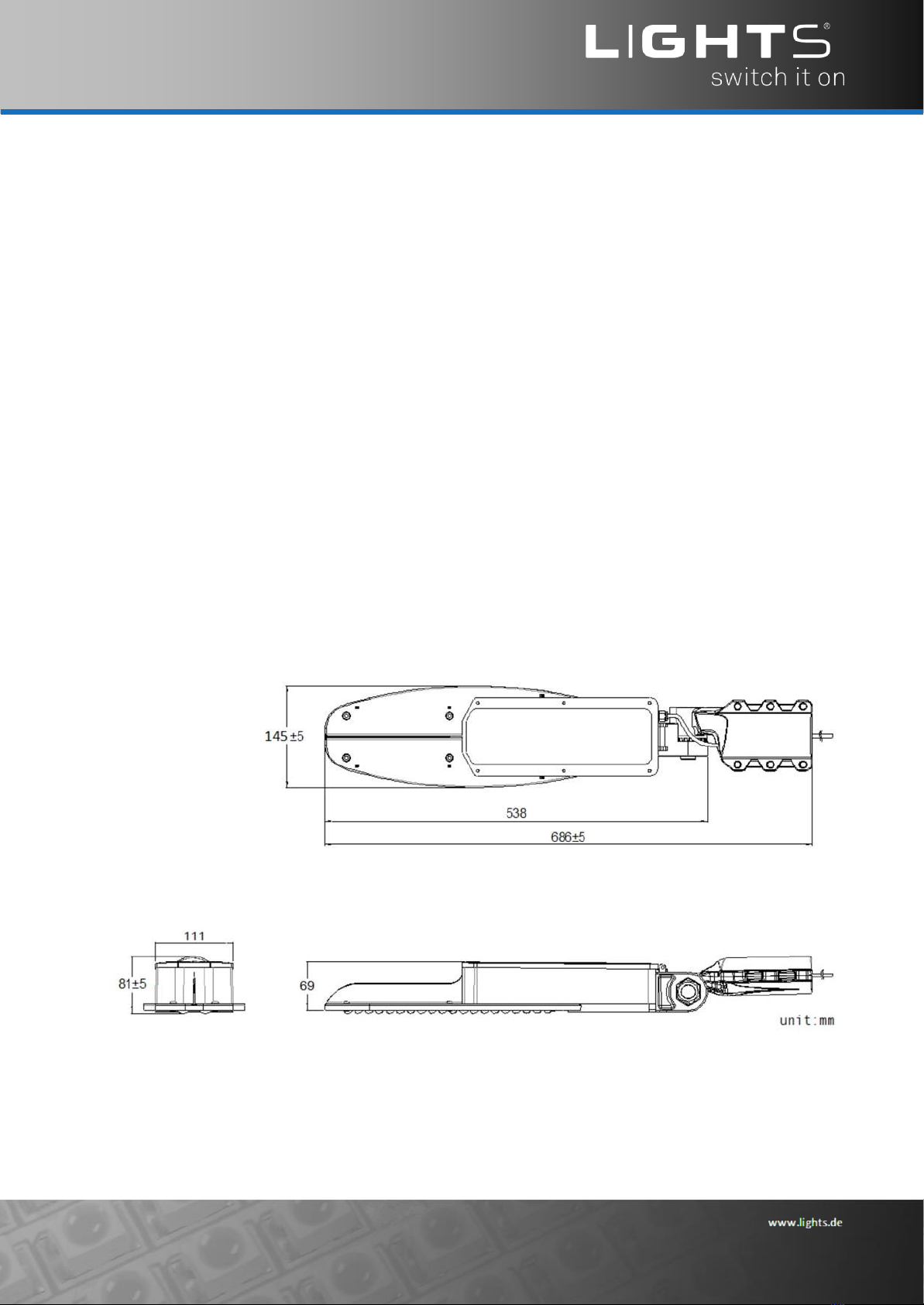

Technical information
Input voltage 90‐305 V AC voltage
System efficiency 120 lm/W
Colour rendering index >80, other indices upon request
Colour temperature 3000 K, 4000 K, 5000 K, 6500 K
Beam angle 150° / 65°
Permissible ambient temperature ‐30° to +45°
Overvoltage protection up to 10 kV
Protection class IP 67
Power consumption 40 W, 60 W and 80 W
Weight 4.0 kg
Measurements (L x W x H) 686 x 145 x 81 mm

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
9
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Available models
The list below contains an overview in table format of the available models, including item
numbers, at the time of going to print.
Special models are available upon request.
18643 Lucid lane plus 3040: 40 W 3000 K 4536 lm
18644 Lucid lane plus 4040: 40 W 4000 K 5040 lm
18645 Lucid lane plus 5040: 40 W 5000 K 5040 lm
18646 Lucid lane plus 6040: 40 W 6500 K 5040 lm
18663 Lucid lane plus 3060: 60 W 3000 K 6075 lm
18664 Lucid lane plus 4060: 60 W 4000 K 6750 lm
18665 Lucid lane plus 5060: 60 W 5000 K 6750 lm
18666 Lucid lane plus 6060: 60 W 6500 K 6750 lm
18683 Lucid lane plus 3080: 80 W 3000 K 8100 lm
18684 Lucid lane plus 4080: 80 W 4000 K 9000lm
18685 Lucid lane plus 5080: 80 W 5000 K 9000 lm
18686 Lucid lane plus 6080: 80 W 6500 K 9000 lm

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
10
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Si Similar to illustrations, technical data are subject to change
Warranty
1. The warranty period is 2 years, provided no extended warranty was paid for in the purchase contract.
Warranty shall commence upon delivery to the end user.
2. Warranty claims must be made in writing in advance to the specialist dealer or manufacturer.Proof of purchase displaying the
delivery or sales date must be provided to validate a warranty claim. In the event of a warranty claim the appliance must be
returned to your specialist dealer or to the following address: LIGHTS 4 Europe GmbH & Co. KG ‐Gaildorfer Straße 6 ‐71522
Backnang, Germany
Tel [phone] ‐Fax [phone] ‐Email: [email protected]
3. All design, material and production defects are covered by the warranty.
4. Excluded from warranty cover are all defects that fall under the following points:
a) Non‐observationof the installationinstructions and safety information.
b) Natural wear and tear.
c) External effects, e.g. transport damage, damage due to impact, force or overheating, as well as
chemical or electrochemical effects such as water, acid or improper use.
d) Repairs or modifications undertaken by non‐authorisedthird parties.
e) Use of unsuitable ancillary parts.
f) The following is also excluded: damage caused by improper treatment, assembly or maintenance of the light
(see assembly instructions), damage as a result of force majeure, fire, vandalism or accidental damage.
5. LIGHTS will deal with any damage arising within the warranty period upon consultationwith the specialist dealer. This takes
place either by repairing or replacing the components. Replaced parts become the property of LIGHTS 4 Europe GmbH &
Co. KG. Any further claims, regardless of their nature, particularly claims for damages, are excluded.
6. The following is not covered by the warranty:
a) Costs for the disassembly / assembly of the damaged or repaired luminaire
b) Costs of returning the damaged luminaire to LIGHTS
7. LIGHTS LED luminaires continually undergo developments in technology. For this reason, in the event of a repair or exchange
of components, these may not match the originalmodel of the defectiveluminaire,but may be comparableor of a higher
quality than their original part. LIGHTS reserves the right to make changes to warranty periods, fixed prices and conditions
without prior notice. This does not apply to warranties that have already been successfully registered prior to the time of
change. LIGHTS reserves the right to make the final decision with regard to the validity of a warranty claim.

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
11
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Legal information
These instructions contain the information required for proper use. Understandingand complying with the instructions is required
to ensure safe use and operation of the product. These instructions for use cannot cover every possible scenario.We would
furthermorelike to point out that the contents of these instructions for use are not part of a previous or existing agreement,
acceptanceor legal relationship, nor are they intended as an amendment to such.
These instructions for use contain information protected by copyright law. Photocopies or translation into other languages is not
permitted without prior written consent from LIGHTS. LIGHTS LED luminaires and lamps are subject to ongoing technical
advancements.Technical changes and modifications without prior permissionare expressly prohibited.

LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [email protected]
12
IG_Lucid_lane_plus_EN_2015-06-01_V1.1 - Similar to illustrations, technical data are subject to change
Declaration of Conformity
Company: LIGHTS 4 Europe
Address: Gaildorfer Straße 6, 71522 Backnang, Germany
Description: Lucid lane plus
Model Number: STLE‐40S‐T‐c‐T6ccB4Cx, STLE‐60S‐T‐c‐T6ccB4Cx, STLE‐80S‐T‐c‐T6ccB4Cx
Item Number: 18643; 18644; 18645; 18646; 18663; 18664; 18665; 18666; 186863; 18684;
18685, 18686
Applicable Directive
(European Union): EC Low Voltage Directive 2006/95/EC
EN 60598‐1: 2008 + A11: 2009 and EN 60598‐2‐3: 2003
Technical Standard: EMC Directive
2004/108/EC Test Standards: EN
55015:2006/A2:2009 IEC 61000‐3‐2:2005/A1:2008+A2:2009
IEC 61000‐3‐3:2013
EN 61547:2009
IEC 61000‐4‐2:2008 IEC 61000‐4‐6:2008
IEC 61000‐4‐3:2006A12007+A2:2010
IEC 61000‐4‐4:2012 IEC 61000‐4‐8:2009
IEC 61000‐4‐5:2005 IEC 61000‐4‐11:2004
CE Mark Date: April 20, 2015
Issue Date: April 20, 2015 Approved by
