likomagic MK802IV S User manual

1
users guide

2
Declaration .................................................................................................... 3
Disclaimer...................................................................................................... 3
Examples of use ............................................................................................... 3
Product and Accessories .................................................................................... 3
Interface........................................................................................................ 4
Quick install guide ........................................................................................... 5
Device connection Instruction ............................................................................ 5
Boot state ...................................................................................................... 5
Your Homescreen ............................................................................................. 6
Settings...................................................................................................... 7-9
Applications ..................................................................................................10
Airplay ..........................................................................................................11
Bluetooth.......................................................................................................11
Question and Answer........................................................................................ 12
Specifications ................................................................................................ 13
Principal office and distribution ........................................................................ 14
Dealer inquiries.............................................................................................. 14
Technical support............................................................................................ 14
Other Informations.......................................................................................... 14

3
DECLARATION
The user manual includes all the information of safe and correct operation instruction. To
avoid accident and product damaged, please make sure go through all the content carefully
before using the product.
Please keep the product away from high temperature, humid and dusty environment.
Do not drop or crash the product.
Do not cut off the device when it is formatting, or upgrading, otherwise it will cause opera-
tion system error.
Do not dismantle the device. Do not clean it by alcohol, thinner and Benzene.
We keep the right to upgrade and modify the product.
DISCLAIMER
We only take the responsibility to provide the warranty and after service. The users have to
take care of their data in the device by themselves. We do not responsible for any data or
related lost. The product is not water-proof. All the pictures in the instruction are just for
reference.
EXAMPLES OF USE
rikomagic MK802 IV S is based on Android OS. You can use it:
· Surf the Internet via Wi-Fi
· Communicate with your friends via SNS applications
· Enjoy movies, music and photos
PRODUCT AND ACCESSORIES
· rikomagic MK802 IV S Mini PC
· HDMI extention Wire (~ 20cm)
· USB Power Supply Wire (~110cm)
· USB OTG Adapter (~7cm)
· USB AC Adapter 5V/2A
· User Manual is only online available on www.rikomagic.de

4
INTERFACE
1= Mini USB support OTG/HOST
2= TF card slot
3= Physical button
4= LED
5= Mini HDMI port
6= Standard USB support USB mouse and keyboard
7= Mini USB for charging
1
2
3 4
5 6 7

5
QUICK INSTALL GUIDE
Normal Condition
Insert MINI TV Dongle into TV’s HDMI input interface.
Connect Dongle mini USB port to adapter via USB power
supply wire for power supply.
DEVICE CONNECTION INSTRUCTION
Take out the device insert into your TV HDMI port (if there is no enough space around HDMI
interface for MK802 IV S, please use HDMI adapter connect), setup the TV data receive mode
to HDMI port (Refer to TV set user manual).
Power supply connection: take out Micro USB cable, connect it with the players Micro USB2
port, then connect USB2 with TVs USB port (notice: if there is no USB2.0 port in your TV or
you need connect external HDD box, please connect power adapter directly)
This product suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host
connector. Or plug on USB OTG port by port converter. If only mouse plugged, the device will
provide soft keyboard in operation system. If the device detected the physical keyboard,
the soft keyboard will be hidden by OS automatically.
Mouse left button for ok, right button for return, rolling for page up and page down, Hold
left button to pull icon or copy and paste file. Hold middle button for Properties.
BOOT STATE
After connect with power adapter for about 10 seconds, the boot screen would appear.
Then access to Rikomagic boot logo, for about 30 seconds, device would access to main
screen.

6
YOUR HOMESCREEN
1 = Browser
2 = Google Play Store
3 = E-mail program
4 = App manager
5 = File manager
6 = video, music and pictures
7 = Settings
8 = Return button: click to return to the upper level directory
9 = Homepage button: click it anytime to return to homepage
10 = Program button: click to check all the running program
11 = click to increase volume
12 = click to decrease volume
13 = shutdown
14 = Status bar
Shows the status of T-Flash Card, USB connection, Time, Wifi and Download…and so on.
Click status bar, the hide menu would bound up.
4
1 7652
9 10 11 12 1413
3
8

7

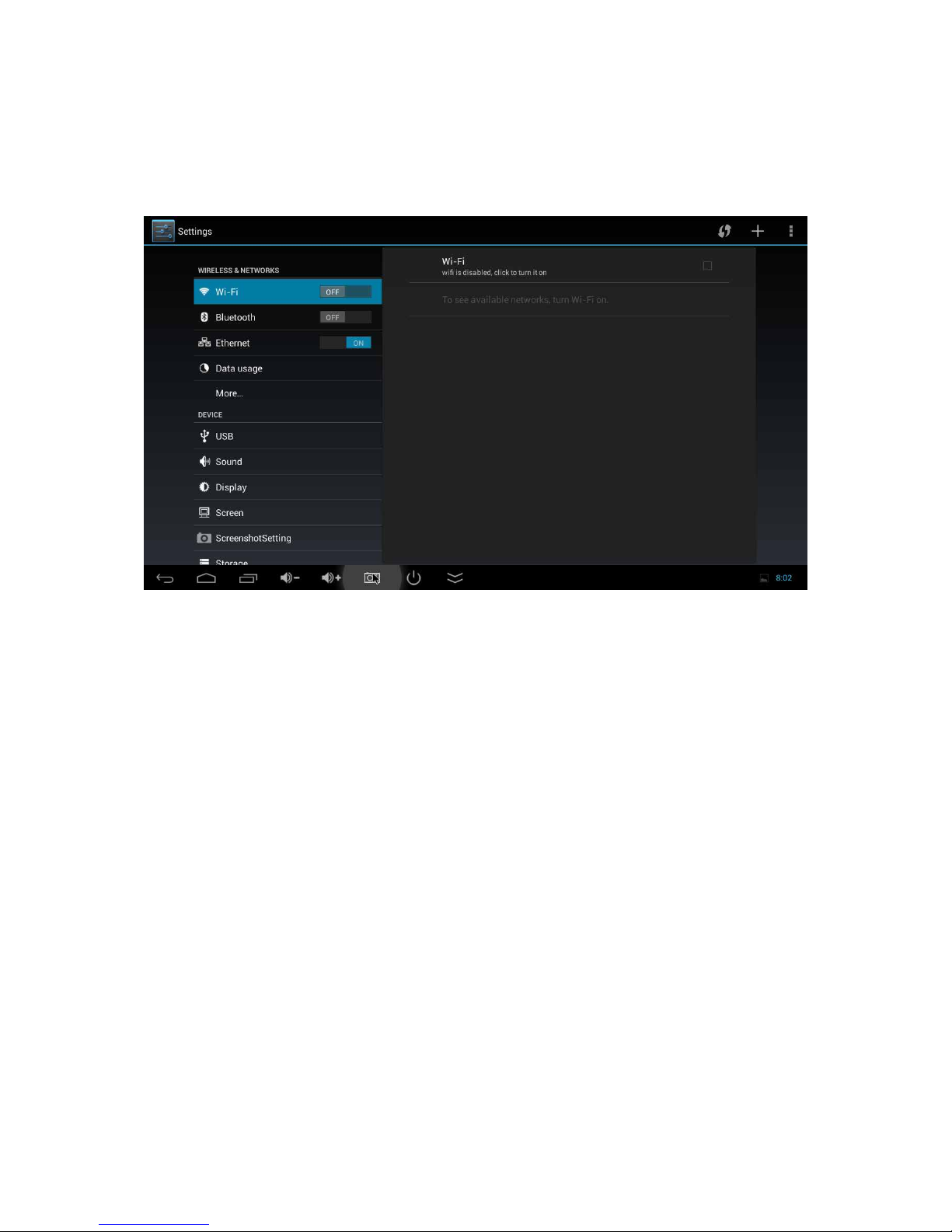

SETTINGS
Settings contains most of the customizing and configuration options, such as language, as-
pect ratio and network settings.
Wireless & Networks
· Wi-Fi enable and disable
· Bluetooth enable and disable
· Ethernet enable and disable
· Data usage
· More...: VPN, Portable hotspot, PPPoE
USB
· Connect to PC
Sound
· Volumes
· Default notification sound
· Touch sounds
· Sound Devices Manager
Display
· Wallpaper
· Daydream
· Font size
Screen
· Screen Scale
· Output Interface
· HDMI Mode

8
Screenshot-Setting
· Select delay time to capture the screen
· Set the location of screenshot storage
· Show the screenshot button in the statusbar
Speicher
· Information about storage
Apps
· Downloaded
· On SD card
· Running
· All
Users
· User accounts can be managed
Location access
· Access to my location
· GPS satellites
· Wi-Fi & mobile network location
Security
· Make password visible
· Device Administration
· Credential Storage
Language & input
· Language
· Spell checker
· Personal dictionary
· Keyboard & Input methods
· Speech
· Mouse/Trackpad
Backup & reset
· Back up my data
· Back account
· Automatic restore
· Factory data reset

9
Accounts
· Add Account for Google, Corporate, E-Mail and more
Data & time
· Automatic data & time
· Automatic time zone
· Set date
· Set time
· Select time zone
· Use 24-hour format
· Choose data format
Developer options
· Debugging
· Input
· Drawing
· Monitoring
· Apps
About device
· System updates
· Rockchip system updates
· Status
· Legal information
· Model number
· Android version
· Kernel version
· Build number

10
APPLICATIONS
Install from USB Flash Drive / TF card
1. Open the File manager
2. Choose your USB flash drive or any other mass storage’s folder
3. Find you application, and press it
4. Press the install button
5. You can find the application in tab
Download & install from Browser
1. Open the Browser.
2. Press search key and input your website address.
3. Download the APK file which you like if there is a link for
download (If you have problems with downloading,
please try to put your TF card in the card slot).
4. You will find the file in your SD card folder.
Install from ApkInstaller
1. Open the ApkInstaller.
2. Find the icon of the application, and enter it.
3. Press the install button.
4. You can find the application in tab Apps after installation.
Remove Applications
1. Enter SETTINGS
2. Enter Apps
3. Find the application you want to remove in tab All
4. Enter the icon and press Disable
5. Press OK to confirm uninstall
