Linak DL12 User manual

Page 1 of 36
LINAK.COM/DESKLINE
DL12, DL14, DB14 and DL17 system
with CBD4, CBD5 or CBD6
User manual

Page 2 of 36
Contents
Preface ............................................................................................................................................ 3
Valid for............................................................................................................................................ 4
Important information ................................................................................................................... 5
Safety instructions.......................................................................................................................... 5
General ....................................................................................................................................... 5
Before installation, reinstallation or troubleshooting ..................................................................... 6
Before start-up ............................................................................................................................ 6
During operation.......................................................................................................................... 6
Misc. ........................................................................................................................................... 6
Only for EU markets........................................................................................................................ 7
Only for Non EU markets ............................................................................................................... 7
Misuse ............................................................................................................................................ 7
Repairs ............................................................................................................................................ 8
Manufacturer’s declaration............................................................................................................ 8
Misc. on the DESKLINE®system .................................................................................................... 9
Warranty...................................................................................................................................... 9
Maintenance................................................................................................................................ 9
Description of the DESKLINE® system ....................................................................................... 10
Mounting guidelines for the DL14 system................................................................................. 11
Mounting top ........................................................................................................................... 11
Mounting foot .......................................................................................................................... 13
Mounting guidelines for the DL12 system ............................................................................... 14
Mounting top .......................................................................................................................... 14
Mounting foot ......................................................................................................................... 14
Mounting guidelines for the DL17 system ............................................................................... 15
Mounting top .......................................................................................................................... 15
Mounting foot ......................................................................................................................... 15
Mounting guidelines for the DB14 ........................................................................................... 17
Mounting guidelines for the CBD4/CBD5/CBD6....................................................................... 19
Electrical connection of the DB/DL system............................................................................... 20
Initialisation of the DESKLINE parallel system......................................................................... 21
Anti-CollisionTM........................................................................................................................... 22
PIEZOTM : description of the feature .......................................................................................... 23
Accessories and repair ................................................................................................................. 24
Disposal of LINAK products......................................................................................................... 25
Labels .......................................................................................................................................... 26
Drawing appendix......................................................................................................................... 27
Declaration of conformity............................................................................................................ 34
Addresses....................................................................................................................................... 36

Page 3 of 36
Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability. The
products are not to be opened by unauthorised personnel.
The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S

Page 4 of 36
Valid for:
This User Manual is valid for the following products:
(See the first 3 - 5 characters on the label)
Columns: DL12, DL14, DL17
Built-in actuators: DB14
Control boxes: CBD4, CBD5, CBD6
Controls: DP1U/DPF1M (if memory function is required),
DP1C//DPT/DPF1C (if memory function and display are required) or
DPA/DPB/DP1K/DP1V/DPFK (if only up/down is required)
DPF1D (if display is required)

Page 5 of 36
Safety instructions
General
Important information
Important information on LINAK®products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – risk of injury if these instructions are not followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage on the product, it must not be installed.
Note that during construction of applications, in which the actuator is to be
fitted, there must be no possibility of personal injury, for example squeezing
of fingers or arms.
Assure free space for movement of applications in both directions to avoid
blockade.

Page 6 of 36
Before installation, reinstallation, or troubleshooting
• Stop the DB/DL.
• Switch off the power supply and pull out the mains plug.
• Relieve the DB/DL of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage at the control box is correct before the system is
connected to the mains.
• System connection. The individual parts must be connected before the control box
is connected to the mains. See the User Manual for LINAK actuators, if necessary.
During operation:
• If the control box makes unusual noises or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• Unplug the mains cable on mobile equipment before it is moved.
Misc.
The actuator system has a sound level below 55dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/deskline

Page 7 of 36
Only for EU markets
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/products,
unless they are under surveillance or they have been thoroughly instructed in
the use of the apparatus by a person who is responsible for the safety of these
persons.
Moreover, children must be under surveillance to ensure that they do not play
with the product.
It is the operator’s responsibility to ensure that there is free space for the
application to move without risk for the operator or bystanders before
operating the application.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.
Do not use the system in environments other than the intended indoor use

Page 8 of 36
Repairs
In order to avoid the risk of malfunction, all DESKLINE®repairs must only be carried out by authorised LINAK workshops or
repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned
to authorised LINAK workshops.
Warning!
If any of the DESKLINE®products are opened, there will be a risk of subsequent malfunction.
Warning!
The DESKLINE®systems do not withstand cutting oil.

Page 9 of 36
Misc. on the DESKLINE®system
Warranty - 60 months on DESKLINE®(NEW)
This will be valid for all DESKLINE®products produced after the 1st of May 2015.
Products produced before 1st of May 2015 will still be covered by 36 months.
Products used in DESKLINE application: If these products are used in another application, they will be covered by 18 months
warranty.
If there is any doubt that returned products are within the warranty period it is to be treated as if they are covered by the
warranty. We recommend that you use the date of the Control box or actuator as reference if possible.We will have our
purchase no. printed on the label.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.
Inspect the connections, cables and plugs and check for correct functioning as well as fixing points.
Service of double insulated products:
Class II
A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a
safety connection to electrical earth (US: ground).
The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an
electric shock and that this is achieved without relying on an earthed metal casing. This is usually achieved at least in part by
having two layers of insulating material surrounding live parts or by using reinforced insulation.
There is no earthing/grounding means provided on the product, and no earthing/grounding means is to be added to the
product.
In Europe, a double insulated appliance must be labelled “Class II”, “double insulated” or bear the double insulation symbol (a
square inside another square).
Servicing a double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double insulated product must be identical to the parts they replace.
The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).

Page 10 of 36

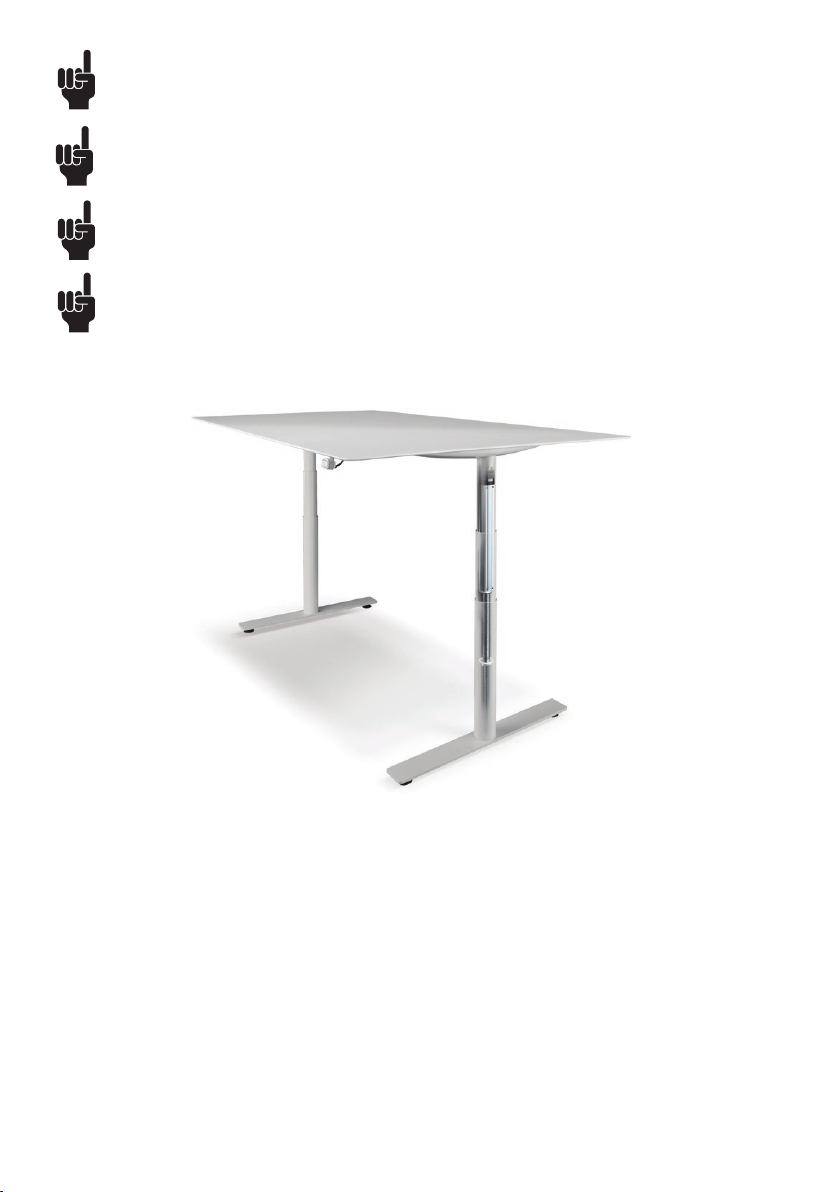

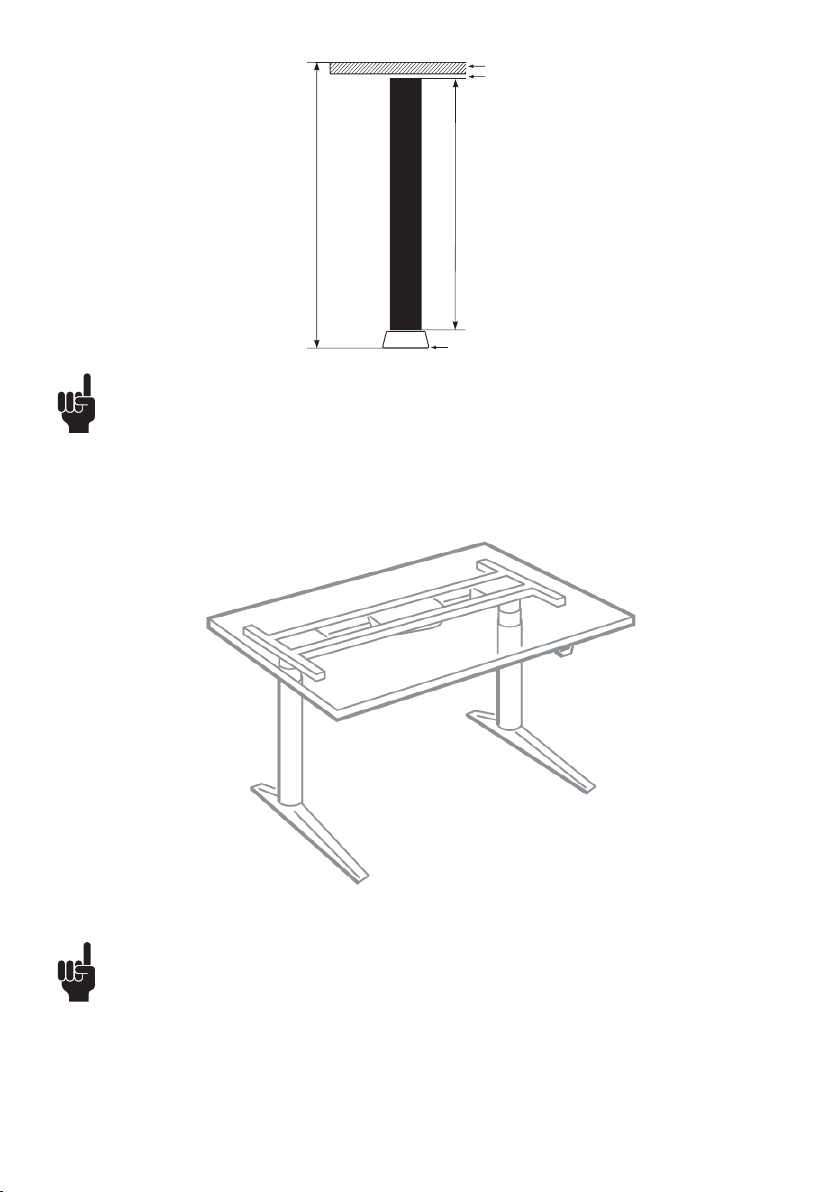

Description of the DESKLINE®system
Each DESKLINE®actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the
CBD4/CBD5/CBD6 that also takes account of an oblique load on the desk. Soft start and stop are also part of this software,
which ensures a soft start and stop when adjusting the desk.
Application of the DESKLINE®system:
Irrespective of the load, the duty cycle 10% ~ 6 min./ hour or max. 2 min. at continuous use stated in the data sheets,
must NOT be exceeded as this will result in a superheating of the motor and the control box. Exceeding the duty cycle will
result in a dramatic reduction of the life of the system.
The DB/DL system range contains following products:
• 1 control box CBD4/CBD5/CBD6
• DL12, DL14, DB14 or DL17 (1 - 4)
• 1 exchangeable mains cable
• motor cables (1 - 4)
• 1 DP1U/DPF1M (if memory function is required) DP1C//DPT/DPF1C (if memory function and display are required) or
1 DPA/DPB/DP1K/DP1V/DPFK (if only up/down is required) or DPF1D (if display is required)
