Lindr Green series User manual

LINDR FLOW-TYPE

LUXURY COOLER

Number 014-2020 REV00 Valid 2020-07-01

INSTRUCTION MANUAL

ENGLISH

IMPORTANT

This manual contains instructions for installation, use and operation of the

appliance. This manual is an integral part of the device. It must be stored in the

vicinity of the device for the entirety of its service life and must be made avai-

lable to the user any time the device is installed, moved, used or maintained.

Read this manual carefully before installing and using the device. It contains

important information necessary to ensure that all operations are done pro-

perly and safely.

WARNING:

Not following instructions may cause injury or

damage the device.

SYMBOLS AND MARKINGS USED IN THE MANUAL:

DANGER:

Risk of injury by electrical current.

NOTE:

This symbol indicates information and re-

commendations for the user.

WARNING:

The cooling system contains ammable coolant

R290 (propane)!

LINDR.CZ s.r.o.

Sadová 132

503 15 Nechanice, Czech Republic

mob.: + 420 775 715 494

tel. : +420 495 447 239

e-mail: info@lindr.cz

web: www.lindr.cz, www.lindr.eu

is manual is a translation of the original Czech manual.

FLOW TYPE luxury COOLER

Contents:

1. Introduction

2. Description of the cooler

3. Machine plate

4. General instructions, measures and safety instructions

5. Installation and placement

6. Electrical connection

7. Testing

8. Warranty

9. Package contents

10. Tap installation

11. Keg coupler assembly

12. Beverage supply connection and pressurisation

13. Beverage connections

14. Positioning of the thermostat

15. How to work with speed ttings

16. Temperature and adjustment

17. Keg tapping and untapping

18. Putting into operation

19. Table of malfunctions

20. Spare parts

21. Sanitation by water

22. Maintenance

23. Inspection before every use

24. Periodic checks

25. Environmental protection

..................................

1. INTRODUCTION:

Thank you for purchasing this LINDR product.

2. DESCRIPTION OF THE COOLER:

This beverage dispensing system with built-in

compressor is designed for cooling, dispen-

sing and serving well-cooled beer and beve-

rages.

The modern Lindr compressor cooling unit

uses input energy and transforms it directly

into cooling, ensuring proper beer cooling at

minimum energy drain.

This manual is intended for models:

SOUDEK 30/K

PYGMY 25/K Exclusive 1x koh

PYGMY 25/K Exclusive 2x koh

and GREEN LINE models:

SOUDEK 20 Green Line

PYGMY 25/K Exclusive Green Line 1x koh

SOUDEK 50 Green Line

SOUDEK 50/K Green Line

KONTAKT 55/Kpro Green Line

SOUDEK 50 3xkoh.nerez Green Line

SOUDEK 50/K 3xkoh.nerez Green Line

SOUDEK 50/Kpro Green Line

KONTAKT 55 Green Line

SOUDEK 50/K 4xkoh.nerez Green Line

3. MACHINE PLATE:

4. GENERAL INSTRUCTIONS, MEASU-

RES AND SAFETY INSTRUCTIONS:

When using the device, follow basic safety

instructions stated by the manufacturer. The

cooling device is designed for ow-through

cooling of beverages. Any other use is consid

ered impermissible and therefore dangerous.

The supplier is not liable for damage caused

by incorrect use.

DO NOT USE THE DEVICE FOR PURPOSES

OTHER THAN THOSE STATED BY THE MANU-

FACTURER!

General safety principles. Observe the fo-

llowing safety instructions.

The supplier is not liable for damage caused

by activities carried out on this device without

observing the following instructions!

WARNING: Children aged 15 or more and

persons with reduced physical, sensory or

mental capabilities or insucient experien-

ce and knowledge may only use the device

when supervised or instructed in safe use of

the appliance and familiarised with potential

dangers.

WARNING: Children must not be allowed

to play with the appliance. Store all packaging

material out of reach of children (comes with a

plastic bag – suocation hazard).

WARNING: Cleaning and maintenance of

the appliance on the part of the user must not

be done by unsupervised children.

WARNING: Before connecting to main

electrical supply, check that the voltage and

frequency in the mains corresponds to the

data stated on the device.

WARNING: Always make sure that the soc-

ket you intend to plug the cooler into meets

the specications on the machine plate (volt-

age, frequency, input power).

WARNING: Before performing operations

on the device such as cleaning or maintenan-

ce, ALWAYS disconnect the device from power

supply: set the thermostat to„O“ position and

unplug the appliance from the socket.

FLOW TYPE luxury COOLER

WARNING: Never place tools or other ob-

ject into the fan.

WARNING: Never touch electrical compo-

nents with wet or damp hands.

WARNING: To ensure the cooling unit

works properly and at full capacity, make sure

air supply to the unit is not obstructed.

WARNING: Water temperature during sa-

nitation must not be higher than 25 °C!

WARNING: Always make sure the power

socket you intend to plug the cooler into is ac-

cessible, so that the appliance can be imme-

diately unplugged in case of emergency.

WARNING: When unplugging the device

from the socket, grab the plug and pull it out.

Do not under any circumstances pull at the

cable; risk of damage.

WARNING: To turn the device o comple-

tely, unplug the appliance from the power soc-

ket.

WARNING: In the event the electrical wi-

ring of the product becomes damaged, sum-

mon a trained service technician. Do not under

any circumstances repair the device yourself.

WARNING: The cooling system contains

ammable coolant R290 (propane)!

WARNING: Emergency maintenance and

repair of the cooling system must be done by

trained, authorised technicians familiar with

cooling and electrical systems.The technicians

should have special training and qualication

for handling ammable substances in order to

perform service on coolers containing R290.

Follow basic regulations and safety measures

regarding service and repair!

WARNING: Do not use open ame or po-

tential sources of sparks in the vicinity of a

cooler using R290 coolant!

WARNING: After unpacking, place the coo-

ler so that heat created by the cooling unit can

be vented suciently.

WARNING: Do not place objects that could

prevent air circulation on top of the cooler.

5. INSTALLATION AND PLACEMENT:

Place the cooler onto a stable, level surface

(maximum permitted inclination: 2 degrees).

The appliance requires unobstructed air circu-

lation.

• Ensure sucient free space for air circulation

and heat dissipation.

• Ensure sucient supply of fresh air.

• The device must not be placed in an enclo-

sed space.

• The device must not be placed in the vicinity

of heat sources or exposed to direct sunlight.

Minimum distance of vents from an obstac-

le that would limit air circulation must be 30

cm. Minimum distance for sections with no air

vents is 7 cm. Ideally, use the device in a cool

and well-ventilated room. The device is desig-

ned for use at ambient temperature of at least

16 °C and at most 32°C.

WARNING: The device MUST NOT be used

or stored at ambient temperature lower than

0 °C. The device is designed for use in a normal

environment, always under a roof, protected

from rain or sunlight. Climate class N. .

DANGER: Protect the cooler and electri-

cal connection from rain and spraying water!

WARNING: Do not under any circumstan-

ces lay the cooler on its side, not even during

transport.

NOTE: In order for the device to work

correctly and at maximum output, it is im-

portant to not cover up any of the device‘s

vents and ensure sucient air circulation.

6. ELECTRICAL CONNECTION :

Connect the device to a power socket in ac-

cordance with specications on the machine

plate of the device. Electrical wiring is subject

to local regulations. If the power leads (cables)

are damaged, they must be replaced by the

manufacturer, their service technician or a si-

milarly qualied person to prevent risk of ha-

zardous situations.

DANGER: Do not use or turn on the device

if the power lead (cable) is damaged!

7. TESTING:

The product is delivered ready for immediate

use.

8. WARRANTY :

The device comes with a warranty in accor-

dance with general legal regulations of the

Czech Republic or in accordance with the tra-

de agreement. During the validity period of

the warranty, we will remove any defects on

the product free of charge, provided these de-

fects were not caused by excess wear, impro-

per handling, incorrect storage or by using the

product in a way that is counter to the instructi-

on manual or the product‘s design as dened

by the manufacturer. Materials replaced du-

ring the validity period of the warranty are our

property. The legitimacy of the warranty claim

is always decided by an authorised service

centre. Warranty provided by a retailer outsi-

de of the territory of the Czech Republic is go-

verned by the agreement between the retai-

ler and the buyer in their mutual relationship;

this agreement is not directly linked to the

manufacturer. The agreement does not give

the buyer the right to submit warranty claims

to the manufacturer. Transport expenses or

other costs are not covered by the warranty.

ATTENTION:

Electrical devices and appliances must be

checked/inspected at a time stipulated by

valid legislation of the country the device is

operated in. Inspection of wiring may only

be done by a person with valid authorisati-

on for this activity. Service work, provision

of spare parts and inspection is done by

the manufacturer or an authorised service

centre.

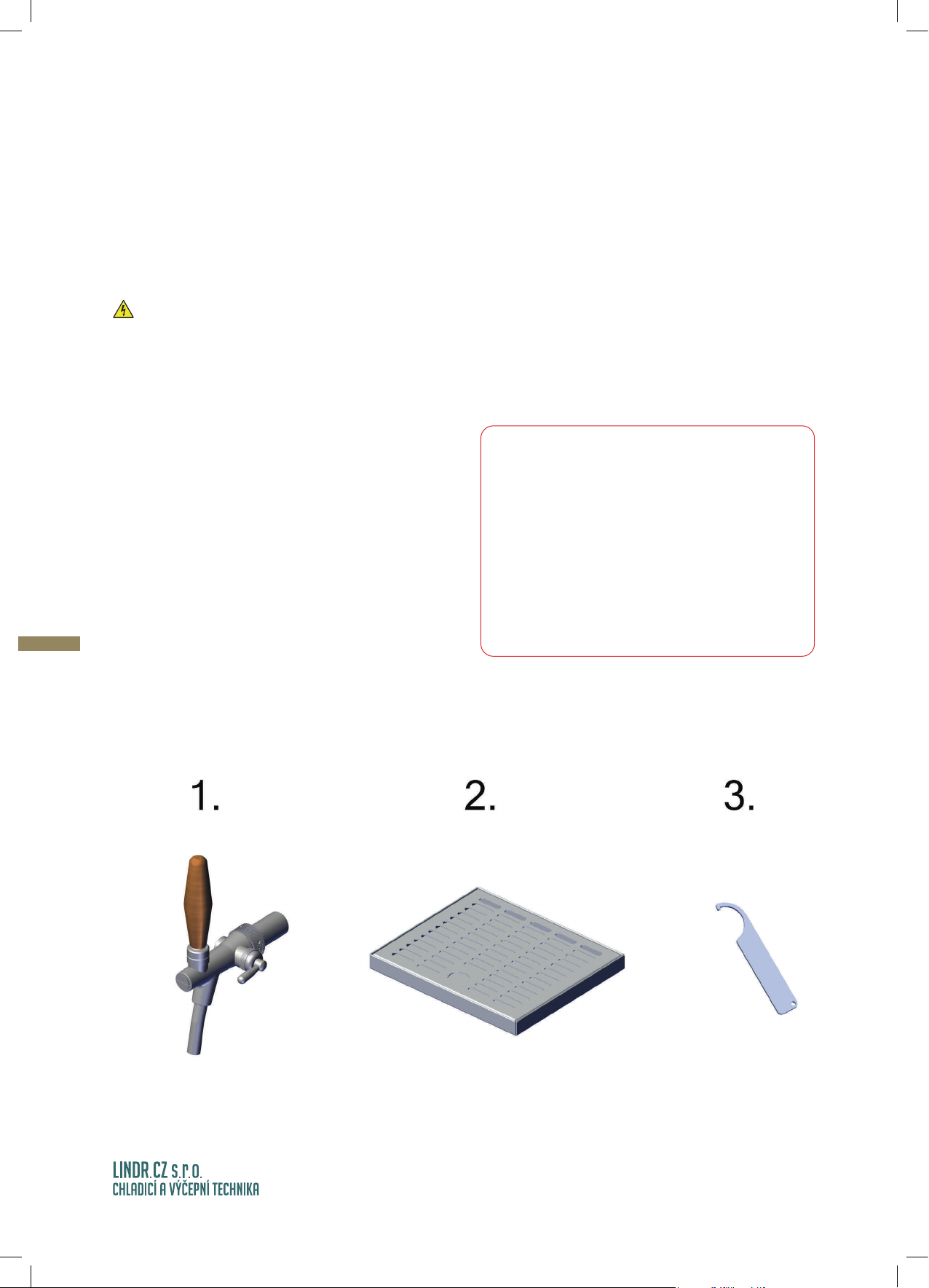

9. PACKAGE CONTENTS:

1. Tap (Packaging of the two-tap device contains 2 taps)

2. Drip tray

3. Tap wrench

FLOW TYPE luxury COOLER

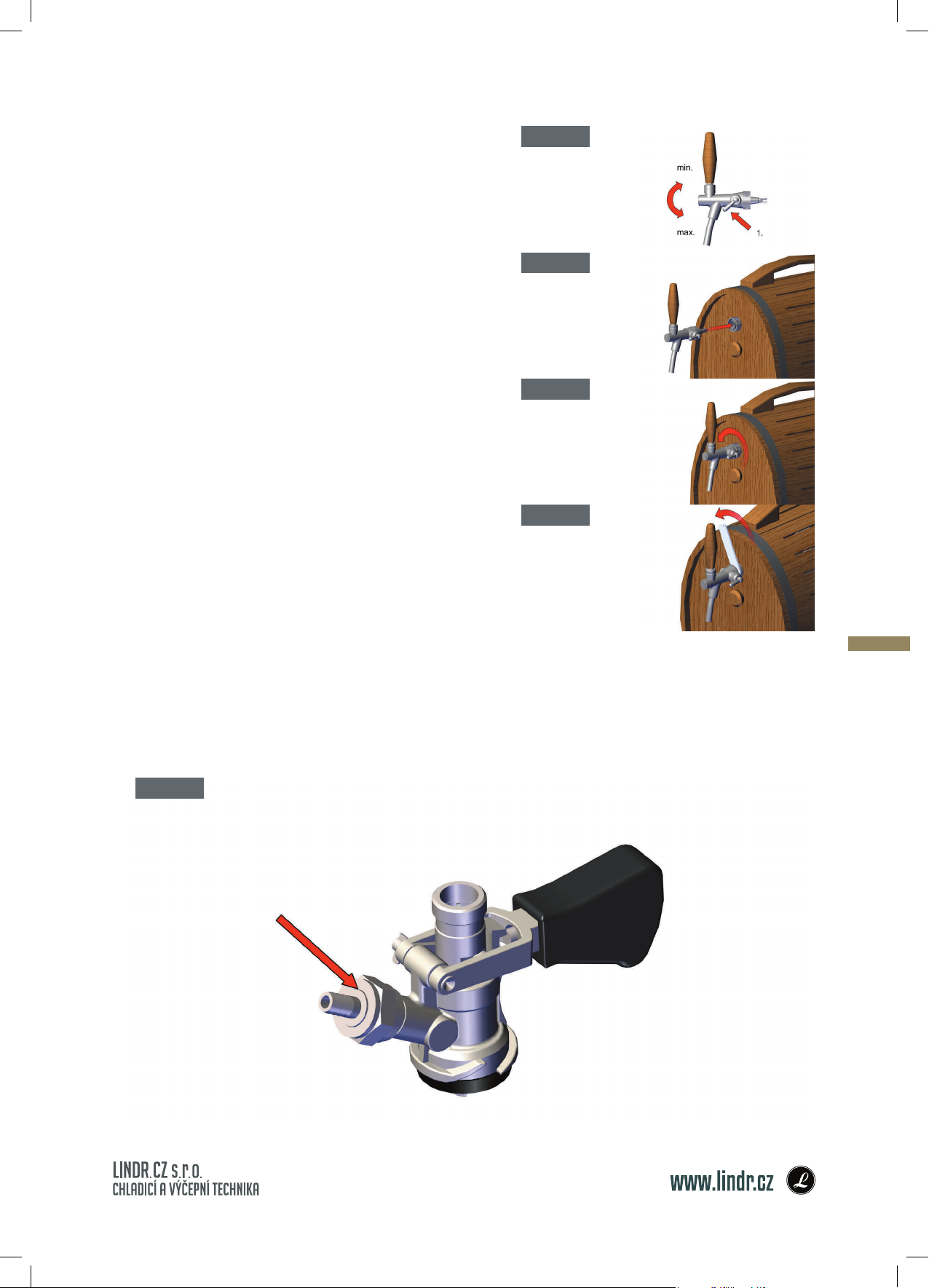

10. TAP INSTALLATION:

11. KEG COUPLER ASSEMBLY :

11.1 Outlet for Keg Pressurisation:

Variant of connection with the use of a bushing; the hose is tted onto the bushing and axed

with a clip.

gure 7 A

gure 7 b

gure 7 E

Turn the compensator lever (1.), so that it points down (see gure).

The compensator lever on the tap is used to adjust the ow rate.

Fit the tap perpendicularly onto the spline.

Secure with a are nut and turn left. (loosen to the right).

Tighten with the enclosed wrench.

gure 7 C

gure 7 D

11.2 Outlet for Beverage :

Screw an F 5/8“ x 3/8“ (9,5 mm) speed tting onto the keg coupler.

gure 8 A gure 8 b

gure 8 c gure 8 d

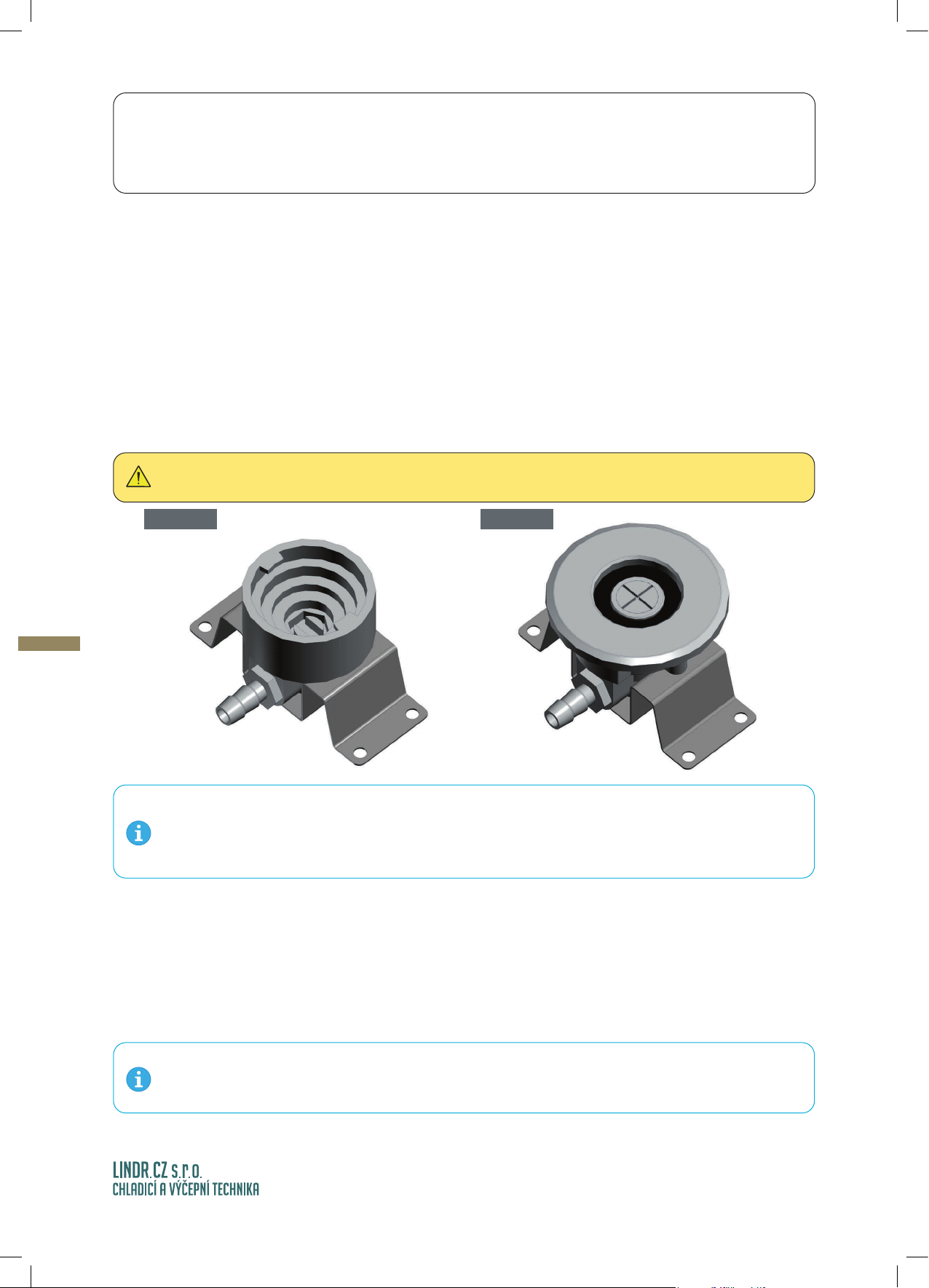

WARNING: Before you screw the speed tting onto the 5/8“ thread, make sure the keg

coupler (air inlet for delivery medium) has a lip valve (check valve) tted on it.

5/8“-5/16(8mm)

5/8“-3/8“(9,5mm)

CHECK VALVE

FLOW TYPE luxury COOLER

12. BEVERAGE SUPPLY CONNECTION AND PRESSURISATION:

gure 9 A

gure 9 b

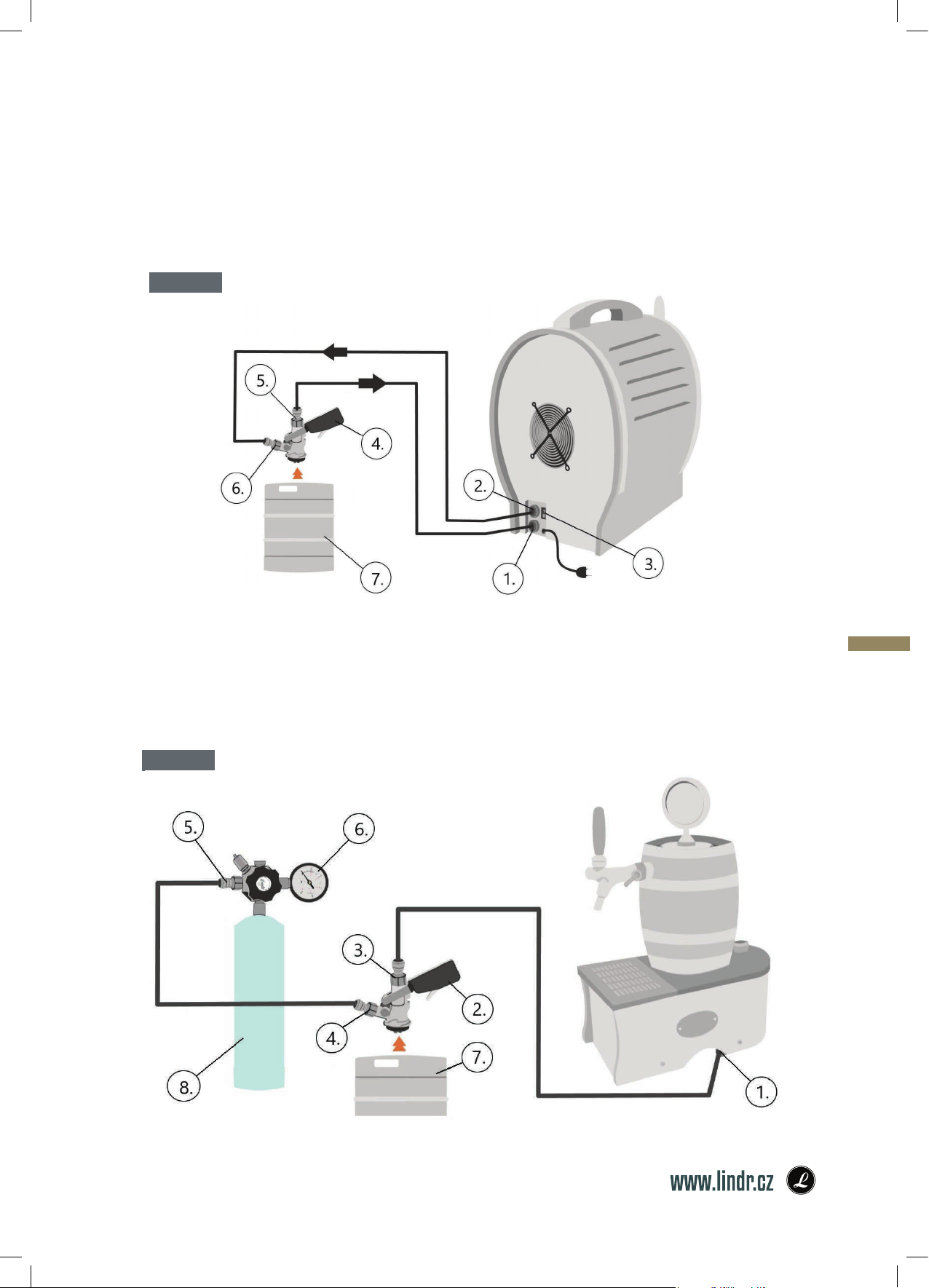

12.1 Connection and Pressurisation by Built-In Compressor (One-Tap Device)

1. Beverage inlet

2. Air outlet

3. Compressor switch

4. Keg coupler (A-system, S-system, M-system)

5. F 5/8x9.5mm speed tting

6. F 5/8x8mm speed tting

7. Beverage

12.2 Connection and Pressurisation by CO2 Bottle (One-Tap Device)

1. Beverage inlet

2. Keg coupler (A-system, S-system, M-system)

3. F 5/8x9.5mm speed tting

4. F 5/8x8mm speed tting

5. F 7/16 x 8mm speed tting

6. Pressure regulator for CO2 mini bottle

7. Beverage

8. Mini bottle CO2

gure 10 a

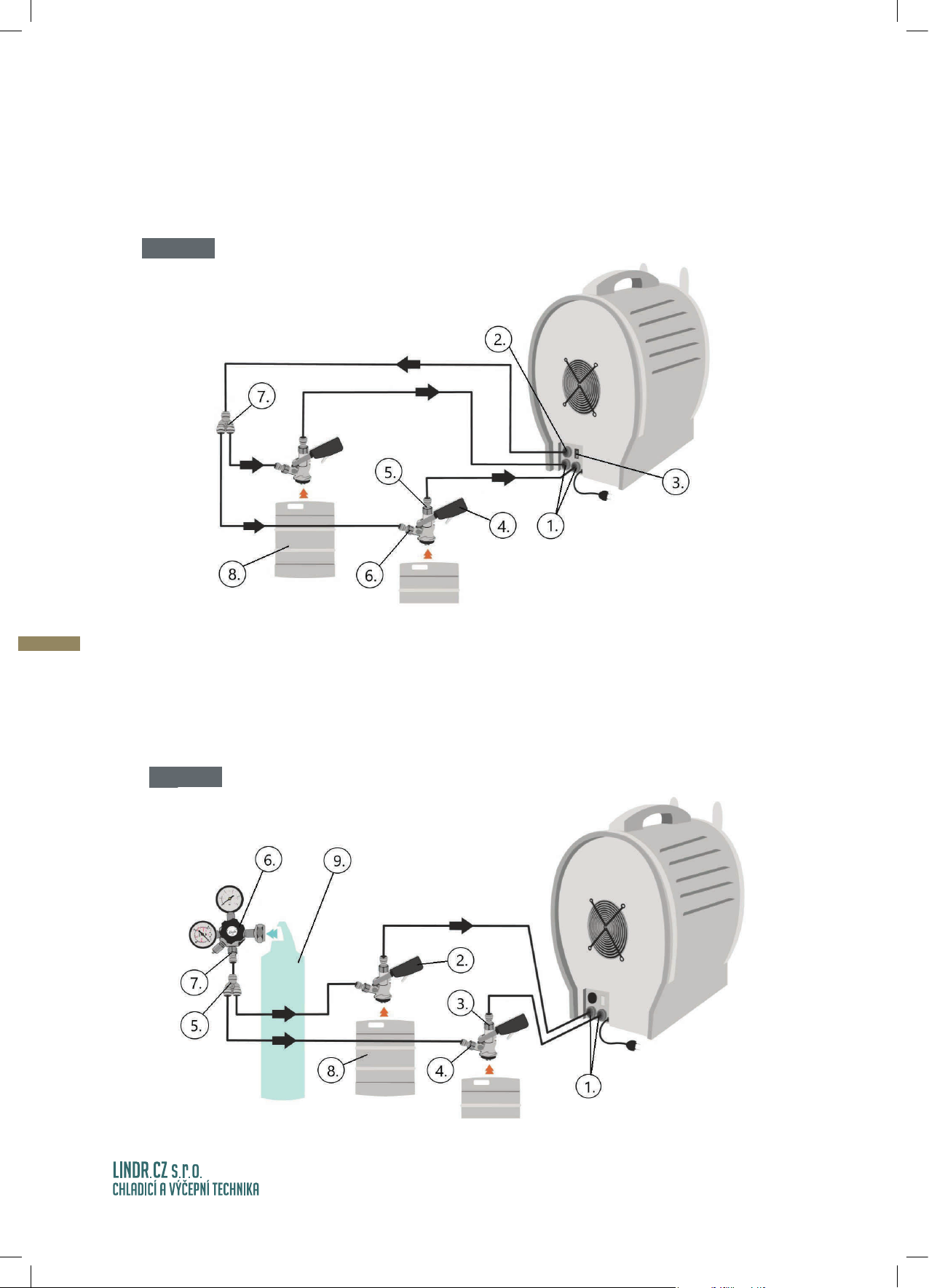

12.3 Connection and Pressurisation by Built-In Compressor (Two-Tap Device)

1. Beverage inlet

2. Air outlet

3. Compressor switch

4. Keg coupler (A-system, S-system, M-system)

5. F 5/8 x 9,5 mm speed tting

6. F 5/8 x 8 mm speed tting

7. Y 8 x 8 x 8 mm speed tting

8. Beverage

12.4 Connection and Pressurisation by Classic CO2 Bottle (Two-Tap Device)

1. Beverage inlet

2. Keg coupler (A-system, S-system, M-system)

3. F 5/8 x 9,5 mm speed tting

4. F 5/8 x 8mm speed tting

5. Y 8 x 8 x 8 mm speed tting

6. Pressure regulator for CO2

7. F 7/16 x 8 mm speed tting

8. Beverage

9. Bottle CO2

gure 10 B

FLOW TYPE luxury COOLER

Other Pressurisation Options :

By PUMA 1HP and 1/2HP compressor, LEONARDO 1HP compressor, AIRCRAFT 1HP com-

pressor, classic Biogon, CO2bottles.

gure 11 A

Built-In Air Compressor

Only for PYGMY 25/K EXCLUSIVE 1koh, PYGMY 25/ K EXCLUSIVE 2koh, KONTAKT 55/ K pro

Green Line, SOUDEK 30/K, SOUDEK 50/ K pro Green Line, SOUDEK 50/K Green Line, SOUDEK

50/ K Green Line 3koh.

The air mini-compressor is built into the cooling device itself. Automatic pressure regulation

is set to 2.8-3.2 bar. K pro models allow smooth pressure regulation in 1.0-3.4 bar range. The

set pressure will be displayed on the pressure gauge in bars. The compressor can be turned

o separately with a switch. The air outlet from the cooler terminates in a 5/16“ (8 mm) speed

tting marked AIR. The air compressor is zero-maintenance, tted with a molecule lter for the

drawn-in air.

13. BEVERAGE CONNECTIONS:

13.1 Beverage input for model: SOUDEK 20 Green Line

Beverage input is located on the right side from the bottom

of the device

13.2 Beverage input for model: SOUDEK 30/ K, SOUDEK 50

Green Line, SOUDEK 50/ K Green Line, SOUDEK 50/ K pro Green

Line

Beverage input is located at the back of the cooler.

gure 11 B

13.3 Beverage input for model: KONTAKT 55 Green Line,

KONTAKT 55/ K pro Green Line

Beverage input is placed at the front of the machine.

gure 11 C

If everything is in order, check the thermostat settings (in o position). Connect the cooler to

the power mains. Then use the keg coupler to tap the keg, set the desired pressure (1.0-3.4

bar) and use the tap lever to pour out some of the beverage. If the cooler contains remnants of

sanitation solution or water, keep the tap lever in open position until only beverage pours out

of the tap. Set the desired beverage temperature on the thermostat.

13.4 Beverage input for model: PYGMY 25/K EXCLUSIVE

1koh, PYGMY 25/K EXCLUSIVE 2koh, PYGMY 25/K Exclusive

Green Line 1koh

Beverage input is located at the back of the cooler.

gure 12 B

14. POSITIONING OF THE THERMOSTAT:

14.1 Positioning of the thermostat: SOUDEK 20 Green Line

Mechanical thermostat is located under the wooden cap on

the back of the cooler.

gure 12 A

14.2 Positioning of the thermostat: SOUDEK 30/ K, SOUDEK

50 Green Line, SOUDEK 50/ K Green Line, SOUDEK 50/ K pro

Green Line

Mechanical thermostat is located below the tap and a woo-

den cap on the front of the cooler.

gure 12 C

14.3 Positioning of the thermostat: KONTAKT 55 Green Line,

KONTAKT 55/ K pro Green Line

Mechanical thermostat with a numeric scale 1-7 located on

the front of the cooler.

gure 12 D

14.4 Positioning of the thermostat: PYGMY 25/K EXCLUSI-

VE 1koh, PYGMY 25/K EXCLUSIVE 2koh, PYGMY 25/K Exclusive

Green Line 1koh

Mechanical thermostat with a numeric scale of 1-7 based

on the back of the cooler.

gure 12E

FLOW TYPE luxury COOLER

gure 13 C gure 13 D gure 13 E

16. TEMPERATURE AND ADJUSTMENT :

TThe temperature of the cooled beverage is controlled by a mechanical thermostat in

temperature range of 2 °C to 8 °C. The thermostat has a numerical scale of 1-7.

WARNING: If you are using the cooler to cool non-alcoholic beverages, set the thermostat

knob to 5 at the most, otherwise, there is a risk of the beverage freezing in the cooler‘s tubing

and damaging the device.

15.2 Speed Fitting Removal:

Hold the grey ring tight against the body of

the speed tting and pull out the hose.

gure 13 B

WARNING: If you do not hold the grey ring but pull at the hose, the speed tting will cut

even deeper into the hose.

WARNING: Hoses must not be pressurised during removal.

15. HOW TO WORK WITH SPEED FITTINGS:

15.1 Speed Fitting Installation:

Grasp the speed tting and insert the hose all

the way inside the speed tting body (ca. 20

mm). The end of the hose must be straight so

that it plugs fully into the coupling. If the hose

will not go in, moisten the end of the hose.

gure 13 A

0 = OFF 1 = MAX. BEVERAGE

TEMPERATURE (8°C)

7 = MIN. BEVERAGE

TEMPERATURE(2°C)

gure 14 A gure 14 b

gure 14 c gure 14 d

gure 14 e

17. KEG TAPPING AND UNTAPPING:

17.1 Keg Tapping:

Procedure for tapping a keg using an S-system keg coupler:

WARNING: Make sure the

adapter is clean before tapping

the keg!

S-system keg coupler

FLOW TYPE luxury COOLER

17.3 Keg Tapping:

Procedure for tapping a keg using an A-system keg coupler:

A-system keg coupler

gure 15 d gure 15 e

17.2 Keg Untapping:

Procedure for untapping a keg using an S-system keg coupler:

gure 15 a gure 15 b

gure 15 c

WARNING: Make sure

the adapter is clean before

tapping the keg!

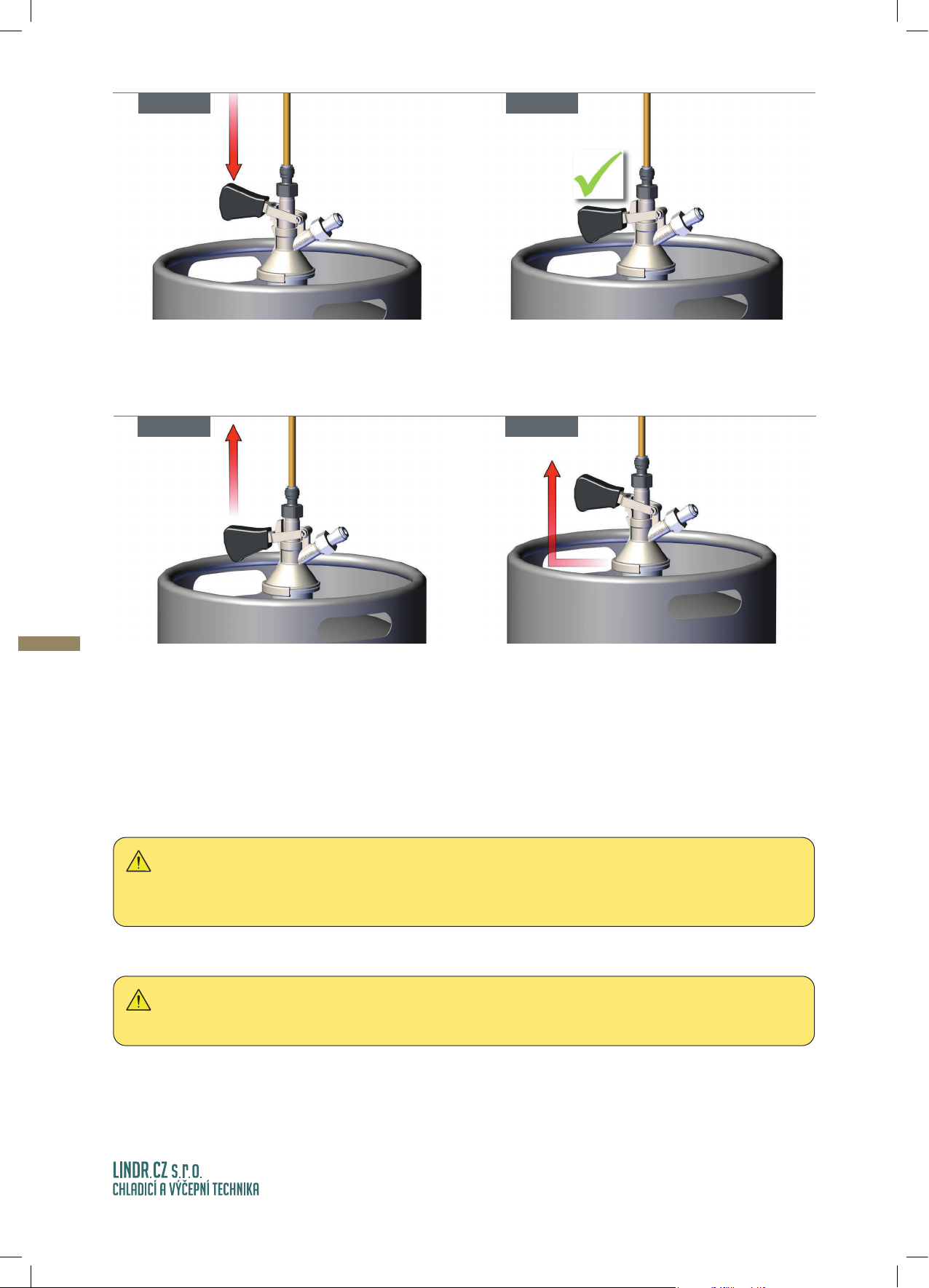

17.4 Keg Untapping:

Procedure for untapping a keg using an A-system keg coupler:

gure 16 c gure 16 d

18. PUTTING INTO OPERATION:

1. Interconnect air supply and beverage supply.

2. Set the thermostat to 0 position.

3. Connect the cooler to the power mains.

4. Tap the keg in accordance with point 17.

5. Turn on the air compressor using the switch and pressurise to the required pressure.

6. Check that all the joints and connections are suciently tight.

WARNING: If a leakage is found, untap the keg according to point 17 and turn o the

device. Fix any leaks found on the tubing. If a leak is found inside the device or you are unsure

how to proceed, contact a service centre.

7. Use the dispensing tap to let out some of the beverage and check that there is no water in the

device.

WARNING: Never set the device to maximum cooling if there is water in the device. May

cause freezing of the beverage tubing and damage the device.

8. Set the desired temperature on the thermostat – see point 16.

9. The beverage is now cooling once cooled (ca. 5-10 minutes) you can start pouring the rst

drink.

gure 16 a gure 16 b

FLOW TYPE luxury COOLER

NOTE: If the defect persists even after the above steps are taken, contact a service centre.

19. TABLE OF MALFUNCTIONS:

Malfunction Cause Removal

beverage does not ow keg tapped incorrectly check that the keg coupler lever is pushed down

device with built-in compressor - turn on the switch

water from sanitation froze turn o the device; then wait until the beverage starts

owing again (may take a few minutes, or hours!)

compensator is closed move the compensator lever on the tap

beverage cooled insuci-

ently incorrect thermostat setting turn the thermostat knob to the right towards

number 7

poor air circulation check the cleanliness of condenser plates

device overheats place the device in a colder environment

tap jerks, drink sprays out pressure too high reduce delivery medium supply, reduce pressure in

the keg

air compressor does not

switch on press the switch on the cooler

air compressor does not

switch o leakage pull out and reinsert the air hose, tighten the nuts

on the keg coupler

beer foams excessively reduce beverage temperature - turn the thermostat

knob to the right

regulate ow rate by pushing the compensator lever

speed ttings leaking hose poorly inserted pull out the hose, check that the end of the hose is

at (not at an angle), level o with a knife if needed

scratches on the hose pull out the hose and shorten by ca. 2 cm

Do not forget to specify the following:

• type of defect

• product type

• production year

• product‘s serial number (found on the machine plate)

20. SPARE PARTS:

When ordering spare parts, always provide the following:

• product type

• production year

• product‘s serial number

• full name of the spare part and its number

21. SANITATION BY WATER:

(Sanitation Adapter)

Connect the sanitation adapter (not included) to water mains using a hose.

WARNING! Maximum water temperature must not exceed 25 °C.

gure 18 A gure 18 B

NOTE: Sanitation adapter is not included. Can be purchased as an accessory for the cooler.

Ordering Components:

ALWAYS USE ORIGINAL COMPONENTS. The manufacturer or supplier bear no responsibility

for non-original components or components not recommended by the manufacturer.

Sanitation Procedure:

Once you have nished a keg, connect the keg coupler to the sanitation adapter the same way as if

you were tapping a keg. Once connected, turn the bar tap lever to open position and keep it open

until clean water ows out of the tap (all beverage residue and partial sediments ush out). For

better sanitation of the cooling device, place cleaning balls into the hose beyond the keg coupler

and use pressurised water to clean out the beverage tubing.

NOTE: Remember to dismount the tap and remove the cleaning balls.

FLOW TYPE luxury COOLER

23. INSPECTION BEFORE EVERY USE:

1. Visual check.

2. Lead-in cable check.

3. Condenser cleanliness check (in case of excess pollution of the condenser, clean more

frequently than 1x a month).

WARNING: Do not use the device if defects or malfunctions are found.

24. PERIODIC CHECKS:

1x a week: check that the lead-in cable is

undamaged and that the plug is rmly in the

socket.

1x a week: check that the device is not

exposed to radiant heat.

1x a week: check that air circulation is not

obstructed.

1x a month: check the cooling unit‘s con-

denser and clean it regularly.

1x a year: have an engineering inspector

check the electrical safety of the device.

22. MAINTENANCE:

Flush the beverage tubing of the cooler after

each use with pressurised water (see Sanita-

tion by Water). To make ushing easier, use

a sanitation adapter according to your type

of keg coupler (not included in standard ac-

cessories). The cooler must be sanitised once

every 14 days by a person with chemical engi-

neering qualications. The condenser must be

checked for cleanliness every month. Any dirt

found must be cleaned with compressed air or

wiped o. Otherwise, there is a risk of reduced

cooling output or damaging of the cooler.

25. ENVIRONMENTAL PROTECTION:

Waste Sorting:

This product must not be disposed of in communal waste. Electrical waste in the Czech

Republic is disposed of within the Rema System (www.remasystem.cz).

In countries other than the Czech Republic, waste sorting is subject to local regulations.

Sorting waste allows recycling and reusing used products and packaging materials. Reuse

of recycled material helps protect the environment from pollution and reduces resour-

ce consumption. Local regulations may regulate the method of disposing of household

appliances at local collection points or at the point of sale.

PRODUCT

MODEL

COOLING

POWER OF THE

COMPRESSOR

(HP)

COOLING

POWER OF THE

COMPRESSOR

(W)

MAXIMUM

COOLING

CAPACITY (L/

HOUR)TO

0°C/TK 45°C

CONTINUOUS

COOLING

PERFORMAN-

(L/HOD)

THERMAL

GRADIENT

Δt (°C)

NUMBER

OF TAPS

(KS)

TYPE OF

REFRIGERANT VOLTAGE POWER

(W)

AMPERAGE

(A)

DIMENSION OF

THE CABINET

(ŠXHXV MM)

NET

WEIGHT

(KG)

SOUDEK 20

GREEN LINE 1/8 280 20 15 10 1 R290 220-240V

50Hz~1 253 1,10 200x375x395 13,0

PYGMY 25/K EXCLUSIVE 1xKOH

GREEN LINE 1/8 310 30 25 10 1 R290 220-240V

50Hz~1 368 1,60 185x300x375 19,0

SOUDEK 50 (CHROM)
