Lipco SFB 50 User manual

Translation of the original
Stump cutter SFB 50
instructions
LIPCO GmbH
Am Fuchsgraben 5b
D-77880 Sasbach
Tel.
[phone]
Fax
[phone]
E-mail
[email protected]
Web
www.lipco.com

Instructions
Stump cutter SFB 50
2 - 20
150130-04-EN BA SFB 50 / 22.03.2019
1. Introduction
Dear Customer,
We thank you for having chosen a
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
. We hope
that you will be happy with your choice.
In order that your
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r T Ty yp pe e S SF FB B
will serve you well
for many years, we ask you to pay close attention to the operating
instructions which you will find in this manual. This will help you to
prevent breakdowns and accidents resulting from non-observance of
the operating instructions, for which our company will not accept
responsibility.
This Instruction and Maintenance Manual is to be considered an
integral part of the machine itself and therefore it must always
accompany the machine when it is sold, even in the event of its sale
to third parties.
If you keep this manual in a safe place and in good condition, you -
and whoever must use the machine - will be able to have a complete
reference on hand at all times.
Note:
The illustrations, descriptions and specifications in this manual are
not binding.
L
LI IP PC CO O
reserves the right to make modifications without
notice.

Instructions
Stump cutter SFB 50
3 - 20
150130-04-EN BA SFB 50 / 22.03.2019
2. Contents Page
1. Introduction 2
2. Contents 3
3. Designated use 4
4. Warning signs attached to the machine 5
5. Safety regulations 7
6. Accident prevention 8
7. Design Features 9
8. Technical Data 10
9. Preparation 11
10. Connection to the excavator 11
11. Working with the LIPCO Stump Cutter 13
12. Maintenance 15
13. Replacement if the cutting blades 16
14. After use 17
15. Guarantee 18
16. Declaration of conformity 19

Instructions
Stump cutter SFB 50
4 - 20
150130-04-EN BA SFB 50 / 22.03.2019
3. Designated use
The
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r S SF FB B
, when
connected to excavators and
wheel loaders, is designed to remove tree stumps.
Any other use for purposes other than those described here is
considered contrary to the designated use. The manufacturer cannot
be held liable for damage resulting from such use; the risk for such
use lies entirely with the user.
Operating the unit within the limits of its designated use also means
following the instructions for operation, transport and maintenance
described by the manufacturer.
Any work, maintenance and repair on the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r S SF FB B
must be carried out by persons who are familiar with the unit and
have been informed about possible risks!
The relevant accident prevention regulations as well as the other
generally recognized maintenance, safety, industrial medicine and
road traffic rules and instructions must be observed.
The manufacturer cannot held liable for damage resulting from
unauthorized modifications of the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
.

Instructions
Stump cutter SFB 50
5 - 20
150130-04-EN BA SFB 50 / 22.03.2019
4. Warning signs attached to the machine
Before starting operation, the personnel must have
read the operating and safety instructions and must
observe them.
Before commencing maintenance and repair work,
switch off the engine and pull the key.
With the drive switched on and the tractor motor
running, maintain sufficient distance to rotating tools.
With the motor running, there is a risk of parts being
hurled away –maintain safety distance.
Machine parts should only touched after they have
come to a complete halt.

Instructions
Stump cutter SFB 50
6 - 20
150130-04-EN BA SFB 50 / 22.03.2019
Wear ear protectors.
Wear safety shoes.
Wear eye protection.
Warning against rotating tool.

Instructions
Stump cutter SFB 50
7 - 20
150130-04-EN BA SFB 50 / 22.03.2019
5. Safety regulations
The operation of machines with rotating or moving tools always
bears risks. Please always follow the safety regulations:
•Before starting operation, the personnel must have read the
operating and safety instructions and observe them.
•Any work, maintenance and repair on the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
S
SF FB B
must be carried out by persons who are familiar with the
unit and have been informed about possible risks!
•Children must be excluded from working with the Stump Cutter.
•The relevant accident prevention regulations as well as the other
generally recognised maintenance, safety, industrial medicine
and road traffic rules and instructions must be observed!
•Never remove or alter the safety devices!
•Do not touch rotating or moving parts!
•Never lie down beneath the unit for repair or control purposes
when the unit has not been carefully secured beforehand!
•Use the machine only in perfect condition
•The warnings and signs attached to the unit give important
information on safe operation; observing these instructions
ensures your safety!
•For maintenance work, switch off the device!
•Attention!
Do not enter working area with the hydraulic unit running!
There is an increased risk of accidents upon contact with
the rotating cutting disc. For your own safety, do not wear
wide or loose clothes (e.g. scarves)!

Instructions
Stump cutter SFB 50
8 - 20
150130-04-EN BA SFB 50 / 22.03.2019
6. Accident prevention
Most accidents that occur during work, maintenance or transport of a
machine are due to non-observance of the most elementary rules of
accident prevention.
It is, therefore, necessary that all licensed users (relatives,
employees, colleagues) read and observe the rules given below and
written on the adhesive labels of the machine itself:
•Work only with eye and ear protection (we recommend a
complete helmet combination ) and safety shoes!
•Turn off the engine of the engine-driven machine before carrying
out any adjustments, maintenance or cleaning on the machine!
•Prior to any work on the machine, it should be placed on level
ground! When working on the lifted unit, always ensure
mechanical protection by means of adequate supporting
elements!
•In order to achieve the highest possible performance of the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
, it must always be in perfect condition.
Maintenance and repairs must be carried out by trained persons
only! Spare parts must at least comply with the technical
requirements specified by the manufacturer! This is only
guaranteed for
L
LI IP PC CO O o or ri ig gi in na al l s sp pa ar re e p pa ar rt ts s
!
•Before each use, screws and nuts must be checked to ensure
they are firmly tightened, especially those of the tools and the
drive!!
•Before starting up, please make sure that no people or animals
are in the vicinity.
•Take special care when working alongside roads or pathways.
•During service or repair work, make sure that no one can start up
the machine accidentally!
•Do not, for any reason, climb onto the machine during operation.

Instructions
Stump cutter SFB 50
9 - 20
150130-04-EN BA SFB 50 / 22.03.2019
•Do not act with any objects on the machine during operation!
•Never work without machine protection hood and plastic apron!
7. Design Features
The
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
is capable of removing tree stumps..
The characteristic feature of the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
is that it can be
universally connected to all excavators having sufficient hydraulic
power. It is connected to excavators via a mounting disc (Fig. 2) on
the quick-change plate of the excavator. The
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
makes it possible to achieve optimum working results even when
only limited space is available.
As shown in Fig. 1, the cutting disc of the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
is equipped with
replaceable cutting blades (with soldered-
on hard-metal plates).
Depending on the drive power of the engine-driven machine and on
the particular case, the cutting discs can be equipped with different
numbers of cutting blades.

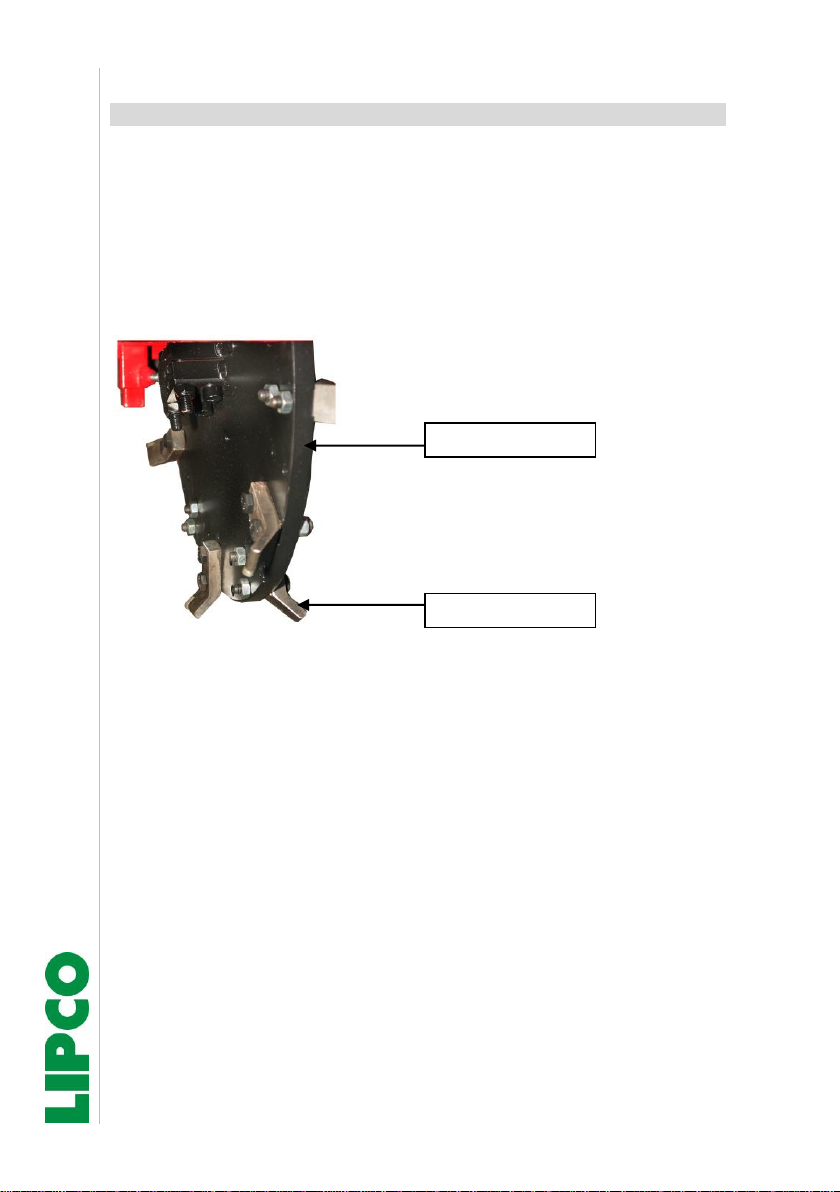

Fig. 1
Cutting disk with
cutting blade
Fig. 2
Mounting plate

Instructions
Stump cutter SFB 50
10 - 20
150130-04-EN BA SFB 50 / 22.03.2019
8. Technical Data
Type
Weight
(kg)
min.
amount of
oil/minute
at 180 bar
Disc Ø (cm)
Hard-metal tools
(pcs.)
Hard-metal tools
(pcs.)
Alternative
equipment
SFB 50
160
ab 60
50
Left design
fits 12
Right design
fits 15
Left design
fits 8
Right design
fits 12
SFB 50*
small
excavator
160
30-60
50
Left design
fits 12
Right design
fits 15
Left design
fits 8
Right design
fits 12
* available for an extra charge

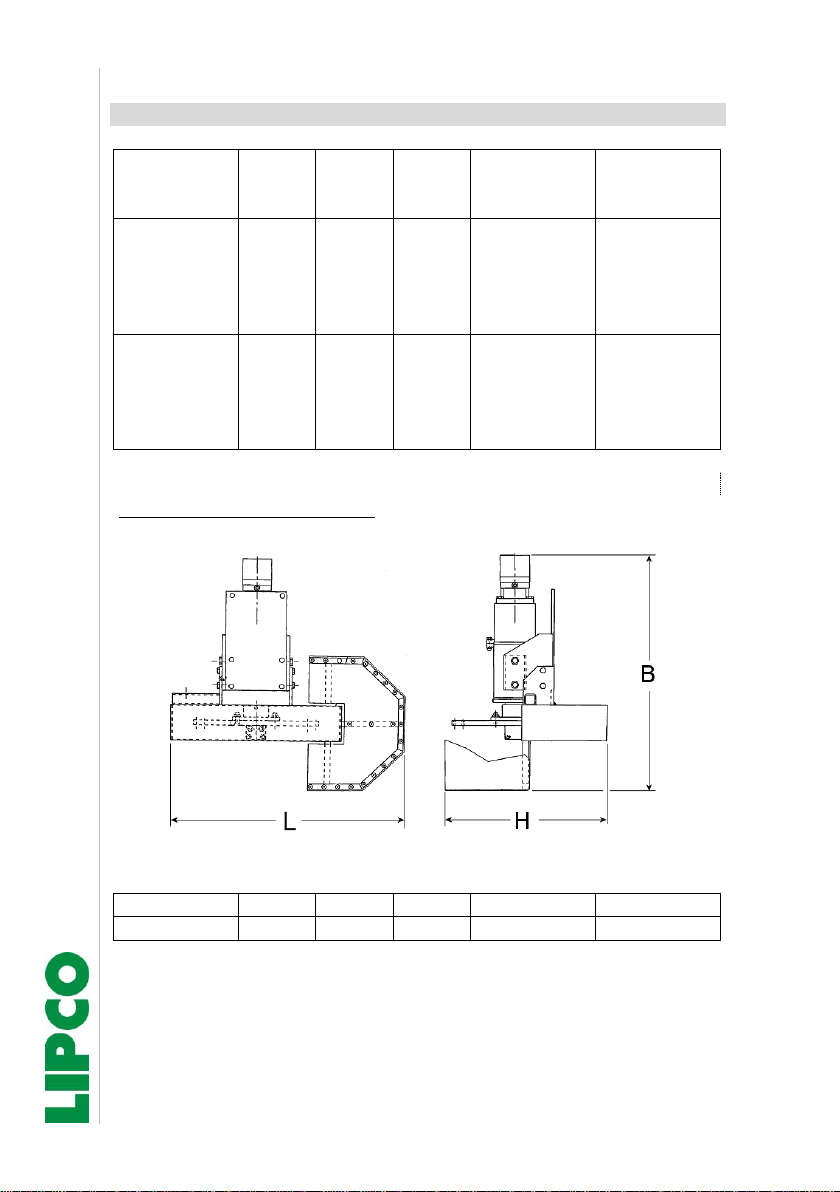

Main dimensions cutter head
L
H
B
SFB 50
860
585
845

Instructions
Stump cutter SFB 50
11 - 20
150130-04-EN BA SFB 50 / 22.03.2019
9. Preparation
•Check lubricant in bearing housing (see chapter "10.
Maintenance")
•Check whether all safety devices are in place and all screws
have been tightened. Especially the cutting blade screws and the
screwed joints of the hydraulic lines must be checked.
10. Connection to the excavator
•Screw the Stump Cutter on to the quick-change plate of the
excavator by means of the mounting plate and the 4 M12 screws
(see Fig. 2).
•The hydraulic lines must be manufactured in accordance with the
corresponding lines of the base unit. The connection to the
excavator is made via quick couplings.

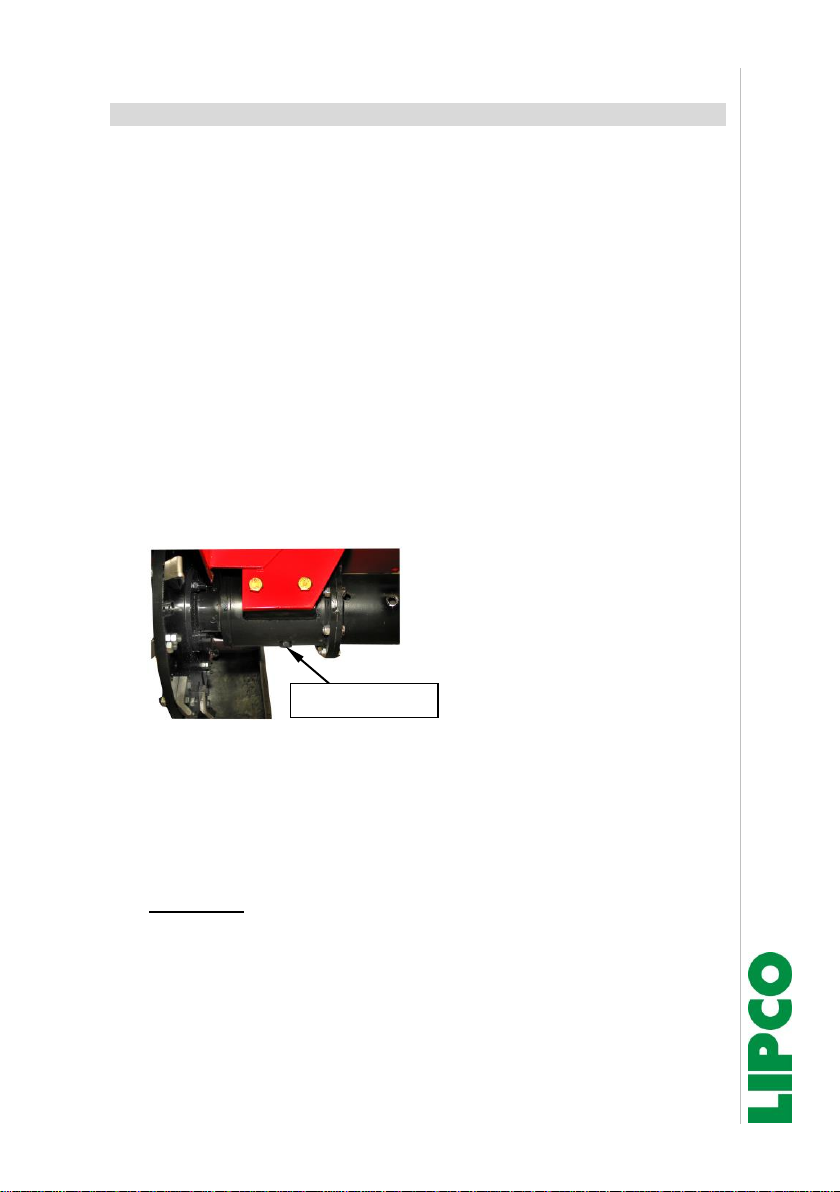

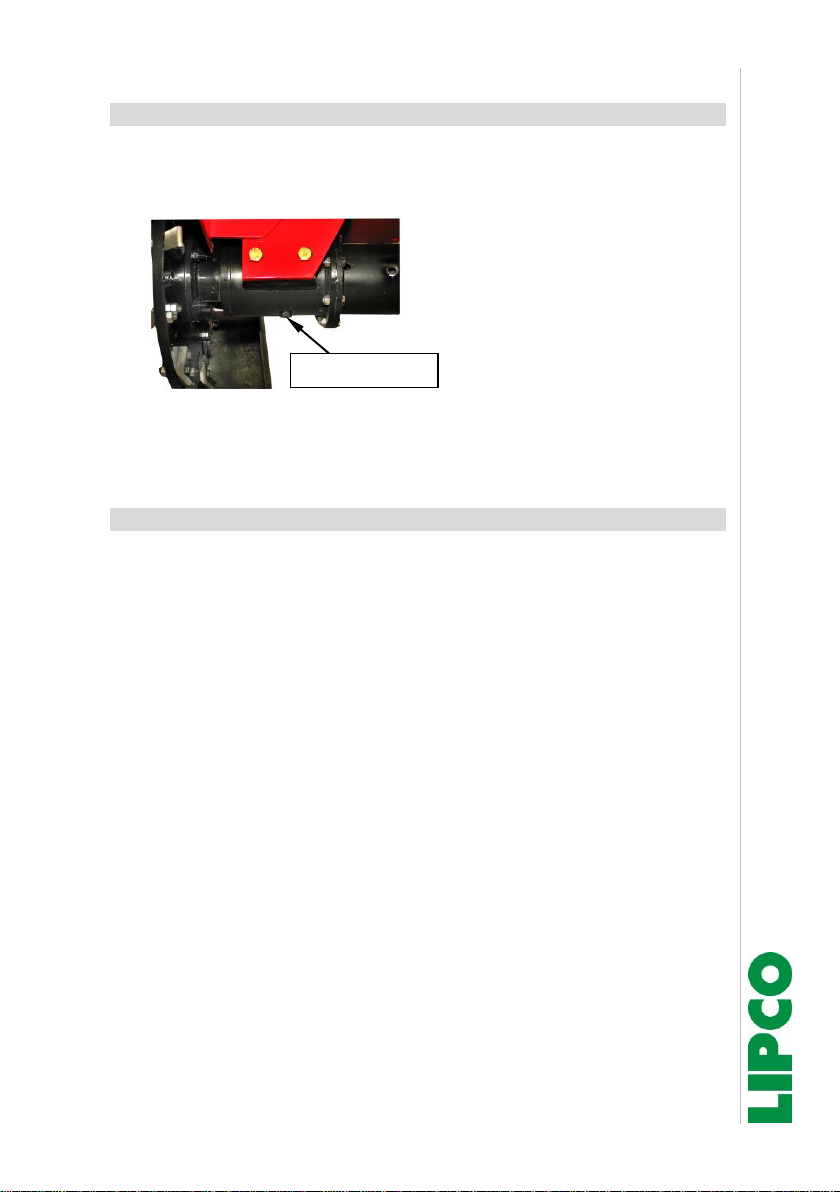

(Fig. 3)
Filler neck

Instructions
Stump cutter SFB 50
12 - 20
150130-04-EN BA SFB 50 / 22.03.2019
•Attention:
The leak oil line must be conducted to the hydraulic oil tank free
of pressure. Under no circumstances must the leak oil line of the
hydraulic motor be subjected to pressure.
Incorrect pressurization will destroy the seals in the hydraulic
motor and cause oil to leak out.
•Please observe the labeling of the connections –Pressure line
(P) and return line (T).
•The return line must be sufficiently wide, i.e. its nominal width
must be larger than the pressure line!
•Attention:
When the hydraulic system is closed, the hydraulic oil tank
is under pressure.
Connection for
excavator pressure
line
Return line for leak
oil –
pressure-free
Return line to tank -
pressure-free
Abb. 3

Instructions
Stump cutter SFB 50
13 - 20
150130-04-EN BA SFB 50 / 22.03.2019
11. Working with the LIPCO Stump Cutter
Move the Stump Cutter to the tree stump to be cut. Position the unit
such that the cutter disc is located centrally above the tree stump.
Do not switch on cutting disc while under load. This is why the Stump
Cutter must be lifted to such an extent that it does not rest on the
tree stump when the cutting disc is switched on.
When full speed is reached, lower the stump cutter carefully until the
disc cuts into the wood. Now pivot the stump cutter to the right and to
the left over the tree stump, lower the cutter and repeat the cutting
process until the desired working depth is reached.
•Attention!
Any adjusting work must be carried out with the excavator
engine switched off! In case of vibrations, immediately stop
working and inspect the cutting blades. Due to the high
speed, an imbalance might be caused by missing or
seriously damaged cutting blades.
•Only work with the personal protection equipment! (Eye and ear
protection and safety shoes)
•Attention!
When working in hillside position, the relevant safety
regulations of the traction vehicle manufacturer must be
observed!
•Especially the maximum allowable hillside inclination when
the Stump Cutter is attached to the traction vehicle and the
direction of working must be observed. The tree stump may
only be cut uphill or downhill, never sideways!

Instructions
Stump cutter SFB 50
14 - 20
150130-04-EN BA SFB 50 / 22.03.2019
•Attention!
When working with or on the Stump Cutter, provide good
lighting!
•Apart from the operator of the Stump Cutter, no other
person is allowed to stay in the danger area/working area or
pivoting area of the excavator.
In general, children must be excluded from working with or
on the Stump Cutter.

Instructions
Stump cutter SFB 50
15 - 20
150130-04-EN BA SFB 50 / 22.03.2019
12. Maintenance
Steps to be carried out in order to maintain the machine in good
working condition:
•The bearing housing of the Stump Cutter is filled with liquid gear
grease and is usually maintenance-free. In case of grease
leaking out or after external force being applied to it, a check
must be carried out.
The filler neck is at the underside of the housing. To check it, the
unit must be tilted by 90 degrees, filling level to lower edge of the
charging hole.
Lubricant to be used:
Liquid gear grease based on sodium bicarbonate, type GP00
Filling amount: 0.2 kg
•Check the plastic apron and replace it, if necessary!
•Check whether all screws, especially those of the cutting blades,
are firmly tightened. Replace damaged screws immediately.
(See chapter "11. Replacement of the cutting blades").
•Attention! Only use original screws.
Filler neck

Instructions
Stump cutter SFB 50
16 - 20
150130-04-EN BA SFB 50 / 22.03.2019
13. Replacement if the cutting blades
When replacing the cutting blades, make sure that the machine is
secured against unintentional lowering. When working with the unit
lifted, always ensure mechanical protection by means of adequate
supporting elements!
When a cutting blade gets broken, immediately stop work and
replace the damaged parts.
Depending on the drive power of the engine-driven machine and on
the particular case, the cutting disc can be equipped with different
numbers of cutting blades.
Cutting disk
Cutting blade

Instructions
Stump cutter SFB 50
17 - 20
150130-04-EN BA SFB 50 / 22.03.2019
14. After use
If the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
is to remain unused for a longer period, it
is necessary to carry out the following steps:
•Thoroughly wash and dry the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
!
•Check the function of all movable parts and lubricate them!
Replace damaged or worn parts!
•Check hydraulic lines for damage and, if necessary, replace
them. Observe the legal regulations when exchanging them.
•Check the screws and retighten them, if necessary!
•Check liquid grease in bearing housing!
•Grease all unpainted metal parts to protect them against
corrosion, cover the
L
LI IP PC CO O S St tu um mp p C Cu ut tt te er r
and store it in a dry
place so that it will be ready for use any time.
•Attention!
Before using the unit again, follow the instructions in
chapter "12. Maintenance".

Instructions
Stump cutter SFB 50
18 - 20
150130-04-EN BA SFB 50 / 22.03.2019
15. Guarantee
For more details please refer to:
https://www.lipco.com/en/downloads/

Instructions
Stump cutter SFB 50
19 - 20
150130-04-EN BA SFB 50 / 22.03.2019
16. Declaration of conformity
Manufacturer: person authorized to compile the
technical files:
LIPCO GmbH
Ingenieurbuero Bauer
Am Fuchsgraben 5b
Scherzinger Weg 46
D-77880 Sasbach
D-79227 Schallstadt
Tel.
[phone]
Tel.
[phone]
Fax
[phone]
E-Mail
[email protected]
E-Mail
[email protected]
Web
http://www.lipco.com
Denomination: LIPCO stump cutter
SFB 50
Serial no:
Year of manufacture:
The manufacturer declares expressly, that the machinery fulfills all the
relevant provisions of the
•Directive 2006/42/EC
To implement the safety and health requirements as stated in the CE
Directive, the following standard(s) and/or technical specification(s) has
(have) been applied:
•DIN EN 709
•DIN EN ISO 4254-1
•EN ISO 12100-1 / EN ISO 12100-2
•EN ISO 14121-1
This declaration of conformity loses its validity, if changes or modifications
on the machine were made, which are not approved in writing before by
LIPCO.
Willi Lipp
- Technical director -
Sasbach, 2018.10.31
(Place and date of issue)
(Name, function and signature of responsible)

20 - 20
Design: [email protected]m
