Litchi KB-1608S User manual
www.litchilive.com
service@litchilive.com

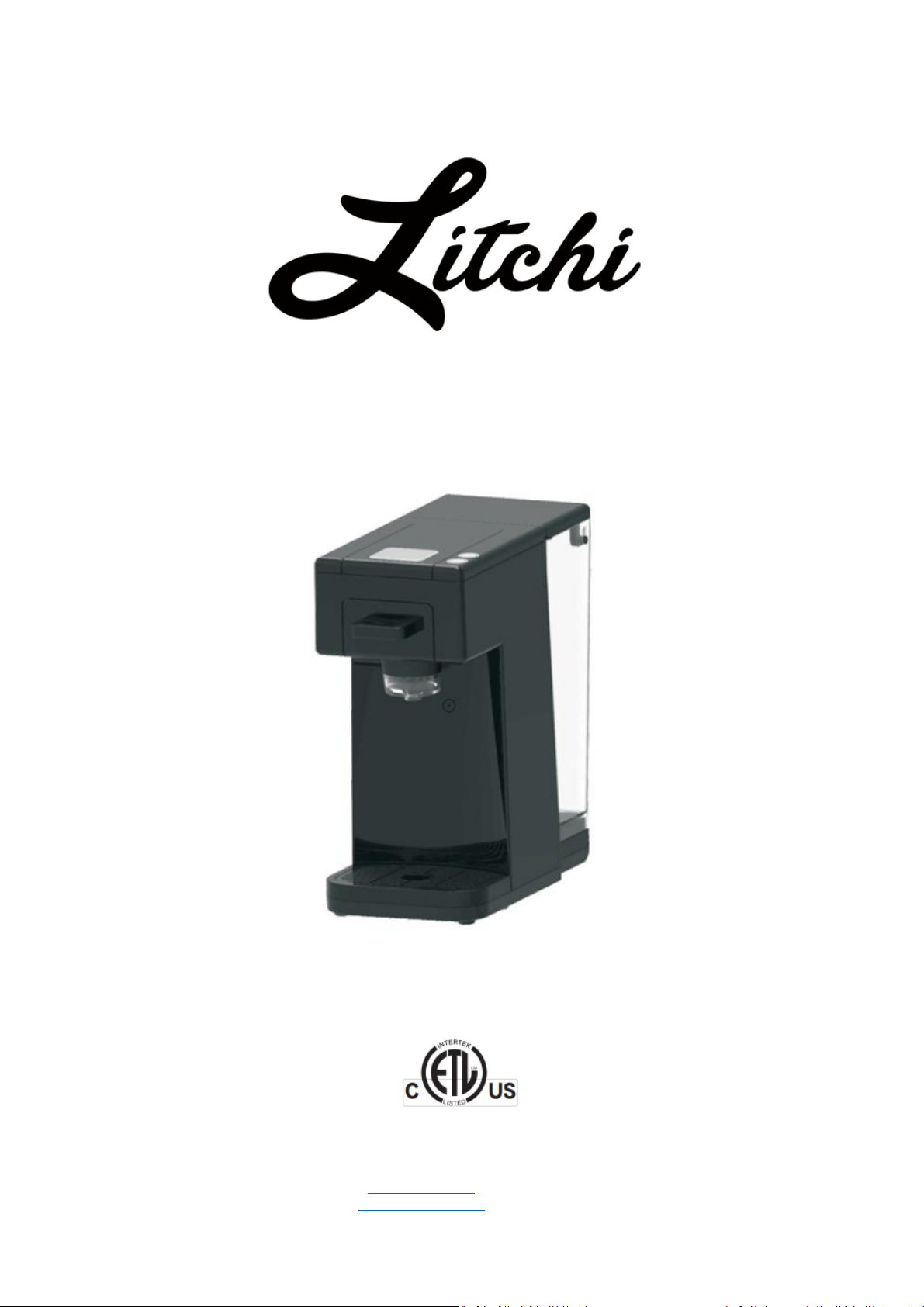

Litchi Single Serve Coffee Maker KB-1608S
Model: KB-1608S
www.litchilive.com
service@litchilive.com
Important Safety Notices
Ensure that the input voltage is consistent with the rating of the appliance.
The appliance shall not work unattended and should be used and stored out of the reach
of children.
Do not use the appliance in high temperature environment.
Unplug the appliance when not in use or before cleaning. Install or remove any part of the
appliance or clean the appliance until it has cooled down.
Do not use the appliance when the power cord or plug is damaged. If the appliance
malfunctions due to fault or other reasons, please send the appliance to service agents for
test and repair.
In the event of malfunction of the appliance, please unplug and stop using the appliance
immediately and send it to the nearest service center for test and repair. Never attempt to
repair the appliance by yourself to prevent potential electric shock or hazard.
The appliance should be placed on a horizontal and flat surface. Do not allow the power
cord to hang over the edge of a table or a counter.
Make sure the power cord does not contact the hot parts of the appliance.
Keep this Operating Instructions for future references.
This appliance is for household use only.
www.litchilive.com
service@litchilive.com
Schematic Diagram of Parts:
A. Drip Tray
B. Drip Tray Cover
C. K-Cup Pod Holder
D. K-Cup Pod
E. Movable Cover
F. Movable Cover Switch
G. 8 OZ
H. 4 OZ
I. Reservoir
J. Reservoir Cover
K. Reusable Filter
Technical Information:
Voltage/Frequency: 120V AC / 60Hz / 1200W
Reservoir Max Capacity: Max: 40 oz. / 1200ml.
Preheating Time: 30s until coffee flowing out
Size：L4.72 in X W10 in X H 9.72in / L120mm X W254mm X H247mm
Net Weight: 3.747LB /1.7KG
Safety Appliance: ETL
www.litchilive.com
service@litchilive.com
Before First Use:
1. 2. 3.
4. 5. 6.
Before using the appliance for the first time, make sure that all parts are complete and check
whether the appliance is damaged.
Fill the reservoir to its maximum capacity and follow the steps below to boil water without
K-Cup pod for once or twice, then empty the reservoir. Clean the K-Cup Holder thoroughly
with warm water.
1. Open the reservoir cover and fill the reservoir with water. Make sure it does not exceed
the maximum level.
2. Press the Movable Cover Switch.
3. The Movable Cover pops up.
4. Withdraw the K-Cup Holder
5. Insert the K-Cup pod
6. Put back the K-Cup Holder and press down the Movable Cover.
Plug in the appliance, the switch button and the switch button will light up in red
and in standby mode. The appliance is ready to brew your favorite K-Cup pod of coffee, hot
cocoa & more.
www.litchilive.com
service@litchilive.com
Brewing 4 oz. or 8 oz. of K-Cup Coffee:
Press the or switch button, the or switch button will light up in blue. The
appliance heats up and the pump starts to work. Coffee will flow out from the spout in 30
seconds for the first brewing. When the preset coffee volume is reached, coffee will stop
coming out and the blue light turns red. Then you can enjoy your K-Cup coffee! Withdraw the
K-Cup Holder, dispose of the used K-Cup pod and continue to make coffee following steps
above.
Tips:
1. While the appliance is not in use, please clean the K-Cup Pod Holder with clean water.
2. Before switching to another flavor of K-Cup pod, we recommend you clean the K-Cup
Holder with clean water.
Unplug the appliance after use, and clean the drip tray.
Customizing & Brewing Your Own Brew Size:
To customize your own brew size, press and hold the (or ) switch button until coffee reached your
preferred volume. The appliance will start brewing your customized size of coffee each and every time!
Unplug the appliance first, then press and hold the switch button and the switch button at the
same time while replugging the appliance to reset to defaults (4 oz. and 8 oz.).
Brewing Ground Coffee:
Fill the reusable coffee filter with your favorite flavor of ground coffee and put the filter into
the K-Cup holder, select your desired size of coffee and start brewing your own coffee!
www.litchilive.com
service@litchilive.com
Troubleshooting:
The and switch will flash in blue quickly if you open the Movable Cover while
working and the pumping will stop. Close the Movable Cover, the appliance will resume work.
The and will flash in blue slowly if the reservoir runs out of water.
Indicator
Meaning
Two buttons light up in red
The appliance is on standby mode
Two buttons flash in red
NTC is short-circuited
Two buttons flash in blue slowly
The appliance is running out of water
Two buttons flash in blue fast
The movable cover is not closed properly
Problems
Causes
Solutions
Coffee comes out too slow or
no coffee comes out
Water reservoir is empty
Add fresh water into the water
reservoir
Water reservoir is not installed
properly
Remove the water reservoir and
reinstall
The input voltage or frequency is
inconsistent with the nameplate
Make sure the voltage and
frequency is consistent with the
nameplate
The upper pin is blocked
Pierce the upper pin with a
needle.
The K-Cup pod is not pierced
through
Use compatible K-Cup Pods
The appliance malfunctions
Please contact us
Coffee leaks around the
K-Cup holder
There is residual coffee ground
around the seal
Clean the seal
The K-Cup pod breaks from the
edge
Use compatible K-Cup pods
Two buttons flash in blue
slowly while the water
Water reservoir is not properly
installed
Remove the water reservoir and
reinstall
The water filter is not installed
Flatten the filter with a straight
www.litchilive.com
service@litchilive.com
reservoir is full
properly
screwdriver
Problem still exists after above
measures
Please contact us
Water leaks from the bottom of
the appliance
The appliance malfunctions
Please contact us
The appliance does not turn on
The power outlet is not plugged in
Make sure it’s plugged into the
wall socket properly
NTC is short-circuited
Please contact us
The appliance malfunctions
Cleaning and Maintenance:
Warning: Unplug and wait until it has cooled down before you clean the appliance.
After each use, clean the removable K-Cup pod holder and drip tray with clean water, add
cleaning detergent if necessary. Attention: These parts are dishwasher safe.
While cleaning the K-Cup Holder, turn the spout clockwise (spout heading down) to unlock it
for better cleaning, as shown below:
Clean the stains on the surface of the appliance with soft damp cloth.
Removal of Mineral Deposition
To ensure the effective operation of the appliance, we suggest remove the mineral deposition
in it following the steps below according to the water quality and the frequency of usage of
the appliance:
Add white vinegar (vinegar to water in 1:3) to the reservoir, boil the vinegar solution through
the brewing process (until no yellow liquid is flowing out if necessary). Then empty the vinegar
solution and repeat the boiling process with clean water until the vinegar is cleaned
thoroughly.
www.litchilive.com
service@litchilive.com
Tips for Brewing Coffee, Hot Cocoa & More:
1. To brew a good cup of coffee, hot cocoa & more, make sure the appliance is clean and
always use clean water. Therefore, it’s necessary to clean the appliance frequently following
the steps in “Cleaning and Maintenance”section.
2. Store the K-Cup pods in cool and dry place to keep fresh.
