LiteLEES BIG EYE L4007R User manual

KEEP THIS USER MANUAL FOR FUTURE NEEDS

2

3
Content
1. Introduction ………………………..………………………………………4
2. Cleaning and Maintenance ….……………………………………………4
3. Statement………………………………………………………………5
4. Technical Parameters…………………..…………………………………..6
5. Fixture Size…………………………………………………………………………7
6. Photometrics…………………………………………………………………………7
7. Electrical parameters ………………………………………………………………7
8. Menu Function ………………………..…………………………………...8
9. Functions of Buttons…………………………………………………………..10
10. DMX Channels………………………………………………………………..12
11. Shape Details…………………………………………………………………15

4
Thank you for your patronage!
We are confident that our excellent products and service can satisfy you.
For your own safety, please read this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly.
We suggest that the installation and operation should be done by the verified technician and
follow the instruction strictly.
CAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing!
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One power in cable&power out connector
2. One3PinDMXcable
3. Two C omega clamps
4. One safety rope
5. One English user manual
（Flight case, Clamps are optional, please contact your dealer）
Please check carefully that there is no damage caused by transportation. Should there be any
questions, please consult your dealer and don’t install this device.
CLEANING AND MAINTENANCE
1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more with the
walls. At the same time, please check if the fan and ventilation holes are unobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly connected and
must not be corroded.
2) There must not be any deformations on the housing. Fixations and installations spots(ceiling,
suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate with

5
unbalances.
4) The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a
skilled installer and any safety problems have to be removed.
CAUTION!
Disconnect from mains before starting maintenance operation!
In order to make the lights in good condition and extend the life time, we suggest a regular
cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due to
accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that
the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use
alcohol or solvents.
Statement
When the product is shipped from the factory, its performance is intact and the
packaging is complete. All users should strictly abide by the warnings and operating
instructions stated above. Any damage caused by misuse is not covered by the
company's warranty. Failures and problems caused by ignoring the operation manual
are not within the responsibility of the dealer.
Note: Based on our company's policy of continuous product improvement,
the data contained in this manual may change in the future, and will no
longer notify the changes. The company reserves the right to change the
relevant specification data when the product is improved.
The publisher of this manual will not assume any responsibility for the
consequences of such information.

6
TECHNICAL PARAMETERS
Power supply
AC90 - 250V,50/60Hz
Power consumption: 350W@220V
Light source
7*40W RGBW 4 in1 Osram LEDs
Individual LED control
Average life: 30,000 hrs
Color temperature：2500K-9000K
Color RGBW (red, green, blue and white) linear color mixing adjustment
Effect
Zoom angle: 4-60°; 16800lux@5m@Min angle
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity
With“vortex”and “kaleidoscope”effects
Variable built-in dynamic effects
4 Liner dimming curves
Strobe: 1-25 hz, random and pulse flash
Control
Pan/Tilt: 540/230°
Control mode: DMX512/RDM
DMX channels: 21/35/42/49
XLR in & out: 3-pin
Display:LCD Color display
Packed
Net weight: 13.5kg
Carton box(1-in-1):
Size: 36×48×62cm
Packed weight: 18kg
Flight case(4-in-1):
Size: 85×82×74cm
Packed weight: 118kg

7
Fixture Size
Photometrics
Electrical parameters
U（V）I（A）P（W）cosΦ（PF）Hz（HZ）
240 1.311 299.3 0.952 50.0
220 1.419 300 0.963 50.0
120 2.600 308 0.991 60.0

8
MENU FUNCTION
Main Menu Level 1 Level 2
Address Setting Address
Running Mode
DMX Mode
21CH
35CH
42CH
49CH
Automatic Mode
Manual Test
R
G
B
W
CTO
Color Macro
Strobe
Dimmer
Pan
Tilt
Zoom
Zoom Rotation

9
Main Menu Level 1 Level 2
Advanced Settings
Pan Reverse
Tilt Pan Reverse
Pan/Tilt Swap
Screen Reverse
Language Chinese/English
Dimmer Speed Fast/Smooth
Dimmer Curve
Reset
Reset default
System Information
Version Number
Running Mode
Dmx Address
Temperature
Lamp Beads Hours

10
FUNCTIONS OF BUTTONS
Reversal of the display
To activate this function, press the UP and DOWN keys while the display is in the still mode.the
screen is reversed, and the control keys are also reversed. To return to the initial state, repeat the
operation again.
Functions of the buttons- Using the menu
Confirms the displayed value, or activates the displayed function,
or enters the successive menu.
Decreases the value displayed (with auto-repetitions) or passes to
the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to
the previous item in a menu.
Return to the top level.
Commute from units, tens, hundreds, in the "Address", "Fixture ID"
and "Calibration" menu.
LED lamp bead arrangement sequence
As shown on the right：

11

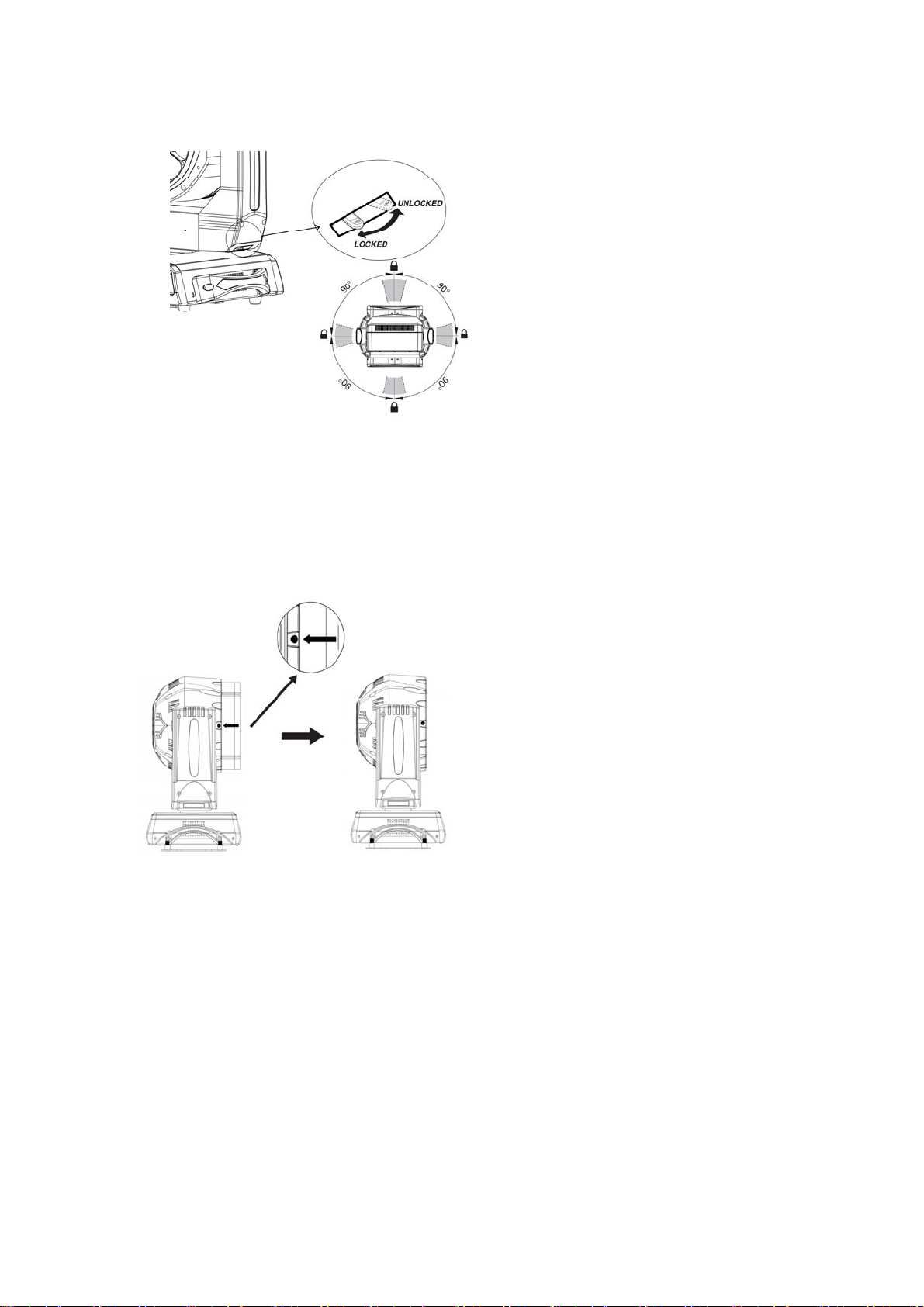

Packaging considerations
The X-axis rapid lock forward is LOCKED,and backward (UNLOCKED) to open.
CAUTION!
Before packing, please get the zoom lens back inside.(Please match theARROWS with the DOT)
Without this operation, there will be damage of the fixture!

12

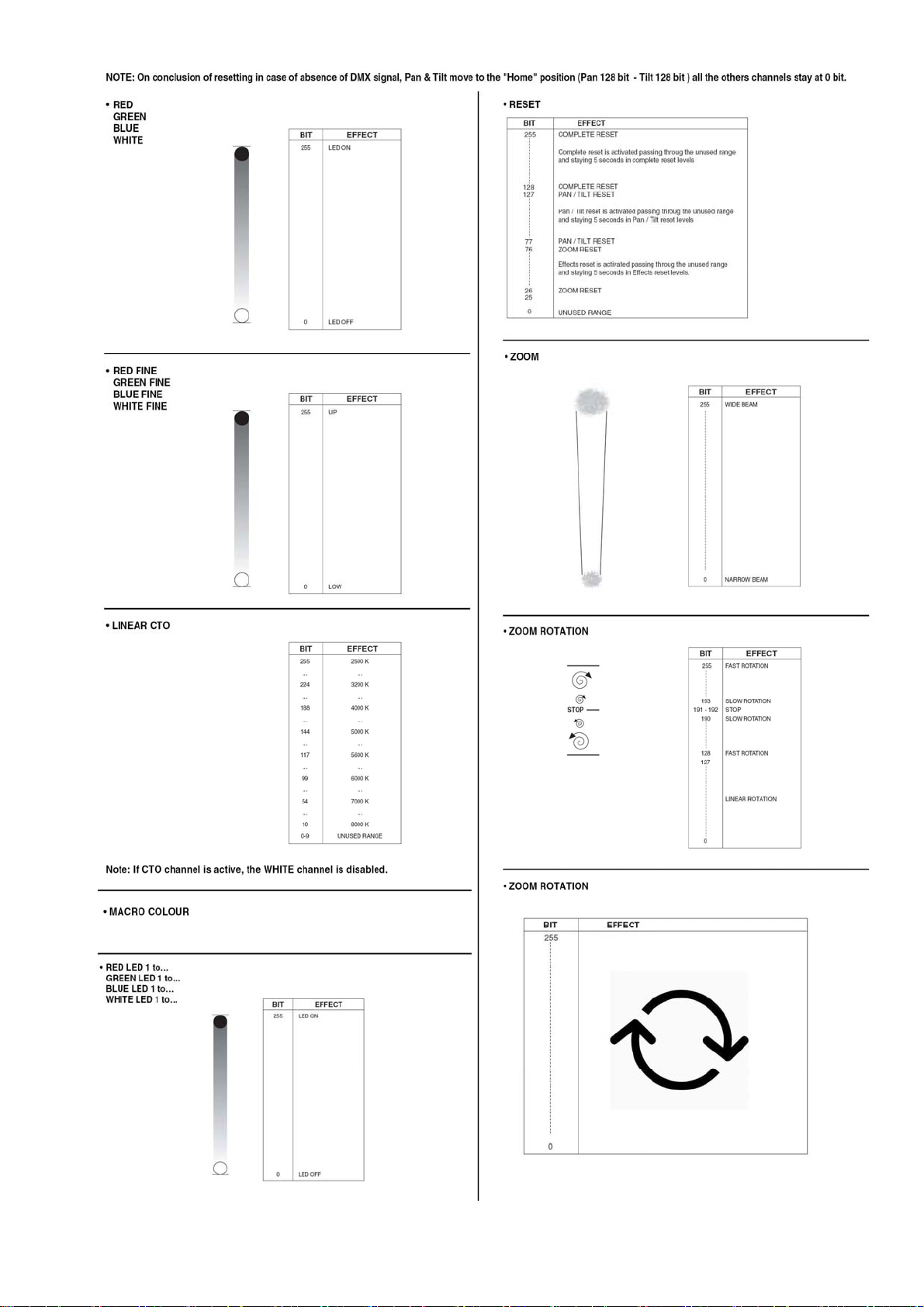

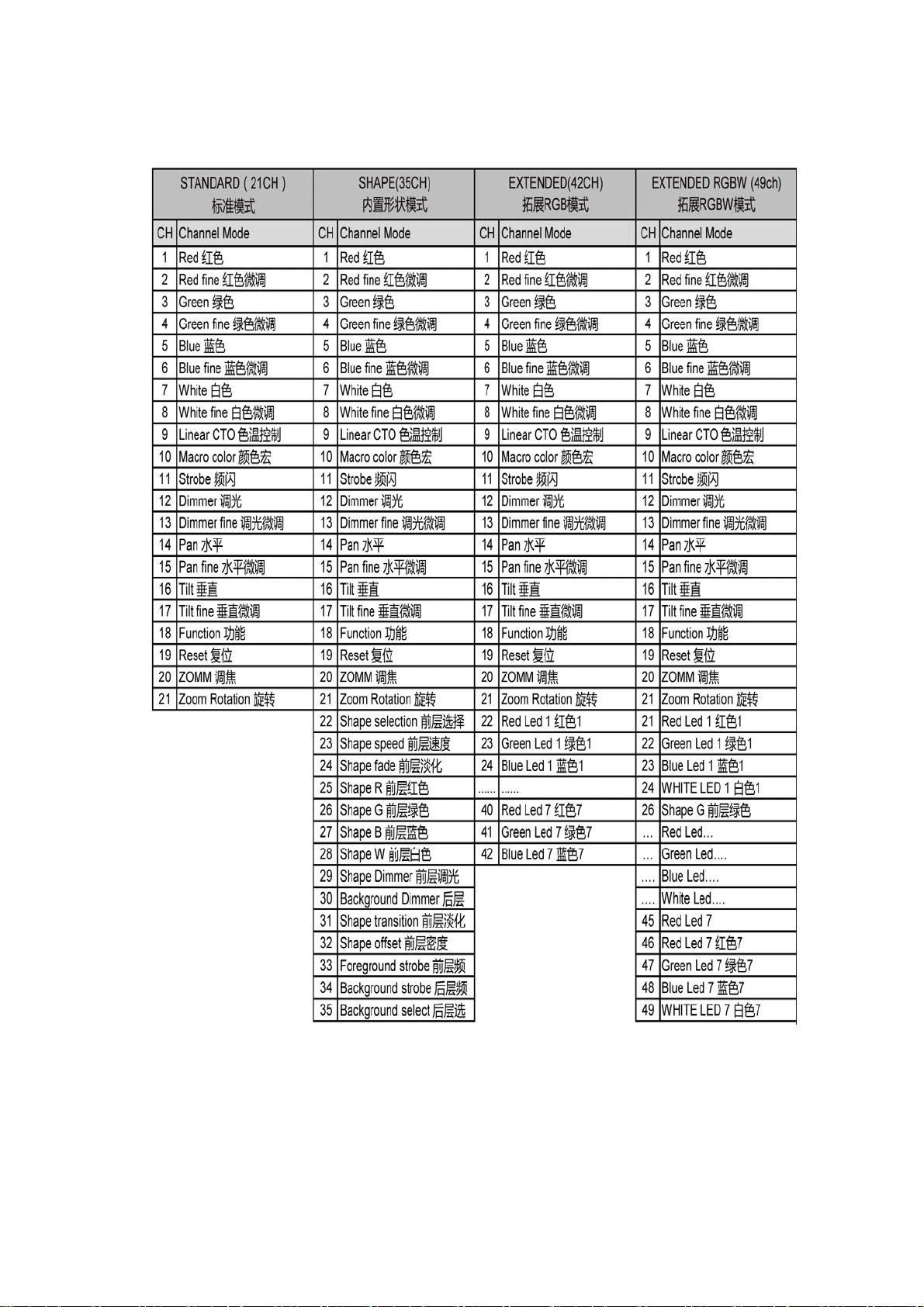

DMX Channels

13

14

15
SHAPEMODEDESCRIPTION
CONCEPTS: FOREGROUND AND BACKGROUND
The powerful shapes engine embedded in the LiteLEES Big-EYE L10 ROTATION and L10 EASY allows the user to
set all the possible parameters relating to the pixels of the light in an organic way, with a distinction between the
pixels affected by a selected "image" and the ones that are not affected by that specific image (more properly called
SHAPE from now on).
SHAPE PARAMETERS DESCRIPTION
Note:
Foreground Shape Effect:
Shapes will be available while (Dimmer CH12),(Strobe CH11), (Shape dimmer CH29), (Foreground strobe CH33),
(Shape color CH25/26/27/28) turned on then selecting the Shapes on (Shape Selection CH22) with different speed
on (Shape Speed CH23).
Background Effect: Meanwhile the (BG dimmer CH30), (BG strobe CH34), (Color RGBW CH1/3/5/7) turned on.
(CH value mentioned above is based on SHAPE MODE L10Rotation)
Vortex effect: With Shape slot 3(Ring 2 on Shape Selection Value 10) and Zoom rotation turned on.
SHAPE SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT
SHAPE
SELECTION Each shape can be composed of a multitude of frames or be a single, static image.
SHAP
E
SPEED
A
llows to set the speed at which the different frames of the selected shape are played by the unit.
SHAP
E
FAD
E
In case of shapes with multiple frames, it allows to select a snap or faded variation from frame to
frame of the same shape.
SHAPE RGBW
A
llows to select the colour of the pixels composing the selected shape, if all are left at 000 no
shape will be visualized (unless the background dimmer and normal RGBW attributes of the unit
are given a value, in which case a "negative" of the macro will be shown)
SHAPE
DIMMER
A
llows to select the overall brightness of the pixels involved in the selected shape.
BACKGROUND
DIMMER
A
llows to select the overall brightness of the pixels NOT involved by the selected shape.
The relevant colour is set using the normal RGBW channels of the wash light.
SHAPE
TRANSITION Internal fade time between a shape and another one set via DMX. Using this "channel" when you change from a shape to a different one as if it was the console fade time will avoid the scrolling
effect normally visible when having fades between eg. gobo changes is traditional lights. Fade
time on the console should be set to 0.
SHAPE OFFSET Depending on the selected shape the channel sets the "density" of the involved pixels (few
random pixel, many random pixels) or enables an internal algorithm that will distribute the macro
between a multitude of lights on a specific DMX line basing on their DMX starting address.
FOREGROUND
STROBE
A
llows to set a strobe rate for the pixels involved in a macro.
BACKGROUND
STROBE
A
llows to set a strobe rate for the pixels NOT involved in a macro.
BACKGROUND
SELECT
A
llows to reduce, if needed, the background to a lower amount of "rings".

16
SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT
Shape
Selection Shape Slot Shape Name
Rando
m
Colors
*
1
Shape Speed Shape Offset Shape Fade Background
Select(*3)(*4)
0-7 Macro OFF No No No No
8 1 Pixel 1
No
0-63 = STOP, indexed speed
64-158 = max to min speed,
c.cw rotation.
159-160 = STOP.
161-255 = min to max speed
cc
rotation.
0=snap
effect
1-255=Fade
effect
0-7 = wash
8-15 = background
rings
selection
16-254 = wash
255 = Mirror effet
with background
color
Note: Mirror effect
unavailable for
macro 31.
Macro 67,68,69:the
mirror effect is
available only for
options 1,3,9
9 2 Ring 2
10
11
12
13
14
15 3Size change Yes
16 4One outer loop Yes
17 5Two outer loop Yes
18 6Double abreast Yes
19 7Single scan Yes
20 8Slices scan Yes
21 9Rainbow1 N0
22 10 Rainbow2 N0
23 11 Outer ring
segmentation Yes
24 12 Two segment
jump Yes
25 13 Clock
No
26 14 Arc
27 15 Fan1
28 16 Fan2
29 17 Single random
scan Yes

17
Shape
Selection Shape
Slot Shape Name Random
Colors *1 Shape Speed Shape Offset Shape Fade Background
Select
(*3)(*4)
30 18 Lap Yes
0-63 = STOP, indexed
speed
64-158 = max to min
speed,
c.cw rotation.
159-160 = STOP.
161-255 = min to max
speed cc
rotation.
0=snap effect
1-255=Fade
effect
0-7 = wash
8-15 = Bkgnd
rings
selection
16-254 =
wash
255 = Mirror
effect with
background
rings
selection
color
Note: Mirror
effect
unavailable
for macro 31.
Macro
67,68,69:the
mirror effect
is available
only for
options 1,3,9
31 19 Left/Right
scrolling bar No
32 20 Mirror pixel N0
33
34
35 21 Following pixel Yes
36 22 Wing N0
37 23 Vertical pixel
scrollin
g
Yes
38 24 Vertical double
switching Yes
39 25 Fan3 N0
40 26 Banner and outer
ring switching Yes
41
42
43
44 27 Double star
inclined to jump Yes
45 N0
46 Yes
47
N0
48
49 28 Concave and
convex
A
rc
50
