SE-601 MANUAL
DC GROUND-FAULT MONITOR
REVISION 2-C-073123
Copyright © 2023 by Littelfuse Startco
All rights reserved.
Document Number: PM-1000-EN

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
i
This page intentionally left blank.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
ii
TABLE OF CONTENTS
SECTION PAGE
1 General..................................................................... 1
2 Operation................................................................. 1
2.1 Configuration-Switch Settings.................................. 1
2.1.1 Relay Operating Mode.................................. 1
2.1.2 Reset Mode.................................................... 1
2.2 Front-Panel Controls................................................. 1
2.2.1 Ground-Fault Trip Level............................... 1
2.2.2 Ground-Fault Trip Time................................ 1
2.2.3 Reset.............................................................. 1
2.2.4 Test................................................................ 1
2.3 Front-Panel Indication .............................................. 3
2.3.1 Power.............................................................. 3
2.3.2 Trip .................................................................3
2.4 Analog Output........................................................... 3
2.5 Self Diagnostics ........................................................ 3
3 Installation ............................................................... 3
3.1 SE-601....................................................................... 3
3.2 Ground-Reference Modules...................................... 3
4 SE-601 Compatibility ............................................. 9
5 Technical Specifications ....................................... 10
5.1 SE-601.....................................................................10
5.2 Ground-Reference Modules.................................... 11
5.2.1 General ......................................................... 11
5.2.2 Small-Format Ground-Reference
Modules........................................................12
5.2.3 Medium-Format Ground-Reference
Modules........................................................12
5.2.4 Large-Format Ground-Reference
Modules........................................................13
6 Ordering Information...........................................13
7 Warranty ...............................................................14
8 Ground-Fault Performance Test.........................14
Appendix A SE-601 Revision History......................... 16
LIST OF FIGURES
FIGURE PAGE
1 SE-601 Outline and Mounting Details......................2
2 Typical Connection Diagram ....................................3
3 SE-GRM-Series Ground-Reference Modules –
24 to 125 V................................................................4
4 SE-GRM-Series Ground-Reference Modules –
250 to 600 V..............................................................5
5 SE-GRM-Series Ground-Reference Modules –
780 to 1,500 V...........................................................6
6 PMA-55 Panel-Mount Adapter.................................7
7 PMA-60 Panel-Mount Adapter.................................8
8 PGA-0500 Analog Percent Current Meter..............9
9 Ground-Fault Test Circuit..................................... 14
10 System Ground-Fault Test...................................15
LIST OF TABLES
TABLE PAGE
1 SE-601 Trip Levels and Fault-Resistance Values.....1
2 Trip-Features Comparison.........................................9
3 Ground-Fault-Test Record ..................................... 15
DISCLAIMER
Specifications are subject to change without notice.
Littelfuse is not liable for contingent or consequential
damages, or for expenses sustained as a result of incorrect
application, incorrect adjustment, or a malfunction.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
iii
This page intentionally left blank.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
1
1. GENERAL
The SE-601 is a microprocessor-based ground-fault
monitor for ungrounded dc systems. Its output relay can
operate in the fail-safe or non-fail-safe mode for
undervoltage or shunt-trip applications. The SE-601 has
one output relay with isolated normally open and normally
closed contacts for use in independent control circuits.
Additional features include LED power and faulted-bus
indication, autoreset or latching trips with front-panel and
remote reset, trip memory, test button, self diagnostics,
0- to 5-V analog output, and digital selector switches. The
SE-601 can be DIN-rail, surface, or panel mounted.
Ground-fault current is sensed using an SE-GRM-series
Ground-Reference Module—a resistor network that limits
ground-fault current to 25 mA. The trip level of the ground-
fault circuit is selectable from 1 to 20 mA. Trip time is
selectable from 0.05 to 2.5 s.
2. OPERATION
2.1 CONFIGURATION-SWITCH SETTINGS
See Fig. 1.
2.1.1 RELAY OPERATING MODE
Switch 1 is used to set the operating mode of the output
relay. In the fail-safe mode, the output relay energizes when
the SE-601 is energized and the ground-fault circuit is not
tripped. If tripped, and the supply voltage is cycled, the
SE-601 will remain tripped, with the trip relay de-energized
and a TRIP LED on, until reset.
In the non-fail-safe mode, the output energizes when a
ground-fault trip occurs. In the non-fail-safe mode, trip
status is not retained in non-volatile memory.
2.1.2 RESET MODE
Switch 2 is used to select autoreset or latching trips. See
Section 2.2.3.
2.2 FRONT-PANEL CONTROLS
2.2.1 GROUND-FAULT TRIP LEVEL
The LEVEL (mA) selector switch is used to set the
ground-fault trip level.
Ground-fault current is a function of fault resistance,
system voltage, and the SE-GRM-series Ground-Reference
Module. Table 1 lists the SE-601 trip levels and fault-
resistance values for 24-, 48-, 125-, 250-, 500-, 780-, 1000-,
and 1500-Vdc systems.
2.2.2 GROUND-FAULT TRIP TIME
The SE-601 has a definite-time trip characteristic. The
TIME (s) selector switch is used to set the ground-fault trip
time.
2.2.3 RESET
If the Reset Mode switch is in the LATCHING position,
a trip remains latched until the RESET button is pressed or
the remote-reset terminals (6 and 7) are momentarily
connected. In the non-fail-safe mode, cycling the supply
voltage will also reset the SE-601.
If the Reset Mode switch is in the AUTORESET
position, a trip will reset when the fault is removed.
The reset circuit responds only to a momentary closure so
that a jammed or shorted button will not prevent a trip. The
front-panel RESET button is inoperative when remote-reset
terminals are connected.
2.2.4 TEST
The TEST button is used to test the ground-fault circuit,
trip indication, and the output relay. When the TEST button
is pressed for one second, a test signal is applied to the
ground-fault-detection circuit, the circuit will trip, both
“-BUS”and “+BUS” TRIP LED’s will light, and the output
relay will operate.
TABLE 1. SE-601 TRIP LEVELS AND FAULT-RESISTANCE VALUES
FAULT RESISTANCE (k)
TRIP
LEVEL
(mA)
24-Vdc
SYSTEM
SE-GRM024
48-Vdc
SYSTEM
SE-GRM048
125-Vdc
SYSTEM
SE-GRM125
250-Vdc
SYSTEM
SE-GRM250
500-Vdc
SYSTEM
SE-GRM500
780-Vdc
SYSTEM
SE-GRM780
1000-Vdc
SYSTEM
SE-GRM1000
1500-Vdc
SYSTEM
SE-GRM1500
1
2
3
4
5
6
8
10
15
20
11.5
5.5
3.5
2.5
1.9
1.5
1.0
0.7
0.3
0.1
22.3
11.0
7.0
5.0
3.8
3.0
2.0
1.4
0.6
0.2
60.0
28.7
18.3
13.1
10.0
7.9
5.3
3.7
1.6
0.6
120.0
57.5
36.6
26.2
20.0
15.8
10.6
7.5
3.3
1.2
240.0
115.0
73.3
52.5
40.0
31.7
21.3
15.0
6.7
2.5
374.2
179.2
114.2
81.7
62.2
49.2
32.9
23.2
10.2
3.7
480.0
230.0
146.7
105.0
80.0
63.3
42.5
30.0
13.3
5.0
715.0
340.0
215.0
152.5
115.0
90.0
58.8
40.0
15.0
2.5

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
2

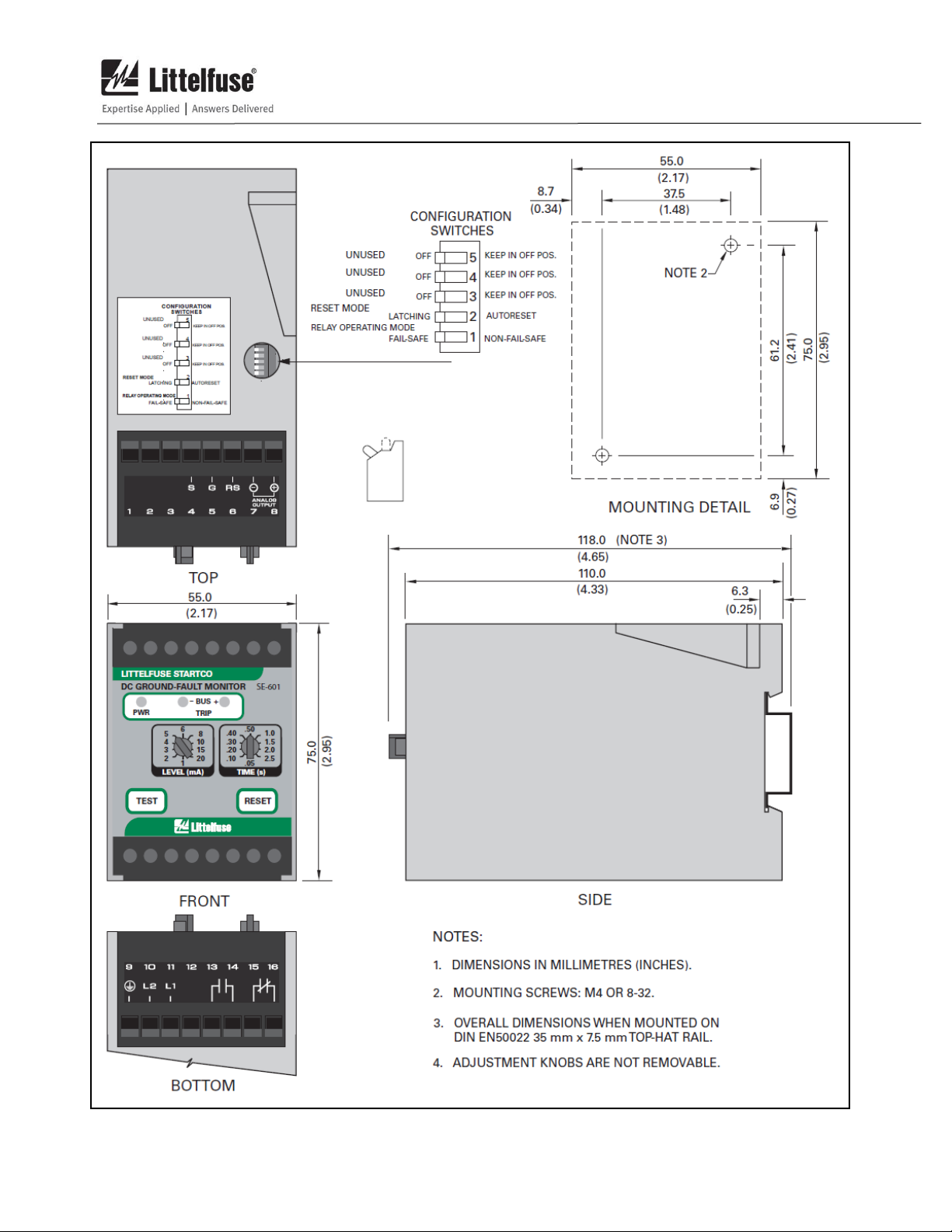

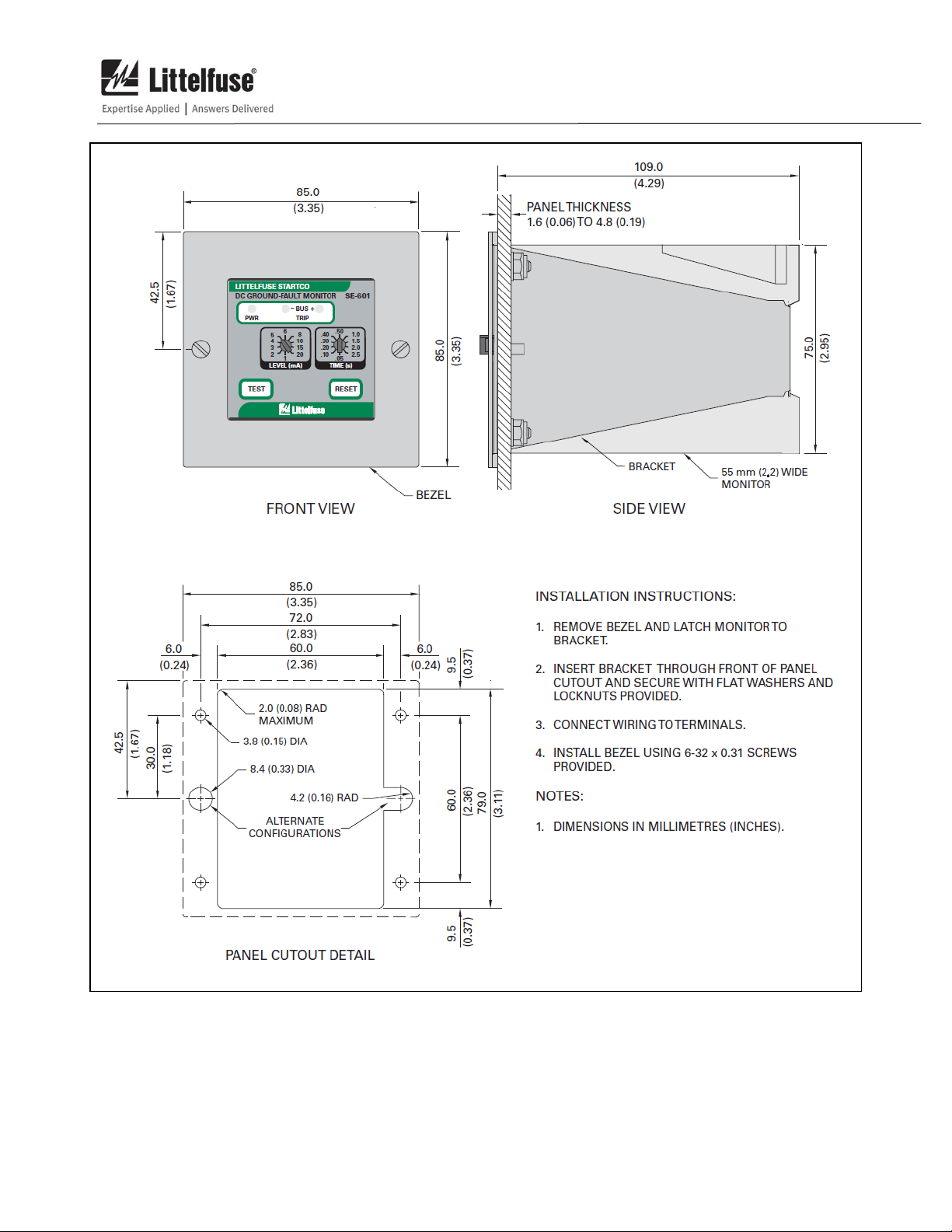

FIGURE 1. SE-601 Outline and Mounting Details.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
3
2.3 FRONT-PANEL INDICATION
2.3.1 POWER
The green LED labelled PWR indicates presence of the
supply voltage.
2.3.2 TRIP
The red TRIP LED's indicate a ground-fault trip. The
“-BUS” TRIP LED indicates a ground fault on the negative
dc bus. The “+BUS” TRIP LED indicates a ground fault on
the positive dc bus. Two fast flashes indicate a diagnostic
trip. See Section 2.5
2.4 ANALOG OUTPUT
The non-isolated, 0- to 5-V analog output indicates
ground-fault current. The output is 5 V when ground-fault
current is 20 mA. Use a PGA-0500 Analog Percent Current
Meter with the PGA-05CV Voltage Converter to indicate
ground-fault current. See Figs. 2 and 8.
2.5 SELF DIAGNOSTICS
A diagnostic trip is indicated by two fast flashes of the
TRIP LED’s. It can be caused by a diagnostic problem
detected by an incorrect reading from non-volatile memory.
Press RESET or cycle supply voltage. If problems persist,
contact Littelfuse.
3. INSTALLATION
3.1 SE-601
An SE-601 can be surface or DIN-rail mounted. See
Fig. 1. Panel mounting requires a PMA-55 or PMA-60
Panel-Mount Adapter. See Figs. 6 and 7.
Connect the SE-601 DC Ground-Fault Monitor and
SE-GRM-series Ground-Reference Module as shown in
Fig. 2.
Remove the connection to terminals 5 and 9 for
dielectric-strength testing—all inputs and outputs have
ANSI/IEEE C37.90 surge-protection circuits that conduct
above 300 Vac.
3.2 GROUND-REFERENCE MODULES
Outline and mounting dimensions for the SE-GRM-series
Ground-Reference Modules are provided in Figs. 3, 4, and
5.
Ground-Reference Modules dissipate heat during normal
operating conditions and when a ground fault is present. An
additional heat sink may be required. See Section 5.2 for
details. When using an additional heat sink, apply thermal
compound (silicone grease) to the Ground-Reference
Module’s mounting surface, then securely fasten it to the
heat sink surface.
FIGURE 2. Typical Connection Diagram.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
4

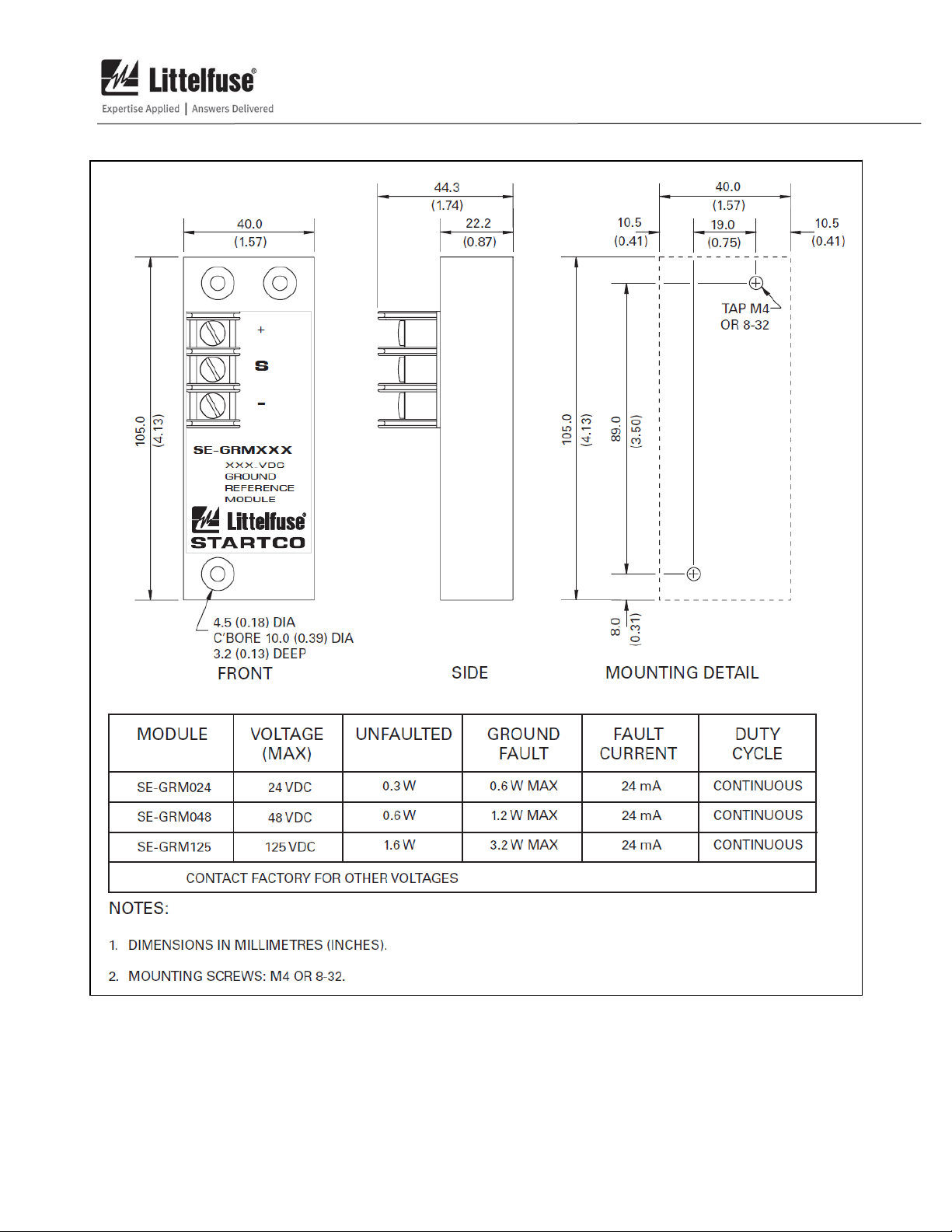

FIGURE 3. SE-GRM-Series Ground-Reference Modules –24 to 125 V.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
5
FIGURE 4. SE-GRM-Series Ground-Reference Modules –250 to 600 V.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
6

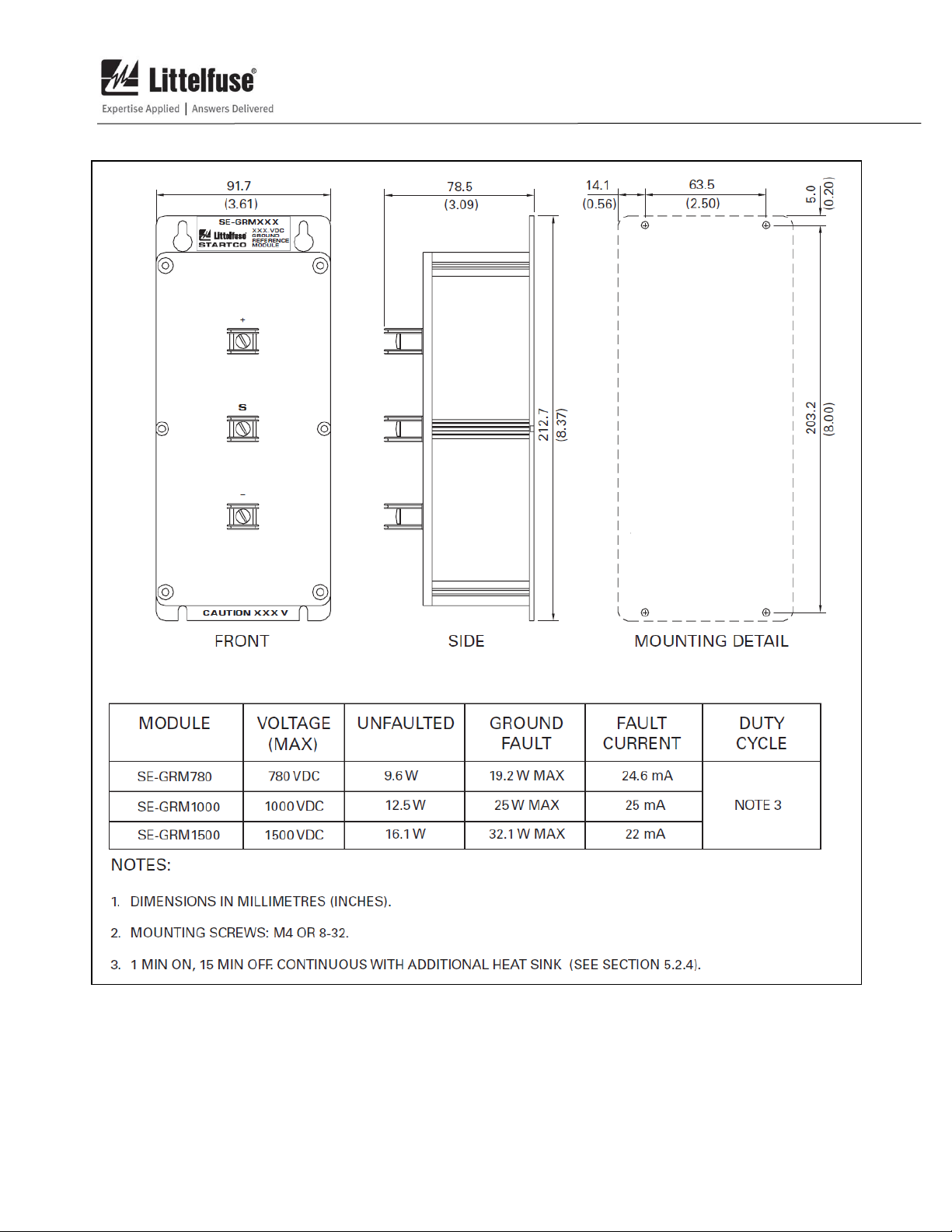

FIGURE 5. SE-GRM-Series Ground-Reference Modules –780 to 1,500 V.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
7
FIGURE 6. PMA-55 Panel-Mount Adapter.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
8
FIGURE 7. PMA-60 Panel-Mount Adapter.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
9
FIGURE 8. PGA-0500 Analog Percent Current Meter.
4. SE-601 COMPATIBILITY
The SE-601 has been enhanced with the addition of
non-volatile trip memory for the fail-safe relay operating
mode. Prior to hardware revision 01, a mechanical flag
was used instead of non-volatile memory. The current
revision of the SE-601 can directly replace previous
revision-00 units. The hardware-revision number is
listed on the SE-601 model/serial-number label affixed to
the SE-601 enclosure. Both generations are compared in
Table 2.
TABLE 2. TRIP-FEATURES COMPARISON
HARDWARE REVISION
00
01
LED trip indication
Yes
Yes
Mechanical flag trip indication
Yes
No
Non-volatile trip memory
No
Yes
Device state after supply voltage cycled
when tripped (ground-fault removed)
Fail-safe
Trip LED: Off
Trip relay: Energized
Trip flag: Red
Trip LED: On
Trip relay: De-energized
Non-fail-safe
Trip LED: Off
Trip relay: De-energized
Trip flag: Red
Trip LED: Off
Trip relay: De-energized

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
10
5. TECHNICAL SPECIFICATIONS
5.1 SE-601
Supply:
0U Option ........................... 5 VA, 120 to 240 Vac
(+20, -55%), 50/60 Hz,
2 W, 100 to 240 Vdc
(+20, -25%)
0D Option ........................... 2 W, 12 to 30 Vdc
(+20, -25%)
0T Option............................ 2 W, 40 to 55 Vdc
(+20, -25%)
Trip-Level Settings .....................1, 2, 3, 4, 5, 6, 8, 10, 15,
and 20 mA
Trip-Time Settings ................... 0.05, 0.10, 0.20, 0.30,
0.40, 0.50, 1.0, 1.5, 2.0,
and 2.5 s
Accuracies: (1)
Trip Level..............................5% of setting,
0.15 mA minimum
Trip Time (2) ..........................5% of setting,
15 ms minimum
Trip Mode ...................................Latching or Autoreset
Analog Output:
Range ....................................0 to 5 V, 0.25 V per mA
Output Impedance.................220 
Reset............................................Front-Panel Button and
Remote, N.O. Momentary
Contact
Functional Test ...........................Front-Panel Button
Relay Contacts:
Configuration .......................Isolated N.O. and N.C.
Operating Mode ....................Fail-Safe or Non-Fail-
Safe
CSA/UL Rating ...................8 A resistive, 250 Vac
8 A resistive, 30 Vdc
0.25 HP, 120/240 Vac
Supplemental Contact Ratings:
Carry Current ................... 8 A, maximum
Break:
30 Vdc........................... 240 W Resistive,
170 W Inductive
(L/R = 7 ms)
120 Vdc......................... 24 W Resistive,
17 W Inductive
(L/R = 7 ms)
ac ...................................2,000 VA Resistive,
875 VA Inductive
(PF = 0.4)
(Subject to maximums of 8 A and 250 Vac/
30 Vdc or 200 mA at 120 Vdc)
Terminals..................................Wire-clamping 24 to
12 AWG (0.2 to
3.3 mm2) conductors
Tightening Torque .................0.40 N·m (3.54 lbf·in)
Dimensions:
Height....................................75 mm (3.0”)
Width.....................................55 mm (2.2”)
Depth.....................................113 mm (4.5”)
Shipping Weight .........................0.45 kg (1 lb)
Environment:
Operating Temperature:
Altitude:
≤1,000 m (3,281’) ..........-40 to 60C (-40 to 140°F)
3,000 m (9,843’) .............-40 to 55C (-40 to 131°F)
5,000 m (16,404’) ...........-40 to 50C (-40 to 122°F)
Storage Temperature.............-55 to 80C (-67 to 160°F)
Humidity ...............................85% Non-Condensing
Altitude .................................5,000 m (16,404’)
maximum
PWB Conformal Coating ...........MIL-1-46058 qualified
UL QMJU2 recognized
Vibration .....................................EN60255-21-1
(Vibration, Shock, and
Seismic)
EN60255-21-2 (Shock
and Bump)
EMC Tests:
Verification tested in accordance with EN 60255-
26:2013.
Radiated and Conducted
Emissions............................CISPR 11:2019,
CISPR 32:2019
Current Harmonics and
Voltage Fluctuation.............IEC 61000-3-2 and
IEC 61000-3-3
Class A
Electrostatic Discharge........IEC61000-4-2
± 6 kV contact discharge
(direct and indirect)
± 8 kV air discharge
Radiated RF Immunity........IEC61000-4-3

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
11
10 V/m, 80-1000 MHz,
80% AM (1 kHz)
10 V/m, 900 MHz,
200 Hz pulse modulated
Fast Transient......................IEC61000-4-4
4 kV on AC mains and
I/O lines
Surge Immunity .................. IEC 61000-4-5
Zone B
± 1 kV differential mode
± 2 kV common mode
Surge Withstand ................. IEEE C37.90.1:2012
Conducted RF Immunity ....IEC61000-4-6
10 V, 0.15-80 MHz,
80% AM (1 kHz)
Magnetic Field Immunity ...IEC61000-4-8
50 Hz and 60 Hz , 30 A/m
and 300 A/m
Voltage Interruption............IEC61000-4-11,
IEC61000-4-29,
0% for 5, 10, 20, 50,
100 & 200 ms 3x each
Power Frequency................IEC 61000-4-16
Zone A: differential
mode 150 Vrms
Zone A: common mode
300 Vrms
1 MHz Burst .......................IEC 61000-4-18
± 1 kV differential mode
(line-to-line)
± 2.5 kV common mode
RFI Compliance ..................FCC Part 15, Subpart B,
Class A –Unintentional
Radiators
Certification ................................CSA, Canada and USA
UL Listed
Australia
FCC
CE, European Union
CSA C22.2 No.14 Industrial Control Equipment
UL508 Industrial Control Equipment
UL1053 Ground Fault Sensing and Relaying Equipment
Australia, Regulatory Compliance Mark (RCM)
CE Low Voltage Directive
EN 61010-1:2010/AMD1:2016/COR1:2019
FCC CFR47, Part 15, Subpart B,
Class A –Unintentional Radiators
NOTES:
(1) Over operating temperature range of -40 to 60C (-40
to 140°F).
(2) Trip time at 3 × trip-level setting.
5.2 GROUND-REFERENCE MODULES
5.2.1 General
Nominal Current .........................12.5 mA
Maximum Fault Current at
Nominal Voltage .................25 mA
Maximum Voltage......................110% of nominal voltage
Terminals..................................22 to 12 AWG (0.33 to
3.3 mm2) conductors
Screw Details.........................#6-32, Stainless Steel
Tightening Torque .................1.01 N·m (9.0 lbf·in)
Environment:
Operating Temperature .......−40 to 60C (-40 to
140°F). Review specific
Ground Reference
Modules for additional
deratings if necessary.
Storage Temperature...........−55 to 80C (-67 to
160°F)
Humidity ...............................85% Non-Condensing

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
12
Certification ................................UL Recognized, E328654
Australia
FCC
CE, European Union
UL508 Industrial Control Equipment
UL1053 Ground Fault Sensing and Relaying Equipment
Australia, Regulatory Compliance Mark (RCM)
CE Low Voltage Directive
EN 61010-1:2010 (3rd Edition) + AMD1:2016 +
Corrigendum1:2019
FCC CFR47, Part 15, Subpart B,
Class A –Unintentional Radiators
5.2.2 Small-Format Ground-Reference Modules
Duty Cycle and Derating:
Continuous Duty Cycle:
Maximum Temp ........... 60C (140°F)
No derating required
SE-GRM024:
Power Dissipation
At 24 Vdc.......................... Unfaulted 0.3 W,
Ground Fault 0.6 W
maximum
Shipping Weight .................. 300 g (0.7 lb)
SE-GRM048:
Power Dissipation
At 48 Vdc.......................... Unfaulted 0.6 W,
Ground Fault 1.2 W
maximum
Shipping Weight .................. 300 g (0.7 lb)
SE-GRM125:
Power Dissipation
At 125 Vdc.........................Unfaulted 1.6 W,
Ground Fault 3.2 W
maximum
Shipping Weight ...................300 g (0.7 lb)
5.2.3 Medium-Format Ground-Reference Modules
Duty Cycle and Derating:
Continuous Duty Cycle:
Maximum Temp............50C (122°F)
Minimum Backplate......127 x 191 x 1.58 mm (5
x 7.5 x 0.062 in.)
Aluminum
Limited Duty Cycle:
Duty Cycle ....................1 minute on, 15 minutes
off
Maximum Temp............60C (140°F)
Minimum Backplate......76 x 105 x 1.58 mm (3 x
4.1 x 0.062 in.)
Aluminum
SE-GRM250:
Power Dissipation
At 250 Vdc.........................Unfaulted 3.1 W,
Ground Fault 6.3 W
maximum
Shipping Weight ...................500 g (1.6 lb)
SE-GRM300:
Power Dissipation
At 300 Vdc.........................Unfaulted 3.6 W,
Ground Fault 7.2 W
maximum
Shipping Weight ...................500 g (1.6 lb)
SE-GRM400:
Power Dissipation
At 400 Vdc.........................Unfaulted 4.4 W,
Ground Fault 8.9 W
maximum
Shipping Weight ...................500 g (1.6 lb)
SE-GRM500:
Power Dissipation
At 500 Vdc.........................Unfaulted 6.3 W,
Ground Fault 12.5 W
maximum
Shipping Weight ...................500 g (1.6 lb)
SE-GRM600:
Power Dissipation
At 600 Vdc.........................Unfaulted 7.2 W,
Ground Fault 14.4 W
maximum
Shipping Weight ...................500 g (1.6 lb)

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
13
5.2.4 Large-Format Ground-Reference Modules
Duty Cycle and Derating:
Continuous Duty Cycle:
Maximum Temp ........... 50C (122°F)
Minimum Backplate...... 305 x 483 x 3.18 mm (12
x 19 x 0.125 in.)
Aluminum
Limited Duty Cycle:
Duty Cycle .................... 1 minute on, 15 minutes
off
Maximum Temp ........... 60C (140°F)
Minimum Backplate...... 110 x 235 x 3.18 mm
(4.3 x 9.3 x 0.125 in.)
Aluminum
SE-GRM780:
Power Dissipation
At 780 Vdc.........................Unfaulted 9.6 W,
Ground Fault 19.2 W
maximum
Shipping Weight ...................2.1 kg (4.5 lb)
SE-GRM1000:
Power Dissipation
At 1000 Vdc.......................Unfaulted 12.5 W,
Ground Fault 25.0 W
maximum
Shipping Weight ...................2.1 kg (4.5 lb)
SE-GRM1500:
Power Dissipation
At 1500 Vdc.......................Unfaulted 16.1 W,
Ground Fault 32.1 W
maximum
Shipping Weight ...................2.1 kg (4.5 lb)

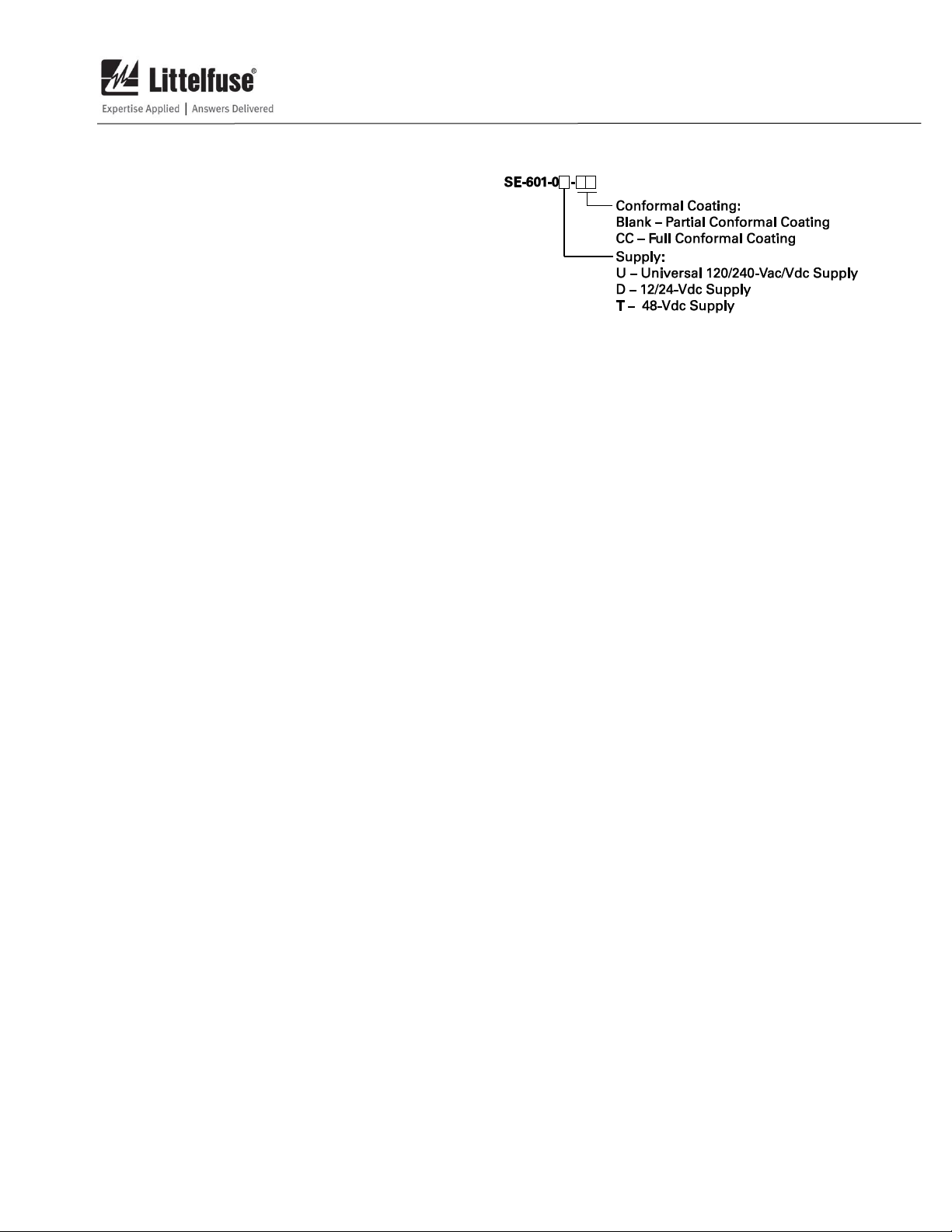

6. ORDERING INFORMATION
SE-GRM024....... Ground-Reference Module for 24-Vdc
system
SE-GRM048....... Ground-Reference Module for 48-Vdc
system
SE-GRM125....... Ground-Reference Module for 125-Vdc
system
SE-GRM250....... Ground-Reference Module for 250-Vdc
system
SE-GRM300....... Ground-Reference Module for 300-Vdc
system
SE-GRM400....... Ground-Reference Module for 400-Vdc
system
SE-GRM500 ....... Ground-Reference Module for 500-Vdc
system
SE-GRM600....... Ground-Reference Module for 600-Vdc
system
SE-GRM780(1) .... Ground-Reference Module for 780-Vdc
system
SE-GRM1000(1) .. Ground-Reference Module for 1000-Vdc
system
SE-GRM1500(1) .. Ground-Reference Module for 1500-Vdc
system
Consult factory for other ground-reference modules.
PGA-0500........... Analog Percent Current Meter, 0 to
100% range (PGA-05CV included)
PMA-55 ............. Panel-Mount Adapter NEMA 1
PMA-60 ..............Panel-Mount Adapter, NEMA 3, IP53.
Includes two TR20 tamper-resistant
Torx screws and two thumb screws.
NOTES:
(1) Add suffix -01 for CE certification only (will not
include UL certification).

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
14
7. WARRANTY
The SE-601 DC Ground-Fault Monitor and associated
SE-GRM Ground-Reference Module is warranted to be
free from defects in material and workmanship for a
period of five years from the date of purchase.
Littelfuse will (at Littelfuse’s option) repair, replace,
or refund the original purchase price of an SE-601 that is
determined by Littelfuse to be defective if it is returned
to the factory, freight prepaid, within the warranty
period. This warranty does not apply to repairs required
as a result of misuse, negligence, an accident, improper
installation, tampering, or insufficient care. Littelfuse
does not warrant products repaired or modified by non-
Littelfuse personnel.
8. GROUND-FAULT PERFORMANCE TEST
A test record form is provided for recording the date
and the final results of the performance tests. The
following ground-fault system test is to be conducted by
qualified personnel.
a) Evaluate the interconnected system in accordance
with the overall equipment manufacturer’s detailed
instructions.
b) Verify proper reaction of the device in response to a
simulated or complete system test.
c) To simulate a ground fault, power down the entire
system and remove the connection to terminal 4 (S).
Ensure that terminal 5 is connected to ground. Using
a 24 Vdc source, 50 kΩvariable resistor, fixed 1 kΩ
resistor, and an ammeter, connect the circuit as
shown in Fig. 9. Select a trip current on the SE-601,
and slowly vary the resistance until the monitor trips.
Never exceed 30 mA through the monitor.
d) For a system ground-fault test, install a fixed or
variable resistance and switch that is suitably rated
for the system. Install a fuse rated to protect the test
circuit. The fixed test resistance can be sized to
cause a ground-fault current just above the trip level
setting. See Fig. 10. For a reference of fault-
resistance values, see Table 1.
e) Record the date and the results of the test on the
attached test record form.
FIGURE 9. Ground-Fault Test Circuit.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
15
FIGURE 10. System Ground-Fault Test.
TABLE 3. GROUND-FAULT-TEST RECORD
DATE
TEST RESULTS
Retain this record for the authority having jurisdiction.

SE-601 DC Ground-Fault Monitor
Rev. 2-C-073123
16
APPENDIX A
SE-601 REVISION HISTORY
MANUAL
RELEASE DATE
MANUAL
REVISION
PRODUCT REVISION
(REVISION NUMBER ON PRODUCT LABEL)
July 31, 2023
2-C-073123
03
July 30, 2014
2-B-073014
April 19, 2013
2-A-041913
MANUAL REVISION HISTORY
REVISION 2-C-073123
SECTION 5
Added GRM1500 Ground Reference Module.
Added UL certification for Ground Reference Modules.
REVISION 2-B-073014
SECTION 5
Updated to include altitude and vibration specifications.
SECTION 8
Ground-fault performance test added.
APPENDIX A
Revision history updated.
REVISION 2-A-041913
SECTION 3
Fig. 2 updated to include PGA-05CV.
SECTION 5
Environment section updated to include Fahrenheit temperature range. SE-601 dimensions added.
APPENDIX A
Revision history added.
PRODUCT REVISION HISTORY
REVISION 03
Firmware: Improved operation of front-panel test button.
