Little Wonder BRC-26 Hydro Programming manual

MAN 4169445 Rev A. 06-2013 Original Language Instructions
LITTLE WONDER
OPERATOR / PARTS MANUAL
®
BRC-26 HYDRO
26” LITTLE WONDER BRUSH CUTTER
MODELS:
5126-22-01 HONDA GX390
(S/N 00486 and Above)
5126-32-20 HONDA GX390 HD
(S/N 00107 and Above)
5126-21-03 B&S 12.5

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some
of its constituents are known to the
State of California to cause cancer,
birth defects and other reproductive
harm.
WARNING
The engine exhaust from this product
containschemicalsknowntotheState
of California to cause cancer, birth
defects or other reproductive harm.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

3
BRUSH CUTTER
04-2013
TABLE OF CONTENTS FIGURES PAGE
SAFETY.........................................................................................................................................................4-8
LABELS.......................................................................................................................................................9-10
SET-UP INSTRUCTIONS / CONTROLS........................................................................................................11
OPERATION .............................................................................................................................................12-13
MAINTENANCE ........................................................................................................................................14-16
ADJUSTMENTS .......................................................................................................................................17-19
BELT REPLACEMENT...................................................................................................................................20
STORAGE......................................................................................................................................................21
TROUBLESHOOTING ..............................................................................................................................22-23
SPECIFICATIONS / WARRANTY ..................................................................................................................24
PARTS SECTION...........................................................................................................................................25
DRIVE ASSEMBLY..............................................FIGURE 1...................................................................26, 27
MAIN FRAME ASSEMBLY..................................FIGURE 2...................................................................28, 29
CUTTERDECK ASSEMBLY................................FIGURE 3...................................................................30, 31
HANDLE ASSEMBLY..........................................FIGURE 4...................................................................32, 33
This Operator / Parts Manual is part of the machine. Suppliers of both new and
second-hand machines must make sure that this manual is provided with the
machine.
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product, one of the best designed and
built anywhere.
This machine comes with an Operation and Safety Manual, Parts and Service Manual, and Engine Manual. The useful life and good service you
receive from this machine depends to a large extent on how well you read and understand these manuals. Treat your machine properly, lubricate
and adjust it as instructed, and it will give you many years of reliable service.
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely
on your good sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly. Learn the proper operation
of all controls. Observe all safety precautions. Follow all instructions and warnings completely. Do not remove or defeat any safety features.
Make sure those who operate this machine are as well informed and careful in its use as you are.
SeeaSchiller Grounds Care, Inc.dealerfor any service orpartsneeded. Schiller Grounds Care, Inc.serviceensures that you continuetoreceive
the best results possible from Schiller Grounds Care, Inc. products. You can trust Schiller Grounds Care, Inc. replacement parts because they
are manufactured with the same high precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this
machine only as directed in the manuals, keep it in good repair and follow safety warnings and instructions. You’ll always be glad you did.
Schiller Grounds Care, Inc.
1028 Street Road
Southampton, PA 18966-4217
PHONE [phone] • FAX [phone]

4
BRUSH CUTTER
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists
and serial tag.
SERIAL NUMBER: This number appears only
on your unit. It contains the model number fol-
lowed consecutively by the serial number. Use
this number when ordering parts or seeking war-
ranty information.
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedbySchiller
Grounds Care, Inc. Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture-including the
additionof“after-market”accessoriesorcomponent
parts not specically approved by Schiller Grounds
Care, Inc. will result in the Schiller Grounds Care,
Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care, Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care, Inc. will vigorously pursue
full indemnification and costs from any party
responsibleforsuchunauthorizedpost-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
ofhazard seriousness. These wordsappearin this
manualandonthesafetylabelsattachedtoSchiller
Grounds Care, Inc. machines. For your safety and
thesafety ofothers,readand followtheinformation
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situationwhich, if notavoided,WILL resultin death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.

5
BRUSH CUTTER SAFETY
• Clear the area to be cut of objects such as rocks,
toys, wire or any other debris that may be thrown or
get tangled in the brush cutter.
• Be sure the area is clear of pets and people,
especially young children. Never assume they will
remain where you last saw them. Stop the machine
if any enter the area.
• Only cut in daylight or in good articial light.
• Keep in mind that the operator or user is respon-
sible for accidents or hazards occurring to other
people or their property.
• Do not cut wet grass as tires may lose traction.
OPERATOR PREPARATION AND
TRAINING
READ THE OPERATION &
SAFETY MANUAL
• If an operator or mechanic
cannot read English, it is
the owner's responsibility
to explain this material to them. If any portion
of this material is unclear, contact your factory
representative for clarication.
• Become familiar with the safe operation of the
equipment, operator controls and safety signs.
Be prepared to stop the engine quickly in an
emergency. Do not operate or allow another
person to operate this machine if there are any
questions about safety.
• All operators and mechanics should be trained. The
owner is responsible for training the users.
• Wear appropriate clothing, including safety goggles
or safety glasses with side shields when operating.
Wear substantial footwear and long pants. Do not
operate barefoot or wearing open sandals. Long
hair, loose clothing or jewelry may get tangled in
moving parts.
• Wear appropriate hearing protection.
• Wear safety glasses.
• Never allow children, unskilled or improperly trained
people to operate this equipment. Local regulations
can restrict the age of the operator.
• Do not put hands or feet near or under rotating
parts. Keep clear of the front deck opening at all
times.
• Never pick up or carry the unit while the engine is
running.
• Keep warning labels and this operator’s manual
legible and intact. Replacement labels and manuals
are available from the factory.
• Do not operate machine while under the inuence
of drugs or alcohol, or any other condition of
impairment.
• The owner/user can prevent and is responsible for
accidents or injuries occurring to themselves, other
people, or property.
SITE PREPARATION AND CIRCUMSTANCES
• Evaluate the terrain to determine how to safely
perform the job. Only use accessories and
attachments approved by the manufacturer.
MULTIPLE OPERATORS
• Keep a safe distance between operators when
working together.
MACHINE PREPARATION
• Read engine manual.
• Check operator presence interlock system. Adjust
or have any problems repaired before using.
• Damage to the engine can occur if there is no oil or
oil level is low. Check the oil level and add oil per
engine manual as necessary.
• Do not tamper with or defeat safety devices. Keep
guards, shields and interlock safety devices in place
and in proper working condition. They are for your
protection.
• Keep all fasteners such as nuts, bolts, and pins well
secured.
• Visually inspect blades, blade bolts and the cutter
assembly for wear or damage. Replace worn or
damaged blades and bolts to preserve balance.
• Verify that machine and attachments, if any, are in
good operating condition.
• Do not engage blades until ready to mow.

6
BRUSH CUTTER
OPERATING SAFELY
IN GENERAL
• Use extra care when loading or unloading the machine
into a trailer or truck.
• Use caution when making turns and crossing roads
and sidewalks. Stop blade when not cutting.
• Never operate the mower without guards, plates, or
other safety protective devices in place.
• Do not run the engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
• Never leave a machine unattended. Turn off blades,
set parking brake, and stop engine before leaving the
machine.
• Use extreme caution when reversing or pulling
machine towards you.
• Never operate the equipment in wet grass. Always be
sure of your footing; keep a rm hold on the handle
and walk; never run.
• Stop operation if someone approaches.
STARTING
• Start according to instructions in this manual or on the
machine.
• Before attempting to start the engine, make sure:
- the parking brake is on;
- the blade is disengaged;
- the traction drive is in NEUTRAL
• When starting the engine, make sure hands and feet
are clear of the blades.
• Do not engage Blade at full throttle. Throttle to idle or
lowest possible engine speed.
• Do not change engine governor settings or overspeed
the engine. Operating the engine at excessive speed
can increase the hazard of personal injury.
SAFETY
INTERRUPTING OPERATION
Before leaving the operator’s position:
-Park on level ground.
-Disengage blade.
-Set the parking brake.
-Shut off the engine and remove the key
• Disengage the blade, and wait until the blade stops
rotating:
- When not cutting.
- When crossing surfaces other than grass.
• Stop the engine, disengage the blade, set parking
brake and wait until the blade stops rotating:
- before refueling .
- before making height adjustment unless the
adjustment can be made from the operator’s
position.
• Stop the engine, disengage the blade,set parking
brake and disconnect the spark plug wire:
- before clearing blockages or unclogging;
- before checking, cleaning or working on the
machine;
- after striking a foreign object. Inspect the machine
for damage and have repairs made as needed
before restarting;
- if the machine begins to vibrate abnormally: shut
off machine immediately. Inspect and have repairs
made as needed before restarting;
- except for repairs or adjustments as specically
noted, such as for carburetor adjustment, where the
engine must be running. Keep hands and feet clear
of moving parts in these circumstances.
• Allow the blade to come to a complete stop when
stopping operation to clear blockages, unclog, inspect
the machine, do maintenance or repair.
• Reduce the throttle setting during engine shutdown
and, if the engine is provided with a shutoff valve, turn
the fuel off at the conclusion of mowing.
All rotary blade machines are potentially
dangerous.They canamputatehandsand
feet and throw objects. Failure to follow
these safety and operating instructions
could result in serious injury or death.
WARNING

7
BRUSH CUTTER SAFETY
OPERATING ON SLOPES
USE EXTRA CARE WHEN OPERATING ON
SLOPES. EVALUATETHERISKSINVOLVEDBEFORE
OPERATING ON A SLOPE
.
• Donotoperate on slopesifuneasyoruncertainabout
the machine stability. Ultimate responsibility for safe
operation on slopes rests with the operator.
• Be sure of your footing on slopes.
• With walk-behind machines, operate across slopes,
not up and down.
• Avoid starting or stopping on a slope. If wheels lose
traction, disengage the blades and proceed straight
down the slope.
• Use lower speeds and exercise caution on slopes.
• Avoidsharpturnstopreventtippingandlossofcontrol.
Useextracautionwhenchangingdirectiononslopes.
• Walk, never run.
• Be alert to dips and rises which change the general
slope. Watchforholes,rocks,roots,andotherhidden
objectsintheterrain. Keepawayfromdropoffs. Avoid
ground conditions which will cause the machine to
slide..
MAINTENANCE SAFETY
In general
• Maintain machine according to manufacturer's
schedule and instructions for maximum safety and
best results.
• Park machine on level ground.
• Never allow untrained personnel to service
machine.
• Guards should only be removed by a qualied
technician for maintenance or service. Replace
when work is completed.
• Adjust or repair only after the engine has been
stopped and the blade has stopped moving.
• Disconnect spark plug wire(s) before doing any
maintenance.
• Replace parts if worn, damaged or faulty. For best
results, always replace with parts recommended by
the manufacturer.
• Do not dismantle the machine without releasing or
restraining forces which may cause parts to move
suddenly.
• Provide adequate support, e.g. jack stands for lifted
machine or parts if working beneath.
• Do not put hands or feet near or under rotating
parts.
• Clean up spilled oil or fuel thoroughly.
• Replace faulty mufers.
• To reduce re hazards, keep the engine, mufer,
and fuel storage area free of grass, leaves, debris
buildup or grease.
• Never attempt to make adjustments while the
engine is running except for repairs or adjustments
as specically noted, such as for carburetor
adjustment, where the engine must be running.
Keep hands and feet clear of moving parts in these
circumstances.

8
BRUSH CUTTER
STORAGE SAFETY
• Stop the engine and allow to cool before storing.
• Drain the fuel tank outdoors only.
• Storefuelinanapprovedcontainerinacool,dryplace.
• Keepthemachineandfuelcontainersinalockedstor-
age place to prevent tampering and to keep children
from playing with them.
• Do not store the fuel container or equipment with
gasoline in the tank inside a building where fumes
may reach an open ame or spark.
• Appliances such as furnaces and water heaters
with a pilot light have an open ame.
• Keep petrol (gasoline) storage area free of grass,
leaves and excessive grease to reduce re hazard.
• Clean grass and debris from cutting units, drives,
mufers and engine to help prevent res.
• Clean up any spilled gasoline or oil in the storage
area.
Fuel
• Petrol (gasoline) is ammable;
petrol (gasoline) vapors are
explosive. Use extra care when
handling.
• Store only in containers speci-
cally designed for fuel.
• When refueling or checking fuel level:
- Stop the engine and allow to cool;
- Do not smoke;
- Refuel outdoors only;
- Use a funnel;
- Do not overll;
- If fuel is spilled, do not attempt to start the engine
until the spill is cleaned up and vapors have
cleared.
- Replace caps on fuel containers and tanks se-
curely.
Sparks from static electricity can start res or cause
explosions. Flowing fuel can generate static electricity.
To prevent static electricity sparks:
• Keep containers electrically grounded. Do not ll
containers in a vehicle or on a truck or trailer bed
with a plastic liner. Fill containers on the ground
away from the vehicle.
• When practical, remove petrol (gasoline) powered
equipment from the truck or trailer and refuel it on
the ground. If equipment must be refueled on the
truck or trailer, refuel from a portable container
rather than a dispenser nozzle.
• Keep the dispenser nozzle in contact with the rim
of the fuel tank or container opening until fueling is
complete. Do not use a nozzle lock-open device.
• If fuel is spilled on clothing change it immediately.
WARNING
Blades
• The blade is sharp and can cut.
Use extra caution when handling.
Remove obstructions with care.
Wrap the blade or wear gloves.
• Only replace or sharpen blade.
Never straighten or weld it.
• Keep other people away from the blade.
WARNING
SAFETY

9
BRUSH CUTTER
4166628
- Lea y entienda el manual del operador y las etiquetas.
- Pide que alguien lea y explique el manual y las
etiquetas a usted si usted no lee Inglés.
- Use protección ocular y auditiva.
- No haga funcionar sin los protectores en su lugar.
- Mantenga las manos, pies y ropa alejandos de las
piezas móviles.
- Pare el motor antes de dar servicio.
- La gente a más durante la operación.
- Remove debris buildup. Debris under belt cover or
near muffler can cause fires.
- the blade will continue to rotate for a few seconds
after it is turned off.
- Blade must be at least 1/8" above bottom of housing.
- Check blade bolt daily for tightness.
- Inspect for damage after striking a foreign object.
Make repairs before restarting operation.
- Find and repair cause of any abnormal vibration.
AVOID SERIOUS INJURY OR DEATH:
- Remove objects that could be thrown by the blade.
- Use extra caution on slopes.
- Stop blade and drive down slowly if machine slides
or stops going on slope.
- Do not mow when children or others are around.
- Do not operate unless trained.
- Do not operate unless guards, shields and interlocks
are in place and working.
BEFORE STARTING:
- Read and understand Operator manual and labels.
- Wear hearing and eye protection.
- Replace labels and Operator manual if lost or damaged.
4167525

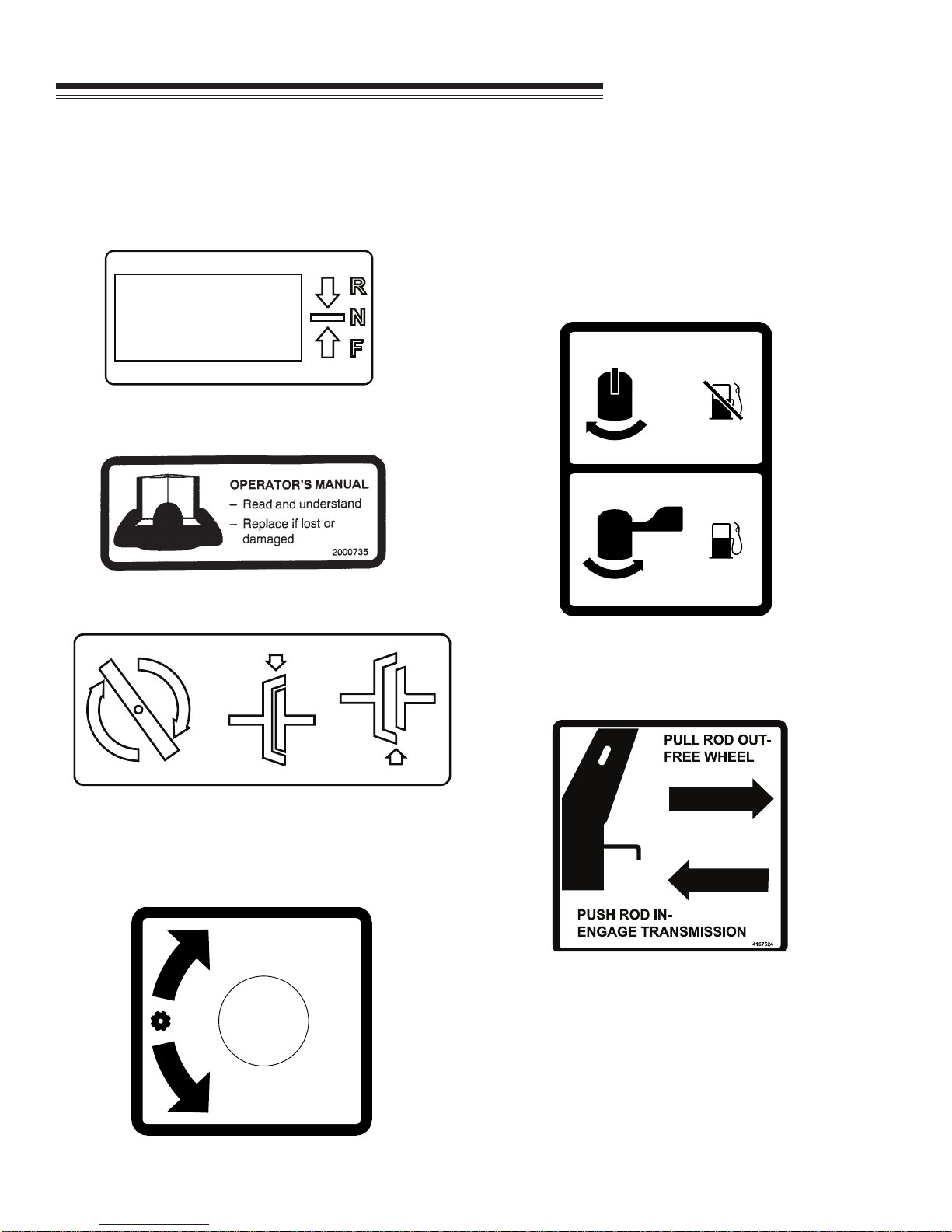

WARNING LABELS
Warning labels are an important part of the safety system incorporated in this machine.
Replace labels if damaged or illegible.
LABELS
4167548
4167573

10
BRUSH CUTTER
LABELS
WARNING LABELS
Warning labels are an important part of the safety system incorporated in this machine.
Replace labels if damaged or illegible.
REVERSE - THUMB DOWN
NEUTRAL- RETURN TO NEUTRAL
FORWARD - PULL UP
4167547
4167546
DECREASE SPEED
INCREASE SPEED
C100524
4167101

11
BRUSH CUTTER
CONTROLS
BLADE CONTROL LEVER (A)
Hold down the lever to engage the blade for cutting.
Release the lever to disengage and stop the blade.
TRACTION CONTROL LEVER (B)
Push the thumb lever down to go in the reverse
direction. Pushing the lever further increases reverse
speed.
Pull the bottom lever up to move in the forward
direction. Pulling the lever further increases forward
speed to the maximum set by the Speed Adjustment
Knob.
SPEED ADJUSTMENT KNOB (C)
Turn the knob clockwise to decrease maximum speed.
Turn the knob counterclockwise to increase maximum
speed.
FREE WHEEL ROD (D)
Pull the free-wheel rod until the enlarged boss comes
through the keyhole on the rear engine deck cover,
then slide the rod down the slot to latch it to free wheel
or push the machine without the engine running.
Raise the rod until the enlarged boss pops back
behind the rear engine deck cover to engage the
transmission.

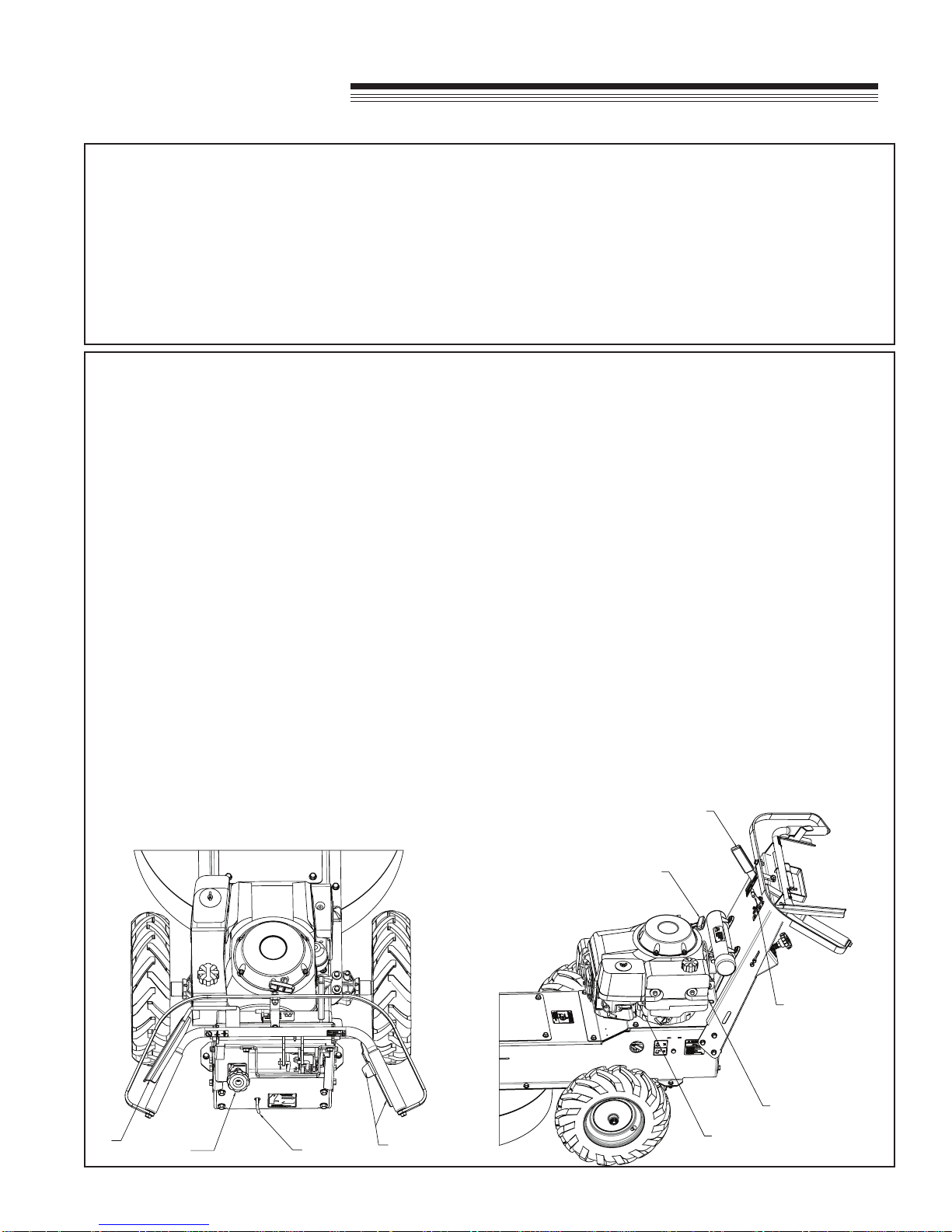

SET-UP INSTRUCTIONS / CONTROLS
AB
CD
G
F
H
E
I
SET-UP INSTRUCTIONS
1. Unpack the unit.
2. Move the parking brake lever to the “OFF” position.
3. Pull the free-wheel rod until the enlarged boss on the rod comes through the key hole on the back of the machine.
Slide the rod down the slot to latch the boss on the outside of the rear cover. Roll the machine off the pallet.
4. Connect the blade control linkage.
5. Fill the engine with the proper grade of oil. See engine manual for oil specications.
6. Read the operation and safety manual before starting. The operator manual is located in the tube on the front of the
handle support.
7. Run the engine for 5 minutes before engaging the blade to ensure full lubrication.
THROTTLE CONTROL (E)
Controls engine speed. Pushing the lever forward
makes the engine speed go faster, while pulling
the lever back slows down the speed of the engine.
Pulling the lever all the way back stops the engine.
ENGINE STARTER CORD (F)
Pull the cord to turn the engine over to start it. See
operation section p. 12.
PARK BRAKE (G)
Pull lever up to engage the park brake.
Push lever down to disengage park brake.
FUEL VALVE (H)
Move to the “OFF” position to shut off the fuel
whenever transporting the machine by trailer or truck
or during storage. Move to the “ON” position before
starting the engine.
CHOKE (I)
Pull the choke control loop to the rear to engage the
choke.
Push the loop toward the engine to disengage the
choke.

12
BRUSH CUTTER
PRE-OPERATION CHECK LIST
OWNER’S RESPONSIBILITY
• Review and follow all safety rules and safety decal
instructions.
• Check that all safety decals are installed and in
good condition. Replace if damaged.
• Check to make sure all shields and guards are
properly installed and in good condition.
• Check that all hardware is properly installed and
secured.
• Check to be sure engine is free of dirt and debris.
Pay particular attention to the cooling ns, governor
parts and mufer. Clean air intake screen. Check
air cleaner; service as necessary.
• Check all lubrication points and grease as instructed
in manual.
• Inspect area and remove stones, branches or other
hard objects that might be thrown, causing injury or
damage.
• Check that there are no exposed underground
utilities in the work area.
FUELING-Gasoline is extremely ammable and
highly explosive under certain conditions. BE SURE
to install fuel cap after fueling.
• Fill fuel tank with good quality, clean, unleaded
regular petrol (gasoline) to the level recommended
by the engine manufacturer.
• Use a funnel to avoid spilling.
WARNING
TO CHECK OR ADD FUEL:
– Do it outdoors
– Do not smoke
– Stop engine; allow to cool
– Do not overll
– Clean up spilled fuel
BEFORE STARTING THE ENGINE
• Read the operator manual and engine manual.
• Be familiar with all controls, how each functions and
what each operates.
• Check the engine oil level and add if necessary.
Follow the engine manufacturers recommendations
per the engine manual supplied with the machine
• Open the fuel valve.
• Choke: For cold starts, set the throttle lever to the
“CHOKE” position. For warm starts set the throttle
to the half-open position.
OPERATION
STARTING THE ENGINE
1. Pull the recoil starter to start the engine.
2. If the choke is “ON” when the engine starts,
gradually back it off until the engine runs with no
choke at all.

13
BRUSH CUTTER OPERATION
MOVING THE UNIT
TO MOVE THE UNIT WITHOUT THE BLADE
RUNNING:
1. Do not engage the blade control lever.
2. Lift the free-wheel rod until the enlarged boss pops
back behind the rear engine deck cover.
3. Set throttle to the desired engine speed.
4. Adjust the maximum travel speed with the Speed
Adjustment Knob.
5. Disengage the Park Brake.
6. Pull or squeeze the forward / reverse lever on the
right handlebar towards the handlebar to move the
machine in a forward direction. The more the lever
is squeezed the faster the machine will go, up to its
maximum speed.
7. Push the thumb lever down to reverse. The farther
the lever is pushed down the faster the machine will
reverse, up to its maximum reverse speed.
8. Release the forward / reverse lever to stop the
machine.
TO MOVE THE UNIT WITHOUT RUNNING THE
ENGINE:
1. Pull the free-wheel rod until the enlarged boss
comes through the hole in the rear engine deck
cover. Slide the rod down the slot to latch it in the
free-wheel position..
2. Disengage the Park Brake.
3. Push the unit.
WARNING
CUTTING
UNDERGROUND UTILITIES,
ELECTROCUTION, EXPLOSION, SERVICE
DISRUPTION RISK
Before beginning any work, check area for
exposed utilities. Also check for anything that
could cause damage to the machine or harm the
operator. Do not operate where there is any risk
of contacting exposed utilities.
Thoroughly inspect the areas where the
equipment is to be used and remove rocks, toys,
wire and other debris that may be picked up and
thrown by the machine.
1. Move the machine to the area where it is to be
used. With the engine off, Park Brake on and the
blade disengaged, check that the cutting height is
at the desired height for the job.
2. Start the engine, then adjust the speed of
the engine to full throttle. Make sure that the
Freewheel rod is pushed in.
3. Engage the blade by holding down the blade
control lever. Pull the speed lever on the right
handle bar up to move the machine forward while
holding down the blade control lever to cut.
STOPPING OPERATION
1. Release the blade control lever to stop the blade.
2. Drive to level ground and release the traction
drive to stop the machine.
3. Engage the park brake.
4. Stop the engine by moving the throttle control to
the “OFF” position.
TRANSPORT
Engage the parking brake when transporting the
machine on a truck or trailer. Use tie down straps to
secure the machine from moving during transport.
Close the fuel valve during transport to prevent
ooding should any dirt get under the carburetor oat
needle. Leaving the valve open can allow severe
ooding which may ruin the engine by diluting the oil.
DANGER
ROTATING BLADES
–KEEP HANDS AND FEET AWAY.
–STOP ENGINE AND LET BLADES STOP
BEFORE REMOVING GRASS COLLEC-
TOR OR UNCLOGGING.
THROWN OBJECTS
–KEEP AREA CLEAR OF PEOPLE
AND PETS.
–REMOVE OBJECTS BLADE MAY
STRIKE AND THROW.
–STOP BLADES TO CROSS GRAVEL
AREAS
–DO NOT OPERATE WITHOUT CHUTE,
MULCHER OR ENTIRE GRASS
CATCHER IN PLACE.
WARNING

14
BRUSH CUTTER
MAINTENANCE
MAINTENANCE
Stop the engine and remove spark plug wire before
performing any maintenance.
When replacement parts are required, use genuine
Schiller Grounds Care, Inc. parts or parts with
equivalent characteristics, including type, strength
and material. Failure to do so may result in product
malfunction and possible injury to the operator and/
or bystanders.
Carbon monoxide present in the exhaust is an
odorless and deadly gas. Never start or run the
engine where exhaust fumes can collect. Provide
enough fresh air to keep fumes from getting too
strong.
Replace any warning decals that become illegible
immediately.
WARNING
DAILY MAINTENANCE
Blade Control
To operate the blade, the blade control lever must
be held down against the handle. The blade should
stop when the lever is released.
To Check:
1. Start the engine and run at 1/2 throttle with the blade
disengaged.
2. Engage the blade by holding in the Blade Control Le-
ver. Release the Blade Control Lever and the blade
should stop.
3 Repair the machine before using if the Blade Control
does not work.
BELTS
• Check condition of belts for damage or wear.
• Replace broken, worn, or damaged belts.
1. Make sure the engine is off, spark plug is removed,
and parking brake is engaged.

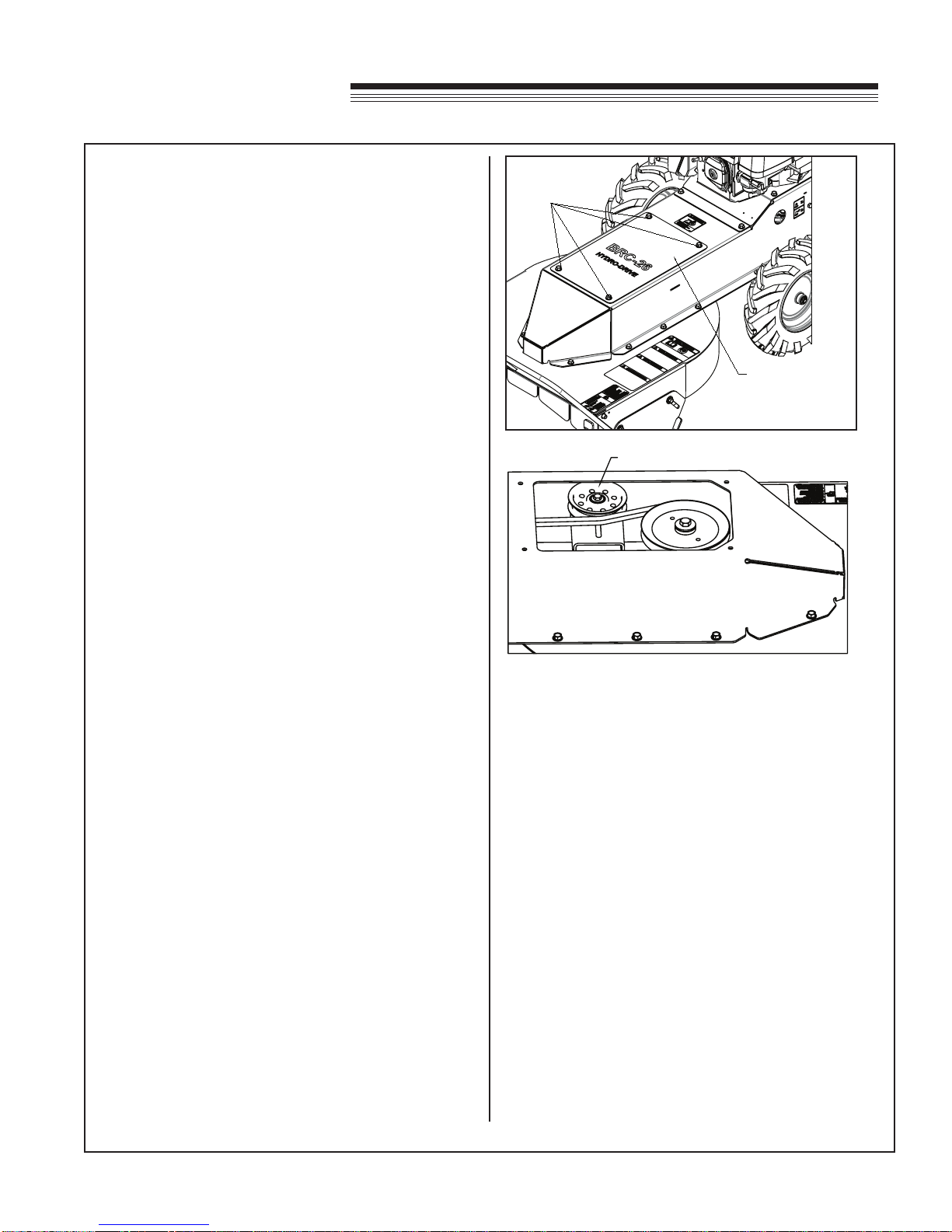

2. Remove the four bolts Qsecuring the Blade belt
cover S. (Figure 1)
3. Remove any debris such as leaves, grass, sticks or
other build up that might cause a re or damage.
4. Inspect the belt and pulleys for damage or wear that
could cause problems. Replace damaged or worn
parts with Schiller Grounds Care, Inc. parts.
5. Replace blade belts and pulleys. See Blade Belt /
Pulley Replacement instructions.
HARDWARE
• Tighten any hardware (nuts, bolts, etc) that are
found loose.
• Replace any broken or missing hardware (nuts,
bolts, cotter pins, etc.).
SHIELD PLATES
• Check condition of shield plates for damage or
wear.
• Replace broken, worn, or damaged shield plates.
TIRES
Tires are foam lled on models with bar treads. They
have a valve stem, but CANNOT be aired. On units
with pnuematic tires, maintain tires at 14 psi.
ENGINE
See engine manual for air cleaner service intervals and
servicing procedure.
OIL
Check oil level daily. Top off as needed.
Change engine oil after the rst 5 hours of operation.
Then change as recommended by the engine
manufacturer.
1. Remove the drain plug and drain oil while engine is
warm.
2. Replace the drain plug, remove dipstick and ll with
new oil. See engine manual for oil specications.
3. Wipe off any oil on unit.
4. Start and run engine for 30 seconds. Stop engine.
5. Wait 30 seconds, then re-check oil level.
Q
S
FIGURE 1

15
BRUSH CUTTER MAINTENANCE
FIGURE 5
6. Top off as necessary. See engine manual for details.
BLADE
Service:
Stop engine and remove spark plug wire before servic-
ing blade.
Wear leather or thickly padded gloves to prevent injury
from the blade. Keep hands clear of the blade path:
Use an impact wrench to remove the blade bolt F. If an
impact wrench is not available; use a socket on a long
breaker bar or a box wrench to loosen the blade bolt. If
additional leverage is needed, slip a pipe or thick walled
tube over the breaker bar or wrench.
• Check blade for damage.
• Replace broken, bent, cracked or otherwise
damaged blade.
• Do not weld or straighten blade.
• If the blade is good, it may be turned over to use the
second set of cutting edges.
• If all edges are dull, the blade may be sharpened or
replaced.
• Use of another manufacturer’s blades may be
dangerous.
Sharpening:
Wear the appropriate personal protective equipment
when sharpening the blade.
• Inspect the blade before sharpening..
• Replace broken, bent , cracked or otherwise
damaged blade.
• Do not weld or straighten blade.
• Maintain cut angle of 30º.
• Do not over heat blades when sharpening.

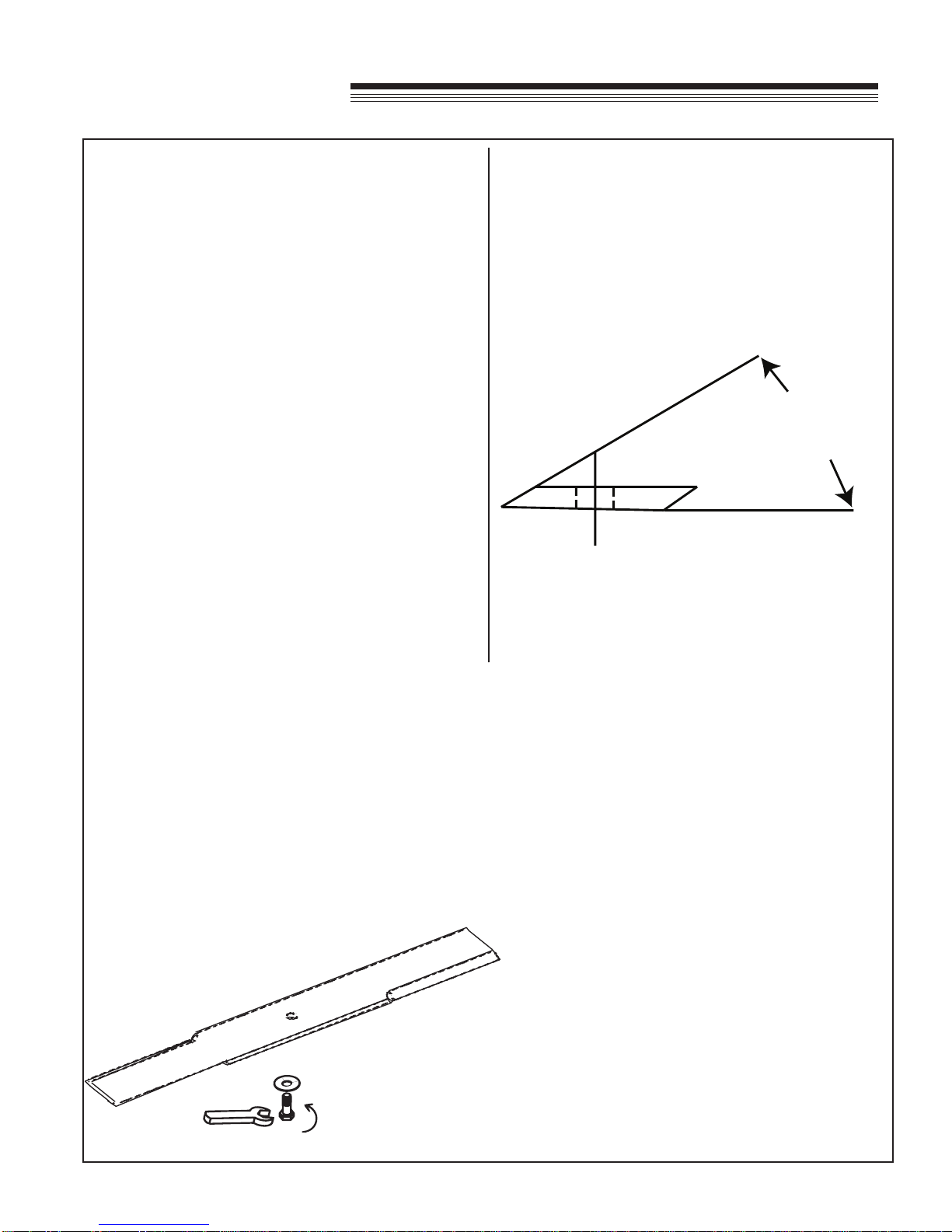

Blade Balance:
Maintain blade balance at 5/8 oz-in (19.4 g-cm) or
less. Failure to keep blades balanced causes excess
vibration, wear and shortened life of most components
of the machine.
To balance a blade:
1. Sharpen blade rst
2. Balance the blade at the center.
3. Attach a 1/8 oz. (3.9 g) weight at a distance of 5”
(127mm) from center on the light end. This should
make the light end the heavy end.
- If it does, the blade is balanced.
- If it does not, le or grind the heavy end until
the addition of the weight makes the light end the
heavy end.
30.0
TYP
º
70 ft. lbs.

16
BRUSH CUTTER
LUBRICATION

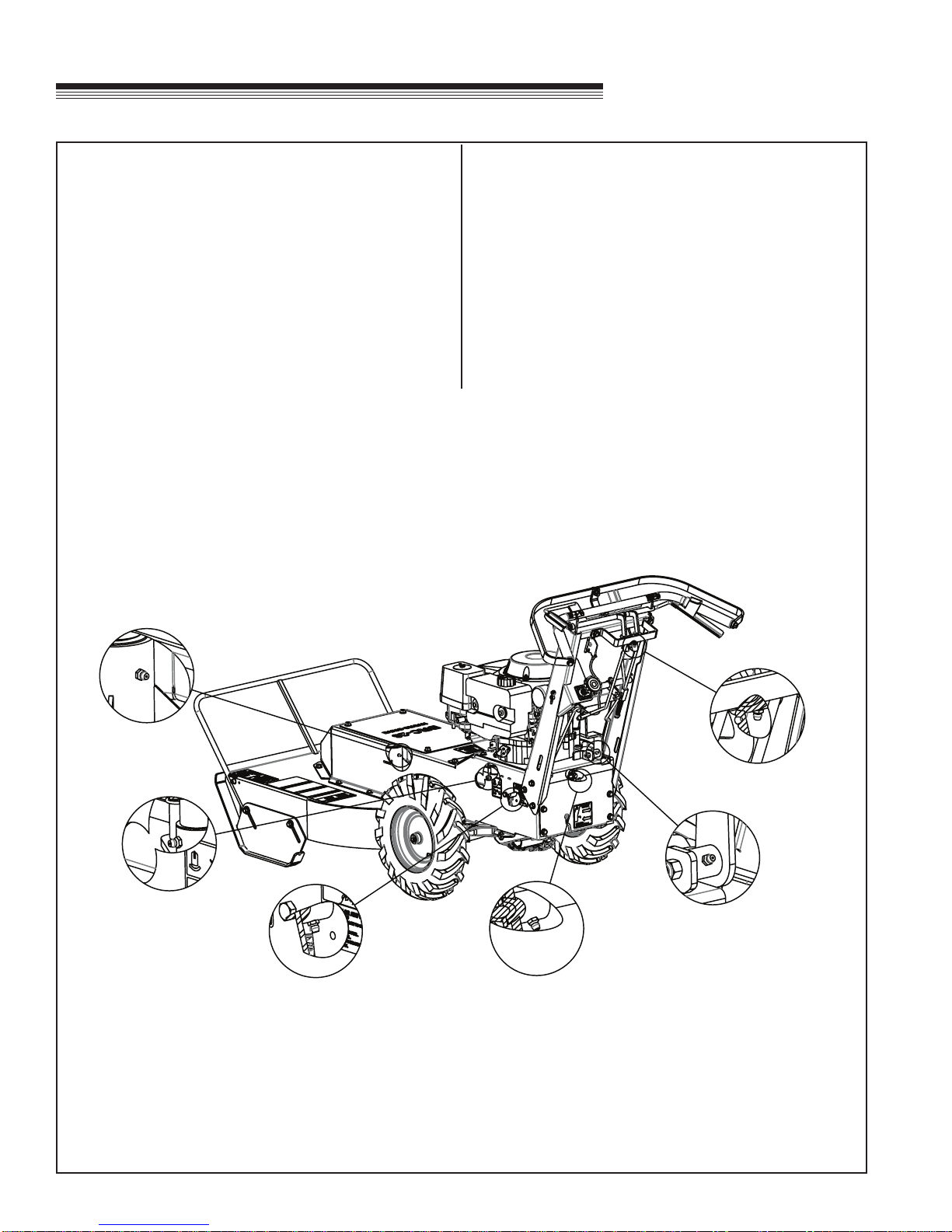

There are 6 grease ttings on the machine.
A--Blade Spindle- Grease 1 pump once a season.
CAUTION: Do not over grease or the bearing seals can
be popped out or crushed.
B--Transaxle Idler Pivot- Grease once a season.
C--Brake Bellcrank- Grease once a season.
D--Traction Bellcrank- Grease once a season.
E--Clutch Pivot Blade--Grease once a season.
F--Park Brake Lever--Grease once a season.
MAINTENANCE
DETAIL A
DETAIL B
DETAIL C DETAIL D
DETAIL E
DETAIL F

17
BRUSH CUTTER
Q
S
FIGURE 1
BELTS
Under tensioned V-belts can slip and squeal. This
generates excess heat and results in cracking and
premature belt failure. Over-tensioned belts reduce
belt and bearing life.
Properly tensioning and aligning a belt drive will allow
the belt drive to perform at it’s maximum level.
Stop the engine and remove the spark plug wire
before making any belt adjustments.
Adjust belt tension after the rst ve hours of
operation. Then tension as required.
BLADE BELT ADJUSTMENT
There should be a maximum of 1/2” deection with 5
lbs pressure in the middle of the non idler side of the
belt.
1. Remove the four bolts Q holding the Blade belt
cover Son. (Figure 1)
2. Loosen the bolt U holding the small pulley just
enough to move the pulley back and forth.
(Figure 2)
3. Slide the small pulley rmly against the belt and
tighten bolt U. Check the tension and readjust if
necessary.
4. Replace the Blade belt cover S.
TRANSAXLE BELT ADJUSTMENT
The belt has a spring loaded idler and does not require
adjustment.
U
FIGURE 2
ADJUSTMENTS

18
BRUSH CUTTER
ADJUSTMENTS

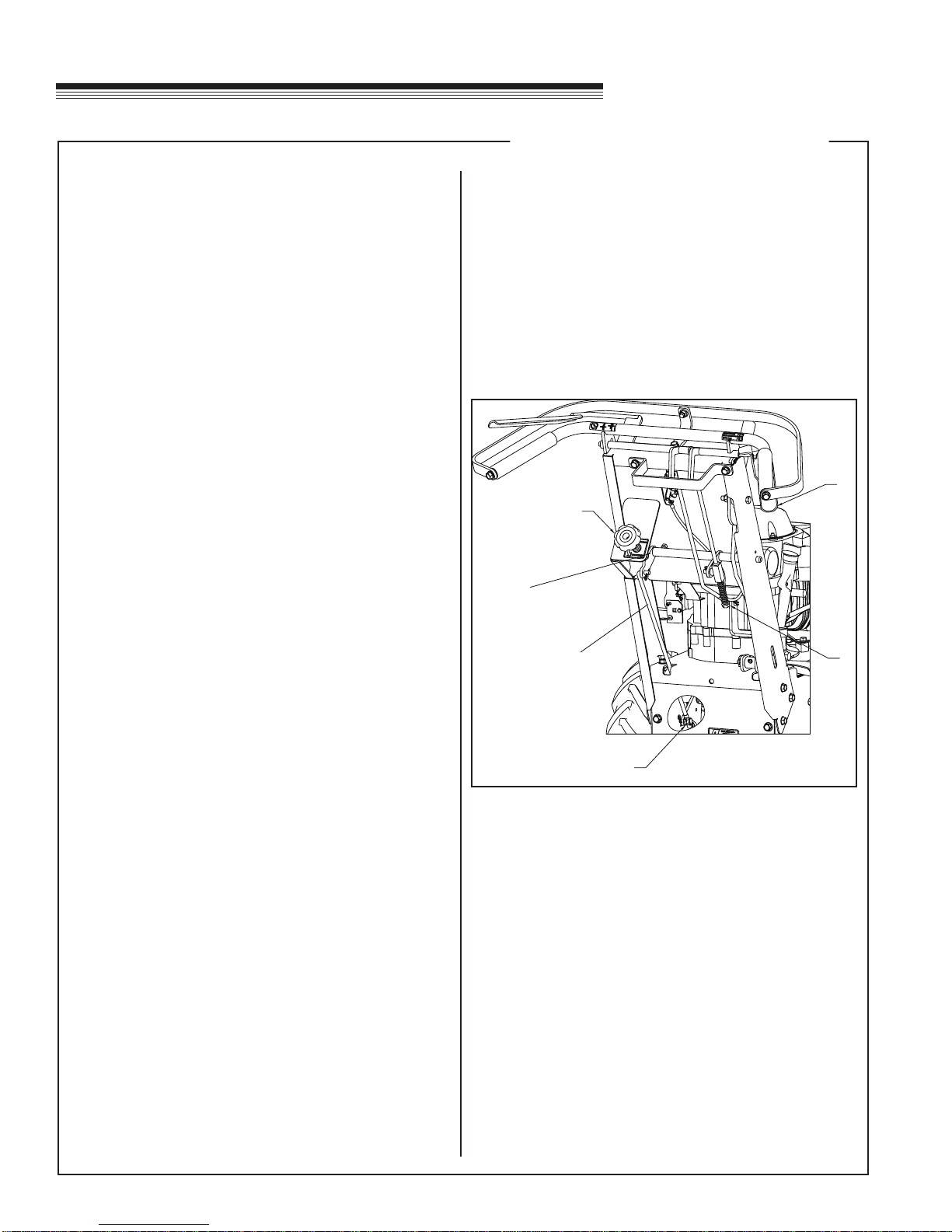

BLADE HEIGHT ADJUSTMENT
Stop the engine and remove the spark plug wire
before making any belt adjustments.
1. Place a block under the deck to securely hold it at
the height desired.
2. Loosen the two bolts Hholding the skid plates G on
each side of the machine. (Figure 1)
3. Move the skid plates to sit as level as possible on
the ground. Retighten bolts H and remove block.
MAXIMUM TRAVEL SPEED ADJUSTMENT
1. To decrease maximum travel speed of the machine,
turn the speed adjustment knob Aclockwise.
(Figure 2)
2. To increase maximum travel speed of the machine
turn the speed adjustment knob Acounter
clockwise.
FIGURE 1
FIGURE 2
A
B
C
D
E
F
LINKAGE ADJUSTMENTS
Stop the engine and remove the spark plug wire
before making any belt adjustments.
REVERSE:
Maximum reverse speed is limited by the traction
bellcrank hitting a stop inside the main fame. (Figure 2)
FORWARD:
The traction control lever should just contact the handle
at maximum speed.
To Adjust Forward Speed:(Figure 2)
1. Turn the Speed adjustment knob Aall the way in
the “fast” direction (counter-clockwise). Remove the
hairpin cotter connecting the lower traction rod Bto
the lever on the traction cross shaft. Remove the rod
from the cross shaft.
2. Pull up on the rod until all the travel of the linkage
is used. Squeeze the traction lever to the handle.
Adjust the rod by turning it in our out of the swivel C
at the traction bellcrank until it just goes into the hole
in the cross shaft lever E.
3. Reinstall the rod in the cross shaft lever and secure
with the hairpin cotter from step 1.
The spring Fon the traction linkage allows the traction
lever to be squeezed to the handle when the speed
control knob is set to less than maximum speed. If the
preload on the spring is not sufcient, the nut may be
tightened to compress the spring more.

19
BRUSH CUTTER
BLADE CONTROL LINKAGE
The effective length of the blade control rod may be
adjusted by turning the rod J in or out of the swivel
where it connects tot he blade bellcrank L. Adjust the
rod so there is about a 1/8” (3 mm) space between the
bellcrank and the rear cover when the blade control
lever is engaged (held to the handle).(Figure 3)
PARKING BRAKE LINKAGE
The parking brake linkage has a spring that applies
force to the transaxle brake arm in the ‘ON’ position.
There should be some space or free “play’ in the brake
linkage between the spring and the transaxle brake
arm in the ‘OFF’ position. The brake lever should snap
over center and lock in the engaged position.
1. Push and pull on the machine. The wheels should
skid. If the wheels turn, disconnect the brake rod
Kat the brake lever and turn out of the swivel M
below the engine deck 1 or 2 turns. Reconnect the
brae rod and check the adjustment by pulling and
pushing the machine again. Continue adjusting
until the machine skids with the brake ‘ON’. Be
sure there is free ‘play’ in the ‘OFF’ position so
the brake doesn’t drag during operation. If a
satisfactory adjustment has been made skip to step
4. (Figure 3)
2. If adjustment cannot be obtained that will lock
the wheels with the brake ‘ON’ and maintain free
‘play’ in the ‘OFF’ position the brake may need to
be adjusted. This adjustment will not normally be
required.
3. Remove the cotter pin from the brake adjusting
castle nut N. (Figure 4) Tighten the nut 1/6 of a
turn at a time. Check the adjustment each time
until the wheels lock up with the brake ‘ON’ and the
linkage has free ‘play’ in the ‘OFF’ position. When
a satisfactory adjustment has been found, reinstall
the cotter pin to maintain the position of the castle
nut.
4. Reinstall the brake rod to the brake lever and
secure with hairpin cotter from step 1.
DO NOT OVER ADJUST! Over adjustment will cause
brake drag resulting in excess heat and brake wear.
TRANSAXLE NEUTRAL ADJUSTMENT
1. The transaxle comes from the factory with the
neutral position set. It should never require
adjustment. If it needs adjustment, raise the rear
of the machine and support it securely on jack-
stands with the wheel off the ground.
2. Loosen bolt Oon the transaxle. Start the engine.
3. Rotate plate Pto the position where the wheels will
no longer turn. Retighten bolt O. (Figure 5)
STORAGE
ADJUSTMENTS
FIGURE 3
FIGURE 5
J
K
L
M
N
FIGURE 4

20
BRUSH CUTTER
BELT REPLACEMENT
Stop the engine and disconnect the spark plug
wire before attempting to replace any belt.
TRANSAXLE BELT REPLACEMENT
1. Remove the four bolts Qholding the rear cover R.
(Figure 1)
2. Reach through the access hole on the right side
of the machine with a spring removal tool and
remove the transaxle belt tensioning spring Tto
relieve the tension on the transaxle belt. (Figure
2)
3. Remove the transaxle belt.
4. Install the new transaxle belt.
5. Reconnect the transaxle belt tensioning spring T.
Reinstall rear cover removed in step 1.
BLADE BELT REPLACEMENT
1. Follow steps 1-3 in transaxle belt replacement
section on this page.
2. Remove the four bolts V holding the blade belt
cover Son. (Figure 3)
3. Loosen the bolt Usecuring the blade belt idler
and slide the idler toward the side of the tunnel to
loosen the belt. (Figure 4)
4. Remove the blade belt from the spindle pulley and
from around the blade clutch. Install new belt.
5. Tension the new belt by pushing the idler rmly
against the belt and tightening the bolt. There
should be about 1/2” deection at the center of the
long span with 5 lbs. force.
6. Reinstall the top belt cover S.
7. Reinstall the transaxle belt and tensioning spring.
T.
8. Reinstall rear cover R.
V
S
FIGURE 1
U
FIGURE 2
FIGURE 3
FIGURE 4
BELT REPLACEMENT
R
Q
T
