Agrimate AM-3000-BC-2S-WC-PRO User manual

AGRIMATE BRUSH CUTTER
AM-3000-BC-2S-WC-PRO
USER MANUAL

INTRODUCTION
Dear Sir/ Madam,
Thank you for choosing Agrimate product. You are the proud owner of high technology & dura-
ble machine.Trust that our Franchisee/Dealer installed the product & installed the product and
explained you about the usage & service instrcucons. Please visit our autorised dealer for your
future requirement of our other equipments, genuine spares, accessories and services. Service
coupons are aached with this manual and you can avail free service to keep your machine t
always to use on demand.
About Ratnagiri,
We import and market of high quality of agriculture wide range of equipments which we are
selling through our authorised franchisee or dealer network. We are in this eld from past years
service the farmer. community. For further details, Please visit our website www.agrimart.in. &
Give a missed call to 7393 938 938

STROKE 2-STROKE
ENGINE SINGLE CYLINDER AIR COOL ENGINE
DISPLACEMENT 26CC
ENGINE POWER 0.65KW/6500RPM
FUEL TANK CAPACITY 0.65LTR
CARBURETOR DIAPHRAM TYPE WALBRO
STARTING SYSTEM RECOIL STARTER
IGNITION MODE CDI
STOP MODE SWITCH STOP
AIR CLEANER SPONGE
SPARK PLUG TORCH
HANDLE POLE 19mm(Diameter)*1.5mm(Thinkness)
TECHNICAL SPECIFICATIONS

MAINTENANCE & CARE
Fuel lter
• Fuel tank is tted with a lter. Filter is situated at the free end of fuel pipe and can be picked out
through fuel port with a piece of hooked wire or the link.
• Check the fuel lter periodically. Do not allow dust to enter into fuel tank. Clogged lter will
cause diculty in starting engine or abnormalities in engine performance.
• When lter is dirty, replace the lter.
• When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with gasoline.
Spark plug
• Do not attempt to remove the plug from a hot engine in order to avoid possible damage to the
threads.
•Clean or replace the plug if fouled with heavy oily deposits.
•Replace the plug if the center electrode is worn rounded at the end.
•Spark gap 0.6-0.7mm (.023”.028”)
•Fastening torque =14-15Nm( 125-135in.lb)
Bevel gear
Aer working (40-50) hours, ll with the right quantity of grease. Remove the screw and put in the
lithium-based grease. turning the sha manually until grease emerges, then ret the wash the screw.

• The cung aachment must not rotate in idle mode.If this requirement is not sased,the
cluth has to be adjusted or the machine needs an urgent maintenance by a qualied techni-
cian.
• You may make adjustments and repairs described here. For other repairs, have the trimmer
serviced by an authorized service agent.
• Consequences of improper maintenance may include excess carbon deposits resulng in loss
of performance and discharge of black oily residue dripping from the muer.
• Make sure all guards, straps, deectors and handles are properly and securely aached to
avoid the risk of personal
EXHAUST PORT AND SILENCER
• Depending on the type of fuel used,the type
and amount of oil used, and/or your operang
condions, the exhaust port and silencer may
become blocked with carbon deposits.lf you
noce a power loss with your petrolpowered
tool.a qualied service technician will need to
remove these deposits to restore performance.
AIR FILTER
• Accumulated dust in the air lter will reduce engine eciency. Increase fuel consumpon
and allow abrasive parcles to pass into the engine. Remove the air lter as oen as neces-
sary to maintain in a clean condion.
• Light surface dust can readily be removed by tapping the lter. Heavy deposits should be
washed out in suitable solvent.
• Remove lter cover by push the buon

ADJUSTING CARBURETOR NOTE
Do not adjust carburetor unless necessary. If you have trouble with the carburetor, see your dealer. Improper adjustment may cause engine
damage and void warranty Some of the following symbols may be used on this tool. Please study them and understand their
meaning. Proper interpretaon of these symbols will allow you to operate the tool beer and safer.

SAFETY RULES&PRECAUTIONS
Proper safety precauons must be observed. Like all power equipment this unit bmeu hstandled carefully. DO NOT EXPOSE
YOURSELF OR OTHERS TO DANGER. FDoAllNowG EthRese general rules. Do not permit others to use this machine unless
they are
tahroeroughly responsible and have read, and understand the machine manual and are trained in its operaon. This ma-
chine is not to be operated by children.
• Always wear safety goggles for eye protecon. Dress properly , do not wear loose clothing or jewelry that could become
caught in moving parts of the unit. Safe, sturdy, nonskid footwear should always be worn. Long hair should be ed back. It is
recommended that legs and feet be covered to protect from ying debris during operaon.
• Before using and aer dropping or other impacts, inspect the enre machine for loose parts (nuts, bolts, screws, etc.) and
any damage. Repair or replace as necessary.
• DO NOT USE any aachment with this power head other than the ones recommended by our company. Serious injury to
the operator or bystanders could result as well as damage to the machine.
• Keep the handles free from oil and fuel.
• Always use proper handles and shoulder strap when cung.
• Do not smoke while mixing fuel or lling tank.
• Do not mix fuel in an enclosed room or near open ames. Ensure adequate venlaon.
• Always mix and store the fuel in a properly marked container that is approved by local codes and ordinances for such
usage.
• Never remove the fuel tank cap while the engine is running.
• Never start or run the engine inside a closed room or building. Fumes from the exhaust contain dangerous carbon monox-
ide.
• Never aempt to make engine adjustments while the unit is running and strapped to the operator. Always make engine
adjustments with the unit resng on a at, clear surface.
• Do not pull on the cable.
• Do not li the machine other than by the handle of the sha.
• Do not rest the machine on the ground while the engine runs (e.g.in idling).
• Regular check for damages, failing of parts, component or cables.

ENGINE STARTING AND STOPPING PROCEDURES
STARTING COLD ENGINE
1. Move the ignion switch to “START”.
2.Give a gentle push on the primer pump repeatedly (7-10mes) unl fuel comes into the primer pump.
3.Pull the chock lever up to close choke
4.Move the throle trigger and keep it in posion with the throle lock (if present).
5.Pull starter handle unl engine false res.
6.Push choke lever inwards( excessive cranking with choke lever will cause ooding of engine making it dicult to start.)
7.Pull starter handle unl engine starts.
8.When the engine is started, disconnect the starter by turning the choke lever to “RUN”
9.Disengage the throle lock (if present) pressing the throle trigger briey.
10.Allow engine to warm up for a few minutes before using.`
STARTING WARM ENGINE
The choke lever to the “RUN”
• If fuel tank was not run dry, pull starter one to three mes and engine should
start.
• If fuel tank was run dry, aer relling repeat steps 1-2-7
STOPPING THE ENGINE
• Release the throle trigger and allow the engine to run idle for a few seconds.
• Move switch to STOP posion.

PREPARING FOR OPERATIONS
WHEN MIXING GASOLINE WITH TWO CYCLE ENGINE OIL, USE ONLY GASOLINE WHICH CONTAINS NO ETHANOL OR METHA-
NOL(TYPES OF ALCOHOL). THIS WILL HELP TO AVOID POSSIBLE DAMAGE TO ENGINE FUEL LINES AND OTHER ENGINE PARTS.
DO NOT MIX GASOLINE AND OIL DIRECTLY IN THE ENGINE FUEL TANK.
IMPORTANT: Failure to follow proper fuel mix instrucons may cause damage to the engine
1. When preparing fuel mixture, mix only the amount needed for the
job you are to do.Do not use fuel that has been stored longer than two
months. Fuel mixture stored longer than this will cause hard starng
and poor performance. lf fuel mix has been stored longer than this me,
it should be removed and lled with fresh mixture.
CHECK POINTS BEFORE OPERATION
1 .Check for loose bolts, nuts and ngs.
2.Check the air cleaner for dirt. Clean the air lter of all dirt, etc. before
operaon.
3 .Check to be sure that protector is securely in place.
4.Check to be sure that fuel is not leaking.
5.Check to be sure that blade is not cracked.

SAFETY RULES & PRECAUTIONS
• Do not use the unit if it is damaged or poorly adjusted. Never remove the machine’s guard. Serious injury to the operator or bystanders could
occur as well as damage to the machine.
• Inspect the area to be cut and remove all debris that could become entangled in the nylon cung head. Also remove any objects that the unit
may throw during cung.
• Keep children away. Onlookers should be kept at a safe distance from the work area, at least 15 METER (50 FEET).
• Never leave the machine unaended.
• Do not use this unit for any job other than those for which it is intended as described in this manual.
• Do not overreach. Keep proper foong and balance at all mes. Do not run the unit while standing on a ladder or on any other unstable foot-
ing locaon.
• Keep hands and feet clear of the nylon cung head while unit is in use.
• Do not use this type of machine for sweeping away debris.
• Do not use the unit when you are red, ill or under the inuence of medicaon, drugs or alcohol.
• Use nylon cung head which is free of damage. If a stone or any other obstacle is hit, stop the engine and check the nylon cung head. A bro-
ken or unbalanced nylon cung head must never be used.
FOLLOW INSTRUCTION FOR CHANGING ACCESSORIES.
• Do not store in a closed area where fuel vapors can reach an open ame from hot water heaters, heaters, furnaces, etc. Store in a locked, well
venlated area only.
• Ensure safe and proper performance of your product. These part are available from your dealer. The use of any other accessories or aach-
ments may cause a potenal hazard or injury to the user, damage to the machine and void this warranty.
• Clean the machine completely, especially, the fuel tank, its surroundings, and the air cleaner.
• When refueling, be sure to stop the engine and conrm that it is cooled down. Never refuel when the engine is running or hot. When gasoline
spills, be sure to wipe it up completely and properly dispose of those materials before starng the engine.
• Stay clear of other workers or bystanders by at least 15 meters /50 feet.
• When ever approaching an operator of the machine, carefully call his aenon and conrm that the operator stops the engine. Be careful not
to startle or distract the operator which can cause an unsafe situaon.
• Never touch the nylon cung head when ever the engine is running. If it is necessary to adjust the protector or nylon cung head, be sure to
stop the engine and conrm that the nylon cung head has stopped running.
• The engine should be turned o when the machine is moved between work areas.
• Be careful not to hit the nylon cung head against stones, or the ground. nreasonable rough operaon will shorten the life of the machine as
well as create an unsafe environment for yourself and those around you.

• Pay aenon to loosening and overheang of parts. If there is any abnormality of the machine, stop operaon immediately and check the ma-
chine carefully. If necessary, have the machine serviced by a authorized dealer. Never connue to operate a machine which may be malfuncon-
ing.
• In start-up or during operaon of the engine, never touch hot parts such as the muer, the high voltage wire or the spark plug.
• Aer the engine has stopped, the muer is sll hot. Never place the machine in any places where there are ammable materials (dry grass,
etc.), combusble gases or combusble liquids.
• Pay special aenon to operaon in the rain or just aer the rain as the ground may be slippery.
• If you slip or fall to the ground or into a hole, release the throle lever immediately.
• Be careful not to drop the machine or hit it against obstacles.
• Before proceeding to adjust or repair the machine, be sure to stop the engine and detach the spark plug cap from the spark plug.
• When the machine is placed in storage for a long me, drain fuel from the fuel tank and carburetor. clean the parts, move the machine to a safe
place and conrm that the engine is cooled down.
• Make periodic inspecons to assure safe and ecient operaon. For a thorough inspecon of your machine, please contact a dealer.
• Keep the machine away from re or sparks.
• It is believed that a condion called Raynaud’s phenomenon, which aects the ingers of certain individuals may be brought about by exposure
to vibraon and cold. Exposure to vibraon and cold may cause ngling and burning sensaons followed by loss of color and numbness in the n-
gers. The following precauons are strongly recommended because the minimum exposure which might trigger the ailment is
unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands and wrists.
• Maintain good blood circulaon by performing vigorous arm exercises during frequent work breaks and also by not smoking.
• Limit the hours of operaon. Try to ll each day with jobs where operang the brush cuer or other hand-held power equipment is not required.
• If you experience discomfort, redness and swelling of the ngers followed by whitening and loss of feeling, consult your physician before further
exposing yourself to cold and vibraon.
• Always wear ear protecon, as being exposed to loud noise for long me can result in diminished hearing or even loss of hearing. Total face and
head protecon must be worn to prevent bodily injury from either slipping or falling into shrubbery, branches , or bushes.
• Wear no-slip heavy duty work gloves to improve your grip on the brush cuer handle. Gloves also reduce the transmission of machine vibraon
to your hands.

FUEL&OIL MIXTURE
Fuel used for this model is a mixture of unlead gasoline and approved engine lubricant. When mixing gasoline with two-cy-
cle engine oil, use only gasoline which contains NO ETHANOL or METHANOL(Types of Alcohol) Use Branded 91 octane or
higher unlead gasoline known to be of good quality. This will help to avoid possible damage to engine fuel lines and other
engine parts.
MIXTURE RATIO IS 40:1
GASOLINE-40 PART OIL-l PART
Fuel mixture at the rate other than 40:1 may cause damage to the engine, ensure mixture rao is correct.
FUEL
The engine uses two-stroke fuel, a mixture of gasoline and 2-stroke lubricant 40:1.
GASOLINE
Use branded 91 octane or higher unlead
gasoline known to be of good quality.
STORING FUEL
Store fuel only in a clean, safe, approved
container. Check and follow local
ordinances on type and locaon of
storage container.
IMPORTANT
Two-stroke fuel may separate. Shake fuel container thoroughly before each use.
Stored fuel ages. Do not mix more fuel than you expect to use within a month.
FUEL AND OIL MIXTURE
Inspect fuel tank making sure that it is clean and ll with fresh fuel. Use a mixture
of 40:1.

CUTTING WITH A BLADE
SCYTHING WEEDS. This is cung by swinging the blade in a level arc. It can quickly clear areas of eld grass and weeds. Scything should not be
used to cut large, tough weeds or woody growths.
Scything can be done in both direcons, or just in one way which results in the debris being
thrown away from you. Use the side of the blade that it is rotang away from you. Tilt down
the blade slightly on this same side You will be hit by some debris if ou scythe in both direcons.
Do not force the blade to cut. Do not change the angle of cut aer into the wood. Avoid using
any
pressure or leverage which could cause the blade to bind or crack.
SAFETY RULES&PRECAUTIONS
WARNING: The cuer area is sll dangerous while the machine is coasng to a stop.
Note: Noise and vibration
1.e running at low speed can reduce the noise and quiver.
2.ln order to lower noise, the brush cutter should be operated in an open environment.
3.e vibration can be lowered if the handle is grasped rmly.
4.ln order to avoid disturbing others, the machine should be operated in daytime.
5.Wear personal protective equipment, such as gloves and ear protection during
the operation.
6.e machine is not for professional work and not for long time operation.
7.In order to keep the user’s tness and prolong the machine’s life, please do not work more than 2 hours in a whole day and don’t keep working
more than 10 minutes at a time.

DESCRIPTION

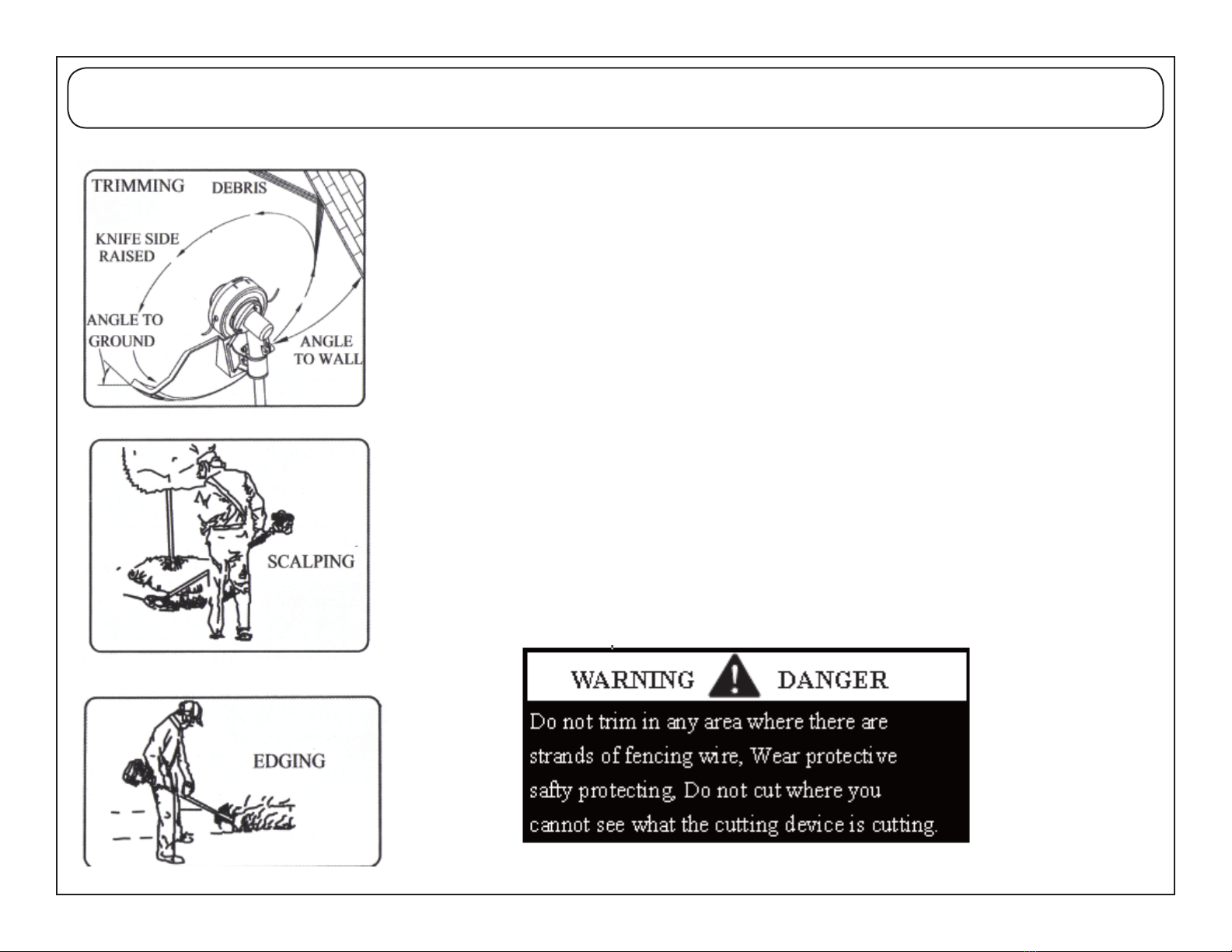

CUTTING WITH A NYLON HEAD
TRIMMING:
This is feeding the trimmer carefully into the material you wish to cut. Tilt the head slowly to
direct debris away from you. It’ cung up to a barrier such as fence, wall or tree .approach from
an angle where anydebris ricocheng o the barrier will y away from you. Move the line head
slowly unl the grass is cut right up the barrier, but do not jam(overfeed )the line into the barrier.
If trimming up to a wire mesh or chain linked fence be careful to feed only up to wire. If you
go to far the line will snap o around the wire. Trimming can be done to cut through weed
stems one at a me. Place the trimmer line head near the boom of the weed-never high up which
could cause the weed to chaer and catch the line. Rather than cut the weed right through, just use
the very end of the line to wear through the stem slowly.
SCALPING AND EDGING:
Both of these are done with the line head lted at a steep angle scalping is removing
top growth leaving the earth bear. Edging is trimming the grass back where it has spread over a
sidewalk or drive way. During both edging and scalping, hold the unit a steep angle and in a posi-
on where the debris, and any dislodging dirt and stones, will not come back towards you even if it
ricochets o the hard surface. Although the picture shows how to edge and scalp every
oprator must nd for himself the angles which suits his body size and cung situaon.

USING THE SHOULDER HARNESS
1.Assemble and adjust the shoulder harness and belt, as shown.
2.Adjust the shoulder-harness buon, and move the hook to your waist, then adjust the belt(If there is a belt).
3.Hang the latch tab on the harness hook.
4.If the brush cuer does’t balance, then adjust the harness hanger, and the handlebar, unl it balances.
5.To quickly detach the brush cuer from the
harness,pull the quick-release latch tab upward;
6.Insert the latch tongue in the slot of the
quick-release latch to reaach the brush cuer
to the harness.

INSTALLING PLASTIC SHIELD
Install the safety cover on the sha with the safety cover bracket and the screws provided.
Tighten the screws aer seng the safety cover bracket at the appropriate posion.
BLADE INSTALLATION
-Insert the hex key (2) into the specic hole in the angle transmission (3) and rotate the nut (7) by hand until the hex key enters the inner hole
, blocking rotation. -unscrew the nut (7) in a clockwise direction. -Pull out blade cover (6) and the blade press board(5). - Ensure that the
grooves in the key gasket (4) mach up perfectly with the angle transmisson(3).- Install the blade (1) and the blade press board(5).
- Ret the blade cover (6) and the nut (7),fully tightening it in an anticlockwise direction.- Remove the hex key (2)

ASSEMBLY
HEAD LINE INSTALLATION
Insert the hex key (2) into the specic hole in the angle transmission (3) and rotate
the key gasket (4) by hand unl the hex key enters the inner hole, blocking rota-
on. - Ensure that the grooves in the key gasket (4) mach up perfectly with the angle
transmisson(3). - Fit the cung line head (1) screwing it up in an anclockwise direc-
on. (see from cung line head)- Remove the hex key (2)

Read the operator’s manual carefully. Be thoroughly familiar with the controls and proper use of the unit. Know how to stop the unit
and shut o the engine.Know how to unhook a harnessed unit quickly. Never allow anyone to use the unit without proper instrucon.Be sure
the operator wears the foot, leg, eye, face and hearing protecon. Do not rely on the debris shield on the unit to protect your eyes from rico-
cheng or thrown objects. Keep the area clear of bystanders, children and pets. Never allow children to operate for play with the unit. Do not
allow anyone to enter the operang DANGER ZONE with you. The danger zone is an area 15 meters in radius (about 16 paces) or 50 feet. Insist
that persons in the RISK ZONE beyond the danger zone wear eye protecon from thrown objects. If the unit must be used where there are
unprotected people, operate at a low throle speed to reduce the risk of thrown objects. Move the stop switch to “stop” posion when the
engine idles, hereby ensuring it is reliable before cung. Only may connue to operate the unit when stop switch is in good condion. Rounes
for checking that the cung aachment stops turning when the engine idles. Hold the brushcuer with the right hand on the trigger handle
and the le hand on the le handle. Keep a rm grip with both hands while in operaon. Brush cuer should be held at a comfortable posion
with the trigger handle about hip height.Maintain your grip and balance on both feet. Posion yourself so that you will not be drawn o balance
by the kick-back reacon of the cung blade. Use the shoulder harness at all mes.Adjust both harness and harness clamp on the unit so that
the unit hangs a few inches above ground level. The cung head and the plasc debris shield should be level in all direcons. Harness the unit
on the right side of your body.

TRANSMISSION DIAGRAM & SPARE PART LIST
