LiveU LU600 User manual

LiveU LU600
User Guide
Version: 7.5.x
5th May, 2019
Doc Version: 7.5.3
P/N: DOC00211

About This Guide LiveU LU600 User Guide
2
About This Guide
This user guide describes the LiveU LU600 live video uplink system and provides basic
information for the operation of the unit in the field.
NOTES Advanced operations intended for technical personnel and system
administrators are outside of the scope of this user guide.
The guide contains the following chapters:
•Chapter 1, Introducing the LU600, page 12, introduces the LU600 Live Video
Uplink unit and describes its hardware components.
•Chapter 2, Quick Start, page 18, describes how to quickly get started using the
LU600, and describes the Home screen and its options.
•Chapter 3, Using the LU600, page 22, describes the functionality of the LU600
and its operation.
•Chapter 4, Advanced Configuration Settings, page 46, describes how to
configure advanced configuration settings on the LU600.
•Chapter 5, Store and Forward, page 50, describes Store & Forward mode, and its
operation on the LU600.
•Chapter 6, File Transfer (FTP), page 58, describes how to use the LU600 to
transfer files from the field directly back to the back office / studio.
•Chapter 7, Interrupted Feedback (IFB), page 63, describes the LU600’s IFB
feature and how to set it up. IFB provides a unidirectional audio channel from the
studio to LU600 unit operators in the field.
•Chapter 8, Video Return,page 67, describes Video Return functionality and how
to use it on the LU600.
•Chapter 9, DataBridge Operation, page 67, describes LiveU’s DataBridge solution
and how to operate the LU600 unit as a portable high-speed broadband router.
•Chapter 10, Working with Metadata on the LU600, page 74, describes how to
work with the metadata functionality included in the LU600.
•Chapter 11, Using the Wired Remote Control, page 77, describes how to use
the wired remote control provided with the LU600 backpack.
•Chapter 12, Handling the LU600, page 81, describes how to perform various
hardware-related tasks for handling the LU600, such as replacing the battery,
inserting standard and Dual-SIM cards and so on.
•Chapter 13, FAQs, page 94, answers various frequently asked questions about the
LU600.

About This Guide LiveU LU600 User Guide
3
•Appendix A, Safety and Maintenance, page 98, describes how to maintain the
LU600 unit and how to handle potential hazards.
•Appendix B, Limitation of Liability and Warranty, page 101, describes the
limitations on liability and warranty.
•Appendix C, FCC Compliance, page 102, provides FCC compliance information.
What’s New in Version 7.5.3
As of version 7.5.3, the following features and enhancements are now available:
•The ability to select an attached headset’s audio source (either IFB or Video Return)
•[For HEVC Card owners only] Select encoding for Store & Forward files: H.264 or
HEVC
•Speed Test – measure the total uplink speed from your unit to the output MMH
channel
More details on these features appear in the relevant sections inside this manual.
Intended Audience
This user guide is intended to be used by operators of LiveU’s LU600 Live Video Uplink unit.
We assume that operators have basic computer knowledge and are familiar with any video
equipment being used (cameras, microphones and so on) and the networking infrastructure
to which these LU600 units are connected.
Additional Documentation
•LiveU Central User Guide
•LiveU LU2000/LU4000 Server (MMH) User Guide
•LiveU Xtender User Guide

Table of Contents LiveU LU600 User Guide
4
Table of Contents
Chapter 1: Introducing the LU600 ........................................................................................12
Overview.................................................................................................................................... 12
What’s in the LU600 Box?......................................................................................................... 13
Hardware Configurations ........................................................................................................ 14

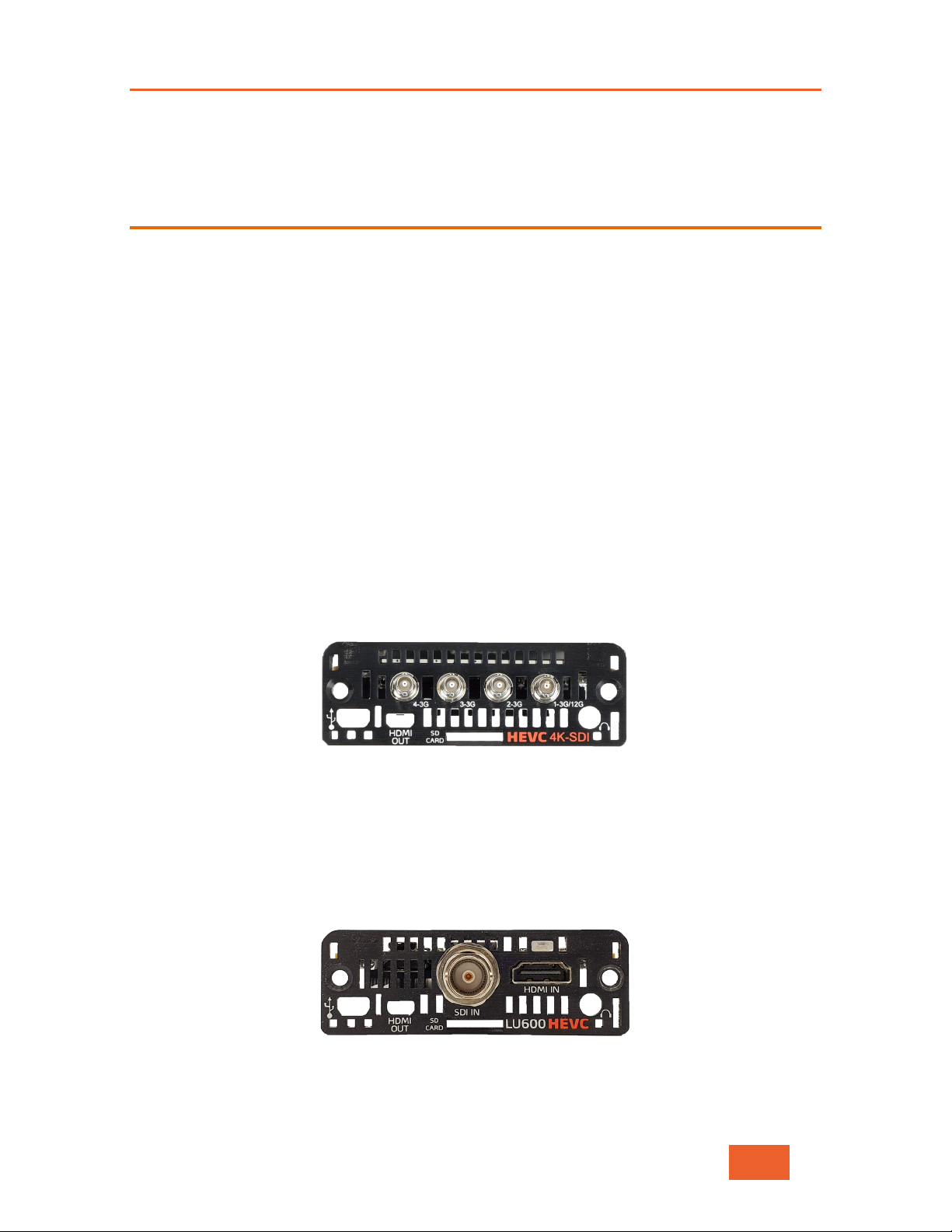

Video Interface Cards..................................................................................................... 14
Camera-Mount Configurations ..................................................................................... 15
External Antenna Enclosure............................................................................................ 15
External Antenna Accessory .......................................................................................... 16
LiveU Central ............................................................................................................................. 17
Chapter 2: Quick Start ..........................................................................................................18
Getting Started ......................................................................................................................... 18
LU600 Home Screen ................................................................................................................. 19
Video Preview and Audio Bars ...................................................................................... 20
Battery Status .................................................................................................................... 20
IFB Headphone Detection & Control............................................................................ 21
Chapter 3: Using the LU600 ..................................................................................................22
Powering On the LU600 Unit .................................................................................................... 22
Charging the LU600 ......................................................................................................... 22
Connecting the Video Camera............................................................................................. 24
Viewing the Camera Resolution.................................................................................... 25
Streaming Operation Mode Selection .................................................................................. 26
Specifying Store & Forward Streaming Quality .................................................................... 27
Selecting an Output Channel ................................................................................................ 28
Channel Status Display.................................................................................................... 30
Streaming to a Preview Channel (Virtual Group) ....................................................... 30
Marking a Channel as a Favorite .................................................................................. 31
Setting Delay ............................................................................................................................. 32
Handling Network Connections ............................................................................................. 33
Cellular Interfaces............................................................................................................ 34
Optimized Roaming Pairing (ORP) ................................................................................ 37
Dual-SIM Modules – GUI Additions................................................................................. 37
Ethernet Interface Network Parameters....................................................................... 40
Configuring WiFi Network Parameters .......................................................................... 41
Connecting to a WiFi Network....................................................................................... 42
Going Live.................................................................................................................................. 43
Shutting Down ........................................................................................................................... 44
Software ............................................................................................................................ 44
Hardware .......................................................................................................................... 45
Using the Wired Remote Control ................................................................................... 45

Table of Contents LiveU LU600 User Guide
5
Chapter 4: Advanced Configuration Settings ....................................................................46
Speed Test.................................................................................................................................. 47
Store & Forward ........................................................................................................................ 48
Audio Settings............................................................................................................................ 48
Setting the Number of Audio Channels ....................................................................... 48
Setting the Audio Bitrate................................................................................................. 48
DataBridge ................................................................................................................................ 48
Auto Resolution ......................................................................................................................... 49
About.......................................................................................................................................... 49
Chapter 5: Store & Forward ..................................................................................................50
Introducing Store & Forward ................................................................................................... 50
Live & Store ................................................................................................................................ 50
Setting Up the Camera............................................................................................................ 51
Configuring S&F on the LU600 Unit ......................................................................................... 51
Setting the File Prefix ........................................................................................................ 51
Selecting Local Storage.................................................................................................. 52
Configuring an S&F Session ..................................................................................................... 52
Starting the S&F Session............................................................................................................ 54
Monitoring S&F Sessions ........................................................................................................... 55
Monitoring – Files Transfer Info Log Screen................................................................... 55
Monitoring – FILES Screen................................................................................................ 56
Chapter 6: File Transfer (FTP) ................................................................................................58
Introduction ............................................................................................................................... 58
File Upload Indication .............................................................................................................. 62
Chapter 7: Interrupted Feedback (IFB)...............................................................................63
IFB Overview .............................................................................................................................. 63
IFB Setup..................................................................................................................................... 63
Chapter 8: Video Return.......................................................................................................64
Overview.................................................................................................................................... 64
Operating Video Return on the LU600 .................................................................................. 64
Selecting Video Return.................................................................................................... 64
Return Channel Selection............................................................................................... 65
Activating the Video Return stream.............................................................................. 65
Video Output.................................................................................................................... 66
Going live while streaming a Video Return channel.................................................. 66
Chapter 9: DataBridge Operation .......................................................................................67
LiveU DataBridge Solution ....................................................................................................... 67
DataBridge Operational Modes.................................................................................... 67
DataBridge Mode..................................................................................................................... 68
Operating in DataBridge Mode..................................................................................... 69
DataBridge Settings.................................................................................................................. 70
Selecting DataBridge Operational Modes .................................................................. 70

Table of Contents LiveU LU600 User Guide
6
Configuring DataBridge WiFi Hotspot Parameters...................................................... 71
Chapter 10: Working with Metadata on the LU600 ............................................................74
Metadata Overview ................................................................................................................ 74
Metadata operation on the LU600 ........................................................................................ 74
Turning Metadata On or Off........................................................................................... 75
Turning Metadata Prompts On or Off ........................................................................... 75
Metadata Field Entry ....................................................................................................... 76
Chapter 11: Using the Wired Remote Control.....................................................................77
LU600 Wired Remote Control.................................................................................................. 77
Connecting the Remote to the Unit ...................................................................................... 78
Turning the Unit On/Off ............................................................................................................ 78
Turning the Unit On .......................................................................................................... 78
Turning Off the Unit .......................................................................................................... 79
Starting/Stopping Live/Store & Forward Streaming ............................................................. 79
Starting Streaming............................................................................................................ 79
Stopping Streaming ......................................................................................................... 80
Chapter 12: Handling the LU600 ..........................................................................................81
Inserting a Module SIM Card................................................................................................... 81
Dual-SIM Module Installation................................................................................................... 84
Why Use Dual-SIM Modules ............................................................................................ 84
Installing SIMs in a Dual-SIM Module.............................................................................. 84
Connecting an Extra (9th) Modem........................................................................................ 85
Attaching and Replacing a Battery ...................................................................................... 86
Ethernet Connection................................................................................................................ 88
Connecting to the LiveU Xtender .......................................................................................... 88
Connecting the LU600 WiFi Client Pouch to the Backpack ...................................... 89
Chapter 13: FAQs..................................................................................................................94
1Does the LU600 come with SIM cards installed? ......................................................... 94
2Where are SIM cards placed? ....................................................................................... 94
3How do I know which SIM cards are supported in my country? .............................. 94
4What is the next step after inserting the SIM cards into the LU600 unit?.................. 94
5How do I know whether or not the LU600 unit is connected to the Internet?........ 95
6The LU600 unit does not connect to the Internet. What is the problem?................ 95
7What is the purpose of the micro SD slot?.................................................................... 95
8Which modules can be used in the LU600?................................................................. 95
9In which countries does the LU600 work?..................................................................... 96
10 How do I get support for the LU600?............................................................................. 96
11 Can I stream directly to the web? How? ..................................................................... 96
12 How many hours does the battery last?....................................................................... 96
13 Why can I not hear using the earphones/headphones? .......................................... 96
14 Can I stream to multiple channels (LU2000s) at the same time? ............................. 97
15 Which camera resolutions are supported?.................................................................. 97

Table of Figures LiveU LU600 User Guide
7
Appendix A: Safety and Maintenance ...............................................................................98
Safety Information .................................................................................................................... 98
Potential Hazards ...................................................................................................................... 99
Appendix B: Limitation of Liability and Warranty .............................................................101
Limitation of Liability and Warranty...................................................................................... 101
Appendix C: Regulatory Compliance ..............................................................................102

Table of Figures LiveU LU600 User Guide
8
Table of Figures
Figure 1: LU600 ....................................................................................................................................................................12
Figure 2: Solution Architecture.........................................................................................................................................13
Figure 3: 4K SDI Video Interface Card panel.................................................................................................................14
Figure 3: HEVC-HD Video Interface Card panel...........................................................................................................14
Figure 5: Camera-Mount Configuration (for V-Mount)................................................................................................15
Figure 5: LU600-SMA...........................................................................................................................................................16
Figure 7: External Cellular Antenna (ANT00026)............................................................................................................16
Figure 3: LiveU Central.......................................................................................................................................................17
Figure 4: Unit Under Remote Control ..............................................................................................................................17
Figure 5: LiveU LU600 Home Screen ................................................................................................................................19
Figure 6: Camera Not Connected message ................................................................................................................20
Figure 7: LiveU LU600 Battery Status Screen...................................................................................................................21
Figure 8: IFB Volume Screen .............................................................................................................................................21
Figure 9: DC IN Connector ...............................................................................................................................................23
Figure 10: Power Switch ....................................................................................................................................................23
Figure 11: LU600 Screen Showing Camera Scene........................................................................................................24
Figure 12: LU600 Unit Camera Connections ..................................................................................................................24
Figure 13: LU600 Unit Cable Extensions...........................................................................................................................25
Figure 14: Camera Not Connected................................................................................................................................25
Figure 14: Currently Detected Video Input Resolution ................................................................................................26
Figure 15: Selecting Operating Mode - 1 .......................................................................................................................27
Figure 16: Selecting the Operating Mode .....................................................................................................................27
Figure 17: Setting the Streaming Quality ........................................................................................................................28
Figure 18: Selecting a Channel........................................................................................................................................29
Figure 19: Ready to Go Live .............................................................................................................................................29
Figure 20: Channel Busy message...................................................................................................................................30
Figure 21: Virtual Channel ................................................................................................................................................30
Figure 22: Marking a Favorite Channel ..........................................................................................................................31
Figure 23: Setting the Delay .............................................................................................................................................32
Figure 24: Connections Screen........................................................................................................................................33
Figure 25: Cellular Interface Screen................................................................................................................................34
Figure 26: APN Configuration Screen .............................................................................................................................35
Figure 27: APN Manual Configuration ............................................................................................................................35
Figure 28: Mobile Network Selection Screen .................................................................................................................36
Figure 29: Mobile Network Screen During Scan ............................................................................................................36
Figure 30: Mobile Network Screen After Scan...............................................................................................................37
Figure 31: Connections Screen w/Dual-SIM Modules ..................................................................................................37
Figure 32: Connections Settings Screen .........................................................................................................................38
Figure 33: Global SIM Slot Switch Message....................................................................................................................38
Figure 34: Dual-SIM Cellular Interface Screen ...............................................................................................................39
Figure 35: Dual-SIM Slot Switch Message........................................................................................................................39
Figure 36: Ethernet Interface Screen – DHCP Enabled ................................................................................................40
Figure 37: Ethernet Interface Screen – DHCP Disabled ...............................................................................................40
Figure 38: Interfaces Screen – 2.......................................................................................................................................41
Figure 39: WiFi Networks – 1 ..............................................................................................................................................41
Figure 40: WiFi Networks – 2 ..............................................................................................................................................42
Figure 41: WiFi Network Connected ...............................................................................................................................42
Figure 42: Channel Busy....................................................................................................................................................43
Figure 43: Powering Down – 1 ..........................................................................................................................................44
Figure 44: Powering Down – 2 ..........................................................................................................................................44
Figure 45: Power Button ....................................................................................................................................................45
Figure 46: Settings ..............................................................................................................................................................46

Table of Figures LiveU LU600 User Guide
9
Figure 47: Speed Test.........................................................................................................................................................47
Figure 48: Speed Test in Progress .....................................................................................................................................47
Figure 49: Speed Test Result Window..............................................................................................................................47
Figure 50: Audio Settings...................................................................................................................................................48
Figure 51: Auto Resolution ................................................................................................................................................49
Figure 52: About Screen....................................................................................................................................................49
Figure 53: Advanced Configuration ...............................................................................................................................51
Figure 54: Store & Forward Settings .................................................................................................................................51
Figure 55: Selecting S&F Mode – 1 ..................................................................................................................................52
Figure 56: Selecting S&F Mode – 2 ..................................................................................................................................52
Figure 57: Selecting Quality – 1 ........................................................................................................................................53
Figure 58: Selecting Quality – 2 ........................................................................................................................................53
Figure 59: Starting the S&F Session...................................................................................................................................54
Figure 60: S&F Session in Progress ....................................................................................................................................54
Figure 61: Monitoring an S&F Session ..............................................................................................................................55
Figure 62: Options during an S&F Session .......................................................................................................................56
Figure 63: Storage Containers..........................................................................................................................................56
Figure 64: Folders List..........................................................................................................................................................57
Figure 65: USB Port..............................................................................................................................................................59
Figure 66: LU600 Micro SD Card Slot................................................................................................................................59
Figure 67: Storage Selection.............................................................................................................................................59
Figure 68: Folder Selection................................................................................................................................................60
Figure 69: File Selection .....................................................................................................................................................60
Figure 70: Sorting the File List ............................................................................................................................................61
Figure 71: Uploading .........................................................................................................................................................61
Figure 72: Upload Completed .........................................................................................................................................61
Figure 73: File Transfer Information – 1 ............................................................................................................................62
Figure 74: File Transfer Information – 2 ............................................................................................................................62
Figure 75: Video Return on the Home Screen ...............................................................................................................65
Figure 76: The Video Return Screen ................................................................................................................................65
Figure 77: Video Return Channel Selection...................................................................................................................65
Figure 78: Video Return Display .......................................................................................................................................66
Figure 79: DataBridge Solution Architecture .................................................................................................................68
Figure 80: DataBridge........................................................................................................................................................69
Figure 81: LU600 After Connecting to the DataBridge Gateway ..............................................................................69
Figure 82: Connections List in DataBridge Mode..........................................................................................................70
Figure 83: DataBridge Settings Screen ...........................................................................................................................70
Figure 84: DataBridge Operational Mode Screen........................................................................................................71
Figure 85: DataBridge Hotspot Screen (part 1) .............................................................................................................71
Figure 86: DataBridge Hotspot Screen (part 2) .............................................................................................................72
Figure 87: LU600 Home Screen w/Metadata Enabled ................................................................................................75
Figure 88: The Metadata Tab...........................................................................................................................................75
Figure 89: The Metadata Prompt Window.....................................................................................................................76
Figure 90: LU600 Remote Control – Unit is Turned Off...................................................................................................77
Figure 91: LU600 Wired Remote Control .........................................................................................................................78
Figure 92: LU600 is Turned On, But Not Ready to Stream.............................................................................................78
Figure 93: LU600 is Turned On and is Ready to Stream ................................................................................................79
Figure 94: LU600 is Streaming............................................................................................................................................80
Figure 95: Releasing the Cover........................................................................................................................................82
Figure 96: Removing the LU600 Cover to Expose the Modules ..................................................................................82
Figure 97: Module Positions ..............................................................................................................................................83
Figure 98: Inserting a SIM Card into a Module – 1 ........................................................................................................83
Figure 99: Inserting a SIM Card into a Module – 2 ........................................................................................................83
Figure 100: Dual-SIM Module............................................................................................................................................84
Figure 101: USB Port............................................................................................................................................................85

Table of Figures LiveU LU600 User Guide
10
Figure 102: LU600 Battery ..................................................................................................................................................86
Figure 103: Releasing the Battery ....................................................................................................................................87
Figure 104: Ethernet Connections ...................................................................................................................................88
Figure 105: Unzipping the Bottom Compartment.........................................................................................................89
Figure 106: Expanding the Bottom Compartment .......................................................................................................89
Figure 107: Unzipping the Compartment’s Zipper ........................................................................................................90
Figure 108: Turning the Pouch..........................................................................................................................................90
Figure 109: Threading the LAN Cable.............................................................................................................................91
Figure 110: Pushing the Cable Through the Hole in the Backpack............................................................................91
Figure 111 Connecting the Cable to the LAN Port.......................................................................................................92
Figure 112: Opening the Straps........................................................................................................................................92
Figure 113: Placing the Pouch on the Backpack .........................................................................................................92
Figure 114: Securing the Top Velcro Straps of the Pouch to the Backpack.............................................................93
Figure 115: Securing the Bottom Velcro Straps of the Pouch to the Backpack ......................................................93

Table of Figures LiveU LU600 User Guide
11
Support and Contact Information
US and International:
LiveU Inc.
2 University Plaza Drive
Suite 505
Hackensack, New Jersey, 07601
USA
US: [e-mail]
Latin America: [e-mail]
US & Latin America Phone line: 1-(877)-88-LiveU (54838)
International: [e-mail]
International Phone Line: 1-(609)-997-0600
When contacting a support representative, please make sure to have the last five digits of
the LU600’s serial number available. This can be found by selecting the About option, as
described in the About section on page 49.

Introducing the LU600 LiveU LU600 User Guide
12
1
Introducing the LU600
Overview
The LU600 is a compact lightweight unit that enables you to transmit high-quality SD/HD
(and with optional HEVC cards, 4K) video from diverse locations, while adapting to dynamic
network conditions. The LU600 provides broadcast-grade video quality and bitrate (20
Mbps), a very high file transfer speed (80 Mbps) and comes with a battery that can provide
up to 4 hours of live streaming.
The LU600 connects seamlessly to most commercially available cameras using either SDI or
HDMI interfaces, and can support up to four audio channels when using SDI.
The LU600 supports 3G/4G (LTE and Advanced LTE) cellular networks, WiFi links and two
Ethernet links.
The LU600 introduces a five-inch capacitive touch screen and a streamlined user interface.
Figure 1: LU600
As the LU600 powers up, it dials (connects) its modems, connects the WiFi / Ethernet
interfaces to various networks and combines their bandwidth into a single consolidated
broadband uplink connection. The LU600 can then encode incoming video into an H.264 (or
HEVC) stream and transmit it over the aggregated bandwidth or use this bandwidth for
DataBridge functionality.
DC Power Connector
Power
ON/OFF
Touch Screen
Video Input Card

Introducing the LU600 LiveU LU600 User Guide
13
The LiveU LU2000 (server) receives these various streams of video via a standard Internet
connection. The LU2000 server runs multiple Multi-Media Hub (MMH) instances, where each
MMH recombines the streams received from a specific field unit (e.g. the LU600) into a
discrete broadcast-quality video stream that can be played out over an integrated SDI
interface on the LU2000 or streamed from the LU2000 to a CDN.
The LU2000 is normally installed at a studio or broadcasting center. Alternatively, a cloud-
server based MMH instance may be used when SDI output isn’t required.
Figure 2: Solution Architecture
Your LU600 (and indeed, any LU2000 that’s part of your organization) can be controlled
and configured using LiveU Central, as described on page 14.
What’s in the LU600 Box?
Check that your LU600 box contains the following items:
•LU600 portable video uplink unit & LU600 battery
•LU600 backpack
•AC power adapter (90W 16V) and power cord
•The following cables:
oSDI cable (BNC to BNC 2.2m)
oHDMI to Mini HDMI (2.5m)
oMicro HDMI (Male) to HDMI (Female - Orange), 25cm (for use with the
Video Return feature)
•LU600 remote control
•Optional accessories:
Anton Bauer/V-mount/PAG camera mount (does not fit the LU600 backpack)
Multipoint
CDN/OVP
LU2000
Cloud Server
LU600

Introducing the LU600 LiveU LU600 User Guide
14
Anton Bauer/V-mount/PAG battery adapter for powering the LU600 inside the
bag
Hardware Configurations
The LU600 has several optional hardware configurations and accessories including different
video interface cards, camera-mount configurations and external antenna for specific
connectivity scenarios.
Video Interface Cards
The base LU600 comes with the HEVC-HD video interface card that supports HD video input
via either SDI or HDMI connectors. This card supports the following video connections:
3G/HD/SD-SDI and HDMI 1.4.
LiveU can also supply optional alternative video interface cards for the provision of 4K video
as follows:
4K-SDI
This card supports SDI 4K input and SDI HD input. The card supports the following video
connections: 12G/3G/HD/SD-SDI 4x3G-SDI (2SI + SD), supporting all formats of 4x3G-
SDI – 2 sample interleave or square division, level A or level B. Please note that this card
does not support any HDMI input.
Figure 3: 4K SDI Video Interface Card panel
4K-HDMI
This card allows either 4K HDMI input or SDI HD input, supporting the following
connections: 3G/HD/SD-SDI, HDMI 2.0.
Figure 4: HEVC-HD Video Interface Card panel

Introducing the LU600 LiveU LU600 User Guide
15
4K Video Support
When the above video cards are used, the LU600 is able to support 4K video in all
operational modes, i.e. Live, Live & Store, and Store & Forward. Based on the card used,
you will be able to use either 4K HDMI or 4K SDI video input, either of which will support
the following resolutions: 4Kp50/60/25/30/24, 1080p50/60/25/30/24, 1080i50/60,
720p50/60/25/30, PAL, NTSC
Camera-Mount Configurations
The LU600 can be ordered in 3 different camera mount configurations, suitable for working
with batteries from Anton Bauer, V-Mount and PAG.
Figure 5: Camera-Mount Configuration (for V-Mount)
External Antenna Enclosure
Your LU600 contains from 6 to 8 cellular modules that provide enhanced connectivity in
normal operational scenarios. If for any reason, you wish to connect external antenna to
these modems, LiveU provides the option to upgrade your unit to an LU600-SMA
configuration. Please contact your LiveU sales rep for more information.

Introducing the LU600 LiveU LU600 User Guide
16
Figure 6: LU600-SMA
External Antenna Accessory
As part of the accessories available for the LU600, LiveU offers external cellular antennas
(part number ANT0026) that were tested and found to be highly compatible with the
LU600.
Figure 7: External Cellular Antenna (ANT00026)
These antennae have the following advantages:
•Hi-Performance Antennas (-3dBi)
•Each antenna has 2 internal cellular antenna and can be connected to two different
cellular modules on the LU600-SMA.
We recommend placing the antennas at least 20cm from each other when connecting
multiple antennas to the LU600.
The antenna has a 3-meter cable with an SMA connector that can be extended, however we
do not recommend extension as this may affect antenna performance.

Introducing the LU600 LiveU LU600 User Guide
17
LiveU Central
LiveU Central is a web interface that lets you access any LiveU field unit you have, including
the LU600. LiveU Central runs in any modern web browser such as Google Chrome,
Internet Explorer or Firefox and allows you to view an LU600’s status and to remotely
configure an LU600 and an MMH instance (running on the LU2000 server).
Figure 8: LiveU Central
When LiveU Central takes control of an LU600, the message Unit is under LiveU Central
Remote Control is displayed on the LU600 unit.
Figure 9: Unit Under Remote Control
This message remains on the screen until the LU600 user taps the OK button. This
message provides the LU600 user with an indication that the LU600 is/was controlled
remotely (and possibly that its configuration was changed). The LU600 user can tap this
button at any time without affecting the control.
Please refer to the LiveU Central User Guide for more detailed information.

Quick Start LiveU LU600 User Guide
18
2
Quick Start
This chapter describes how to get started using the LU600 and describes the Home screen
and its options.
Getting Started
The following describes the basic workflow for using the LU600:
1Power on the LU600 as described in the Powering On the LU600 Unit section on
page 22.
2Connect a video camera to the unit, as described in the Connecting the Video
Camera section on page 24.
3Select the mode of operation as described in the Streaming Operation Mode
Selection section on page 26.
4[optionally] If you have the Metadata service enabled for your unit, set the
metadata fields accordingly, as described in the chapter on Metadata, page 74
5Based on the current mode of operation, do the following:
For Live mode, set the delay, as described in the Setting Delay section on page
32.
For Store & Forward mode, set the quality and codec for streaming. For more
details, refer to the Specifying Store & Forward Streaming Quality section on
page 27.
6Select the output channel for your transmission as described in Selecting an Output
Channel section on page 28.
7Start streaming, as described in the Going Live section on page 43.

Quick Start LiveU LU600 User Guide
19
LU600 Home Screen
The LU600 user interface is accessed via the LCD touch screen. The Home screen
automatically displays when the unit is powered on.
All LU600 functionality is accessible directly from the Home screen.
Figure 10: LiveU LU600 Home Screen
The Home screen provides various buttons, icons and indicators for controlling the unit and
its broadcast, as follows:
•Battery Status, page 20
•Preview and Audio Bars, page 20
•IFB Headphone Detection & Control, page 21
•Video Input Resolution, page 25
•Streaming Operation Mode Selection, page 26
•Channel, page 28
•Delay, page 32
•Connections, page 33
•Start/Stop Streaming, page 43
•Power Down, page 44
•Advanced Configuration, page 46
•File Management, page 58
•File Transfer Status, page 62
Connections
File
Transfer
Headphone
Volume
Power
Down
Streaming
Operation
Mode
Start/Stop
Streaming
Video Input
Resolution
Channel
Advanced
Configuration
Battery
Status
Delay
Live Video
Mode
DataBridge
Mode
File
Management
Metadata
Video Preview
and Audio Bars
Video Return
Mode

Quick Start LiveU LU600 User Guide
20
•Video Return, page 64
•DataBridge, page 67
•Metadata, page 74
Video Preview and Audio Bars
This area of the Home screen automatically shows a preview of the incoming video feed
after the camera is connected and turned on. On the left part of the video, you should be
able to see two audio bars (Left and Right). Note that when using an HEVC Pro video card,
the audio bars will appear to the right. Additionally, if your audio input was defined as 4
channels, this will be reflected in the audio bar display on screen.
The video feed is displayed a few seconds after the camera is connected and automatically
detected by the LU600. If the LU600 cannot detect any incoming video, this area will
display a message “Camera Not Connected”.
Figure 11: Camera Not Connected message
Battery Status
This icon displays battery charge as follows:
Green: The battery is charged 20% or more
Yellow: The battery is charged between 10% to 20%
Red: The battery is charged between 5% to 10%
Flashing Red: The battery is charged less than 5%
