Living Home IF-1370 User manual

1
ELECTRIC FIREPLACE

2
WARNING & SAFETY

Read this manual before installing and operating this appliance.
 Failure to follow these instructions may result in electric shock, fire
property, or personal injury.

Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.

This heater is hot when in use. To avoid burns, DO NOT let bare skin touch
hot surfaces. If provided, use handles when moving this heater. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothes,
and curtains at least 3 feet (0.9m) from the front of the heater, and keep
them away from the sides and rear.
 Extreme caution is necessary when any heater is used by or near children
or invalids and whenever the heater is left operating and unattended.
 DO NOT operate any heater with a damaged cord or plug or after the
heater malfunctions, has been dropped or damaged in any manner,
discard heater, or return to authorized service facility for examination and
/or repair.
 DO NOT run power cord under carpeting. DO NOT cover power cord with
throw rugs, runners, or similar coverings. DO NOT route power cord under
furniture or appliances. Arrange power cord away from traffic area, and
where it will not be tripped over.
 DO NOT insert or allow foreign objects to enter any ventilation or exhaust
openings, as this may cause electric shock or fire, or damage the heater.
 To prevent a possible fire, DO NOT block air intakes or exhaust in any
manner. Doing so could cause a fire. DO NOT use on soft surfaces, like a
bed, where openings may become blocked.

3
 A heater has hot and arcing or sparking parts inside. DO NOT use it in
areas where gasoline, paint, or flammable liquids are used or stored.
 Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury
to persons.
 ALWAYS plug heaters directly into a wall outlet/receptacle. Never use with
an extension cord or relocatable power tap (outlet/power strip).
 DO NOT place the heater near a bed because objects such as pillows or
blankets can fall off the bed and be ignited by the heater.
 NEVER use this heater in bathrooms, laundry rooms, or any other location
where the heater could fall into a bathtub or pool, become damp or come
in contact with water.

The heater should be installed so that the person in the bathtub or shower
cannot touch the switch or other controllers.
 The heater must not be placed directly under the socket.

AVOID FIRE! Regularly inspect all air vents to make sure they are free from
dust, lint, or other Blockage. Unplug the unit and clean with a vacuum
ONLY. DO NOT rinse or get wet.

ALWAYS mount to wall bracket before use. DO NOT set on the floor, or
other surface, to use.

NEVER use a wall mount bracket from another manufacturer.

This product is not intended to be a primary heat source. It is for
supplemental heat only.

INDOOR use only! NEVER use this heater outdoors! Doing so may result in
electric shock!
 Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!

ALWAYS turn this heater off before unplugging it from the outlet.

4
 ALWAYS disconnect this unit from the power supply before performing
any assembly or cleaning, or before relocating the electric fireplace.
 NEVER leave this heater unattended. ALWAYS unplug this heater when
not in use.
 ALWAYS store this heater in a dry location. NEVER use the fireplace if it
has become wet.

NEVER plug this heater into an outlet that is old, cracked, or has any loose
wires or connections. Plugging this heater into a faulty outlet could result
in electric arcing within the outlet that could cause the outlet to overheat
or catch fire.

ALWAYS check your heater cord and plug connections with each use!
 MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections
or loose plugs can cause the outlet to overheat.

Heaters draw more current than small appliances. Overheating may occur
even if it has not occurred with the use of other appliances.

During use check frequently to see if the plug outlet or face plate is HOT!

This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
 Children shall not play with the appliance！

Cleaning and user maintenance shall not be made by children without
supervision！

5
PREPARATION
This product includes a GLASS panel! Always use extreme caution when
handing glass. Failure to do so could result in personal injury or property
damage.
Remove all parts and hardware from the carton and place them on a clean,
soft, dry surface. Parts and assembly steps are grounded for wall-hanging or
recessing use. Check the parts list to make sure nothing is missing. Dispose of
packaging materials properly. Please recycle whenever possible. You will need
the following tools (not included): Phillips screwdriver; stud finder; level; tape
measure; electric drill; 1/4” wood drill bit, hammer.

6
COMPONENT
A : Fireplace
B: Wood Screws
C : Drywall Anchors
D : Metal Bracket
E : Wall Bracket
Fixed on Back of Firebox
F : Decorative
Crystals
H : Log Set
I : Plastic Tray
Remote Control

7
DIMENSION
Product Dimensions
Model
Number
A
B
C
D
E
F
G
IF-1370
70”
177.8cm
17”
43.2cm
5.51”
14.0cm
66.285”
168.35cm
16.25”
41.27cm
9.13”
23.2cm
63.7”
161.8cm

8
INSTALLATION
 Your appliance is a wall-mounted, recessed and /or mantel installed
appliance. Select a suitable location that is not susceptible to moisture and
is away from drapes, furniture and high traffic areas.
 NOTE : Follow all National and local electrical codes.
Minimum Clearance to Combustibles
Measurements are taken from the glass front.
Bottom 0” Top 8”(300mm) to mantel
Sides 0” Top 8”(300mm) to ceiling
Back 0”

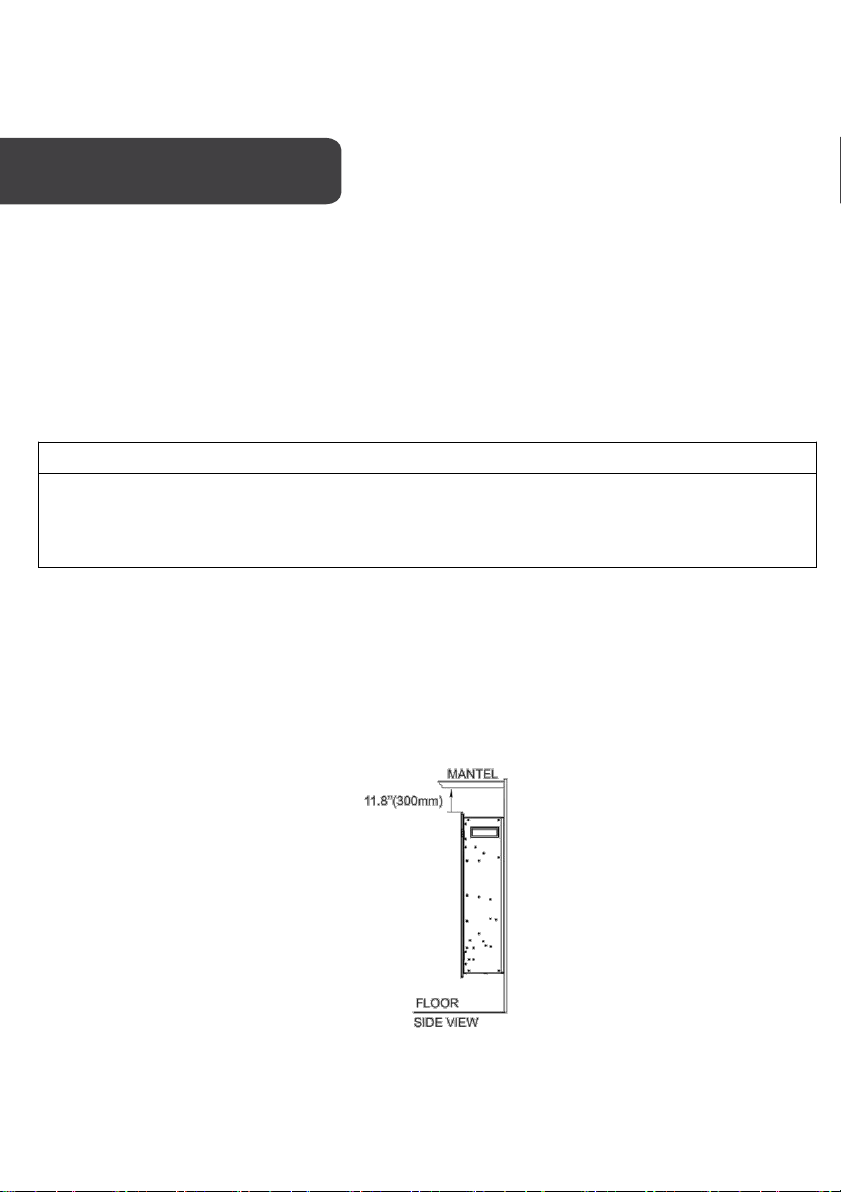

Minimum Mantel Clearances
Warning : When using paint or lacquer to finish the mantel, the paint or lacquer
must be heat resistant to prevent discoloration.

9
Recessed to Wall Installation
STEP 1 : Select a dry wall to open a hole for fireplace box. Size of hole as below
chat. Figure (A)
STEP 2 : Fix the three wall anchors in each side of the fireplace box according to
the dimensions. Showed on the drawing. Figure (B)
Framing Hole Size
Model Number
W
H
IF-1370
67.23”(170.7cm)
17”(43.2cm)

10
STEP 3 : Take off the two screws in both sides of fireplace. Figure (C)
STEP 4 : Have two persons take the glass panel out of the fireplace box. Place it to
a soft and clean place. Figure (D)
STEP 5 : Have two persons move the fireplace box to the wall hole.
If the appliance is fully recessed into the wall:
Use the 4 screws (provided) to lock the appliance into wall with the existing
two side flanges, see Figure(E).
Install the media and re-install the glass front.
STEP 6 : Place the front panel lock the appliance. Figure (F)
STEP 7 : Fireplace will be like this after installation. Figure (G)

11
Wall Mounted Installation
 Due to many different materials used on different walls, it is highly
recommended that you consult your local builder before you install this
appliance on the wall.
 Select a location that is not prone to moisture and is located at least 36”
(914mm) away from combustible materials such as curtain drapes,
furniture, bedding, paper, etc.


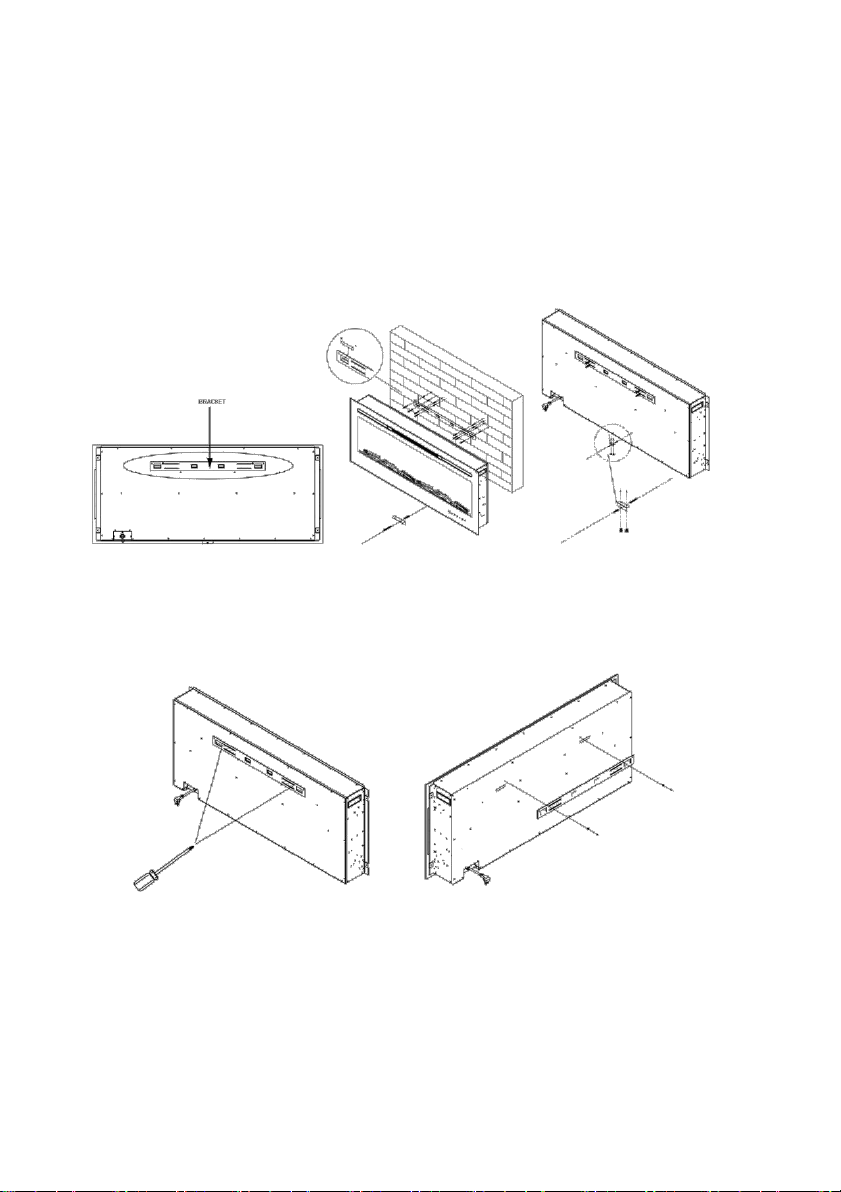

Have two people hold the appliance against the wall to determine the final
location.

Place unit face down on a soft, non abrasive surface. Remove the bracket
from the back of the unit by removing the screws, refer to Figure 1.

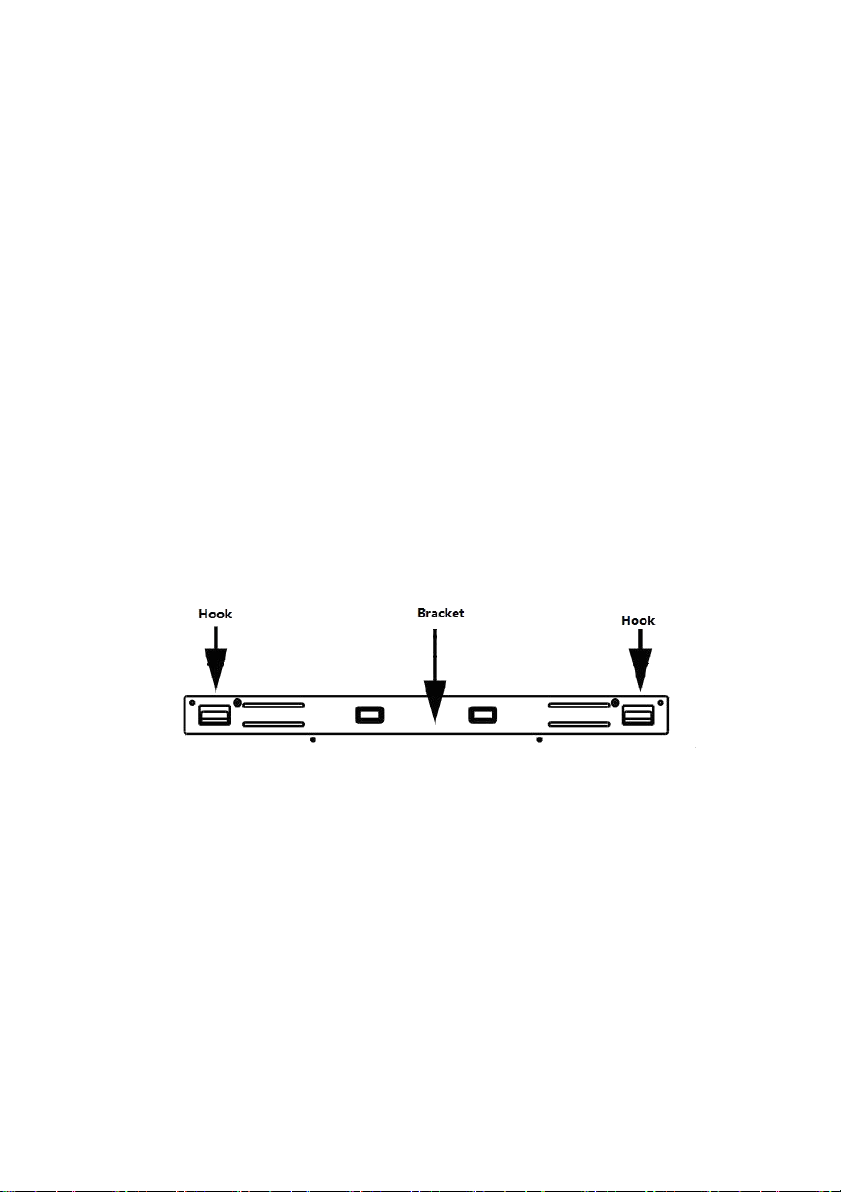

 Mark out location, then mount the bracket(s) onto the wall using the
supplied screws. This bracket MUST have the hooks facing upward and be
level.

NOTE: It is strongly recommended that the mounting bracket(E) be
screwed into the wall studs where possible. If the wall studs cannot be
used, ensure that the supplied plastic anchors are used to affix the bracket
to the wall and the bracket is adequately secured.

Fasten the metal bracket at the back of fireplace with 1pc 4x8mm screw,
the other end to the wall with 2pcs of Drywall anchors.

With the wall mounting bracket installed have two people lift the
appliance up and insert the two hooks on the bracket into the two slots on
the back of the appliance.

12
 Check the appliance for stability ensuring that the bracket will not pull free
from the wall.
Fig.1
Fig.2

13
Log set /Crystal/Pebble Ember Installation
(Note: Please make the installation according to the embers which you bought or
selected.)
A. Glass front must be removed and the appliance must be mounted in its final
location before the log set/crystal/pebble embers are installed.
B. If your fireplace come with log set, remove the log set from the package, put it
to the fireplace designed place.
Figure 1.
C. If your fireplace comes with CLEAN CRYSTAL or PEBBLE MEDIA: crystal or
pebbles media may have a fine oil residue that needs to be cleaned prior to
installation. Clean them with mild dish soap, drain, rinse thoroughly and dry before
placing into the tray.
D. Place the plastic tray(I) to the fireplace designed place. Then carefully place
crystal or pebbles embers into the bottom tray on the front of the appliance as
illustrated. Apply an even layer from side to side. Figure 2, Figure 3.
Figure 3.(Crystal Medias)
Figure 3.(Pebbles Media)

14
Warnin g
 Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure do to so
could result in electric shock, fire, serious injury, or death.
Power

Plug the power cord into a 220 Volt 7 Amp grounded outlet. Make sure
the outlet is in good condition and that the plug is not loose. NEVER
exceed the maximum amperage for the circuit. DO NOT plug other
appliances into the same circuit.
Methods of Operation

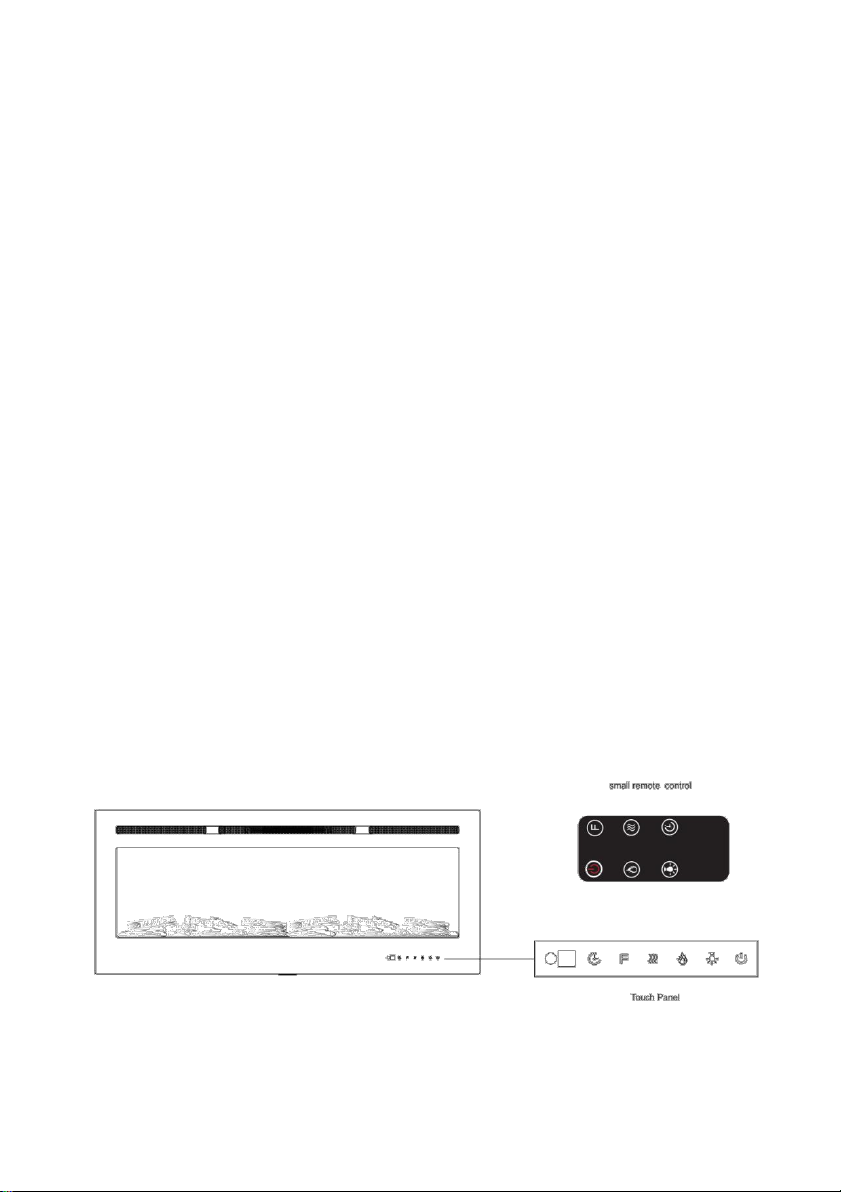

This electric fireplace can be operated by the TOUCH PANEL, located on the
BOTTOM right side glass panel of the fireplace, or by the battery-powered
REMOTE CONTROL. The operation and functions of the two methods are the
same.
Before operating, please review the IMPORTANT SAFETY INFORMATION on
Pages 2 and 3, and heed all warnings.

15
OPERATION
BUTTON
FUNCTION
ACTION&INDICATION
POWER
ON: Enables control panel functions and
remote control. Turn on flame effect.
OFF: Disables control panel functions
and remote control. Turn off flame
effect.
1. Press once. Indicator light turns
on. Power turns on. All functions
enabled.
2. Press.
COLOR
COLOR button: Makes the color flame
effect change.
1. Press once. Flame color effect
gets changed.
2. Press again until desired setting
is reached.
FLAME
FLAME button: Makes flame effect
dimmer and brighter.
NOTE: Flame effect stays on until power
button is turned off. Flame effect must
be on for heater to turn on.
1. Press once. Flame brightness
effect gets changed.
2. Press again. Until desired setting
is reached.
HEATER
HEATER button: Turn heater on and off.
NOTE: To prevent overheating, the
heater fan will blow out cool air for 30
seconds after the heater turn off.
1. Press once. Indicator lights up.
900W heater turns on and blows
warm air.
2. Press again. Indicator lights up.
1800W heaters turns on and blows
hot air.
3. Press again. Heaters turn off.
The fan blows cool air for 30
seconds to allow heater to cool
down, then turns off.

16
TEMP.
TEMPERATURE button: Control
temperature settings to choose
temperature as desired.
Setting range from 62F to 82F.
1. Press once. Indicator light turns
on. Temperature is set to 62F.
2. Press again until desired setting
is reached. LED display shows
setting.
TIMER
TIMER button: Control timer settings to
turn off fireplace at selected time.
Settings range from 1 hour to 8 hours.
3. Press once. Indicator light turns
on. Temperature is set to hours.
Press again until desired setting is
reached. LED display shows
setting.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater
reach an unsafe temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with
dust or lint. If they are,use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into
the outlet.
5. If the problem continues, have your outlet and wiring inspected by a
professional.

17
Remote Control Battery Information
Small remote control uses one CR2025 battery (included).
NOTE:
Remote control battery used depends on the remote control type which selected
above.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.

18
Living and Home
A Home is for Living in
For comfort and style update your living space.
Browse contemporary and classic designs and find the
perfect home to your look and the perfect spot to lounge.
Put your feet up and sink into our stylish home decor.
We are mainly engaged in home, outdoor, home appliances,
office, bathroom, provided high quality and affordable
products for you. We value every one of our customers and
our professional service team is always available to help you.
livingandhome.co.uk
