LIVINOX LEH-3118CS User manual

Built-In Electric Hob Manual
LEH-3118CS
LEH-3118CS
LEH-3318CS
LEH-4318ICS
LEH-3318CS
LEH-
4318ICS
LEH
-
3000C
LEH-2000I
LEH-3000C LEH-2000I
LEH-3218CS
LEH-3218CS
LEH-4118ICS
LEH- 4 118 I CS

2
CONTENTS:
Part 1. Safety Warnings
Part 2. Installation
Part 3. Operation Instructions
Part 4. Cleaning and Maintenance

3
Congratulations on the purchase of your
new hob and thank you for choosing us!
Please read all the safety instructions
carefully before use and keep this
Manual for future reference.
Part 1. Safety Warnings
Safety Warnings
Your safety is important to us. Please
read below information carefully before
installing or using your Hob.
Installation
Electrical Shock Hazard
•Disconnect the appliance from the mains
electricity supply before carrying out any work
or maintenance on it.
•Connection to a good earth wiring system is
essential and mandatory.
•Alterations to the domestic wiring system
must only be made by a qualified electrician.
•Failure to follow this advice may result in
electrical shock or death.

4
Cut Hazard
•Be cautions - panel edges are sharp.
•Failure to use caution could result in injury
or cuts.
Important safety instructions
•Read these instructions carefully before
installing or using this appliance.
•No combustible material or products should
be placed on this appliance at any time.
•Please make this information available to
the person responsible for installing the hob
as it could reduce your installation costs.
•In order to avoid a hazard, this appliance
must be installed according to these
instructions for installation.
•This appliance is to be properly installed and
earthed only by a suitably qualified person.
•This appliance should be connected to a
circuit which incorporates an isolating switch
providing full disconnection from the power
supply.
•Failure to install the appliance correctly
could invalidate any warranty or liability
claims.

5
Operation and maintenance
Electrical Shock Hazard
•Do not cook on a broken or cracked hob. If
the hob surface should break or crack, switch
the appliance off immediately at the mains
power supply (wall switch) and contact a
qualified technician.
•Switch the hob off at the wall before
cleaning or maintenance.
•Failure to follow this advice may result in
electrical shock or death.
Health Hazard
•This appliance complies with
electromagnetic safety standards.
•However, persons with cardiac pacemakers
or other electrical implants (such as insulin
pumps) must consult with their doctor or
implant manufacturer before using this
appliance to make sure that their implants
will not be affected by the electromagnetic
field.
•Failure to follow this advice may result in
death.

6
Hot Surface Hazard
•During use, accessible parts of this
appliance will become hot enough to cause
burns.
•Do not let your body, clothing or any item
other than suitable cookware contact the
ceramic glass until the surface is cool.
•Beware: Metallic objects such as knives,
forks, spoons and lids should not be placed
on the hob surface since they can get hot.
•Keep children away.
•Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang
other cooking zones that are on. Keep
handles out of reach of children.
•Failure to follow this advice could result in
burns and scalds.
Cut Hazard
•The razor-sharp blade of a hob scraper is
exposed when the safety cover is retracted.
Use with extreme care and always store safely
and out of reach of children.
•Failure to use caution could result in injury
or cuts.

7
Important safety instructions
•Never leave the appliance unattended when
in use. Boil over causes smoking and greasy
spillovers that may ignite.
•Never use your appliance as a work or
storage surface.
•Never leave any objects or utensils on the
appliance.
•Do not place or leave any magnetisable
objects (e.g. credit cards, memory cards) or
electronic devices (e.g. computers, MP3
players) near the appliance, as they may be
affected by its electromagnetic field.
•Never use your appliance for warming or
heating the room.
•After use, always turn off the cooking zones
and the hob as described in this manual. Do
not rely on the pan detection feature to turn
off the cooking zones when you remove the
pans.
•Do not allow children to play with the
appliance or sit, stand, or climb on it.
•Do not store items of interest to children in
cabinets above the hob. Children climbing on
the hob could be seriously injured.

8
•Do not leave children alone or unattended in
the area where the appliance is in use.
•Children or persons with a disability which
limits their ability to use the appliance should
have a responsible and competent person to
instruct them in its use. The instructor should
be satisfied that they can use the appliance
without danger to themselves or their
surroundings.
•Do not repair or replace any part of the
appliance unless specifically recommended in
the manual. All other servicing should be done
by a qualified technician.
•Do not use steam cleaner to clean hob.
•Do not place or drop heavy objects on hob.
•Do not stand on your hob.
•Do not use pans with jagged edges or drag
pans across the ceramic glass surface as this
can scratch the glass.
•Do not use scourers or any other harsh
abrasive cleaning agents to clean your hob,
as these can scratch the ceramic glass.
•If the power supply cable is damaged, it
must only be replaced by qualified technician.
•This appliance is intended to be used in
household and similar applications such as:

9
-staff kitchen areas in shops, offices and
other working environments; -farm houses;
-by clients in hotels, motels and other
residential type environments; -bed and
breakfast type environments.
•This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
•WARNING: Unattended cooking on a hob
with fat or oil can be dangerous and may
result in fire. NEVER try to extinguish a fire
with water, but switch off the appliance and
then cover flame e.g. with a lid or a fire
blanket.

10
Part 2. Installation
Installation Instructions
The appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance, ensure there is no
visible damage. If it has been damaged during transit,
DO NOT USE, contact where you buy immediately.

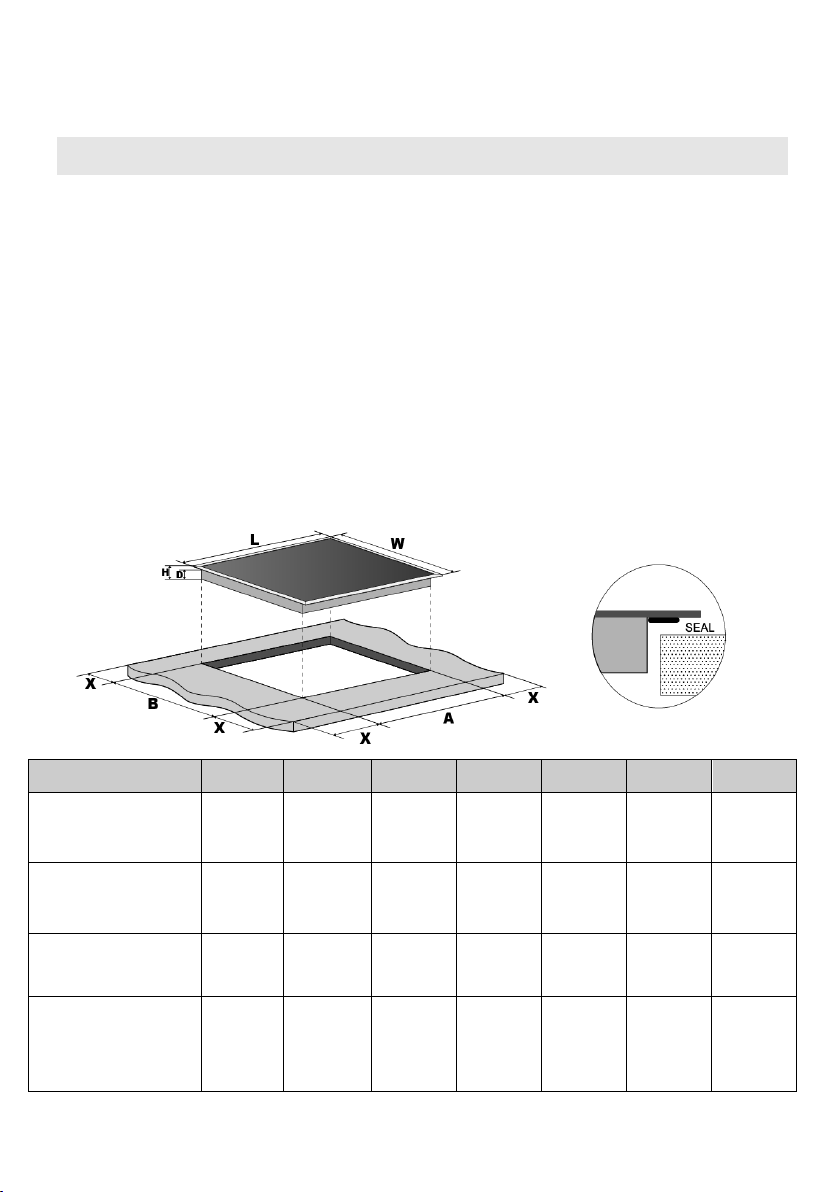

Selection of installation equipment
-Cut out the work surface according to the sizes shown in the drawing.
-For the purpose of installation and use, a minimum of 5 cm space shall
be preserved around the hole.
-Be sure the thickness of the work surface is at least 30mm. Please select
heat-resistant work surface material to avoid larger deformation caused
by the heat radiation from the hotplate. As shown below:
Model
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
LEH-3000C
288
520
52
48
265+5
-0
495+5
-0
50 min
LEH-2000I
288
520
56
52
265+5
-0
495+5
-0
50 min
LEH-3118CS
LEH-4118ICS
730
430
58
54
685+5
-0
385+5
-0
50 min
LEH-3318CS,
LEH-3218CS,
LEH-4318ICS,
730
430
58
54
705+5
-0
405+5
-0
50 min

11
Under any circumstances, make sure the electric hob is well ventilated and the air
inlet and outlet are not blocked. Ensure the electric hob is in good work state. As
shown below:
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760mm
50mm minimal
20mm minimal
Air intake
Air exit 5mm
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
apply force onto the controls protruding from the hob.
Easy Fit kits
There is one easy fit kits package for each hob, include fixing clips and screws (for
LEH-3000C, LEH-3118CS, LEH-3218CS, LEH-3318CS, LEH-4118ICS,
LEH-4318ICS there are total 2pcs clip and 2pcs screw, for LEH-2000I there are
total 4pcs clip and 4pcs screw). Find the easy fit kit package first.

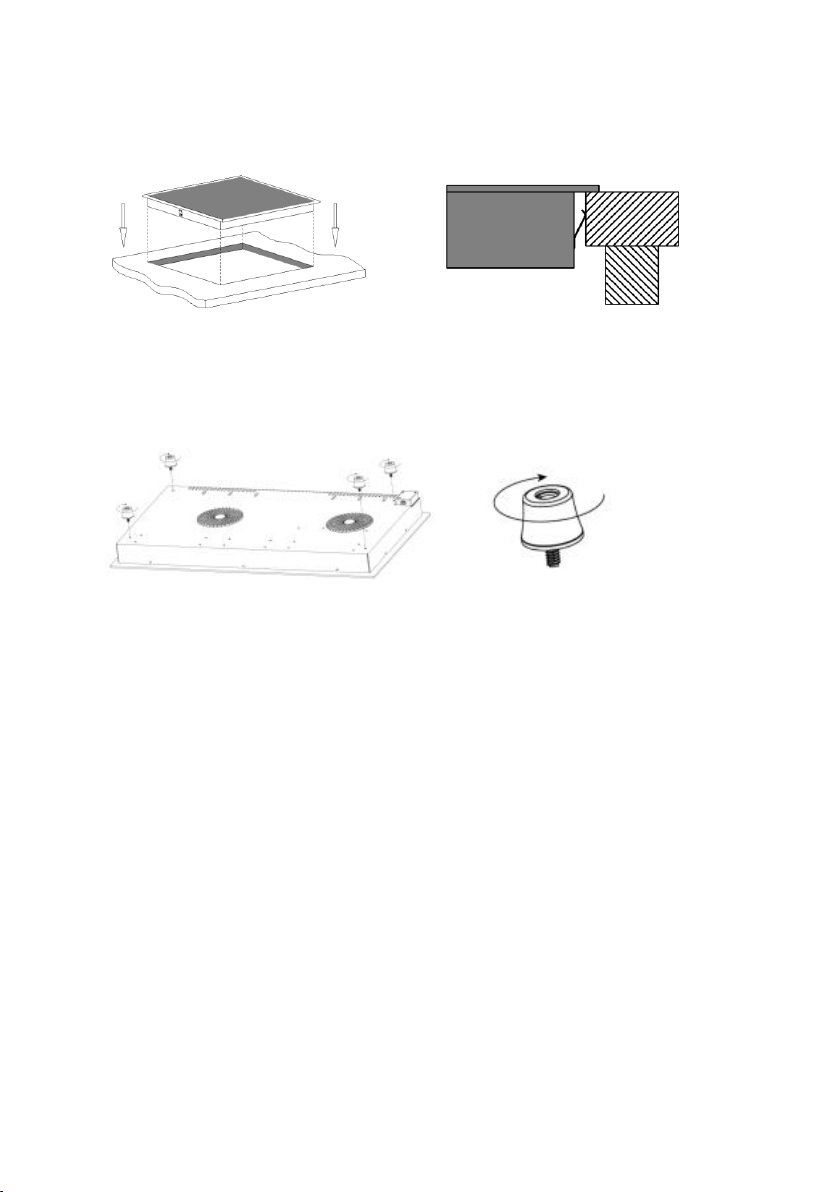

Fix clips to hob: Insert the fixing clip into fixing hole reserved on sides of housing,
fix clip to housing with screw, then insert hob into cabinet/work surface.

12
Fix hob to cabinet: Insert the hob into the cabinet/work surface as below
diagrams, the mounted clips on the sides can secure your hob sturdily.
Assemble the Rubber Feet
Your hobs have rubber feet. There are 4pcs feet and 4pcs screw in one set packed
as accessories. Please assemble the feet to the hob by yourselves if needed. Find
the 4pcs feet first, then screw up the feet into the 4 holes reserved in the 4 corners
of base.
Connecting the hob to the mains power supply
The power supply should be connected in compliance with the relevant standard,
or a single-pole circuit breaker. The appliance have a large power rating and
must be connected to electricity by a Qualified Electrician.
Notes:
1. If the cable is damaged or needs replacing, this should be done by an
after-sales technician using the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omni polar
circuit breaker must be installed with a minimum gap of 3mm between the
contacts.
3. The installer must ensure that the correct electrical connection has been made
and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by qualified technician.

13
The method of connections shown below.
Cautions
1. The hob must be installed by qualified personnel or technicians. Please
never conduct the operation by yourself.
2. The electric hob shall not be mounted to cooling equipment, dishwashers and
rotary dryers.
3. The electric hob shall be installed such that better heat radiation can be ensured
to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be heat resistant.
6. A steam cleaner is not to be used.
7. This electric hob can be connected only to a supply with system impedance not
more than 0.427 ohm. In case necessary, please consult your supply authority for
system impedance information.
Note: For some of the models, there might applied with a power code
with plug. If so, you can directly plug in socket. Please keep power code
plug out after use, for those model power code with plug.

14
Part 3. Operation Instructions

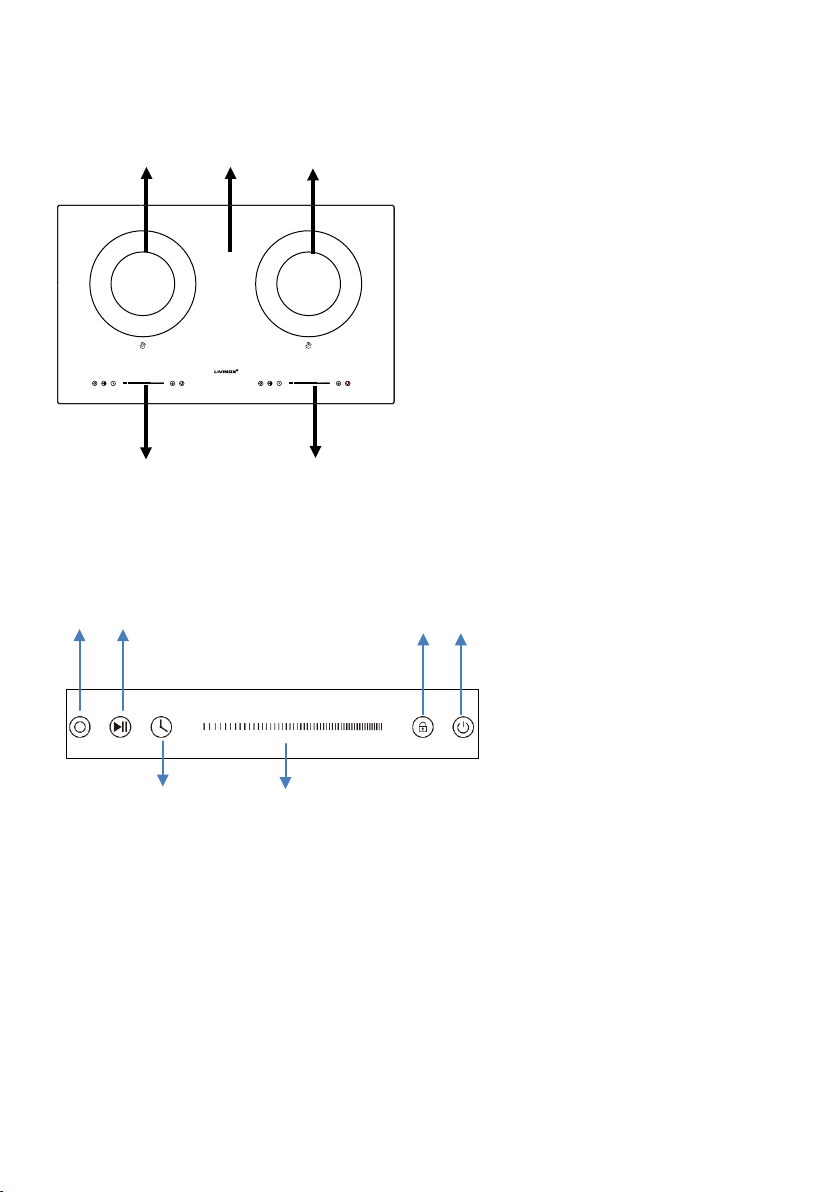

Product Overview
(1) Model: LEH-3000C
Control Panel
1.1800W Cooking Zone
2. 1200W Cooking Zone
3. Glass panel
4. Control panel
1.Intelligent control button
2. Timer control button
3. Cooking Zone selection button
4. Heating level/Timer “-” button
5. Heating level/Timer “+” button
6. Child Lock control button
7. ON/OFF button
1
2
4
5
6
7
3
3
1
2
4
LEH-3000C

15
(2) Model: LEH-3218CS
Control Panel
1.2200/1000W Ceramic Dual Zone
2. 2200/1000W Ceramic Dual Zone
3. Ceramic Glass
4. Control panel of cooking zone#1
5. Control panel of cooking zone#2
1
2
4
5
6
3
1.Extended zone control button
2. Intelligent control button
3. Timer control button
4. Heating level/Timer adjusting slider
5. Child Lock control button
6. ON/OFF button
1 23
45
LEH-3218CS

16
(3) Model: LEH-3318CS
Control Panel
1.2200/1100W Ceramic Dual Zone
2. 2200/1100W Ceramic Dual Zone
3. Ceramic Glass
4. Control panel of cooking zone#1
5. Control panel of cooking zone#2
1
2
4
5
6
3
1.Extended zone control button
2. Intelligent control button
3. Timer control button
4. Heating level/Timer adjusting slider
5. Child Lock control button
6. ON/OFF button
1 23
45
LEH-3318CS

17
(4) Model: LEH-4318ICS
Control Panel for Ceramic zone Control Panel for Induction zone
1. 2000W Boost 2200W Induction Zone
2. 2200/1100W Ceramic Dual Zone
3. Ceramic Glass
4. Control panel of cooking zone#1
5. Control panel of cooking zone#2
1.Extended zone /Booster control button
2. Intelligent control button
3. Timer control button
4. Heating level/Timer adjusting slider
5. Child Lock control button
6. ON/OFF button
2
1
4
5 6
3
2
1
4
5 6
3
1 23
45
LEH-
4318ICS

18

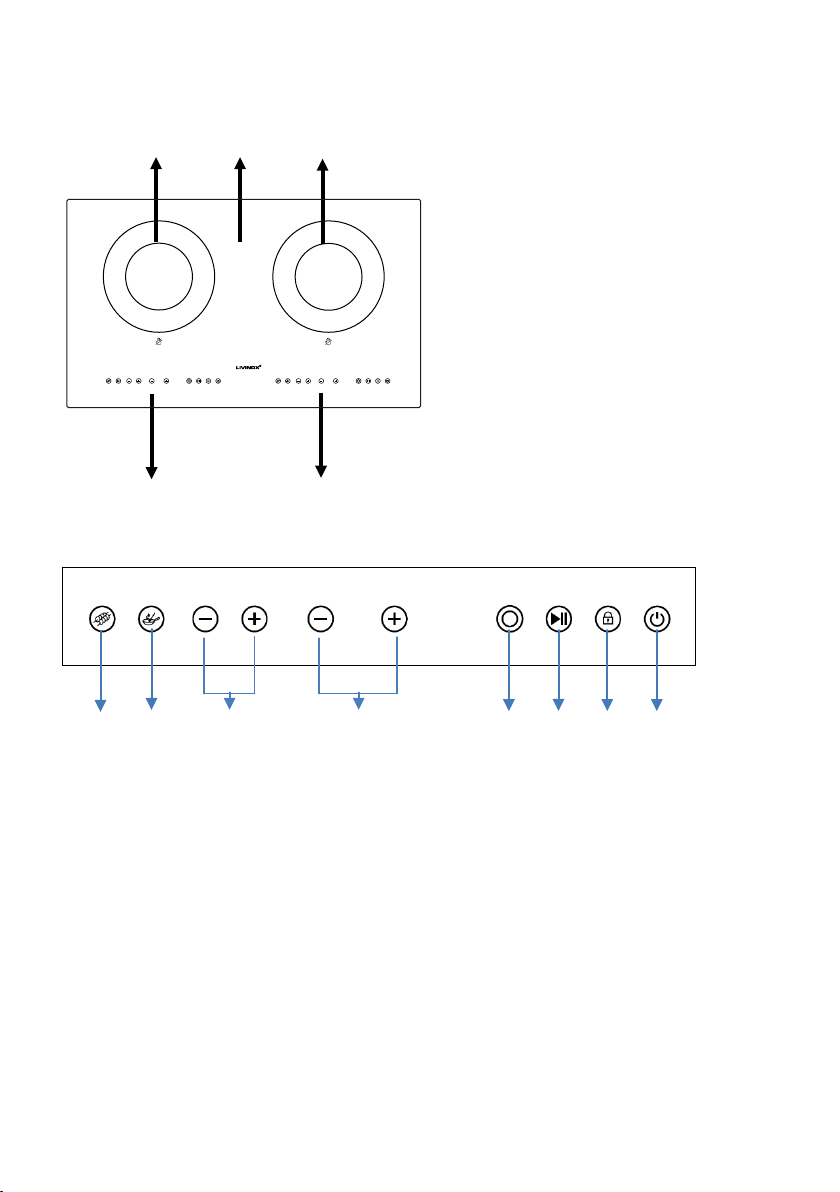

(5) Model: LEH-3118CS
Control Panel
1.2200/1100W Ceramic Dual Zone
2200/1100W Ceramic Dual Zone
3. Ceramic Glass
4. Control panel of cooking zone#1
5. Control panel of cooking zone#2
4
1. BBQ control button
2. Stir fry control button
3. Heating level “-”/ “+” button
4. Timer “-”/ “+” button
5. Extended zone control button
6. Intelligent control button
7. Child Lock control button
8. ON/OFF button
1
2
5
6
7
8
4
3
1 23
5
LEH -3118C S
2.

19

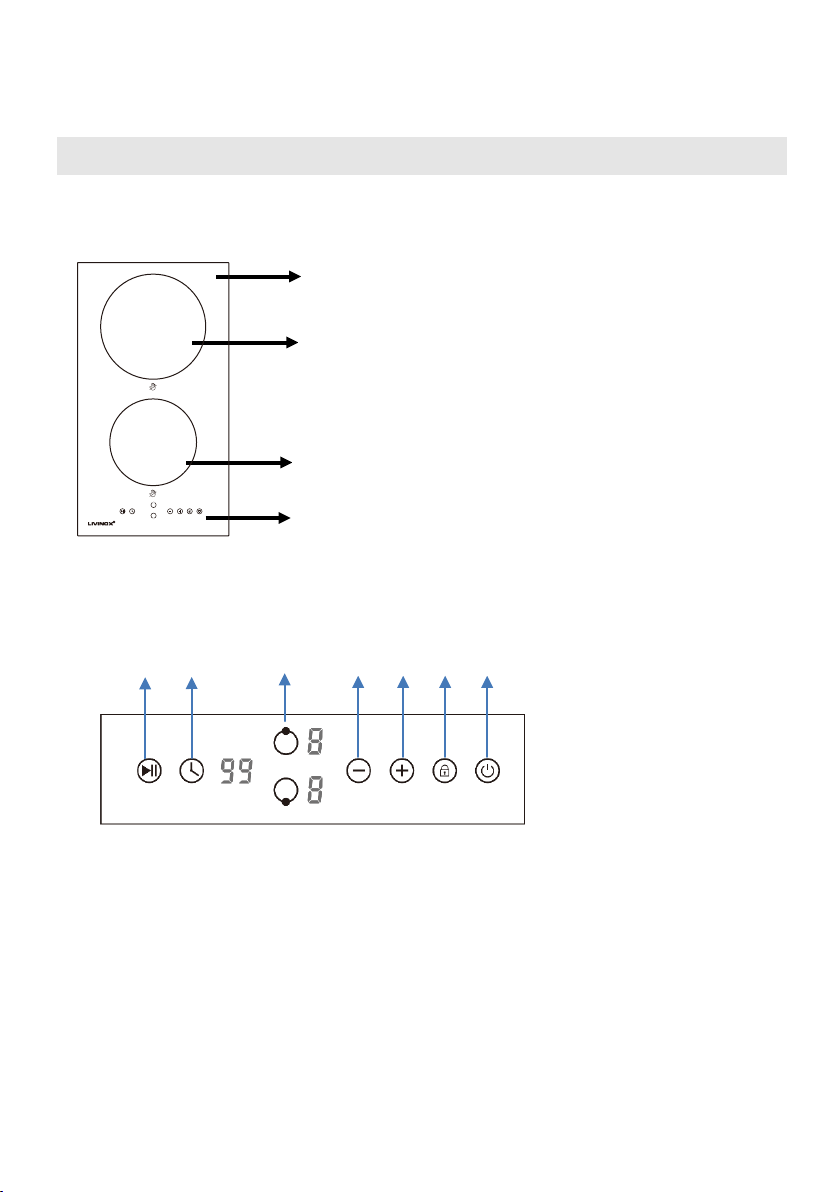

(6) Model: LEH-2000I
Control Panel
1.2000W Boost 2600W Induction Zone
2. 1500W Bppst 2000W Induction Zone
3. Glass panel
4. Control panel
1.Intelligent control button
2. Timer control button
3. Booster control button
4. Cooking Zone selection button
5. Heating level/Timer slider control
6. Child Lock control button
7. ON/OFF button
1
2
5
6
7
3
4
3
1
2
4
LEH-2000I

Notes: Product diagrams in this instruction manual for reference only,
there might be slightly difference due to continually product
improvements.
1.2000W Boost 2200W Induction Zone
2200/1100W Ceramic Dual Zone
3. Ceramic Glass
4. Control panel of cooking zone#1
5. Control panel of cooking zone#2
1. BBQ control button
2. Stir fry control button
3. Heating level “-”/ “+” button
4. Timer “-”/ “+” button
5. Extended zone control button
6. Intelligent control button
7. Child Lock control button
8. ON/OFF button
1 23
2.

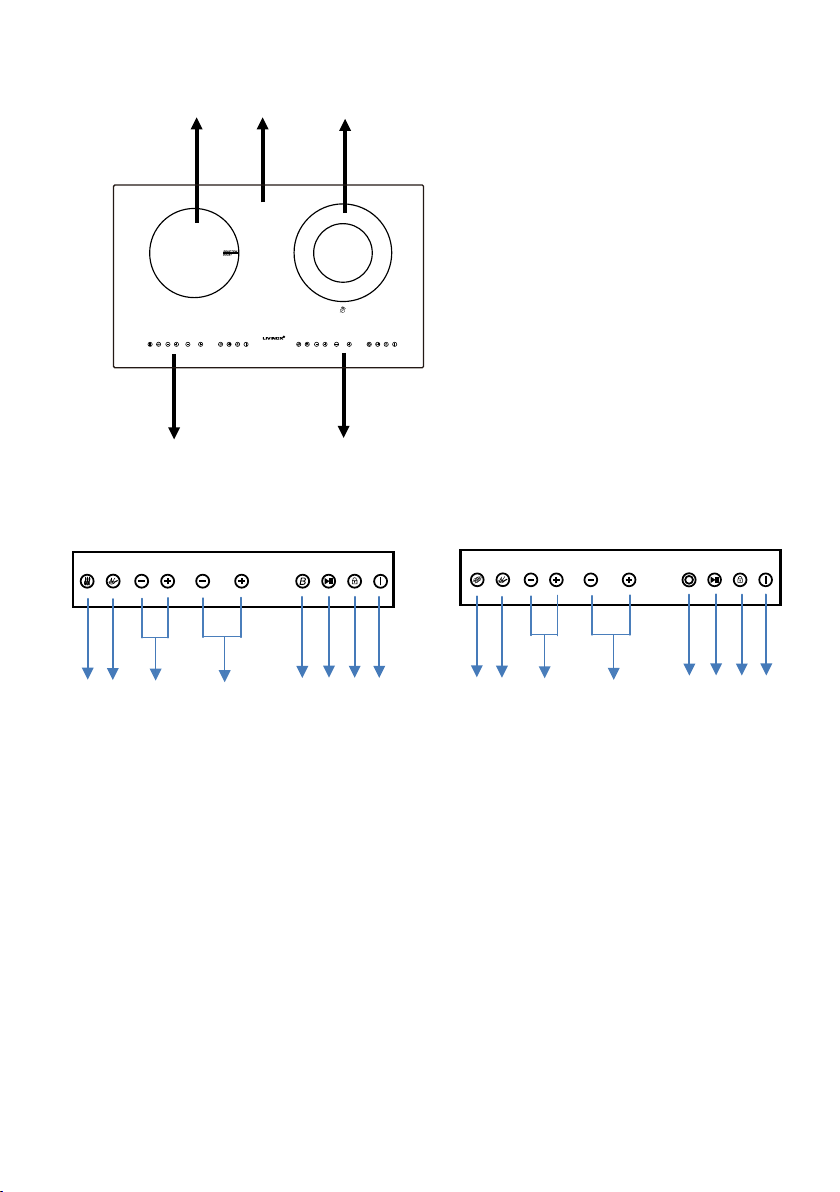

(7)Model: LEH-4118ICS
LEH- 4 118 I C S
1. Keep warm control button
2. Stir fry control button
3. Heating level “-”/ “+” button
4. Timer “-”/ “+” button
5. Booster control button
6. Intelligent control button
7. Child Lock control button
8. ON/OFF button
45
1 2 345 67 8 1 2 345 67 8
Control Panel for Induction zone Control Panel for Ceramic zone
20
