Lloyd L22ND User manual

Model No.: L22ND
22" FHD LED TV

Congratulations on being the proud owner of Lloyd LED TV.
Your LED TV comes with Lloyd Guarantee of Quality.
Dear Customer
Lloyd takes great pride in

Contents
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
Rear View
OSD Menu
1. CHANNEL menu
2. PICTURE menu
3. SOUND menu
4. TIME menu
5. OPTION menu
Simple Troubleshooting
1
2
3
3
4
5
4
5
9-15
9-10
11
12
13
14
6. SCREEN menu 15
16-18
19
Connections
6-7
Remote Control
8
Basic Operation
Multimedia Operation

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains power from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
Do not block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
To clean the TV use a soft dry cloth. Di NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
To prevent overload, don't share the same mains supply socket with too many other

Technical Specification
21.5 inch(diagonal)
1920x1080
2x3W
12V 3A 36W
- Screen Size
- Resolution
- Aerial input
- Audio output power
- Power Consumption
- TV-System PAL BG/DK/I SECAM BG/DK
Accessories
3
User’s Manual Remote control
* Note: The configuration of the components may look different from the following illustration
Batteries for
Remote Control
Adapter
Remote Control
Type
Control distance
Control angle
Batteries
0
infrared
5m
30 (horizontal)
2 x 1.5V, size AAA
SOUND
DISPLA
Y
SLEEP
INPUT
TV/TXT HOLD
NICAM
INDEX
123
456
789
0
VOL CH
MUTE
AUTO
MENU
SUBPAGE
SIZE
REVEAL
ROOT REPEAT A-B GOTO
FAV FAV- FAV+
ASPECT
EXIT

Product Introduction
Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Blue) Standby mode
Indicator on(Null) Power on mode
2).The functions of the buttons are described as bellows:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu, press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
4
Led Indicator & Remote Control window
(Keep clear)

Video: Connect it to video output of video device.
R/L in: Connect them to audio output of video device.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
YPbPr: Connect them to the video output terminal of DVD.
Connections
5
POWER:
USB:
Connect to the mains adaptor.
USB jack for update and Media.
HDMI: Connect to the HDMI socket of your DVD or Satellite Box.
VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.
PC Audio in: Connect it to the audio output terminal of PC.
Headphone: Connect it to your headphone or other audio equipments.
Rear View
YPbPr RF USB
Video R in L in Video R L
POWER HDMI VGAPC Audio in
Audio out
Video out: Connect it to the video device.

Remote Control
6
The remote control is using Infra-Red (IR). Point it towards the front of the LED TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER: Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
AUTO: Auto adjust in the PC mode.
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
SLEEP: Standby timer.
NUMBER BUTTONS
Press 0-9 to select a TV channel directly when you
are watching TV.
: Return to the previous channel viewed.
INPUT: Press to display the input source menu.
MENU: System setup menu.
EXIT: Exit the OSD menu.
DISPLAY: Press to display the current mode’s information.
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
CURSOR KEYS OK
CH / : Scan through channels.
VOL+/-: Adjust the volume.
SOUND
DISPLAY
SLEEP
INPUT
TV/TXT HOLD
NICAM
INDEX
123
456
789
0
VOL CH
MUTE
AUTO
MENU
SUBPAGE
SIZE
REVEAL
ROOT REPEAT A-B GOTO
FAV FAV- FAV +
ASPECT
EXIT

Remote Control
7
Buttons for USB Operating
ROOT: return.
REPEAT: Play the title or chapter once again.
GOTO: Play your favorite title/chapter/track.
A-B: Select and play the preferable paragraph of the program by pressing
the button twice at the beginning and end of it.
NICAM: NICAM select.
TV/TXT: Teletext on/off.
REVEAL: Reveal any hidden text, for example-quiz answer.
HOLD
FAV: Display the favourite channel list.
FAV+/-:
: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size, Press again to see the
bottom half of page double size.
Press again for normal size.
INDEX: Direct recall of page 100.
SUBPAGE: Go to subpage.
COLOUR BUTTONS: Short cuts-follow the coloured links in the text.
ASPECT: Adjust picture size
Scan the favourite channel.
SOUND
DISPLAY
SLEEP
INPUT
TV/TXT HOLD
NICAM
INDEX
123
456
789
0
VOL CH
MUTE
AUTO
MENU
SUBPAGE
SIZE
REVEAL
ROOT REPEAT A-B GOTO
FAV FAV- FAV +
ASPECT
EXIT
: Previous chapter.
: Next chapter.
: Fast reverse.
: Fast forward.
: Stop program.
:Play/Pause program.

button to select the function item, press button to enter,
or press / button to adjust/select.
Power on/off
1. Connect to the power supply with the adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote controlx
the input source menu, and use CH+/-button on the TV set or /v
button on remote control to select the input source, press OK button
on the remote control to enter.

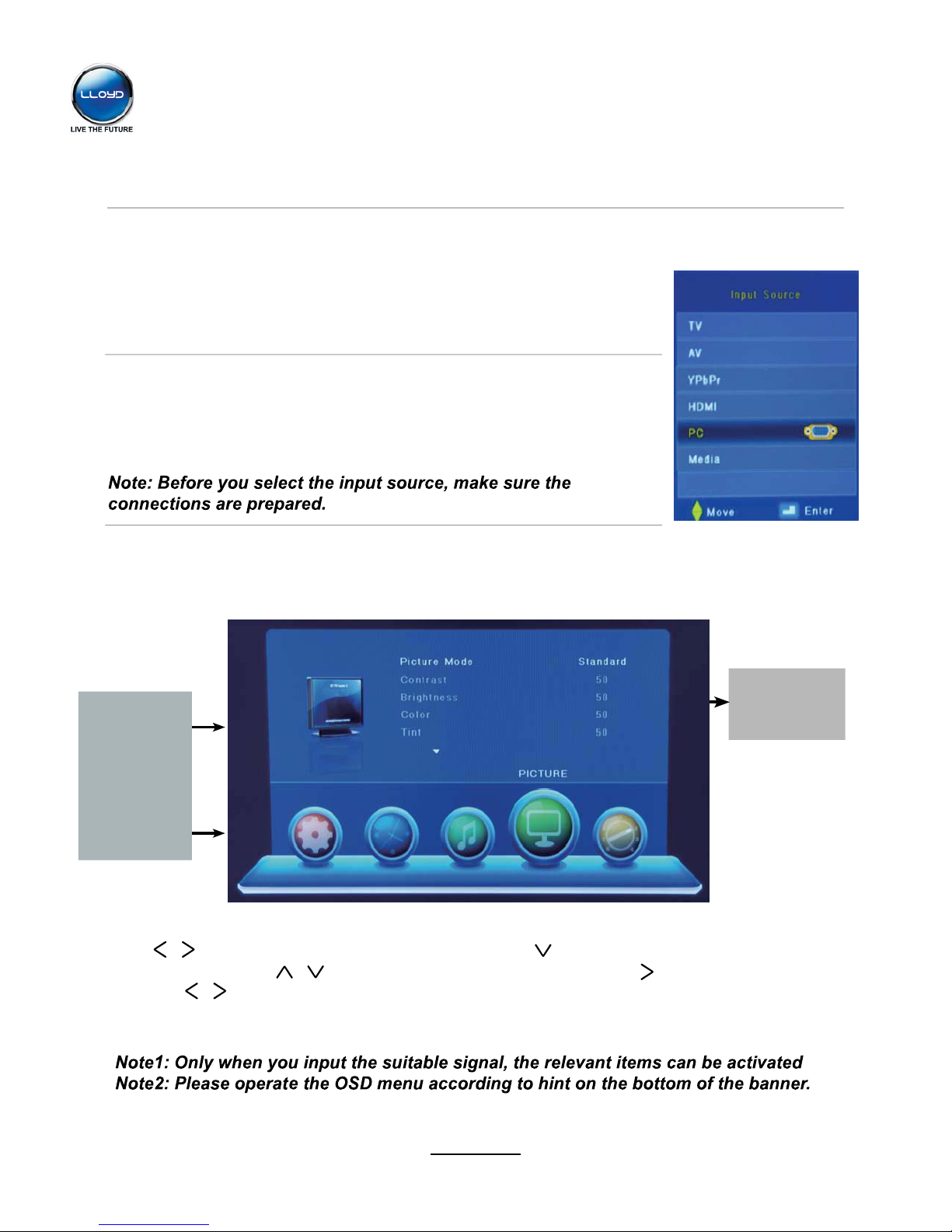

Basic OSD Menu operation
Press
Use / button to select the main menu, and press button to enter the submenu.
In the submenu, use /
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Submenu
(PICTURE MENU
for example)
Main menu
CHANNEL
SOUND
TIME
OPTION
SCREEN
INPUT button on the TV set or on the remote control to display
Input Source select
MENU button to display the OSD menu as below:
v
8
Basic Operation

Auto Tuning
Press OK button to start auto tuning.
You could press MENU/EXIT button to exit the process of tuning, there will be a hint on the
screen, and you should press button to confirm, or press button to cancel the operation.
ATV Manual Tuning
Press OK button to enter the ATV Manual Tuning menu.
Current CH: Select a Channel for storing the programme.
Color System: Select from PAL and AUTO
Sound System: Select from I, BG, DK
Search: Press / button to manual search.
Fine Tune: Press / button to fine-tune.
AFC: Automatic Frequency control ON/OFF.
OSD Menu
9
1. CHANNEL menu

Move: Select an ATV channel, and press YELLOW button, then you can use and buttons
channel by buttons.
OSD Menu
10
Programme Edit

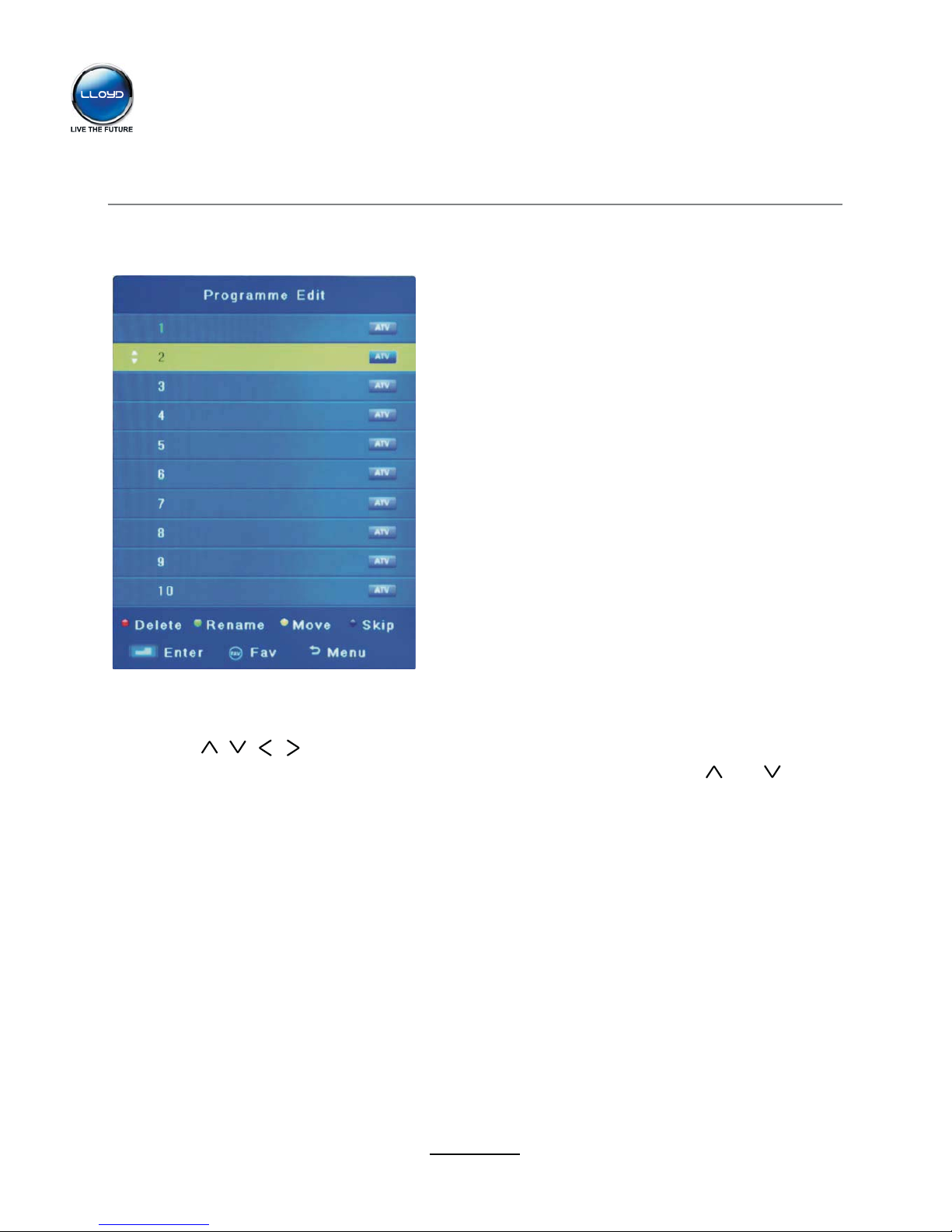

Press OK button to enter the Programme Edit menu as the following picture.
Delete: Select a channel and press RED button to delete.
Rename: Select an ATV channel and press the GREEN button to change the name of the
to change the position of the program, press YELLOW again to confirm the change. Press menu
to exit and it will automatically save the current set.
Skip: Select a channel and press the BLUE button to label the channel, as long as the channel
has a skip label it will be skipped when searching through the channels with the CH+/- buttons.

OSD Menu
11
2. PICTURE menu
Picture Mode: Choose from Standard, Dynamic, User and Mild.
Contrast: Controls the difference between the brightest and darkest regions of the picture.
Brightness: Controls the overall brightness of the picture.
Color: Control the color.
Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint: Controls the tint ( NTSC mode only).
Color Temperature: Choose from Medium, Cool and Warm.
Noise Reduction: Choose interference noise modes form Off, Low, Middle and High.

OSD Menu
12
3. SOUND menu
Description
SPDIF MODE PCM
Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User.
Treble: (Can be adjusted when the sound mode is User):Controls the relative intensity of
higher pitched sounds.
Bass: (Can be adjusted when the sound mode is set to User): Controls the relative intensity of
lower pitched sounds.
Balance: To adjust the balance of the left and right sound track, or turn off the volume of the
left and right sound track.
Auto Volume: Control the volume of the programme automatically when you turn on the function
by selecting “On”.

OSD Menu
13
4. TIME menu
Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min,
120min,180min, 240min and off.
Auto Sleep : Turn on/off the auto standby function when where’s no signal.
OSD Timer: Allows you to select the time for OSD menu displays on the screen.

OSD Menu
14
5. OPTION menu
Description
OSD Language: Allows you to select menu language.
Aspect Ratio: Choose from 4:3, 16:9, Zoom1, Zoom2 and PointToPoint.
Blue Screen: Turn on/off the blue screen function when there’s no signal.
Key Lock: Turn on the function, and the buttons on the TV will be invalid.
Reset: Press OK button to restore factory default.
Software Update(USB): Press OK button to enter the software update menu.
TT Language: Seclet the Teletext language.

OSD Menu
15
SCREEN menu (in PC mode)
H/V Position: Adjust the transverse/vertical position of the screen.
Clock: Adjust the pixel clock frequency, until the image size is maximized for the screen.
Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a stable
image is obtained.
Auto Adjust: Press button to setup the parameter of the screen automatically.
6.

Multimedia Operation
16
Press / / / buttons to select and the OK button to activate the file or open folder. Press
OK button to play the files in full screen mode. When in full screen mode press the OK button to
show the option menu on the bottom of the screen or press stop button to return to files.
Note: You can press RED button on the file to delete the file.
Basic Operation
2). Select the file type (main menu) you want to view, and insert USB device, you will find the
name of the device display on the screen.
3). Press / button to select the the USB device, and press OK button to enter.
1). Press the INPUT button on the remote control to display the input source menu, select Media
source by the / buttons, and press OK button to enter the Multimedia menu seen below.
