LMI ROYTRONIC EXCEL AD9 series User manual

ROYTRONIC EXCEL™
Series AD9 Programming Guide
Electronic Metering Pumps
Instruction Manual
Manual No : 2032
Rev. : E
Rev. Date : 06/2019

iInstruction Manual
TABLE OF CONTENTS
1.0 INTRODUCTION.................................................................................................. 1
2.0 FEATURES .................................................................................................. 2
3.0 KEYPAD/DISPLAY: DESCRIPTION AND FUNCTION .................................................................. 3
3.1 POWER BUTTON......................................................................................... 3
3.2 MODE SELECTION BUTTON .............................................................................. 3
3.3 UP AND DOWN BUTTONS................................................................................ 3
3.4 GRAPHICAL DISPLAY..................................................................................... 4
3.5 STROKE ADJUSTMENT KNOB............................................................................. 4
3.6 PUMP ON / OFF LED ..................................................................................... 4
3.7 LOW LEVEL INDICATOR LED .............................................................................. 4
4.0 OPERATION OF THE SERIES AD9 .................................................................................. 5
4.1 PUMP START / STOP ..................................................................................... 5
4.2 PUMP SPEED ............................................................................................ 5
4.3 PRIMING THE PUMP ..................................................................................... 5
4.4 LOCKING / UNLOCKING THE PUMP ....................................................................... 6
4.5 ALARM/ICON AREA ...................................................................................... 7
5.0 CONTROL MODE SELECTION MENU............................................................................... 9
5.1 MANUAL MODE (INTERNAL) ............................................................................. 9
5.2 PULSE MULTIPLY MODE (EXTERNAL).....................................................................10
5.3 PULSE DIVIDE MODE (EXTERNAL) .......................................................................11
5.4 ANALOG MODE (EXTERNAL) ............................................................................12
5.4.1 Programming the Analog Mode Response Curve ......................................................13
5.5 TIMED EVENT MODE (INTERNAL) ........................................................................14
5.5.1 Programming Timed Events ...........................................................................15
6.0 ADVANCED CONFIGURATION MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.1 SET UNITS 16
6.2 SET BATCH MODE ......................................................................................17
6.3 SET PULSE WIDTH ......................................................................................17
6.4 SET LOCK MODE CONFIGURATION ......................................................................17
6.5 SET CLOCK .............................................................................................18
6.6 PUMP CALIBRATION ....................................................................................19
6.6.1 Single-Point Calibration Procedure ....................................................................20
6.6.2 Two-Point Calibration Procedure ......................................................................21
6.7 CONFIGURE ALARM OUTPUT............................................................................23
6.7.1 Congure Alarm Output Mask.........................................................................23
6.8 SET REMOTE INTERNAL-EXTERNAL MODE INPUT.........................................................24
6.9 DIGI-PULSE™ FLOW MONITORING SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.10 SET PERCENT-OF-TIME OPERATION.....................................................................26
6.11 LOAD FACTORY DEFAULTS .............................................................................27
6.12 VIEW PUMP INFORMATION ............................................................................27

iiInstruction Manual
LIST OF ILLUSTRATIONS
FIGURE 1. ROYTRONIC EXCEL™ Series AD9 Control Panel .............................................................. 3
FIGURE 2. Single-Point Calibration ..................................................................................19
FIGURE 3. Two-Point Calibration.....................................................................................19

1Instruction Manual
SECTION 1 - INTRODUCTION
The Series AD9 electronic metering pump
offers an extensive range of features, including
microprocessor control for accurate and exible
automation in response to instrument signals. The
microprocessor design employs a graphical display
and tactile response keypad. All external inputs and
outputs are opto-isolated from the microprocessor.
This manual is a supplement which describes
programming and operation for the AD9 series. For
complete details on Installation, Maintenance and
Troubleshooting, please refer to the ROYTRONIC
EXCEL™ Instruction Manual (P/N 2024).
SPECIFIC PRECAUTIONS SHOULD
BE TAKEN WHEN WORKING WITH
ALL LMI®METERING PUMPS. PLEASE REFER TO THE
PRECAUTIONS SECTION, SEC. 1.0, OF THE ROYTRONIC
EXCEL™ INSTRUCTION MANUAL (P/N 2024).

2Instruction Manual
SECTION 2 - FEATURES
1. Stroke speed adjustment 1-59 SPH (strokes per
hour) to 1-120 SPM (strokes per minute).
2. Operating mode selection.
3. Flexible slope adjustable response to mA input
signals.
4. Divide or multiply (batch) incoming pulses
(1 to 9999).
5. Batch accumulation option.
6. Timed event mode for internal operation.
7. Percent-of-time operation for internal and
external modes.
8. Keypad locking.
9. Low-level warning and empty-level shutoff with
alarm output.
10. Programmable flow monitoring with alarm
output (with FM-ROY-9 DIGI-PULSE™).
11. Continuous non-volatile memory
(EEPROM)-no battery required.
12. Remote ON/OFF control.
13. Remote Internal/External mode control.
14. Pulse (pacing) output.
15. Universal voltage input (95-240V) with
automatic line voltage compensation and over
voltage protection.
16. Programmable menu for optional features
parameters.
17. Theoretical ow display.
18. Single-Point and Two-Point calibration.
19. Fixed-time priming mode.
20. Congurable output alarms.
21. 4-20mA output for remote monitoring of stroke
speed.

3Instruction Manual
SECTION 3 - KEYPAD/DISPLAY: DESCRIPTION AND FUNCTION
1. POWER Button
2. MODE Button
3. DOWN Button
4. UP Button
5. Graphical Display
6. Stroke Adjustment Knob
7. Pump ON/OFF LED
8. Low-Level Indicator LED
5
6
7
8 1
2
3
4
Figure 1. ROYTRONIC EXCEL™ Series AD9 Control Panel
3.1 POWER BUTTON
The POWER button turns the pump ON or OFF.
If the pump is not running, pressing this button will
cause the pump to start running. If the pump is
running, pressing the POWER button will stop
the pump. The POWER button is also used to
prime the pump as described in Sec. 4.3. When
in a programming screen or a selection menu, the
POWER button is generally used to enter/select
the associated item.
3.2 MODE SELECTION BUTTON
The MODE button is used to enter the main
selection menu. The MODE button can also
often be used to exit the current programming
menu. Details of its use will be covered in greater
detail later in this supplement.
3.3 UP AND DOWN BUTTONS
The UP and DOWN buttons are used to
change parameters (i.e. stroke frequency) as
well as to navigate the selection menus. These
functions are covered in greater detail later in this
supplement.

4Instruction Manual
SECTION 3 - KEYPAD/DISPLAY: DESCRIPTION AND FUNCTION
3.4 GRAPHICAL DISPLAY
A graphical display is used to show the current
operational state of the pump as well as a variety
of specialized programming menus.

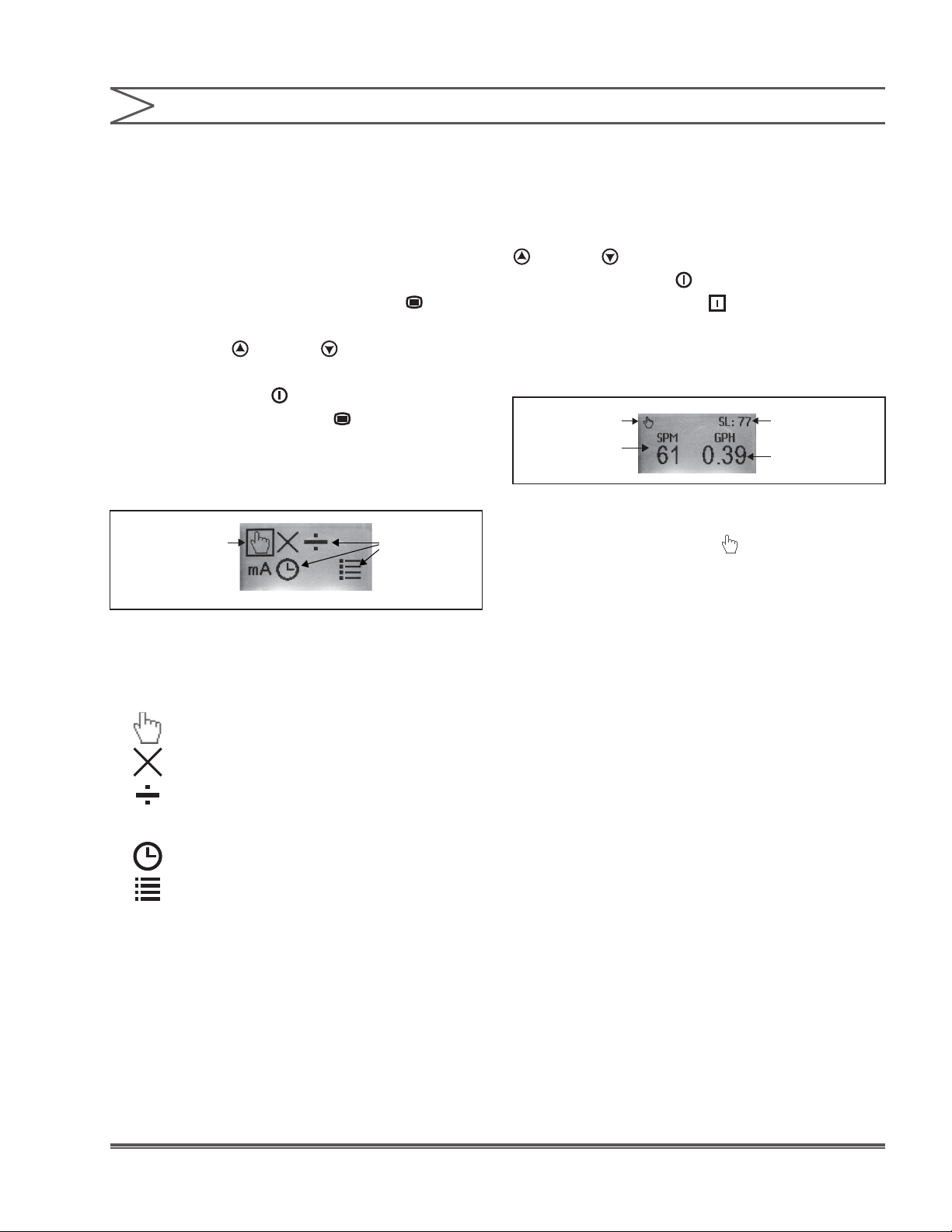

Manual Operating Mode Display
Control Mode Selection Display
3.5 STROKE ADJUSTMENT KNOB
The Stroke Adjustment Knob is used to adjust the
stroke length of the pump. As this knob is adjusted,
the stroke length and associated flow will be
displayed on the current operating mode display.
3.6 PUMP ON/OFF LED
When the pump is started, the Pump ON/OFF
LED will be green when in internal mode and yellow
when in an external mode. The LED will also briey
pulse OFF during an actual pump stroke. When
the pump is not running, the Pump ON/OFF LED
will be OFF.
3.7 LOW LEVEL INDICATOR LED
The Low Level Indicator LED will normally be
OFF. However, in the event that an external level
sensor is connected to the pump, the LED will turn
yellow if a Tank Low input signal is detected or red
if a Tank Empty input signal is detected. If both Tank
Low and Tank Empty conditions are present, the
Tank Empty takes priority. The pump will not stroke
when in a Tank Empty condition.

5Instruction Manual
SECTION 4 - OPERATION OF THE SERIES AD9
This pump features EEPROM nonvolatile memory.
The pump will always power up in the last used
mode. When shipped from the factory the pump will
power up in the Manual mode (see Sec. 5.1), with
the pump OFF and a speed setting of 120 SPM.
NOTE:
If the power to the pump is cut less than 15
seconds after the last programmed values have
been set, the latest changes will NOT be stored
in nonvolatile memory. Allow at least 15 seconds
before disconnecting from power to ensure that
the latest changes are stored.
4.1 PUMP START/STOP
Press the POWER button to start or stop the
pump. When the pump is OFF, the P u m p
ON/OFF LED will be OFF. When the pump is ON,
the Pump ON/OFF LED will illuminate. Each
time the pump strokes, the Pump ON/OFF LED
will ash OFF.
4.2 PUMP SPEED
The speed may be changed with the pump ON or
OFF. To increase or decrease the speed, press or
hold the UP or DOWN button. The range runs
from 0 SPH to 120 SPM. While normally the speed
will be set in SPM, if settings of SPH are desired,
hold the DOWN button until the display reads
1 SPM, then continue to hold it down. The display
will then show SPH 59. The speed can be further
reduced to 1 SPH with the DOWN button.
4.3 PRIMING THE PUMP
The priming function allows a xed-time prime
period of 60 seconds and enables priming of the
pump in any control mode. To begin priming, hold
down the POWER button for approximately 5
seconds. The pump will begin operating. Use the
UP and DOWN buttons to vary the stroking
speed. To stop priming before the priming cycle is
complete, push the POWER button. The pump
will automatically stop after 60 seconds, and revert
to the last used control mode.
Display Overview:
Icon/Alarm Area
Prime Stroke Rate
Stroke Length
Theoretical Flow
1. Icon/Alarm Area: The icon indicates the
pump is in prime mode. Depending on advanced
pump conguration options and any alarms
alerts detected, other icons may be present as
well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Prime Stroke Rate: Indicates the stroke speed
of the pump while priming (1-120 SPM).
4. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
The prime stroke rate is independent of the
current control mode stroke rate.

6Instruction Manual
SECTION 4 - OPERATION OF THE SERIES AD9
4.4 LOCKING/UNLOCKING THE PUMP
The pump has several lock modes to prevent
casual tampering. For a complete description
of the lock modes and how to congure them,
see Sec. 6.4. A Lock Icon in the Icon/Alarm Area
indicates that the pump has been locked.
Icon/Alarm Area
Lock Icon
To activate the pump lock, depress the DOWN
and MODE buttons simultaneously for about
1 second until the Lock Icon appears in the
Icon/Alarm area. Example of entering an unlock pass code
To unlock a locked pump, depress the DOWN
and MODE buttons simultaneously for about
1 second until the Lock Icon disappears in the
Icon/Alarm area or until prompted for the unlock
pass code (see below).
To enter the unlock pass code, use the UP
and DOWN buttons to edit each digit. Use the
POWER button to advance to the next digit. If
the pass code is incorrect, the pump will remain
locked.
NOTE:
Activating the pump lock is effective immediately.
Do not activate unless you have made note of
the unlock pass code, which is congured in
Sec. 6.4. If the pass code is misplaced while
the lock is active, the pump must be returned
to the factory in order to be reset.
After approximately 2 minutes of inactivity, the
unlock pass code display will close and revert
back to the current control mode display.

7Instruction Manual
4.5 ALARM/ICON AREA
The upper left portion of every Control Mode
Display contains an icon/alarm notication area,
which graphically displays operational information.
If no alarm conditions exist, the display will only
show conguration information. If one or multiple
alarm conditions exist, the display will alternate
every few seconds between showing conguration
information and showing alarm information. Alarm
information will always be preceded by the icon.
Icon/Alarm Area
ICON NAME DESCRIPTION
Conguration Icon Denitions:
Table1. Conguration Icon Denitions
SECTION 4 - OPERATION OF THE SERIES AD9

8Instruction Manual
SECTION 4 - OPERATION OF THE SERIES AD9
NAME DESCRIPTION ICON
Alarm Icon Denitions:
Table 2. Alarm Icon Denitions
** = The pump will stop stroking in this condition

9Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU
This menu is used to select the control mode or
enter into the advanced conguration menu. There
are 2 internal control modes and 3 external control
modes. In order to operate the pump in an external
control mode, a remote device must be connected
to the pump through the 5-Pin connector.
With the pump turned OFF, push the MODE
button to bring up the Control Mode Selection
Menu. Use the UP and DOWN buttons to
scroll through the modes. Once the desired mode
is selected, use the POWER button to enter
that mode. Push and hold the MODE button for
approximately 2 seconds to exit the menu.
Display Overview:
Selection Box Mode Icons
Control Mode Selection Menu
1. Mode Icons: Each icon represents a different
control mode, as follows:
= Manual Mode - Internal (Sec. 5.1).
= Pulse Multiply Mode - External (Sec. 5.2).
= Pulse Divide Mode - External (Sec. 5.3).
mA
= Analog mA Mode - External (Sec. 5.4).
= Timed Event Mode - Internal (Sec. 5.5).
= Advanced Conguration Options
(Sec. 6.0).
2. Selection Box: Indicates the currently selected
item.
NOTE:
After approximately 2 minutes of inactivity, the
mode selection menu will automatically close
and revert back to the prior display.
While in this menu, all external outputs will
return to their default “OFF” state and all
external inputs will be ignored.
5.1 MANUAL MODE (INTERNAL)
This mode is used when external devices are not
being used to control the pump. While in manual
mode, the stroke speed is varied by using the
UP and DOWN buttons. To turn the pump
ON or OFF, push the POWER button or toggle
the remote ON/OFF. The Pump ON/OFF LED
will illuminate green when the pump is ON.
Display Overview:
Icon/Alarm Area
Stroke Rate
Stroke Length
Theoretical Flow
Manual Mode Display
1. Icon/Alarm Area: The icon indicates the
pump is in the manual mode. Depending on
advanced pump conguration options and any
alarms alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Stroke Rate: Indicates the stroke speed of the
pump (1-59SPH or 1-120 SPM).
4. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).

10 Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU
5.2 PULSE MULTIPLY MODE (EXTERNAL)
This mode is used to control the pump with an
external device connected to the appropriate
contacts of the 5-Pin connector. With the pump
OFF, use the UP and DOWN buttons to vary
the strokes-per-pulse parameter. To turn the pump
ON or OFF, push the POWER button, or toggle
the remote ON/OFF. The Pump ON/OFF LED
will illuminate yellow when the pump is ON. With
the pump turned ON, and a pulse is received, the
pump will begin running, with the remaining pulses
counting down on the display.
If a pulse is received before the countdown is
complete and Batch Mode is OFF (see Sec. 6.2),
the error code (see Sec. 4.5) is displayed
and the pump batch count then restarts from
the strokes-per-pulse setpoint. The fault will be
corrected when the pump completes the current
batch OR the pump is stopped.
If a pulse is received before the countdown is
complete and Batch Mode is ON (see Sec. 6.2), the
pump will accumulate strokes (up to a maximum
of 9999), allowing all strokes to be accounted for.
Display Overview:
Icon/Alarm Area
Strokes per Pulse
Strokes Remaining
Stroke Length
Stroke Rate
Calculated Volume
per Pulse
Calculated Volume
Injected
Pulse Multiply Mode
(Pump OFF)
Pulse Multiply Mode
(Processing Pulse)
1. Icon/Alarm Area: The icon indicates the
pump is in the pulse multiply mode. Depending
on advanced pump conguration options and
any alarms/alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Stroke Rate: Indicates the stroke speed of the
pump (1-59 SPH or 1-120 SPM). To allow true
ow proportioning, this is set in manual mode
(see Sec. 5.1).
4. Strokes per Pulse (Pump OFF only): Number
of strokes (1-9999) to occur for each valid pulse
input. See Sec. 6.3 to dene a valid pulse.
5. Strokes Remaining (Pump ON only): Number
of strokes remaining for the current batch
cycle.
6. Calculated Volume per Pulse (Pump OFF
only): The calculated ow based on stroke
count, stroke length, and calibration settings
(see Sec. 6.6 for calibration information).
7. Calculated Volume Injected (Pump ON only):
The calculated ow based on strokes made,
stroke length, and calibration settings (see Sec.
6.6 for calibration information).
NOTE:
The pump will ignore the pulse input while the
pump is OFF.
Depressing the UP and DOWN buttons
simultaneously will cycle through alternate
display formats , as shown below:

11Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU

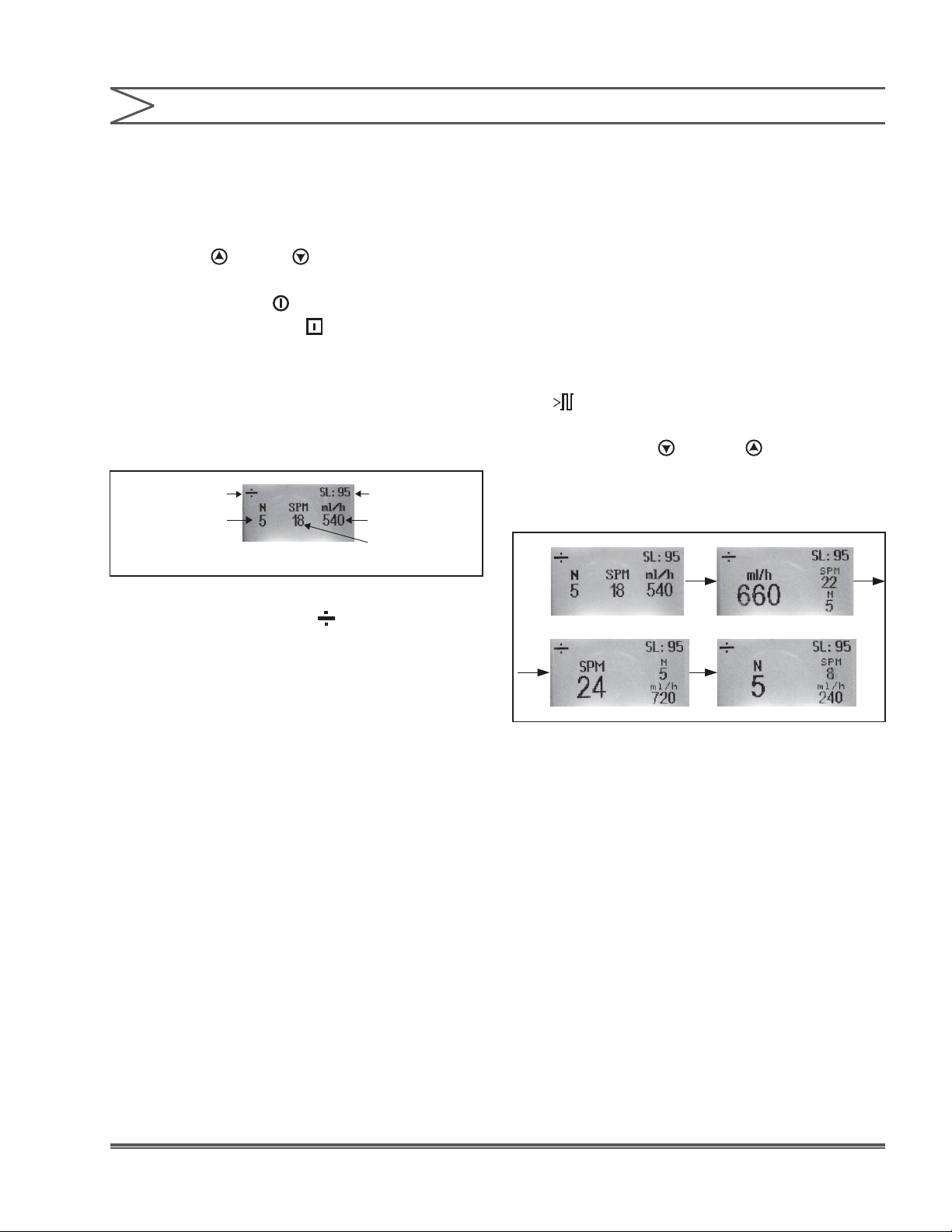

5.3 PULSE DIVIDE MODE (EXTERNAL)
This mode is used to control the pump with an
external device connected to the appropriate
contacts of the 5-Pin connector. With the pump
OFF, use the UP and DOWN buttons to vary
the pulses-per-stroke parameter. To turn the pump
ON or OFF, push the POWER button or toggle
the remote ON/OFF. The Pump ON/OFF LED
will illuminate yellow when the pump is ON. With
the pump turned ON, the pump will pulse after the
programmed number of pulses has been received.
Display Overview:
Icon/Alarm Area
Pulses per Stroke
Stroke Length
Theoretical Flow
Calculated Stroke
Rate
1. Icon/Alarm Area: The icon indicates the
pump is in the pulse divide mode. Depending
on advanced pump conguration options and
any alarms/alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Calculated Stroke Rate: Indicates the
calculated stroke rate of the pump (0-120 SPM)
based on the rate of incoming pulses and the
divide value.
4. Pulses per Stroke: Number (1-9999) of valid
pulses to detect before performing a pump
stroke. See Sec. 6.3 to dene a valid pulse.
5. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
The pump will display the calculated stroke rate
and theoretical ow with the pump ON and OFF.
A fault will be indicated if the calculated
stroke rate exceeds 120 SPM (see Sec. 4.5).
Depressing the UP and DOWN buttons
simultaneously will cycle through alternate
display formats, as shown below:

12 Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU
5.4 ANALOG MODE (EXTERNAL)
This mode is used to control the pump with an
external device connected to the appropriate
contacts of the 5-Pin connector. With the pump
OFF, press the UP or DOWN button to
change the response curve (see Sec. 5.4.1). To
manually turn the pump ON or OFF, push the
POWER button or toggle the remote ON/OFF.
The Pump ON/OFF LED will illuminate yellow
when the pump is ON.
Display Overview:
Icon/Alarm Area
Measured Current
(mA)
Stroke Length
Theoretical Flow
Calculated Stroke
Rate
1. Icon/Alarm Area: The mA icon indicates the
pump is in the analog mode. Depending on
advanced pump conguration options and any
alarms/alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Calculated Stroke Rate: Indicates the
calculated stroke speed of the pump (0-59 SPH,
0-120 SPM) based on the analog set points and
measured current.
4. Measured Current: Measured current value
(0-24.0 mA).
5. Theoretical Flow: The theoretical ow based
on calculated stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
The pump will display the calculated stroke rate
and theoretical ow with the pump ON and OFF.
A fault (see Sec. 4.5) will be indicated if the
4-20mA input exceeds 21.5mA.
The pump will not stroke if the 4-20ma input
signal is 0.5mA or less.
Depressing the UP and DOWN buttons
simultaneously will cycle through alternate
display formats, as shown below:

13Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU
5.4.1 Programming the Analog Mode
Response Curve
Use the UP or DOWN button to move
the selection box to the parameter you wish to
change. Use the POWER button to toggle to
the parameter’s edit mode - a black background
indicates the parameter is in edit mode. While in
edit mode, use the UP and DOWN buttons
to set the value. Use the POWER button to exit
edit mode and save the setting.
Parameter Selected
Parameter Modied Parameter Saved
Placed Into Edit
Mode
Use either the MODE button or navigate
using the UP or DOWN buttons to exit the
programming mode. The valid range for the mA
value is 0.0 to 20.0 mA. The valid range for the
SPM value is 0 to 120 SPM or 0-59 SPH.
The programming of points P1 and P2 when
plotted will result in a graph similar to one of the 2
charts below (Pa = lowest programmed mA value;
Pb = highest programmed mA value). The pump
will vary its stroke speed linearly between points
Pa and Pb based on the mA input signal. If the
mA input signal exceeds Pb, the stroke speed
will remain (plateau) at the speed corresponding
to Pb. If the mA input drops to less than Pa, the
stroke speed will remain (plateau) at the speed
corresponding to Pa. Regardless of settings, if the
mA input drops to 0.5 mA or below, the pump will
stop stroking.
Display Overview:
Selection Box
Point 2 (P2) Settings
Point 1 (P1) Settings
1. Selection Box: indicates the currently selected
item.
2. Point 1 (P1) Settings: the settings (mA and
stroke rate) corresponding to set point P1.
3. Point 2 (P2) Settings: the settings (mA and
stroke rate) corresponding to set point P2.
NOTE :
Parameter changes are saved when editing is
complete and go into effect immediately.
120
60
0420
mA
Pa
Linear
Area
Pb Plateau
Plateau
Stroke
Rate
120
60
0420
mA
Pa
Linear
Area
Pb Plateau
Plateau
Stroke
Rate
Less than 0.5mA
Stroke Rate = 0

14 Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU
5.5 TIMED EVENT MODE (INTERNAL)
With the pump OFF, press the UP or DOWN
button to view and/or program the timed events
(see Section. 5.5.1). To turn the pump ON or OFF,
push the POWER button or toggle the remote
ON/OFF. The Pump ON/OFF LED will illuminate
green when the pump is ON.
Display Overview:
Icon/Alarm Area
Icon/Alarm Area
Time Remaining
Next Event Start
Time
Stroke Rate
Stroke Rate
Stroke Length
Stroke Length
Current Day and
Time
Current Time
Theoretical Flow
Calculated Volume
Calculated Volume
Injected
Theoretical Flow
Timed Event Mode
(Standard Display)
Timed Event Mode
(Event in Progress)
1. Icon/Alarm Area: The icon indicates the
pump is in the Timed Event mode. Depending
on advanced pump conguration options and
any alarms/alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Next Event Start Day and Time: The Day and
Time of the next timed event. See below for the
displayed format. The ‘*’ character in this eld
indicates that no events are enabled (see Sec.
5.5.1 for event programming information).
4. Current Day and Time: The current Day and
Time (see below for time format description).
5. Stroke Rate: Indicates the stroke speed of the
pump (1-59SPH or 1-120 SPM) for the currently
running event or the next scheduled event.
6. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
7. Calculated Volume: The calculated volume
based on event duration, stroke rate, stroke
length, and calibration settings (see Sec. 6.6
for calibration information).
8. Time Remaining (Event in Progress Only):
Remaining time of event.
9. Calculated Volume Injected (Event in
Progress Only): The calculated volume
based on strokes made, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
The displayed format for time is: D – H:MMx,
where D = Day of Week (1-7), H = Hour (1-12),
MM = Minute (0-59), x = A for AM or P for PM.

15Instruction Manual
SECTION 5 - CONTROL MODE SELECTION MENU
5.5.1 Programming Timed Events
One timed event may be programmed to execute
for each of 7 days. Each event has a uniquely
programmable start time, duration, and stroke rate.
Use the UP or DOWN button to move
the selection box to the parameter you wish to
change. Use the POWER button to toggle
the parameter’s edit mode. A black background
indicates the parameter is in edit mode. The Event
Enabled parameter will be toggled ON/OFF rather
than going into an edit mode.
While in edit mode, use the UP and DOWN
buttons to set the value. The valid range for the
day value is 1-7. As the day value is changed, the
start time, duration, and stroke rate will be updated
to reect the programming for the selected day.
A checked event enabled box indicates that the
currently displayed event is enabled. The valid
range for the duration value is 1 minute to 24 hours.
The valid range for the SPM value is 0 to 120 SPM
or 0-59 SPH.
Use the POWER button to exit the edit mode
and save the setting. Use the MODE button to
exit the programming mode.
Parameter Selected
Parameter Modied Parameter Saved
Placed Into Edit
Mode
Display Overview:
Selection Box
Event Enabled
Theoretical Flow
Stroke Length
Stroke Rate
Event Start
Time
Day
Event Duration
Calculated Volume
1. Selection Box: Indicates the currently selected
item.
2. Day: Day of currently displayed event.
3. Event Enabled: Indicates whether
c u r r e n t l y d i s p l a y e d e v e n t i s e n a b l e d
(checked = enabled).
4. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
5. Event Start Time: The Day and Time of the next
timed event (see Sec. 5.5 for time format).
6. Event Duration: Duration / Run-Time of currently
displayed event (format Hours:Minutes).
7. Stroke Rate: Indicates the stroke speed of the
pump (1-59SPH or 1-120 SPM) for the currently
running event or the next scheduled event.
8. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
9. Calculated Volume: The calculated based on
event duration, stroke rate, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
Parameter changes are saved when editing is
complete and go into effect immediately.
After approximately 2 minutes of inactivity, the
programming menu will automatically close and
revert back to the main analog mode display.

16 Instruction Manual
SECTION 6 - ADVANCED CONFIGURATION MENU
Use the UP and DOWN buttons to select
the desired mode. Push and hold the POWER
button for approximately 1 second to select the
desired mode. Push and hold the MODE button
for approximately 2 seconds to exit the menu.
Display Overview:
Selection Box Mode Icons
Arrow Indicator
1. Mode Icons: Each icon represents a different
control mode, as follows:
2. Selection Box: Indicates the currently selected
item.
3. Arrow Indicator: An arrow appearing on the
upper or lower right of the display indicates that
more icons are available via scrolling.
NOTE:
Parameter changes are saved when editing is
complete and go into effect immediately.
After approximately 2 minutes of inactivity, the
mode selection menu will automatically close
and revert back to the most recent control mode
display.
6.1 SET UNITS
Use the UP and DOWN buttons to select
the desired units. Push the POWER button
to selected the item and return to the advanced
conguration menu.
Display Overview:
Selection Box
Unit Icons
1. Unit Icons:
= English Units
(i.e. Gallons per hour - GPH).
= Metric Units (i.e. Liters, milliliters).
2. Selection Box: Indicates the currently selected
item.
