Lobtex ARV-022M User manual

1
Be sure to read this manual before use.
Store this manual with care so that you can refer to it whenever necessary.
- CONTENTS -
1. SAFETY ............................................... 3
1.1 WARNING SIGN ...................................... 3
1.2 SAFETY CONCERNS ............................... 3
1.3 SAFETY VALVE ....................................... 5
2. NAME AND SPECIFICATION OF EACH PART ..... 6
3. PREPARATION BEFORE USE .............. 7
4. HOW TO RIVET .................................... 9
5. CLEANING AND MAINTENANCE .......... 10
5.1 FRAME HEAD AND JAW CASE UNIT ............ 10
5.2 SPOOL UNIT .......................................... 11
5.3 CYLINDER UNIT ...................................... 12
5.4 CHECKING HYDRAULIC OIL ...................... 13
5.4 DISCONNECTING HYDRAULIC COUPLER .... 1 4
5.5 NOZZLE UNIT ......................................... 15
6. TROUBLESHOOTING ........................... 16
7. PART DRAWINGS ................................. 17
7.1 HEAD AREA ........................................... 17
7.2 SWIVEL UNIT AND BOOSTER UNIT ............. 19
8. STORAGE / ORDERING PARTS ........... 20


2


■
■■
■INTRODUCTION
• The Lobster Tool Air Riveter, ARV-022M is an exclusive tool for Blind Rivet fastening
two boards by riveting. We do not design, manufacture or sell intending to other
applications.
• This operating manual (called “This manual” afterwards) describes how to use the tool
safely and effectively, how to do check and maintenance, and parts information.
• Use rivets for the tool with the specification and strength thoroughly designed and
examined.
■
■■
■IMPORTANT NOTICES
• Read this manual carefully before using this tool. Follow instructions in this manual for
handling this tool, replacing accessories or replacing parts.
• If you have any questions about this manual, consult with the store you purchased this
tool or Lobtex Co, Ltd. You may be asked model name or model number.
• It is impossible to foresee all potential dangers and describe them in this manual. You
must use this tool with paying enough attention to safety as well as observing the
instructions in this manual.
• It is user’s responsibility to understand the contents of this manual thoroughly.
• Lobtex Co., Ltd. has the copyright of this manual. It is prohibited to publish, copy or
translate to other language without prior consent.


■
■■
■



IMDEMNIFICATION


• Customer agrees to indemnify and hold Lobtex harmless against any damage, loss,
liability or expense arising out of;
1) Direct or indirect damage or loss caused by abuse, misuse or unauthorized
remodeling.
2) Damage or injury caused by reconstruction or remodeling without Lobtex written
authorization.
3) Damage or injury caused by use of parts other than recommended parts by Lobtex.
• Rivet itself is not covered under warranty.



3
1. SAFETY
Followings are safety items to handle this tool.
1.1 WARNING SIGN
This manual includes warning signs shown below to protect users from possible injuries or
damages to properties. There are different signs depending on the level of potential damage in
case of negligence. For safety, follow the instructions by all means.
Warning Sign Descriptions
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.


Indicates a potentially hazardous situation which, if not avoided, may
result in moderate injury.


Indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
 This sign emphasizes important or beneficial information.

1.2 SAFETY CONCERNS
■Connect the tool and air source firmly.
Mismatched pipe arrangement in the joint screw and/or insufficient fitting length may give
air hose disconnection to cause injury.
When the auxiliary air hose joint is used, connect it firmly with a hose band so that the air
hose should not be disconnected.
■Confirm no damages in each part. If you see any damage, repair or replace it.
If you use the tool without repair, the damaged area may be broken and may cause injury. If
something falls on the tool and air hose is damaged, the damaged area may be broken and
may cause accident or injury.
■
■■
■Keep the air pressure between 0.49 and 0.59 Mpa (5 to 6 6kgf/cm2).
Exceeding the air pressure limits may result in possible damage to the tool to cause injury.
■Always use the tool with the tank unit. During use, wear safety glasses.
Cut rivet shafts may be blasted off and may cause injury.
1.
1.1.
1. Safet
y


4
■When a chute hose is used instead of a tank unit, do not direct the end of the chute hose
(vent of cut rivet shafts) toward any person.
Cut rivet shafts may be blasted off from the end of the chute hose and may cause injury.
■If you use the tool at high location, be careful not to drop the tool or rivets as well as
protecting yourself from dropping.
Carelessness may cause accidents or injury.
■Before cleaning or maintenance of this tool, make sure that the power of the air
compressor is turned off to stop air supply and delete residual pressure in the air
circuit.
Cleaning or maintenance operation during air supply may cause injury.


■Do not operate this tool with the frame head detached.
Otherwise, your finger or a hand may be pinched.
■Keep your body or face away from silencer area.
Oil content may be blasted off from silencer area and may come into your eyes.
■Do not remove rubber bellows at swivel joint in the end of oil pressure hose.
Otherwise, your finger or a hand may be pinched.
■Do not remove the protective tube that enfolds oil pressure hose. If protective tube is
damaged, stop using it and repair or replace it.
Protective tube protects oil pressure and prevents danger in case that oil pressure hose is
broken. Dysfunction of protective tube may cause accident or injury.
■This tool must be used at organized, uncluttered and clean place.
Operation at cluttered place may lead to accident or injury.
■Do not operate with uncomfortable body position.
It may cause injury such as falling down.
■Keep the grip area dry and clean condition and away from oil or grease. If the area
gets oil-stained, remove it. Oily grip area may lead to injury.
■Understand handling method and operating method thoroughly and operate carefully.
Follow instructions in this manual and do not use for any other purposes than intended
purpose.
Use for other purposes may cause accidents or injury.
■Do not use this tool when you feel sick.
Use the tool with bad physical condition may cause accidents or injury.
■If you need repair, consult with the store you purchased this tool or Lobtex Co, Ltd.
Repairing with lack of knowledge or technique may not be able to fix the tool properly and
may cause accident or injury.
1.
1.1.
1. Safet
y


5
■Do not attempt to modify the tool at any rate.
Modificationorremodeling may lead to malfunction, accident or injury.
Any modification made by the customer will void the warranty.
■When you handle oil or grease, obtain the material safety data sheet (MSDS) from the
supplier, and follow the described instructions.
1.3 SAFETY VALVE
This tool incorporates a “safety valve” that blows off air to indicate the abnormality when too
much air is supplied to the riveter.
Pressure: 0.49 to 0.59 MPa (5 to 6 kg/cm2)
Blow off air pressure: 0.64MPa(6.5kg/cm2)
Procedure in case that the valve blows off:
Appropriate air
(1) Stop using the tool immediately, and stop the air supply.
Safety valve cannot be reset without stopping air supply.
(2) Setup the air pressure to the range between 0.49 and 0.59 MPa (5 to 6 kg/ cm2).
(3) Supply air again and confirm that the safety valve does not blow off.
Safety valve must not be removed or disassembled.
Safety valve is an especially important safety device. If
it is accidentally loosened or damaged, consult with the
store you purchased the tool or Lobtex Co, Ltd.
• Do not use the tool without resetting safety valve
after it blows off. It may cause damage of the tool.
• If safety valve still blows off after adjusting air
pressure, stop using the tool and consult with a
sales office of Lobtex Co, Ltd.
1.Safety
1.Safe
ty
1.Safe
ty
1.Safety


6
2. NAME AND SPECIFICATION OF EACH PART
The following figures show name and specification of each part.
2.1 NAME OF EACH PART
2.2 SPECIFICATION
Model Number ARV-022M
Head 1.3kgWeight Total 5.0kg
Working Air Pressure 0.49-0.59Mpa(5.0-6.0kgf/cm2)
Air Consumption 100liters/min
Tool Stroke 19mm
Traction Power at 0.49MPa(5kgf/cm2) 8825N(900kgf)
Usable Rivets 2.4 3.2 4.0 4.8 mm diameter
Usable Jaw Hard tool material jaw, Medium
Specification and design of this product are subject to change
without notice.
2. Description of Each Part
Frame Cap Frame Head
Nosepiece
Trigger
Frame
Tank Unit
Rubber Bellows
Swivel Joint
Jaw Case Jaw Pusher Spring
Jaw Pusher
Jaw Case Head
Jaw
Guide Pipe
Branch Plug
L-type Quick Joint
Safety Valve
Cylinder
Silencer
Air Cylinder Cap
Head Unit / Swivel Unit
Booster
L-type Quick Joint
Frame Head Internal Parts
Oil Retaining Screw


7
Tank Unit
Nozzle Unit
Chute Hose
Fix
Storage Case
of Shaft
Shaft Need Enough
Space
3. PREPARATION BEFORE USE
The tool must be prepared by the following procedure:
(1) Set up a correct nosepiece and a correct guide pipe according to the size of rivet to be used.
Default setup is 3.2 mm-diameter nosepiece and yellow guide
pipe.
(2) Fix a tank unit and or a chute hose (optional
parts). Following is the procedure to use a
chute hose.

• Insert the end of chute hose to the nozzle
unit fully.
• Fix the other end of the chute hose to the
storage case securely so that it does not
loose during operation. There must be
enough space in the end of the chute hose.
Lack of space or obstacles in the end of the
chute hose may prevent a shaft of cut rivet
from being discharged or cause
degradation in discharge power.
Nosepiece
Die Stamp
2.4
3.2
4.0
4.8
Guide Pipe
A(Yellow)
B(White) Die Stamp for Size
Classify by color
A : Yellow
B : White
Rivet Diameter
Flange
Shaft
Nosepiece
Guide Pipe
Rivet
3. Pre
p
aration Before Use


8
(3) Prepare an air compressor. Be sure to place an air filter and an air regulator between the
compressor and the air riveter.

(4) Set up 0.49 to 0.59 Mpa (5 to 6 kgf/cm2) as air pressure.
Too much pressure may cause damage to the tool. Too low
pressure may cause incomplete rivetting or incomplete
cutting.
(5) Make sure that the tool works properly.
After connection with air, make sure that the tool works smoothly without oil leak by idle
run (operating 2 or 3 times without rivets).
The tool needs careful cleaning and maintenance if it is not used
for a long time. (Ref: “5.1 Frame head and jaw case”) After
cleaning and maintenance, vacuum mechanism must be operated
before use.




Air Filter
Air Compressor
Pressure
Regulator
Complete Air Supply System
3. Preparation Before Use


9
Switch Ring
Condition of Vacuum Activated
(Air sound comes out)
Condition of Vacuum Inactivated
(Click sound comes out and air stops)
Click sound
4. HOW TO RIVET
Following is the procedure for riveting:
(1) Drill a prepared hole (0.1 to 0.2mm larger than
the flange diameter of the rivet) in the material
to be riveted.
(2) Turn the switch ring of vacuum device to ON to
activate the device.
• The vacuum device is activated. You can
hear the vacuum noise.
Crimping operation is possible
even without vacuum activation.
However, the next crimping
operation must be done only
after the cut shafts are evacuated.
(3) Insert a rivet shaft into the Nosepiece of the
riveter.
Rivet is not dropped because
it is vacuumed up.
(4) Insert the rivet flange into the work piece hole.
(5) Press the flange collar onto the material and
pull the trigger.
• The flange is crimped.
(6) When the trigger is released, the shaft is
automatically evacuated in the tank unit.
The Next crimping operation
must be done only after the
cut shaft is evacuated.
4. How to Rive
t


10
Oil Retaining Screw
Frame Head
5. CLEANING AND MAINTENANCE
Riveting for a long time generates chips and dust at several parts, which causes troubles.
The tool needs periodical cleaning and maintenance according to this manual.
Before cleaning and maintenance of each part, make sure
that the power of air compressor is turned off to stop air
supply and eliminate the residual pressure. Otherwise, you
may be injured.
• When assembling each part, apply lubricant agent such
as grease at each sliding area without fail. Otherwise,
malfunction may occur.
• All parts must be completely assembled and all fastening
areas must be fastened.
5.1 FRAME HEAD AND JAW CASE UNIT
If chips are clogged, jaw cannot work smoothly. Cleaning must be performed in every 3000
times of crimping.
• Jaw is a consumable supply. It must be replaced periodically.
This tool uses high-endurance hard tool material jaw (optional
parts). When you order the part, order “hard tool material jaw,
medium”.
• Do not loosen or remove an oil retaining screw. The oil
retaining screw is used for air vent during assembly.
• Do not loosen or remove a jaw case or lock nut of jaw case. If
it is loosened or removed, oil is leaked from head area, which
cause malfunction. Jaw case and lock nut of jaw case are
mounted at screw unit of oil piston so that they are not
loosened. If they are accidentally loosened during operation
or during maintenance, ask repair.

●Disassembly
(1) Stop air supply.
(2) Remove the frame head with auxiliary
spanner A.
5. Cleaning and Maintenance


11
Jaw Case Lock Nut
Whirl-stop Ring
Jaw Case Head
Jaw Pusher Spring
Jaw Pusher
Guide Pipe
Jaw Case Head
Jaw
Apply lubricant oil
Align convex
and notch
Get down whirl-stop ring
Spool Cap A Spool Cap B
(3) Pull Collar to the direction shown in the
figure to loosen jaw case head and remove it.
(4) Remove jaw pressure spring, guide pipe, jaw
pressure and jaw.
●Cleaning
(5) Clean up each part with a brush.
●Assembly
(6) Assemble parts in reverse procedure of
disassembly. Wind and tighten jaw case head
to the end and return it to the position where
convex and notch are aligned, then set up
Collar. At assembly, apply lubricant oil on
the backside of jaw.


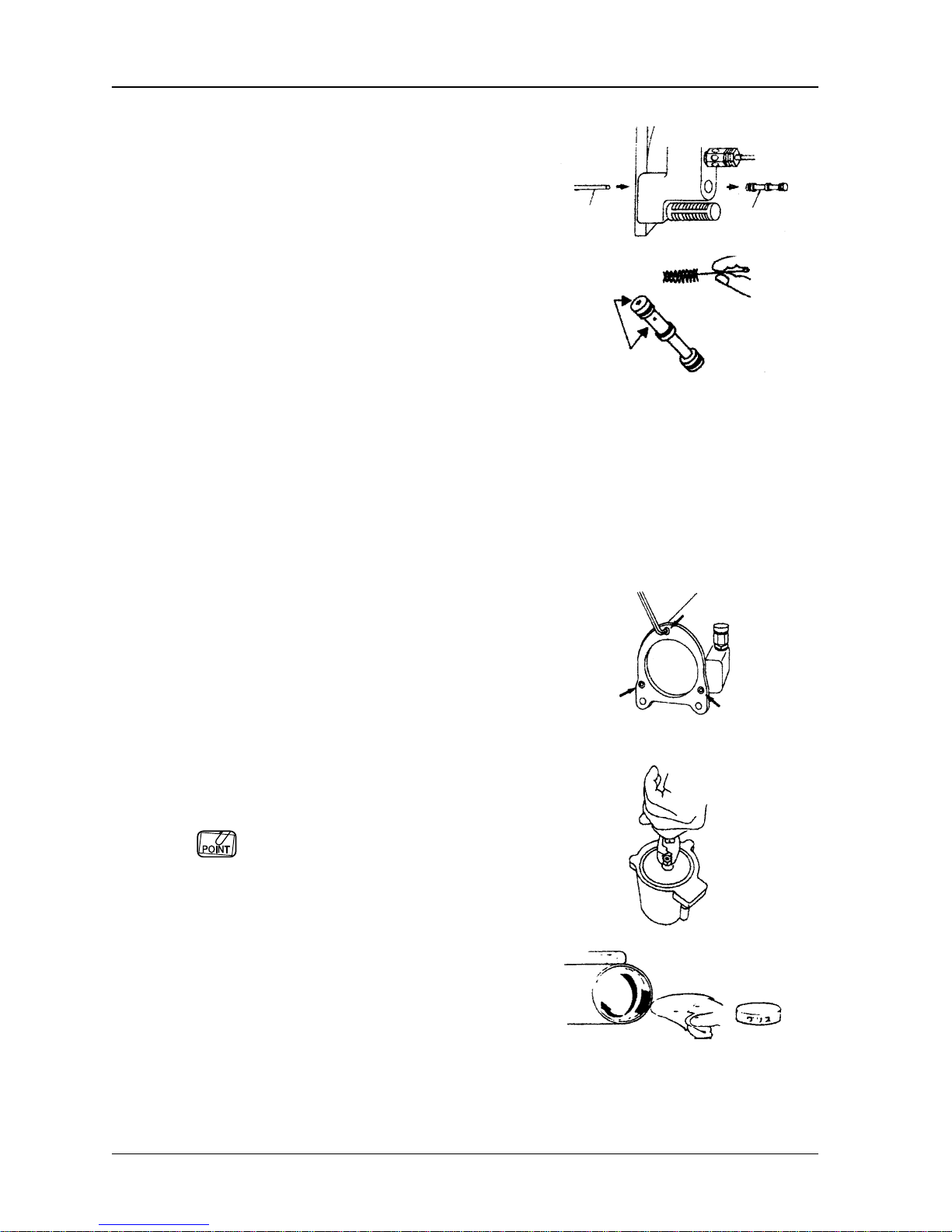

5.2 SPOOL UNIT
If dust is accumulated at spool area, spool cannot move smoothly. Spool must be cleaned when
spool moves slowly or improperly.
●Disassembly
(1) Stop air supply.
(2) Remove spool cap A and B with a spanner.
5. Cleanin
g
and Maintenance


12
Plastic Stick Spool
Be careful of
hole plugging
(3) Push up the spool with a plastic stick that
does not hurt it, and remove the spool.
●Cleaning
(4) Clean up each part with a brush. In this case,
make sure that the small hole of the spool is
not plugged.
●Assembly
(5) Assemble parts in the reverse procedure of
disassembly. At assembly, apply lubricant oil on the O-ring of the spool.

5.3 CYLINDER UNIT
Accumulation of dust at cylinder area negatively affects smoothness and durability of the
cylinder. Cylinder must be cleaned every one month.
●Disassembly
(1) Stop air supply.
(2) Remove 3 screws by hexagon wrench (M5),
and remove the air cylinder cap.
(3) Stand the cylinder upward vertically. Pull out
the air piston with pliers.
Cylinder must stand. If it lays
down, hydraulic oil is leaked.
●Cleaning
(4) Clean up inside of cylinder, and apply grease.
5. Cleaning and Maintenance


13
Oil Tank Cap
Lack of oil
Normal
A
BC
Normal condition has a little
dent like A
Shape like B or C shows
lack of oil
Cap
●Assembly
(5) Assemble parts in reverse procedure of disassembly. When assembly, apply lubricant oil on
the O-ring of the air piston.
5.4 CHECKING HYDRAULIC OIL
Generally, riveting is completed by only one trigger operation. However, if hydraulic oil is
decreased, multiple trigger operations are needed. In this case, hydraulic oil must be checked.
●Checking
(1) Stop air supply.
(2) Stand the booster, wind the oil tank cap
counterclockwise, and remove it.
(3) Check the status of internal tank. If the
internal tank shrinks or gets smaller, the tank
does not have enough hydraulic oil. In this
case, the tank must be filled with oil as in the
following procedure:
●Lubricating
(4) Remove the cap.
(5) Fuel proper amount of oil. Fill up the oil by
supporting the tank carefully to see if the oil
does not overflow.
5. Cleanin
g
and Maintenance


14
Coupler Bag
Male Coupler
Female Coupler
White B
Ring Line
Oil
Coupler Bag
Make sure to use Lobtex’s hydraulic oil. Other
manufacturer’s oil may affect the tool’s performance
negatively.
(6) Press the tank lightly not to allow air to go
into the tank and replace the cap and the oil
tank cap.
5.4 DISCONNECTING HYDRAULIC COUPLER
In some cases, disconnecting head area from booster area makes it easier to do maintenance
work or refueling. In that case, disconnect hydraulic coupler as following procedure:
●Disassembly
(1) Stop air supply.
(2) Remove the coupler bag by a spanner.
(3) Pull out the male coupler.
●Assembly
(4) Stand the booster and pour the oil to the
B-ring line of the male coupler.
(5) Press-in the male coupler and wipe out the
leaked oil.
(6) Fasten the coupler bag with a spanner.
5. Cleaning and Maintenance


15
Tank Unit
Nozzle Unit
Nozzle B Nozzle A
O-ring
Hole
5.5 NOZZLE UNIT
If dust is accumulated at nozzle unit, power of vacuuming rivet’s shaft weakens. If power of
vacuuming shaft is getting weak, check as following procedure:
●Disassembly
(1) Stop air supply.
(2) Remove the tank unit or the chute hose.
(3) Remove the nozzle unit from the main unit by
a spanner.
(4) Disconnect the nozzle unit A from the nozzle
unit B.
They are connected a little
tight. Therefore, disconnect
them by pliers. Be careful not
to hurt the O-ring attached with
the nozzle A.
●Cleaning
(5) Clean carefully inside of the tube of the nozzle A and the nozzle B, and the small hole of the
nozzle B.
●Assembly
(6) Assemble parts in reverse procedure of disassembly.
5. Cleanin
g
and Maintenance


16
6. TROUBLESHOOTING
When any breakage is suspected, try following procedures. If the following procedures cannot
solve the problem, consult with Lobtex or ask repair.
Malfunction Possible cause Countermeasures
Rivets cannot be
inserted, or shafts cannot
be discharged after cut.
1. Nosepiece is wrongly used.
2. Nosepiece or frame head is loosened.
3. Jaw does not contact with jaw case head
properly.
4. Size of guide pipe is improper, or guide
pipe is missing.
1. Use proper Nosepiece with the rivet
size. (P7)
2. Tighten them up completely.
3. Clean up the taper area of jaw case
head, and apply lubricant oil to back
side of jaw. (P10)
4. Attach proper guide pipe with the rivet
size.
Crimping cannot be
completed with one
trigger operation.
1. Rivet size is improper with the plate
thickness.
2. Air pressure of compressor is improper.
3. Jaw is worn.
4. Jaw case head is not attached properly.
5. Piston stroke is not enough due to lack of
hydraulic oil
1. Use proper rivet.
2. Adjust air pressure. (P.8)
3. Replace jaw with a new one. (P.10)
4. Wind and tighten jaw case head to the
end and return it to the position where
convex and notch are aligned, then set
up Collar. (P.11)
5. Refill hydraulic oil. (Oil piston stroke
is 19 mm). (P.13)
Abnormal operation such
that piston does not work
or moves slowly.
1. Spool doe not work properly.
2. Spool does not work properly because
silencer is clogged.
3. Air piston does not work properly due to
dirty inside of cylinder or lack of oil.
1. Clean up spool (P.11)
2. Replace silencer with a new one.
3. Clean up the inside of cylinder. (P.12)
Power of vacuuming
rivets is weak, or shafts
are not discharged.
1. Tank is full with shafts.
2. Guide pipe of riveter is clogged with
shafts.
3. Nozzle unit is dirty.
4. Chute hose is clogged with shafts.
5. Nozzle unit is clogged with shafts.
1. Detach the tank unit and make it
empty.
2. Detach the guide pipe and remove
shafts.
3. Clean up the nozzle unit. (P.15)
4. Detach the chute hose and remove
shafts.
5. Detach the nozzle unit and remove
shafts.
6. Use specified chute hose.
6. Troubleshooting


17
7. PART DRAWINGS
7.1 HEAD AREA
Head Unit is consisted of the following parts:
7. Part Drawin
g
s


18
No. Part Name Part
No.
No. Part Name Part No.
1-B Nosepiece 3.2 10028 21 Oil Piston 23627
2 Frame Head 10105 22 Urethane O-ring P-22 25443
3 Jaw Case Head 10280 23 B-ring P-22 10181
4 Jaw (Hard tool material,
Medium) 10281 24 Returning Spring 23632
5 Jaw Pusher 10132 25 O-ring S-24 10185
6 Jaw Pusher Spring 10133 26 Hanger 10106
7 Jaw Case 10279 27 Frame Cap 24013
8 Collar 10286 28 Push Rod 23667
9 Collar Spring 10287 29 Urethane Ball 1/4 23669
10 Nozzle Unit 29090 30 Babble Spring 10248
11 Jaw Case Lock Nut 23640 31 Straight Joint 23671
12 Stop Ring 23634 32 Air Tube 4 dia. ×2.6m 23672
13 O-ring P-12 10128 33 O-ring S-7 12114
14 B-ring P-12 10129 34 Collar 23720
15 Oil Retaining Screw 12135 35 ※Vacuum Unit (U) 23763
16 O-ring P-5 12120 36 Tank Unit 24379
17 ※Trigger (U) 23692 37
Air Tube 6 dia.×3m 23726
18 Thin Flat Rivet 2.5×5 23642 38 Guide Pipe A (U) 29110
19 ※Frame (U) 23635
20 Spring Pin 3 dia.×18 10145 Optio
nal Chute Hose for M 10381
※No.19 includes No.12 x 1, No. 13 x 2 and No. 14 x 1.
※No.17 includes No. 18.
※No.35 includes No. 10 x 1.
ACCESSORIES
No. Part Name Part
No.
1-A Nosepiece 2.4 10027
1-C Nosepiece 4.0 10029
1-D Nosepiece 4.8 10030
201 Spanner A 10141
202 Spanner B 10142
204 Hose Joint 1/4" 10140
205 Cap Nut 1/4" 10139
206 Hydraulic Oil 10012
207 Guide Pipe B (U) 29111
7. Part Drawin
g


19
7.2 SWIVEL UNITAND BOOSTER UNIT
Swivel unit and booster unit are consisted of the following parts:
7. Part Drawin
g


20
No. Part Name Part
No.
No. Part Name Part No.
101 O-ring P-11 23663 136 Oil Cylinder Joint 23700
102 O Swivel Joint 23662 137 Button Bolt with Hexagon Hole
M6×20 23701
103 O-ring S-14 10152 136 Returning Spring 23691
104 O-ring P-10A（Cut）23738 137 Air Cylinder 23706
105 O-ring P-14 10434 138 Straight Joint 10273
106 B-ring P-14 10435 139 Spool Cap B 23708
107 Swivel Shaft 23658 140 O-ring S-12 23709
108 Swivel Case 23660 141 O-ring P-8 10336
109 Rubber Bellow 28490 142 Spool 23707
140 Hydraulic Hose 23644 143 O-ring P-5 12120
111 Coupler Bag 23652 144 Silencer 23689
112 Coupler Male Joint (U) 23713 145 Nipple 14484
113 C-type Stop Shaft for hole
RTW-18 23646 146 O-ring S-12 23709
114 Coupler Spring Shaft 23655 147 Spool Cap A 23688
115 Spring 10133 148 Air Piston (U) 23679
116 Valve 23648 149 O-ring P-85 10452
117 O-ring P-6 10150 150 Air Cylinder Cap 23678
118 Coupler Male Case 23654 151 Bolt with Hexagon Hole M6×15 23690
119 B-ring P-21 23718 152 Oil Tank Cap 15606
120 O-ring P-21 23711 153 Cap 15819
121 Coupler Female Case 23716 154 Oil Tank 15644
122 B-ring P-18 23684 155 O-ring G-30 12445
123 O-ring P-18 23683 156 Oil Tank Base 23693
124 O-ring P-6 10150 157 O-ring P-9 10219
125 Valve 23648 158 Safety Valve (U) 25467
126 Spring 10133 159 Protection Tube 23668
127 Coupler Spring Shaft 23655 160 O-ring P-12 10128
128 C-type Stop Shaft for Hole
RTW-18RTW-46 23712 161 Branch Plug 22029
129 ※Oil Cylinder (U) 23682 162 Fixing Screw 22030
130 O-ring S-30 23685 163 L-type Joint 22034
131 O-ring P-24 10207 164 Plain Washer (M6) 24426
132 O-ring P-14 10434 165 O-ring S-11 25590
133 B-ring P-14 10435
※No.129 includes No. 130 x 1, No. 131 x 1, No. 132 x 3 and No. 133 x 2.
※No.148 includes No. 149 x 1.
※No.158 includes No. 165.
7. Part Drawin
g
