Lochinvar EcoSword LGC160-210 User manual

EcoSword range
Flue Guide
Models covered:
LGC160-210
LGC160-350
LGC200-210
LGC200-350
LGC245-420
LGC245-560
LGC285-420
LGC285-560
LGC380-560

Page 1of 11
DOCUMENT CONTROL
Article
Language
Version
Modified by
EcoSword flue guide
English
V1.2 January 2023
S Hunt

Page 2of 11
Contents
GENERAL.....................................................................................................................................................................3
Drawing 1 Water Heater terminal locations.............................................................................................................4
Table 1 Water Heater terminal locations.................................................................................................................4
CONCENTRIC FLUE SYSTEMS .......................................................................................................................................5
Standard concentric horizontal and vertical flue......................................................................................................5
Plume kit for use with Horizontal concentric flue ....................................................................................................6
Twin-pipe flue.........................................................................................................................................................7
CONVENTIONAL (EXHAUST ONLY) FLUE SYSTEMS .......................................................................................................8
Common flue systems.................................................................................................................................................9
ORDER FORM AND NOTES ........................................................................................................................................10

Page 3of 11
GENERAL
Lochinvar Water Heaters are certified for use on the following flue categories:
Installation type
Category
Description
B23
Open flue
An appliance intended to be connected to a flue that evacuates the products of combustion to the
outside of the room containing the appliance. The combustion air is drawn directly from the room.
C13
Closed Flue
An appliance connected to either a concentric or twin-pipe flue system with a Horizontal flue terminal.
Both the air inlet and flue exhaust must be in the same pressure zone.
C33
Closed Flue
An appliance connected to either a concentric or twin-pipe flue system with a Vertical flue terminal. Both
the air inlet and flue exhaust must be in the same pressure zone.
C43
Closed Flue
An appliance connected to a common air inlet and flue exhaust system, which is designed for more than
one appliance. This common system has a single air inlet and flue exhaust and is part of the building not
the appliance.
C53
Closed Flue
An appliance connected to a twin-pipe flue system with a Horizontal or Vertical flue terminal. Both air
inlet and flue exhaust may be in different pressure zones.
C63
Closed Flue
An appliance intended to be connected to a separately approved and marketed system for the supply of
combustion air and discharge of combustion products (i.e. other than that supplied by the water heater
manufacturer).
All installations should comply with the requirements of:
1. For appliances up to 70kW net input- BS5440-1:2008- Flueing and ventilation for gas appliances of rated
input not exceeding 70 kW net (1st, 2nd and 3rd family gases). Specification for installation of gas appliances
to chimneys and for maintenance of chimneys.
a. Refer to drawing 1 and table 1 for details of terminal locations.
2. For appliances over 70kW net input- IGEM/UP/10 Edition 4 +A: 2016 - Installation of flued gas appliances in
industrial and commercial premises, specific attention should be paid to the following sections.
a. Refer to drawing 1 and table 1 for details of terminal locations.
b. Horizontal terminations shall be located according to the minimum distances given in table 1, and
subject to the risk assessment criteria shown in table 2.
c. Horizontal flue terminations (other than for fan dilution systems) must not be installed for any single
appliance or group of appliances with a total nett input exceeding 333kW net heat input.
d. For any single appliance or group of appliances with a total net heat input exceeding 333 kW, the
general requirements of IGEM/UP/10 Edition 4 +A: 2016 shall apply and approval must be sought
from the Local Authority prior to commencement of the installation.
3. The Clean Air Act for installations exceeding 333kW nett input.

Page 4of 11

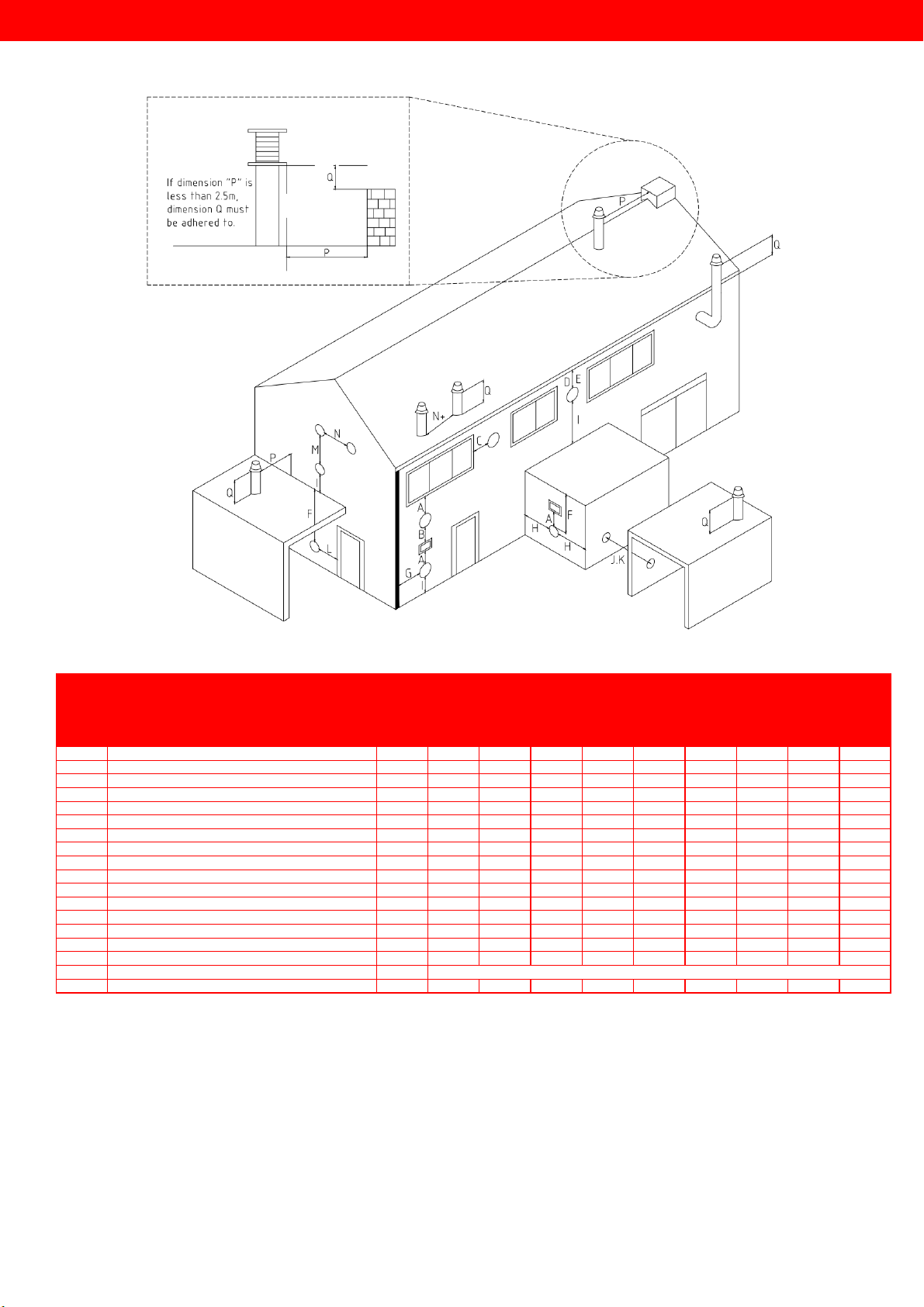

DRAWING 1WATER HEATER TERMINAL LOCATIONS
TABLE 1WATER HEATER TERMINAL LOCATIONS
The table above should be used in conjunction with the following notes:
Distances shown ensure the Water Heaters will operate without problems under most conditions, these distances can be reduced in certain
circumstances
The above should be read in conjunction with the latest edition of BS5440-1 and IGEM UP10
For Water Heater installation above 333kW nett input the table above should not be used, these installations are covered by the clean air act and
must comply with its requirements in full, contact your local environmental health team for further guidance
For further guidance please contact Lochinvar Technical support
Location Description
LGC160-210 GPCE
LGC160-350 GPCE
LGC200-210 GPCE
LGC200-350 GPCE
LGC245-420 GPCE
LGC245-560 GPCE
LGC285-420 GPCE
LGC285-560 GPCE
LGC380-560 GPCE
Water heater nett input kW 11.0 18.2 11.0 18.2 22.2 29.3 22.2 29.3 29.3
ADirectly below an opening, air brick, opening windows etc.# mm 300 300 300 300 300 300 300 300 300
BAbove an opening, air brick, opening windows etc. mm 300 300 300 300 300 300 300 300 300
CHorizontally to an opening, air brick, opening windows etc.# mm 300 300 300 300 300 300 300 300 300
DBelow a gutter or sanitary pipework mm 75 75 75 75 75 75 75 75 75
EBelow the eaves mm 200 200 200 200 200 200 200 200 200
FBelow a balcony or car port roof mm 200 200 200 200 200 200 200 200 200
GFrom a vertical drain or soil pipe mm 150 150 150 150 150 150 150 150 150
HFrom an internal or external corner mm 300 300 300 300 300 300 300 300 300
IAbove ground, roof or balcony level mm 300 300 300 300 300 300 300 300 300
JFrom a surface facing the terminal mm 600 600 600 600 600 600 600 600 600
KFrom a terminal facing the terminal mm 1200 1200 1200 1200 1200 1200 1200 1200 1200
LFrom an opening in the car port (e.g. door, window) into the dwelling mm 1200 1200 1200 1200 1200 1200 1200 1200 1200
MVertically from a terminal on the same wall mm 1500 1500 1500 1500 1500 1500 1500 1500 1500
NHorizontally from a terminal on the same wall mm 300 300 300 300 300 300 300 300 300
N+ Vertically from a terminal on the same roof mm 300 300 300 300 300 300 300 300 300
PFrom a vertical structure on the roof mm
QAbove intersection with the roof mm 300 300 300 300 300 300 300 300 300
N/A

Page 5of 11

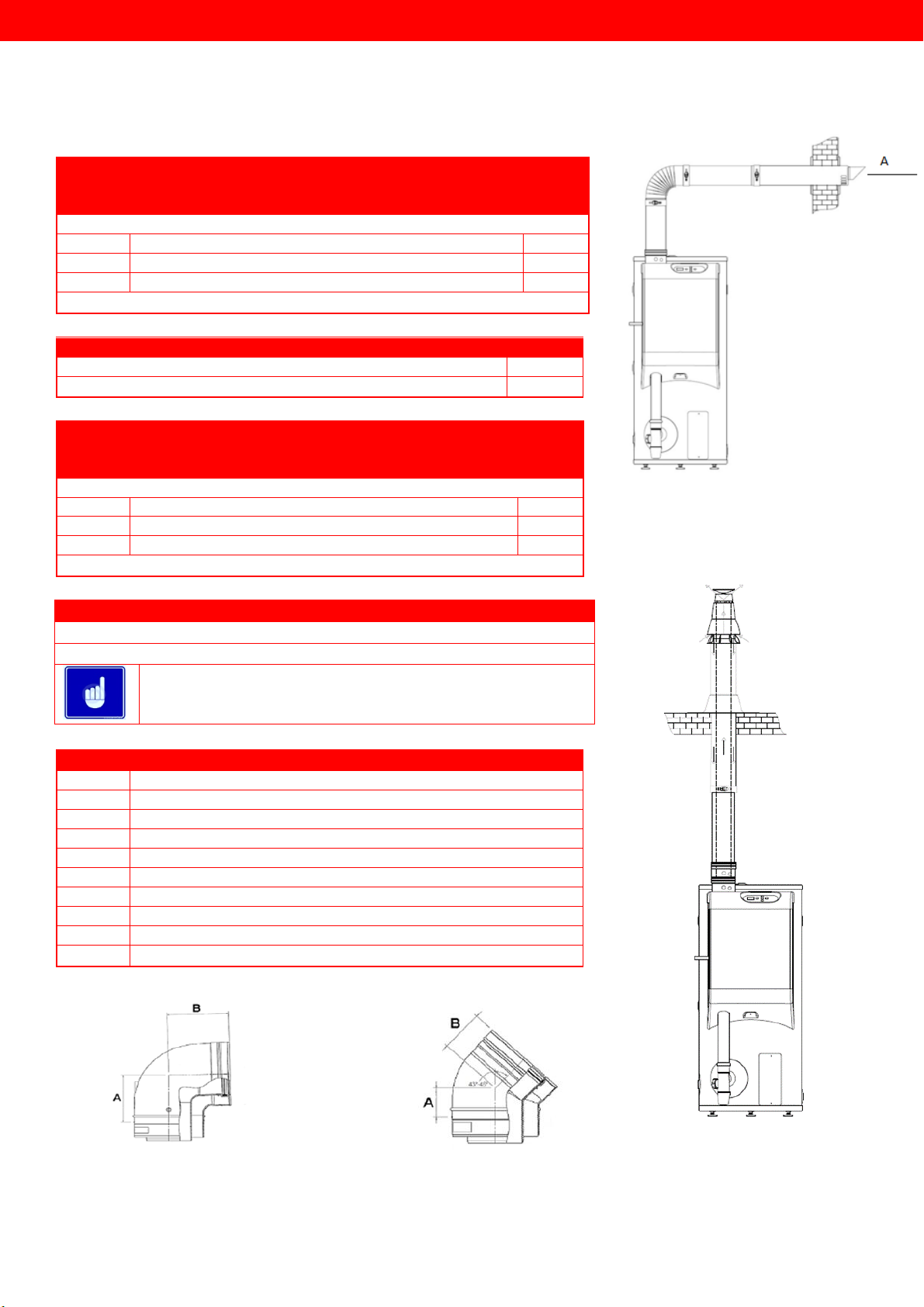

CONCENTRIC FLUE SYSTEMS
STANDARD CONCENTRIC HORIZONTAL AND VERTICAL FLUE
ELGH001 CONCENTRIC HORIZONTAL FLUE ASSEMBLY
ALL MODELS
COMPONENTS INCLUDED
tem No.
Description
Included
LV310759
CONCENTRIC HORIZONTAL FLUE ASSEMBLY 80/125mm PP
1
LV310744
CONCENTRIC EXTENSION - Ø80/125mm PP TELESCOPIC
1
INCLUDES 90 BEND, 500mm LENGTH AND WALL PLATES
Centre Line Measurement
A DIMENSION FOR MODELS LGC160-210 / LGC200-350
1800mm
A DIMENSION FOR MODELS LGC245-420 / LGC380-560
1840mm
ELGV001 CONCENTRIC VERTICAL FLUE ASSEMBLY
ALL MODELS
COMPONENTS INCLUDED
Item No.
Description
Included
LV310744
CONCENTRIC EXTENSION - Ø80/125mm PP TELESCOPIC
1
LV310755
CONCENTRIC VERTICAL FLUE ASSEMBLY 80/125mm PP
1
INCLUDES 1000MM EXTENSION AND FLAT ROOF FLASHING AND TERMINAL
Maximum Flue Lengths
Maximum equivalent flue length = 40 Metres
Maximum number of bends allowed = 8
Even if using less than the maximum number of bends, the maximum pipe
length may not be exceeded. Even if using less than the maximum pipe
length, the maximum number of bends may not be exceeded.
Additional Flue Ancillary Items
Item No.
Description
LV310740
CONCENTRIC EXTENSION - Ø80/125mm PP FIXED (250mm)
LV310745
CONCENTRIC EXTENSION - Ø80/125mm PP (500mm) Cut to length
LV310742
CONCENTRIC EXTENSION - Ø80/125mm PP FIXED (1000mm)
LV310743
CONCENTRIC EXTENSION - Ø80/125mm PP FIXED (2000mm)
LV310744
CONCENTRIC EXTENSION - Ø80/125mm PP TELESCOPIC
LV310745
CONCENTRIC EXTENSION - Ø80/125mm PP (500mm) Cut to length
LV310734
CONCENTRIC BEND 45° Ø80/125mm PP (A = 45mm, B=62.5mm)
LV310735
CONCENTRIC BEND 90° Ø80/125mm PP (A=95mm, B=110mm)
M84481
WALL CLAMP Ø125mm

Page 6of 11
PLUME KIT FOR USE WITH HORIZONTAL CONCENTRIC FLUE
No
Description
All models
1
CONCENTRIC BEND 90°-PP
Ø80/125mm
2
CONCENTRIC HORIZONTAL PLUME KIT TERMINAL -PP
Ø80/125mm
3
EXTENSION -PP CUTABLE (1000mm)
Ø80mm
4
BEND 90°-PP
Ø80mm
5
PLUME KIT BIRD GUARD
Ø80mm
6
PLUME KIT FLUE EXIT-PP
Ø80mm
7
WALL CLAMP
Ø80mm
A
INTERNAL DIAMETER
Ø80mm
B
EXTERNAL DIAMETER
Ø125mm
The plume kit must not be used to correct an illegal terminal location
Additional Flue Ancillary Items all Models
Item No
Description
Dimensions
LG800012A
BEND 90° Ø80mm PP BLACK EXTERNAL
N/A
LG800014A
EXTENSION Ø80mm (1000mm) PP BLACK EXTERNAL
1000mm
Maximum Flue Lengths
Maximum flue length = Standard flue kit plus 4 additional 1000mm lengths
Maximum number of additional bends allowed = 3
Even if using less than the maximum number of bends, the maximum pipe length may not be exceeded. Even if using less
than the maximum pipe length, the maximum number of bends may not be exceeded.
Plume management kit
LG800008A
PLUME MANAGEMENT KIT Ø80/125mm

Page 7of 11

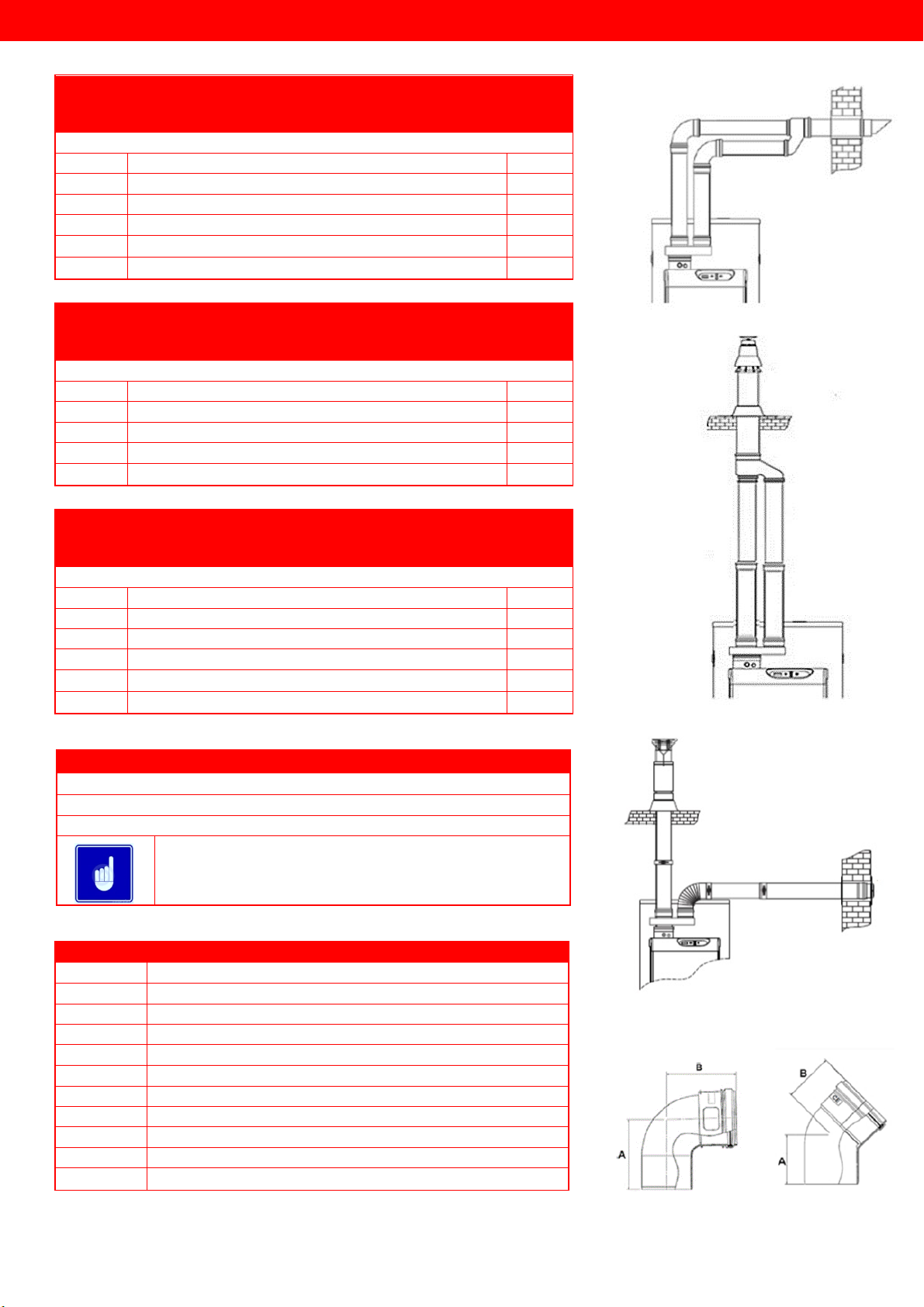

TWIN-PIPE FLUE
ELGPH001 TWIN PIPE HORIZONTAL FLUE ASSEMBLY
ALL MODELS
COMPONENTS INCLUDED
Item No.
Description
Included
LV310728
CONC HORZ TERMINAL - Ø80/80mm TO Ø80/125mm PP
1
M85291
BEND 90° Ø80mm PP
2
LV310718
EXTENSION - Ø80mm (250mm) PP
2
LV310722
EXTENSION - Ø80mm PP TELESCOPIC
2
LV312209
CONC TO TWIN PIPE ADAPTOR - Ø80/125 - 80/80 PP/ALU
1
ELGPV001 TWIN PIPE VERTICAL FLUE ASSEMBLY
ALL MODELS
COMPONENTS INCLUDED
Item No.
Description
Included
LV310708
VERTICAL CONC TERMINAL - Ø80/80mm TO Ø80/125mm PP
1
M85272
EXTENSION Ø80mm (1000mm) PP
2
LV310722
EXTENSION - Ø80mm PP TELESCOPIC
2
LV312209
CONC TO TWIN PIPE ADAPTOR - Ø80/125 - 80/80 PP/ALU
1
TWIN PIPE HORIZONTAL FLUE ASSEMBLY UTILISING SEPARATE AIR INLET AND FLUE
OUTLET-ALL MODELS
COMPONENTS INCLUDED
Item No.
Description
Included
LV312209
CONC TO TWIN PIPE ADAPTOR - Ø80/125 - 80/80 PP/ALU
1
LV305016
HORIZONTAL AIR INLET Ø80mm
1
LV310753
CONCENTRIC VERTICAL TERMINAL - Ø80/125mm PP
1
LV310757
CONCENTRIC HORIZONTAL TERMINAL - Ø80/125mm PP
1
M28925
TERMINAL WALL PLATES
1
Maximum Flue Lengths
Maximum equivalent flue length = 50 Metres
90 Bend = 3.9 equivalent length
45 Bend = 1.1m equivalent length
Even if using less than the maximum number of bends, the
maximum pipe length may not be exceeded. Even if using less than
the maximum pipe length, the maximum number of bends may not
be exceeded.
Additional Flue Ancillary Items Twin-pipe flue
Item No.
Description
LV310718
EXTENSION - Ø80mm (250mm) PP Cut to length
M85271
EXTENSION Ø80mm (500mm) PP Cut to length
M85272
EXTENSION Ø80mm (1000mm) PP Cut to length
LV310721
EXTENSION - Ø80mm (2000mm) PP Cut to length
LV310722
EXTENSION - Ø80mm PP TELESCOPIC
M85292
BEND 45° Ø80mm PP (A=72.5mm, B=72.5mm)
M85291
BEND 90° Ø80mm PP (A=110mm, B=110mm)
LV310703
BEND WITH SUPPORT 90° Ø80mm PP
LV310690
SUPPORT BRACKET
M87191
WALL CLAMP Ø80mm

Page 8of 11

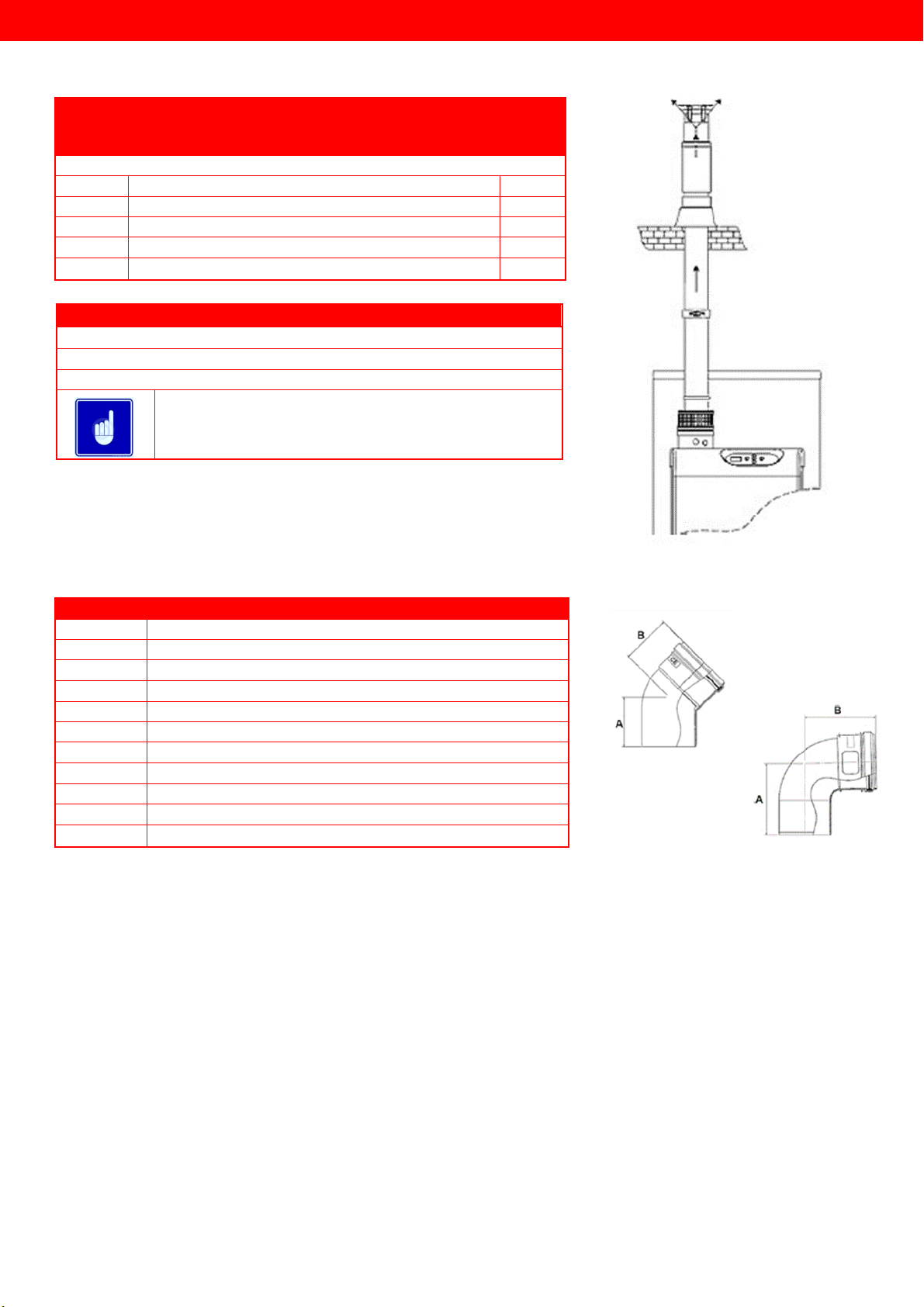

CONVENTIONAL (EXHAUST ONLY) FLUE SYSTEMS
ELGCF001 CONVENTIONAL VERTICAL FLUE ASSEMBLY
ALL MODELS
COMPONENTS INCLUDED
Item No.
Description
Included
LV310753
CONCENTRIC VERTICAL TERMINAL - Ø80/125mm PP
1
M85272
EXTENSION Ø80mm (1000mm) PP
1
LV310722
EXTENSION - Ø80mm PP TELESCOPIC
1
LV305030
APPLIANCE AIR INTAKE GUARD Ø80/125mm
1
Maximum Flue Lengths
Maximum equivalent flue length = 50 Metres
90 Bend = 3.9 equivalent length
45 Bend = 1.1m equivalent length
Even if using less than the maximum number of bends, the
maximum pipe length may not be exceeded. Even if using less than
the maximum pipe length, the maximum number of bends may
not be exceeded.
Additional Flue Ancillary Items Conventional flue
Item No.
Description
LV310718
EXTENSION - Ø80mm (250mm) PP Cut to length
M85271
EXTENSION Ø80mm (500mm) PP Cut to length
M85272
EXTENSION Ø80mm (1000mm) PP Cut to length
LV310721
EXTENSION - Ø80mm (2000mm) PP Cut to length
LV310722
EXTENSION - Ø80mm PP TELESCOPIC
M85292
BEND 45° Ø80mm PP (A=72.5mm, B=72.5mm)
M85291
BEND 90° Ø80mm PP (A=110mm, B=110mm)
LV310703
BEND WITH SUPPORT 90° Ø80mm PP
LV310690
SUPPORT BRACKET
M87191
WALL CLAMP Ø80mm

Page 9of 11
COMMON FLUE SYSTEMS
Any installations using flue type C63 must be designed and installed in compliance with any local
Building or planning regulations, but as these systems use a flue system not supplied by Lochinvar,
Lochinvar cannot comment / advise or provide support on the design of this type of flue system. To
design such a flue system, the installer/contractor must consult a specialist flue supplier who will be
responsible for the design and installation of the separate flue system. When designing the type C63
flue system, the instructions in the Installation Manual, provided with the water heater, must be
considered. Lochinvar will provide pressure loss figures for the specific units, but other than that,
Lochinvar cannot provide support on Common Flue requests because flue certification is limited to the
certified categories in the table on page 2. Lochinvar cannot accept any responsibility for Flue system
design.
Maximum pressure
Inlet only
Outlet only
Inlet + outlet
Pinlet
Poutlet
Pinlet
Poutlet
Pinlet
Poutlet
[Pa]
[Pa]
[Pa]
[Pa]
[Pa]
[Pa]
LGC-…-210
-41
0
0
33
-25
23
LGC-…-350
-74
0
0
59
-44
41
LGC-…-420
-108
0
0
108
-56
56
LGC-…-560
-192
0
0
192
-100
100

Page 10 of 11
ORDER FORM AND NOTES
Notes-Items to order
Item No.
No required
Notes
Contact Lochinvar customer service to order additional flue items on 01295 269981

Page 11 of 11
