Lochinvar Squire SDT065 User manual

Installation & Operation
Manual
Models: SDT/SET065 - 119
This manual must only be used by
a qualified heating installer / service
technician. Read all instructions
before installing. Perform steps in
the order given. Failure to comply
could result in severe personal
injury, death, or substantial property
damage.
WARNING
Save this manual for future reference.
SDT-SET-I-O Rev D
SDT
Solar Dual Coil Tank SET
Solar Electric Tank
CAUTION: The heat transfer
medium must be water or other
nontoxic fluid having a toxicity
rating or class of 1, as listed in
Clinical Toxicology of Commercial
Products, 5th edition.
The pressure of the heat transfer
medium must be limited to
a maximum of 30 PSIG by an
approved safety or relief valve.

Hazard definitions
The following defined terms are used throughout this manual to bring attention to the presence of hazards of various risk levels or
to important information concerning the life of the product.
2
DANGER
WARNING
CAUTION
CAUTION
NOTICE
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
NOTICE indicates special instructions on installation, operation, or maintenance that are important but not
related to personal injury or property damage.
HAZARD DEFINITIONS .................................................... 2
PLEASE READ BEFORE PROCEEDING ........................ 3
1. GENERAL INFORMATION
Operating Restrictions........................................................ 4
Single-Wall Heat Exchanger.............................................. 4
2. PRE-INSTALLATION
Locating the Tank............................................................... 5
Recommended Clearances................................................ 5
3. BOILER SIDE PIPING (SDT MODELS)
Zone with Circulator to Aquastat........................................ 6
Zone with Valve to Aquastat.............................................. 6
DHW Prioritization.............................................................. 6
Multiple Tank Connections (Boiler Side)............................ 6
Table 3A - 3B - Pressure Drop Charts......................... 7
Table 3C - Pressure Drop Values ................................ 7
Piping Diagrams............................................................ 8-11
4. DOMESTIC SIDE (TANK) PIPING
Basic Domestic Piping................................................. 11
Multiple Tank Domestic Water Piping.......................... 11
Domestic Water Piping for Distant Fixtures..................11
Anti-scald Valves (Mixing Valves) ............................... 12
Install Drain Valve ...................................................... 12
Temperature and Pressure (T&P) Relief Valve.......... 12
Table 4A - Minimum Relief Valve (AGA Rating)... 13
5. WIRING
Electrical Connection and Thermostat Setup . . . . . . . . . .16
Indirect Water Heater Sensor Setup (Knight Boiler)........ 18
Install and Connect Tank Sensor..................................... 18
Indirect Water Heater Controlled Using Aquastat and Zone
Circulator.......................................................................... 19
6. START-UP AND CHECK-OUT .................................. 20
7. MAINTENANCE
Maintenance Schedule..................................................... 21
To Fill the Water Heater............................................. 21
To Drain the Water Heater......................................... 21
8. PERFORMANCE DATA
Performance Data Charts ........................................... 22-24
9. High Output Piping
High Domestic Hot Water Usage ............................... 25
Series Piping.......................................................... 25-26
Parallel Piping........................................................ 25&27
REVISION NOTES.......................................... Back Cover
Contents

SDT/SET Installation & Operation Manual
Please read before proceeding
Installer – Read all instructions before
installing. Perform steps in the order given.
Have this indirect water heater serviced/
inspected by a qualified service technician, at
least annually.
Failure to comply with the above could result
in severe personal injury, death or substantial
property damage.
Failure to adhere to the guidelines on this
page can result in severe personal injury,
death, or substantial property damage.
When servicing the indirect water heater –
• To avoid severe burns, allow the appliance to cool
before performing maintenance.
Indirect water heater operation –
• Should overheating occur or gas supply fail to shut off,
do not turn off or disconnect electrical supply to
circulator. Instead, shut off the gas supply at a location
external to the appliance.
• Do not use this appliance if any part has been under
water. The possible damage to a flooded appliance can
be extensive and present numerous safety hazards. Any
appliance that has been under water must be replaced.
When calling or writing about the appliance
– Please have the indirect water heater model
and serial number from the indirect water
heater rating plate.
Consider piping and installation when
determining appliance location.
Any claims for damage or shortage in
shipment must be filed immediately
against the transportation company by the
consignee.
Factory warranty (shipped with appliance)
does not apply to appliances improperly
installed or improperly operated.
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
This appliance MUST NOT be installed in
any location where gasoline or flammable
vapors are likely to be present.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
WARNING
NOTICE
WARNING
WARNING
Hot Water Can Scald!
• Water heated to temperatures for clothes washing, dish washing, and other sanitizing needs can
scald and cause permanent injury.
• Children, elderly, and infirm or physically handicapped persons are more likely to be
permanently injured by hot water. Never leave them unattended in a bathtub or shower.
Never allow small children to use a hot water tap or draw their own bath.
• If anyone using hot water in the building fits the above description, or if state laws or local codes
require certain water temperatures at hot water taps, you must take special precautions:
• Use lowest possible temperature setting.
• Install some type of tempering device, such as an automatic mixing valve, at hot water
tap or water heater. Automatic mixing valve must be selected and installed according to valve
manufacturer’s recommendations and instructions.
• Water passing out of drain valves may be extremely hot. To avoid injury:
• Make sure all connections are tight.
• Direct water flow away from any person.
Protection Must Be Taken Against Excessive Temperature and Pressure!
--Installation of a Temperature & Pressure (T&P) relief valve is required.
The following chart details the relationship of water temperature
and time with regard to scald injury and may be used as a
guide in determining the safest water temperature for your
applications.
APPROXIMATE TIME / TEMPERATURE
RELATIONSHIPS IN SCALDS
120°F More than 5 minutes
125°F 1 1/2 to 2 minutes
130°F About 30 seconds
135°F About 10 seconds
140°F Less than 5 seconds
145°F Less than 3 seconds
150°F About 1 1/2 seconds
155°F About 1 second
3

1 General Information
The Lochinvar SDT/SET series indirect water heater
(FIG. 1-1) is designed to generate domestic hot water in
conjunction with a solar panel using forced circulation with
a backup heat source. This indirect water heater consists of
a 316L Stainless Steel tank in which a smooth 304L stainless
steel coil is located (Table 1A). Solar heating fluid is pumped
through the coil and heats the water in the tank. If the solar
panel cannot produce enough heat, the backup source should
supply hot water. This tank is not intended for use in pool
heating applications or for heating any fluid other than water.
It is also not intended for use in gravity hot water heating
systems.
Table 1A
Component Materials
Component Material
Tank 316L Steel Stainless Steel
Coil 304L Stainless Steel
Insulation Polyurethane
Jacket Polypropylene / ABS
Figure 1-1 Lochinvar SDT and SET Series Indirect Water Heaters
PART NO. “A”
(in.)
“G”
(in.)
“F”
(in.)
“E”
(in.)
“D”
(in.)
“C”
(in.)
“B”
(in.)
“I”
(in.)
“H”
(in.)
SDT065
SET119
SET090
SET065
SDT119
SDT080
3 5/16
3 5/16
3 5/16
3 5/16
3 5/16
3 5/16
9 1/8
9 3/8
9 1/8
9 1/8
9 3/8
9 1/8
27 15/16
27 15/16
27 15/16
27 15/16
31 11/16
31 11/16
33 5/8
N/A
37 7/16
40 3/16
N/A
N/A N/A
N/A
N/A
47 3/16
54 1/2
53 3/4
52 5/16
61 13/16
61 13/16
52 5/16
60 1/8
60 1/8
59 7/8
69 3/8
59 7/8
68 3/16
69 3/8
68 3/16
59 7/8
59 7/8
59 7/8
N/A
N/A
N/A
24
24
28
24
24
28
921
820
1268
921
820
1268
1. RELIEF VALVE CONNECTION
2. HOT WATER OUTLET
3. BOILER WATER IN
4. BOILER WATER OUT
5. DRAIN / COLD WATER INLET
6. SOLAR WATER IN
7. SOLAR WATER OUT
8. ELEMENT
“I” “I”
22.5
o
45
o
SOLAR ELECTRIC
SOLAR DUAL
COIL
2
5
7
6
8
1
5
7
6
8
3
1
2
1 - 1/2” FPT 1 - 1/2” FPT
1 - 1/2” MPT
1 - 1/2” MPT
AQUASTAT WELL
SOLAR SENSOR SOLAR SENSOR
3/4” FPT
3/4” FPT
1” MPT
1” MPT
1” MPT
1” MPT
1” MPT 1” MPT
WEIGHT
FULL OF WATER
(LBS)
22.5
o
45
o
“A”
“B”
“C”
“H”
“F”
“G”
“A”
“B”
“C”
“D”
“E”
“F”
“G”
1” MPSF
Single-Wall Heat Exchanger
Uniform Plumbing Code
Single-wall heat exchangers are permitted if they satisfy all of
the following requirements --
1. The heat transfer medium is potable water or contains only
substances which are recognized as safe by the U.S. Food
and Drug Administration.
2. The pressure of the heat transfer medium is maintained less
than the normal minimum operating pressure of the
potable water system.
3. The equipment is permanently labeled to indicate that
only additives recognized as safe by the FDA shall be used
in the heat transfer medium.
Other heat exchanger designs may be permitted where approved
by the Administrative Authority.
Operating Restrictions:
• Maximum domestic hot water temperature is 194°F.
• Maximum boiler water temperature is 210°F.
• Maximum working pressure for the vessel tank is
150 psig.
SDT/SET Installation & Operation Manual
4

5
2 Pre-installation
1. The installation must conform to the instructions
in this manual and all applicable local, state,
provincial, and national codes, laws, regulations, and
ordinances. Installations in Canada must conform to
B149.2 Installation Code.
2. Be certain the domestic water supply to the tank has
physical and chemical characteristics that fall within
the limits shown in Table 2A. Where questions exist
as to the composition of the water on the job, a
qualified water treatment expert should be consulted.
Water with characteristics outside the
limits shown in Table 2A may severely
shorten the life of the tank due to
corrosion. Damage to tanks in such
cases is not covered under warranty.
3. Read and understand all installation requirements in
this manual.
Table 2A
Water Chemistry Requirements
Water used in the tank must have characteristics falling
within the following limits:
Characteristic Min. Max.
Ph 6.0 8.0
Chloride (PPM) -- 80
CAUTION
Locating the Tank
1. Choose a location for your water heater centralized to the
piping system. You must also locate the SDT/SET water
heater where it will not be exposed to freezing temperatures.
Additionally, you will need to place the water heater so that
the controls, drain, and inlet/outlets are easily accessible.
This appliance must not be installed outdoors, as it is
certified as an indoor appliance, and must also be kept
vertical on a level surface.
2. Keep distance between boiler and water heater to a
minimum to:
a. reduce piping heat loss
b. provide minimal friction loss
3. Figure 1-1 on page 4 shows the weights of all the tanks filled
with water. Make sure that the location chosen for the tank
is capable of supporting it.
This appliance must be placed where leakage
from the relief valve, leakage from the
related piping, or leakage from the tank or
connections, will not result in damage to the
surrounding areas, or to the lower floors of
the building. A water heater should always
be located in an area with a floor drain or
installed in a drain pan suitable for water
heaters. Lochinvar shall not be held liable for
any such water damage.
CAUTION
Failure to properly support the tank could
result in property damage or personal injury.
WARNING
4. The tank may be located some distance from the boiler
provided the pump is designed to provide the flow called
for in Table 3B (page 7)- Pressure Drop Values, through the
coil. The further the tank is from the boiler, the longer the
response of the boiler will be to a call from the tank zone.
Insulate piping between the boiler and the tank.
Recommended Clearances
The installation location must provide adequate clearances for
servicing and proper operation of the water heater. A 12 inch
vertical clearance is recommended from the top of the water
heater. A zero clearance is allowed for the sides of the water
heater. However, boiler, electrical, and servicing clearances
must be figured when locating the water heater.
Minimum Clearance to the Element Cover
See FIG 2-1. Clearances must be a minimum of 24 inches to
allow for element removal and replacement on SET model.
SDT/SET Installation & Operation Manual
24” MIN CLEARANCE FROM
ELEMENT COVER
(SET Models)
Figure 2-1 Element Cover Clearances

6
Multiple Tank Connections (Boiler Side)
Multiple tank installations must be done in the “reverse-return”
manner. The reason for this is to create the same pressure drop
(and therefore, the same flow) through the coil of each tank.
The boiler manifold piping must be sized so that each coil has
the flow rate called for in Table 3B.
Because the pressure drop through tank coils varies from size
to size, it is hard to predict the flow rate that will be developed
through each coil when two tanks of different sizes are placed in
the same manifold. For this reason it is best not to mix tanks of
different sizes in the same zone if their recovery is critical.
3 Boiler Side Piping (SDT models)
Figures 3-1 thru 3-4 show typical boiler side piping for
several common situations. Regardless of which system is
used it is imperative that the flow rates called for in Table
3C are developed through the coil. This requires properly
sized piping and a properly sized pump.
The systems shown in FIG’s 3-1 thru 3-4 are described
below:
Zone with Circulator to Aquastat
This system is like the circulator zone system on a straight
heat job except that one of the zones goes to the tank
instead of radiation. As on any circulator zone system
check valves should be installed in each zone to prevent
unwanted circulation through zones which are not calling
for heat. Figure 3-1 on page 8 illustrates typical circulator
zone piping.
Zone with Valve to Aquastat
As with the circulator zone system, this system is just like a
standard heating zone system except that one of the zones is
connected to the tank coil as shown in FIG. 3-2 on page 9.
The system circulator must be large enough to move boiler
water through the coil regardless of the flow rate required
through the heating zones.
DHW Prioritization
This piping system is designed to provide direct hot water
priority over the other zones in the heating system. When
there is a Domestic Hot Water (DHW) call for heat, the
Knight control will shut off the boiler circulator and
activate the domestic hot water circulator. Once the DHW
demand is satisfied, the boiler circulator will be readjusted
as demand requires. The circulator must be large enough
to move the boiler water through the coil in the tank,
and it must meet the minimum boiler flow requirments.
The recommended piping for a DHW priority system is
depicted in FIG. 3-3 on page 10.
SDT/SET Installation & Operation Manual

SDT/SET Installation & Operation Manual
7
SOLAR COIL
0.00
2.00
4.00
8.00
SDT / SET065 - 080 FRICTION LOSS
10.00
BOILER COIL
6.00
HDFT/
SOLAR
COIL
BOILER
COIL
0.00
2.00
4.00
6.00
8.00
10.00
5 8 12 16 20
FT/HD
SDT / SET065 - 080 FRICTION LOSS
GPM
Table 3A
Pressure Drop Chart SDT/SET065-080
Table 3C
Pressure Drop Values
MODEL COIL
CONN.
(IN)
COIL
LENGTH
(FT)
SQ FT
SURFACE
AREA
PRESSURE DROP
SOLAR COIL
(FT / HD) COIL
LENGTH
(FT)
SQ FT
SURFACE
AREA
PRESSURE DROP
BOILER COIL
(FT / HD)
5
GPM
8
GPM
12
GPM
16
GPM
20
GPM
5
GPM
8
GPM
12
GPM
16
GPM
20
GPM
SDT[phone].57 3.53 6.27 9.8 28 9.2 0.4 1.03 2.31 4.1 6.41
SDT[phone].57 3.53 6.27 9.8 28 9.2 0.4 1.03 2.31 4.1 6.41
SDT[phone] 4.22 7.5 11.71 48.5 16 0.61 1.57 3.53 6.27 9.8
SET065 1 41.5 13.5 0.61 1.57 3.53 6.27 9.8
SET080 1 41.5 13.5 0.61 1.57 3.53 6.27 9.8
SET119 1 67.3 22.0 .73 1.87 4.22 7.5 11.71
3 Boiler Side Piping (SDT models) (continued)
Table 3A Pressure Drop Chart SDT/SET065-080
Table 3C Pressure Drop Values SDT/SET065-119
SOLAR
COIL
BOILER
COIL
0
2.00
4.00
6.00
8.00
10.00
12.00
5 8 12 16 20
FT/HD
SDT / SET119 FRICTION LOSS
GPM
Table 3B
Pressure Drop Chart SDT/SET119
Table 3B Pressure Drop Chart SDT/SET119

SDT/SET Installation & Operation Manual
8
SOLUTION
BOILER SQUIRE
COLD
WATER
IN
TEMPERATURE /
PRESSURE
GAUGE
AIR SEPARATOR
BALL VALVE
(TYPICAL)
UNION
(TYPICAL)
PRESSURE
RELIEF VALVE
DRAIN POINT
(TYPICAL)
MAKE UP
WATER
BOILER
CIRCULATOR
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE PRESSURE
GAUGE
EXPANSION
TANK
ZONE #1
ZONE CIRCULATORS
(TYPICAL)
FLOW CHECK
VALVE
SYSTEM SUPPLY
SENSOR
(WHEN USED)
NOT TO EXCEED 4 PIPE DIA.
OR A MAXIMUM OF 12" APART
Y-STRAINER
DRAIN
( FIELD SUPPLY )
HOT
WATER
OUT ANTI-SCALD
MIXING VALVE
RECIRCULATION
PUMP
TEMPERATURE/
PRESSURE
RELIEF VALVE
TEMPERATURE/
PRESSURE GAUGE
(TYPICAL)
GAS SUPPLY
CHECK VALVE
BOILER
TANK SENSOR /
AQUASTAT
SOLAR SENSOR
AUXILIARY CATCH PAN
CHECK VALVE
DRAIN
FROM
SOLAR
TO
SOLAR
SOLAR
HEAT EXCHANGER
BOILER BACKUP
HEAT EXCHANGER
( SDT MODELS ONLY )
ZONE
#2
ZONE
#3
ZONE
#4
Figure 3-1 Piping Diagram Zoned with Circulators
Please note that these illustrations are meant to show system piping concept only, the installer is responsible
for all equipment and detailing required by local codes.
NOTICE
3 Boiler Side Piping (SDT models)
NOTICE Please note that the installer is responsible for ensuring DHW prioritization when piped as a zone.

SDT/SET Installation & Operation Manual
9
SOLUTION
BOILER SQUIRE
COLD
WATER
IN
TEMPERATURE /
PRESSURE
GAUGE
AIR SEPARATOR
BALL VALVE
(TYPICAL)
UNION
(TYPICAL)
PRESSURE
RELIEF VALVE
DRAIN POINT
(TYPICAL)
MAKE UP
WATER
BOILER
CIRCULATOR
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE
PRESSURE
GAUGE
EXPANSION
TANK
ZONE #1
ZONE
#2
ZONE
#3
ZONE
#4
SYSTEM SUPPLY
SENSOR
(WHEN USED)
NOT TO EXCEED 4 PIPE DIA.
OR A MAXIMUM OF 12" APART
Y-STRAINER
DRAIN
( FIELD SUPPLY )
HOT
WATER
OUT
ANTI-SCALD
MIXING VALVE
RECIRCULATION
PUMP
TEMPERATURE/
PRESSURE
RELIEF VALVE
TEMPERATURE/
PRESSURE GAUGE
(TYPICAL)
SOLAR HEAT
EXCHANGER
GAS SUPPLY
CHECK VALVE
BOILER
TANK SENSOR /
AQUASTAT
SOLAR SENSOR
AUXILIARY CATCH PAN
CHECK VALVE
DRAIN
FROM
SOLAR
TO
SOLAR
ZONE VALVES
(TYPICAL)
DIFFERENTIAL
PRESSURE
BYPASS
VALVE (IF USED)
SYSTEM
CIRCULATOR
BOILER BACKUP
HEAT EXCHANGER
( SDT MODELS ONLY )
Figure 3-2 Piping Diagram Zoned with Valves
Please note that these illustrations are meant to show system piping concept only, the installer is responsible
for all equipment and detailing required by local codes.
NOTICE
3 Boiler Side Piping (SDT models) (continued)
NOTICE Please note that the installer is responsible for ensuring DHW prioritization when piped as a zone.

SDT/SET Installation & Operation Manual
10
KNIGHT
BOILER
DOMESTIC
HOT WATER
CIRCULATOR
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE
PRESSURE
GAUGE
ANTI-SCALD
MIXING VALVE
COLD
WATE R
IN
TEMPERATURE /
PRESSURE
GAUGE
AIR
SEPARATOR
EXPANSION
TANK
BALL VALVE
(TYPICAL)
UNION
(TYPICAL)
PRESSURE
RELIEF VALVE
DRAIN POINT
(TYPICAL)
MAKE UP WATER
FROM
SYSTEM
NOT TO EXCEED 4 PIPE DIA. OR
A MAXIMUM OF 12" APART
BOILER
CIRCULATOR
SYSTEM
CIRCULATOR
TO
SYSTEM
SYSTEM SUPPLY
SENSOR
DRAIN
DRAIN
(FIELD SUPPLY)
RECIRCULATION
PUMP
BOILER
TANK SENSOR /
AQUASTAT
Y-STRAINER
(RECOMMENDED)
HOT
WATE R
OUT
CHECK VALVE
SQUIRE
SOLAR SENSOR
FROM SOLAR
TO SOLAR
TEMPERATURE/
PRESSURE RELIEF VALVE
CHECK VALVE
SOLAR
HEAT EXCHANGER
TEMPERATURE/
PRESSURE GAUGE
(TYPICAL)
BOILER BACKUP
HEAT EXCHANGER
(SDT MODELS ONLY)

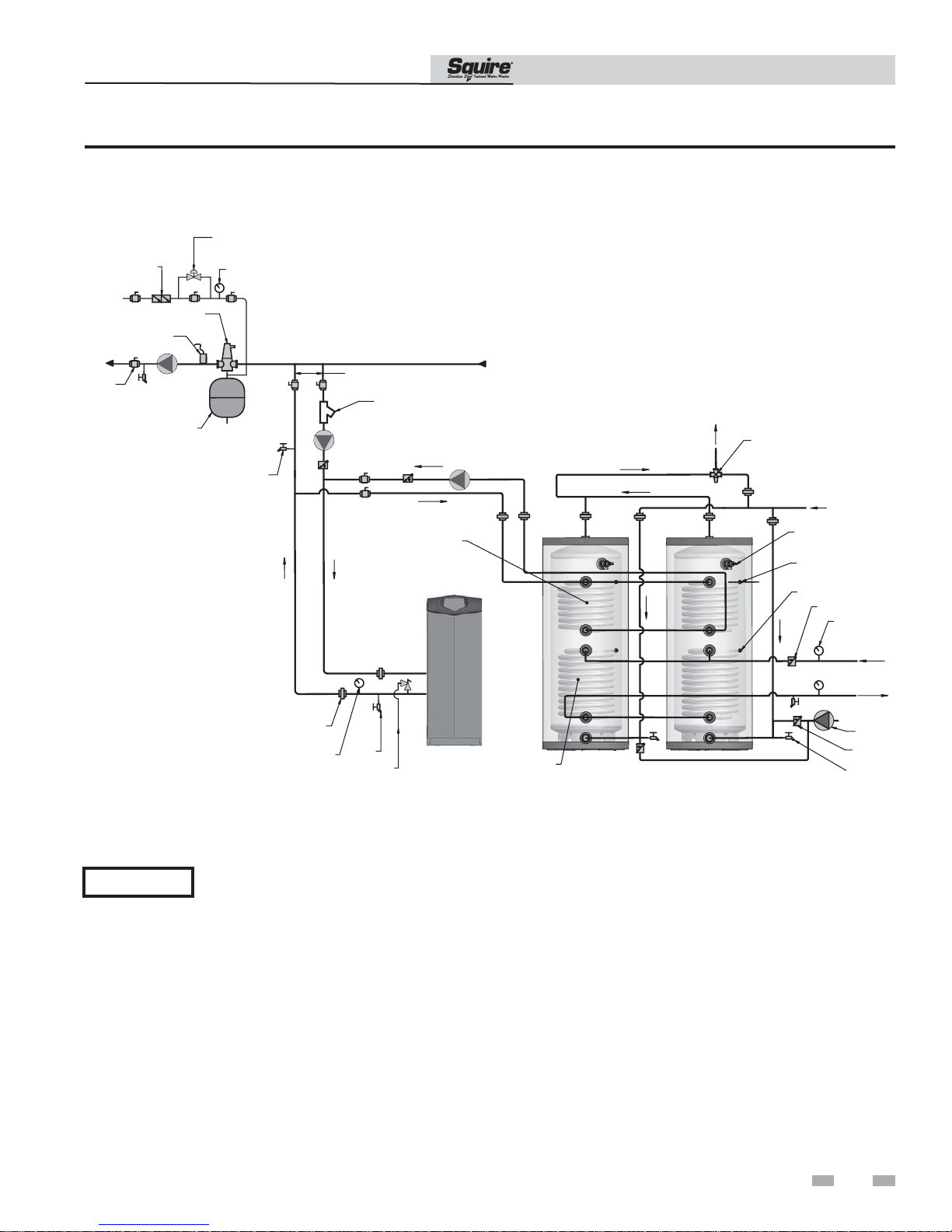

Figure 3-3 Knight Boiler Primary / Secondary Piping
Please note that these illustrations are meant to show system piping concept only, the installer is responsible
for all equipment and detailing required by local codes.
NOTICE
3 Boiler Side Piping (SDT models)

SDT/SET Installation & Operation Manual
11
PRESSURE
REDUCING VALVE
PRESSURE
GAUGE
BACKFLOW
PREVENTER
MAKE UP
WATER AIR SEPARATOR
SYSTEM
SUPPLY SENSOR
TO
SYSTEM
BALL VALVE
(TYPICAL)
SYSTEM
CIRCULATOR
SYSTEN
CIRCULATOR
EXPANSION
TANK
DRAIN POINT
(TYPICAL)
UNION
(TYPICAL)
TEMPERATURE/
PRESSURE GAUGE
DRAIN
PRESSURE
RELIEF VALVE
KNIGHT
BOILER SQUIRE
SQUIRE
SOLAR
HEAT
EXCHANGER
(TYPICAL)
DRAIN
(FILED SUPPLIED)
CHECK VALVE
(TYPICAL)
RECIRCULATION
PUMP
TO
SOLAR
FROM
SOLAR
TEMPERATURE/
PRESSURE GAUGE
(TYPICAL)
SOLAR SENSOR
CHECK VALVE
BOILER
TANK SENSOR/
AQUASTAT
TEMPERATURE/
PRESSURE
RELIEF VALVE
COLD WATER IN
ANTI-SCALD
MIXING VALVE
HOT
WATER
OUT
DOMESTIC
HOT WATER
CIRCULATOR
BOILER
CIRCULATOR
Y-STRAINER
(RECOMMENDED)
NOT TO EXCEED 4 PIPE DIA. OR
A MAXIMUM OF 12” APART
FROM SYSTEM
Figure 3-4 Multiple Tank Connections
Please note that these illustrations are meant to show system piping concept only, the installer is responsible for
all equipment and detailing required by local codes.
NOTICE
3 Boiler Side Piping (SDT models) (continued)

SDT/SET Installation & Operation Manual
12
4 Domestic Side (Tank) Piping
Basic Domestic Piping
Figure 4-2 on page 15 shows typical domestic water piping
for a tank. The function of the components shown are as
follows:
a. Shut-off valves (recommended) - Used to isolate the
tank for servicing.
b. Backflow Preventer (required by some codes) - Used to
prevent water from backing out of the tank and into
the main potable water supply in the event that inlet
water pressure drops.
c. Expansion Tank (required for thermal expansion)-
Absorbs the increased volume caused by heating water.
Use an expansion tank designed for use on
domestic water systems. Refer to the expansion tank
manufacturer’s literature for the proper size expansion
tank to use.
NOTICE When an expansion tank is used, do not
put any valves between the expansion
tank and tank inlet.
d. Unions (recommended) - Used to disconnect the tank
in the unlikely event that this is necessary.
e. Drain (required) - Used to drain the tank for inspection
or servicing.
Multiple Tank Domestic Water Piping
The two pipe reverse return piping uses more pipe than the
two pipe direct return piping, but the flow is more balanced
and even in the two pipe reverse return piping layout
(see FIG. 3-4).
Each tank must have its own T&P valve. It is recommended
that each tank be equipped with its own isolation valves,
unions, and drains so that one tank may be removed from
the system. If local codes require a backflow preventer,
check with the appropriate authority to find out whether
one backflow preventer may be used for tanks or each tank
must be equipped with its own backflow preventer. If each
tank must have its own backflow preventer, each tank must
also have its own expansion tank. If a common backflow
preventer is permitted, an expansion tank must be sized to
accommodate the expansion volume of all tanks.
Domestic Water Piping for Distant Fixtures
In some cases the furthest fixture may be quite distant from the
tank. Such an installation would result in an unacceptable delay
before hot water reaches these distant fixtures. Even if all the
fixtures are relatively close to the tank, the building owner may
want hot water at all fixtures as soon as they are opened.
To prevent delays, return circulation piping with a check valve
that allows flow to the inlet of the tank. This should be installed
on each branch circuit at the farthest fixture or device, so that
hot water is supplied upon demand.
Because hot water is always circulating in the hot water branch,
the entire branch should be insulated to prevent excessive heat
loss.

SDT/SET Installation & Operation Manual
13
4 Domestic Side (Tank) Piping (continued)
Temperature & Pressure (T&P) Relief Valve
For protection against excessive temperatures
and pressure, install temperature and
pressure protective equipment required by
local codes, but not less than a combination
temperature and pressure relief valve certified
by a nationally recognized testing laboratory
that maintains periodic inspection of
production of listed equipment or materials
as meeting the requirements for Relief Valves
and Automatic Gas Shutoff Devices for Hot
Water Supply Systems, ANSI Z21.22 and the
Standard CAN1-4.4, Temperature, Pressure,
Temperature and Pressure Relief Valves and
Vacuum Relief Valves. The combination
temperature and pressure relief valve shall
be marked with a maximum set pressure not
to exceed the maximum working pressure
of the water heater. The combination
temperature and pressure relief valve shall
also have an hourly rated temperature steam
BTU discharge capacity not less than shown
in Table 4A, page 14.
Install the combination temperature and
pressure relief valve into the opening
provided and marked for this purpose on
the water heater.
WARNING
Anti-scald Valves (Mixing Valves)
Anti-scald valves used with water heaters are also called
tempering valves or mixing valves. An anti-scald valve
mixes cold water in with the outgoing hot water to assure
that hot water reaching a building fixture is at a temperature
low enough to be safe. ASSE1017 and ASSE1070 certified
valves are recommended.
Usually, the maximum temperature of the outlet water
will stay near the setting of the tank control. In some cases,
however, hot water usage patterns can cause the outlet
water temperature to rise significantly above the control
setting.
The temperature of water going to the fixtures may be
more carefully controlled through the use of a thermostatic
mixing valve. This device blends a controlled amount of
cold water with the hot water leaving the tank so that water
at a more constant temperature exits the mixing valve.
Anti-scald mixing valve piping is illustrated in FIG.’s 3-1
thru 3-4.
Install Drain Valve
Drain valve and fittings are supplied by others.
Standard Installation
• Install a tee connection at the domestic cold water
inlet (FIG. 4-1).
DRAIN
VALVE
Figure 4-1 Drain Valve Installed
WARNING An anti-scald mixing valve does not
eliminate the risk of scalding.
• Set the tank thermostat as low as
practical.
• Feel water before bathing or
showering.
• If anti-scald or anti-chill protection
is required, use devices specifically
designed for such service. Install
these devices in accordance with
their manufacturer’s instructions.

SDT/SET Installation & Operation Manual
14
NOTICE Verify that the combination
temperature and pressure relief valve
complies with local codes. If the
combination temperature and pressure
relief valve does not comply with local
codes, replace it with one that does.
Follow the installation instructions in
this section.
NOTICE The Lochinvar SDT/SET series water
heaters will absorb/store less than 200,000
Btu/hr when domestic water outlet
temperature is 210°F and boiler water
supply temperature is 240°F. Listed
outputs are based on ASME Section VIII
Interpretation VIII-1-86-136. Check
with local codes for applicability.
Standard Installation
• Install the T&P relief valve in the connection marked
“Relief Valve”.
T&P Relief Valve Discharge Piping
T&P relief valve discharge piping must be:
- made of material serviceable for a temperature of
250°F or greater.
- directed so that hot water flows away from all
persons.
- directed to a suitable place for disposal.
- installed so as to allow complete draining of the T&P
relief valve and discharge line.
- terminated within 6" of the floor.
T&P relief valve discharge piping must not be:
- excessively long. Using more than two (2) elbows or
15 feet of piping can reduce discharge capacity.
- directly connected to a drain. Refer to local codes.
- subject to freezing.
WARNING Do not install any valve between the T&P
relief valve and the tank connection or
on the T&P relief valve discharge piping.
Improper placement and piping of T&P
relief valve can cause severe personal
injury, death or substantial property
damage.
CAUTION The T&P relief valve is not intended
for constant duty, such as relief of
pressure due to repeated normal system
expansion. Correct this condition by
installing a properly sized expansion
tank in a domestic water system. Refer
to the expansion tank manufacturer’s
installation instructions for proper sizing.
Do not place a valve between the combination temperature
and pressure relief valve and the tank.
WARNING Failure to install and maintain a new, listed
3/4" X 3/4" temperature and pressure
relief valve will release the manufacturer
from any claim which might result from
excessive temperature and pressures.
Determine T&P relief valve size by the following
specifications, unless they conflict with local codes:
- SDT/SET065/080/119 - 3/4" NPT with a
minimum CSA Rating of 200,000 Btu/hr.
Table 4A
Minimum Relief Valve (CSA Rating)
Model BTU/hr
SDT/SET065 200,000
SDT/SET080 200,000
SDT/SET119 200,000
4 Domestic Side (Tank) Piping

SDT/SET Installation & Operation Manual
15
EXPANSION
TANK
UNION
(TYPICAL)
SHOCK ARRESTOR
SHUTOFF VALVE
SHUTOFF
VALVE
BACKFLOW
PREVENTOR
SHUTOFF
VALVE
SHUTOFF
VALVE
ANTI-SCALD
MIXING VALVE
DRAIN
( FIELD SUPPLY)
RECIRCULATION
PUMP
TO BOILER
FROM BOILER
CHECK VALVE
BOILER
TANK SENSOR/
AQUASTAT
SQUIRE
TEMPERATURE /
PRESSURE
GAUGE
(TYPICAL)
CHECK VALVE
DRAIN
FROM SOLAR
TO SOLAR
SOLAR SENSOR
SOLAR
HEAT EXCHANGER
BOILER BACKUP
HEAT EXCHANGER
( SDT MODELS ONLY )
(SDT MODELS ONLY)
NOTE: UPPER COIL
REPLACED WITH ELEMENT
ON SET MODELS

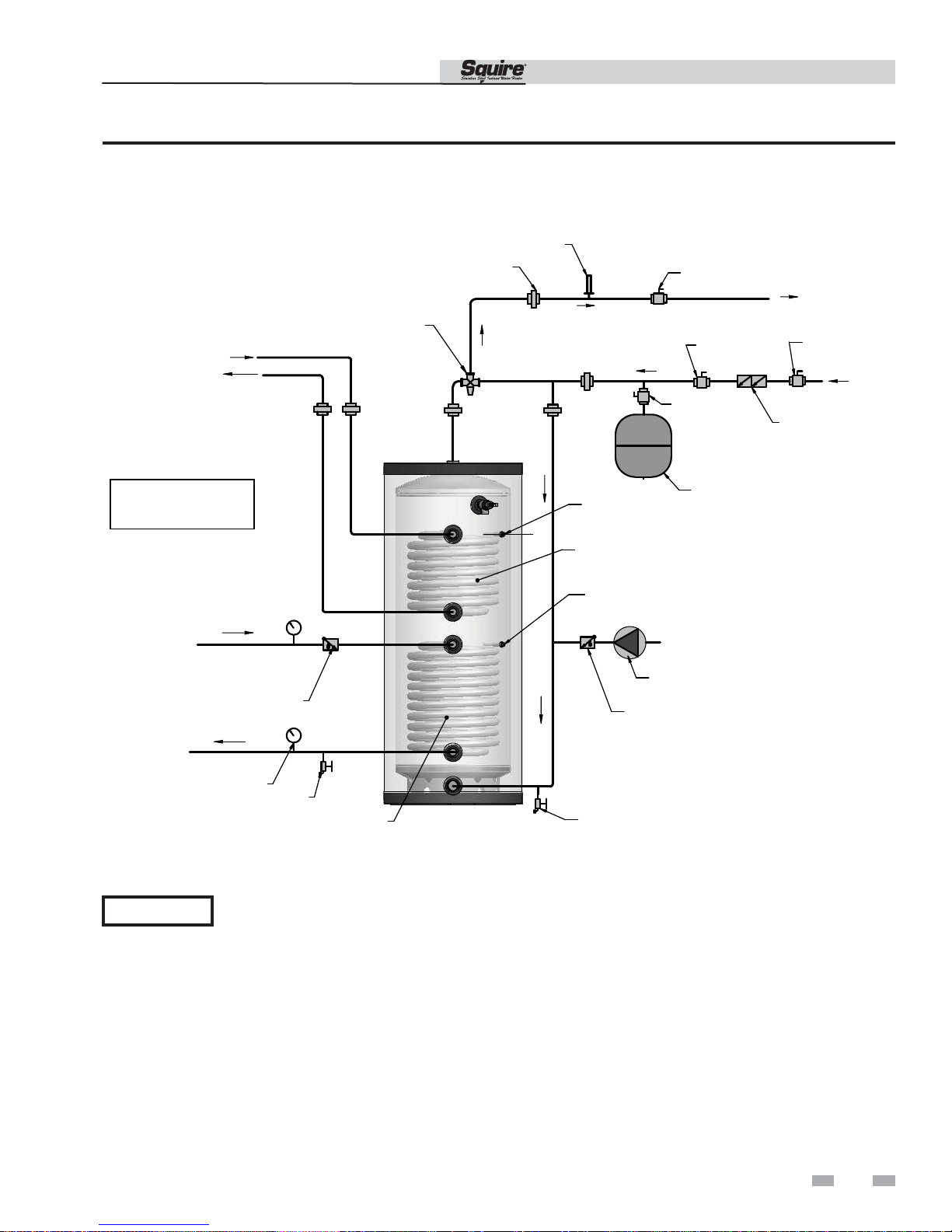

Figure 4-2 Recommended Domestic Water Piping SDT/SET models
Please note that these illustrations are meant to show system piping concept only, the installer is responsible
for all equipment and detailing required by local codes.
NOTICE
4 Domestic Side (Tank) Piping (continued)

SDT/SET Installation & Operation Manual
RESET BUTTON
THERMOSTAT
DIAL POINTER
T
HERMOSTAT
PROTECTIVE
COVER
16
5 Wiring
Electrical Connection
(Squire solar water heater with electric back up only -- SET models only)
Be sure to ground the water heater. The preferred way to ground is to use rigid metal conduit between
the main panel and the water heater junction box with approved end fittings. The separate ground wire
connection provided in the water heater junction box must also be grounded. Replace the junction box
cover and insulation after you have made all wiring connections.
CAUTION
The manufacturer’s warranty does not
cover any damage or defect caused by
the installation, attachment or use of
any type of unapproved devices into,
onto or in conjunction with this water
heater. The use of unauthorized energy
saving devices may shorten the life of
the water heater and may endanger
life and property. The manufacturer
disclaims any responsibility for such
loss or injury resulting from the use of
such unauthorized devices.
WARNING
CAUTION
Combination “Thermostat and High Limit
Control (ECO)”
This heater is equipped with a combination thermostat and high
limit safety. If for any reason the water temperature becomes
eccessively high, the “High Limit Control (ECO)” breaks the
circuit to the heating element. Once the switch opens, it must
be reset manually.
Figure 5-1 Thermostat
The 4500-watt heating element in the Squire SET is wired
to the junction box on top of the heater and it requires
240-volt/ A.C. electrical service. The voltage requirement
and wattage load for the heater is also specified on the
heater identification plate. A 1/2" E.M.T. opening, located
on top of the unit is provided for a field wiring connection.
Consult an electrician to determine if your electrical service
is adequate for the additional load of the heater. The
electrical installation should be done by a qualified licensed
electrician. All wiring must conform to the National
Electric Code and local codes.
NOTICE The cause of the over temperature
condition must be corrected first.
To reset, press the red button as shown in FIG. 5-1. Replace
the insulation and access cover before turning on power to the
heater.
Tank must be full before the unit is turned on! The heating element will be damaged if energized for even
a short period of time while tank is dry!
After the water and electrical connections have been made and
the tank has been filled with water, turn on the power to the
heater. The heater is now operational.
Thermostat Adjustment
The thermostat is located in the front of the heater. The access
cover must be removed to adjust to the factory default setting of
120°F. This temperature is satisfactory for the average household
use.
1. Turn OFF power to the heater.
2. Remove access cover and insulation. Do NOT remove the
thermostat protective cover.
3. Set the temperature indicator to desired temperature.
Replace insulation access cover.
4. Turn ON power to heater.

5 Wiring (continued)
17
Figure 5-2 Combination Thermostat and High Limit Control, SET 065-SET119
RD
BK
GR
RD
BK
BK
RD
SERVICE
GROUND SCREW
GROUND
SCREW HIGH LIMIT
ELEMENT
THERMOSTAT
LINE
VOLTAGE
FIELD
SUPPLIED
FACTORY
INSTALLED
SET Wiring (Single Element)
Model Volts / Phase Watts / AMPS Breaker Type *Wire Gage
SET065 240 VAC / 1 Ph 4500 / 18.3 25 AMP / DPDT 12 ga. THHW
SET080 240 VAC / 1 Ph 4500 / 18.3 25 AMP / DPDT 12 ga. THHW
SET119 240 VAC / 1 Ph 4500 / 18.3 25 AMP / DPDT 12 ga. THHW
* Rated for 90°C
Table 5A Wiring SET065-SET119
SDT/SET Installation & Operation Manual

SDT/SET Installation & Operation Manual
5 Wiring
Indirect Water Heater Sensor Setup (Knight Boiler)
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation.
CAUTION
DHW TANK SENSOR / AUTO RESET HIGH LIMIT
(PLACE SENSOR IN TANK BULBWELL & SNAP
CLIP OVER BULBWELL)
TANK BULBWELL
KNIGHT LOW VOLTAGE
TERMINAL STRIP
DHW TANK
SENSOR
O
U
T
D
O
O
R
INDIRECT TANK KNIGHT BOILER
SOLAR SENSOR
(FIELD SUPPLIED)
Figure 5-3 Indirect Water Heater Controlled Using Tank Sensor
Install tank sensor
The tank sensor is a dual sensor which controls the
temperature of the tank from the boiler(see FIG. 5-3). The
tank sensor has a built-in high temperature limit set at
194°F.
NOTICE The supplied sensor contains an Auto Reset High Limit (194°F).
Connect tank sensor
18
1. Install the tank sensor inside the tank as depicted in
FIG. 5-3.
2. Connect the wire leads to the DHW tank sensor (AUX)
connection point on the Knight boiler connection
board (see FIG. 5-3).
3. The Knight boiler will automatically read the sensor
and default the tank temperature settings to 125°F.
4. Adjust the tank set point program. Reference the Knight
Installation and Operation manual for a detailed
explanation of the tank set point program.
1. Turn OFF the power to the unit. Use wire strippers to strip
one inch of insulation from the ends of each wire that will
be spliced.
2. Splice the two ends of bare wire by twisting them together
with a pair of electrical pliers. Turn the pliers three or four
times to make a sufficient connection.
3. Attach a wire nut at the point where the two wires have
been twisted together. Twist the wire nut until it fits snugly
or until it can no longer be twisted.
4. Wrap the wire nut and the two wires with electrical tape
to secure the connection. Cover any exposed wiring with
electrical tape.

SDT/SET Installation & Operation Manual
19
5 Wiring (continued)
Indirect Water Heater Controlled Using Aquastat and Zone Circulator / Valve
INDIRECT TANK
TEMPERATURE
ADJUSTMENT
ZONE CONTROL BOX
OR
ZONE VALVE
OR
ZONE CIRCULATOR
WIRE
CONNECTIONS
SOLAR SENSOR
(FIELD SUPPLIED)
BOILER
AQUASTAT
CONTROL
TST20016
Figure 5-4 Wiring for Zone Control
1. Install Aquastat to tank. Aquastat control (TST20016) can be ordered from your local Lochinvar distributor.
2. Connect Aquastat to the zone controller for the Indirect Water Heater Zone.
3. Adjust Aquastat to the desired temperature.

SDT/SET Installation & Operation Manual
20
6 Start-up and Check-out
1. Make sure the system is free of leaks and that air is
purged from the system.
CAUTION Fix any leaks found before proceeding
further. Leakage from the boiler piping
can result in severe damage to the boiler.
2. Many soldering fluxes contain Zinc Chloride which
can cause severe corrosion damage to stainless steel. After
completing all domestic water connections, flush the
indirect water heater thoroughly before leaving the
installation. This is particularly important if the indirect
water heater will be unused for an extended period of time
after installation. Flush the indirect water heater by
drawing at least three times its volume from the tank.
3. Make sure that all electrical connections are made correctly
and that no high voltage wiring is exposed.
4. Make sure that each zone valve or circulator operates only
when its thermostat calls for heat. Let each zone operate
long enough to purge any remaining air from the system.
5. Set the indirect water heater to the desired temperature.
Because hot water presents a scald hazard, it is best to set
the thermostat at 120°F or lower and raise it only if
necessary to provide adequate hot water.
6. Re-enable the burner and allow the boiler to operate.
Make sure that the boiler shuts down when the indirect
water heater is satisfied.
