THERMO INSERT
Issued January 2012
INDEPENDENT of indoor air
DEPENDENT on indoor air
OPERATING MANUAL
with installation instructions
GB

Seite 2
Important information in this manual is indicated by the following symbols:
NOTE: Instructions for correct use of the stove. It is the operator’s responsibility to follow these instructions.
CAUTION: This symbol refers to particularly important notes.
DANGER: This symbol indicates important rules of conduct for avoiding injury or material damage.
1. Safety instructions ....................................................................................................................................................3
2. Important instructions prior to installation and start-up...........................................................................................4
3. Transport / Unpacking / Inspection ..........................................................................................................................5
4. Important standards / guidelines .............................................................................................................................5
5. Special notes ............................................................................................................................................................5
6. Design of the appliance............................................................................................................................................6
7. Fuels.........................................................................................................................................................................7
8. Chimney / Flue pipe connection ...............................................................................................................................7
9. Air supply for combustion WITH dependence on indoor air (open-flued appliance)......................................................... 8
10. Air supply for combustion NOT dependent on indoor (room-sealed appliance) ............................................................... 9
11. Safety clearances .................................................................................................................................................. 10
12. Requirements for the room where the appliance is situated ............................................................................... 10
13. Customer-supplied panelling................................................................................................................................ 11

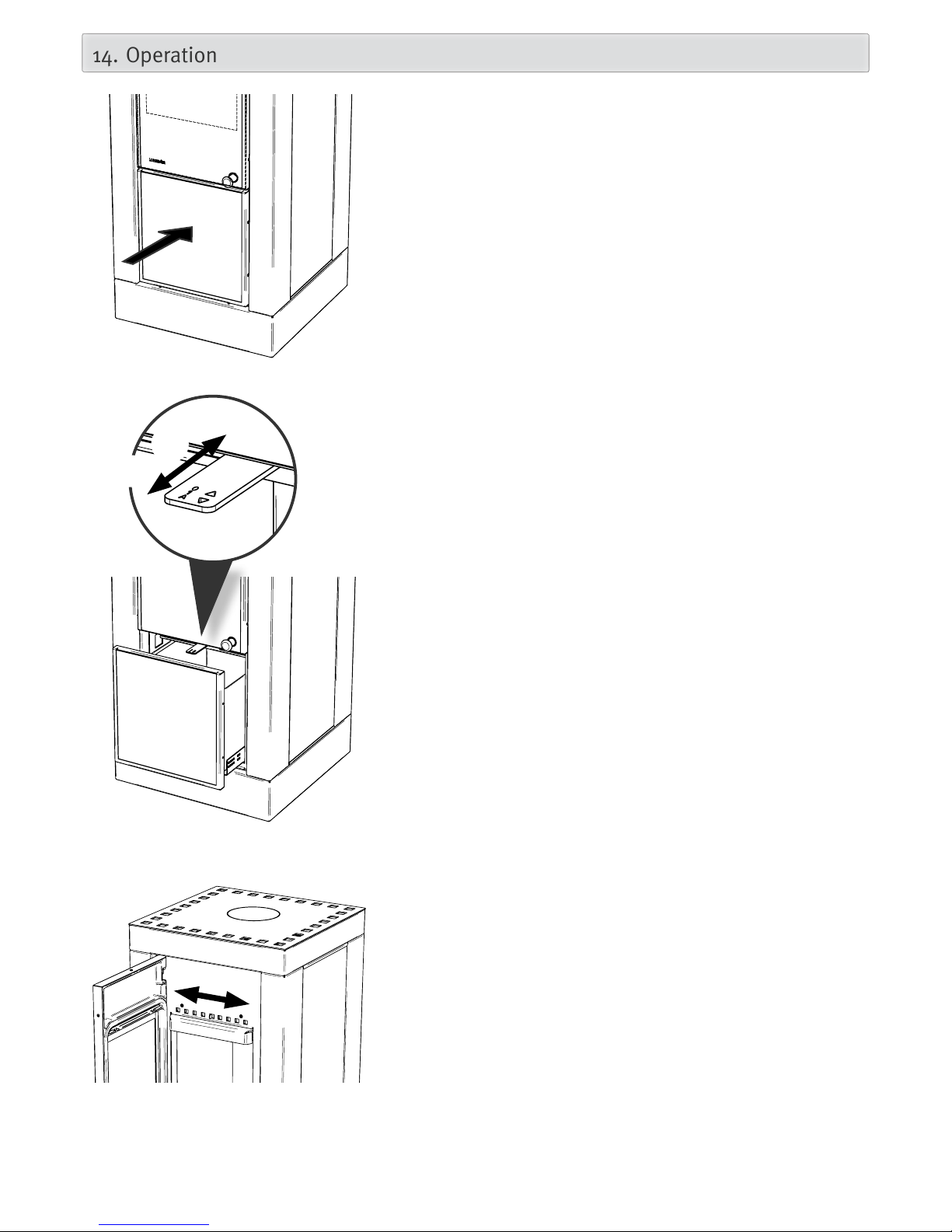

14. Operation .............................................................................................................................................................. 12
15. Start-up.................................................................................................................................................................13
16. Maintenance / Cleaning........................................................................................................................................14
17. Troubleshooting....................................................................................................................................................16
18. After-sales service / How to order spare parts .................................................................................................... 16
19. Technical data ....................................................................................................................................................... 17
20. Type testing / Quality certification........................................................................................................................ 17
21. Appliance dimensions / appliance connections....................................................................................................18
22. Warranty...............................................................................................................................................................20

Seite 3
With the purchase of the ThermoInsert insert stove you have selected a high-
quality product made by LOHBERGER.
Apart from the beautiful and timeless design, we attach great importance to
a mature combustion technology, high-quality materials as well as excellent
workmanship.
Correct handling and proper care are a prerequisite for trouble-free operation
and a long service life. Therefore please read the information in this operating
manual carefully. With the above in mind, we are convinced that this appliance
will give satisfactory service for many years.
Your LOHBERGER Heiz + Kochgeräte Technologie GmbH
1. Safety instructions1. Safety instructions
During combustion, wood only emits the same amount of CO2 that it previously
held as a tree. It makes no difference whether the wood burns or rots in the
forest.
Thus heating with wood corresponds to the natural biological cycle.
CAUTION! Children Playing!
The appliance becomes very hot when in use, in particular the viewing window
and the body. Make sure that children are never in the immediate vicinity of the
appliance when it is in use.
During installation and operation
•When installing the appliance, follow each of the instructions of the opera-
ting manual.
•Pay attention to the safety gaps when installing the appliance.
•Check the appliance for damage (e.g. glass items).
•Make sure that you never load more firewood than required for the rated
heating output (approx. 1 to 2 kg).
•When adding more firewood, open the door slowly and first allow the flue
gas to escape up the chimney. By doing this you prevent the flue gas from
entering the room.
•Bear in mind that certain components of the appliance (filling door, handles,
etc.) become hot when it is in operation and represent a burn hazard.
•Do not obstruct the appliance during heating as this could lead to an ex-
plosion.
Please read the information in this manual care-
fully before you install or start up your heating
appliance for the first time.
Please read the information in this manual care-
fully before you install or start up your heating
appliance for the first time.
Seek the advice of the local qualified chimney
sweep before installing the appliance.
When installing the appliance, the technical re-
gulations applicable at the installation site as
well as country-specific regulations such as the
applicable building regulations, local fire protec-
tion laws and/or additional regional regulations
must be observed.
Seek the advice of the local qualified chimney
sweep before installing the appliance.
When installing the appliance, the technical re-
gulations applicable at the installation site as
well as country-specific regulations such as the
applicable building regulations, local fire protec-
tion laws and/or additional regional regulations
must be observed.
We strongly recommend that the connection and
the installation work (in the case of self-instal-
lation the final inspection and approval) are al-
ways carried out by a certified specialist.
We strongly recommend that the connection and
the installation work (in the case of self-instal-
lation the final inspection and approval) are al-
ways carried out by a certified specialist.

Seite 4
2. Important instructions prior to installation and start-up2. Important instructions prior to installation and start-up
Correct Installation and Start-up
The safety of the appliance can only be assured if it has been installed by a trai-
ned technician in compliance with the standards and regulations applicable at
the place of installation. Make sure that the requirements of the applicable laws
and standards as well as the local fire protection laws and building regulations
are adhered to. Please consult the local qualified chimney sweep regarding the
assessment of building and technical conditions.
When operating the stove, make sure that there is an adequate supply of fresh
air in the room where the appliance is located. An air exchange of at least 0.8
times per hour by means of a permanent and secure ventilation of the room
must be ensured. If the windows and doors are tightly sealed or if other ap-
pliances such as extractor hoods, tumble driers, ventilators etc. draw air from
the room where the appliance is located, it may be necessary to provide fresh
combustion air from outside. The inlet apertures for combustion air must not
be closed.
For the first 2 to 3 days run the stove with a low output. During the first few
days of operation expansion cracks may form in the fireclay-cladding. However,
this does not impair the functioning of the appliance.
Proper Operation
Proper operation, in compliance with the installation instructions and with the
operating manual as well as with the instructions regarding safety and environ-
mental protection.
Bear in mind that the appliance is not childproof (doors, etc.) and therefore
it must not be operated by children or other people who are not authorized
or trained. If the appliance is not installed properly and if the instructions (as
stated in the technical documentation and operating manual) regarding the
start-up and operation of the appliance are not followed, all warranty claims
will become null and void.
Only use suitable fuels by choosing environmentally-sustainable, high-quality
and dry fuels (see Fuels).
Chimney Requirements for heating Systems
Before starting-up the appliance for the first time, the local qualified chimney
sweep has to certify the suitability and readiness for operation of new or exis-
ting chimneys by a declaration of conformity.
The owner has to ensure that the chimney is free from obstructions (no co-
verings or blockages). Ensure that there is adequate ventilation (sufficient fresh
air) in the stove room. Please point out existing faults and /or alterations with
regard to the chimney and the heating system. Due to low exhaust gas tempe-
ratures when the seasons change the chimney must be leak-free and humidity-
resistant. Make sure that flue and exhaust gas can escape freely to the outside.
Regular cleaning and Maintenance
In order to ensure the functionality and efficiency of the appliance, regular
maintenance and cleaning work must be carried out on every fireplace and all
the connected system components (e.g. chimney, etc.).
Please observe the instructions regarding maintenance and cleaning in this
operating manual. Your chimney sweep will also be happy to clean the firepla-
ce. Only clean and properly adjusted appliances work efficiently.
Only install original spare parts provided by your local specialist dealer or by
our company.
Parts that are subject to wear and tear (e.g. seals), components exposed to
high thermal stress (fireclay, cast-iron parts) or broken stove parts should be
replaced or exchanged as soon as possible.
Correct procedure in the event of chimney fires
If the fireplace, connecting duct and chimney are not regularly cleaned or if
unsuitable fuels are burned, the deposits may ignite, causing a chimney fire.
Keep the stove doors closed and turn the air regulators to position „0“. Move
away combustible components from the chimney. UNDER NO CIRCUMSTANCES
should you attempt to extinguish the chimney fire by applying water. The
suddenly developing steam pressure is so high that the chimney could burst.
Before connecting the appliance to the chimney,
inform the local qualified chimney sweep.
Before connecting the appliance to the chimney,
inform the local qualified chimney sweep.
•Please read the information in this manual
carefully before you install or start up your
appliance for the first time.
•Failure to do so causes the warranty to be-
come null and void!
•Keep this operating manual in a safe place.
Should it be lost, we will be happy to send
you a new copy. You will find important infor-
mation in it as regards safety, use, proper care
and maintenance of the appliance, so that
you can enjoy your appliance for a long time.
•If there are any queries please contact our
technical customer service.
•The stove must not be modified, except with
original stove components, provided and tes-
ted by us or by work performed by our service
technicians.
•Please read the information in this manual
carefully before you install or start up your
appliance for the first time.
•Failure to do so causes the warranty to be-
come null and void!
•Keep this operating manual in a safe place.
Should it be lost, we will be happy to send
you a new copy. You will find important infor-
mation in it as regards safety, use, proper care
and maintenance of the appliance, so that
you can enjoy your appliance for a long time.
•If there are any queries please contact our
technical customer service.
•The stove must not be modified, except with
original stove components, provided and tes-
ted by us or by work performed by our service
technicians.
CAUTION: The chimney may have become ob-
structed when the stove is heated up again
after it has been out of use for an extended
period of time. Before re-starting the stove,
have the chimney inspected by a specialist
(chimney sweep).
CAUTION: The chimney may have become ob-
structed when the stove is heated up again
after it has been out of use for an extended
period of time. Before re-starting the stove,
have the chimney inspected by a specialist
(chimney sweep).
Call the fire brigade via the emergency phone
number.
Call the fire brigade via the emergency phone
number.

Seite 5
•The appliance connections for the flue tube and the combustion air must
not be altered. Make sure that the combustion air duct and the exhaust
duct are free of obstructions before starting up and during operation of the
appliance!
•When operating the appliance, please use the supplied protective gloves
and the grate lifter.
•To prevent heat build-up, make sure that the convection air outlets are not
closed.
•Keep the firebox door closed at all times. Avoid overheating the stove. The
warranty does not cover any resulting damage.
Report visible faults to the supplier immediately.
Later claims for damages cannot be entertained.
Report visible faults to the supplier immediately.
Later claims for damages cannot be entertained.
ÖNORM (Austrian Standard) EN303-5
Boiler for solid fuels, charged manu-
ally and automatically up to 300 kW.
Definitions, requirements, testing and
marking of conformity
TRVB H118
Technical specifications regarding pre-
ventive fire protection for automatic
wood-fired heating systems.
3. Transport / Unpacking / Inspection3. Transport / Unpacking / Inspection
4. Important standards / guidelines4. Important standards / guidelines
5. Special notes5. Special notes
When installing and starting-up the appliance, observe the local fire protection
laws and building regulations as well as the following standards /regulations:
FIRE HAZARD!FIRE HAZARD!
RISK OF BURNS!RISK OF BURNS!
The packaging of your appliances provides good protection against damage in
transit. Nevertheless, damage to the appliance and fittings cannot be entirely
excluded.
Therefore carefully check the appliance for completeness and possible damage
in transit after unpacking.
Transport options
Transport on pallet
Transport the appliance on the pallet to the installation site. Remove transport
securing safety devices and lift the appliance from the pallet.
Transport with a trolley
Transporting sideways on a trolley is possible on the rear of the appliance
(Figure 1).
For this, remove the transport securing devices and transport the appliance to
the installation site using the trolley.
Transport securing device
After taking off the wooden crate, first remove the rear transport securing de-
vice (Figure 2). Then carefully pull the appliance to the front by approx. 5 cm,
now the appliance can be lifted from the pallet.
Checking of loose parts
Prior to starting up the appliance for the first time, check whether all loose
parts are in their designated place (Figure 3):
•The upper steel flue baffles must be positioned on the supports as shown.
•The Vermiculite baffle plate must be located on the supports on the left and
right and be pushed to the back as far as it goes.
•The combustion chamber grate must be located on the rear support and be
flush with the lateral combustion chamber blocks.
Figure 2
Figure 3
transport securing devices
Figure 1

Seite 6
6. Design of the appliance6. Design of the appliance
Figure 4
1
2
3
10
11
4
5
8
9
7
6
14
13
17
18
12
16
15
1
Sheet-metal panelling black
(only with appliance type „Design sheet-metal
panelling“)
2Combustion chamber door
3Fuel drawer
4Connection at the top
5
Decorative glass / tile inlay
(only with appliances of type “Design sheet-
metal panelling”)
6Combustion chamber door handle
7Combustion chamber door body
8Combustion chamber door sealant
9Combustion chamber door viewing glass
10 Combustion chamber door latch
11 Decorative glass inlay of fuel drawer
12 Fuel drawer runner
13 Secondary air slider
14 Combustion chamber lining
15 Combustion chamber grate
16 Combustion chamber door catch
17 Stove body combustion chamber door
latch plate
18 Primary air slider
Stainless steel decorative frame
(not shown – only with appliance type
“Customer-supplied panelling”)

Seite 7
Suitable fuels
FIREWOOD (LOGS)
Firewood (Figure 4) should have a moisture content of approx. 20 % of the dry
weight, a length of 1/3 m and should be split into small pieces. This way, the
firewood quickly catches fire and produces a higher heat output than the same
volume of large logs. Spruce wood, fir wood or alder wood should be allowed
to dry out for at least 2 years, hardwood as long as 3 years (under a roofed
shelter).
The effect of the water content in wood on the calorific value is shown in Tabe
1:
Unsuitable fuels
Moist wood, bark waste, sawdust, fine wood chips, brushwood, wood-wool,
wood shavings. Use paper only in small amounts to kindle a fire. The burning
of such fuels results in significant pollutant emissions, large amounts of ash,
and the heat output is comparatively low.
Prohibited fuels
Surface-treated wood (veneered, painted, impregnated, etc.), particle board,
all types of household waste (packaging waste), plastic materials, newspapers,
rubber, leather, textiles, etc.
Burning these materials is harmful to the environment and is therefore prohibi-
ted by law. Furthermore, damage to the appliance and the chimney can occur.
Furthermore the combustion of coal and similar fuels is not permitted. The ap-
pliance has not been tested for use with these fuels; therefore damage to the
appliance cannot be ruled out and is not covered by warranty.
7. Fuels7. Fuels
Failure to observe these instructions will invali-
date any warranty!
Failure to observe these instructions will invali-
date any warranty!
Storage of wood water content
%
calorific
value
kWh/kg
green wood 50 ~2,3
stored for one winter 40 ~2,7
stored for one summer 18-25 ~3,4
air dried 15-20 ~4,2
Figure 4
Tabe 1
8. Chimney / Flue pipe connection8. Chimney / Flue pipe connection
The appliance must not be connected to a
shared flue system!
The appliance must not be connected to a
shared flue system!
The exhaust system must be inspected by the
local qualified chimney sweep before starting to
use the appliance.
The exhaust system must be inspected by the
local qualified chimney sweep before starting to
use the appliance.
•For safe operation of the appliance an effective chimney height of at least
5 m (from the flue connection to the chimney outlet) is recommended.
•For further information as regards the necessary minimum discharge pres-
sure see the technical details on Page 17, in our brochures and on the
nameplate.
•Please have the minimum discharge pressure checked by the local chimney
sweep!
Flue pipe connection
The flue pipe is the connection between the insert stove and the chimney.
When installing the flue, please note the following instructions:
•The THERMO INSERT requires a 120 mm flue pipe.
•The connection between the insert stove and the chimney must be strong
and leak-proof. In particular the connection to the masonry of the chimney
must be durable and tight.
•Make sure that the connecting piece can be cleaned (cleaning opening).
•The diameter of the flue pipe must not decrease towards the chimney.
•The flue pipe must not project into the chimney.
•Vertically positioned flue pipes must not exceed a length of 125 cm if they
are not insulated.
•Horizontal pipe sections must not exceed a length of 100 cm.
•The flue pipe must not descend towards the chimney, but must incline
slightly upward.
Chimney flue connection independent of indoor air (room-sealed
appliance)
If the appliance is operated independently of indoor air, the following instruc-
tions are also to be observed:
•The chimney flue must be sealed at the pipe connection by means of a
temperature resistant sealant.
•The flue pipe must have a gas-proof connection to the chimney and must
be sealed by means of an appropriate rope seal and a temperature resistant
sealant (e.g. heat-resistant silicone).
The total length of the connecting pipe between
appliance and chimney should not exceed 1.5 m.
The total length of the connecting pipe between
appliance and chimney should not exceed 1.5 m.

Seite 8
9. Air supply for combustion WITH dependence on indoor air (open-flued appliance)9. Air supply for combustion WITH dependence on indoor air (open-flued appliance)
Air supply for combustion via the room where the appliance is
located
The air required for combustion is drawn from the room where the appliance
is located. The room must be periodically ventilated, especially in well sealed
buildings.
Therefore provide sufficient changes of air in the room where the appliance is
located. For rooms exceeding a volume of 50 m3, we recommend exchanging
1.5 times the volume of air per hour. For smaller rooms the rate of air exchange
should be increased.
If there are additional heating appliances in the same room, make sure that
the air inlets can supply sufficient air for combustion for the operation of all
appliances.
Only if certain conditions are fulfilled it is permissible to operate open-flued
fireplaces in combination with ventilation systems etc. For further information
seek the advice of the manufacturer of your ventilation system.
Air supply for combustion via the room where the appliance is
located (Figure 5)
•The air for combustion is pre-heated.
•It is necessary to ventilate the room at regular intervals or to provide a per-
manent opening for ventilation to the outside.
Outdoor air supply for combustion (Figure 6)
•The air for combustion is only slightly pre-heated!
•Max. length 4 m with 3 bends.
Negative pressures in the room where the ap-
pliance is located (e.g. through ventilation sys-
tems, extractor hoods, etc.) may impair the func-
tioning of the fireplace and its safety system and
are therefore not permissible.
Please consult the local qualified chimney
sweep and observe the local fire protection laws
as well as the standards DIN 18896 (technical
standards for the installation and the operation
of fireplaces for solid fuels).
Negative pressures in the room where the ap-
pliance is located (e.g. through ventilation sys-
tems, extractor hoods, etc.) may impair the func-
tioning of the fireplace and its safety system and
are therefore not permissible.
Please consult the local qualified chimney
sweep and observe the local fire protection laws
as well as the standards DIN 18896 (technical
standards for the installation and the operation
of fireplaces for solid fuels).
Operate extractor hoods only with re-circulated
air operation!
With ducted extractor hoods, an adequate sup-
ply of air must be ensured by means of separate
safety equipment (e.g. contact switches on the
windows, negative-pressure monitoring).
Operate extractor hoods only with re-circulated
air operation!
With ducted extractor hoods, an adequate sup-
ply of air must be ensured by means of separate
safety equipment (e.g. contact switches on the
windows, negative-pressure monitoring).
Figure 5
Figure 6
air
intake
air
intake
exhaust gas
exhaust gas
convection air
outlet
convection air
outlet
air intake / convec-
tion air outlet
convection air
outlet

Seite 9
Figure 7
Figure 8
Figure 9
10. Air supply for combustion NOT dependent on indoor (room-sealed appliance)10. Air supply for combustion NOT dependent on indoor (room-sealed appliance)
The air for combustion is entirely supplied to the combustion chamber via a
supply air pipe of 100 mm diameter (to be provided by the customer).
The oval-shaped pipe connection for the combustion air system is located on
the cover plate behind the flue gas connection.
The tight pipe connections are run directly to the outside or they are connected
to an appropriate air-flue gas system. It is also feasible to extract the air from a
room that is independently supplied with outdoor air (e.g. cellar).
For the supply air duct provided by the customer, leak-proof pipes (e.g. steel
pipes to DIN 24145 with flexible, non-combustible aluminium hose at the pipe
connections) with at least 100 mm diameter, max. 3 bends and a permissible
total length of 4 m are to be used.
For greater lengths and more than 3 bends it is necessary to do a calculation.
To facilitate the inspection and cleaning of the air supply duct, appropriate
inspection doors must be provided.
The entire supply air duct must be air-tight. With special pipe systems a cal-
culation of the cross sectional area of the chimney according to EN 13384-1 is
required, taking into consideration the air supply duct.
We recommend setting the ventilation system to a maximum negative pressure
of 4 Pascal.
Outdoor air supply for combustion (Figure 7)
•The air for combustion is only slightly pre-heated!
•Max. length 4 m with 3 bends.
Air supply for combustion via pipe line through a basement
room (Figure 8)
•The air for combustion is pre-heated.
•The air supply in the basement room can be easily implemented.
•Max. length 4 m with 3 bends.
Air supply for combustion through a basement (Figure 9)
•The air for combustion is pre-heated.
•The basement room must be excluded from the ventilation system of the
dwelling and must be open to the outside.
•Avoid accumulation of dust and moisture.
Please note!
•A prerequisite for the connection of fireplaces used in combination with do-
mestic ventilation systems is that the approval of the local qualified chimney
sweep is obtained!
•It is not permitted to install cut-off devices in the supply air duct (dampers, sli-
ders, etc.). To prevent air from permanently flowing through the appliance when
it is not in use, close the sliding door at the appliance.
•Make sure that the outdoor air inlet is protected against blockage by means of
a protective grating. We recommend a mesh size of 10 mm.
•For the supply air duct to the combustion air connecting piece it is best to use
a non-combustible, flexible aluminium hose.
•The supply air duct must be insulated to avoid condensation and must be
protected against wind.
•The air duct must be at least 100 mm in diameter. If rectangular pipes are em-
ployed, an appropriate cross section must be maintained.
•According to the regulations for chimney sweeping and inspection ventilation
systems must be checked for blockages once a year by the local qualified chim-
ney sweep. To facilitate this, appropriate inspection doors should be provided.
Please consult your local qualified chimney sweep regarding this matter.
•Negative pressures in the room where the appliance is located are not permis-
sible. Therefore the applicable technical guidelines for the use of appliances in
combination with systems for ventilation and air conditioning (e.g. ventilation
systems, extractor hoods, pneumatic conveyor systems, etc.) are to be adhered
to.
•According to the assessment criteria of the DIBT in Berlin and the DIN 18160
standards, fireplaces with an external supply of air for combustion are only
allowed if only one appliance is connected to the chimney.
Please note!
•A prerequisite for the connection of fireplaces used in combination with do-
mestic ventilation systems is that the approval of the local qualified chimney
sweep is obtained!
•It is not permitted to install cut-off devices in the supply air duct (dampers, sli-
ders, etc.). To prevent air from permanently flowing through the appliance when
it is not in use, close the sliding door at the appliance.
•Make sure that the outdoor air inlet is protected against blockage by means of
a protective grating. We recommend a mesh size of 10 mm.
•For the supply air duct to the combustion air connecting piece it is best to use
a non-combustible, flexible aluminium hose.
•The supply air duct must be insulated to avoid condensation and must be
protected against wind.
•The air duct must be at least 100 mm in diameter. If rectangular pipes are em-
ployed, an appropriate cross section must be maintained.
•According to the regulations for chimney sweeping and inspection ventilation
systems must be checked for blockages once a year by the local qualified chim-
ney sweep. To facilitate this, appropriate inspection doors should be provided.
Please consult your local qualified chimney sweep regarding this matter.
•Negative pressures in the room where the appliance is located are not permis-
sible. Therefore the applicable technical guidelines for the use of appliances in
combination with systems for ventilation and air conditioning (e.g. ventilation
systems, extractor hoods, pneumatic conveyor systems, etc.) are to be adhered
to.
•According to the assessment criteria of the DIBT in Berlin and the DIN 18160
standards, fireplaces with an external supply of air for combustion are only
allowed if only one appliance is connected to the chimney.
convection air
outlet
convection air
outlet
convection air
outlet
convection air
outlet
convection air
outlet
air intake
air intake
air
intake
exhaust gas
exhaust gas
exhaust gas
convection air
outlet

50
30
30
protection against
flying sparks
800
90°
Biegemaul 30
Strahlungsbereich
Rückwand
Aqua
Insert
OBERFLÄCHE
SONSTIGE
ZEICHNUNGSINFOS:
ABMESSUNGEN IN
MILLIMETER
TOLERANZEN:
LINEAR: DIN ISO 2768 T1 -m-
WINKEL: DIN ISO 2768 T2 -H-
BENENNUNG
1:20
FORMAT
ZEICHNUNGSNUMMER
A4
REV.
MATERIAL
NAME
DATUM
GEZEICHN.
GEPRÜFT
FREIGABE
BLATT 1 VON 2
LOHBERGER
GEWICHT: kg
FÜR DIESE ZEICHNUNG
BEHALNTEN WIR UNS
ALLE RECHTE VOR,
SIE DARF OHNE UNSERE
VORHERIGE SCHRIFTLICHE
ZUSTIMMUNG WEDER
VERVIELFÄLTIGT NOCH
SONST WIE BENÜTZT, NOCH
DRITTEN ZUGÄNGLICH
GEMACHT WERDEN!
ARTIKELNUMMER
PRG.NR.
ZUSCHNITTMAß
FERTIGMAß
ROHTEILNUMMER
Heiz + Kochgeräte
Technologie GmbH
BESCHREIBUNG
MAßST.:
B:\Entwicklung HH\-- Laufende Projekte\Heizeinsatz Fa. Plewa\Prüfungen\TÜV\Dokumente und Zeichnungen für Aqua Insert Zeichnungsprüfung\Zeichnungen-Bilder für Bedienungsanleitung\Baugruppe Sicherheitsabstand
mm
Seite 10
11. Safety clearances11. Safety clearances
Figure 10
Figure 11
The following safety clearances to combustible items (movable wooden walls,
furniture, furnishing fabric, etc.) must be maintained:
Within the area of heat radiation (Figure 10), the minimum clearance of 800 mm
from the front of the combustion chamber opening to combustible components
must be maintained.
Floor pad as a protection against flying sparks
ith combustible floors (timber flooring, synthetic materials, fitted carpet, etc.),
the use of a floor pad made of safety glass or similar non-combustible materi-
als is recommended
According to fire protection laws, the minimum size (measurements in cm) for
this pad as shown in Figure 11 must be observed.
Minimum distance flue pipe to ceiling:_______________________24 cm
Minimum clearance appliance body to combustible materials
rear:____________________________________________15 cm
sides:___________________________________________30 cm
Minimum distance flue pipe to ceiling:_______________________24 cm
Minimum clearance appliance body to combustible materials
rear:____________________________________________15 cm
sides:___________________________________________30 cm
12. Requirements for the room where the appliance is situated12. Requirements for the room where the appliance is situated
Load-bearing capacity of the floor
Prior to installing the appliance, make sure that the substructure of the floor
is suitable for the weight of the appliance. Ensure a level and vibration-free
positioning of the appliance.
Room temperature and ambient temperature / humidity
The appliance can be operated in dwellings with normal air humidity and room
temperatures of + 5 °C to + 20 °C.
For room temperatures below 5 °C, the water circuit must have an appropriate anti-
freeze.
The appliance is not protected against water spray and must not be installed in wet
rooms.
Thermo
Insert
100
REAR WALL

Seite 11
13. Customer-supplied panelling13. Customer-supplied panelling
Figure 12
Under no circumstances does Lohberger assume
liability for the installation of the appliance. The
HVAC installer conducting the inspections for fire
safety shall bear the responsibility.
Under no circumstances does Lohberger assume
liability for the installation of the appliance. The
HVAC installer conducting the inspections for fire
safety shall bear the responsibility.
Installation instructions
If the appliance is installed in front of or next to a wall requiring protection,
please observe the following installation instructions Figure 12:
1 Convection casing (e.g. galvanized sheet steel)
2 Thermal insulation: Isolrath 1000, 9 cm thick
3 Walls to be protected: inflammable walls, load-bearing walls made of
reinforced concrete, etc.
4 Convection air space, clearance between convection casing and heating
appliance
5 Customer‘s external panelling made from incombustible building
materials.
6 Ceiling
7 Thermal insulation: Isolrath 1000, 12 cm thick
8 Flue gas pipe
9 Thermal insulation wall duct Flue gas pipe: Isolrath 1000, 20 cm thick
10 Flue air grille, hot air outlet
11 Supply air grille, cold air inlet
Thermal insulation (2/7/9)
The thermal insulation must be without joints and with overlap.
Insulating material in compliance with building material class A1 according to
DIN 4102, part 1, must be used. The type testing was carried out with the insu-
lation material Isolrath 1000 produced by the Rath company. Alternatively, other
approved insulation materials (DIBt-approval) with identical technical data or
thermal conductivity can be used.
Maintain a minimum thickness of insulation materials as specified:
Adjoining wall 9 cm, ceiling 12 cm, wall duct flue gas pipe 20 cm
Convection air space (4)
The appliance must be surrounded by a convection air space; the distance
between the convection air casing and the heating appliance must be at least
15 cm. The cold room air enters from below via the supply air grille (11), heats
up and is fed back at the top through the flue gas grille into the room where
the appliance is installed.
Customer‘s external panelling (5)
The external panelling provided by the customer serves to emit the heat to
the room where the appliance is installed and must consist of incombustible
building materials (building material class A1).
The panelling must be stable and self-supporting; that means it must not have
a fixed connection to the appliance. The distance between panelling and appli-
ance should be permanently elastic (stretching / sealing strip).
Convection air openings (10+11)
The required free cross section of the supply air opening or of the exhaust air
opening is specified in the technical data. Make sure that the convection air
openings cannot be closed and locate them in such a way that they cannot be
obstructed. An obstruction could lead to heat build-up and as a consequence
to overheating the appliance, chimney or adjoining parts / furniture. Maintain
a minimum distance of 52 cm between the exhaust air grille and ceilings. The
exhaust air grille must be located at the highest point of the convection air
casing to prevent heat build-up in the panelling.
1
1 2 3
6
67
10
11
5
5
4
3
9
8
2
Caution – fire risk: Please make sure to ob-
serve the fire regulations such as those for
thermal insulation and dimensions of air inlet
grills.
Risk of overheating due to heat build-up.
The appliance must not be installed without
grilles for supply air and exhaust air. In the
event of insufficient convection air, fuel stored
in the firewood compartment may ignite.
Caution – fire risk: Please make sure to ob-
serve the fire regulations such as those for
thermal insulation and dimensions of air inlet
grills.
Risk of overheating due to heat build-up.
The appliance must not be installed without
grilles for supply air and exhaust air. In the
event of insufficient convection air, fuel stored
in the firewood compartment may ignite.

min. max.
0
1
A
Seite 12
14. Operation14. Operation
Accessories supplied by the manufacturer
To ensure a safe operation of the appliance, it comes with a grate lifter and a
cleaning brush.
Closing the heating door
The door of the ThermoInsert is self-closing and self-locking. To open the hea-
ting door, press the integrated release button fully while pulling on the door
handle. When closing the heating door make sure that it engages with an au-
dible click. Check: It must not be possible to open the door simply by pulling
on the door handle.
Opening the fuel drawer
The fuel drawer is equipped with a „tip-on“ catch; all it takes is a gentle push
on the front of the fuel drawer and the drawer opens (Figure 13). To close the
drawer, gently push the front of the fuel drawer again until the lock engages.
Adjustment of the air supply
The air supply required for combustion, which is taken from the bottom through
the grate into the combustion chamber, is adjusted by using the air slider in the
front panel (Figure 14). This enables the required temperature in the combusti-
on chamber to be reached faster during the initial heating-up phase.
Position 0: The slider is closed, no primary air is supplied.
Position 1: The slider is opened, maximum supply of air, especially necessary
during the heating-up phase.
Position A: Heat-up position, use it only for heating-up and when adding fuel.
To do this, open the fuel drawer and pull out the slider fully. Once the heating-
up is completed (approx. 10 minutes), push the air slider into „Position 1“ by
closing the fuel drawer or move it into position „0“ by hand.
Adjusting the supply of secondary air
The supply of secondary air (combustion air flowing from the top, over the
fuel) results in combustion appropriate for the fuel being used, resulting in
low-pollution emissions. Part of the secondary air “washes down” across the
glass front. This air wash system ensures an unobstructed view of the flames.
The secondary air is controlled with the slider which is located above the fire-
box door (Figure 15)
Wird der Hebel in Richtung Links bewegt, verringert sich die zuströmende Se-
kundärluftmenge, in Richtung rechts vergrößert sie sich.
See Air supply settings on page 13
Air wash system
The air wash system is very important both for the cleanness of the viewing
window and for providing secondary air that gives low-pollution combustion.
The air “washes down” across the glass front, flowing towards the combustion
chamber where it contributes to the combustion. This gives the best possible
cleanness of the window.
Please note the following factors with regard to a clean window:
1. Optimum chimney draught
For the air supply the chimney draught and the length of the supply
line play a decisive role. Certain weather conditions, especially between
seasons, can have a detrimental impact on the chimney draught.
2. Dry, suitable fuel
Use only dry wood (residual moisture max. 10-15 %). Resinous wood has
a negative effect on the cleanness of the window. Do not burn painted,
impregnated or other similarly treated wood. Do not burn bark, particle
board or other waste.
3. Correct operation
Remove ash at regular intervals, however, at the latest when the ash heap
has reached the air outlets in the ash pan. Only add the amount of fuel
that is necessary to generate the required heat.
4. Correct air supply setting
Fully open the combustion air supply.
If dirt still forms on the glass, it can be removed with a special glass cleaner for
chimney and oven windows when the appliance has cooled down. For further
details see MAINTENANCE AND CARE.
Figure 13
Figure 14
Figure 15

Seite 13
15. Start-up15. Start-up
After completion of the assembly and connecting work and prior to the first
start-up, a few actions are still required:
ÖOpen the door of the combustion chamber and remove appliance accesso-
ries and transportation safety devices.
After you have familiarised yourself with the operating procedures for the stove,
the first start-up can begin.
Heating the appliance for the first time
The outer finish of the ThermoInsert is high-quality, air-drying lacquer which
gives off virtually no fumes or odour on first use if it is first allowed to cure
sufficiently (at room temperature). If the appliance is used before then, it can
produce smoke or odour for a short time. Please provide good ventilation for
the room where the appliance is located.
Heating up
•Open fuel drawer and put the primary air slider in position „A“
•Place 2-3 small pieces of firewood on the grate
•Spread wood wool or newspaper over them and place 2 pieces of split logs
on top, light the fire and then place one piece of firewood centrally on top
•Close the firebox door and let the wood burn vigorously.
•Add more fuel
•Close the fuel drawer after the heating-up phase has been completed; this
sets the primary air slider to position „1“. (Tabe 3). Add more fuel according
to Tabe 2.
•Adjust the primary air depending on the type of fuel and the heating de-
mand.
Adding Fuel
When adding fuel we recommend short intervals (every 40-50 minutes) and
small amounts. This way the rated heat output is reached with low pollutant
emissions and a good level of efficiency.
Air supply settings
Tabe 2 shows the recommended settings for the air supply (after the operating
temperature has been reached). The indicated values for the settings are appro-
ximate values. The setting of the air slider that suits the heating requirements
of the room is established by experimenting.
Guideline values for the fuel quantity and burning time
The following Tabe 3 shows the recommended amount of fuel to be added for
the rated heat output. If this amount is exceeded, overheating and consequent
damage can result.
Heating
When only embers (light red) are left on the grate, new fuel should be added
evenly over the whole grate.
First for this purpose open the primary air slider to position „A“.
To do so, spread the embers evenly over the grate and then more fuel can be
placed on top.
After the fuel has been ignited, adjust the air slider to give the desired heat
output.
Heating in between seasons
When outdoor temperatures are above 15 °C, it may occur that due to low
chimney draught the fire does not burn very well. This will result in an increa-
sed build-up of soot in the flue passages of the appliance and in the chimney.
To reduce the build-up of soot when heating in between seasons, increase
the primary air supply, poke the fire more often and add fuel more frequently
(smaller pieces of wood).
Type of fuel Rated load - Primary air
Spruce wood, air-dried 1/2
Beech wood, air-dried 1/2
Tabe 2
Adding of fuel Burn-up time Heat output
2-3 pieces of
wood, approx.
2.4 kg
approx. 60
min.
Rated heat
output
Tabe 3
Do not throw the pieces of wood into the com-
bustion chamber as this may cause damage to
the firebox plates.
Do not throw the pieces of wood into the com-
bustion chamber as this may cause damage to
the firebox plates.
Use the „Heating-up“ setting of the slider only
for heating up or when adding fuel.
Use the „Heating-up“ setting of the slider only
for heating up or when adding fuel.
To prevent the escape of flue gases, keep the
door of the combustion chamber closed at all
times except when lighting a fire, re-fuelling or
removing ashes.
To prevent the escape of flue gases, keep the
door of the combustion chamber closed at all
times except when lighting a fire, re-fuelling or
removing ashes.

Seite 14
Biegemaul 30
Biegemaul 20
Biegemaul 10
Werkstoff: / mm
Allgemeintoleranz ISO 2768-mH
Gewicht: 268.25 kg
Links (000) gezeichnet,
rechts (000) spiegelbildlich fertigen.
Have your fireplace inspected by a specialist
(customer service, chimney sweep) at regular
intervals.
Have your fireplace inspected by a specialist
(customer service, chimney sweep) at regular
intervals.
Allow the appliance to cool down before doing
any cleaning work to avoid coming into con-
tact with embers or hot components – RISK OF
BURNS!
Allow the appliance to cool down before doing
any cleaning work to avoid coming into con-
tact with embers or hot components – RISK OF
BURNS!
Figure 16
16. Maintenance / Cleaning16. Maintenance / Cleaning
Regular maintenance and care or cleaning of the appliance, the fuel gas ducts
and the chimney are particularly important for the operational safety, efficiency
and maintaining the value of the appliance.
A thorough cleaning should be performed after each heating period and after
a long period of non-use (see Important instructions, Page 4). When used
frequently or when using poor-quality fuels, correspondingly more often.
•Remove the grate and brush it. Clear out clogged grate slits.
•Clean combustion chamber walls and flue gas ducts with the ash shovel or
with the cleaning brush.
•Remove ash pan and empty it. Sweep or vacuum the ash pan enclosure.
•Check the sealing cord of the firebox door; replace it if required.
•When reinstalling the various appliance components (grate, ash pan) ensure
they are correctly positioned and function as required and / or that there
are no leaks.
Using the vacuum cleaner
Allow the appliance to cool down completely and only use a vacuum cleaner
with an “Ash Box” accessory – FIRE HAZARD
Cleaning of painted surfaces
Wipe painted surfaces with a damp cloth; do not use abrasive. Do not use
solvent-based cleaning agents (e.g. glass cleaner etc.).
Cleaning the combustion chamber viewing window
With proper heating, the secondary air creates a “hot air curtain” in front of
the viewing glass (air wash system), thus reducing the build-up of soot on the
combustion chamber viewing window. However, if ash particles form deposits
on the viewing window, we recommend using a commercial glass cleaner.
A proven and environmentally-friendly cleaning method:
Dunk a ball of newspaper into a little water and coat it with cold wood ash.
Scrub the inside of the combustion chamber door viewing glass; afterwards
wipe it clean with a dry ball of paper. This way, even stubborn deposits can be
removed without burdening the environment.
Latching the firebox door
For ease of cleaning the combustion chamber, the door can be latched. To do
this, fully open the firebox door and push the small tab towards the door hinge
(Figure 16).
Cleaning combustion chamber
Clean the combustion chamber by means of the supplied cleaning tool.
The ash can still contain live embers: Dispose of
the ash only into metal canisters!
The ash can still contain live embers: Dispose of
the ash only into metal canisters!
Latching

Biegemaul 30
Biegemaul 20
Biegemaul 10
Werkstoff: / mm
Allgemeintoleranz ISO 2768-mH
Gewicht: 268.35 kg
Links (000) gezeichnet,
rechts (000) spiegelbildlich fertigen.
Seite 15
Baffles
Cleaning the flue gas duct
Open the combustion chamber door and remove both flue gas baffles (Figure
17). Clean the flue gas duct as well as the flue with a suitable cleaning tool
(brush). After cleaning reinstall the baffles and the baffle plate to their original
position.
Ash pan
Remember to empty the ash pan regularly and in good time (Figure 18).
To do this, swivel the grate using the supplied grate lifter (1).
Use the grate lifter to remove the ash pan towards the front (2+3) and empty
it, then clean the ash chamber.
Grate
If the air slits are very clogged by slag, crusts or other combustion residue,
completely remove the grate and clean it (Figure 18).
To do this, open the combustion chamber door and lift the grate with the grate
lifter (1) and pull out towards the front.
The pile of ash must not obstruct the primary air
vents in the ash pan.
The pile of ash must not obstruct the primary air
vents in the ash pan.
CAUTION: The ash drawer may be hot!CAUTION: The ash drawer may be hot!
Figure 17
Figure 18
1
2
3Primary
air vents
Baffle plate

Seite 16
17. Troubleshooting17. Troubleshooting
In the event of a fault (power failure, overload,
etc.) turn the air regulator to position 0 and keep
the combustion chamber door closed; do not
add fuel. Open all shut-off devices in the heating
system. If there is any damage or a fire hazard,
leave the building immediately and call the fire
brigade.
In the event of a fault (power failure, overload,
etc.) turn the air regulator to position 0 and keep
the combustion chamber door closed; do not
add fuel. Open all shut-off devices in the heating
system. If there is any damage or a fire hazard,
leave the building immediately and call the fire
brigade.
Please note:
To enable our customer service to deal with repairs and supplying spare parts
quickly and to your satisfaction, we require the following information with your
service request:
•Your correct address
•Your telephone and fax number or email address (if available)
•The exact appliance designation (see nameplate)
•When can our customer service call on you?
•The purchase date
•An exact description of the problem or the type of service you are requesting
•Please have your invoice ready at hand
In this way you help us to save time and money and also to serve you more
efficiently.
Austria (Head office)
LOHBERGER Heiz u. Kochgeräte Technologie
GmbH
Landstraße 19
5231 Schalchen
Telefon: [phone]
Telefax: 07742/ 58765-199
E-Mail: [e-mail]
18. After-sales service / How to order spare parts18. After-sales service / How to order spare parts
Problem / Fault Possible cause Solution
Smoke escaping during
heating up or heating
Chimney still cold or stale air in the chimney. Light ball of paper in the stove and allow it to burn out.
The fuel used is too smoky, moist or of poor qua-
lity See 7. Fuels on page 7
Heating gas flue or chimney excessively sooty or
blocked
As soon as possible, thoroughly clean the stove and the connec-
ting ducts; have the chimney swept.
Weather-induced, stale air in the chimney See Heating up on page 13
Temperature too low
(stove fails to heat
properly)
Incorrect setting of air supply (too low, not suitable
for the fuel being used) See Air supply settings on page 13
Wrong, too damp or inferior fuel is being used See 7. Fuels on page 7
Weather-induced, stale air in the chimney. See Heating up on page 13
Appliance or chimney very sooty or blocked. Thoroughly clean combustion chamber, ash chamber and heating
gas ducts. Have chimney swept.
Open cleaning cover opening (cover not screwed
back on after last cleaning) Screw cleaning cover back on.
Temperature too high
(risk of overheating)
Incorrect setting of air supply (too low, not suitable
for the fuel being used) See Air supply settings on page 13
Firebox door open, damaged seal or viewing glass
in the door has come loose.
Close door immediately, check seals, screw the viewing glass into
place.
Incorrect fuel is being used. See 7. Fuels on page 7
Side walls of the com-
bustion chamber are
sooty
Indicates incomplete combustion (wood too moist,
combustion temperature too low)
See 7. Fuels on page 7
See Air supply settings on page 13
The amount of wood is possibly not sufficient, so the combusti-
on chamber remains too cold.

Seite 17
19. Technical data19. Technical data
20. Type testing / Quality certification20. Type testing / Quality certification
Tabe 4
The stove type ThermoInsert made by Lohberger, which is independent of in-
door air, was successfully tested in compliance with the following standards:
•DIN EN 13240 (room heating appliance for solid fuels)
•DIN EN 13229 (fireplace inserts including open fireplaces using solid fuels)
•Approval principles for the testing and assessment of fireplaces for solid
fuels that are independent of indoor air, DIBt Berlin (Germany)
•Agreement according to art. 15a B-VG (Austrian law) regarding the preventive
measures for small-scale heating appliances.
The test was carried out at the TÜV-SÜD in Munich (Germany).
In addition the following requirements are met
•Austrian environment label UZ37
•the stringent requirements of the (Swiss) quality certification “Holzenergie
Schweiz” for wood-burning fireplaces in residential areas
• regulations of the “Bundes-Immissionsschutzgesetz” – 1st BlmSchV – 2nd
level (German law to provide emission control)
Amongst others the following exhaust gas limits according to the following
German standards are complied with: Regensburger Norm, Stuttgarter Norm
and Münchner Verordnung.
TÜV Test report number: W-O 1190-0008
Dimensions (installation dimensions) Width x height x depth cm 44 x 49 x 125
with panelling (optional) Width x height x depth cm 51 x 50,5 x 128,5
Flue gas connection Diameter cm 12
Combustion air connection Diameter cm 10
Fuel filling door opening Width x height cm 27,5 x 28,8
Fuel filling space Width x height x depth cm 31 x 35,5 x 27
Fuel filling height Insert stove cm ca. 15
Fuel consumption at rated heat output kg / h ca. 1,9
Heating time max. at rated heat output h ca. 1
Ash drawer Insert stove Liter 3,5
Weight (without packaging) Insert stove kg ca. 110
with panelling (optional) Decorative glass inlay kg ca. 145
with panelling (optional) Decorative tile inlay kg ca. 170
Output data Data for chimney calculation (according to DIN 4705)
Rated heat output Wood kW 7,1
Flue gas temperature Wood °C 240
Flue gas mass flow rate Wood g/s 7,1
Required discharge pressure at rated heat output Pa 10
Specifications „Customer-supplied panelling“
Required minimum cross-sections Supply air grille cm2770
Exhaust air grille cm21340
Minimum thickness of insulation to adjacent wall cm 9
to the ceiling cm 12
Minimum clearances Flue air grille to ceiling cm 52
Appliance to convection air casing cm 15

Seite 18
21. Appliance dimensions / appliance connections21. Appliance dimensions / appliance connections
Dimensions in cm
* Installation dimensions
Design „Customer-supplied panelling“
Design „Sheet-metal panelling“
125 114
128,5
52,5
14,3
52,5
109,5
109,5
49
50,5
21,5
22,5
44
742,5
51
36,8*
exhaust
gas
Ø
12
exhaust
gas
Ø
12
air intake
Ø
10
air intake
Ø
10
107*

Seite 19
Design „Sheet-metal panelling“ + heat-storage block
145
52,5
136
50,5
22,5
51
exhaust
gas
Ø
12
air intake
Ø
10

Seite 20
Warranty
LOHBERGER grants a 3-year full warranty on verifiable de-
fects in material or workmanship. Warranty claims will not
be accepted in any case after five years following the ma-
nufacture of the appliance.
Certain restrictions apply to some models and parts: for
appliances with central heating insert the warranty de-
pends either on correct specialist installation of a return
flow temperature boost or the installation of a control
cabinet (AME.4).
Exceptions
The warranty does not apply to the normal wear and tear
on an appliance used for heating. These parts include for
instance:
Fireclay - Changes in colour or expansion cracks due to
the heating process can never be completely ruled out.
However, they do not impair the functioning of the appli-
ance as long as the fireclay remains in the firebox.
Glass panes (breakage of glass because of external action,
changes on the surface due to thermal influences such as
partly sintered fly ash or soot on the surface of the glass
front)
Discolouring of paint due to overload or thermal stress
Seals (e.g. hardening or breakage due to thermal or me-
chanical stress)
Surface coatings (frequent cleaning or cleaning with abra-
sive cleaning agents)
Cast iron parts (Cast parts subjected to high thermal load
such as JETFIRE flame convergence plate and grate)
Pellets - Conveying device Tilting grate, ignition element
and temperature sensor of the Lohberger pellet module
Start or Warranty
The start of warranty is the time the appliance is handed
over to the user. Please keep this user manual as well as
the warranty card with the invoice in a safe place at all
times. A prerequisite of our warranty obligation is that the
appliance has been installed and connected according to
our instructions and the applicable EN/DIN /Austrian stan-
dards and that it has been operated and correctly maintai-
ned according to our instructions.
Repairs
We will carefully check your appliance and establish whe-
ther the warranty claim is justified. If yes, we will decide
in which way the defect should be corrected. In the event
of a repair we will have it carried out correctly and com-
petently on location or in our works. This does not affect
the start of the warranty determined by the handover; if it
is necessary to replace the appliance, the warranty period
starts anew. If you send in your appliance for repair please
enclose the proof of purchase.
Costs
LOHBERGER accepts all costs for the duration of the war-
ranty. Should we decide that your appliance is best re-
paired in our works, you will bear the transport costs and
assume the responsibility for the transport.
Liability Exclusion
We cannot accept any liability for the loss or the damage
of an appliance through theft, fire, vandalism or similar
causes. Indirect or direct damages caused by a supplied
appliance or arising from the delivery of an appliance are
excluded from the liability unless the delivery was perfor-
med by LOHBERGER or by a transport company commissi-
oned by LOHBERGER.
We cannot assume any liability for damages caused by
chemical or electrochemical effects (e.g. pollutants in the
combustion air, condition of heating water not in compli-
ance with the VDI guidelines – e.g.: “calcification”, etc.)
or as a result of installation not in accordance with the
technical regulations or the LOHBERGER documentation.
We will accept liability for visible paint and enamel dama-
ges that can be attributed to manufacturing defects only if
such defects are brought to our attention in writing within
14 days following the handover of the appliance.
These warranty conditions are valid in all European countries where LOHBERGER appliances are sold by local specialist dealers.
Warranty claims must always be directed to a local LOHBERGER specialist dealer or the dealer from whom you have bought the
appliance.
Modifications of the appliance or tampering by persons who
are not authorised by us will invalidate our warranty obliga-
tion. Adjustment and conversion work are subject to billing.
22. Warranty22. Warranty
LOHBERGER HEIZ U. KOCHGERÄTE TECHNOLOGIE GMBH
Landstraße 19, 5231 Schalchen, Österreich
Tel.: [phone] / Fax: [phone]
[e-mail]
www.lohberger.com
Leichte Farbabweichungen aus drucktechnischen Gründen, Druckfehler, Maßänderungen und technische Änderungen vorbehalten!
