Goodman GMVC950453BX User manual

ComfortNet™-Compatible
multi-positioN, two-stage
Variable-speed gas furNaCe
Standard Features
• Dual-diametertubularheatexchanger
• Two-stagegasvalveoperateswithtwo-stageorsingle-
stagethermostats
• ComfortNet™CommunicationsSystemcompatible
• Efcientandquietvariable-speedECMcirculatormotor
gentlyrampsupordownaccordingtoheatingorcooling
demand
• 120VSiliconNitrideigniterdesignedforlongigniterlife
• Furnacecontrolboardwithself-diagnostics,color-coded
low-voltageterminals,andprovisionsforelectronicair
cleanerand120-voltor24-volthumidiers
• Lowconstantfanallowshomeownertoactivateverylow
speedtoefcientlycirculateairthroughoutthehome.This
settingcostsaslittleasa100-wattlightbulbtooperate.
• Dual-certiedforsealedcombustiondirectvent(2-pipe)
ornon-directvent(1-pipe)applications
• Quiettwo-speedinduceddraftblower
• AllmodelscomplywithCaliforniaNOxemissionsstandards
Cabinet Features
• Fullyinsulated,heavy-gaugesteelcabinetwithdurable
baked-enamelnish
• Foil-facedinsulationlinestheheatexchanger
• Easy-to-installtopventingisstandard;alternateue/vent
connectionsonsomemodels
• Designedformulti-positioninstallation–
GMVC95:upow,horizontalleftorright;
GCVC95/9:downow,horizontalleftorright
• Airtightsolidbottomforsidereturnapplicationsandeasy-cut
tabsforeffortlessremovalinbottomairinletapplications
• Convenientleftorrightconnectionforgas/electricservice
• Coilandfurnacetushformostinstallations
GMVC95: up to 95% AFuE
GCVC95: up to 95% AFuE
GCVC9: up to 93% AFuE
 
   
*Complete warrantydetails availablefromyourlocaldealeroratwww.goodmamfg.com.Toreceive
theLifetimeHeatExchangerLimitedWarranty(goodforaslongasyouownyourhome),10-YearUnit
ReplacementLimitedWarrantyand10-YearPartsLimitedWarranty,onlineregistrationmustbecom-
pletedwithin60daysofinstallation.OnlineregistrationisnotrequiredinCaliforniaorQuébec.
Contents
Nomenclature........................................................................... 2
ProductSpecications.............................................................. 3
Dimensions............................................................................... 4
AirowData.............................................................................. 6
WiringDiagrams..................................................................... 10
Thermostats........................................................................... 12
Accessories.............................................................................. 12
HeatiNg iNput: 46,000–115,000 btu/H
SS-GMVC95 www.goodmanmfg.com 9/10
Supersedes 8/10
gmVC95 & gCVC95/9

produCt speCifiCatioNs
2 www.goodmanmfg.com SS-GMVC95
NomeNClature
     
 
 
G
Goodman
®
Brand Majorand
minorrevisions

C
Downflow/Horizontal

D DedicatedDownflow N NaturalGas
H HighAirflow X LowNOx
K DedicatedUpflow
M Upflow/Horizontal 
A14”
 B17½”
V TwoStage/Variablespeed C21”
H TwoStage/MulRspeed D24½”
S SingleStage/MulRspeed
E TwoStage/HighEfficiency 
31200 52000
 41600
C ComfortNet™CommunicaRngSystem

 045:45,000 115:115,000
95 95% 8 80% 070:70,000 140:140,000
9 90%+ 090:90,000















Important EnergyStar Notice: EnergyStar ratings are dependent
upon conditions beyond equipment installation. Proper sizing
and installation of equipment is critical to achieve optimal
performance. Split system air conditioners and heat pumps
must be matched with appropriate coil components to meet
EnergyStar criteria. Ask your contractor for details or visit 
www.energystar.gov.

produCt speCifiCatioNs
SS-GMVC95 www.goodmanmfg.com 3
speCifiCatioNs

















High Fire Input¹ 46,000 69,000 92,000 92,000 115,000 69,000 92,000 115,000
High Fire Output¹ 45,000 67,000 90,000 90,000 109,000 65,000 87,000 109,000
Low Fire Input¹ 32,000 48,000 64,000 64,000 80,000 48,000 64,000 80,000
Low Fire Output¹ 30,800 46,400 61,700 61,700 77,400 45,000 60,100 77,400
AFUE² 95 95 95 95 95 95 95 93
Tons AC @ 0.5” ESP 1.5 - 3.0 1.5 - 4.0 2.0 - 5.0 2.0 - 5.0 2.0 - 5.0 1.5 - 4.0 2.0 - 5.0 2.0 - 5.0
Temperature Rise Range (°F) 30 - 60 30 - 60 30 - 60 30 - 60 30 - 60 25-55 25-55 40-70

Size (D x W) 10” x 8” 10” x 10” 11” x 10” 11” x 10” 11” x 10” 10” x 10” 11” x 10” 11” x 10”
Horespower @ 1050 RPM ½ ¾ 1 1 1 ¾ 1 1
Speed Variable Variable
Vent Diameter³ 2” 2” 3” 3” 3” 2” 3” 3”
No. of Burners 2 3 4 4 5 3 4 5
Disposable Filter (in²) 288 384 480 480 486 384 480 486

Min. Circuit Ampacity (amps)411.3 14.1 14.4 14.4 14.4 11.2 15.0 14.4
Max. Overcurrent Protecon515 amps 15 amps 15 amps 15 amps 15 amps 15 amps 15 amps 15 amps
 121 145 160 160 170 139 165 160
¹ Natural Gas BTU/h
² DOE AFUE based upon Isolated Combuson System (ICS)
³ Installer must supply one or two PVC pipes: one for combuson air (oponal) and one for the ue outlet (required). Vent pipe must be either 2” or 3”
in diameter, depending upon furnace input, number of elbows, length of run and installaon (1 or 2 pipes). The oponal Combuson Air Pipe is depen-
dent on installaon/code requirements and must be 2” or 3” diameter PVC.
4 Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with Naonal Electrical
Codes. Extensive wire runs will require larger wire sizes.
5 Maximum Overcurrent Protecon Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of
the same size as noted.

• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.
• Gas Service Connecon ½” FPT
• Important: Size fuses and wires properly and make electrical connecons in accordance with the Naonal Electrical Code and/or all exisng local codes.

Product SPecificationS
4 www.goodmanmfg.com SS-GMVC95
GMVc95 diMenSionS
MiniMuM clearanceS to coMbuStible MaterialS
Position Sides Rear Front Bottom Flue Top
Upow 0” 0” 3” C 0” 1”
Horizontal 6” 0” 3” C 0” 6”
C = If placed on combustible oor, the oor MUST be wood ONLY.
Notes:
• Forservicingorcleaning,a24”frontclearanceisrequired.
• Unitconnecons(electrical,ueanddrain)maynecessitategreaterclearancesthantheminimumclearanceslistedabove.
• Inallcases,accessibilityclearancemusttakeprecedenceoverclearancesfromtheenclosurewhereaccessibilityclearancesaregreater.
Model A B C D E
GMVC950453BX 17½” 16” 13⅛” 12⅛” 13⅝”
GMVC950704CX 21” 19½” 16⅛” 16 17½”
GMVC950905CX 21” 19½” 16⅛” 16 17½”
GMVC950905DX 24½” 19½” 16⅛” 16 17½”
GMVC951155DX 24½” 23” 20⅝” 19⅜” 20⅞”
Notes:
• InstallermustsupplyoneortwoPVCpipes:oneforcombusonair(oponal)andonefortheueoutlet(required).Ventpipemustbeeither2”or3”
indiameter,dependinguponfurnaceinput,numberofelbows,lengthofrunandinstallaon
(1or2pipes).TheoponalCombusonAirPipeisdependentoninstallaon/coderequirementsandmustbe2”or3”diameterPVC.
• Linevoltagewiringcanenterthroughtherightorlesideofthefurnace.Low-voltagewiringcanenterthroughtherightorlesideoffurnace.
• Conversionkitsforhigh-altudenaturalgasoperaonareavailable.ContactyourGoodmandistributorordealerfordetails.
• Installermustsupplyfollowinggaslinengs,accordingtowhichentranceisused:
Le—Two90ºelbows,oneclosenipple,straightpipe
Right—Straightpipetoreachgasvalve
• Forboomreturn:Failuretounfoldangesmayreduceairowbyupto18%.Thiscouldresultinperformanceandnoiseissues.
28¾
19⅞
RIGHTSIDEVIEW
LEFTSIDEVIEW
22¹/₁₆
FOLDEDFLANGES
23⁹/₁₆
UNFOLDEDFLANGES
FRONTVIEW
FOLDED FLANGES
UNFOLDED FLANGES
D
E
1¾
11¾
30¼
¾
¾
30¼
1¾
11¾
1¾ 32¹³/₁₆
19³/₁₆
24⁹/₁₆
2¹¹/₁₆
2¹/₁₆
19³/₁₆
¾
1½
21¼
2⅝
7⅜
1⅝
2½
4⅛
16⅝
2⅝
27⅛
6⅛

produCt speCifiCatioNs
SS-GMVC95 www.goodmanmfg.com 5
gCVC95/9 dimeNsioNs
FOLDEDFLANGES
UNFOLDEDFLANGES
FOLDEDFLANGES
UNFOLDEDFLANGES
     
GCVC950714CX 21” 19½” 16⅛” 18” 19½”
GCVC950915DX 24½” 23” 20⅝” 21½” 23”
GCVC91155DX 24½” 23” 20⅝” 21½” 23”

• Installer must supply one or two PVC pipes: one for combuson air (oponal) and one for the ue outlet (required). Vent pipe must be either 2” or
3” in diameter, depending upon furnace input, number of elbows, length of run, and installaon (1 or 2 pipes). The oponal Combuson Air Pipe is
dependent on installaon/code requirements and must be 2” or 3” diameter PVC.
• Line voltage wiring can enter through the right or le side of the furnace. Low-voltage wiring can enter through the right or le side of furnace.
• Conversion kits for high-altude natural gas operaon are available. Contact your Goodman distributor or dealer for details.
• Installer must supply following gas line ngs, according to which entrance is used:
Le—Two 90º elbows, one close nipple, straight pipe
Right—Straight pipe to reach gas valve
• For boom return: Failure to unfold anges may reduce airow by up to 18%. This could result in performance and noise issues.
miNimum ClearaNCes to Combustible materials
      
Downow 0” 0” 3” NC 0” 1”
Horizontal 6” 0” 3” C 0” 6”
C = If placed on combustible oor, the oor MUST be wood ONLY.
NC = For installation on non-combustible oors only. A combustible oor sub-base must be used for installations on combustible ooring.
Notes:
• For servicing or cleaning, a 24” front clearance is required.
• Unit connecons (electrical, ue and drain) may necessitate greater clearances than the minimum clearances listed above.
• In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater.

produCt speCifiCatioNs
6 www.goodmanmfg.com SS-GMVC95
gmVC95 airflow data
CooliNg speeds
 
   
           
A
Minus(-) 540
A
Minus(-) 351
A
Minus(-) 540
A
Minus(-) 351
Normal 600 Normal 390 Normal 600 Normal 390
Plus (+) 660 Plus (+) 429 Plus (+) 660 Plus (+) 429
B
Minus(-) 720
B
Minus(-) 468
B
Minus(-) 720
B
Minus(-) 468
Normal 800 Normal 520 Normal 800 Normal 520
Plus (+) 880 Plus (+) 572 Plus (+) 880 Plus (+) 572
C
Minus(-) 900
C
Minus(-) 585
C
Minus(-) 990
C
Minus(-) 644
Normal 1000 Normal 650 Normal 1100 Normal 715
Plus (+) 1100 Plus (+) 715 Plus (+) 1210 Plus (+) 787
D
Minus(-) 1080
D
Minus(-) 702
D
Minus(-) 1286
D
Minus(-) 836
Normal 1200 Normal 780 Normal 1429 Normal 929
Plus (+) 1320 Plus (+) 858 Plus (+) 1572 Plus (+) 1022
 
   
           
A
Minus(-) 729
A
Minus(-) 495
A
Minus(-) 720
A
Minus(-) 468
Normal 810 Normal 550 Normal 800 Normal 520
Plus (+) 891 Plus (+) 605 Plus (+) 880 Plus (+) 572
B
Minus(-) 990
B
Minus(-) 693
B
Minus(-) 900
B
Minus(-) 644
Normal 1100 Normal 770 Normal 1000 Normal 715
Plus (+) 1210 Plus (+) 847 Plus (+) 1100 Plus (+) 787
C
Minus(-) 1323
C
Minus(-) 900
C
Minus(-) 1260
C
Minus(-) 819
Normal 1470 Normal 1000 Normal 1400 Normal 910
Plus (+) 1617 Plus (+) 1100 Plus (+) 1540 Plus (+) 1001
D
Minus(-) 1629
D
Minus(-) 1125
D
Minus(-) 1620
D
Minus(-) 1053
Normal 1810 Normal 1250 Normal 1800 Normal 1170
Plus (+) 1991 Plus (+) 1375 Plus (+) 1980 Plus (+) 1287

 
     
A
Minus(-) 720
A
Minus(-) 468
Normal 800 Normal 520
Plus (+) 880 Plus (+) 572
B
Minus(-) 990
B
Minus(-) 644
Normal 1100 Normal 715
Plus (+) 1210 Plus (+) 787
C
Minus(-) 1260
C
Minus(-) 819
Normal 1400 Normal 910
Plus (+) 1540 Plus (+) 1001
D
Minus(-) 1620
D
Minus(-) 1053
Normal 1800 Normal 1170
Plus (+) 1980 Plus (+) 1287
* @ .1" - .8" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Do not operate above .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.

Product SPecificationS
SS-GMVC95 www.goodmanmfg.com 7
GMVc95 airflow data (cont.)
HeatinG SPeedS




  




    




A
Minus(-) 495 713 57
A
Minus(-) 756 1,089 56
Normal 550 792 41 Normal 840 1,210 50
Plus (+) 605 871 46 Plus (+) 924 1,331 46
B
Minus(-) 540 778 52
B
Minus(-) 828 1,192 51
Normal 600 864 47 Normal 920 1,325 46
Plus (+) 660 950 43 Plus (+) 1,012 1,457 42
C
Minus(-) 585 842 48
C
Minus(-) 900 1,296 47
Normal 650 936 43 Normal 1,000 1,440 42
Plus (+) 715 1,030 39 Plus (+) 1,100 1,584 38
D
Minus(-) 630 907 45
D
Minus(-) 972 1,400 43
Normal 700 1,008 40 Normal 1,080 1,555 39
Plus (+) 770 1,109 36 Plus (+) 1,188 1,711 35




  




    




A
Minus(-) 945 1,341 60
A
Minus(-) 1,013 1,458 55
Normal 1,050 1,490 54 Normal 1,125 1,620 50
Plus (+) 1,155 1,639 49 Plus (+) 1,238 1,782 45
B
Minus(-) 1,008 1,413 57
B
Minus(-) 1,076 1,549 52
Normal 1,120 1,570 51 Normal 1,195 1,721 47
Plus (+) 1,232 1,727 47 Plus (+) 1,315 1,893 43
C
Minus(-) 1,080 1,521 53
C
Minus(-) 1,139 1,640 49
Normal 1,200 1,690 48 Normal 1,265 1,822 44
Plus (+) 1,320 1,859 43 Plus (+) 1,392 2,004 40
D
Minus(-) 1,125 1,602 50
D
Minus(-) 1,202 1,730 47
Normal 1,250 1,780 45 Normal 1,335 1,922 42
Plus (+) 1,375 1,958 41 Plus (+) 1,469 2,114 38


  





A
Minus(-) 1,107 1,594 63
Normal 1,230 1,771 57
Plus (+) 1,353 1,948 52
B
Minus(-) 1,139 1,639 62
Normal 1,265 1,822 56
Plus (+) 1,392 2,004 50
C
Minus(-) 1,170 1,685 60
Normal 1,300 1,872 54
Plus (+) 1,430 2,059 49
D
Minus(-) 1,202 1,730 58
Normal 1,335 1,922 53
Plus (+) 1,469 2,115 48
* @ .1" - .5" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Do not operate above .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.

produCt speCifiCatioNs
8 www.goodmanmfg.com SS-GMVC95
gCVC95 airflow data




   
             
A
Minus 594
A
Minus 324
A
Minus 1107 55
A
Minus 783 77
Normal 660 Normal 360 Normal 1230 49 Normal 870 69
Plus 726 Plus 396 Plus 1353 45 Plus 957 63
B
Minus 747
B
Minus 468
B
Minus 1215 50
B
Minus 855 71
Normal 830 Normal 520 Normal 1350 45 Normal 950 64
Plus 913 Plus 572 Plus 1485 41 Plus 1045 58
C
Minus 1017
C
Minus 702
C
Minus 1323 46
C
Minus 936 65
Normal 1130 Normal 780 Normal 1470 41 Normal 1040 58
Plus 1243 Plus 858 Plus 1617 37 Plus 1144 53
D
Minus 1314
D
Minus 864
D
Minus 1440 42
D
Minus 1017 59
Normal 1460 Normal 960 Normal 1600 38 Normal 1130 53
Plus 1606 Plus 1056 Plus 1760 34 Plus 1243 49
* @ .1" - .5" w.c. ESP




   
             
A
Minus 729
A
Minus 504
A
Minus 1458 55
A
Minus 1008 80
Normal 810 Normal 560 Normal 1620 50 Normal 1120 72
Plus 891 Plus 616 Plus 1782 45 Plus 1232 65
B
Minus 999
B
Minus 666
B
Minus 1575 51
B
Minus 1098 73
Normal 1110 Normal 740 Normal 1750 46 Normal 1220 66
Plus 1221 Plus 814 Plus 1925 42 Plus 1342 60
C
Minus 1287
C
Minus 828
C
Minus 1674 48
C
Minus 1152 70
Normal 1430 Normal 920 Normal 1860 43 Normal 1280 63
Plus 1573 Plus 1012 Plus 2046 39 Plus 1408 57
D
Minus 1674
D
Minus 1071
D
Minus 1773 45
D
Minus 1206 67
Normal 1860 Normal 1190 Normal 1970 41 Normal 1340 60
Plus 2046 Plus 1309 Plus 2167 37 Plus 1474 55
* @ .1" - .5" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Do not operate above .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.

produCt speCifiCatioNs
SS-GMVC95 www.goodmanmfg.com 9
gCVC9 airflow data

 



GMVC950453BX 1400 420
GMVC950704CX 1760 530
GMVC950905CX 2200 660
GMVC950905DX 2200 660
GMVC951155DX 2200 660
GCVC950704CX 1760 530
GCVC950905DX 2200 660
GCVC91155DX 2200 660
¹ Connuous fan speed is 30% of furnace maximum CFM




   
             
A
Minus(-) 705
A
Minus(-) 457
A
Minus(-) 1583 63
A
Minus(-) 1093 63
Normal 783 Normal 508 Normal 1759 56 Normal 1214 56
Plus (+) 861 Plus (+) 559 Plus (+) 1935 51 Plus (+) 1335 51
B
Minus(-) 982
B
Minus(-) 621
B
Minus(-) 1612 61
B
Minus(-) 1106 61
Normal 1091 Normal 690 Normal 1791 55 Normal 1229 55
Plus (+) 1200 Plus (+) 759 Plus (+) 1970 50 Plus (+) 1352 50
C
Minus(-) 1265
C
Minus(-) 815
C
Minus(-) 1654 60
C
Minus(-) 1166 60
Normal 1406 Normal 906 Normal 1838 54 Normal 1296 54
Plus (+) 1547 Plus (+) 997 Plus (+) 2022 49 Plus (+) 1426 49
D
Minus(-) 1628
D
Minus(-) 1049
D
Minus(-) 1690 59
D
Minus(-) 1172 59
Normal 1809 Normal 1165 Normal 1878 53 Normal 1302 53
Plus (+) 1990 Plus (+) 1282 Plus (+) 2066 48 Plus (+) 1432 48
* @ .1" - .5" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Do not operate above .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.
     

 
Natural 0-7000 Changeover None #43 3.5” W.C. 1.9” W.C. None
Propane 0-7000 LPM-03B & LPM-05 #55 10.0: W.C. 6.0” W.C. None
• For installaon in Canada, gas furnaces are cered only to 4,500 .
• For GCVA installaons above 7,000 ., please refer to your Goodman distributor for required kit(s).
staNdard altitude iNstallatioNs

produCt speCifiCatioNs
10 www.goodmanmfg.com SS-GMVC95

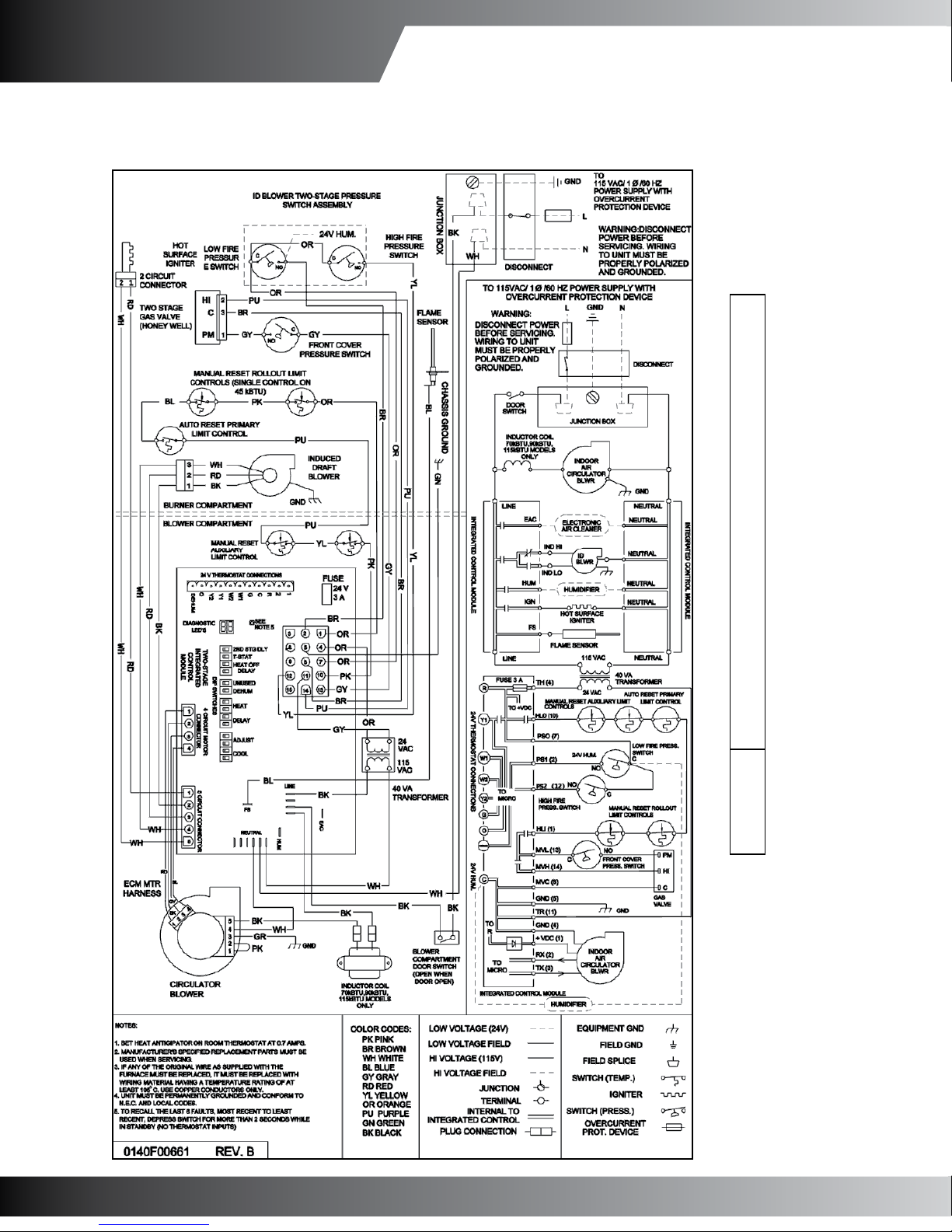

gmVC95/gCVC95/9 wiriNg diagram witH HoNeywell ValVe
Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring.
⚠ WARNING   Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡

Product SPecificationS
SS-GMVC95 www.goodmanmfg.com 11
GMVc95/GcVc9 WirinG diaGraM With White-rodGerS ValVe
Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring.
⚠ WARNING High Voltage: Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
NO
2
FUSE3A
1.SETHEATANTICIPATORONROOMTHERMOSTATAT0.7AMPS.
YL
MANUALRESET
AUXILIARY
LIMITCONTROL
PK
WARNING:DISCONNECT
TO
MICRO
ID
40VA
TRANSFORMER
COOL
PU
GY
SEE
NOTE 5
N
NEUTRAL
NO
BL
WIRINGTOUNIT
10
DEHUM
3
O
NO
PK
DIAGNOSTIC
LED'S
BR
4.UNITMUSTBEPERMANENTLYGROUNDEDANDCONFORMTO
N.E.C.ANDLOCALCODES.
L
COLORCODES:
INTEGRATED CONTROL MODULE
1
LOWFIRE
PRESSUR
ESWITCH
PS2(12)
FLAME
SENSOR
HOTSURFACE
GNGREEN
GR
OR
TR(11)
FRONTCOVER
PRESSURESWITCH
C
YL
G
VAC
TOUNIT MUSTBE
24V HUM.
1
HI
C
TH(4)
INDUCTORCOIL
BL
24V THERMOSTAT CONNECTIONS
GAS
VALVE
RD
4
ANDGROUNDED.
1
FS
GND
3
JUNCTION BOX
BLWR
NEUTRAL
115
WH
W2
C
1
SWITCH(PRESS.)
FIELDSPLICE
FIELDGND
7
WARNING:
DELAY
W2
LOWVOLTAGEFIELD
GROUNDED.
3
GN
BK
GY
5
T-STAT
OVERCURRENTPROTECTIONDEVICE
3
BL
BR
1
13
MUSTBEPROPERLY
TRANSFORMER
WH
NO
AUTORESETPRIMARY
LIM ITCONTROL
SWITCH
WH
HLI(1)
1
NEUTRAL
OR
Y2
RDRED
ELECTRONIC
GYGRAY
Y1
MANUALRESETROLLOUTLIMIT
CONTROLS(SINGLECONTROLON
45kBTU)
WH
Y1
AIR
L
PU
NOTES:
70kBTU,90kBTU,
HLO (10)
GY
PK
IGN
INDHI
BK
GND(5)
5
2
GY
R
ID BLOWERTWO-STAGEPRESSURE
SWITCHASSEMBLY
OR
OR
WH
2ND STG DLY
SERVICING.WIRING
O
MVL(13)
EQUIPMENT GND
NO
70kBTU,90kBTU,
INTERNAL TO
W1
W1
24 V THERMOSTAT CONNECTIONS
ONLY
PU
HIGHFIRE
PRESSURE
SWITCH
8
PROT. DEVICE
INTEGRATED CONTROL
PK
TWO-STAGE
INTEGRATED
CONTROL
MODULE
3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE
FURNACE MUST BE REPLACED, IT MUST BE REPLACED W ITH
WIRING MATERIAL HAVING A TEMPERATURE RATING OF AT
LEAST 105°C. USE COPPER CONDUCTORS ONLY.
PU
DISCONNECT
EAC
PLUG CONNECTION
2
FS
C
11
FRONT COVER
PRESS. SWITCH
POLARIZEDAND
NEUTRAL
4
NEUTRAL
BR
BK
LINE
C
BLOWER
COMPARTMENT
DOOR SWITCH
(OPEN WHEN
DOOR OPEN)
115kBTU MODELS
NEUTRAL
SWITCH (TEMP.)
JUNCTION BOX
GND
1
R
CIRCULATOR
BLOWER
1
PU PURPLE
BLWR
JUNCTION
OR
HUM
3
MANUALRESETAUXILIARYLIMIT
CONTROLS
40 VA
Y2
14
IND LO
MANUALRESETROLLOUT
LIMIT CONTROLS
9
WH
N
PK PINK
Ø/60HZ
HUMIDIFIER
INDOOR
HIGH FIRE
PRESS. SWTICH
DISCONNECT
TWOSTAGE
GASVALVE
AIR CLEANER
C
ONLY
2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE
USED WHEN SERVICING.
WH
PSO (7)
OVERCURRENT
HI VOLTAGE (115V)
2
DEHUM
HUM
2CIRCUIT
CONNECTOR
LOW VOLTAGE (24V)
YL
GND
VAC
WH
CHASSIS GROUND
2
3
4
LOW FIRE PRESS.
SWITCH
DOOR
WH
OR
NEUTRAL
2
MVC (8)
HOT
SURFACE
IG NITER
RD
WH
2
24V HUM.
GND
INTEGRATED CONTROL MODULE
LINE
HEAT
5
DEHUM
BK BLACK
TO 115VAC/ 1
ADJUST
Ø /60 HZ POWER SUPPLY WITH
5. TO RECALL THE LAST 6 FAULTS, MOST RECENT TO LEAST
RECENT, DEPRESS SWITCH FOR MORE THAN 2 SECONDS WHILE
IN STANDBY (NO THERMOSTAT INPUTS)
GND
YL
PU
C
INDUCTOR COIL
115 VAC
6
BL BLUE
2
C
EAC
INDUCED
DRAFT
BLOWER
15
FUSE
BK
WH WHITE
1
PM
BK
24
BLOWERCOMPARTMENT
115VAC/1
IGNITER
0140F00530REV.B
24V HUM.
OVERCURRENT
BK
4
BR BROWN
BK
CIRCULATOR
C
YL YELLOW
3
PS1 (2)
OR
DIP SWITCHES
BEFORESERVICING.
AUTORESETPRIMARY
LIMIT CONTROL
115kBTU MODELS
HI VOLTAGE FIELD
24 VAC
NO
ECM MTR
HARNESS
PM
4 CIRCUIT MOTOR
CONNECTOR
MVH (14)
OR ORANGE
BR
HI
TERMINAL
OR GY
POWERBEFORE
INTEGRATED CONTROL MODULE
5 CIRCUIT CONNECTOR
FLAME SENSOR
IGNITER
4
DISCONNECTPOWER
UNUSED
RD
BK
2
C
TO
12
RD
LINE
POWERSUPPLYWITH
G
BR
24V
3A
BURNERCOMPARTMENT
HEAT OFF
DELAY
PROTECTIO NDEVICE
GND
HUMIDIFIER
PROPERLYPOLARIZED
BK
BL
GY
RD
BLWR
AIR
INDOOR
CIRCULATOR
TX (3)
RX (2)
+ VDC (1)
GND (4)
TO
R
TO
MICRO
TO +VDC

Product SPecificationS
12 www.goodmanmfg.com SS-GMVC95
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specications or designs without
notice or without incurring obligations. © 2010 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.
acceSSorieS
thermoStatS
GTS1175-2
GTS3275-2
GTS 4275-2
Touch-Screen Digital Thermostats
(See Amana Thermostat specication sheets for details.)
G2111-2
G3272-2
G3273-2
Touch-Screen Digital Thermostats
(See Amana Thermostat specication sheets for details.)
G1100-2
G2100-2
G1152-2
G2152-2
Programmable and Non-programmable Digital Thermostats
(See Amana Thermostat specication sheets for details.)
Model Description GMVC95
0453BX
GMVC95
0704CX
GMVC95
0905C/DX
GMVC95
1155DX
GCVC95
0704CX
GCVC95
0905DX
GCVC9
1155DX
LPM-05 LP Conversion Kit * (Springs & Orice) 1 1 1 1 1 1 1
LPM-06 LP Conversion Kit ** (Springs & Orice) 1 1 1 1 1 1 1
GSAS Electronic Air Cleaners (-10, -11, -12 or -18) √ √ √ √ √ √ √
GMU Media Air Cleaners (1620, 2020, 1625 or 2025) √ √ √ √ √ √ √
DEHUM1 Dehumidistat √ √ √ √ √ √ √
HAPS28 High-Altude Pressure Switch Kit 2 2
HAPS29 High-Altude Pressure Switch Kit 2
HAPS 31 High-Altude Pressure Switch Kit 2
HALP11 High-Altude Propane Gas Kit 2 2 2
HALP 13 High-Altude Propane Gas Kit 2
HANG 13 High-Altude Natural Gas Kit 3 3 3
HANG 14 High-Altude Natural Gas Kit 4 4 4
HANG 16 High-Altude Natural Gas Kit 2
EFR01 External Filter Rack √ √ √ √ √ √ √
DCVK-20 Horizontal/Vercal Concentric Vent Kit (2”) √ √ √ √
DCVK-30 Horizontal/Vercal Concentric Vent Kit (3”) √ √ √ √ √ √ √
CFB21 Downow Floor Base √
CFB24 Downow Floor Base √ √
017K00000S Flush-mount vent kit √ √ √ √ √ √ √
* White-Rodgers gas valve ** Honeywell or White-Rodgers gas valve
1 All Models up to 7,000’ 2 7,001’ to 11,000’
3 7,001’ to 9,000’ 4 9,001’ to 11,000’
Note: All installations above 7,000’ require a pressure switch change. For installation in Canada, gas furnaces are certied only to 4,500’.
