LORD F2 User manual

User manual
Návod kobsluze
Návod na obsluhu
Total NoFrost Freezer
Mraznička sfunkcí NoFrost
Mraznička sfunkciou NoFrost
F2

User manual.............................................................................................page 3
Návod k obsluze .................................................................................. strana 22
Návod na obsluhu................................................................................ strana 41

Safety informaon
In the interest of your safety and to ensure the correct use, before installing and rst using the
appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly
familiar with its operaon and safety features. Save these instrucons and make sure that they
remain with the appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
For the safety of life and property keep the precauons of these user’s instrucons as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilies or lack of experience and knowledge if they have been
given super vision or instrucon concerning use of the appliance in a safe way and understand
the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years
and above and supervised.
• Keep all packaging well away from children. There is risk of suocaon.
• If you are discarding the appliance pull the plug out of the socket, cut the connecon cable (as
close to the appliance as you can) and remove the door to prevent playing children to suer
electric shock or to close themselves into it.
• If this appliance featuring magnec door seals is to replace an older appliance having a spring
lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the
old appliance. This will prevent it from becoming a death trap for a child.
General safety
WARNING! Keep venlaon openings, in the appliance enclosure or in the built-in structure,
clear of obstrucon.
WARNING! Do not use mechanical devices or other means to accelerate the defrosng
process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of
refrigerang appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of me because it
could be very hot.*
WARNING! When posioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING! Do not locate mulple portable socket-outlets or portable power suppliers at the
rear of the appliance.
• Do not store explosive substances such as aerosol cans with a ammable propellant in this
appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance,
a natural gas with a high level of environmental compability, which is nevertheless ammable.

Safety informaon
• During transportaon and installaon of the appliance, be certain that none of the components
of the refrigerant circuit become damaged.
-avoid open ames and sources of ignion
-thoroughly venlate the room in which the appliance is situated
• It is dangerous to alter the specicaons or modify this product in any way. Any damage to the
cord may cause a short circuit, re and/or electric shock.
• This appliance is intended to be used in household and similar applicaons such as
-sta kitchen areas in shops, oces and other working environments;
-farm houses and by clients in hotels, motels and other residenal type environments;
-bed and breakfast type environments;
-catering and similar non-retail applicaons.
WARNING! Any electrical components(plug, power cord, compressor and etc.) must be
replaced by a cered service agent or qualied service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable
only with the appliance supplied. This “special use lamp” is not usable for domesc lighng.*
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance.
A squashed or damaged power plug may overheat and cause a re.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or
re.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as
this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot on the plasc parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacture, s instrucons.
• Appliance, s manufactures storage recommendaons should be strictly adhered to. Refer to
relevant instrucons.
• Do not place carbonated of zzy drinks in the freezer compartment as it creates pressure on the
container, which may cause it to explode, resulng in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
To avoid contaminaon of food, please respect the following instrucons
• Opening the door for long periods can cause a signicant increase of the temperature in the
compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; ush the water system connected to
a water supply if water has not been drawn for 5 days.
• Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with
or drip onto other food.

Safety informaon
• Two-star frozen-food compartments(if they are presented in the appliance) are suitable for
storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three -star compartments (if they are presented in the appliance) are not
suitable for the freezing of fresh food.
• If the appliance is le empty for long periods, switch o, defrost, clean, dry and leave the door
open to prevent mount developing within the appliance.
Care and cleaning
• Before maintenance, switch o the appliance and disconnect the mains plug from the mains
socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plasc scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
If the drain is blocked, water will collect in te boom of the appliance.
Installaon
Important! For electrical connecon carefully follow the instrucons given in specic paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is
damaged. Report possible damages immediately to the place you bought it. In that case retain
packing.
• It is advisable to wait at least four hours before connecng the appliance to allow the oil to ow
back in the compressor.
• Adequate air circulaon should be around the appliance, lacking this leads to overheang. To
achieve sucient venlaon follow the instrucons relevant to installaon.
• Wherever possible the spacers of the product should be against a wall to avoid touching or
catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible aer the installaon of the appliance.
Service
• Any electrical work required to do the servicing of the appliance should be carried out by
a qualied electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts
must be used.
Energy saving
• Don’t put hot food in the appliance;
• Don’t pack food close together as this prevents air circulang;
• Make sure food don’t touch the back of the compartment(s);
• If electricity goes o, don’t open the door(s);
• Don’t open the door(s) frequently;
• Don’t keep the door(s) open for too long me;
• Don’t set the thermostat on exceeding cold temperatures;
• Some accessaries, such as drawers, can be removed to get larger storage volume and lower
energy consumpon.
Environment Protecon
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant

Safety informaon
circuit or insulaon materials. The appliance shall not be discarded together with the urban refuse
and rubbish. The insulaon foam contains ammable gases: the appliance shall be disposed
according to the appliance regulaons to obtain from your local authories. Avoid damaging the
cooling unit, especially the heat exchanger. The materials used on this appliance marked by the
symbol are recyclable.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collecon point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potenal negave consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed informaon about recycling of this product, please contact your local council,
your household waste disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collecon
containers to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut o the mains cable and discard it.
WARNING! During using, service and disposal the appliance, please pay aenon
to symbol similar as le side, which is located on rear of appliance (rear panel or
compressor) and with yellow or orange color.
It’s risk of re warning symbol. There are ammable materials in refrigerant pipes and
compressor.
Please be far away re source during using, service and disposal.

Overview
Balconies
LED Light
Shelves
Drawers Cover
Freezer Drawers
Leveling Feet
Note: Above picture is for reference only. Real appliance might be different.

Installaon
Space Requirement
• Select a locaon without direct exposure to sunlight;
• Select a locaon with enough space for the refrigerator doors to open easily;
• Select a locaon with level (or nearly level) ooring;
• Allow sucient space to install the refrigerator on a at surface;
• Allow clearance to the right, le, back and top when installing. This will help reduce power
consumpon and keep your energy bills lower.
• Keep at lest 10mm gap at two sides and back.
Posioning
Install this appliance at a locaon where the ambient temperature corresponds to climate class
indicated on the rang plate of the appliance:
For refrigerang appliances with climate class:
-extended temperate: this refrigerang appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C;
-temperate: this refrigerang appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C;
-subtropical: this refrigerang appliance is intended to be used at ambient temperatures
ranging from 16 °C to 38 °C;
-tropical: this refrigerang appliance is intended to be used at ambient temperatures ranging
from 16 °C to 43 °C;
Locaon
The appliance should be installed well away from sources of heat such as radiators, boilers, direct
sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best
performance, if the appliance is posioned below an overhanging wall unit, the minimum distance
between the top of the cabi-net and the wall unit must be at least 100 mm. Ideally, however, the
appliance should not be posioned below overhanging wall units. Accurate leveling is ensured by
one or more adjustable feet at the base of the cabinet.
WARNING! It must be possible to disconnect the appliance from the mains power supply; the
plug must therefore be easily accessible aer installaon.
Electrical connecon
Before plugging in, ensure that the voltage and frequency shown on the rang plate correspond
to your domesc power supply. The appliance must be earthed. The power supply cable plug
is provided with a contact for this purpose. If the domesc power supply socket is not earthed,
connect the appliance to a separate earth in compliance with current regulaons, consulng
a qualied electrician.
The manufacturer declines all responsibility if the above safety precauons are not observed.
This appliance complies with the E.E.C. Direcves.

Installaon
Door Reversibility
Before reversing the door, please be prepared below tools and material: straight screwdriver, cross
screwdriver, spanner and the components included in the poly bag:
Easy open handle
×1
Handle Cover ×2 Screw ×2 Le Aid-Closer ×1 Le Top Hinge
Cover ×1

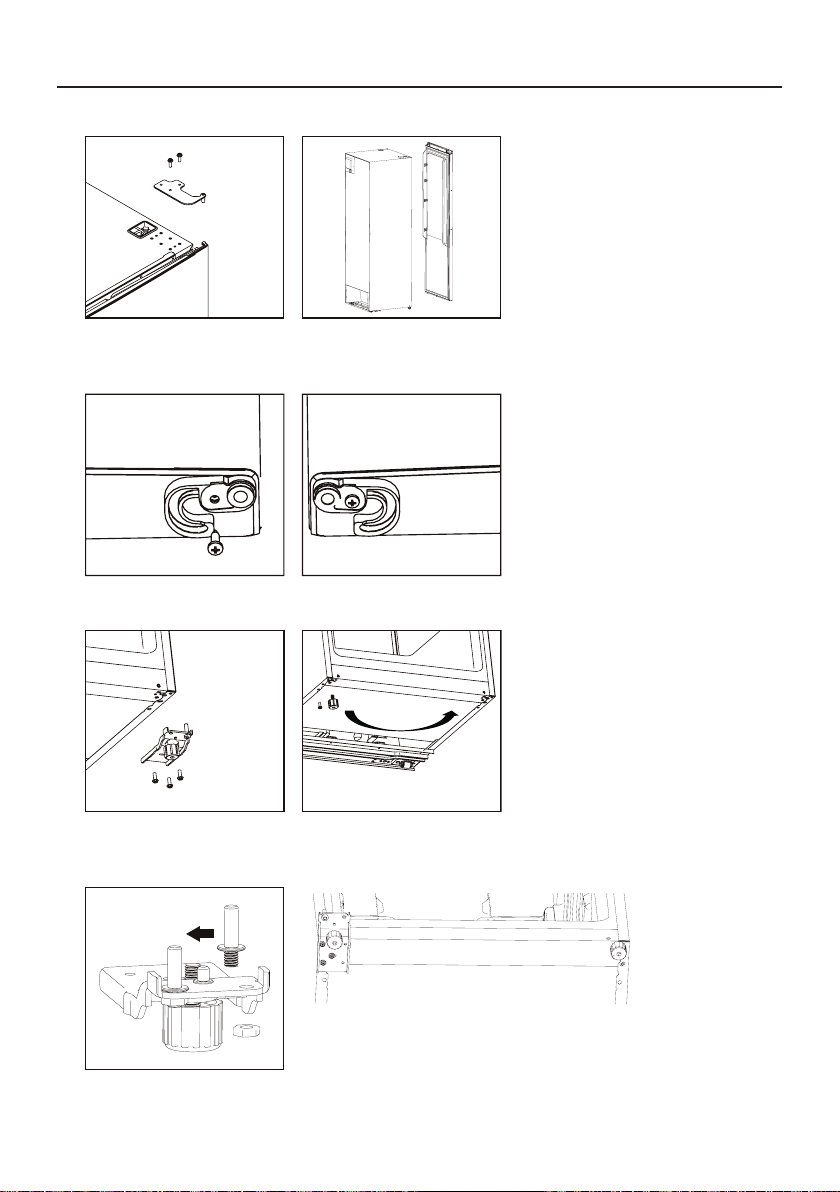

1. Remove upper wire box covers.
2. Unscrew right top hinge cover, and disconnect connectors of door switch and display.

Installaon
3. Unscrew and remove the top hinge, and then remove the door.
4. Remove the right aid-closer, and take out le aid-closer from accessories bag and install it at
le side.
5. Unscrew the boom hinge, and remove the adjustable foot from the le side to the right side.
6. Unscrew and move the boom hinge pin from the right side to the le side, then install the
boom hinge on the le side of the appliance

Installaon

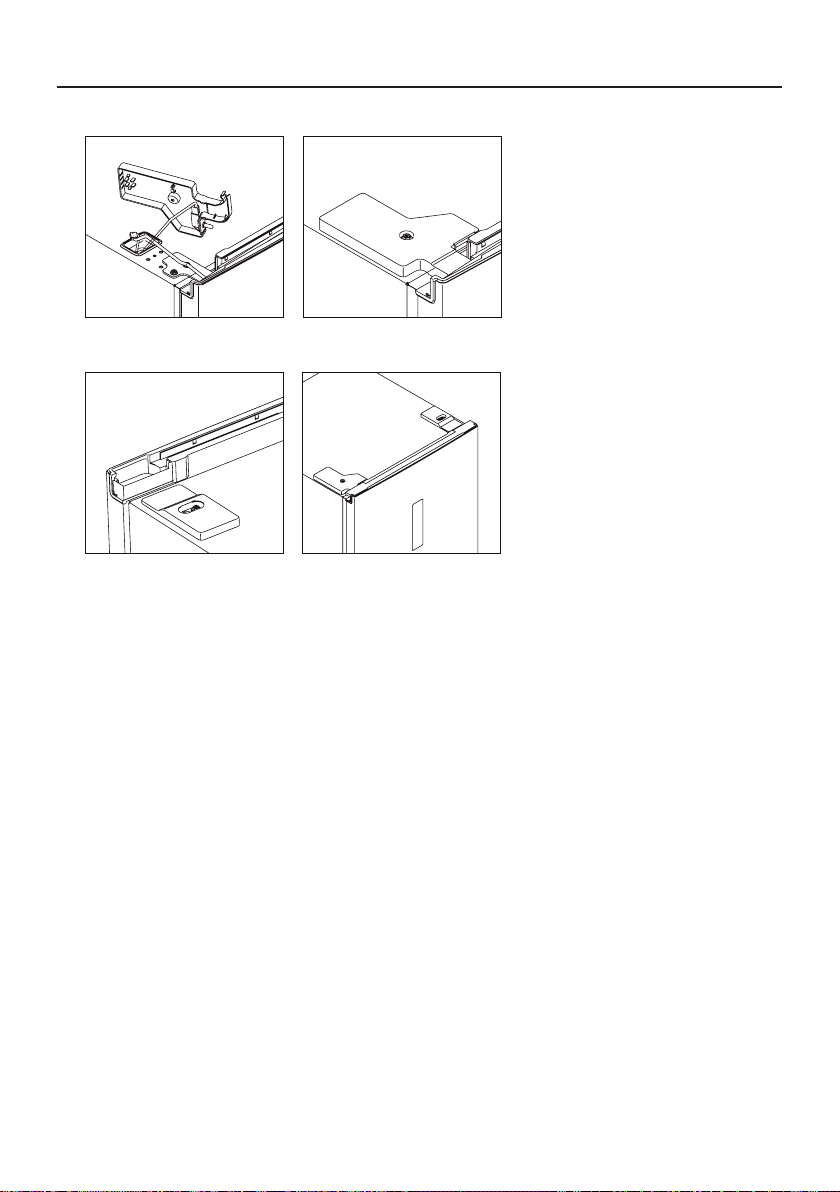

7. Unscrew and move the top hinge pin from boom side to upper side. Remove door switch from
right hinge cover and then install it in le hinge cover which is placed in accessory bag
8. Unscrew and move the top decorave cover on the le side, and install it on the right side.
9. Install the door, and then move the connecng wires from right side to le side.
10. Install the top hinge to the le side, please slightly adjust the top hinge while installing to make
sure gasket is well sealed.

Installaon
11. Connect connectors of door switch and display, and install the le top hinge cover.
12. Install the upper wire box covers to the right side.

Installaon

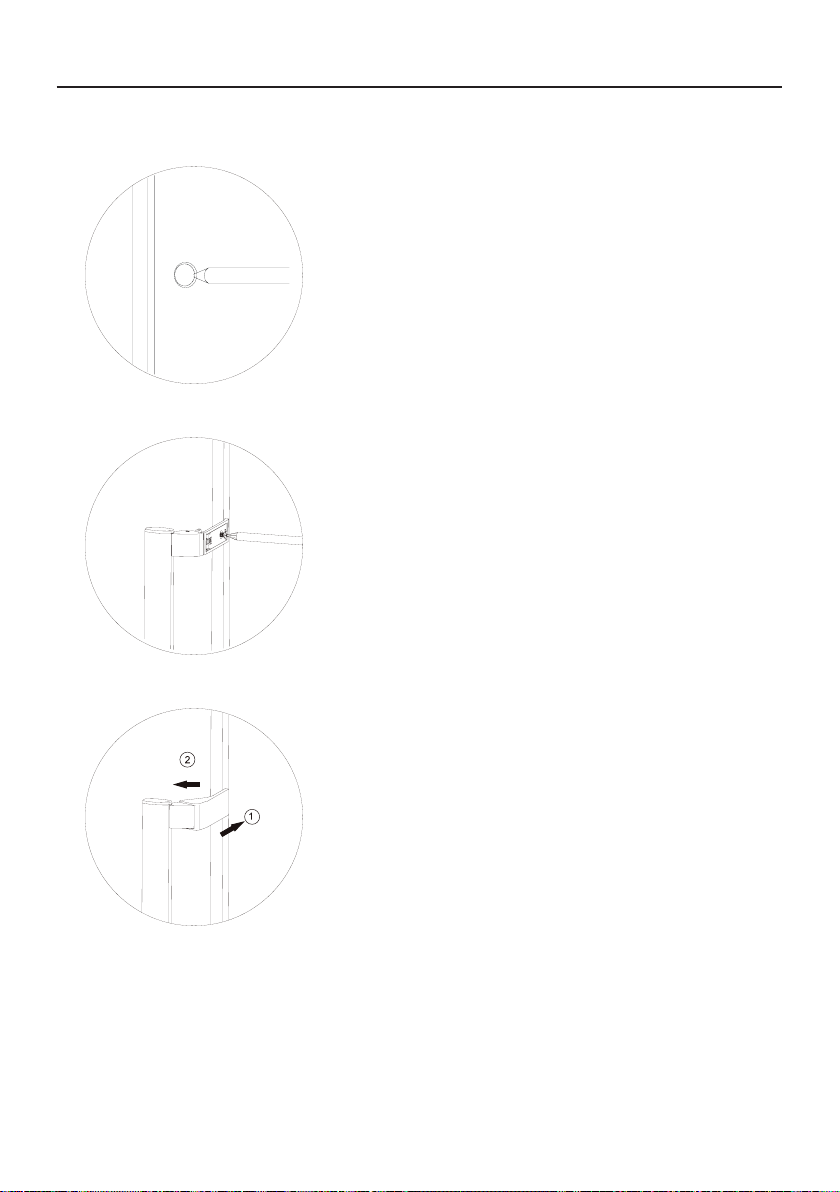

Easy open handle installaon
1. Remove the screw hole covers.
2. Take out the easy open handle which is placed in crisper drawer, and install it.
3. Install the easy open handle covers.

Installaon
Space requirement
• Keep enough space of door open.
• It is advisable to keep at least 10 mm gap at all sides.
A 600
B 600
C 1858
D min = 50
E min = 50
F 1007
G 1071
H 135*
Note: this refrigerang appliance is not intended to be used as built-in appliance.
Levelling the unit
To do this adjust the two levelling feel at front of the unit.
If lhe unit is not level, the doors and magnec seal alignments will
not be covered properly.

User interface
Using the Control Panel
User interface introducon
Operaon Interface
FREEZER: Temperature control of the appliance
SUPER: Select and deselect super mode control
ALARM/ECO: Clear door opening alarm, select and deselect ECO Mode
LOCK: Locking and unlocking

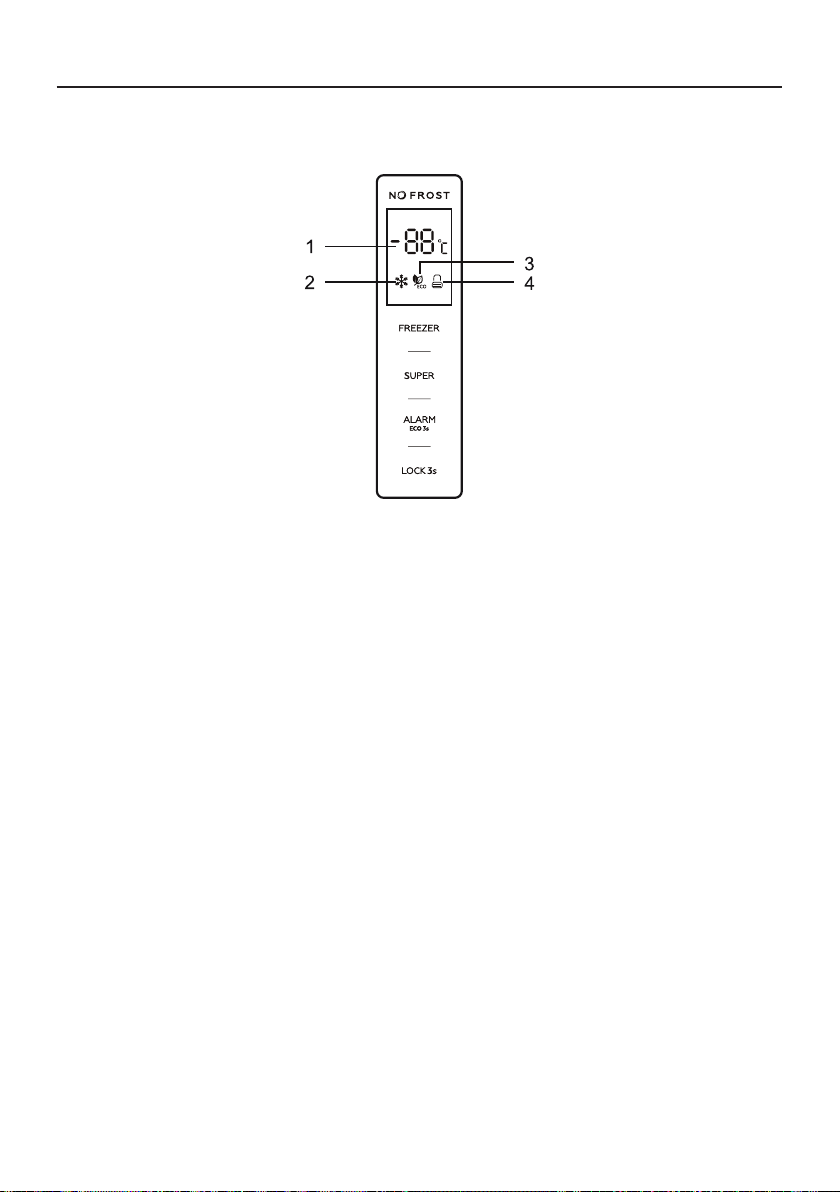

LED Display
1. Display window for preset temperature
2. Super mode icon
3. ECO mode icon
4. Locking and unlocking icon
Illustraon of the buons
All buons are valid only in unlocking status.
Short beep aer per touching of buons

User interface
FREEZER: Temperature control of the appliance available only for user dened mode.
• Touching “FREEZER” buon consecuvely, the temperature will change in a circle from -14C~-
22C, stop touching and aer 5 seconds ashing, temperature is set.
SUPER: select and deselect super mode
• Press “SUPER” buon to select super mode. Aer 5 seconds ashing of super mode icon, super
mode is selected.
• When super mode is selected, super mode icon will light on, and display window will show -25
C. In super mode, touching “FREEZER” buon, super mode icon will ash 3 mes, but freezer
temperature can not be changed.
• To exit Super mode,
-Press “SUPER” buon to deselect Super mode,
-Or aer 50 hours of super mode without any operaon, the refrigerator willautomacally
stop it and enter to previous seng.
Warning: In super mode, noise of the appliance may be slightly higher than normal running.
ALARM/ECO: clear door opening alarm and high temperature alarm,select and deselect
ECO mode
• Short touching “ALARM/ECO” buon to clear door opening alarm and high temperature alarm.
Touching “ALARM/ECO” buon for 3 seconds to select ECO mode. Aer 5 seconds ashing of
ECO mode icon, ECO mode is selected.
• When ECO mode is selected, ECO mode icon will light on, and display window will show
dierent preset temperatures, depending on the ambient temperature (Ta) of where the
appliance be placed, as below.
Ambient
Temperature
(Ta)
Ta < 13 °C 14 °C < Ta< 20 °C 21 °C < Ta< 27 °C 28 °C < Ta< 34 °C Ta > 35 °C
Preset
Temperature -18 °C -18 °C -18 °C -16 °C -15 °C
In ECO mode, “FREEZER” buon will not respond to any touching.
Touching “ALARM/ECO” buon for 3 seconds to deselect ECO mode.

LOCK: Locking and Unlocking
• Touching “LOCK” buon for 3 seconds to lock the control panel, then the locking and unlocking
icon will be “ ’’.
• In locking status, touch any buon, the locking and unlocking icon will ash 3 mes.
• Touching “LOCK” buon for 3 seconds to unlock the control panel, then the locking and
unlocking icon will be “ ”.
• In unlocking status, all buons are available.
• If no operaon in 25 seconds, the control panel will be locked automacally.
Door opening alarm
• If the door keeps opening for 90 seconds, door opening alarm sounds.
• Close the door to stop the door opening alarm.
• Or short touching “ALARM/ECO” buon to clear door opening alarm.
High temperature alarm
• If high internal temperature of the appliance is detected, high temperature alarm will sound,
„ht“ and detected temperature will display alternately on display window.
• Short touching “ALARM/ECO” buon to stop door opening alarm.
• High temperature display will disappear automacally only if detected temperature goes back to
normal.
User interface

Daily Use
First use
Cleaning the interior
Before using the appliance for the rst me, wash the interior and all internal accessories with
lukewarm water and some neutral soap so as to remove the typical smell of a brand new product,
then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the nish.
Daily use
Posion dierent food in dierent compartments according to be below table
Freezer drawer(s)/shelf
• Foods for long-term storage.
• Boom drawer/shelf for raw meat, poultry, sh.
• Middle drawer/shelf for frozen vegetables, chips.
• Top drawer/shelf for ice cream, frozen fruit, frozen
baked goods.
Storing frozen food
When rst starng-up or aer a period out of use. Before pung the product in the compartment
let the appliance run at least 2 hours on the higher sengs.
Important! In the event of accidental defrosng, for example the power has been o for longer
than the value shown in the technical characteriscs chart under “rising me”, the
defrosted food must be consumed quickly or cooked immediately and then re-frozen
(aer cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room
temperature, depending on the me available for this operaon.
Small pieces may even be cooked sll frozen, directly from the freezer. In this case, cooking will take
longer.
Movable shelves
The walls of the refrigerator are equipped with a series of runners so that the
shelves can be posioned as desired.
Posioning the door balconies
Door balconies can be disassembled for cleaning. To make the
disassembling as follows: gradually pull the balcony in the direcon of the
arrows unl it comes free, aer cleaning, reposion it.

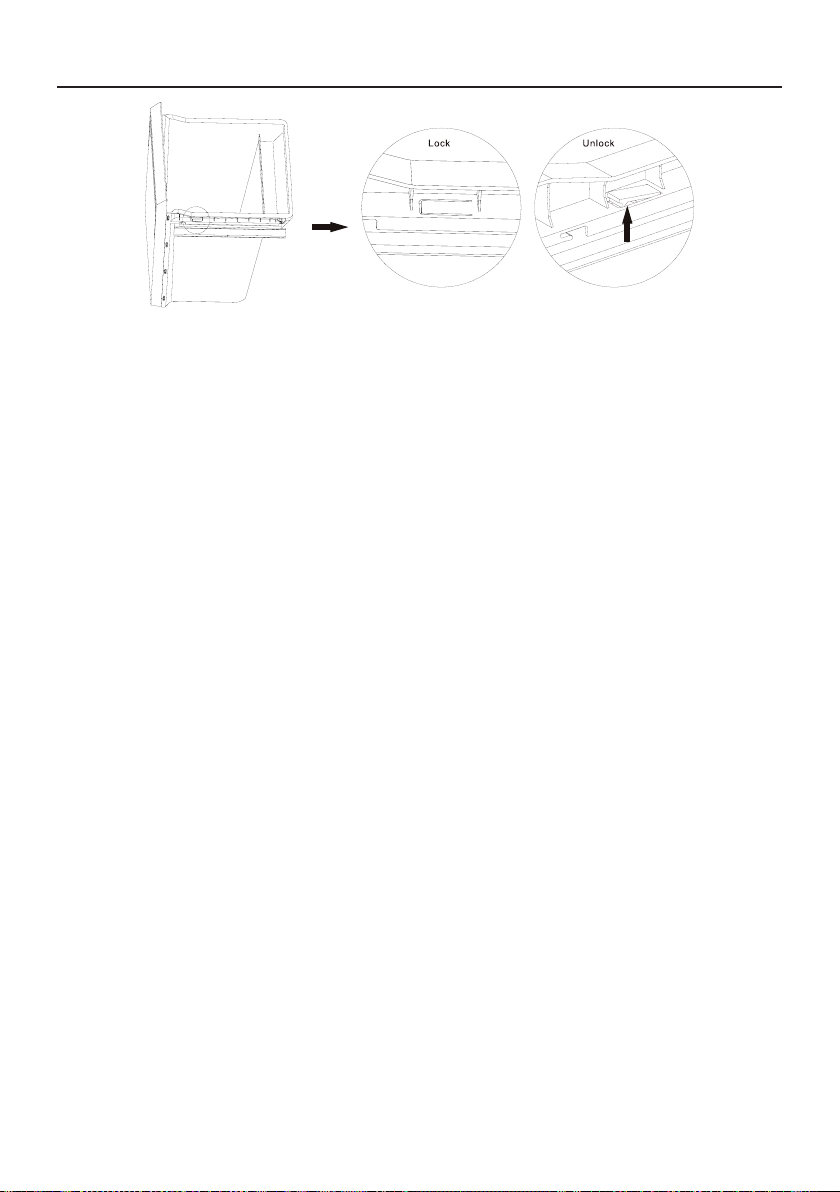

Disassemble the boom drawer
1. Pull out the boom drawer to stopper posion.
2. Push up the elasc buckles on both sides of the boom drawer.
3. Pull out the boom drawer.

Daily Use
Helpful hints and ps
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
• the maximum quanty of food which can be frozen in 24 hrs. is shown on the rang plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this
period;
• only freeze top quality, fresh and thoroughly cleaned, foodstus;
• prepare food in small porons to enable it to be rapidly and completely frozen and to make it
possible subsequently to thaw only the quanty required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airght;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in
temperature of the laer;
• lean foods store beer and longer than fay ones; salt reduces the storage life of food;
• water ices, if consumed immediately aer removal from the freezer compartment, can possibly
cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from
the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of
the storage me.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
make sure that the commercially frozen foodstus were adequately stored by the retailer;
be sure that frozen foodstus are transferred from the food store to the freezer in the shortest
possible me;
not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.

Daily Use
Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be cleaned
regularly.
Cauon! The appliance may not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance o and remove the plug from the
mains, or switch o or turn out the circuit breaker or fuse. Never clean the appliance with
a steam cleaner. Moisture could accumulate in electrical components, danger of electrical
shock! Hot vapors can lead to the damage of plasc parts. The appliance must be dry before
it is placed back into service.
Important! Ethereal oils and organic solvents can aack plasc parts, e.g. lemon juice or the juice
form orange peel, butyric acid, cleanser that contain acec acid.
• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance o and remove the plug from the mains, or switch o or turn out the
circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. Aer cleaning
wipe with fresh water and rub dry.
• Aer everything is dry place appliance back into service.
Replace the lamp
The internal light is a LED type. To replace the lamp, please contact qualied technician.
Troubleshoong
Cauon! Before troubleshoong, disconnect the power supply. Only a qualied electrician of
competent person must do the troubleshoong that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulaon).
Problem Possible cause Soluon
Appliance does not work
Temperature regulaon knob
is set at coldest
Set the knob at other switch
on the appliance.
Mains plug is not plugged in or
is loose Insert mains plug.
Fuse has blown or is defecve Check fuse, replace if
necessary.
Socket is defecve Mains malfuncons are to be
corrected by an electrician.
Appliance freezes or cools too
much
Temperature is set too cold or
the appliance runs at coldest.
Turn the temperature
regulator to a warmer seng
temporarily.
