LORD W1 User manual

WASHING MACHINE
W1
USER MANUAL AND INSTALLATION
INSTRUCTIONS

Thank you for choosing this product.
We are proud to be able to oer you the ideal product for the best comprehensive range of home appliances
for your daily life.
Read this manual carefully, as you will nd instructions for correct and safe use and useful tips for maintaining
the appliance.
Do not start using the appliance until you have read this manual carefully!
We recommend that you keep the brochure at your ngertips and pass it on to the new owners of the
appliance.
Individual products are marked with a unique 16-digit code, ie. The “serial number” printed on the label on
the machine (next to the door opening) or on the document label inside the machine. The code is a type
of product identication card, but you need it when registering and in cases where you need to contact an
authorized service center.

1
Safety...................................................... 3
Preventing material damage..............10
Environmental protection and
saving energy.......................................11
Disposing of packaging ........................... 11
Save energy and conserve resources.. 11
Energy saving mode.................................. 12
Installation and connection................12
Unpacking the appliance ........................ 12
Contents of package ................................. 13
Requirements for the installation
location.......................................................... 13
Removing the transit bolts ..................... 14
Connecting the appliance....................... 16
Aligning the appliance............................. 17
Connecting the appliance to the
electricity supply ........................................ 17
Familiarising yourself with your
appliance..............................................18
Appliance ...................................................... 18
Detergent drawer....................................... 19
Controls.......................................................... 19
Display..................................................20
Buttons .................................................22
Programs ..............................................23
Accessories...........................................26
Before using for the rst time.............26
Starting an empty washing cycle......... 26
Laundry ................................................28
Preparing the laundry............................... 28
Sorting laundry ........................................... 28
Degrees of soiling ...................................... 29
Care symbols on the care labels ........... 29
TABLE OF CONTENTS
Detergents and care products............29
Detergent recommendation.................. 30
Detergent dosage...................................... 30
Basic operation ....................................31
Switching on the appliance.................... 31
Setting a programme................................ 31
Adjusting the programme settings ..... 31
Loading laundry ......................................... 32
Using a measuring aid for liquid
detergent ...................................................... 32
Use the measuring aid for liquid
detergent ...................................................... 33
Adding detergent and care product... 33
Starting the programme.......................... 34
Adjusting the“Ready in”time before
the programme starts............................... 34
Soaking laundry.......................................... 34
Adding laundry........................................... 34
Cancelling the programme..................... 34
Resuming the programme when the
programme status is Rinse Hold........... 34
Unloading the laundry ............................. 35
Switching o the appliance.................... 35
Childproof lock ....................................35
Activating the childproof lock............... 35
Deactivating the childproof lock.......... 35
Basic settings .......................................36
Overview of the basic settings.............. 36
Changing the basic settings................... 37
Cleaning and servicing........................37
Tips on appliance care.............................. 37
Cleaning the drum..................................... 37
Cleaning the detergent drawer............. 37
Descaling....................................................... 38
Cleaning the drain pump ........................ 39
Cleaning the water outlet hose
at the siphon................................................ 41
Clean the water inlet lters..................... 42

2
Troubleshooting ..................................44
Error code/error message/signal.......... 44
Function faults............................................. 45
Sounds ........................................................... 49
Result problems.......................................... 49
Leaking........................................................... 50
Smell ............................................................... 50
Emergency release..................................... 51
Transportation, storage and
disposal ................................................51
Removing the appliance.......................... 51
Inserting the transit bolts........................ 51
Recommissioning the appliance .......... 52
Disposing of old appliance..................... 52
Customer Service.................................53
Product number (E-Nr.) and
production number (FD) ......................... 53
Consumption values............................54
Technical specications ......................55

3
SAFETY
Observe the following safety instructions.
General information
Here you will nd general information regarding this manual.
• Readthisinstructionmanualcarefully.
• This manual is intended for the installer and the user of the appliance.
• Pleasefollowthesafetyandwarninginstructions.
• Keeptheinstructionmanualandtheproductinformationsafe
for future reference or for the next owner.
• Donotconnecttheapplianceifithasbeendamagedintransit.
Intended use
For safe and correct use of the appliance, please follow the
instructions regarding the intended use.
Only use this appliance:
• Accordingtothisinstallationandoperationmanual.
• Forwashingmachine-washablefabricsandhand-washablewool
in accordance with the care label.
• Withtapwaterandcommerciallyavailabledetergentsandcare
products suitable for washing machines.
• Inprivatehouseholdsandinenclosedspacesinadomestic
environment.
• Uptoanaltitudeofmax.4000mabovesealevel.
Restriction on user group
Prevent risks to children and vulnerable persons.
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.

4
Children must not play with the appliance.
Cleaning and user maintenance must not be performed by
children unless they are being supervised.
Keepchildrenundertheageof3yearsandpetsawayfromthe
appliance.
Safe installation
Take note of the safety instructions when installing the appliance.
WARNING - Risk of electric shock!
• Improperinstallationisdangerous.
- Connect and operate the appliance only in accordance with
the specications on the rating plate.
- Connect the appliance to a power supply with alternating
current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical
installation must be properly installed. The installation must
have a suciently large cross section.
- Whenusingaresidualcurrentcircuitbreaker,onlyuseatype
with the mark.
- Never equip the appliance with an external switching device,
e.g. a timer or remote control.
- Whentheapplianceisinstalled,themainsplugofthepower
cord must be freely accessible. If free access is not possible, an
all-pole isolating switch must be installed in the permanent
electrical installation according to the installation regulations.
- Wheninstallingtheappliance,checkthatthepowercableis
not trapped or damaged.
• Iftheinsulationofthepowercordisdamaged,thisisdangerous.
- Never let the power cord come into contact with hot
appliance parts or heat sources.
- Never let the power cord come into contact with sharp points
or edges.
- Never kink, crush or modify the power cord.

5
WARNING - Risk of re!
It is dangerous to use an extended power cord and non-approved
adapters.
- Do not use extension cables or multiple socket strips.
- If the power cord is too short, contact Customer Service.
- Only use adapters approved by the manufacturer.
WARNING - Risk of injury!
• The high weight of the appliance may result in injury when lifted.
- Do not lift the appliance on your own.
• Ifthisapplianceisnotcorrectlyinstalledinawasher-dryerstack,
the installed appliance may fall.
- Only stack the dryer on a washing machine using the
connection kit from the dryer manufacturer . No other
installation method is permitted.
- Do not install the appliance in a washer-dryer stack if the
dryer manufacturer does not oer a suitable connection kit.
- Do not install appliances from dierent manufacturers and
with varying depths and widths in a washer-dryer stack.
- Do not install a washer-dryer stack on a platform; the
appliances may tip over.
WARNING - Risk of suocation!
Children may put packaging material over their heads or wrap
themselves up in it and suocate.
- Keeppackagingmaterialawayfromchildren.
- Do not let children play with packaging material.
CAUTION - Risk of injury!
• Theappliancemayvibrateormovewheninuse.
- Place the appliance on a clean, even, solid surface.
- Align the appliance using the appliance feet and a spirit level.
• Ifhosesandpowercordshavebeenlaidincorrectly,thiscausesa
tripping hazard.

6
- Lay hoses and power cords in such a way that there is no risk
of tripping.
• If the appliance is moved by holding onto protruding
components, such as the appliance door, the parts may break o.
- Do not move the appliance by holding onto protruding parts.
CAUTION - Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
- Do not touch the sharp edges on the appliance.
- Wearprotectivegloveswheninstallingandtransportingthe
appliance.
Safe use
Whenusingtheappliance,pleasefollowthesesafetyinstructions.
WARNING - Risk of electric shock!
• Iftheapplianceorthepowercordisdamaged,thisisdangerous.
- Never operate a damaged appliance.
- Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately
unplug the power cord or switch o the fuse in the fuse box
and turn o the water tap.
- “Call Customer Service.”
- Repairs to the appliance should only be carried out by trained
specialist sta.
• Aningressofmoisturecancauseanelectricshock.
- Only use the appliance in enclosed spaces.
- Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING - Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.

7
- Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
- Withredundantappliances,unplugthepowercord.Thencut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
WARNING - Risk of suocation!
Children may breathe in or swallow small parts, causing them to
suocate.
- Keepsmallpartsawayfromchildren.
- Do not let children play with small parts.
WARNING - Risk of poisoning!
Detergents and care products may result in poisoning if consumed.
- If accidentally swallowed, seek medical advice.
- Keepdetergentsandcareproductsoutofthereachofchildren.
WARNING - Risk of explosion!
Laundry that has been pretreated with cleaning agents that
contain solvents may cause an explosion in the appliance.
- Rinse pretreated laundry thoroughly with water before washing.
CAUTION - Risk of injury!
• Thecoveringplatemaybreakifyoustandonorclimbontothe
appliance.
- Do not stand on or climb onto the appliance.
• Theappliancemaytipoverifyousitonorleanagainsttheopen
door.
- Do not sit on or lean against the appliance door.
- Do not place any objects on the appliance door.
• Reachingintothedrumwhileitisstillturningmaycausehand
injuries.
- Waitforthedrumtocometoacompletestopbeforereaching
inside.

8
CAUTION - Risk of burns!
Whenwashingathightemperatures,theglassintheappliance
door becomes hot.
- Do not touch the appliance door when it is hot.
- Keepchildrenawayfromtheappliancedoorwhenitishot.
CAUTION - Risk of scalding!
Whenyouwashathightemperatures,thedetergentsolutiongets
hot.
- Do not touch the hot detergent solution.
CAUTION - Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance. Contact with eyes or skin may
cause irritation.
- Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
- If accidentally swallowed, seek medical advice.
- Keepdetergentsandcareproductsoutofthereachofchildren.
Safe cleaning and maintenance
Take note of the safety instructions when cleaning and performing
maintenance work on the appliance.
WARNING - Risk of electric shock!
• Improperrepairsaredangerous.
- Repairs to the appliance should only be carried out by trained
specialist sta.
- Only use genuine spare parts when repairing the appliance.
- If the power cord of this appliance is damaged, it must be
replaced by the manufacturer, the manufacturer’s Customer
Service or a similarly qualied person in order to prevent any
risk.

9
• Aningressofmoisturecancauseanelectricshock.
- Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING - Risk of injury!
The use of non-original spare parts and non-original accessories is
dangerous.
- Only use the manufacturer’s original spare parts and original
accessories.
WARNING - Risk of poisoning!
Poisonous fumes may be given o if you use cleaning agents that
contain solvents.
- Do not use cleaning agents that contain solvents.

10
PREVENTING MATERIAL
DAMAGE
Follow these instructions to avoid material
damage and damage to the appliance.
ATTENTION!
• Thefunctionalityoftheappliance
may be impaired if you use the wrong
quantity of fabric softener,detergent,
care product or cleaning agent.
- Follow the dosage
recommendations from the
manufacturer.
• Exceedingthemaximumloadcapacity
impairs the function of the appliance.
- Observe the “maximum load
capacity” for each programme and
do not exceed it.
• Theapplianceissecuredfor
transportation using transit bolts.
Transit bolts which have not been
removed may result in material
damage and damage to the appliance.
- Before starting up the
appliance,remove the transit bolts
completely and keep them in a safe
place.
- Before transport, t the transit bolts
fully in order to prevent damage in
transit.
• Materialdamagemaybecausedif
the water inlet hose is connected
incorrectly.
- Tighten the screw connections on
the water inlet until they are hand-
tight.
- Ideally, connect the water inlet hose
directly to the water tap,without
any additional connecting elements
such as adapters,extensions, valves
or similar.
- Ensure that the inner diameter of
the water tap is at least 17 mm.
- Makesurethatthelengthofthe
thread on the connection to the
water tap is at least 10 mm.
• Ifthewaterpressureistoohighortoo
low, the appliance may not be able to
operate properly.
- Makesurethatthewaterpressurein
the water supply system is min. 100
kPa (1 bar) and max. 1000 kPa (10
bar).
- If the water pressure exceeds
the maximum value specied, a
pressure-reducing valve must be
installed between the drinking
water connection and the hose set
of the appliance.
- Do not connect the appliance to the
mixer tap of an unpressurised hot-
water boiler.
• Modiedordamagedwaterhosesmay
result in material damage and damage
to the appliance.
- Never kink, crush, modify or cut
through water hoses.
- Only use the water hoses sup-plied
with the appliance or genuine spare
hoses.
- Never re-use water hoses that have
been used before.
• Operatingtheapplianceusingwater
that is dirty or too hot may cause
material damage.
- Only operate the appliance with
cold mains water.
• Unsuitablecleaningproductsmay
damage the surfaces of the appliance.
- Do not use harsh or abrasive
detergents.
- Do not use cleaning products with a
high alcohol content.
- Do not use hard scouring pads or
cleaning sponges.
- Clean the appliance with nothing
but water and a soft, damp cloth.

11
- Remove all detergent residue,
spray residue or other residues
immediately if they come into
contact with the appliance.
ENVIRONMENTAL
PROTECTION AND SAVING
ENERGY
Protect the environment: use resources
eciently when using your appliance and
dispose of recyclable materials properly.
Disposing of packaging
The packaging materials are
environmentally compatible and can be
recycled.
- Sort the individual components by
type and dispose of them separately.
Information on current disposal
options can be obtained from a
specialist dealer or at your municipal
oce.
Save energy and conserve
resources
If you follow these instructions, your
appliance will use less electricity and less
water.
Choose programmes with low
temperatures and longer wash times and
use “maximum load capacity”.
+ Energy consumption and water
consumption is most ecient.
Use the economy programme settings.
+ If you adjust the programme settings
for a programme, the display shows the
expected consumption.
“Add“ detergent based on the laundry’s
degree of soiling.
+ For light to normal soiling, a smaller
amount of detergent is sucient. Observe
the dosage recommendation from the
detergent manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
+ At low temperatures, the appliance
consumes less energy. For light to normal
soiling, lower temperatures than indicated
on the care label are also sucient.
Set the maximum spin speed if you want
to dry the laundry in a tumble dryer
afterwards.
+ The drier the laundry, the shorter the
programme duration when drying which,
in turn, reduces energy consumption. A
higher spin speed reduces the residual
moisture in the laundry and increases the
volume of the spin noise.
Washthelaundrywithoutprewash.
+Washingwithprewashincreasesthe
programme duration and increases
energy and water consumption.
The appliance has a continuous automatic
load adjustment function.
+ Depending on the type of fabric and
load capacity, the continuous automatic
load adjustment function optimally
adjusts the water consumption and
programme duration.

12
Energy saving mode
If you do not use the appliance for an
extended period, it automatically switches
to energy-saving mode. All displays go
out and Start/Reload ashes.
Energy-saving mode ends when you use
the appliance again, e.g. if you open or
close the door.
INSTALLATION AND
CONNECTION
Here you will learn where the best place
to install your appliance is. In addition,
you will learn how to connect your
appliance to the water supply and to the
mains.
Unpacking the appliance
Note: Please read the information in the
“Safety” and “Preventing material damage”
sections to ensure that you use the
appliance safely.
ATTENTION!
Objects remaining in the drum that are
not designed for operation with the
appliance may cause material damage
and damage to the appliance.
- Remove these objects, along with all
supplied accessories, from the drum
before starting the appliance.
1. Remove any packaging and protective
covers completely from the appliance.
For the environmentally friendly
disposal of the packaging materials,
observe the information on the topic of
→“Disposing of packaging”.
2. Check the appliance for visible
damage.
3. Open the door.
→“Basic operation”
4. Remove the accessory from the drum.
5. Close the door.

13

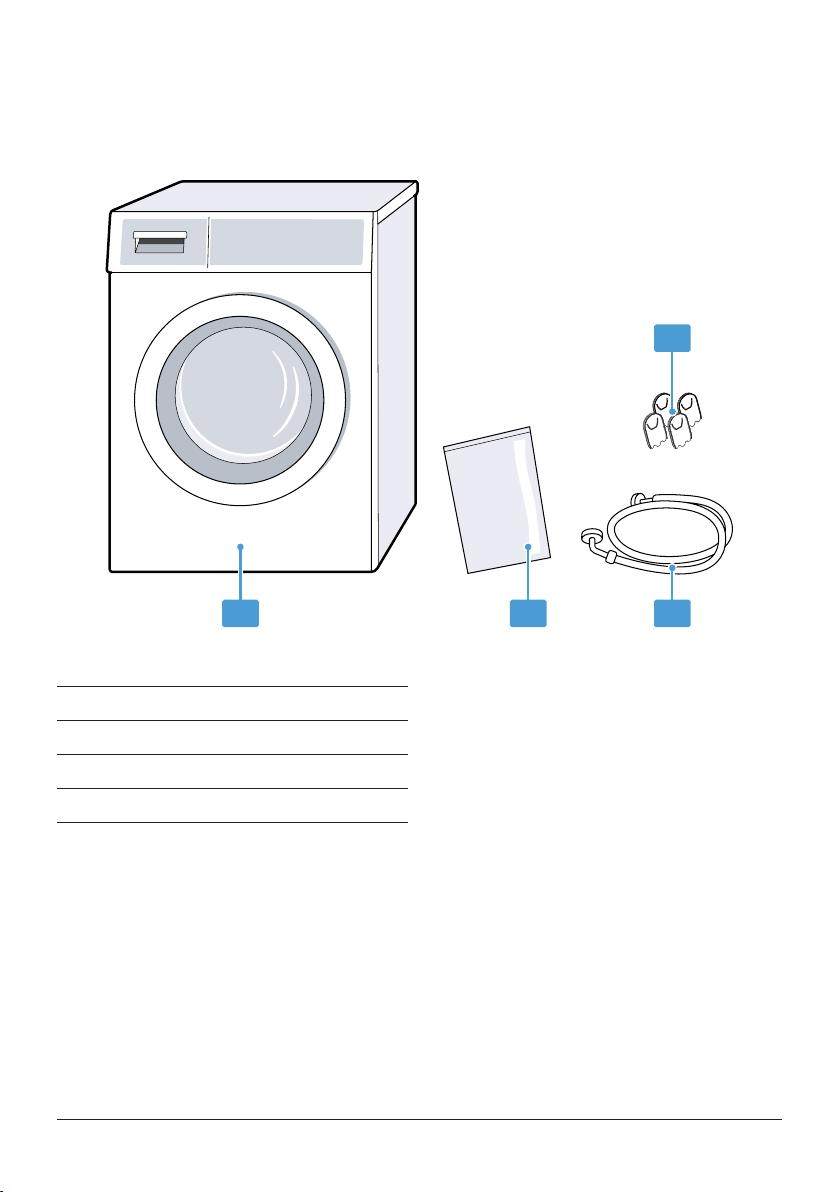

Contents of package
After unpacking all parts, check for any damage in transit and completeness of the
delivery.
  

1Washingmachine
2Accompanying documents
3Waterinlethose
4Cover caps
Requirements for the
installation location
The appliance may“wander” when it
spins. Observe the instructions for the
installation location.
Note: Please read the information in the
“Safety” and “Preventing material damage”
sections to ensure that you use the
appliance safely.

14
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
- Do not operate the appliance without a
cover cap.
WARNING
Risk of injury!
Whenusingtheapplianceonabase,the
appliance may tip over.
- Always secure the feet of the appliance
to a base using the manufacturer’s
“xing brackets”before using the
appliance for the rst time.
ATTENTION!
• Iftheapplianceisinstalledinareas
exposed to frost or outdoors, frozen
residual water may damage the
appliance and frozen hoses may crack
or split.
- Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoors.
• Theapplianceunderwentafunction
test before leaving the factory and
may, therefore, contain residual water.
This residual water may leak out if the
appliance is tilted at an angle greater
than 40°.
- Tilt the appliance carefully.
Installation location Requirements
On a base Secure the
appliance with
“xing brackets”.
Installation location Requirements
On a wooden joist
oor
Place the
appliance on a
water-resistant
wooden
board which is
screwed tightly
to the oor. The
wooden board
should be at
least 30 mm
thick.
In a kitchen unit • Anichewidth
of 60 cm is
required.
• Onlyinstall
the appliance
underneath
a continuous
work top that
is securely
connected
to adjacent
cabinets.
On a wall Do not trap the
hoses between
the wall and the
appliance.
Removing the transit bolts
The appliance is secured for transportation
using transit bolts on the rear of the appliance.
Notes
• Pleasereadtheinformationinthe
“Safety” and “Preventing material
damage” sections to ensure that you
use the appliance safely.
• Keepthetransitbolts,screwsand
sleeves in a safe place for future
“transport”.

15
1. Pull the hoses out of the holders.
2. Unscrew 1and remove 2all four
screwsforthetransitboltswithaWAF
13 wrench.
3. Pull the power cord out of the holder.
4. Remove the four sleeves.
5. Put on the four cover caps.
6. Press down on the four cover caps.

16
Connecting the appliance
Connect your appliance to the power
supply, water inlet and water outlet.
Connecting the water inlet hose
Note
• Pleasereadtheinformationinthe
“Safety” and “Preventing material
damage”sections to ensure that you
use the appliance safely.

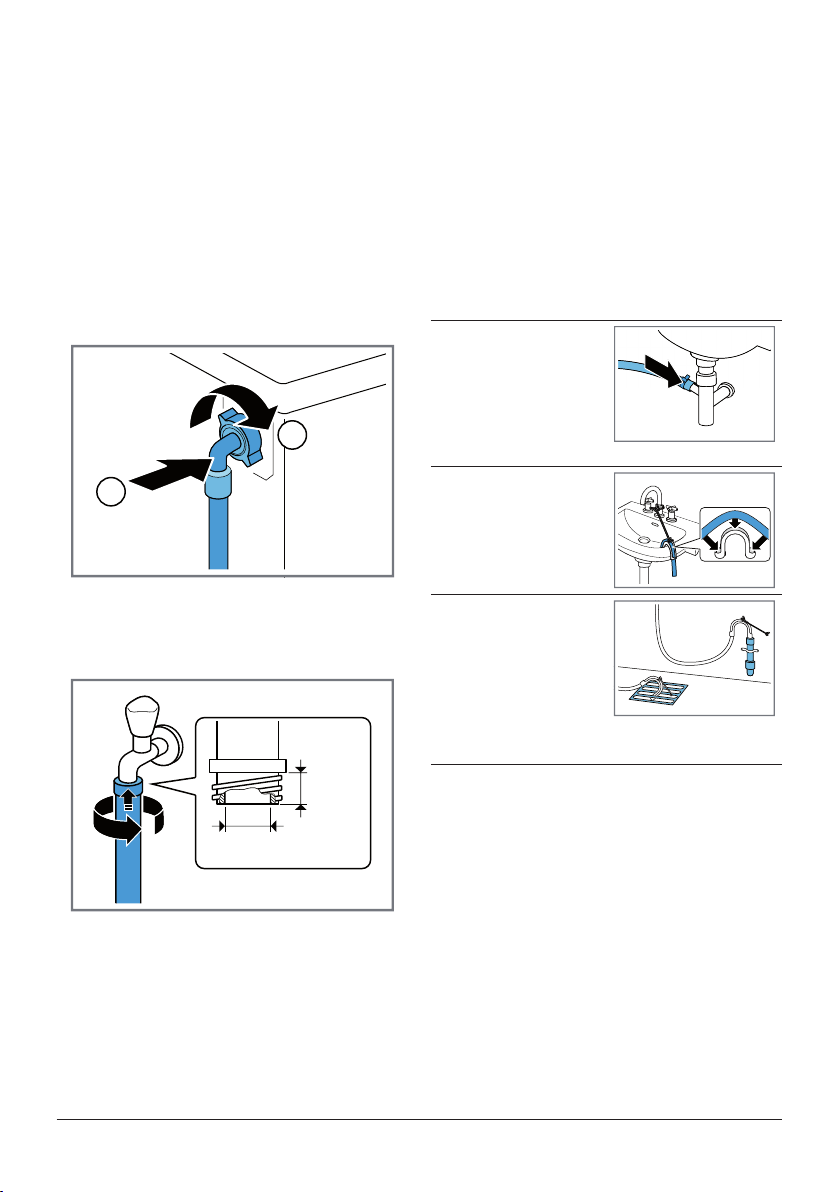

1. Connect the water inlet hose.


2. Connect the water inlet hose to a tap
(26.4 mm = 3/4”).

!
!
"
#
3. Open the water tap carefully and check
that the connection points are tight.
Water outlet connection types
This information is intended to help you
to connect this appliance to the water
outlet.
Note: Please read the information in the
“Safety” and “Preventing material damage”
sections to ensure that you use the
appliance safely.
ATTENTION!
Whendraining,thewateroutlethoseis
subject to water pressure and may come
loose from the installed connection point.
• Securethewateroutlethoseagainst
unintentional loosening.
Drainage into a
siphon
Secure the
connection point
with a (24–40 mm)
hose clamp.
Drainage into a
washbasin
Fix and secure the
water outlet using
an “elbow.”
Drainage into a
plastic pipe with
rubber sleeve or
into a gully.
Fix and secure the
water outlet using
an “elbow.”

17
Aligning the appliance
In order to reduce noise and vibration and
to prevent the appliance from moving,
align the appliance correctly.
Note: Please read the information in the
“Safety” and “Preventing material damage”
sections to ensure that you use the
appliance safely.
1.LoosenthelocknutsusingaWAF17
wrench by turning it in a clockwise
direction.
2. To align the appliance, turn the
appliance feet. Check that the
appliance is level using a spirit level.
All appliance feet must stand rmly on
the ground.
3. Screw the lock nuts tightly against the
housingusingaWAF17wrench.
In doing so, hold the foot tight and do
not adjust its height.
Connecting the appliance to
the electricity supply
Note: Please read the information in the
“Safety” and “Preventing material damage”
sections to ensure that you use the
appliance safely.
1. Insert the mains plug of the appliance’s
power cable in a socket nearby.
The connection details of the appliance
can be found under“Technical data”.
2. Check the mains plug is inserted
properly.

18
FAMILIARISING YOURSELF WITH YOUR APPLIANCE
Familiarize yourself with the parts of your appliance.
Appliance
You can nd an overview of the parts of your appliance here.


 


On certain models, specic details such as the colour and shape may dier from those
pictured.
1“Maintenanceapforthedrainpump”
2Door
3“Detergent drawer”
4“Controls”
5“Wateroutlethose”
6“Power cord”
7“Transit bolts”
