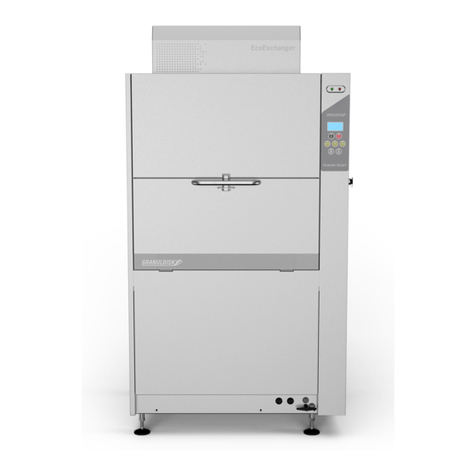

GRANULDISK GRANULE SMART+ User manual

®
USER MANUAL.
Art.no EN16400202010
GRANULDISK AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
www.granuldisk.com Tel. [phone]

Contents
CE Declaration of Conformity 5
1 General Description and Safety 7
1.1 User manual in original 7
1.2 To the user 7
1.3 Safety regulations 7
1.4 Technical data 9
1.5 PowerGranules®and Power Granules BIO®11
2 Operating 13
3 Daily cleaning 31
3.1 Collecting and cleaning of PowerGranules 31
3.2 Cleaning inside the tank 32
3.3 Replacement of cleaned items 37
3.4 Over night and at longer stoppages 37
3.5 EcoExchanger as an option – Periodical service
with cleaning 37
3.6 GD Memo™ 38
4 HACCP Hygiene and Operation
Documentation 41
4.1 Reading the data through the control panel 41
4.2 Accumulated values for electricity and water
consumption 42
4.3 Download of operation data from USB Port 43
5 Troubleshooting and alerts 45
5.1 User related notices and error codes 45
5.2 Course of action when finding shattered glass in a
Granule Smart+ 49
3

6 Notes 51
4

CE Declaration of Conformity
The Manufacturer:
GRANULDISK AB
Jägershillgatan 13
SE-213 75 MALMÖ, Sweden
declares that the following machinery:
The GRANULDISK system Granule Smart+®.
The Granule Smart+®is a Granule pot washing machine for commercial kitchens that is designed
for washing such wares as pots and pans.
Granule Smart+®is a unique potwasher which combines the award winning Granule Optimised
Washing Technology with a softer dishwashing technique for wash ware and utensils being used
in a production or serving kitchen.
Basic conception
a. the equipment, to which the CE Mark has been affixed, complies with the Machinery
Directive, 2006/42/EU
b. is besides the provisions under a) manufactured according to the following directives: the
EC Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU
c. is manufactured in conformity with the following harmonised standards: EN 60204-1, EN
55014-1, EN 60335-2-58, EN 61439-1, EN 55032, EN ISO 13850:2015, EN 61000-6-3
and EN 61000-6-2
d. is manufactured in accordance with EN 1717 and fitted with a type AB back flow protection
device with airgap in accordance with EN 13077:2018
e. is manufactured in accordance to the following directives: WEEE-directive 2011/65/EU and
RoHS 2012/19/EU
Technical documentation has been revised by Staffan Stegmark, Chief Technical Officer,
GRANULDISK AB
Rev. 2020-10 5

CE Declaration of Conformity
Malmö, Sweden 01.10.2020
Signed on behalf of
GRANULDISK AB
GRANULDISK AB
Jägershillgatan 13
213 75 MALMÖ
Phone: [phone]
Mikael SAMUELSSON
CEO and President
6 Rev. 2020-10

1 General Description and Safety
1.1 User manual in original
1.2 To the user
Granule Smart+®is a Granule pot washing machine for commercial kitchens that is designed
for washing pots and pans.
Granule Smart+®is a unique potwasher which combines the award winning Granule Optimised
Washing Technology with a softer dishwashing technique for wash ware and utensils being used
in a production or serving kitchen.
This manual is your guide for the correct use of the Granule Smart+®pot washing machine.
GRANULDISK recommends that you study the manual thoroughly to be sure that the machine is
installed and used correctly and safely.
Ensure that the manual is always available during the whole lifetime of the machine.
GRANULDISK accepts no responsibility for damage to the equipment or other damage or injury
caused by not following the directions in this manual.
1.3 Safety regulations
NOTE
Read the safety notes and operating instructions in this manual carefully. Keep the operating
instructions for future reference. GRANULDISK does not assume liability or warranty in case of
non-adherence to these safety and operating instructions.
Do not make changes, additions or reconstructions in the pot washer without the approval of the
manufacturer. Use the pot washer only after you have read and understood the user manual. Allow
GRANULDISK to provide information about the operation and functioning of the pot washer.
Always operate the machine as described in these operating instructions. Train the operating
personnel about handling of the machine and inform them about the safety notes. Repeat the
training sessions at regular intervals to prevent accidents.
Rev. 2020-10 7

1.3 Safety regulations 1 General Description and Safety
For your safety, test the local fault current circuit breaker (FI) regularly by pressing the test button.
Close the on-site water shut-off valve after the work is complete. Switch off the local mains
disconnector after the work is complete.
The composit material in the Granules is approved for use in conjunction with food.
WARNING
It is not allowed to sit or stand on the door.
WARNING
The machine uses hot water. Avoid contact with the skin as there is a scalding risk!
WARNING
Do not open the door during a wash cycle! Risk of burn.
WARNING
There is a risk of slipping if Granules are left on the floor.
WARNING
Formaldehyde, which is dangerous if inhaled, may be formed if the original Granules made of POM
plastics, catch fire. Does not apply for the Power Granules BIO.
NOTE
Regarding the handling and use of detergent and rinse aid with the product, please see the
chemical manufacturer’s instructions. Use high quality products for best wash result. Also refer to
information about detergent and rinse aid in the Service manual.
8 Rev. 2020-10

1 General Description and Safety 1.4 Technical data
1.4 Technical data
GENERAL
Design ................................. Round rotating stainless steel basket
External dimensions ................. 2079 (± 25) x 1025 x 1317 mm (H x W x D) open
Weight ................................. 465 kg (filled machine), 331 kg (empty machine)
Tank volume .......................... 108 litres
Loading volume ....................... 220 litres (Ø 700 mm x H 570 mm)
Rinse water volume .................. ECO program: 4 litres (According to DIN10512)
Short/Normal program: 6 litres
To achieve 3600 HUE according to NSF/ANSI 3 hygiene
guidelines, 6 litres is necessary.
Rinse water volume PLUS Mode ... 4 litres
Granule amount ...................... 8 litres
Wash water temperature ............. 65 °C
Rinse water temperature ............ 85 °C
Sound pressure level (Granule wash
mode) .................................. 70 dB(A)
PROGRAMS & CAPACITY
Wash programs w Granules ......... ECO 2 min, 30 sec (+70 sec w EcoExchanger options)
Short: 3 min, 30 sec (+70 sec w Steam reduction or +80
sec w EcoExchanger options)
Normal: 5 min, 30 sec (+70 sec w Steam reduction, or
+80 sec w EcoExchanger options)
Wash programs w/o Granules ....... ECO: 2 min, 30 sec (+70 sec w EcoExchanger option)
Short: 2 min, 40 sec (+70 sec w Steam reduction or +80
sec w EcoExchanger options)
Normal: 4 min, 40 sec (+70 sec w Steam reduction or
+80 sec w EcoExchanger options)
Wash programs PLUS (soft wash) .. ECO PLUS: 1 min, 30 sec (+10 sec w Steam reduction or
+ 70 sec w EcoExchanger)
Short PLUS: 2 min (+50 sec w Steam reduction or + 80
sec w EcoExchanger)
Normal PLUS: 2 min, 30 sec (+50 sec w Steam reduction
or +80 sec w EcoExchanger)
Max. / normal capacity per hour
(normal capacity incl. handling) ..... Standard Edition: 168/126 GN 1/1 or similar in other pots
FreeFlow Edition: 168/147 GN 1/1 or similar in other pots
Max. / normal capacity PLUS mode
(500 x 500 mm wash basket) ........ 40 baskets/33 baskets
Capacity per program ................ 6+1 GN 1/1 65 mm depth or 3 GN 1/1 up to 200 mm depth
and 3 GN 1/1 up to 65 mm depth, or similar in other pots.
ELECTRICAL CONNECTION
Voltage** .............................. 3~ 400-415 V/50 Hz + PE / 3~ 380 V/50 Hz + PE
Rev. 2020-10 9

1.4 Technical data 1 General Description and Safety
Fuse (at output 17.2 kW) ............ 32 A (400/415 V, 380 V)
Max output (hot or cold fill) .......... 17.2 kW
Wash pump motor .................... 2.2 kW
Wash pump motor PLUS mode ..... 0.7 kW
Rinse pump motor .................... 0.11 kW
Heater wash tank* .................... 14 kW
Heater rinse tank* .................... 14 kW
Enclosure rating ...................... IPX5
WATER CONNECTION
Hardness/Connection ................ Total hardness: 3-7 °dH, 5-12 °TH, 53-125 PPM /
¾” BSP male (DN20)
Connection A ......................... 17.2 kW unit: 1-6 bar, 15 l/min, 5-65 °C (hot or cold fill)
Connection F (optional) .............. 17.2 kW unit w. steam reduction (option): 3-6 bar,
15 l/min, < 20 °C
17.2 kW unit w. EcoExchanger (option): 1-6 bar, 15 l/min,
< 20 °C
DRAIN & VENTILATION
Ventilation with steam reduction .... 200 m³/h
Ventilation without steam reduction . 500 m³/h
Ventilation with EcoExchanger® .... 100 m³/h
Heat emitted to room with steam
reduction (total/sensible/latent) ..... 1.7 kW / 0.8 kW / 0.9 kW
Heat emitted to room without steam
reduction (total/sensible/latent) ..... 2.4 kW / 0.8 kW / 1.6 kW
Heat emitted to room with
EcoExchange®(total/sensible/latent)
.......................................... 1.3 kW / 0.8 kW / 0.5 kW
Drainage pipe ......................... Pipe Ø 32 mm (outer diameter)
Drain ................................... Capacity requirement 50 l/min. No drain pump, gravity
drain.
The machine must not be placed directly over a drain.
DETERGENT & RINSE AID
Detergent and rinse aid .............. Required. 230 VAC signal is available from a separate
box. Max load total 0.5 A.
* Not in use simultaneously
** For specific data regarding delivered machines, please see machine rating plate
NOTE
The Granule Smart+®is supplied with a 2 metres long electric cable to be
connected to an approved supply disconnecting device on the wall. The supply
disconnecting device is not included in the delivery.
10 Rev. 2020-10

1 General Description and Safety 1.5 PowerGranules®and Power
Granules BIO®
1.5 PowerGranules®and Power Granules BIO®
• PowerGranules are specially designed to work with Granule pot and pan washing machines
from GRANULDISK.
• They ensure the best wash result as well as the longest working life both for themselves
and the machine.
• The composit material is approved for use in conjunction with food.
• As of August 2020, we introduce PowerGranules BIO®, a biodegradable granule as an
alternative to our standard PowerGranule. This new product has the same properties and is
to be used in the same way as the standard PowerGranule.
Collection of PowerGranules as part of daily cleaning
• Insert your Granule collector in the machine as per instructions in Daily cleaning section of
this manual.
• Choose a “Granule collection program” by pressing “STOP”, waiting 3 seconds, then press
& hold Granule button and Short program button until the text “Granule collecting program”
appears in the display.
• For a spotless clean wash result, check the recommended level (8 litres) of Granules every
day when collecting the PowerGranules. Top up with PowerGranules if the level goes under
the horizontal level mark. (See Figure 28 Check Granule level.)
• Do not mix PowerGranules and PowerGranules BIO® in the machine. Technically there
will be no harm to the potwasher, however the waste management is different (see below)
and therefore we recommend exchanging the whole batch of Granules when switching to
PowerGranules BIO®.
Exchange of worn out PowerGranules
• Please follow the recommended exchange of PowerGranules communicated by the
GDMemo™ (message occurs every 2 500 Granule cycles). Run a Granule collection program
as per above and replace with a new batch.
• After exchanging the Granules, reset the reminder by pressing the STOP button, wait for 3
seconds, then press the Granule button 5 times. OK is shown in the display during 2 seconds
after the reset.
• Worn out Granules should be handled as non-hazardous waste. Used Granules should be
sealed in a plastic bucket with a lid or in a plastic bag before being disposed of. PowerGranules
can be sorted as recyclable plastic or combustible waste. PowerGranules BIO® should be
sorted as combustible waste or according to local regulations. PowerGranules BIO® is
biodegradable and therefore cannot be recycled as plastic.
Rev. 2020-10 11

1.5 PowerGranules®and Power Granules BIO®1 General Description and Safety

2 Operating
Start up
1. Place the tank grid in position.
Make sure the folded edge is upwards and
that the bigger holes in the grid are on top
of the wash nozzles.
See Figure 1 Tank grid
Figure 1: Tank grid
2. Put the basket wheel in place.
Swing in around until it drops down on the
pegs in the middle of the wheel.
See Figure 2 Basket wheel in place
Figure 2: Basket wheel in place
Rev. 2020-10 13

2 Operating
3. Empty the Granule Collector with
PowerGranules into the left part of the wash
tank.
See Figure 3 Granule filling
Figure 3: Granule filling
4. Close the drain valve on the front of the
machine
See Figure 4 Drain valve
5. Switch on the main electrical switch.
Figure 4: Drain valve
14 Rev. 2020-10

2 Operating
Filling with water
1. Close the door.
2. Press the Confirm (1) button in order to fill
the wash tank.
Fill wash tank?
3. The machine will now fill with water and
heat up to the correct temperature. On the
panel, the diodes for program selection
(3-5) flash out of sequence with the diodes
for washing with or without Granules (6-7)
during filling. The following message is
displayed:
XX°C XX°C
Filling the wash
tank
4. Filling and heating takes about 20 minutes
(standard; hot water connection, +55 °C).
For optional cold water connection (+10 to
12 °C), filling and heating take about 40
minutes. If the correct temperature has not
been attained in the wash tank after filling,
the following message is displayed:
50°C 60°C
Heating the
wash tank, 65°C
Figure 5: Control panel
Rev. 2020-10 15

2 Operating
5. Ready to use when the correct temperature
has been attained in the wash tank. A
pre-selected program is now displayed;
65°C 70°C
Eco program
with Granules
wash time: 2:20
NOTE
Indication lamps
RED LAMP; indicates that
the machine is working.
Do not open the door!
GREEN LAMP; indicates
that the machine is ready
for use.
Figure 6: Indication lamps
Preparing utensils
1. Empty and scrape off all food remains
before loading the utensils (Figure 7 Scrape
off food).
• No soaking or scrubbing is needed.
• No usage of hand-soap or similar (to
avoid foaming which could lead to
extended problems)
2. Pots and pans containing moist protein-rich
food remains may need a splash of water
before being loaded into the machine.
Figure 7: Scrape off food
Loading pots and pans
All utensils must be loaded with the inside facing the spray pipes, thus dirty side facing outwards. It
is important that all items are firmly in place when being washed.
16 Rev. 2020-10

2 Operating
Loading the basket
Take the basket half way out of the machine (the
basket standing partly on the door.)
When the basket is loaded with pots and pans,
slide the wash basket into the machine. The
basket is designed so that you clearly feel when
the basket is placed correctly on the basket
wheel.
Check that nothing is sticking out from the
basket’s sides or bottom. The basket rotation
must not be hindered.
See Figure 8 Loading and unloading.Figure 8: Loading and unloading
Basket lift
Through the built in basket lift, the basket can
smoothly be taken out onto the door (integrated
table) for loading and unloading.
See Figure 9 Basket lift
Figure 9: Basket lift
Standard wash basket (26426)
Capacity: 6+1 GN 1/1 65 mm or 3 GN 1/1 up
to 200 mm + 3 GN 1/1 up to 65 mm. Equipped
with small hooks which enables up to 12 small
containers (1/4, 1/6, 1/9) to be loaded directly
into the wash basket.
See Figure 10 Standard wash basket
Figure 10: Standard wash basket
Rev. 2020-10 17

2 Operating
Possible to load 6 x GN 1/3.
Possible to load 12 x small GN containers.
Choose among GN 1/4, GN 1/6, GN 1/9.
See Figure 11 Standard wash basket
Figure 11: Standard wash basket
Insert for trays (19992)
To be placed inside standard wash basket
(26426). Holds 2 GN 2/1 or, 6 baking trays
600x400 mm up to 20 mm edge and 2 GN 1/1
sized trays, up to 16 grids, up to 8 chopping
boards and GN 1/1 lids.
Possible to load grids, chopping boards, baking
trays, flat trays and GN 1/1 lids.
See Figure 12 Insert for trays with GN 2/1
Figure 12: Insert for trays with GN 2/1
See Figure 13 Insert for trays
Figure 13: Insert for trays
18 Rev. 2020-10

2 Operating
Holder for bowls & pots with integrated ladle
holder (13756)
To be placed inside standard wash basket
(26426). Capacity: up to 5-6 bowls or pots.
Containers from approx 60 mm to 170 mm deep
can be washed.
Possible to load ladles, whisks, spatulas and
similar in the net basket in the middle of the
holder. Height of ladles up to 500 mm.
This accessory is placed in the standard wash
basket, small pegs in the bottom of the basket
hold it in place.
See Figure 14 Holder for pots and bowls Figure 14: Holder for pots and bowls
Flexible pot holder (13789)
Rubber strap with two hooks. Rubber strap to be
placed around pot and hooked on to the basket.
Be careful when fastening and releasing the
rubber bands as the hooks may cause harm.
See Figure 15 Flexible pot holder.
Figure 15: Flexible pot holder
Rev. 2020-10 19

2 Operating
Multiflex holder for saucepans, small bowls,
sieves (20554)
To be placed inside standard wash basket
(26426). Capacity: up to 3-4 saucepans or up to
4-5 small bowls, sieves etc.
See Figure 16 Multiflex holder
Figure 16: Multiflex holder
Wash basket with bottom grid (26140)
Same capacity as the standard wash basket
(26426). The bottom grid prevents handles etc
from slipping through the bottom of the basket.
See Figure 17 Wash basket with bottom grid
Figure 17: Wash basket with bottom grid
Pot basket (21423)
Holds 2 large pots (200 mm) or 1 large pot (400
mm) Placed in machine instead of Standard
wash basket.
See Figure 18 Pot basket
Figure 18: Pot basket
20 Rev. 2020-10
