Quadra is the Answer!

Loud Professional
General information
Quadra Series User Manual
Version: 1.0 en_01/01/2021
Copyright © 2021 by Loud Pro S.r.l. Italy; all rights
reserved.
Loud Professional reserves the right to alter any specications
to the products and published documentations without notice.
Keep this document with the product or in a safe place
so that it is available for future reference.
We recommend you to regularly check the Loud Professional website for the
latest version of this document.
When reselling this product, hand over this document to the new
owner.
If you supply Loud Professional products, please draw the attention of your
customers to this document. Enclose the relevant documents with
the systems. If you require additional documents for this purpose,
you can order them from Loud Professional.
Loud Professional Italy
Via Sebino,29 - 00199 Roma, Italy
Tel: [phone]
Fax: [phone]
[email protected]
loudprofessional.com
Loud Professional Quadra Series User Manual V_1.0 en / pag.02
General information
Loud Professional
TM

Table of contents
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.03
1Safety symbols & Precautions (04 - 11)
2Product description & System type (12 - 16)
3Technical specications (17 - 21)
3.1 Frequency response (22)
3.2 Wiring system & Transducers connection types (23 - 27)
3.3 Cables & Cable accessories (29 - 30)
3.4 Dedicated presets & Settings (31)
3.5 System congurations (32 - 34)
3.6 Suggested ampliers (35)
4System components & Accessories (36 - 40)
5Technical drawings (41 - 46)
6EU Conformity Declaration - CE (47)
7Coordinates (48)
Loud Professional
TM

Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.04
LoudProfessional
LoudProfessional
Flying
Kg
IP51
Loud Professional
Safety symbols
Loud Professional
TM

LoudProfessional
TM
LoudProfessional
TM
LoudProfessional
TM
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.05
Safety symbols
Loud Professional
TM
LoudProfessional
TM
LoudProfessional
TM
LoudProfessional
TM
LoudProfessional

Loud Professional
Warning !
This system is intended for professional use.
It is mandatory to read this manual before using the Quadra Series system.
Inspect the product before any operations.
Never integrate dierent equipment or accessories not approved by Loud Professional
Important operating instructions.
Loud Professional Quadra Series User Manual V_1.0 en / pag.06
Assembly operations should always be carried out by minimum two authorized personnel.
LoudProfessional
LoudProfessional
Instructions must be strictly followed by operators to ensure proper installations.
Qualied personnel must not assume rigging parts or any system componenents if not have been
inspected, prior to use by someone else.
Observe all instructions given on the respective instruction labels of the rigging components such as
load beams, ying and compression frames, touring carts and loudspeaker cabinets.
During assembly and disasssembly operations necessarily wear suitable protective clothing and
safety devices. Pay attention to any potential risk of personal injury due to possibility of crushing.
Precautions
Loud Professional
TM

Warning !
Electric and electronic devices must be disposed separately from normal waste!
Loud Professional Quadra Series User Manual V_1.0 en / pag.07
Precautions
Loud Professional
TM
Dispose of this product in the specic locations indicated according to local regulations and
agreements.

Loud Professional
Warning !
Be aware of high wind force.
Be aware of laser beams.
Loud Professional Quadra Series Manual V_1.0 en / pag.08
Be aware of sound levels.
Be aware of excessive loads.
Kg
in outdoor envinroments it is advisable to have an anemometer. Flying loudspeakers overhead at
wind force higher than 6 bft (20 knots), is not recommended.
If the wind force exceeds 8 bft (35 knots):
- Make sure that no people remains in the closer proximity of the array
- Lower and secure the array (Flown & Clustered speakers).
Pay attention, excessive loads can cause permanent personal injury. Please check and respect the
regulations relating to maximum load handled per person.
Loudspeaker systems are capable of producing very high sound pressure levels (SPL) which can
instantaneously lead to permanent hearing damage to performers, production crew and audience
members. Hearing damage an also occur at moderate level with prolonged exposure to sound. Check
the applicable laws and regulations relating to maximum sound levels and exposure times.
In connection with a laser inclinometer take precautions to prevent anyone from looking directly into
the laser beam and wear appropriate eye protection. Laser beams can cause permanent personal
injury.
Precautions
Loud Professional
TM

Loud Professional
Warning !
Attention! Crushing points.
Loud Professional Quadra Series User Manual V_1.0 en / pag.09
Flying
Attention! Do not open, risk of electric shock.
Attention! Electronic devices must be ground earthed.
Attention! Do not leave electronic devices exposed to extreme conditions.
Attention! Check the IP rate specications on the user manual.
Attention! Potential risk of damages.
Attention! Channels overlap.
LoudProfessional
Attention! In case of assistance read carefully the operating instructions.
Attention! Possible overturning causes damages and personal permanent injury.
Precautions
Loud Professional
TM
IP

Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.10
Safety symbols
Loud Professional
TM
Do not stack on unstable surfaces.
Do not stack on downhill surfaces.
It is really dangerous to stand speakers on downhill surfaces,
risk of overturning! This can causes damages and permanent
personal injury.
It is really dangerous to stand speakers on unstable surfaces,
risk of overturning! This can causes damages and permanent
personal injury.
Warning !
LoudProfessional
TM
LoudProfessional
TM
LoudProfessional
TM

Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.11
Safety symbols
Loud Professional
TM

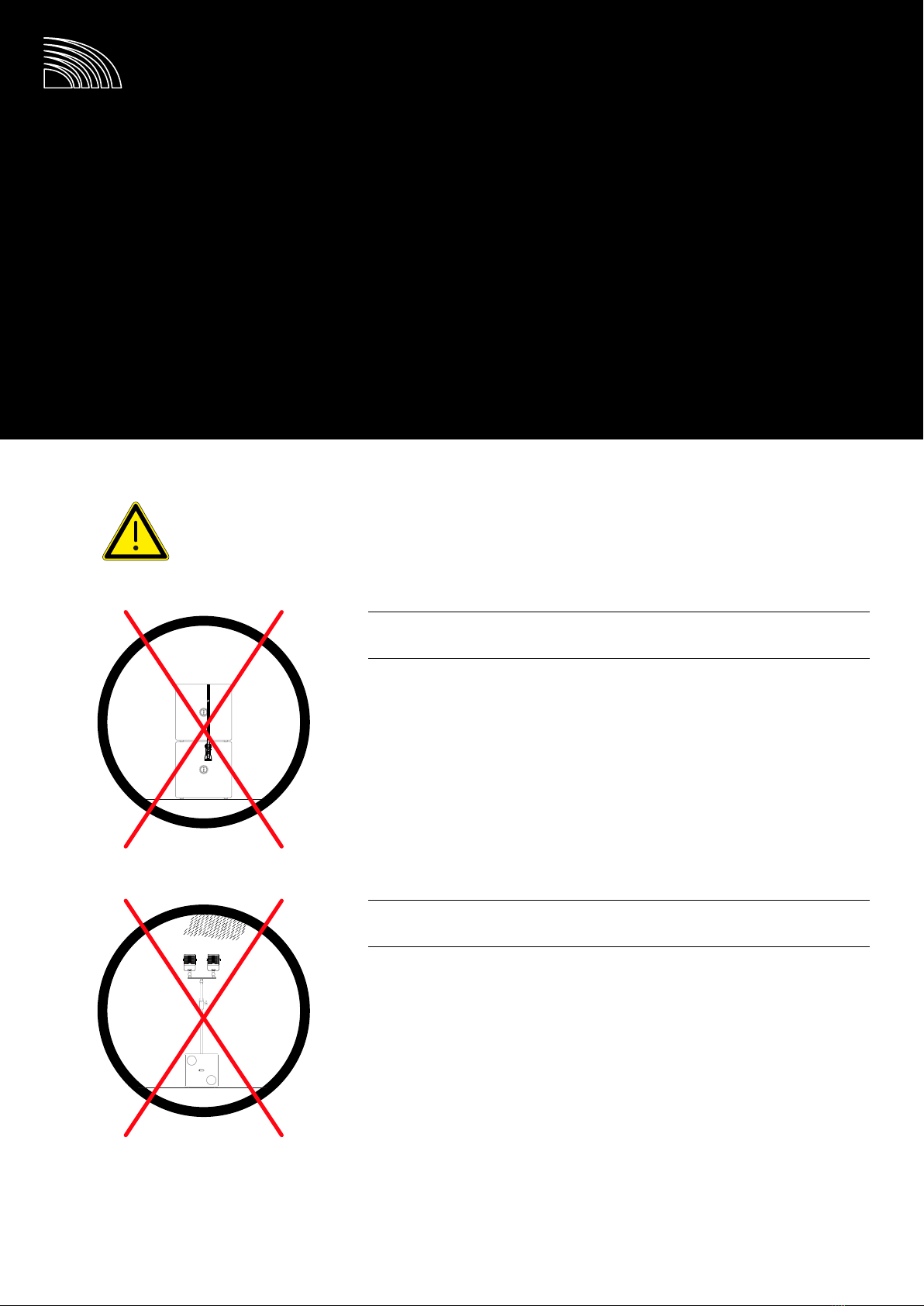

Do not leave speakers exposed to extreme weather conditions.
It is dangerous to leave speakers and electronic devices
exposed to extreme weather conditions, this may cause
permanent demages due to heavy downpours, humidity, wind
and hot air temperatures. Please, before any use, check the IP
Rate specications.
Do not stack speakers without a properly xed security belt.
It is really dangerous to stack subwoofers without securing
them using a safety belt properly xed, risk of overturning!
This can causes damages and permanent personal injury.
Warning !
LoudProfessional
TM
LoudProfessional
TM
LoudProfessional
TM
LoudProfessional

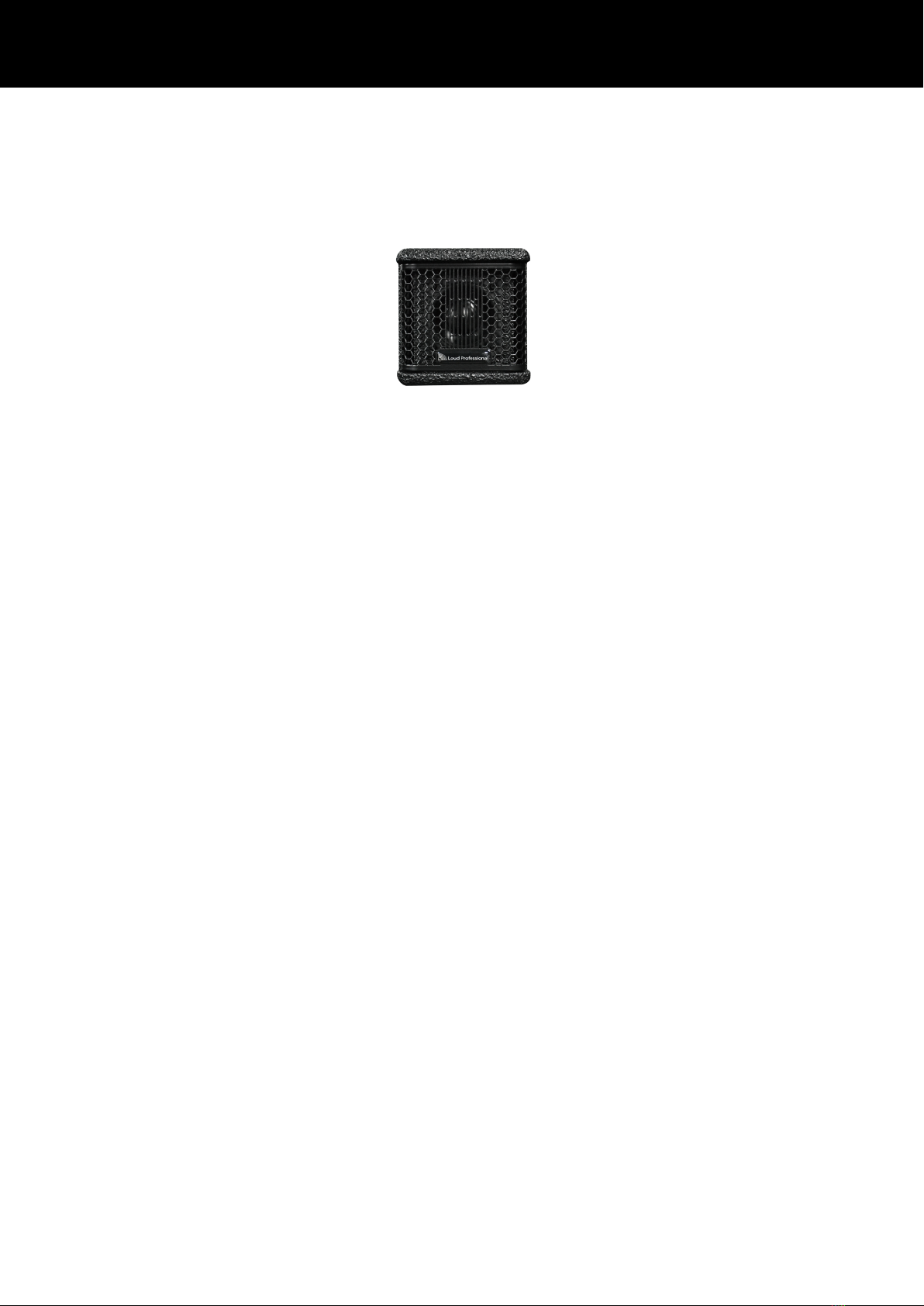

Quadra2, "The Two", extra-small sized, is the smallest speaker of the range. With all sides of 100 mm, it can
be quite literally handled in your hands. Weighs no more than 0,5 Kg and it can t wherever you need,
even in the most unthinkable places.
Two, is the transducer dimension (2in.), it's the only one installed on-board and it's the smallest Loud Pro
Full Range driver ever used before.
Logically supported in the lower frequencies response, it is capable of delivering an extraordinary sound
impact as you cannot expect from speakers of that size.
Designed to be easily integrated in all kind of installations where a distributed line is required, such as
malls, shops, restaurants, lounge bars, it also shows itself extremely useful for residential uses and private
ceremonies, physically blending in the architecture and disappearing from the sight, mostly thanks to its
ultra-compact dimensions and to the customizable colors of the box and the front cloth.
A complete range of accessories makes it happen. Quadra2 can be wall/ceiling mounted using its own
bracket xable on both sides (Left/Right & Top/Bottom), due to the four M6 threaded inserts.
All Quadra Full Ranges can be installed on a microphone stand or on a standard speaker stand, this one
using a dedicated bracket adapter. The speakers can be tilted both cases.
A pole mounting kit allows the speaker to be installed on top of a Sub/Bass unit (QuadraS - HP, NucleoS,
GammaS8), boosting its LF contour down to 45 Hz as a stand alone system.
It's reasonable to think this system usable for small-sized live performance venues, but only if properly
congured.
The rear side features a single 4 pole Phoenix™ connector, extremely helpful for installed applications.
Signicant construction criteria, combined with the latest technologies and innovative materials, ensure
a great reliability over time.
Quadra2 cabinet is constructed from marine Birch-ply and has an impact and weather protected PCP
(Polyurea Cabinet Protection) nish.
A color range (RAL Architectural program) makes all Quadra speakers, for an easy integration, most appro-
priate for each installation depending on the architectural and furniture requirements.
Applications: Conference Halls, Theaters, Shops & Commercial Centers, Small Clubs, Pubs, Lounge Bars &
Restaurants, Houses & Apartments, Ceremonies.
2 Quadara2 - Product description & System type
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.12

Quadra4, "The Four", extra-small sized, is one of the smallest speaker of the range. With all sides of 130
mm, it can be quite literally handled in your hands. Weighs no more than 0,8 Kg and it can t wherever you
need, even in the most unthinkable places.
Four, is the transducer dimension (4in.), it's the only one installed on-board and it's one of the smallest
Loud Pro Full Range driver ever used before.
Logically supported in the lower frequencies response, it is capable of delivering an extraordinary sound
impact as you cannot expect from speakers of that size.
Designed to be easily integrated in all kind of installations where a distributed line is required, such as
malls, shops, restaurants, lounge bars, it also shows itself extremely useful for residential uses and private
ceremonies, physically blending in the architecture and disappearing from the sight, mostly thanks to its
ultra-compact dimensions and to the customizable colors of the box and the front cloth.
A complete range of accessories makes it happen. Quadra4 can be wall/ceiling mounted using its own
bracket xable on both sides (Left/Right & Top/Bottom), due to the four M6 threaded inserts.
The same bracket can also be used to x the speaker on the QuadraS - HP top panel as close coupling,
creating a true stand alone Point source element.
All Quadra Full Ranges can be installed on a microphone stand or on a standard speaker stand, this one
using a dedicated bracket adapter. The speakers can be tilted both cases.
A pole mounting kit allows the speaker to be installed on top of a Sub/Bass unit (QuadraS - HP, NucleoS,
GammaS8), boosting its LF contour down to 45 Hz as a stand alone system.
It's reasonable to think this system usable for small-sized live performance venues, but only if properly
congured.
The rear side features two 4 pole Phoenix™ connectors, extremely helpful for installed applications.
Signicant construction criteria, combined with the latest technologies and innovative materials, ensure
a great reliability over time.
Quadra4 cabinet is constructed from marine Birch-ply and has an impact and weather protected PCP
(Polyurea Cabinet Protection) nish.
A color range (RAL Architectural program) makes all Quadra speakers, for an easy integration, most appro-
priate for each installation depending on the architectural and furniture requirements.
Applications: Conference Halls, Theaters, Shops & Commercial Centers, Small Clubs, Pubs, Lounge Bars &
Restaurants, Houses & Apartments, Ceremonies.
2 Quadra4 - Product description & System type
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.13

Quadra5, "The Five", is the mid-sized speaker of the range. With all sides of 160 mm, it can be quite literally
handled in your hands. Weighs no more than 2 Kg and it can t wherever you need with ease.
Five, is the transducer dimension (5in.), featuring a coaxial Full Range driver, that provides an exceptional
wide frequency response from 90 Hz up to 22 kHz.
The Neodymium tweeter (0.55in.), coaxially mounted on the same Mid-bass magnet structure, delivers a
really smooth and at response for a clear and precise Mid-Hi frequency reproduction.
Logically supported in the lower frequencies, Quadra5 is capable to perform an extraordinary sound
impact as you cannot expect from speakers of that size.
Designed to be easily integrated in all kind of installations where a distributed line is required, such as
malls, shops, restaurants, lounge bars, it also shows itself extremely useful for residential uses and private
ceremonies, physically blending in the architecture and disappearing from the sight, mostly thanks to its
ultra-compact dimensions and to the customizable colors of the box and the front cloth.
A complete range of accessories makes it happen. Quadra5 can be wall/ceiling mounted using its own
bracket xable on both sides (Left/Right & Top/Bottom), due to the four M6 threaded inserts.
The same bracket can also be used to x the speaker on the QuadraS - HP top panel as close coupling,
creating a true stand alone Point source element.
All Quadra Full Ranges can be installed on a microphone stand or on a standard speaker stand, this one
using a dedicated bracket adapter. The speakers can be tilted both cases.
A pole mounting kit allows the speaker to be installed on top of a Sub/Bass unit (QuadraS - HP, NucleoS,
GammaS8), boosting its LF contour down to 45 Hz as a stand alone system.
It's reasonable to think this system usable for small-sized live performance venues, but only if properly
congured.
The rear side features two 4 pole Phoenix™ connectors, extremely helpful for installed applications.
Signicant construction criteria, combined with the latest technologies and innovative materials, ensure
a great reliability over time.
Quadra5 cabinet is constructed from marine Birch-ply and has an impact and weather protected PCP
(Polyurea Cabinet Protection) nish.
A color range (RAL Architectural program) makes all Quadra speakers, for an easy integration, most appro-
priate for each installation depending on the architectural and furniture requirements.
Applications: Conference Halls, Theaters, Shops & Commercial Centers, Small Clubs, Pubs, Lounge Bars &
Restaurants, Houses & Apartments, Ceremonies.
2 Quadra5 - Product description & System type
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.14

Quadra6, "The Six", is the larger speaker of the range. About 220 mm large, weighs no more than 3.5 Kg.
Six, is the transducer dimension (6.5in.), featuring a coaxial Full Range driver tuned in a bass reex vented
box. The system provides a really wide frequency response from 75 Hz up to 22 kHz.
The Neodymium tweeter (0.55in.), coaxially mounted on the same Mid-bass magnet structure, delivers a
really smooth and at response for a clear and precise Mid-Hi frequency reproduction.
Logically supported in the lower frequencies, Quadra6 is capable to perform an extraordinary sound
impact as you cannot expect from speakers of that size.
Designed to be easily integrated in all kind of installations where a distributed line is required, such as
malls, shops, restaurants, lounge bars, it also shows itself extremely useful for residential uses and private
ceremonies, physically blending in the architecture and disappearing from the sight, mostly thanks to its
ultra-compact dimensions and to the customizable colors of the box and the front cloth.
A complete range of accessories makes it happen. Quadra6 can be wall/ceiling mounted using its own
bracket xable on both sides (Left/Right & Top/Bottom), due to the four M6 threaded inserts.
The same bracket can also be used to x the speaker on the QuadraS - HP top panel as close coupling,
creating a true stand alone Point source element.
All Quadra Full Ranges can be installed on a microphone stand or on a standard speaker stand, this one
using a dedicated bracket adapter. The speakers can be tilted both cases.
A pole mounting kit allows the speaker to be installed on top of a Sub/Bass unit (QuadraS - HP, NucleoS,
GammaS8), boosting its LF contour down to 45 Hz as a stand alone system.
The rear side features two 4 pole Phoenix™ connectors, extremely helpful for installed applications.
It's reasonable to think this system usable for small-sized live performance venues, but only if properly
congured.
Signicant construction criteria, combined with the latest technologies and innovative materials, ensure
a great reliability over time.
Quadra6 cabinet is constructed from marine Birch-ply and has an impact and weather protected PCP
(Polyurea Cabinet Protection) nish.
A color range (RAL Architectural program) makes all Quadra speakers, for an easy integration, most appro-
priate for each installation depending on the architectural and furniture requirements.
Applications: Conference Halls, Theaters, Shops & Commercial Centers, Small Clubs, Pubs, Lounge Bars &
Restaurants, Houses & Apartments, Ceremonies.
2 Quadra6 - Product description & System type
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.15

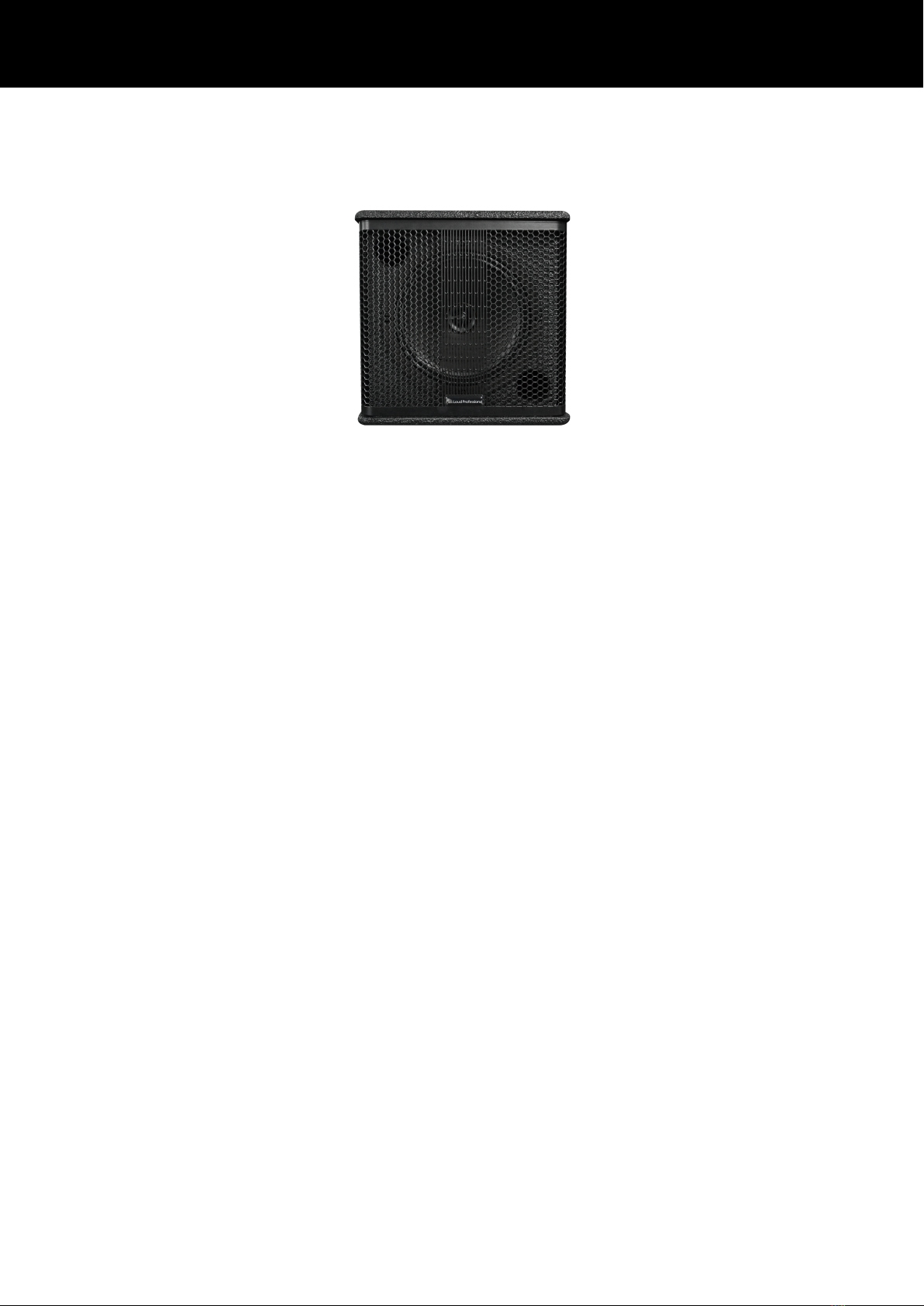

QuadraS - HP maintains the same look of all Quadra speakers, it's boxy in appearance but simply elegant!
It's an installation-specic Sub/Bass unit, featuring a single long excursion 8in. in a Band-pass design, that
provides incredible High Performances, even if a small diameter transducer is in charge of it.
The Band-pass design produces signicant performance benets in terms of eciency, low distortion and
deepest bass extension down to 45 Hz (40 Hz @ -10dB), not comparable to traditional vented box of equal
size, always providing a clear and smooth response for the maximum listening comfort.
QuadraS - HP has been designed to increase the Quadra Extended Range speakers headroom, boosting
their LF contour and oering a really wide operating range from 40 Hz up to 20 kHz.
The close coupling of the two sub-systems (Sub/Bass and Extended Range speakers), thanks to the right
alignment, allows to obtain a true stand alone Point source element, delivering a coherent wavefront
output across the entire reproducible frequencies spectrum.
Two M6 threaded inserts on the top panel of QuadraS - HP make it easier and faster. A M20 built-in
adapter, on the same top panel, allows all Quadra speakers to be pole mounted.
QuadraS - HP can also be hanged on the ceiling, a special bracket favors the hanging of this unit, with or
without each Quadra Extended Range combined together.
QuadraS - HP is ideally suited for permanent or temporary installed specic applications and it is also
particularly useful for all applications where high standard SPL are not required, as well as distributed
sound in small venues, Small clubs, Lounge Bars & Restaurants and more others.
it is also an ideal companion for Home Dolby Cinema applications as well as Broadcast and Studio Record-
ing, thanks to its ability to extend the response toward the low-end region.
Signicant construction criteria, combined with the latest technologies and innovative materials, ensure
a great reliability over time. QuadraS - HP cabinet is constructed from marine Birch-ply and has an impact
and weather protected PCP (Polyurea Cabinet Protection) nish.
A color range (RAL Architectural program) makes all Quadra speakers, for an easy integration, most appro-
priate for each installation depending on the architectural and furniture requirements.
Applications: Conference Halls, Theaters, Shops & Commercial Centers, Small Clubs, Pubs, Lounge Bars &
Restaurants, Houses & Apartments, Ceremonies.
2 QuadraS - HP - Product description & System type
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.16

CONFIGURATION
Operating ModeAmplier Channels
Nominal Directivity
90° x 90° conical
Maximum peak SPL Axial sensitivity (2.83V @ 1mt)
Nominal Impedance
Power Handling
In & Out Connections
Description
1 x Phoenix™ 4 Pole
connector
Pin assignment:
1 LMF - MHF pos.
2 LMF - MHF neg.
3 Link
4 Link
Full Range cone driver loaded in a closed enclosure
Linea Research & A+
84 dBLMF - MHF
8 Ω (Internal HPF lter)LMF - MHF
Components
1 x 2in. (50 mm) Neodymium Full Range cone driverLMF - MHF
LMF - MHF
LMF - MHF
25 / 100 W
(AES / Peak)
Continuos
98 dB
Peak
104 dB
DImensions
Height (Front)
Height (Rear)
Width (Front)
Width (Rear)
Depth
Weight
100 / 03.93
100 / 03.93
100 / 03.93
100 / 03.93
100 / 03.93
0.5 / 01.10
H,W,D, (mm / in.)
Weight (Kg / lbs)
LMF - MHF
LMF - MHF
PERFORMANCE
Frequency Range170 Hz - 20 kHz (130 Hz @ -10 dB)
Recommended HPF System ≥ 170 Hz, 24 dB/octave
Suggested System High Pass Filter ≥ 220 Hz, 24 dB/octave
LMF - MHF
Crossover point
130 Hz HPF 24 dB/octave
Shell Construction
Description & IP Rate
Multi-laminate
Birch-ply 9/12 mm
PCP (Polyurea Cabinet
Protection) - Optional
custom color
1.5 mm Powder coated
Metal Rigid Grille
Acoustically transparent
Cloth for discrete
appearance - Optional
custom color
IP 51
Supported Processing
Acoustic Load

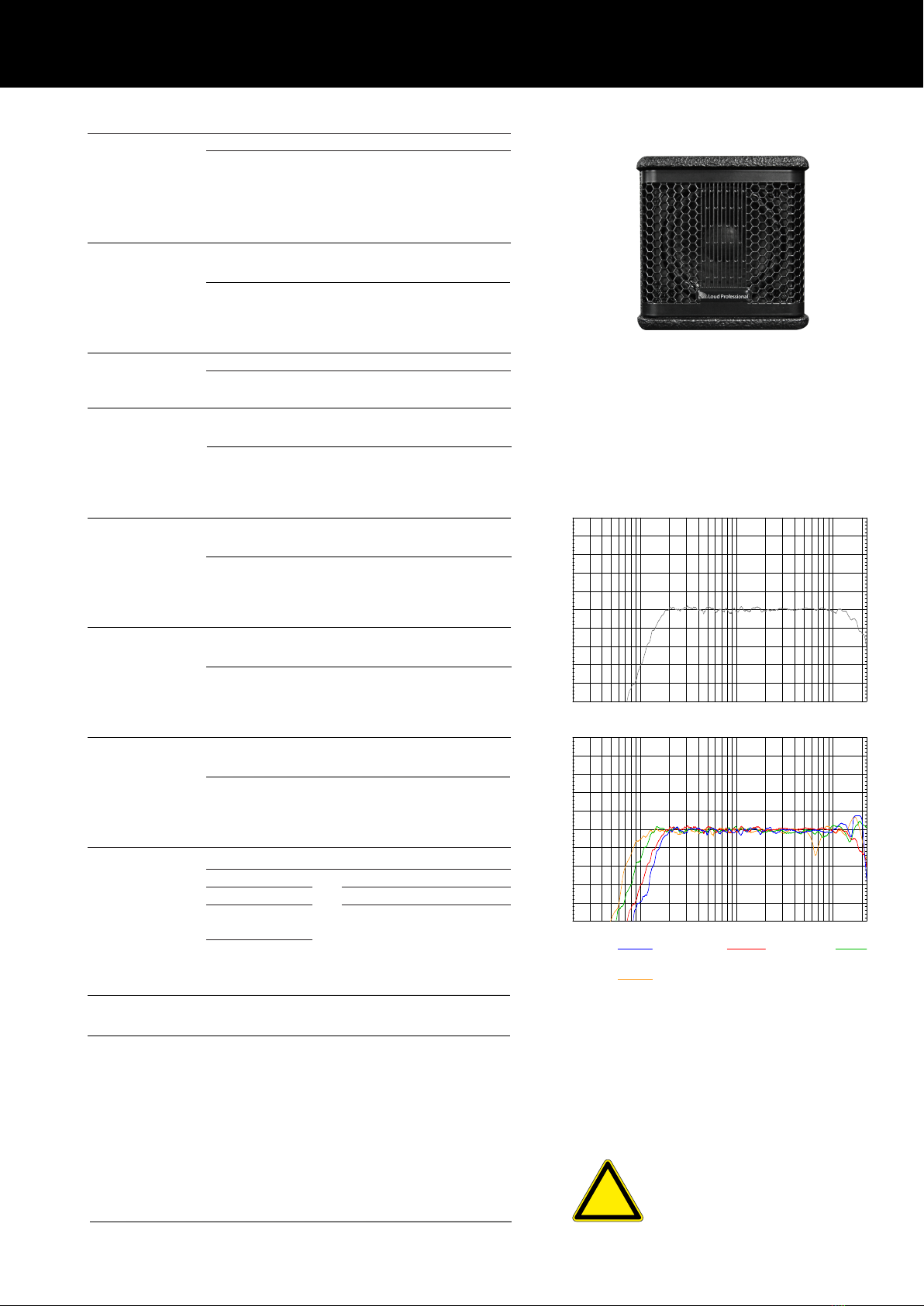

3 Quadra2 - Technical specications
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.17
Powersoft Mezzo Series:
322A / 604A & 322AD / 604AD
Powersoft Quattrocanali Series:
1204 DSP & DSP+D
Suggested Ampliers
Cabinet per channel
1
1 to 4
Suggested
4
20 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
*A+ Standard Preset v_4.2 current release.
Quadra2 Quadra4 Quadra5
Quadra6
Loud Professional Quadra2 - Frequency Response
*
2020 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
20
IP51
Frequency Response comparison *

CONFIGURATION
Operating ModeAmplier Channels
Nominal Directivity
90° x 90° conical
Maximum peak SPL Axial sensitivity (2.83V @ 1mt)
Nominal Impedance
Power Handling
In & Out Connections
Description
2 x Phoenix™ 4 Pole
connectors
Pin assignment:
1 LMF - MHF pos.
2 LMF - MHF neg.
3 Through
4 Through
Full Range cone driver loaded in a closed enclosure
Linea Research & A+
92 dBLMF - MHF
8 Ω (Internal HPF lter)LMF - MHF
Components
1 x 4in. (100 mm) Neodymium Full Range cone driverLMF - MHF
LMF - MHF
LMF - MHF
40 / 160 W
(AES / Peak)
Continuos
108 dB
Peak
114 dB
DImensions
Height (Front)
Height (Rear)
Width (Front)
Width (Rear)
Depth
Weight
130 / 05.11
130 / 05.11
130 / 05.11
130 / 05.11
130 / 05.11
0.8 / 01.70
H,W,D, (mm / in.)
Weight (Kg / lbs)
LMF - MHF
LMF - MHF
PERFORMANCE
Frequency Range130 Hz - 18 kHz (110 Hz @ -10 dB)
Recommended HPF System ≥ 100 Hz, 24 dB/octave
Suggested System High Pass Filter ≥ 130 Hz, 24 dB/octave
LMF - MHF
Crossover point
90 Hz HPF 24 dB/octave
Shell Construction
Description & IP Rate
Multi-laminate
Birch-ply 9/12 mm
PCP (Polyurea Cabinet
Protection) - Optional
custom color
1.5 mm Powder coated
Metal Rigid Grille
Acoustically transparent
Cloth for discrete
appearance - Optional
custom color
IP 51
Supported Processing
Acoustic Load
3 Quadra4 - Technical specications
Loud Professional Quadra Series User Manual V_1.0 en / pag.18
Powersoft Mezzo Series:
322A / 604A & 322AD / 604AD
Powersoft Quattrocanali Series:
1204 DSP & DSP+D
Suggested Ampliers
Cabinet per channel
1
1 to 4
Suggested
4
20 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
*A+ Standard Preset v_4.2 current release.
Quadra2 Quadra4 Quadra5
Quadra6
Loud Professional Quadra4 - Frequency Response
*
*
2020 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
20
IP51
Frequency Response comparison *
Loud Professional

CONFIGURATION
Operating ModeAmplier Channels
Nominal Directivity
90° x 90° conical
Maximum peak SPL Axial sensitivity (2.83V @ 1mt)
Nominal Impedance
Power Handling
In & Out Connections
Description
2 x Phoenix™ 4 Pole
connectors
Pin assignment:
1 LMF - MHF pos.
2 LMF - MHF neg.
3 Through
4 Through
Coaxial Full Range cone driver loaded in a closed enclosure
Linea Research & A+
92 dBLMF - MHF
8 Ω (Built - in passive network)LMF - MHF
Components
1 x 5in. (130 mm) Neodymium cone driver
1 x 0.7in. (20 mm) Neodymium Tweeter
LMF
MHF
LMF - MHF
LMF - MHF
50 / 200 W
(AES / Peak)
Continuos
109 dB
Peak
115 dB
DImensions
Height (Front)
Height (Rear)
Width (Front)
Width (Rear)
Depth
Weight
160 / 06.29
160 / 06.29
160 / 06.29
160 / 06.29
175 / 06.88
0.8 / 01.70
H,W,D, (mm / in.)
Weight (Kg / lbs)
LMF - MHF
LMF - MHF
PERFORMANCE
Frequency Range110 Hz - 22 kHz (90 Hz @ -10 dB)
Recommended HPF System ≥ 90 Hz, 24 dB/octave
Suggested System High Pass Filter ≥ 110 Hz, 24 dB/octave
LMF - MHF
Crossover point
90 Hz HPF 24 dB/octave
Shell Construction
Description & IP Rate
Multi-laminate
Birch-ply 9/12 mm
PCP (Polyurea Cabinet
Protection) - Optional
custom color
1.5 mm Powder coated
Metal Rigid Grille
Acoustically transparent
Cloth for discrete
appearance - Optional
custom color
IP 51
Supported Processing
Acoustic Load
3 Quadra5 - Technical specications
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.19
Powersoft Mezzo Series:
322A / 604A & 322AD / 604AD
Powersoft Quattrocanali Series:
1204 DSP & DSP+D
Suggested Ampliers
Cabinet per channel
1
1 to 4
Suggested
4
20 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
*A+ Standard Preset v_4.2 current release.
Quadra2 Quadra4 Quadra5
Quadra6
Loud Professional Quadra5 - Frequency Response
*
Frequency Response comparison
2020 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
20
*
IP51

CONFIGURATION
Operating ModeAmplier Channels
Nominal Directivity
90° x 90° conical
Maximum peak SPL Axial sensitivity (2.83V @ 1mt)
Nominal Impedance
Power Handling
In & Out Connections
Description
2 x Phoenix™ 4 Pole
connectors
Pin assignment:
1 LMF - MHF pos.
2 LMF - MHF neg.
3 Through
4 Through
Coaxial Full Range cone driver loaded in a closed enclosure
Linea Research & A+
92 dBLMF - MHF
8 Ω (Built - in passive network)LMF - MHF
Components
1 x 6.5in. (165 mm) Neodymium cone driver
1 x 0.7in. (20 mm) Neodymium Tweeter
LMF
MHF
LMF - MHF
LMF - MHF
50 / 200 W
(AES / Peak)
Continuos
109 dB
Peak
115 dB
DImensions
Height (Front)
Height (Rear)
Width (Front)
Width (Rear)
Depth
Weight
220 / 08.66
220 / 08.66
220 / 08.66
220 / 08.66
250 / 09.84
3.5 / 07.71
H,W,D, (mm / in.)
Weight (Kg / lbs)
LMF - MHF
LMF - MHF
PERFORMANCE
Frequency Range90 Hz - 22 kHz (75 Hz @ -10 dB)
Recommended HPF System ≥ 75 Hz, 24 dB/octave
Suggested System High Pass Filter ≥ 90 Hz, 24 dB/octave
LMF - MHF
Crossover point
75 Hz HPF 24 dB/octave
Shell Construction
Description & IP Rate
Multi-laminate
Birch-ply 9/12 mm
PCP (Polyurea Cabinet
Protection) - Optional
custom color
1.5 mm Powder coated
Metal Rigid Grille
Acoustically transparent
Cloth for discrete
appearance - Optional
custom color
IP 51
Supported Processing
Acoustic Load
3 Quadra6 - Technical specications
Loud Professional Loud Professional Quadra Series User Manual V_1.0 en / pag.20
Powersoft Mezzo Series:
322A / 604A & 322AD / 604AD
Powersoft Quattrocanali Series:
1204 DSP & DSP+D
Suggested Ampliers
Cabinet per channel
1
1 to 4
Suggested
4
20 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
*A+ Standard Preset v_4.2 current release.
Quadra2 Quadra4 Quadra5
Quadra6
Loud Professional Quadra6 - Frequency Response
*
Frequency Response comparison
2020 50 10k5k2k1k500200100 20k
Hz
dBSPL
20
15
10
5
0
-5
-10
-15
-20
-25
20
*
IP51
