Lowrance XOG User manual

LOWRANCE-
Pub. 988-0160-451
TIll
Mapping GPS and Multimedia Player
Operation Instructions

Copyright © 2007 Navico
All rights reserved.
No part of this manual may be copied, reproduced, republished, trans-
mitted or distributed for any purpose, without prior written consent of
Lowrance. Any unauthorized commercial distribution of this
manual is strictly prohibited.
Lowrance® is a registered trademark and XOGTM is a trademark of
Navico, Inc.
Points of Interest Data in this unit are by infoUSA, copyright ©2001-
2007, All Rights Reserved. infoUSA is a
trademark ofinfoUSA, Inc.
Mapping Database, copyright ©2007 NAVTEQ. NAVTEQ ON BOARD
is a
trademark of NA VTEQ.
Lowrance Electronics may find it necessary to change or end our poli-
cies,
regulations and special offers at any time. We reserve the right to
do so
without notice. All features and specifications subject to change
without notice. All screens in this manual are simulated.
For free owner's manuals and the most current information on this
product, its operation and accessories, visit our web site:
www.lowrance.com
Lowrance Electronics
12000 E. Skelly Dr.
Tulsa, OK USA 74128-2486
Printed in USA.

WARNING!
ACAREFUL NAVIGATOR
NEVER RELIES ON ONLY ONE METHOD
TO OBTAIN
POSITION INFORMATION.
CAUTION
When showing turn-by-turn navigation data, a GPS unit will show the
shortest, most direct route
to the destination. There are times when it may
give directions, such as aV-turn, that may be prohibited in some loca-
tions. While navigating, adriver is responsible for noting all traffic signs
and obeying all local traffic laws. When following turn-by-turn directions,
adriver
must take advantage of all available navigation tools, and must
visually check to make sure aclear, safe path to the next destination is
available.
WARNING:
Do not attempt to configure, adjust or enter information into
this unit while driving. Driver assumes all responsibility for
using safe and prudent driving and navigation methods. When
a GPS unit is used in a vehicle, the vehicle operator is solely
responsible for operating the vehicle in a safe manner. Vehicle
operators must maintain full surveillance of all pertinent driv-
ing conditions at all times. An accident or collision resulting in
damage to property, personal injury or death could occur if the
operator of a GPS-equipped vehicle fails to pay full attention
to travel conditions and vehicle operation while the vehicle is
in motion. Do not attempt to configure, adjust or enter infor-
mation into your GPS unit while driving.
3

External Connections
Section 1 includes information on external connections.
SO card slot
Reset button
Headphone
socket
USB-to-PC/External
power socket
Left side of unit Riaht side of unit
SD card slot: To insert an SD card, hold it so the label faces forward and
slide it into the slot, pushing with the tip of the finger until the card
locks in place. To remove the card, again use your finger tip to push on
the card, releasing the catch and ejecting the card. When Music Mode
or the Pictures slideshow is selected, the unit will automatically search
the SD card for the related files.
4

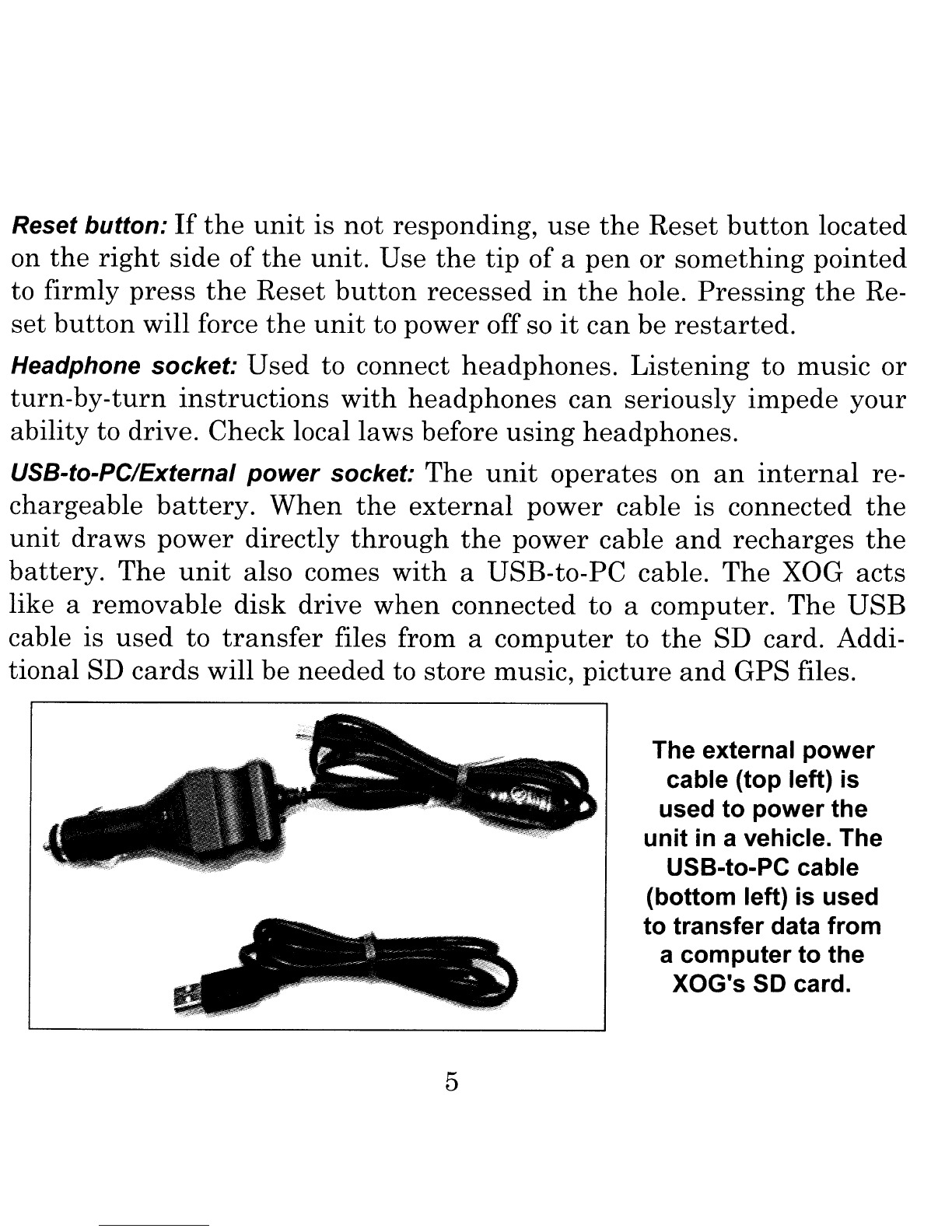

Reset button: If the unit is not responding, use the Reset button located
on
the right side of the unit. Use the tip of a pen or something pointed
to firmly press the Reset button recessed in the hole. Pressing the Re-
set button will force the unit to power off so it can be restarted.
Headphone socket: Used to connect headphones. Listening to music or
turn-by-turn instructions with headphones can seriously impede your
ability to drive. Check local laws before using headphones.
USB-to-PC/External power socket: The unit operates on an internal re-
chargeable
battery. When the external power cable is connected the
unit draws power directly through the power cable and recharges the
battery. The unit also comes with aUSB-to-PC cable. The XOG acts
like aremovable disk drive when connected to acomputer. The USB
cable is used to transfer files from a computer to the SD card. Addi-
tional SD
cards will be needed to store music, picture and GPS files.
The external power
cable (top left) is
used to power the
unit in avehicle. The
USB-to-PC cable
(bottom left) is used
to transfer data from
acomputer to the
XOG's SO card.
5

Portable Battery Charger
With afull charge, the internal battery will power the unit for approximately
2.5 hours.
To extend batterytime, try turning down the backlight. You can also
save power by turning off
the satellite receiver from the Satellites screen. See
the topic Enable-Disable CPS on page 34.
An external power pack can be used to recharge the unit. There are two main
types ofexternal power packs. One runs on replaceable AA batteries. The other
contains abuilt-in rechargeable battery. The external power pack must have a
USB connection and output 5volts. In the case of replaceable AA types, the
power pack must hold 4 AA batteries.
6

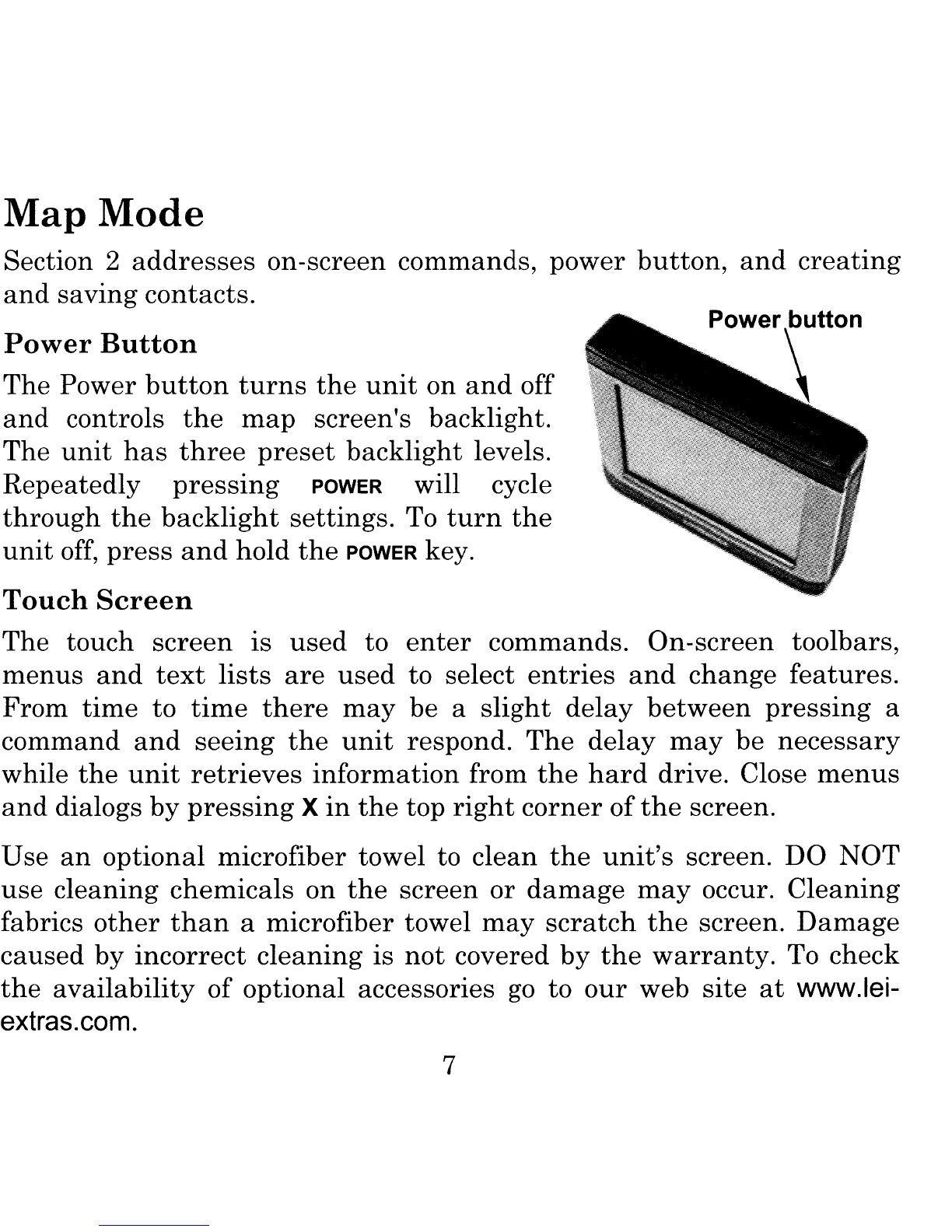

Map Mode
Section 2 addresses on-screen commands, power button, and creating
and saving contacts.
Power Button
The Power button turns the unit on and off
and controls the map screen's backlight.
The unit has three preset backlight levels.
Repeatedly
pressing POWER will cycle
through the backlight settings. To turn the
unit off, press and hold the POWER key.
Touch Screen
The touch screen is used to enter commands. On-screen toolbars,
menus and text lists are used to select entries and change features.
From time to time there may be a slight delay between pressing a
command
and seeing the unit respond. The delay may be necessary
while the unit retrieves information from the hard drive. Close menus
and dialogs by pressing X in the top right corner of the screen.
Use
an optional microfiber towel to clean the unit's screen. DO NOT
use cleaning chemicals on the screen or damage may occur. Cleaning
fabrics other than amicrofiber towel may scratch the screen. Damage
caused by incorrect cleaning is not covered by the warranty. To check
the availability of optional accessories go to our web site at www.lei-
extras.com.
7

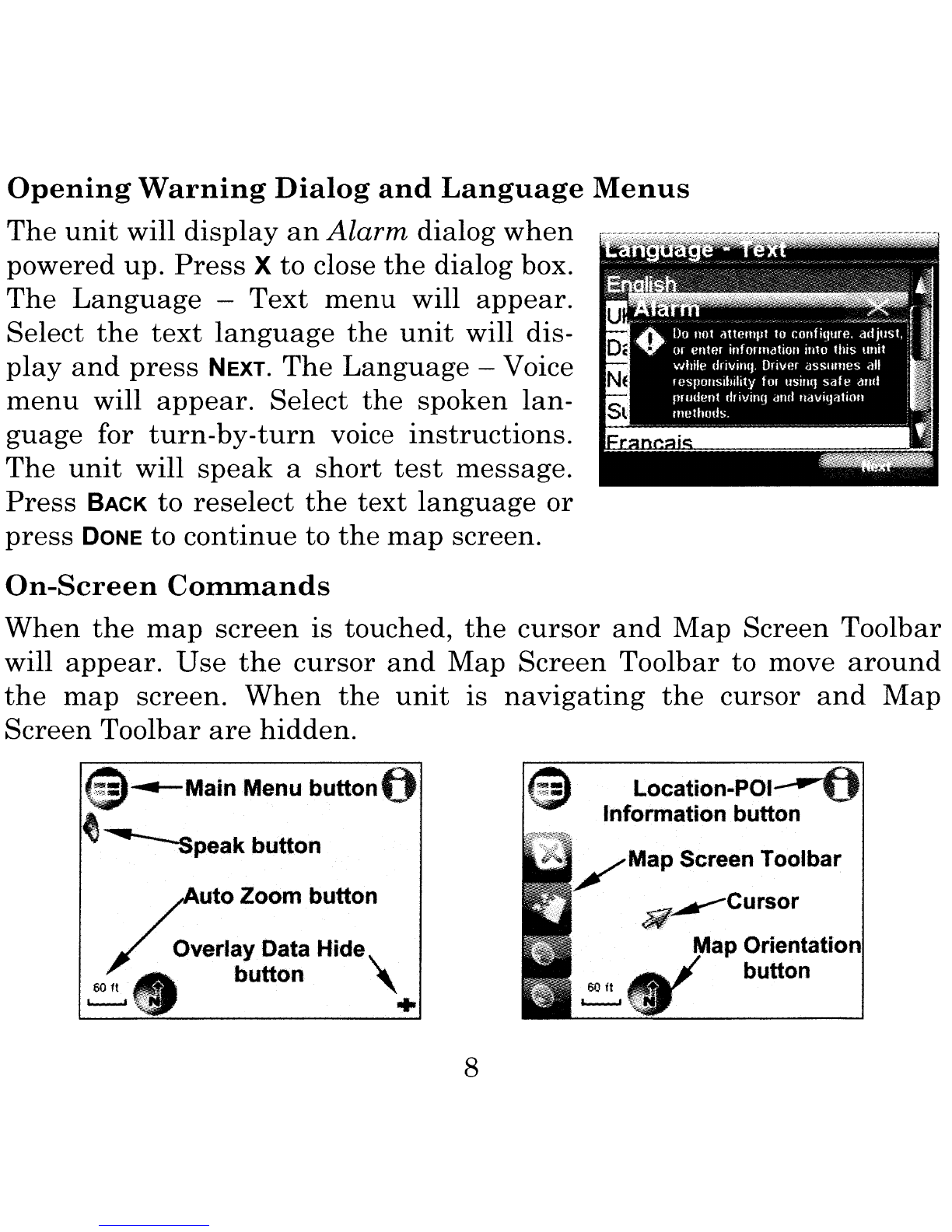

Opening Warning Dialog and Language Menus
The unit will display an Alarm dialog when
powered up. Press X to close the dialog box.
The Language - Text menu will appear.
Select the text language the unit will dis-
play and press NEXT. The Language -Voice
menu will appear. Select the spoken lan-
guage for turn-by-turn voice instructions.
The unit will speak a short test message.
Press BACK to reselect the text language or
press DONE to continue to the map screen.
On-Screen Commands
When the map screen is touched, the cursor and Map Screen Toolbar
will
appear. Use the cursor and Map Screen Toolbar to move around
the map screen. When the unit is navigating the cursor and Map
Screen Toolbar are hidden.
~= "Main Menu button {}
~~peak button
/uto Zoom button
/~ Overlay Data Hide\
button
60ft
'---'+
8
Location.POI~
Information button .
/Ma
pScreen Toolbar
JiI'~cursor
Map Orientation
button

Main Menu button: Map, Music, Find and Options are all available from
the Main Menu.
Location-POI Information button: Brings up the Location Information or
POI Information screen which is explained under the topic "Creating
and Saving Contacts. "
Speak button: Push to repeat the current navigation instruction or to
bring up the on-screen volume control slider.
Auto Zoom button: As the map screen moves to track your position, Auto
Zoom will enlarge the map based on your speed and the distance to the
next turn. If you prefer to manually control the zoom level, turn the
Auto Zoom feature off by pressing the AUTO ZOOM button. Turn the fea-
ture back on by touching the button again.
Map Screen Toolbar: Controls the map screen.
Cursor: Use to highlight map POI (Point of Interest) symbols.
Overlay Data Hide button: Clears Overlay Data Boxes from the screen.
Press it again to bring them back.
Map Orientation button: Toggles between three different map views. By
default,
the unit displays the map in 3D view.
3D View
9
North Up Track Up

3D View displays the map from a position above, and slightly behind,
the black arrow icon which represents you on-screen. North Up always
shows the map with North at the top of the screen. Track Up rotates
the map so that the direction you are traveling is always at the top of
the screen.
Creating and Saving Contacts
Use the POI Information screen to view information on POI symbols
and save contacts in the Address Book. Touch the map screen and the
cursor will appear. Use the cursor to select and highlight a POI symbol.
Press the LOCATION-POI INFORMATION button. The POI Information screen
will appear. To save the POI in the Address Book select ADD TO ADDRESS-
BOOK in the POI Information screen.
E19th P
N35°08.205. 4-
U95°49.150·
Distance: 1.59 mi
Direction: SE
Other POts
Airports
The cursor (left) has been used to highlight a POI symbol. When the
Location-POI Information button is selected the POI Information
screen (right) will appear.
10

When ADD TO ADDRESSBOOK is selected, the Edit Contact screen will ap-
pear with the option to Go To the selected location or add an on-screen
symbol by pressing the SYMBOL button.
The Edit Contact screen (left) shows a saved contact. The Find By
Name screen (right) is the screen for saved contacts in the unit's Ad-
dress Book.
Saving Symbols On-screen
To save asymbol on the map, place the cursor where you want the sym-
bol to
appear on-screen. Press the LOCATION-POI INFORMATION button. In
the Location Information screen press ADD TO ADDRESSBOOK. The location
will be
added to the Address Book and the Edit Contact screen will ap-
pear. Press the SYMBOL button in the Edit Contact screen. The Symbol
Window will appear. Highlight and select asymbol. Close the screen.
The Edit Contact screen will appear. The symbol will appear in a small
window in the bottom right of the Edit Contact screen. When the Edit
Contact screen is closed the symbol will appear on-screen.
11

@I ~
ff!i i1
Tf t
e•(!) a
~
•
lfl!]
'f
+A
.&.
Pre
~
U
AU
•A
~
;~
,;)< Ii!
~
'"
9/27/07 11:13:20 AM
N)6°08.971'
U95°50.579'
Distance: 0.00 mi
Direction: E
In the Edit Contact screen (left) press the Symbol button to bring up
the Symbol Window screen, shown at right.
The symbol will remain on-screen until it
is deleted or changed. To delete or change
asymbol, go to the Address Book. In the
Address Book highlight and select the con-
tact to be edited. When the Address Book
entry is selected the Contact Information
screen will appear. The Contact Informa-
tion screen has four buttons on the right
side: Go To, Find On Map, Edit and Delete.
Go To: Makes the unit navigate to the Address Book entry.
Find On Map: Displays the location on the map screen.
Edit: Changes information about an Address Book entry.
Delete: Deletes an icon or Address Book entry.
12

To change information about a saved contact touch the entry header
in the Edit Contact screen and a keyboard will appear. The Name
header was selected in the Edit Contact screen, at right, and a key-
board (left) appeared.
To manually change the latitude or longitude, press either the Lati-
tude or Longitude header and a numbers keyboard will appear.
13

Music Mode
Use SD cards to store music and picture files. When Music Mode is se-
lected the unit automatically searches the SD card for the specified
media files. Insert an empty SD card into the unit and use the USB-to-
PC cable to connect the unit to a computer. Once connected, the unit
acts like a removable disk.
The Music screen has a central area for visualization effects with a set
of play control buttons along the right side and bottom of the screen.
When a song is playing the name of the song will appear at the top of
the screen along with the song's length and quality in kbps.
Now Playing
box
Visualization
effects screen
Music screen
14
Find Music
-Repeat

Play control buttons
Previous: Skips to previous song.
Play/Pause: Starts asong or play list. If a song is playing, pressing this
button will pause the song.
Next: Skips to next song.
Stop: Stops the song.
Volume slider: Adjusts volume.
Song Position slider: Indicates the playback position of asong. Quickly
skip to
any point in a song by pressing and dragging the blue button on
the Song Position slider.
Now Playing box: Displays the name, position and quality of the song.
Touch
the screen inside the Now Playing box to open the Browse Music
Files screen.
Find Music: Opens the Audio Search screen. To find aspecific song or
play list by its filename, press the FIND MUSIC button and touch any-
15

where inside the Name Filter box to open a keyboard. Enter all or part
of a song's filename and press DONE. The Audio Search screen will pro-
vide a list of all audio files that match the text entered in the Name
Filter field.
Visualization Effects: Takes up the center of the Music Mode display and
provides either a Waveform Analyzer or Spectrum Analyzer effect. To
switch between the available visualization effects press the screen in-
side the Visualization Area.
Shuffle: When this feature is on, at the end of a song, the unit will ran-
domly choose another song to play next.
Repeat: When this feature is on, at the end of a song, the unit will start
playing the play list again from the beginning.
Equalizer: Use this feature to customize audio levels.
Browse Music Files screen
Touch inside the Now Playing box to launch the Browse Music Files
screen. The Browse Music Files screen shows the location of any music
file being played. Press PLAY ALL to play all of the music files in ase-
lected folder.
16

Pictures, Gauge and Options
The unit can display .gif and .jpg images stored on an SD card. The
unit will automatically search the SD card for any stored images. Se-
lect PICTURES located
at the bottom left of the Main Menu screen. The
picture toolbar controls are:
Close Slideshow returns to the Main Menu.
Zoom In enlarges the image.
Play/Pause cycles through the images.
Next Image
Previous Image
The toolbar can be hidden using the icon located in the bottom right
corner of the pictures screen.
Gauge Page
The Gauge Page shows the estimated time of arrival, time to destina-
tion, distance to destination, average speed and max speed. To view the
Gauge Page select GAUGE PAGE located on the bottom right of the Main
Menu screen. To return to the Main Menu press the MENU button in the
top left corner of the screen.
17

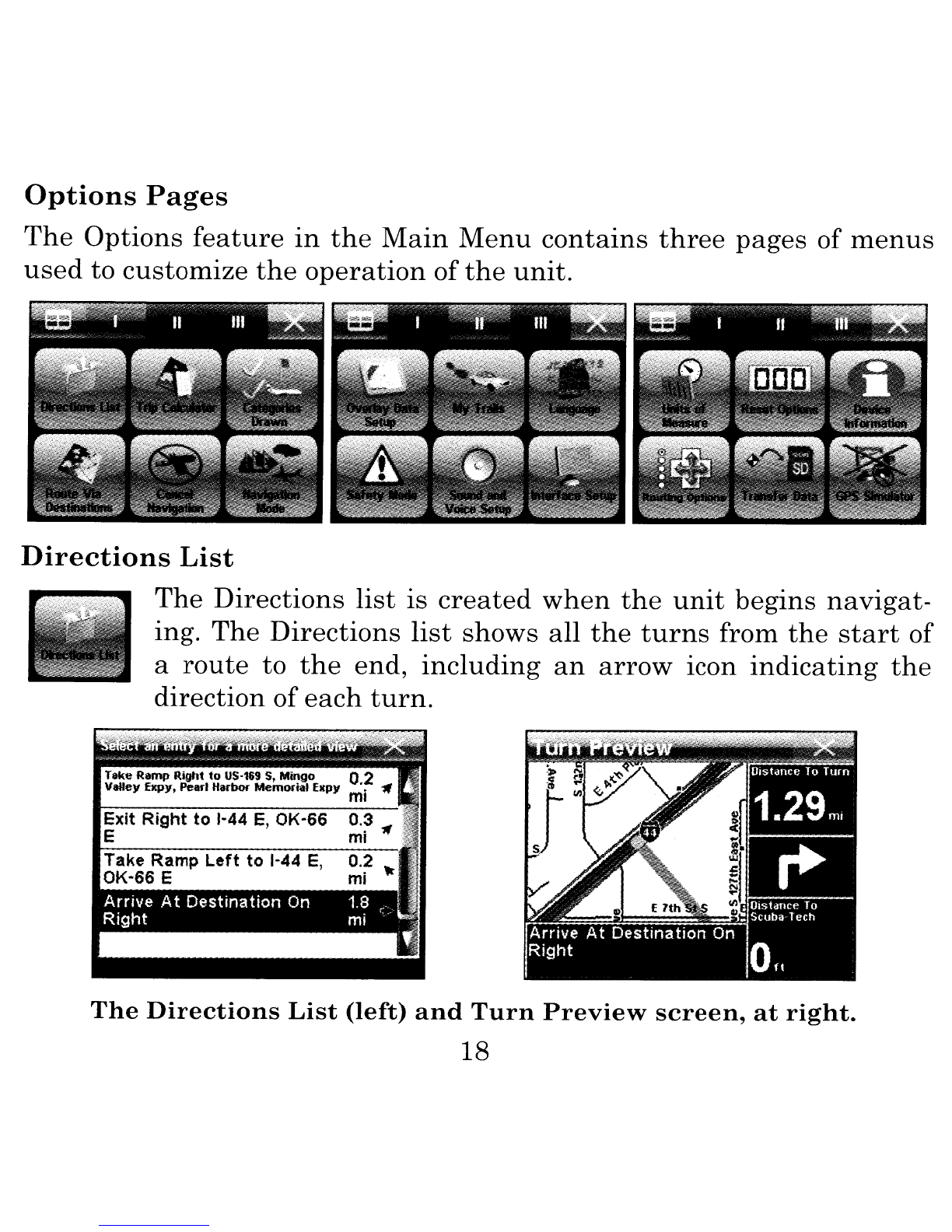

Options Pages
The Options feature in the Main Menu contains three pages of menus
used to customize the operation of the unit.
Directions List
The Directions list is created when the unit begins navigat-
ing. The Directions list shows all the turns from the start of
a
route to the end, including an arrow icon indicating the
direction of each turn.
Take Ramp Right to US·1S9 S, Mingo 0 2
Valley fllpy, Pearl Harbor Memmfal Expy ,.oj 11
Exit Right to 1-44 E, OK -66
E
Take Ramp
Left to 1-44 E,
OK-66 E
The Directions List (left) and Turn Preview screen, at right.
18

Use the blue slider bar in the Directions screen to scroll through the
list. The Turn Preview screen will appear when a turn is selected from
the Directions list.
Trip Calculator
Trip Calculator displays infor-
mation about aroute, including
current speed, average speed,
max speed, trip time and trip distance.
Pressing RESET TRIP will reset all on-screen
values to zero. The Trip Calculator will
only
track time spent and distance traveled
when you are moving faster than what the
Threshold level is set at.
Use the arrow buttons to the left and right of the Threshold level to
adjust its value. The Trip Active checkbox toggles the Trip Calculator
feature on and off.
Categories Drawn
Use Categories Drawn to select how much mapping detail to
display on the map screen. Map detail can include contacts,
points of interest, cities, highways, etc. Use the Categories
Drawn command to selectively turn any of these items on or off.
19

v'Symbois
Distances
>I Gas/Convenience
Use the Map Categories Drawn screen to customize the map. In this
example the category My Trails and subcategory Distances are off. The
right image shows what Map Categories Drawn features have been
activated.
The Map Categories Drawn menu is divided into two columns, Category
and Subcategory. Press and highlight any item to turn it on or off. If a
category is turned off none of its subcategories will appear.
Route Via Destinations
Use Route Via Destinations to access the Routes menu where
routes are stored and managed. To create a route the unit
must know its position.
Once
the unit has locked on, select OPTIONS from the Main Menu. Select
ROUTE VIA DESTINATIONS and the Routes menu will appear. Select NEW
ROUTE and the Edit Route menu will appear.
20
